Fender Design Challenge

Objective:

In this project we are going to design the fender mountings such as drip,pillar,bumper,sill areas as per manufacturing requirements using nxcad

Fender Design

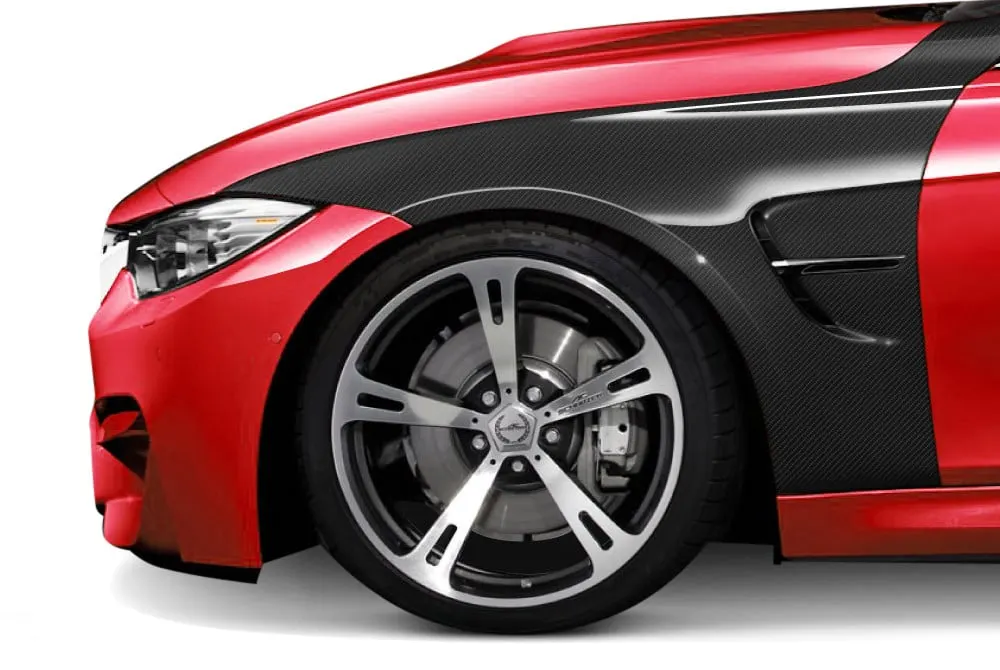

• Fender is a part of a vehicle which frames a wheel and prevents from the sticky and hard substance such as mud, sand, rock, etc. Sticky materials such as mud may adhere to the smooth outer tire surface, while smooth loose objects such as stones can become temporarily embedded in the tread grooves as the tire rolls over the ground.
• These materials can be ejected from the surface of the tire at high velocity as the tire imparts kinetic energy to the attached objects. For a vehicle moving forward, the top of the tire is rotating upward and forward and can throw objects into the air at other vehicles or pedestrians in front of the vehicle.
• Fenders are typically rigid and can be damaged by contact with the road surface. Instead, flexible mud flaps are used close to the ground where contact may be possible.

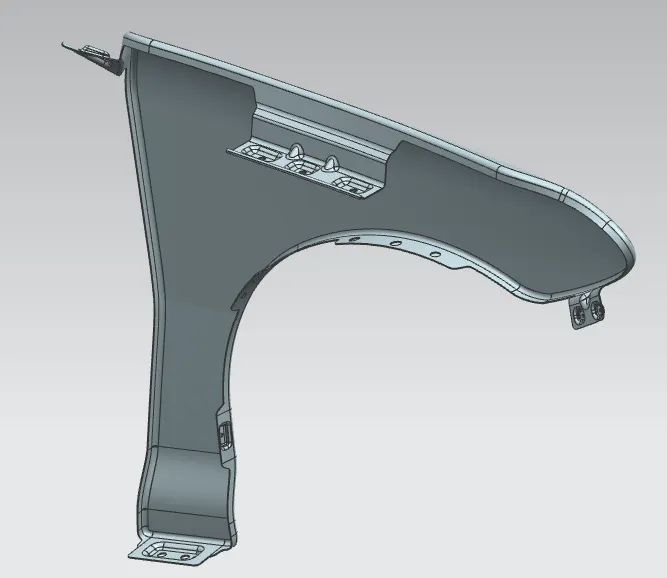

• I have properly shown the Drip area, Sillmount area, A-pillar mount region and Bumper mount region.

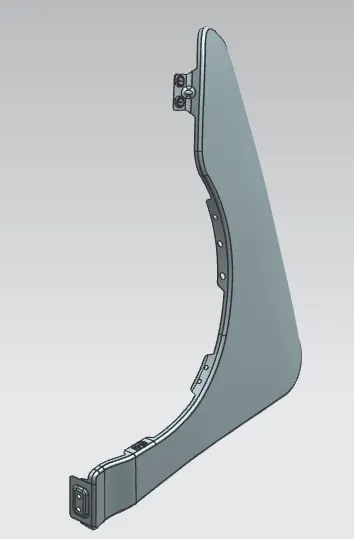

Mounting of fender

• Drip mount
• Sill mount
• Bumper mount
• Pillar mount
• Baffle mount

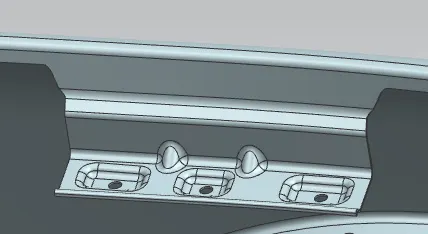

Drip area:

• Drip area mounting is the important part in fender. The mounting is attached to the important part of car.
• Fender drop area is mounted to weldnuts to the engine compartment .
•  min of 150mm is keep from the front side and distance 300mm kept front the rear side.
• The total length of drip area should be less than 40mm. This is to avoid the spring back during manufacturing. The edge of the missing skills atleast 10mm away from the nearby component in the engine.
• dart is provided at the end to increase the strength of mounting and to provide structural integrity

Bumper area:

this is the region were fender will be mounted on to the bumper with the help of bolts

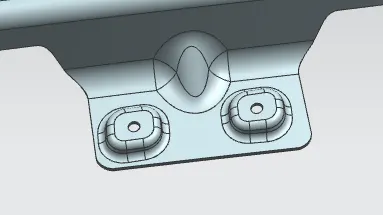

A-pillar area:

The A-pillar area mounting friends upon A-mounting of a car. The mounting can also be provided with ribs to strengthen the part. This mounting is critical in design as it has to be mounted on A-Pillar properly.

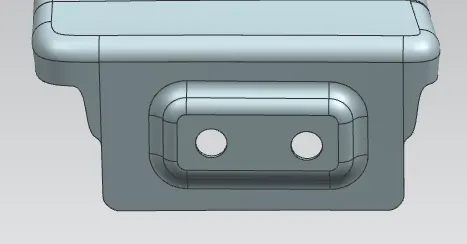

Sill area:

Sill area mounting is also on important mounting part. This mounting point is on the bottom of the fender. The mounting should be created such that the fender is firmly attached to the sill.Thus the sill mounting position is aligned with holes and emboss.

Baffle area:

• In this section holes are created which allow the baffle to be fitted with good tolerances
• Baffle mounting are clip type of mounting on the inner side of the fender arch over the tyre.
• It protect the car engine components and pedestrians from causing injuries. They are mounted on the fender using a special type of locking clip which are made up of plastics.

Conclusion:

Thus I have designed the fender mountings of drip,bumper,pillar and splash cover Mount using nxcad
