Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

1.Advanced Sheet Metal Odd Shaped Enclosure-SUSAN

 2.OBJECTIVE:  The main objective is to create sheet metal using SIMENS NXSheet metal application

3.INTRODUCTION: NX CAD is one of the modelling software .it was mainly used in design of sheet metal parts used in machinery,automotive,aerospace etc

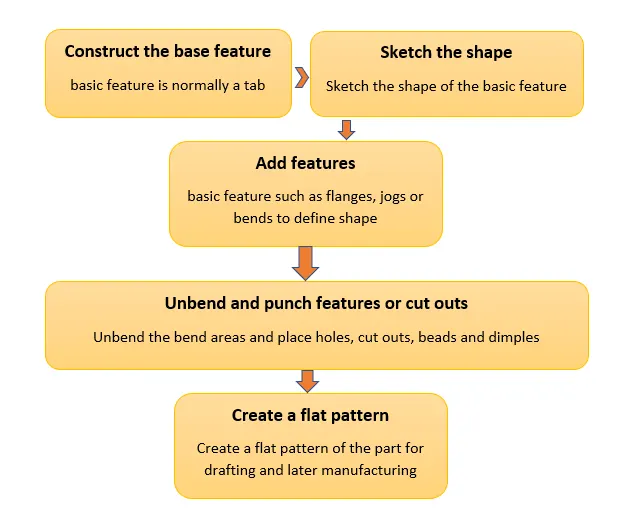

4.DESIGN METHOD:

4.DESIGN METHOD:

Description

TAB: create a base feature by extruding a sketch along the vector by a thickness value

BEND: create a bend to sheet metal at angle to form desired shape

FLANGE: adds a flat flange at an angle to a planar face and add bend between the two

HOLES: add a hole to the body

BEADS: lifts the material along the contour of the sketch

DIMPLE: lifts the area of the model inside the sketch

Sheet metal from solid:builds a sheet metal model that takes its shape from a collection of planar surfaces

Extrude: create a feauture by extruding the section along the vector

Flat pattern: create a flat pattern from a formed sheet metal part

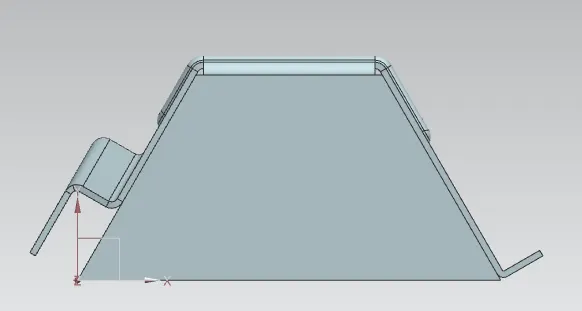

front view

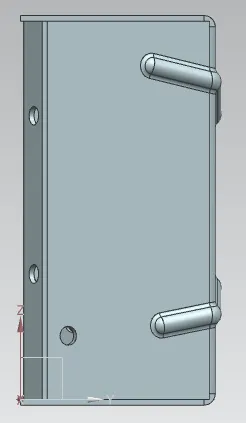

side view

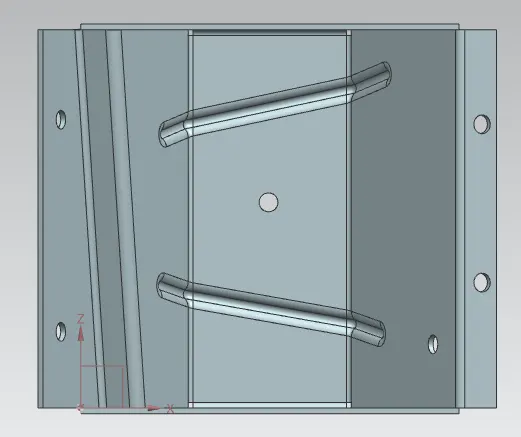

top view

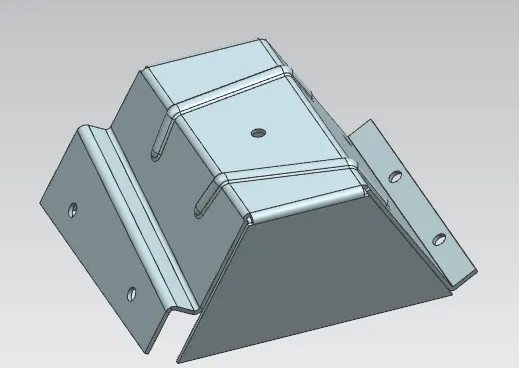

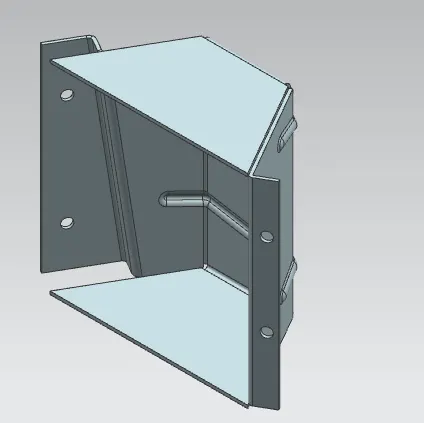

isometric view

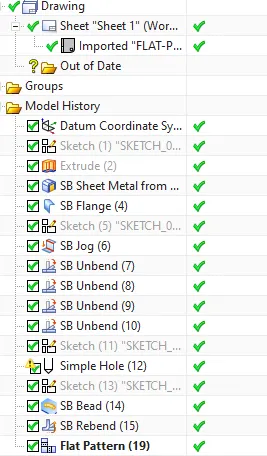

part tree

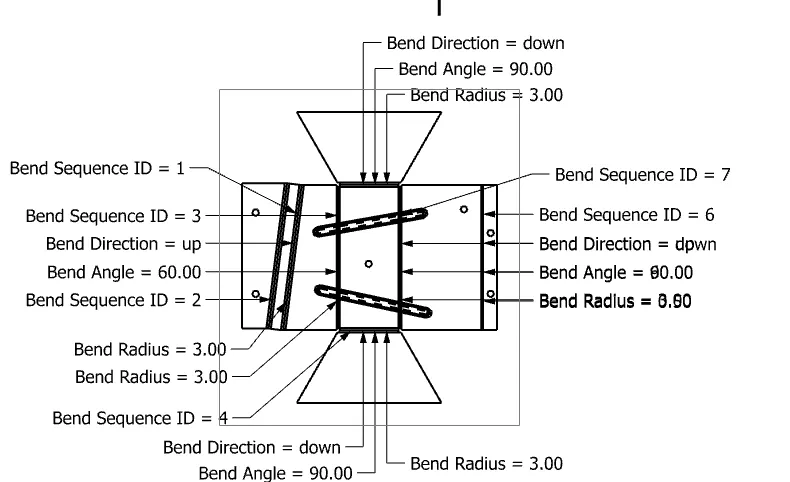

draft image

conclusion: we learnt step by step procedure to design a Odd Shaped Enclosure using SIMENS NX SHEET METAL application
