Design of Front Fender
Aim:
Design a front fender from the given skin data and the master section provided with Drip mounting, A-pillar, Sill, Bumper, C mounting and Splash mountings.
Introduction:
Fender’s primary purpose is to prevent sand, mud, rocks, liquids, and other road spray from being thrown into the air by the rotating tire. Fenders are typically rigid and can be damaged by contact with the road surface.
Front Fender
Types of the fenders:
- Full Bumper fender: This type of fender is made from single sheet metal.
- Half Bumper fender: This type of fender's half part is made from sheet metal and half part is made from plastic.
Fender Skin Data:
There are 5 mounting points in a fender.
- Drip mounting
- A-Pillar mounting
- Sill mounting
- Cowl mounting
- Bumper mounting

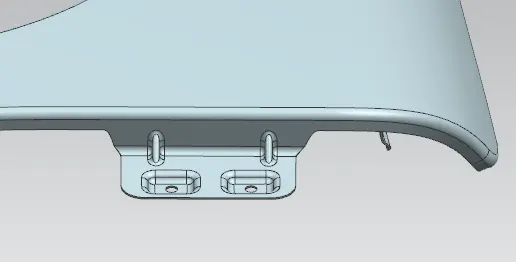

Drip Mounting:
It is used to connect the fender to the engine compartment with the help of a brackets between them.

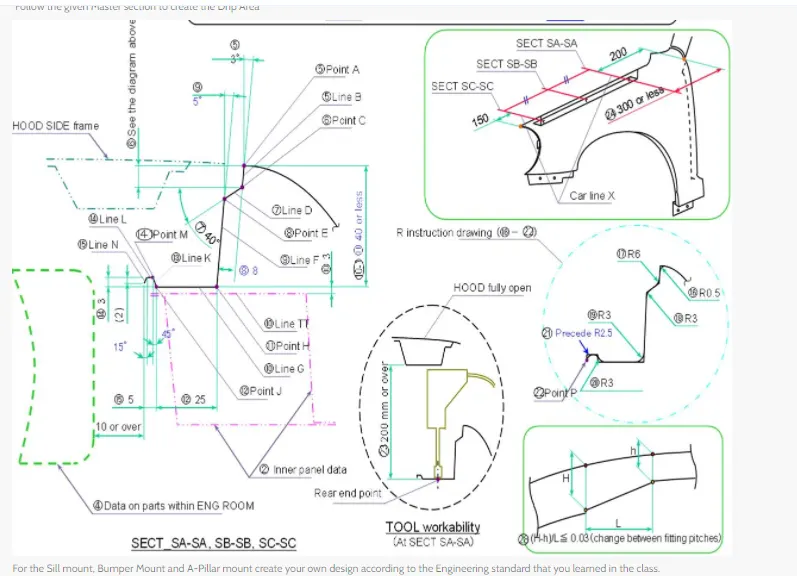

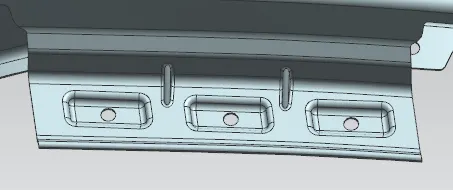

Master section for drip area:

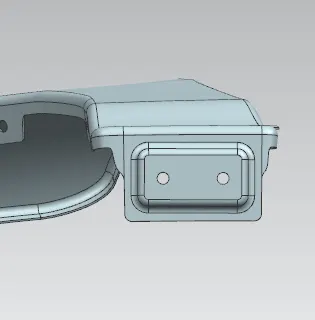

A-Pillar mounting:
A – Pillar region is mounted to the A-Pillar frame of the chassis so that it is rigidly attached to the body of the car. It connects the fender to the front windshield frame.
Sill mounting:
It is used to join the rear bottom of fender to the vehicle frame.
Cowl mounting:
In cowl mounting area, the baffle a plastic material gets attached with the help of clips which hold the baffle with the fender along with the wheel arch.

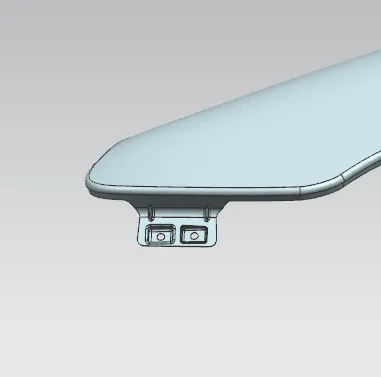

Bumper mounting:
It is used to join the bumper with fender.

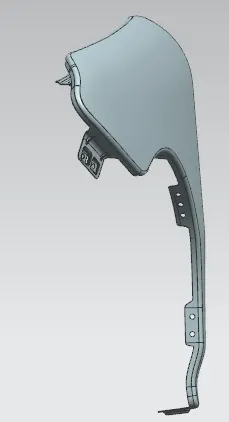

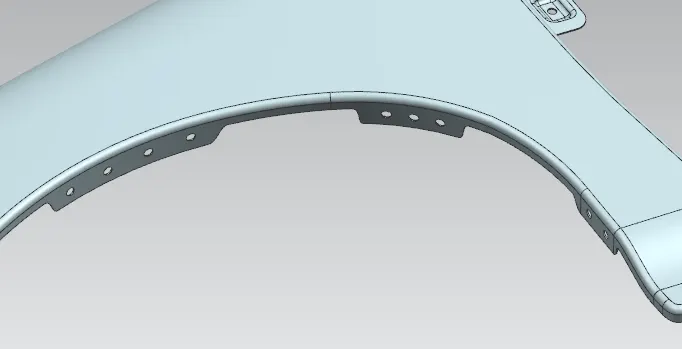

Different views of front fender with its mountings:

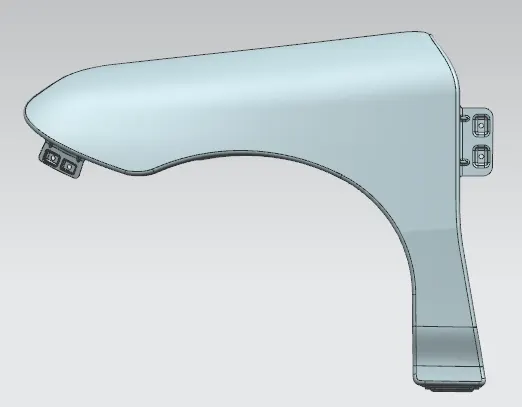

Front view:

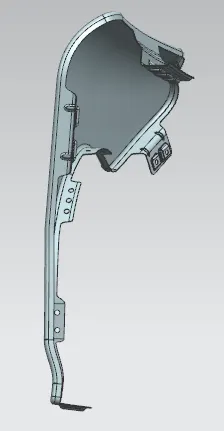

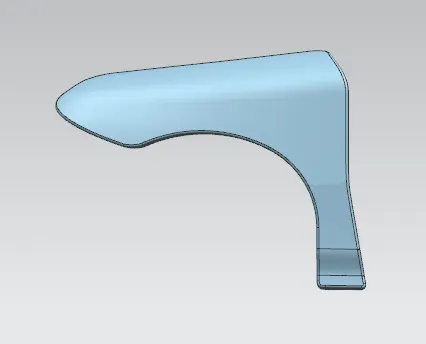

Side view:

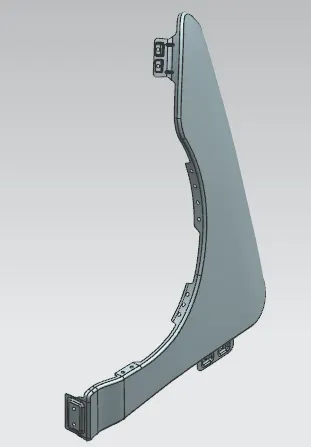

Isometric view:

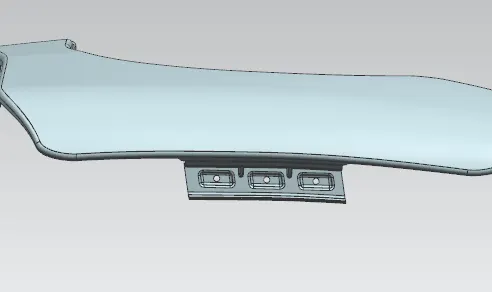

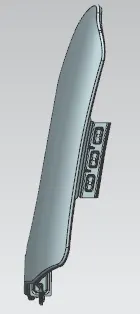

Top view:
CONCLUSION
Thus, the fender was designed for the vehicle as per the requirement and all the mountings were placed at appropriate positions.
