Fender Design

FENDER DESIGN

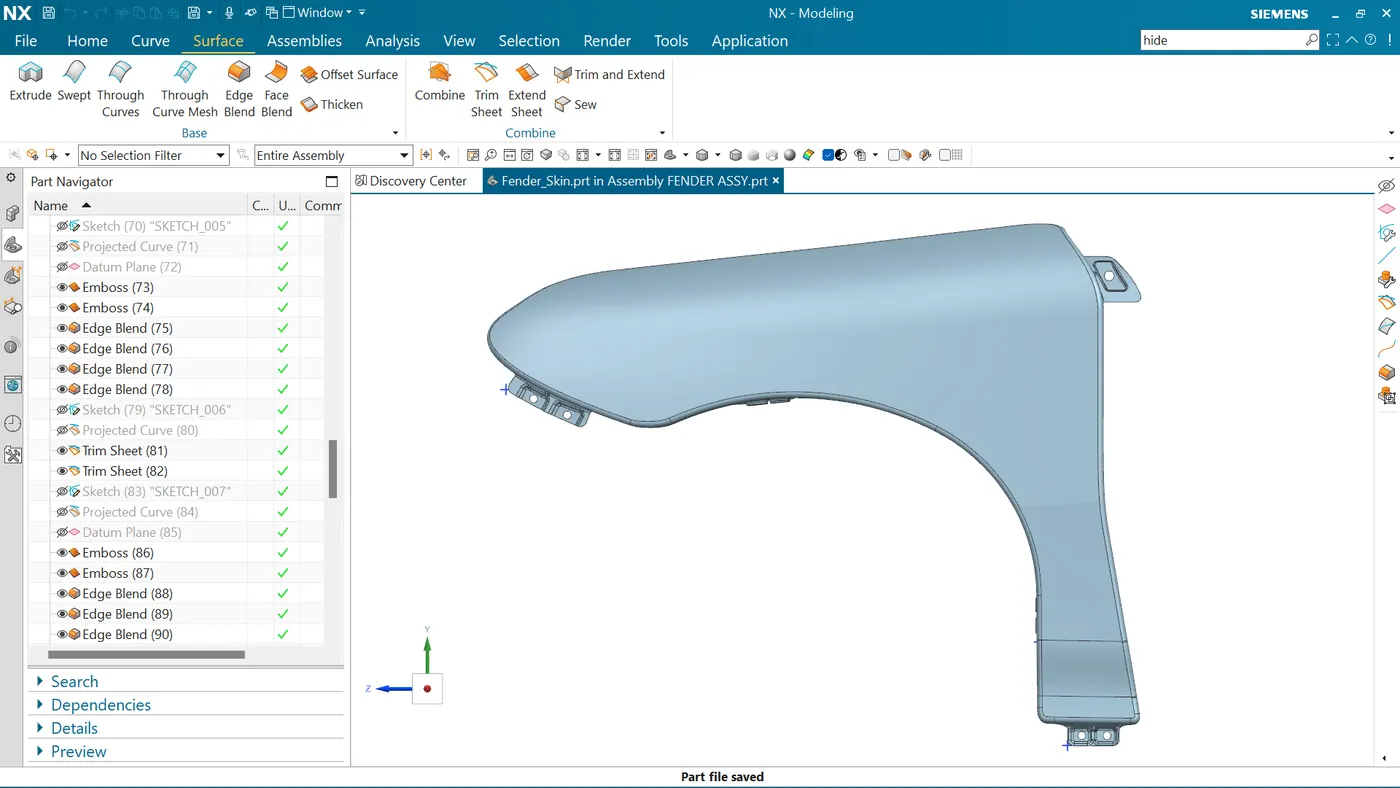

• At the very first stage offsetted the curve with 5mm and created mounting areas for fixing the fender with car body
• The mount area given at sill , a pillar , bumper , baffle areas
• Then focused on to create the drip area which is the crusual area
• The only thing that should follow is 200 mm away from the a pillar side becuase there will be the wiper linkages
• The drip area should not touch with that
• Created the drip area by using the tool law extension and followed the dimensions that are given

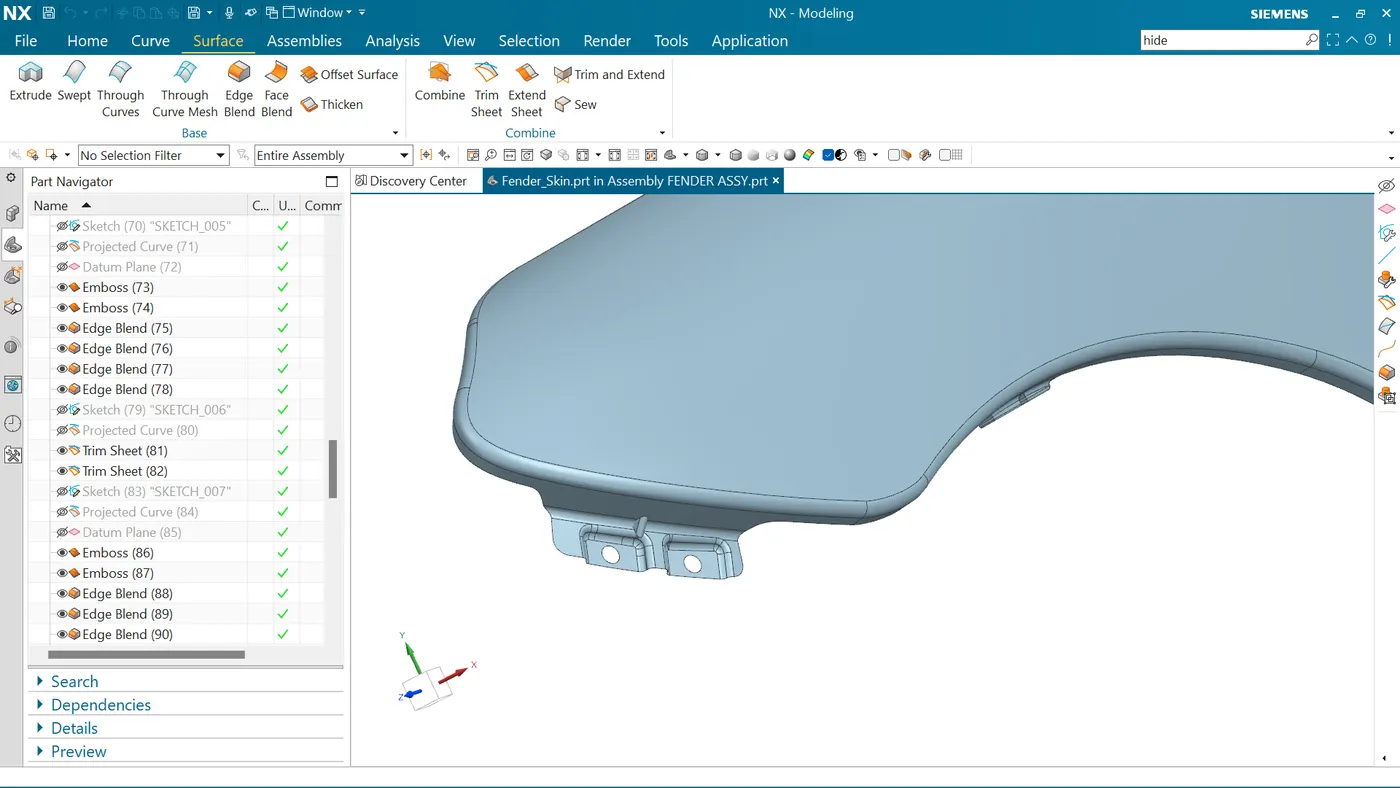

• Given embosses for better stregth and screw holes to fix with the engine compartment area
• Provided embosses and screw holes for all the mounting areas .
