Fender Design
AIM
To Design a front fender from the given skin data and the master section provided with Drip mounting, A-pillar, Sill, Bumper and Baffle (splash) Mounts.
FENDER
Fender is a primary purpose is to prevent sand, mud, rocks, liqiuds and other road spray for being ground into the air by rotating tyre.
TYPES OF FENDER
1. Full Bumper
2. Half Bumper
FULL BUMPER TYPE
- It is a traditional type of fender where more material consumption is observed. This type is use in the old designs of automobiles where it increases the overall weight and reduce performance.
HALF BUMPER TYPE
- It is a modern design where less material consumption is observed. so, productivity increases by reducing the size of blank and providing more performance and also low maintenance compared to full bumper type.
DESIGN PROCEDURE OF FENDER
- Designing of fender the angle gap between hood and fender 3 degree minimim.
- The Fender is mounted car body by fasteners.
- Providing Emboss to add strength and also providing Dart for increasing the strength and ensure in spring back effect.
- Mounting is obtained in a flat surface. Because, of proper assembly.
- To design the Five mounting of the fender.
- In Baffle mounting no need Emboss. Because, It comes plastic part to insert the push pin. It will Ensure in Noise Voilation Harness (NVH).
- Insert the INDICATOR. It help to indiacates the direction.
MOUNTING
- A Pillar mounting
- Fender Drip area
- Sill Mounting
- Bumper mounting
- Baffle Mounting

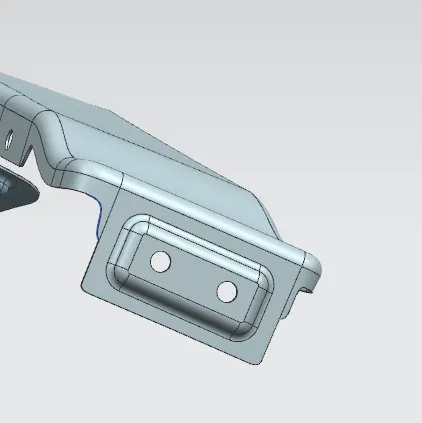

A PILLAR MOUNTING

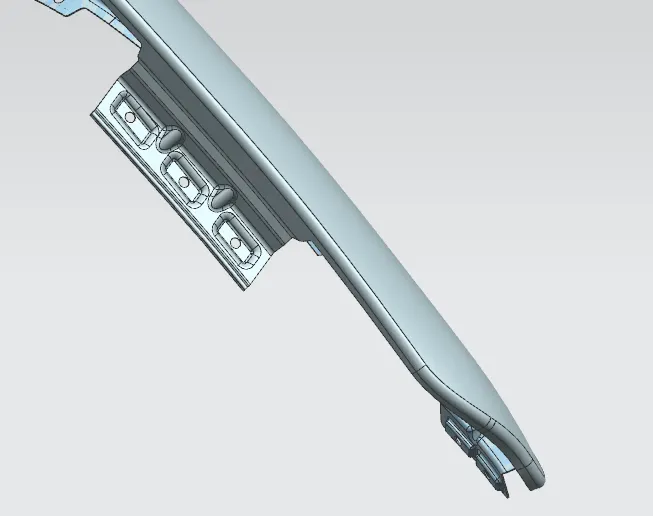

FENDER DRIP AREA

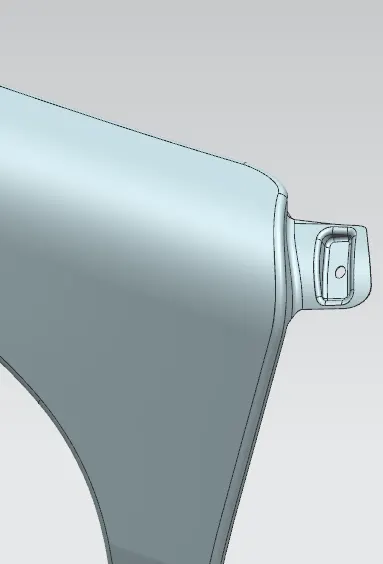

SILL MOUNTING

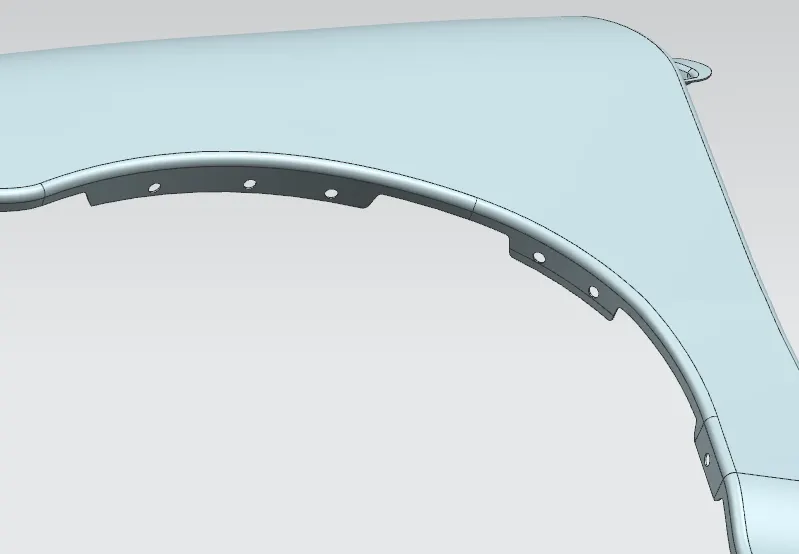

BAFFLE MOUNTING

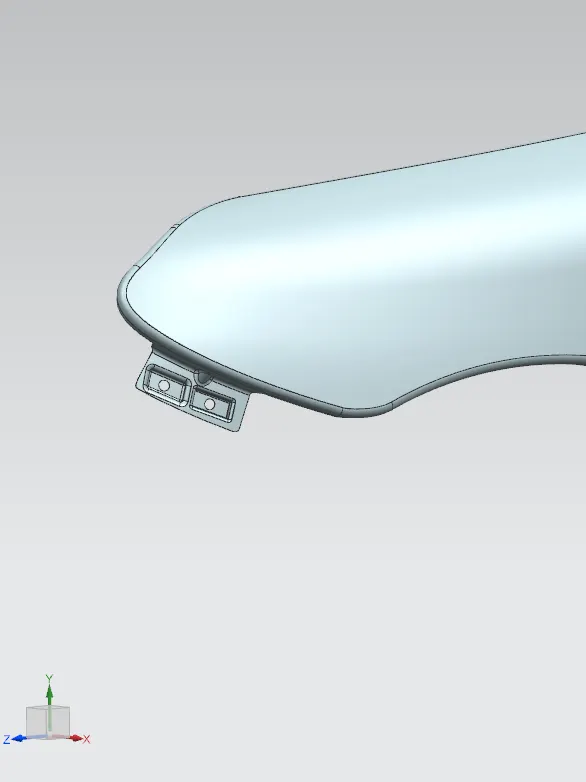

BUMPER MOUNTING

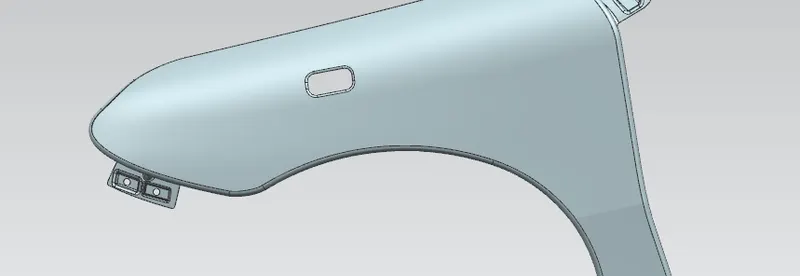

INDICATOR
CONCLUSION
Thus, the Design of a front fender from the given skin data and the master section provided with Drip mounting, A-pillar, Sill, Bumper and Baffle (splash) Mounts to be developed. And also I have created the indicator above the baflle mounting area.
