Fender Design

Aim- DESIGN OF CAR FENDER

Description- A fender is the part of an automobile, motorcycle or other vehicle body that frames a wheel well (the fender underside). Its primary purpose is to prevent sand, mud, rocks, liquids, and other road sprays from being thrown into the air by the rotating tire. Fenders are typically rigid and can be damaged by contact with the road surface.

Sticky materials, such as mud, may adhere to the smooth outer tire surface, while soft loose objects, such as stones, can become temporarily embedded in the tread grooves as the tire rolls over the ground. These materials can be ejected from the tire's surface at high velocity as the tire imparts kinetic energy to the attached objects. For a vehicle moving forward, the top of the tire rotates upward and forward and can throw objects into the air at other vehicles or pedestrians in front of the vehicle.

*TYPES OF FENDER

• Full Bumper type
• Half Bumper type

Procedure- Steps to design a fender.

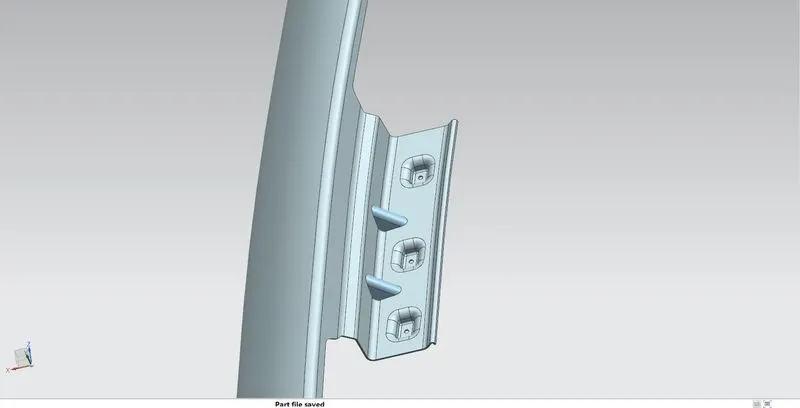

Step 1- Create the Drip area

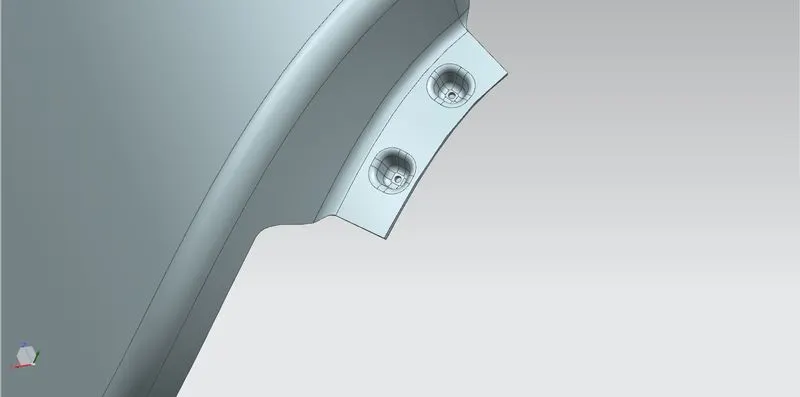

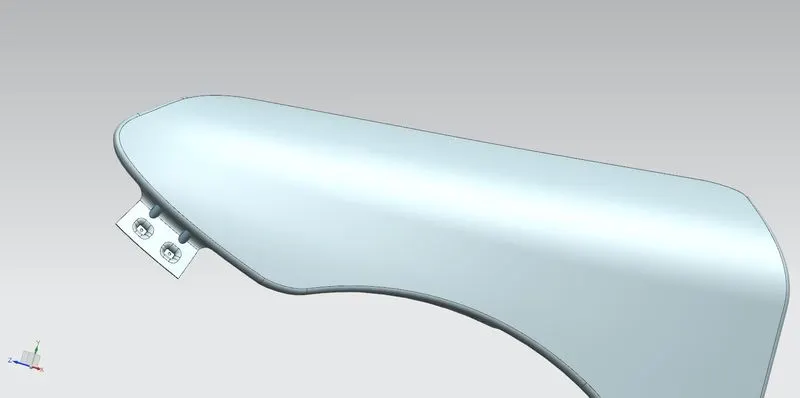

Step 2- Create Bumper mount

Step 3- Create Cowl area

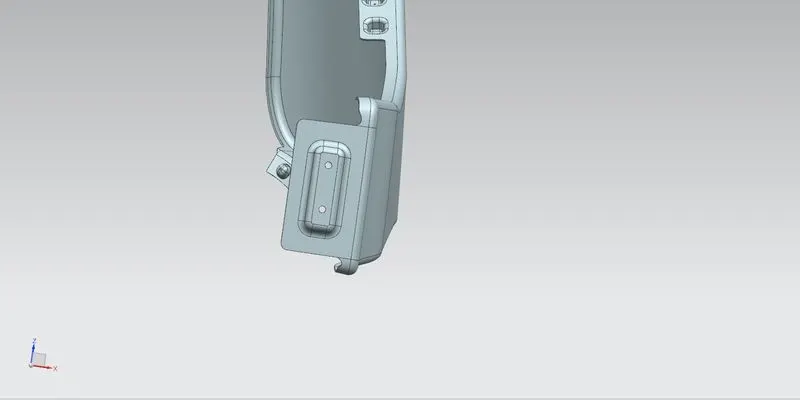

Step 4- Create Sill mount

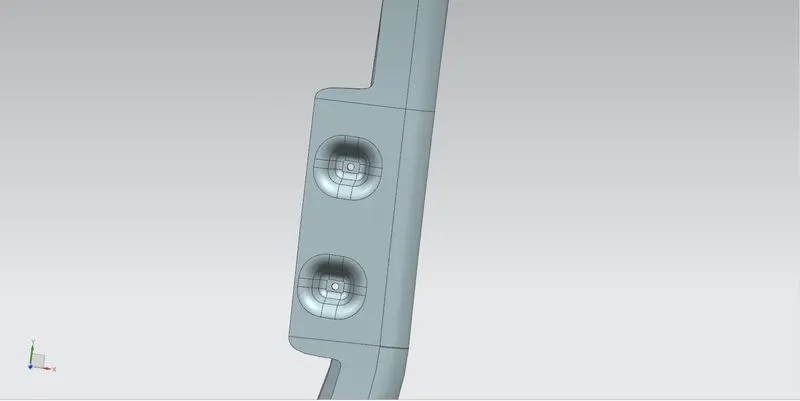

Step 5- Create Pillar mount

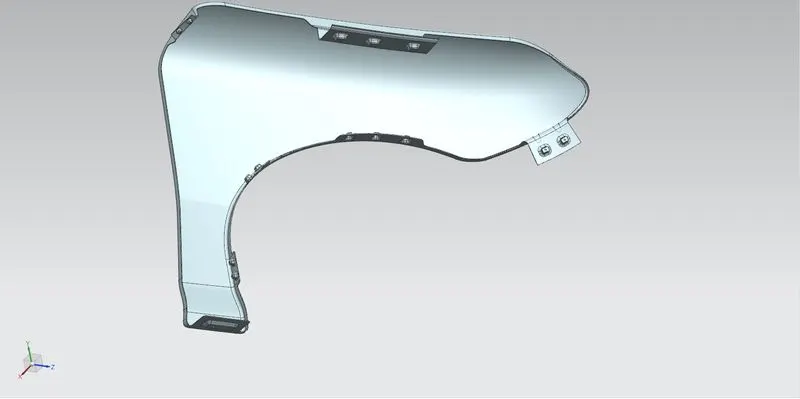

Step 6- Final fender design

Conclusion- Hence, the final design of fender has been created.
