Fender Design

Fender

• Fender is the part of an automobile, motor cycle or other vechile body that frames a wheel well.
• It primary is to prevent sand ,mud,rocks,liquids and other road spary from being thrown into the air by rotating tire.
• Fender are typicall rigid and can be damaged by contact with the road surface.

Need of Fender

• It is designed to provide resistance against wind, muds, and roadside particals.
• It is the sheet of metal covering of the car.
• Fender has a plastic part called Baffle or fender Liner which fits underside the fender to protect the metal from corrosion by stopping the flow of mud and water inside from different road conditions.

There are 2 types of fenders

1. Full Bumper Type
2. Half Bumper Type

Full Bumper Type

• Full Bumper Type is not used now a days because it requires large size of balnk to produce the part and it occupies more space.

Half Bumper Type

• Half Bumper Type Half bumper is used because the waste of material is less & can produce two fender at the same time by slightly increase the raw sheet and to reduce the weight & cost mostly bumper fender are been produced.

Process of making fender

• The design of fender is made by same commant used for the diffrent area of mounting.

Mountings

1. Drip Mounting Area
2. Sill Mounting Area
3. A-Pillar Mounting Area
4. Bumper Mounting Area
5. Baffle or Linear Mounting Area

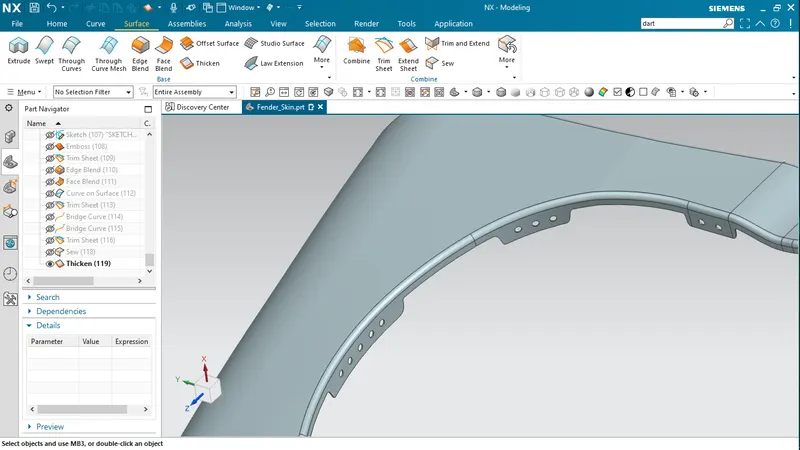

1. Drip Mounting Area

• The drip area would be recognizable fom the opening between Hood and Fender.
• This mounting is attached to the engine compartment of the car.
• A min 150mm distance is kept from the front side and a distance 300mm or less can be kept on the rear side .
• This is to avoid the springback during the manufacturing . the edge of the mounting should atleast 10mm away from any nearby component in the engine.
• The drip area should be less than 40mm.
• The embosess that are created on the drip mounting should be flat with respect to the curvature.

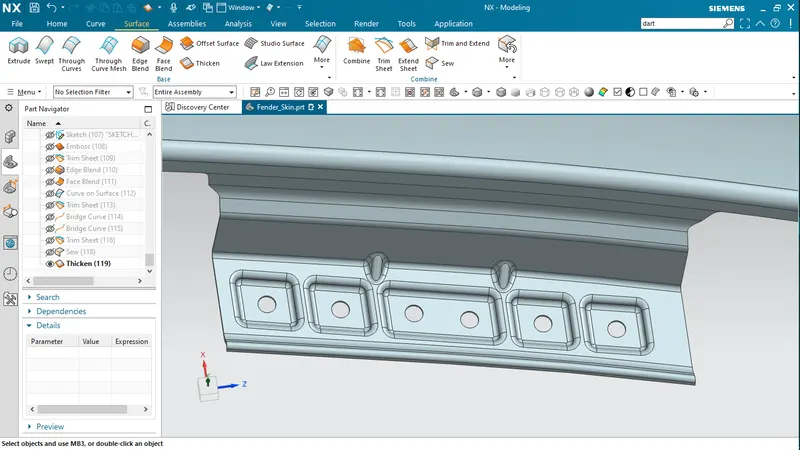

2.Sill Mounting Area

• This is palced basically at the botom of the fender. The mounting part is created such that it firmly fits to the sill.
• The embosess that are created on the drip mounting should be flat with respect to the curvature.

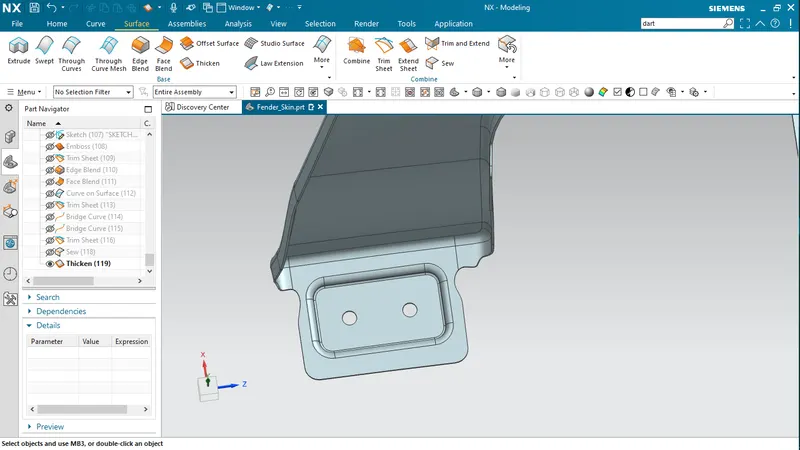

3. A-Pillar Mounting Area

• A-pillar mounting is a vertical support on a vehicle.
• It holds the windshield set up and just downside to the A-pillar fender is mounted to hold the position.

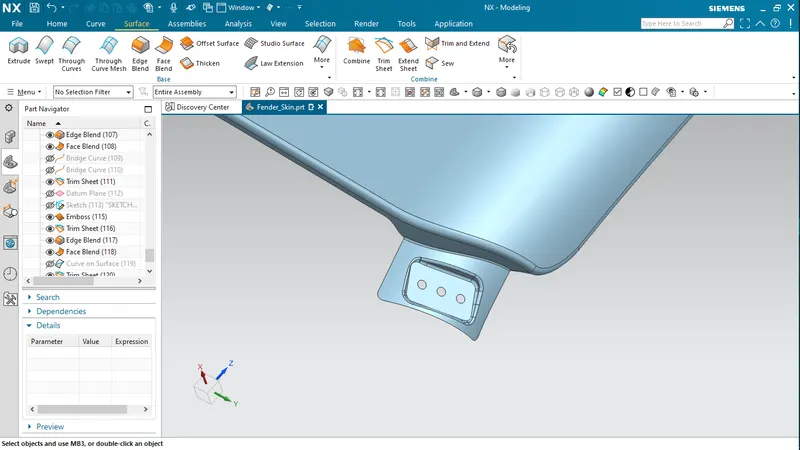

4.Bumper Mounting Area

• It is placed at the front side of the fender,the bumper mount area of fender, mounts on the chassis to hold the position.
• Since Bumpers are mounted over the fender it is called Bumper Mounting Area.

5. Baffle or Linear Mounting Area

• Usually a baffle is mounted on the fender of the car .
• It is mounted on the wheel arch area .
• A plastic unit is placed which is called baffle/splash fender linear mounting is placed.
• These mountings are created for fixing the baffle/splash mounting.

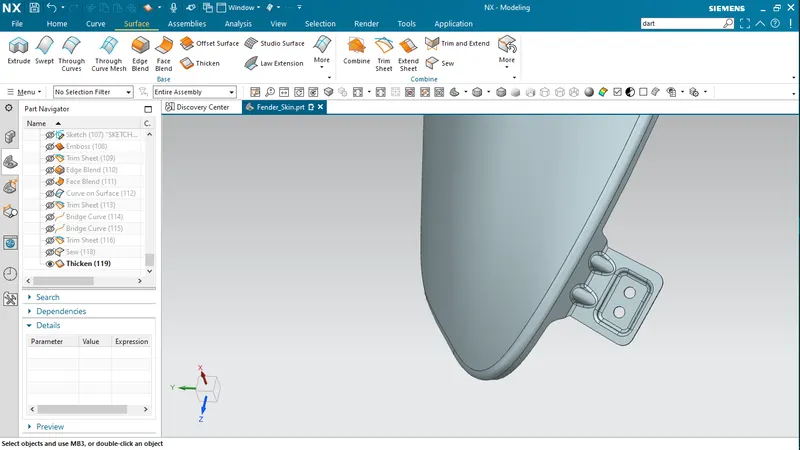

Images view of a Fender

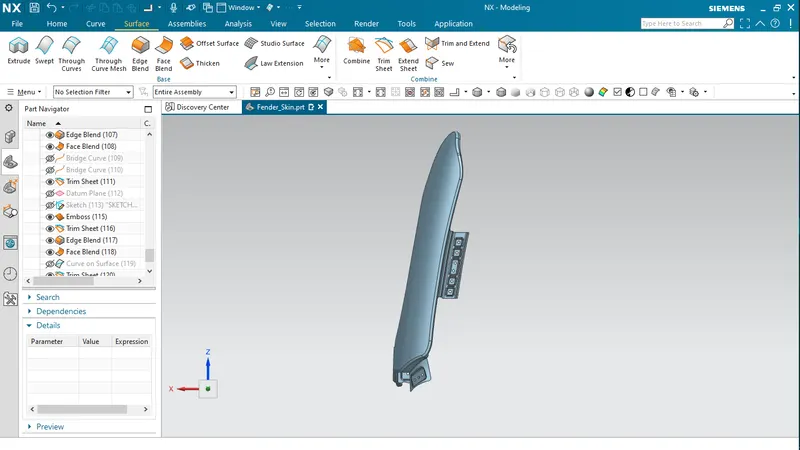

Front View

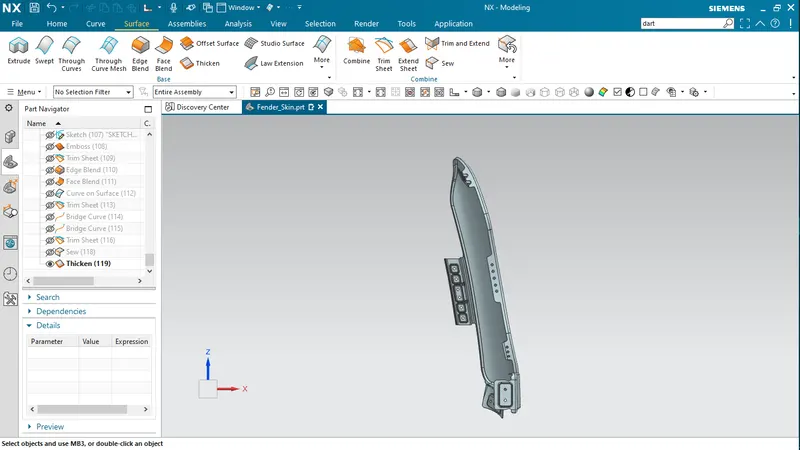

Back View

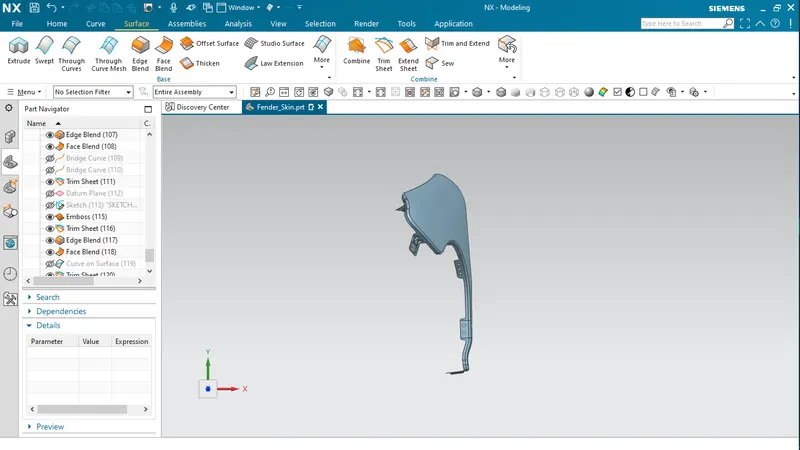

Top View

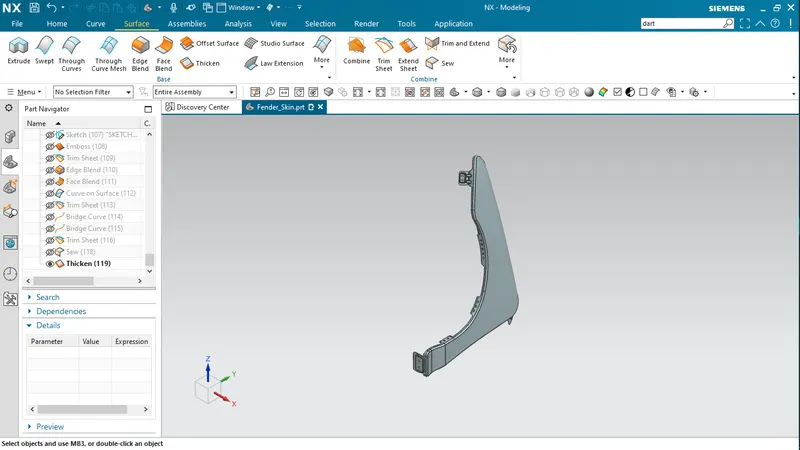

Isometric View

Conclusion

• Designed the Front Fender in NX application with proper mountings by using the Master Sketch and design Parameters.
