Fender Design

Follow the given Master section to create the Drip Area.

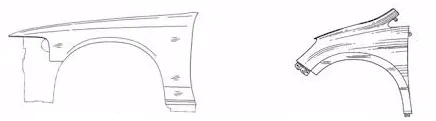

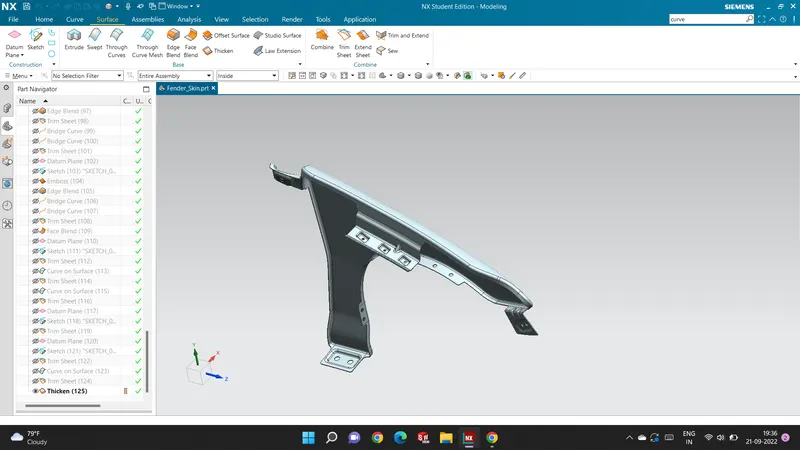

ABOUT FENDER

The fender is a sheet metal part of an automobile. It Plays a vital role in the automobile industry. This type of coverage covers the engine department from the side and works as a shelter for the wheels. Its primary function is to prevent the passenger who is inside the car while rotating the wheel wheels threw the mud, sand, and some tiny particles this time this fender is working as a shelter that protects and restricts the dirt, sands, and some other particles to go inside the car and in the engine department.

OBJECTIVE:

In this project we are going to design the mounts for the Front fender such as drip, sill, bumper, A-pillar, cowl, and baffle for this we are going to design mounts.

MOUNTING

Bumper

The bumper mounting area is used to fix the plastic bumper to the fender with the help of the fasteners

Drip

• It is the important mounting uni of the fender . it is connected with the engine compartment, therefore a lot of design constraints are to be followed while designing the fender
• While designing the drip area we have to initially leave 200-300 mm for the cowl top
• For placing the headlamp we have to leave at least 150 mm at the front while designing the fender
• The cowl top part consists of a wiper motor and its instruments

Sill

The sill is the panel directly below the bottom of the door supporting the floor and may be used to combine the floor and the body. The bottom end of the fender is mounted on the sill body for reinforcement of the fender panel , thus the sill mounting position is designed with holes and emboss. M5 fasteners are used to fix the fenders on the sill body.

BAFFLE MOUNTINGS

Baffle mounting or mudguard are clip-fit types of mounting on the inner side of the fender arch over the Tyre. it protects the car engine compartment and pedestrians from causing injuries from chip-out debris on the road when the car is in motion. they are mounted on the fender using a special type of locking clips which are made up of plastics.

A-PILLER AREA

The A-pillar is the structural pillar that combines the body with the roof . this makes the sides of the windshield rest . front fenders are fastened to the A-pillar to form a robust structure

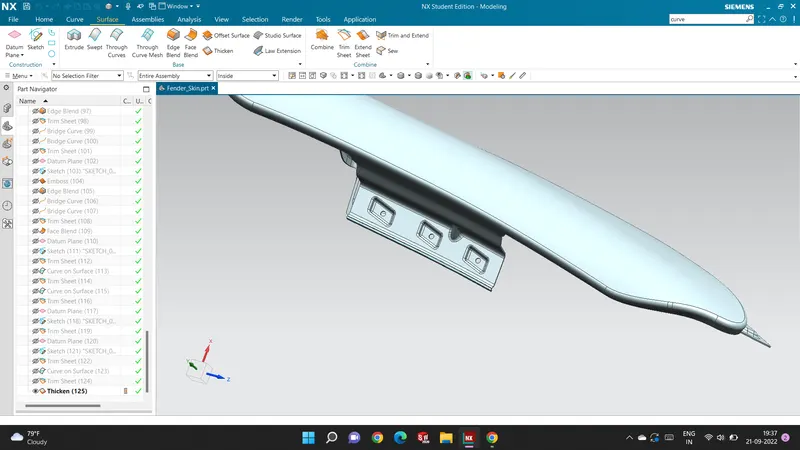

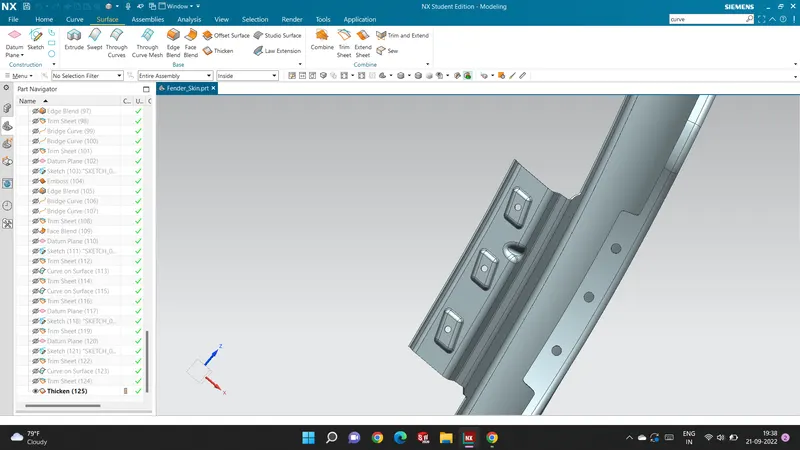

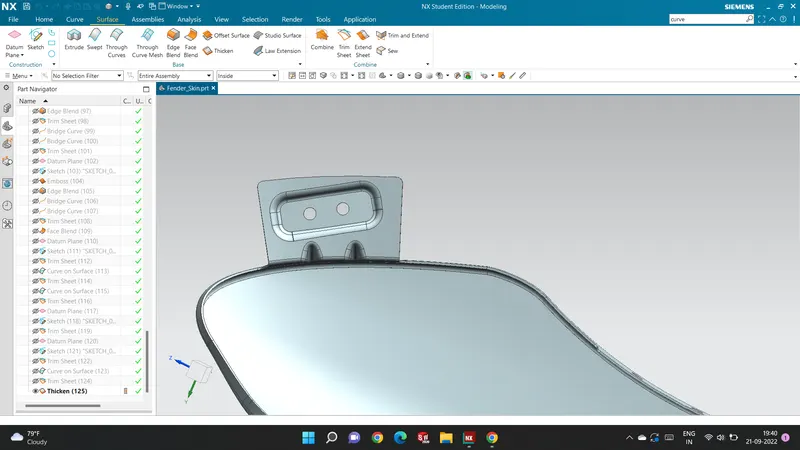

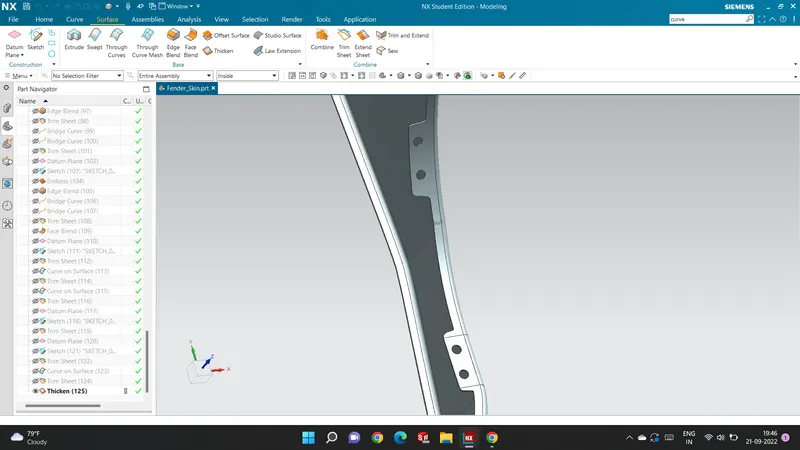

DRIP AREA

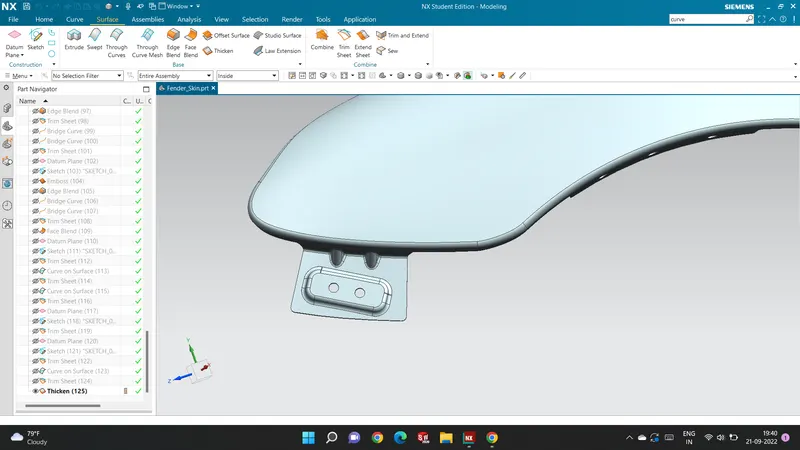

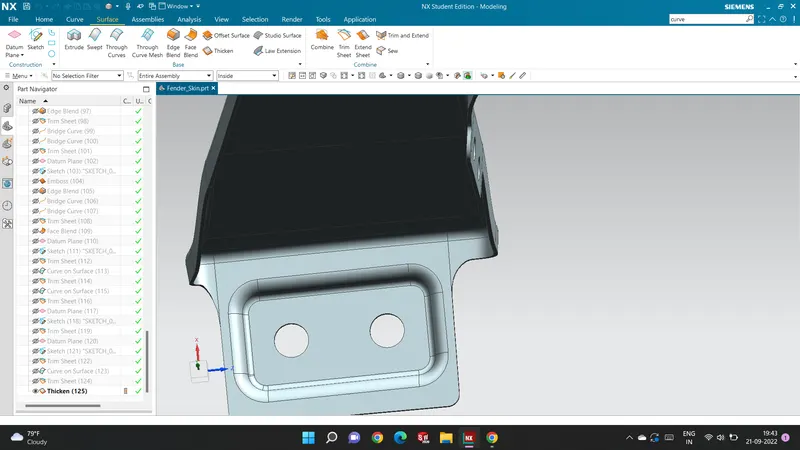

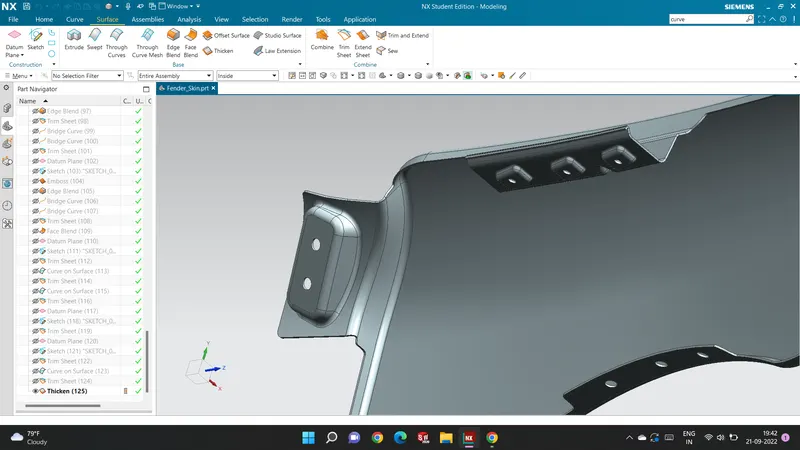

BUMPER

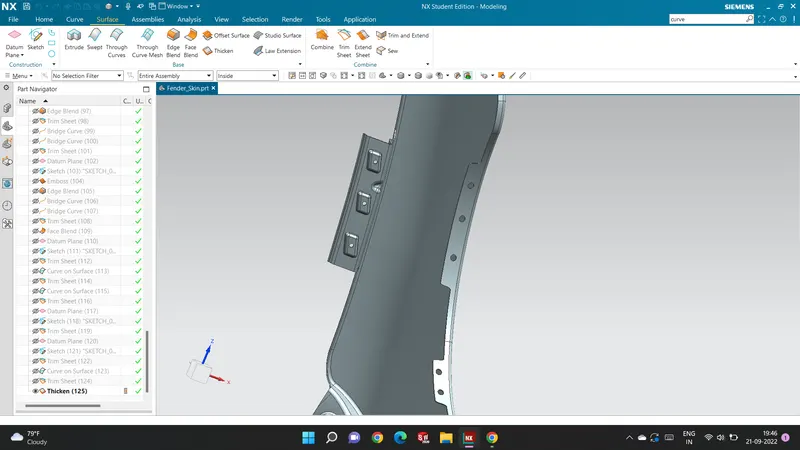

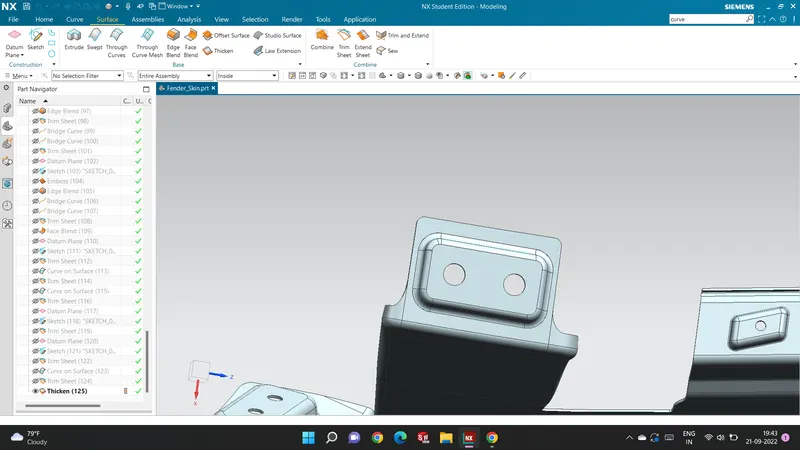

A-PILLER

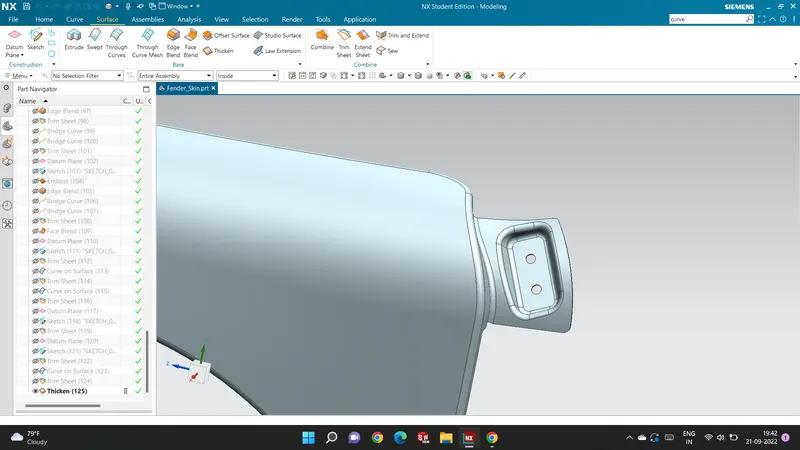

Sill

Cowl
