Drafting of various geometries using Chamfer, Fillet tool in AutoCad

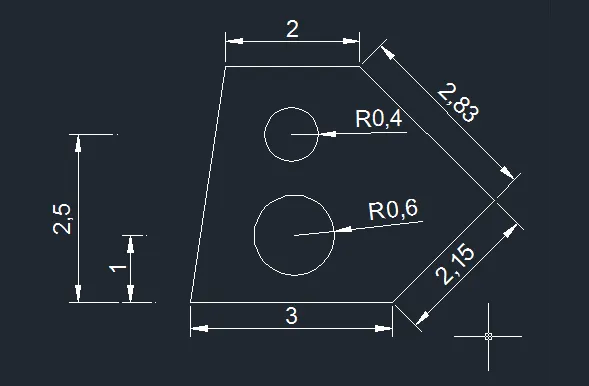

Aim :- To draw given digram with scale

Procedure :-

Step 1: draw line of 3m

Step 2: draw circule of 0.6 R And 0.4R at 1m and 2.5m from base line

Step 3: draw 2.15m line at 45  degree with respect to hoizontal plane

Step 4:draw 2.83m line at 135  degree with respect to hoizontal plane

Step 5: Draw 2m horizontal line

Step 6 : joint first point and last point

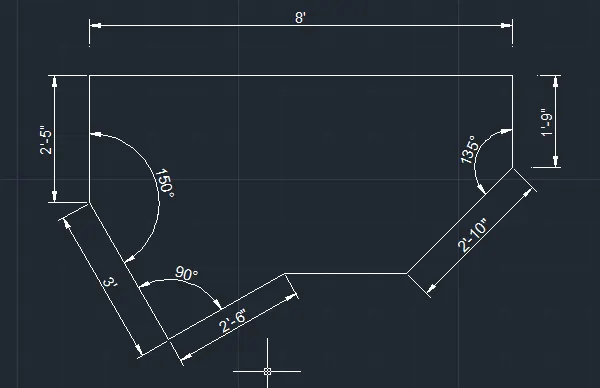

Diag 2

Step 1: draw horizontal line of 8'

Step 2: draw vertical line of 2'5" at left point and draw vertical line of 1'9" at right point

Step 3: draw 3' line at 150  degree with respect to vertical plane

Step 4:draw 2'6" line at 90  degree with respect to previous plane

Step 5: Draw 2'10" line at 135 degree with respect to vertical plane

Step 6 : joint first point and last point

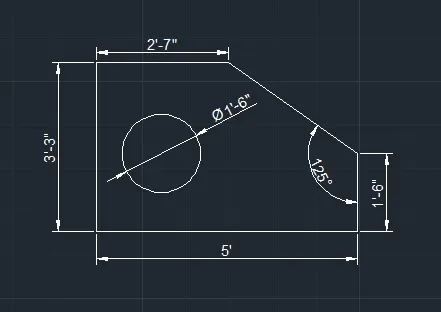

Diag 3

Step 1: draw horizontal line of 5'

Step 2: draw vertical line of 3'3" at left point and draw vertical line of 1'6" at right point

Step 3: draw 1'6" dia. circule 1'6" from horizontal plane and 1'6" from left vertical plane

Step 4:draw 2'6" line

Step 5 : joint first point and last point angel will be given 125 degree

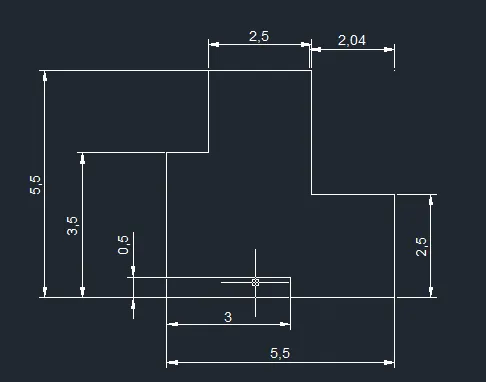

Diag 4

Step 1: draw horizontal line of 3m

Step 2: draw vertical downword line of 0.5m and draw horizonatal line of 2.5m

Step 3: draw vertical upword line of 2.5m

Step 4: draw horizontal line of 2m and draw vertical line of 3m

Step 5 : draw horizontal line of 2.5m and draw vertical downword line of 2m

Step 6 : draw horizontal line of 1m and draw vertical downword line of 2m

step 7 : joint first point and last point

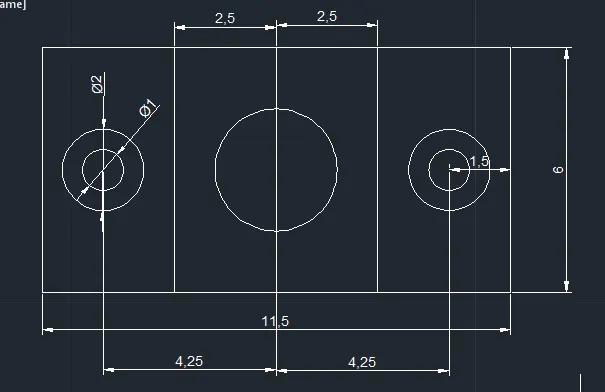

Diag 5

Step 1: draw rectangle of size 11.5m x 6m

Step 2: draw 3m dia. Circule at center of rect.

Step 3: draw 2m dia. and 1m dia. Circule at 4.25m from center of rect at both side.

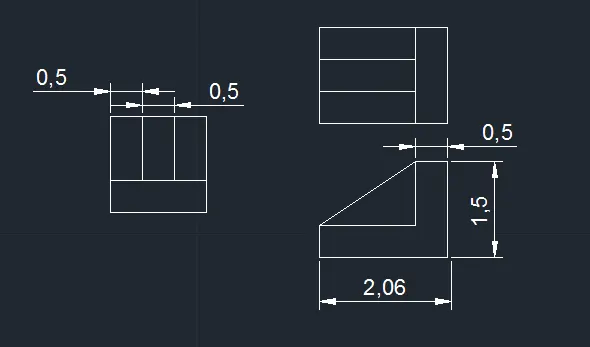

Diag 6

front view

Step 1: draw horizontal line of 1.5m and draw verticaly upword 0.5m line

Step 2: draw vertical line at 0.5m of equaly distance

Step 3: draw 2m dia. and 1m dia. Circule at 4.25m from center of rect at both side.

Top view

Step 1: draw horizontal line of 2m and draw verticaly upword 1.5m line and complet rect.

Step 2: draw vertical line at 0.5m from right side.

Step 3: draw horizontal line at 0.5m from base horizontal line

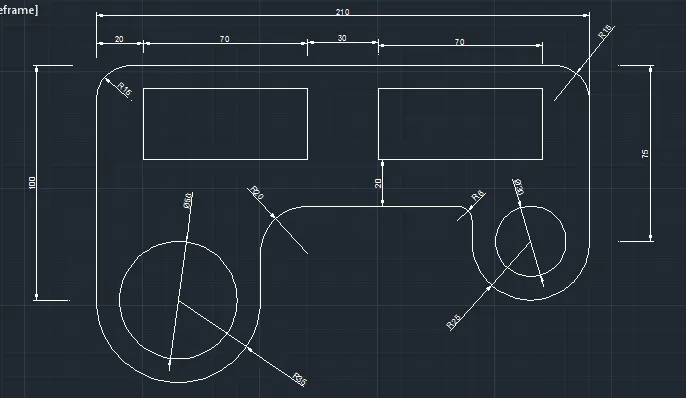

Diag 7

Step 1: draw horizontal line of 210mm and draw verticaly upword 100mm line and 75mm

Step 2: draw vertical line at 0.5m of equaly distance

Step 3: draw 35mm Red. and 50mm dia. Circule.

Step 4: draw 25mm Red. and 30mm dia. Circule.

Step 5: draw rectangle of size 70mm x 30mm

Diag 8



Dig9

Dig 10]

Dig 11
