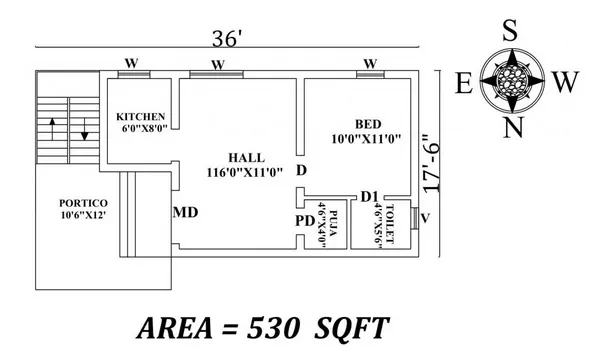

Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

list of drawings

1. Architectural Drawing

1.1 Site Plan

1.2 Working Plan

1.3 Section Drawings

1.4 Elevation Drawing

2. Structural Drawing

2.1 General Note

2.2 Excavation Drawing

2.3 Column Layout

2.4 Plinth Beam Layout

2.4 Lintel Beam Layout

2.5 Roof Beam and Shuttering Layout

2.6 Roof Slab Layout

3. Electrical Drawing

4. Plumbing Drawing

5. Finishing Drawings

Assuming size of structural elements as per following

Beam size: - 0.23m x0.450.

Slab Thickness: - 0.125m

Wall thickness: - 0.23m

Height of wall: - 3.3m

Column size:-0.23mx0.525m

Height of column: - 3.3m

Result

Load calculation:

Kitchen Slab

DL= 0.125x1.8x2.4x25=13.5KN

LL= 2KN/m^2 for Residential Building

Hall Slab

DL= 0.125x4.8x3.3x25=49.5KN

Bed Slab

DL= 0.125x3x3.3x25=30.93KN

Beam load

B1 & B2

DL= 0.225x0.45x9.6x25=24.3KN

B3 & B4

DL= 0.225x0.45x5.25x25=13.289 KN

Column Load

DL= 0.225x0.525x3.3x25=9.745 KN

Wall load calculation

DL= 0.225x3.3x25=18.56 KN
