Challenge

Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

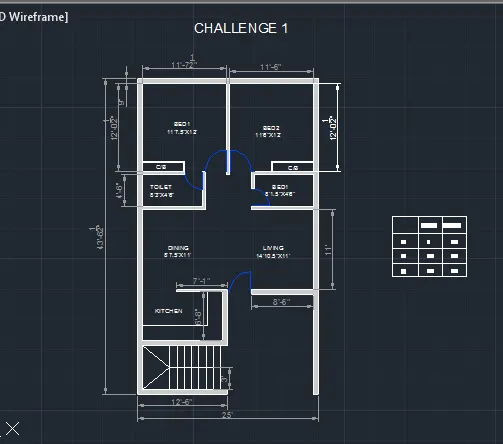

Aim :- To draw given layout of a residence as shown in the Figure 1.

Procedure :-

Step 1: draw 25' X 43'6.5" rectangle

Step 2: draw all external wall 9" and internal wall of 4.5" using offset commend

Step 3: draw all internal wall with respective given plan dimension and cut extra line with help of trim commends

Step 4:draw door for all rooms and toilet as per given schedule

Step 5: create linear dimention

Step 6 : finaly fill enclose area with help of hatch commends
