Drafting of various geometries using Chamfer, Fillet tool in AutoCad

1) AIM: To draw DECIMAL Diagram with help of AutoCAD.

Procedure:

• Switching unit to decimal
• Take starting point as 2,1
• 2nd point as @3<0
• 3rd point as @2.12<45
• 4th point as @2.83<135
• 5th point as @2<180
• Close
• Then taking the point at distance 1 from the center and drawing the circle with Dia 1.20
• Then taking the point at distance 2.50 from the center of base line adndrawing the circle with dia 0.80.

Result: Thus, DECIMAL diagram is constructed using AutoCad.

2)1) AIM: To draw ARCHITECTURAL Diagram with help of AutoCAD.

Procedure:

• Switching unit to Architectural
• Put ortho and iso right on
• Starting as 2,1
• Draw 2.6 as 2nd point
• 3rd point as @3<0
• 4th point as @2.10<45
• 5th point as @1.9<90
• 6th point as @ 8<180
• 7th point as @2.5<270
• Close

Result: Thus, ARCHITECTURAL diagram is constructed using AutoCad.

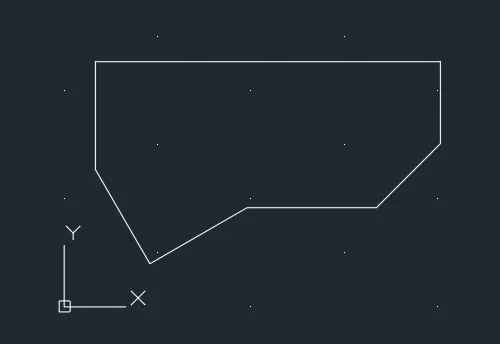

3)AIM: To draw ENGINEERING Diagram with help of AutoCAD.

Procedure:

• Switch unit system to engineering
• take 1st point as 2,1
• 2nd point as 5.01
• 3rd as 1.60
• Taking 2,1 as origin point and ortho on draw line of 3.30 on 90 degree
• @2.65<0
• Close
• Take a line of @1.30<0
• Then @1.60<90
• Taking tha as center draw a circle of diameter 1.60

Result: Thus, ENGINEERING diagram is constructed using AutoCad.

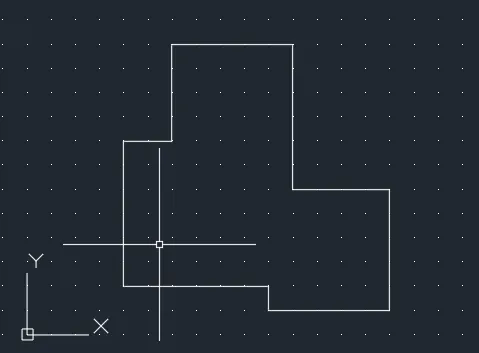

4) AIM: To draw Diagram with help of AutoCAD.

Procedure:

• 1st point as 2,1
• 2nd point as @3<0
• 3rd point as @.50<270
• 4th point as @2.5<0
• 5th point as @2.5<90
• 6th point as @2<180
• 7th point as @3<90
• 8th point as @2.5<180
• 9th point as @2<270
• 10th point as @1<180
• Close

Result: Thus, diagram is constructed using AutoCad.

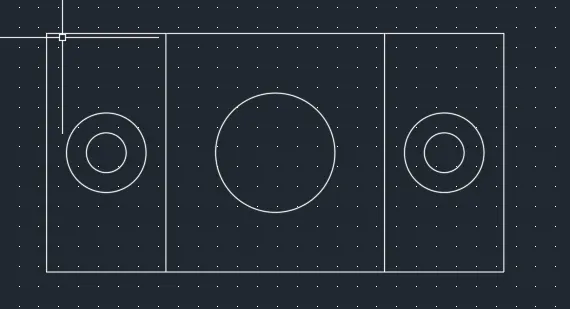

5) AIM: To draw Diagram with help of AutoCAD.

Procedure:

• Draw the rectangle according to the dimensions by decimal system.
• Take the center point and draw the circle of dia 3
• WIthe of help of center take offset of 2.75 from both side
• Taking dia of 2 and then offset of 0.5
• copying the diagram and pasting on other side.

Result: Thus, diagram is constructed using AutoCad.

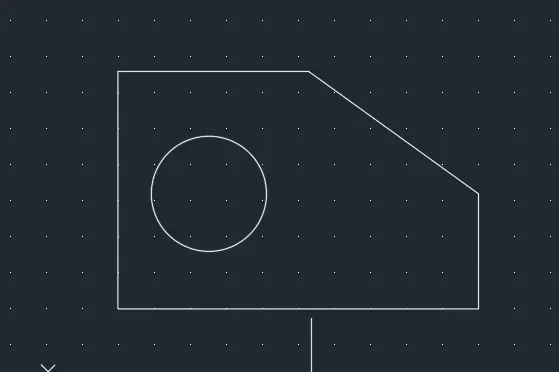

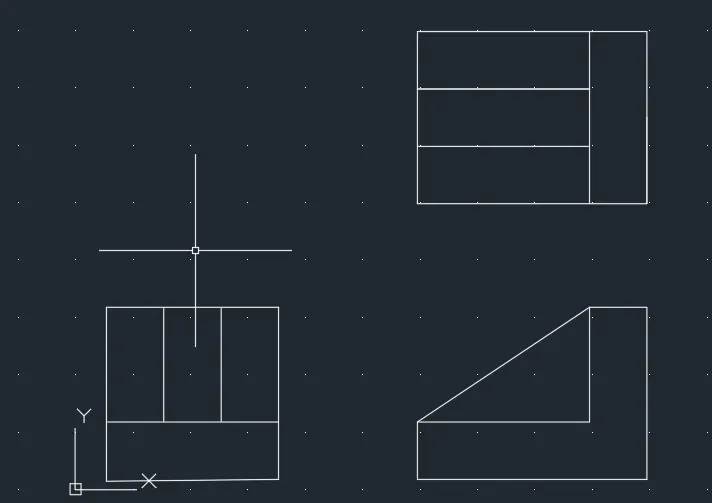

6) AIM: To draw Diagram with help of AutoCAD.

Procedure:

• L command, 1.5, 1.5,1.5,1.5
• Offset command, .5
• Offset command, .5, .5
• Line command, 2,1.5,.5,1,1.5, close
• Line command - free hand line
• line command,1.5,2,1.5,2
• Offset 0.5
• Offset 0.5,0.5

Result: Thus, diagram is constructed using AutoCad.

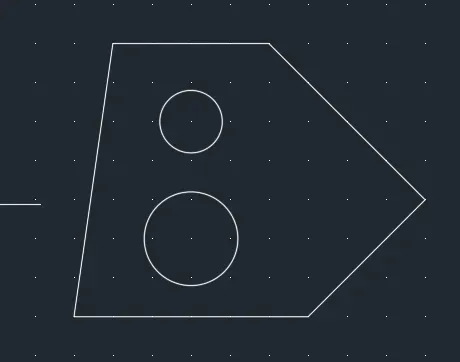

7) AIM: To draw Diagram with help of AutoCAD.

Procedure:

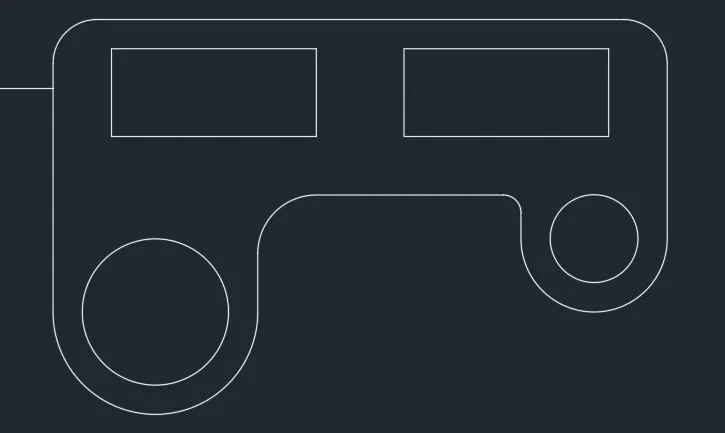

• Line command =210
• Line command =100
• Line command=75
• Offset of 210= 10
• Offset=30
• Offset=20
• Offset from 100= 20,70,30,70
• Trim the extra lines
• Line 70 from 100, and circle of radius 35
• offset 10 from the circle of 35 radius
• Line of 50 from 75 and circle of radius 25
• Offset of 10 from 25
• Parallel lline drawn from circle of both 25 and 35 radius circle
• Trimming the circle and extra lines
• Fillet command of R6, R15, R15 and R 20 at corners.

Result: Thus, diagram is constructed using AutoCad.

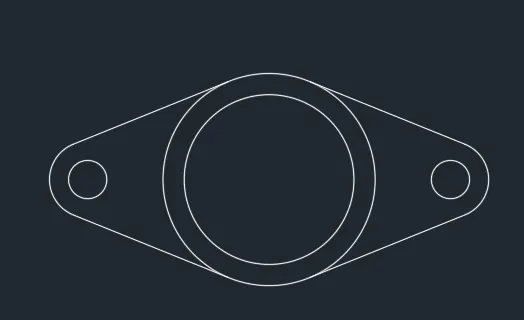

8) AIM: To draw Diagram with help of AutoCAD.

Procedure:

• Draw circle of dia 4
• offset of .5
• draw circle of .90 from distance of 4.275 from center of 4 dia circle
• Draw circle of R 0.90 with same center of dia .9 circle
• Drawing tangent of R.90 circle and 5 dia circle
• trimming the extra lines
• mirrioring the object from the center as semetry.

Result: Thus, diagram is constructed using AutoCad.

9) AIM: To draw Diagram with help of AutoCAD.

Procedure:

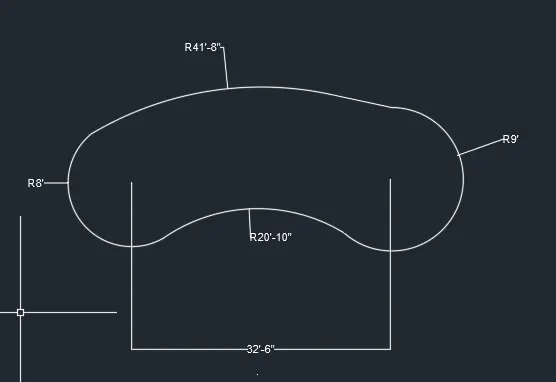

• draw circle of R20'10"
• Draw circle of R 41'8"
• From center of both circles draw a perpendicular line
• offset on both side of 16'3"
• Draw circle of R8 and R9
• Joining the faces by quadrant/tangent lines
• trimming the extra lines.

Result: Thus, diagram is constructed using AutoCad.

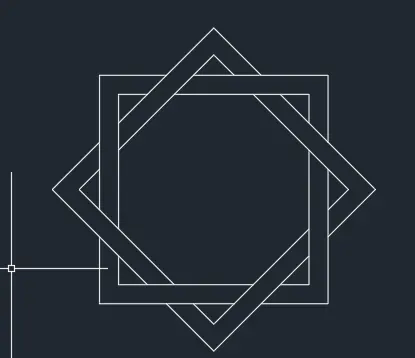

10) AIM: To draw Diagram with help of AutoCAD.

Procedure:

• Draw square rectangle
• Freeb Offset of .5
• Copying the whole image
• Rotating at 45 degree
• moving the rotated image on the previous image
• trimming the lines as per image.

Result: Thus, diagram is constructed using AutoCad.

11) AIM: To draw Diagram with help of AutoCAD.

Procedure:

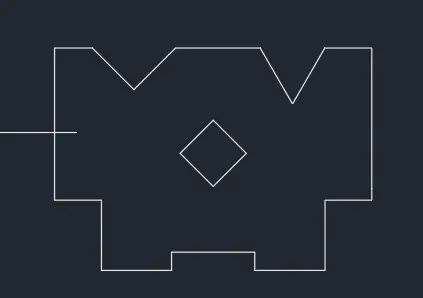

• line enter
• 9' , 3', 4'6", 1'2", 5'4", 1'2", 4'6", 3', 9'
• taking center on right side 10'2"
• Taking center of that line and drawing perpendicular line 3'7"
• rotate 30 degree and mirrioring the line
• Taking thw center on the left side of the other half
• Taking center of that line and drawing perpendicular line 2'8"
• rotating 45 degree and mirrioring the line
• taking center of 6'9"
• Sq rectange of 3'
• rotating it at 45 degree

Result: Thus, diagram is constructed using AutoCad.
