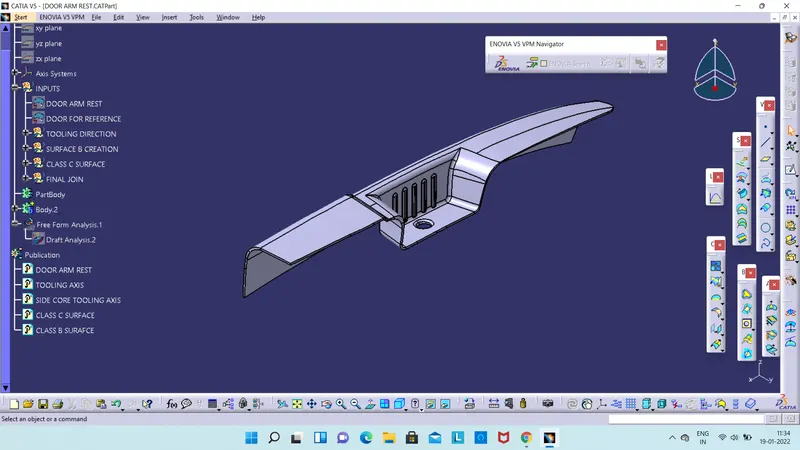

Door Arm Rest Week 8 Challenge

TOOLING AXIS CREATION

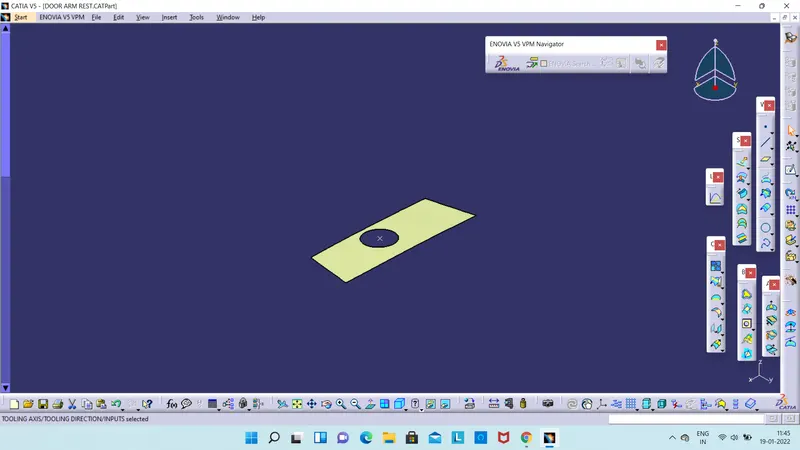

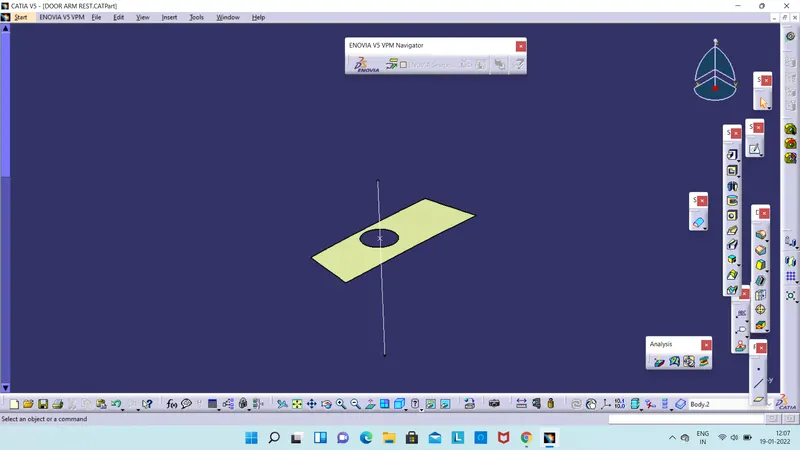

- HERE IN THE DOOR ARM REST AT BASE WE CAN IT HAS A CIRCULAR HOLE WE CAN TRY TO CREATE TOOLING AXIS FROM

THERE SO I EXTRACTED THE BASE AND CREATED A CENTER POINT ON THE HOLE.

- FROM THIS POINT DRAW A LINE WITH BASE EXTRACT AS REFAERANCE AND WE CAN USE THIS LINEAS TOOLING AXIS.

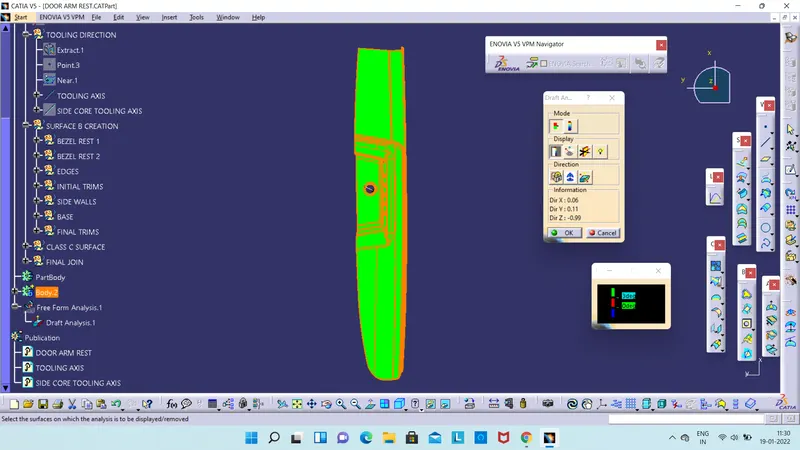

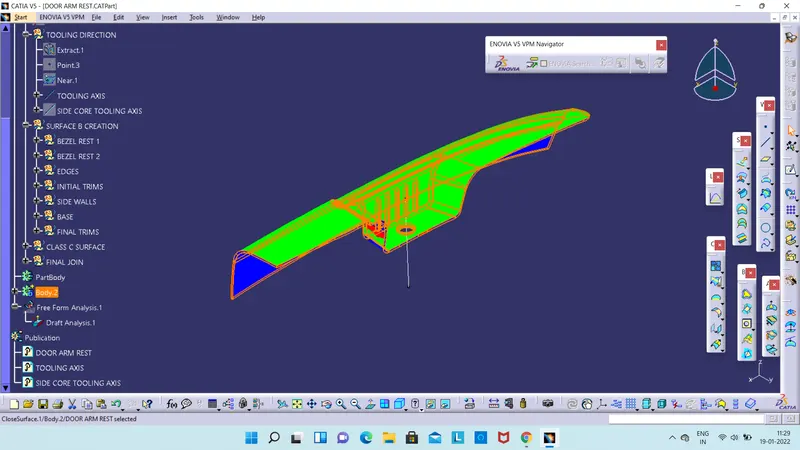

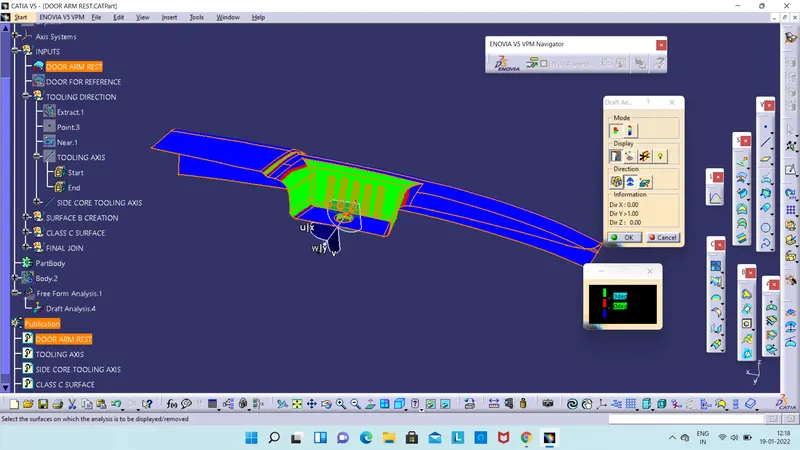

- NOW LETS TRY DRAFT ANALYSIS ON THIS TOOLIN AXIS.

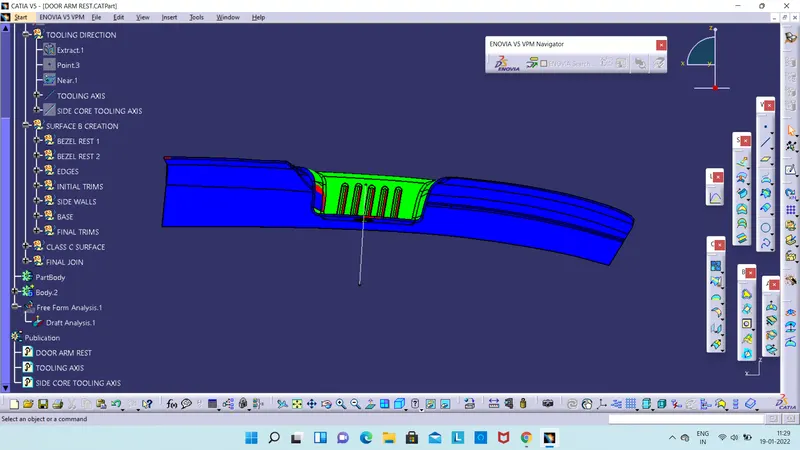

-IT HAS ALMOST COVER EVERY SURFACE BUT THERE ARE FEW ZONES IN RED .

- IT WOULD BE COVERD BY SIDE CORE FOR THAT WE NEED TO DRAW ANOTHER TOOLING AXIS.

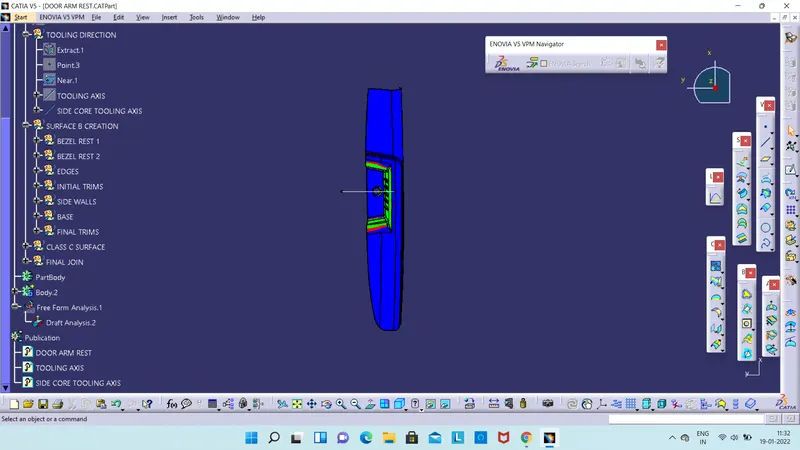

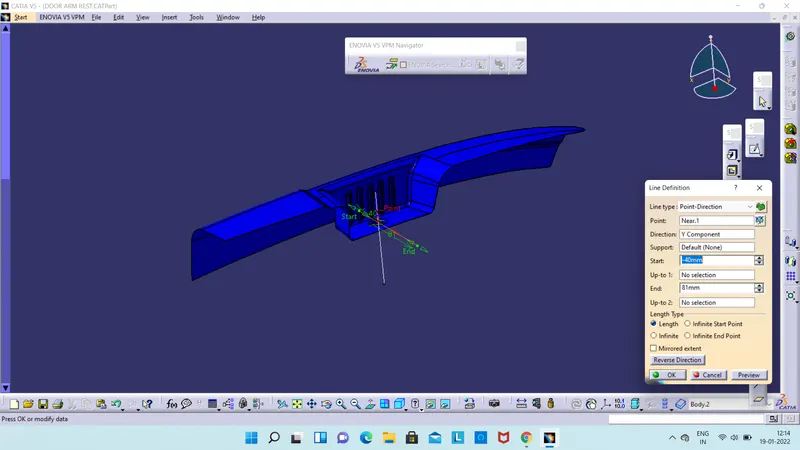

- SO FROM THE SAME POINT JUST DRAW A LINE INTO Y DIRECTION

-WE CAN CONSIDER IT HAS SIDE CORE TOOLING AXIS

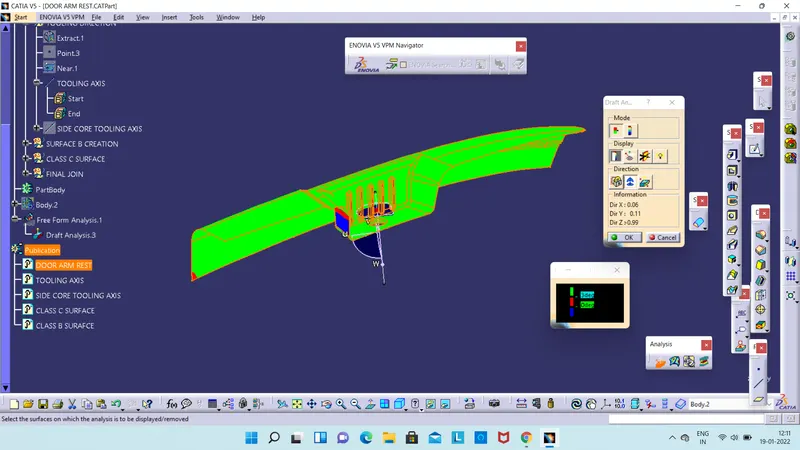

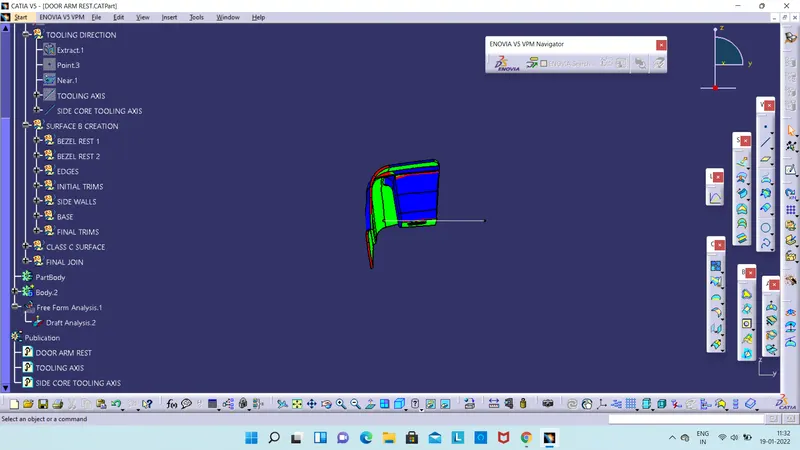

- NOW LETS DO THE DRAFT ANALYSIS AGAIAN WITH SIDE CORE AXIS

- IT HAS COVERED WHOLE SURFACE STILL THERE SOME SMALL ZONE IN RED WHICH CAN BE IRNORED.

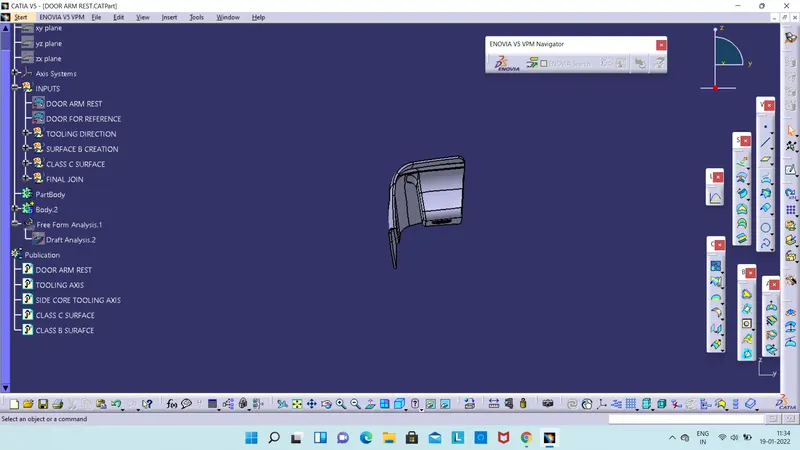

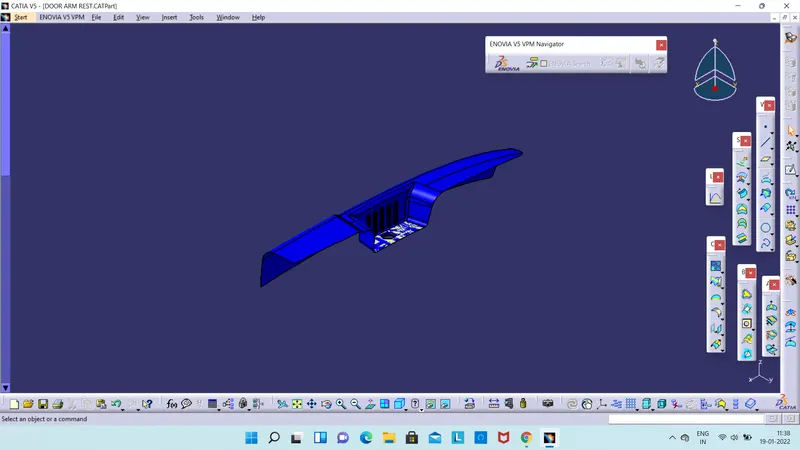

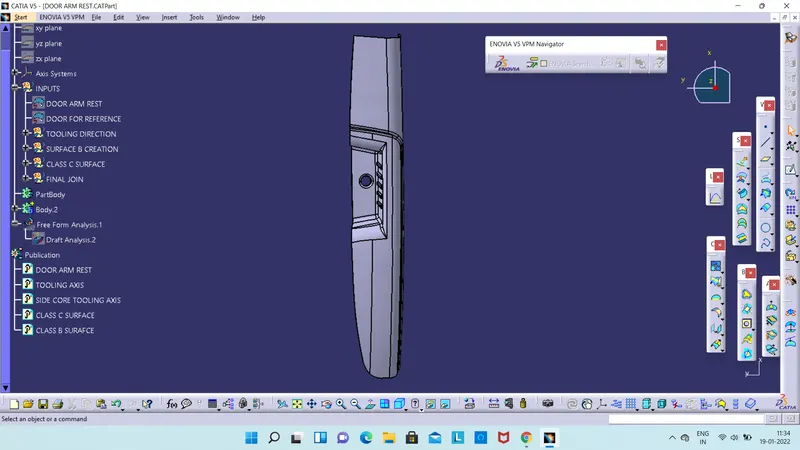

DRAFT ANALYSIS ON CLOSED SURFACE.
