Door Arm Rest Week 8 Challenge

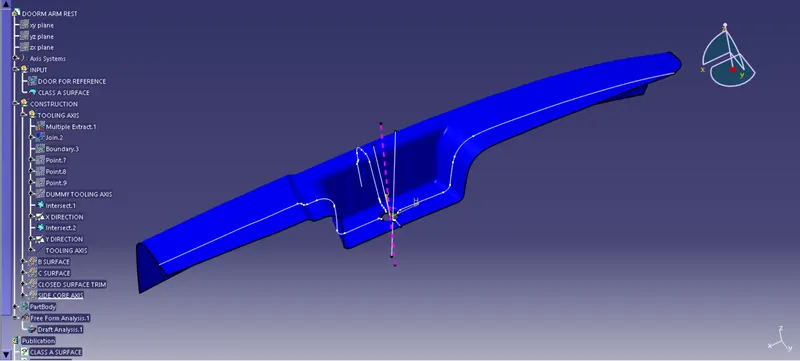

PART I: Creating tooling axis

PART II: Construction

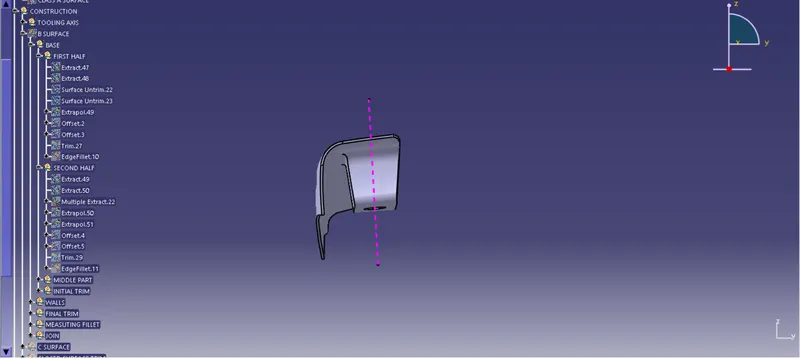

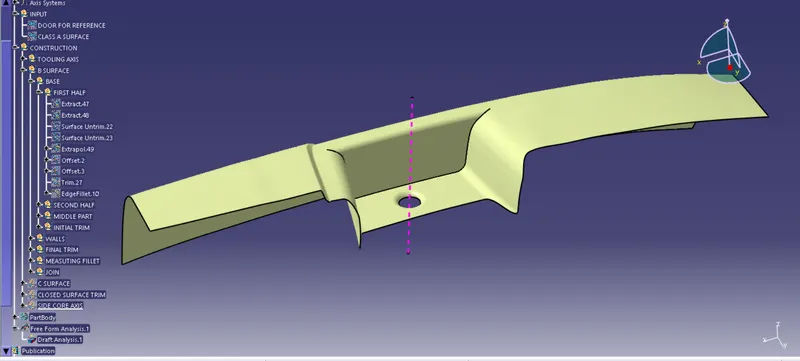

1) Creating Class B surface

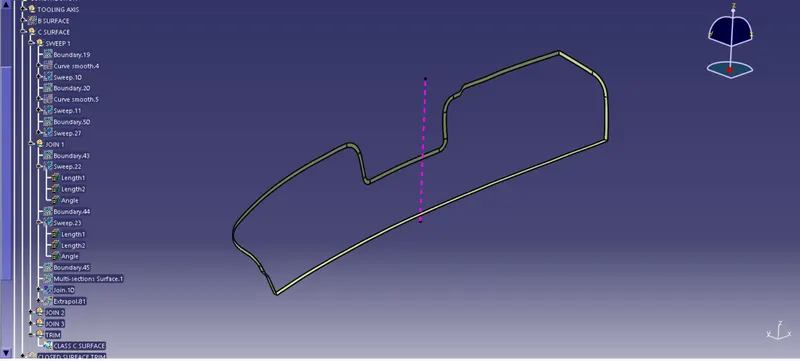

2) Creating Class C surface

3) Closed Surface

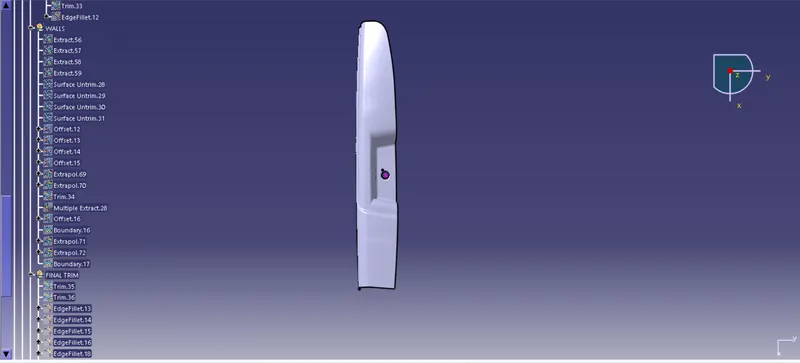

4) Closed body part

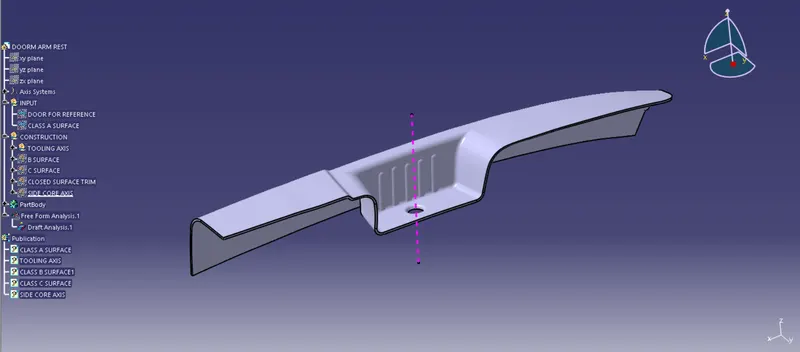

- Isometric View

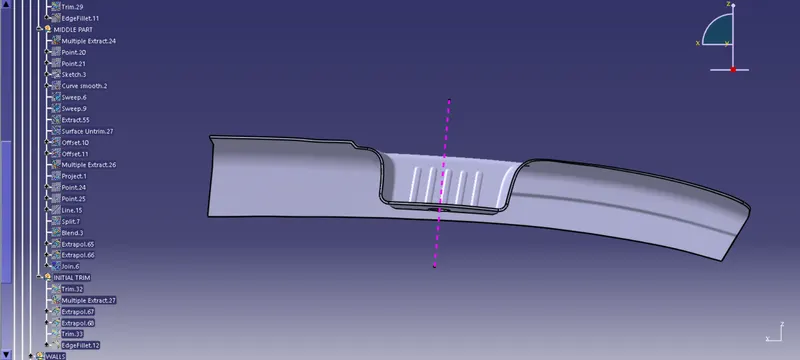

- Front View

- Top View

- Side View

PART III: Draft Analysis

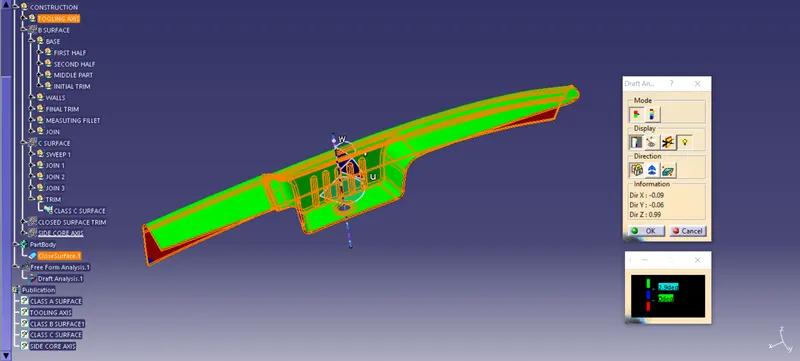

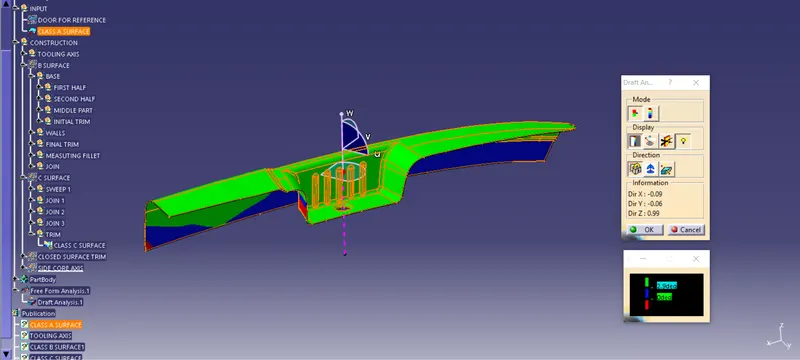

1) Draft analysis of CLASS A SURFACE with respect to main tooling axis
1. Isometric View

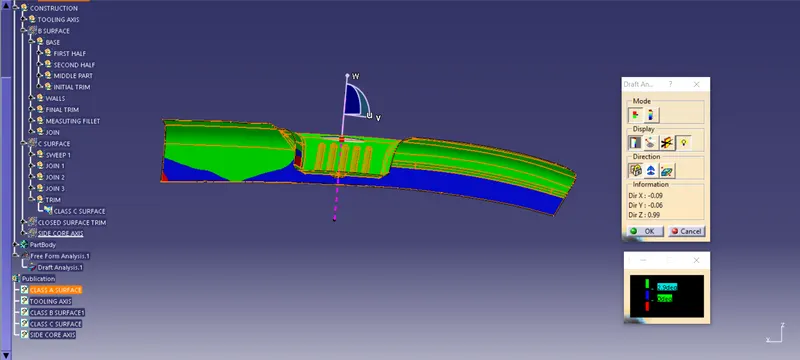

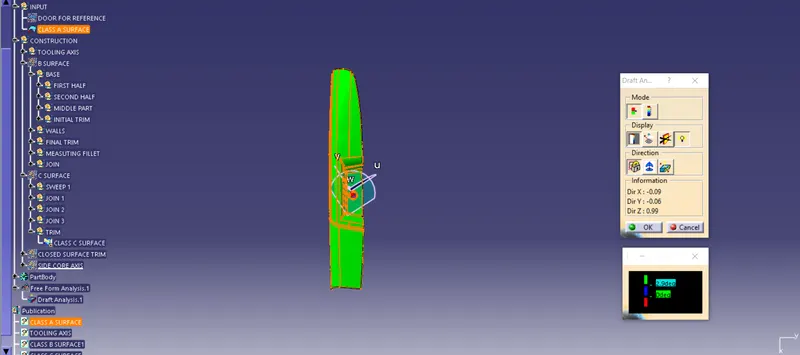

2. Front View

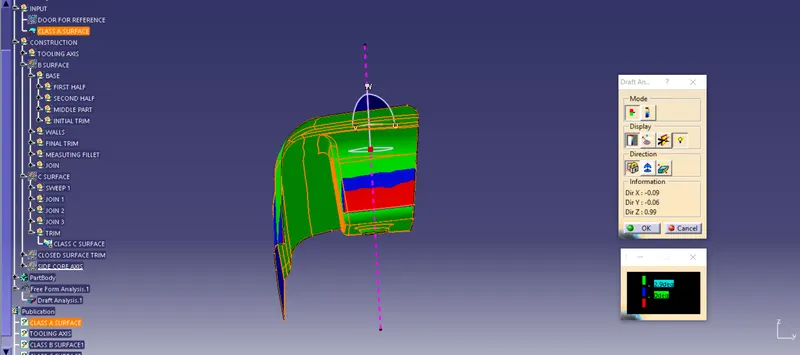

3. Top View

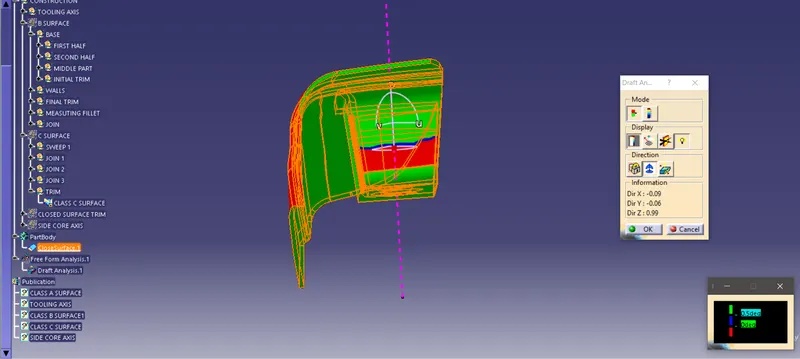

4. Side View

- The green color represents angle of surface with respect to tooling axis being greater than 3 degrees.
- The blue color represents angle between 0 and 3 degrees.
- The red color represnts angle lesser than 0 degrees. It represnets errorneous draft angle that needs to be corrected.

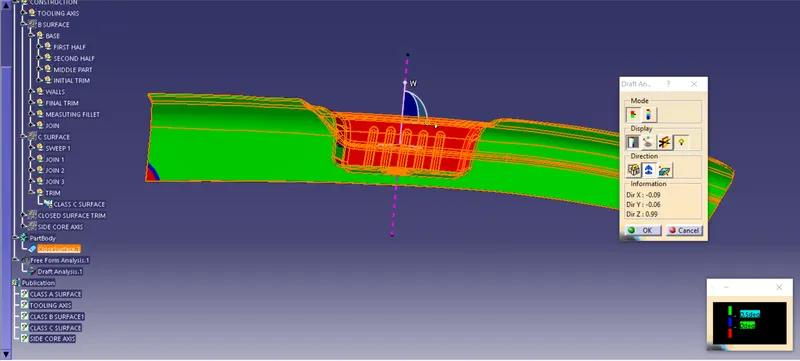

2) Draft analysis of part body with respect to main tooling axis
1. Isometric View

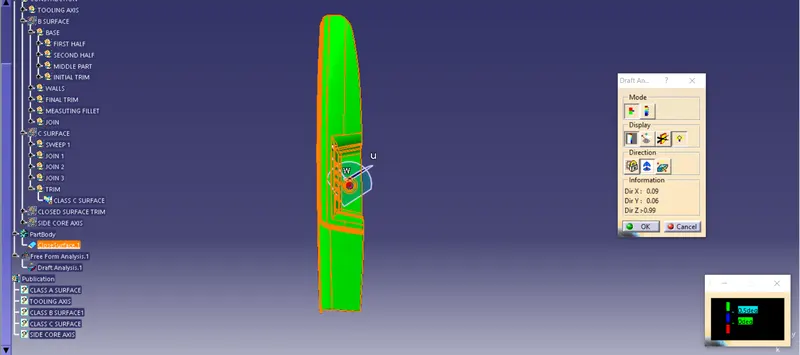

2. Front View

3. Top View

4. Side View

- The green color represents angle of surface with respect to tooling axis being greater than 3 degrees.
- The blue color represents angle between 0 and 3 degrees.
- The red color represnts angle lesser than 0 degrees. It represnets errorneous draft angle that needs to be corrected.

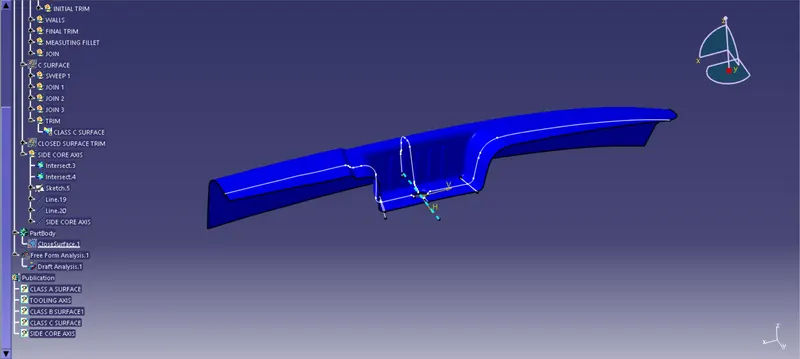

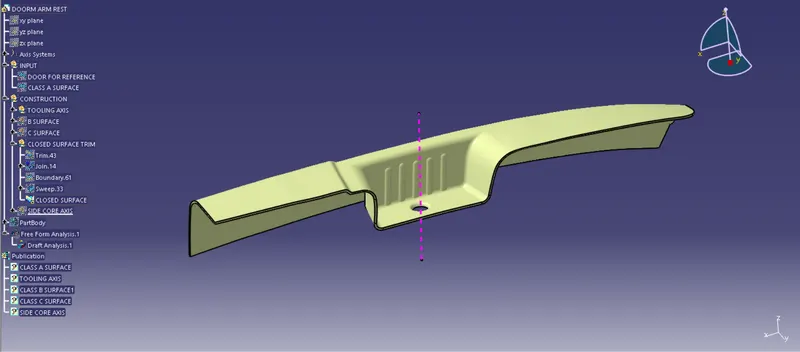

Creating side core axis

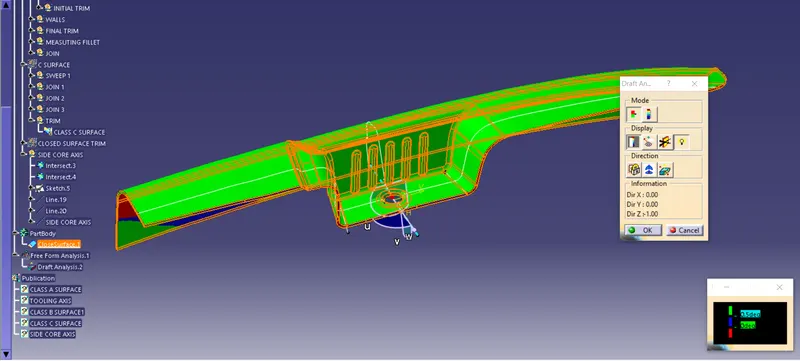

3. Draft analysis with repsect to side core axis
