Design of Shallow Foundation (Isolated Footings)

SShivam Sahu28 Jul 2022

AIM :-

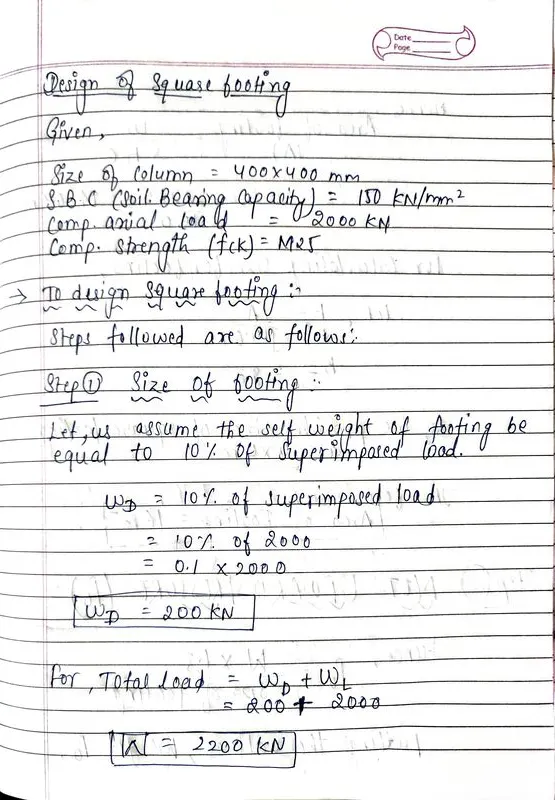

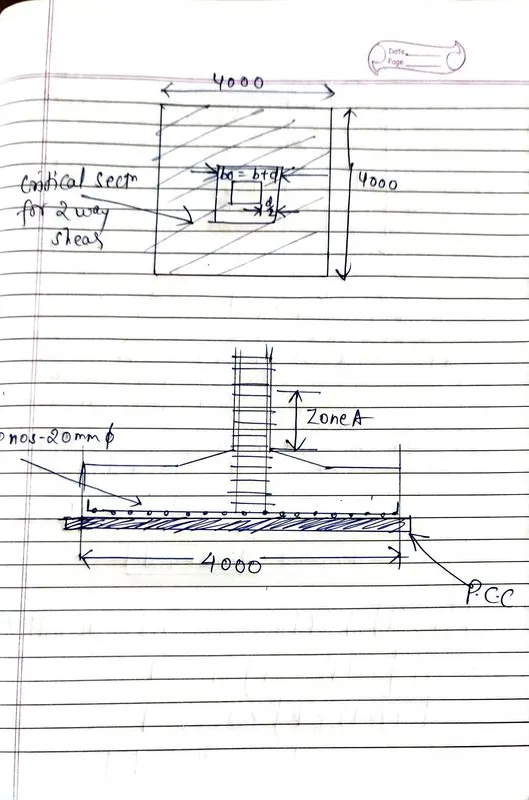

To design a square footing for a column size of 400x400 using the following given details .

INTRODUCTION :-

Isolated footings are also known as Pad or Spread footings are commonly used for shallow foundations in order to carry and spread the concentrated loads caused by columns or pillars. Isolated footings consists of either reinforced material or non-reinforced material.

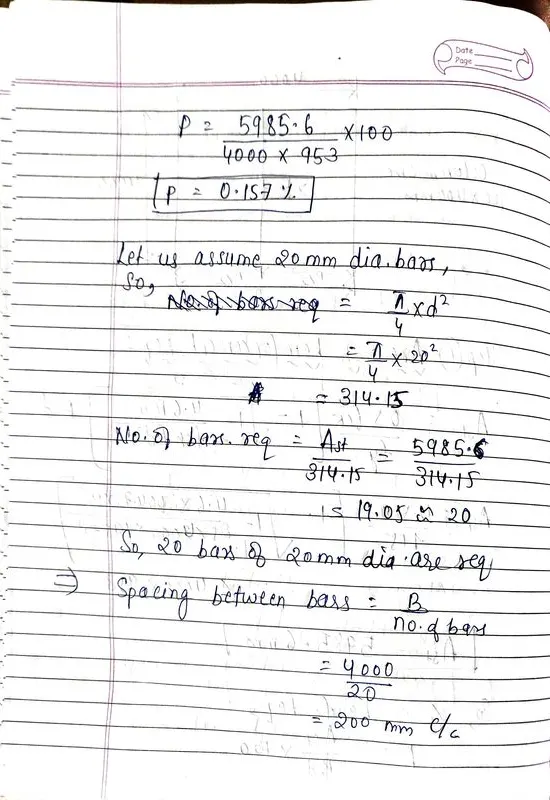

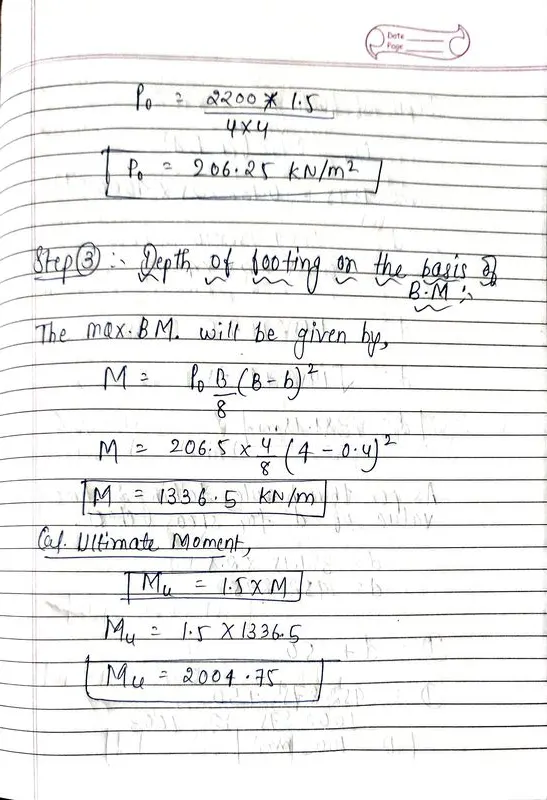

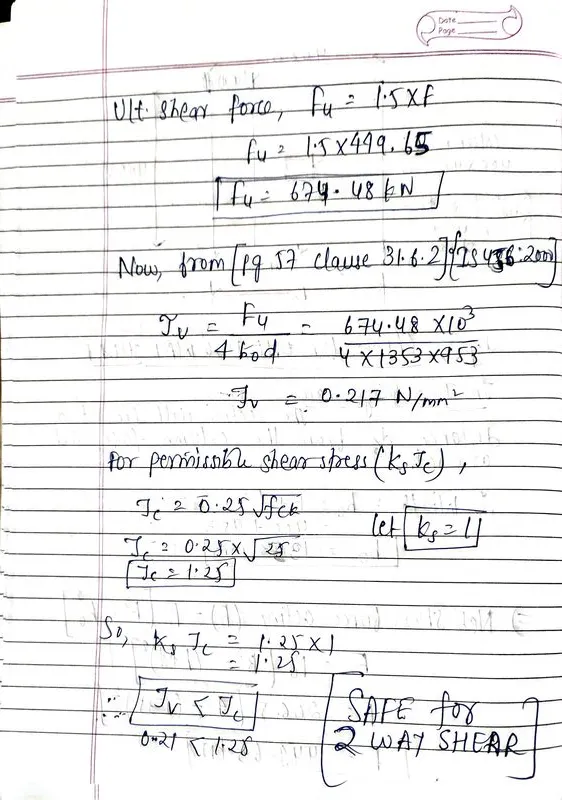

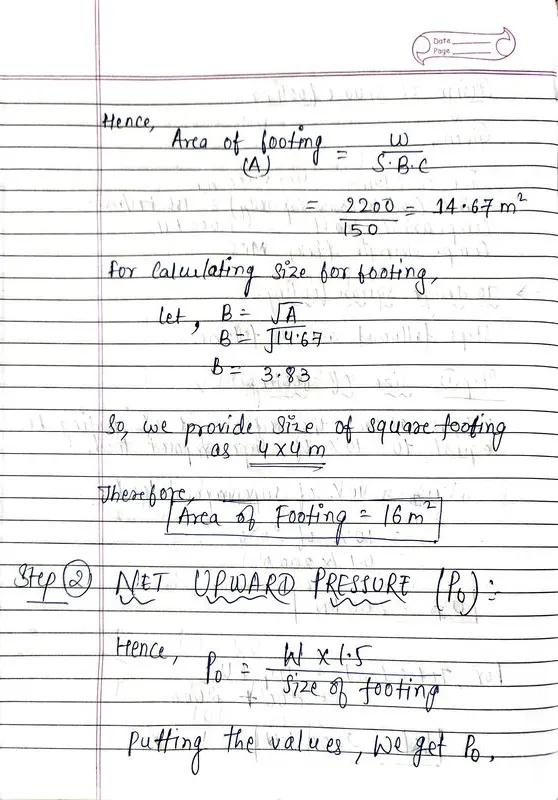

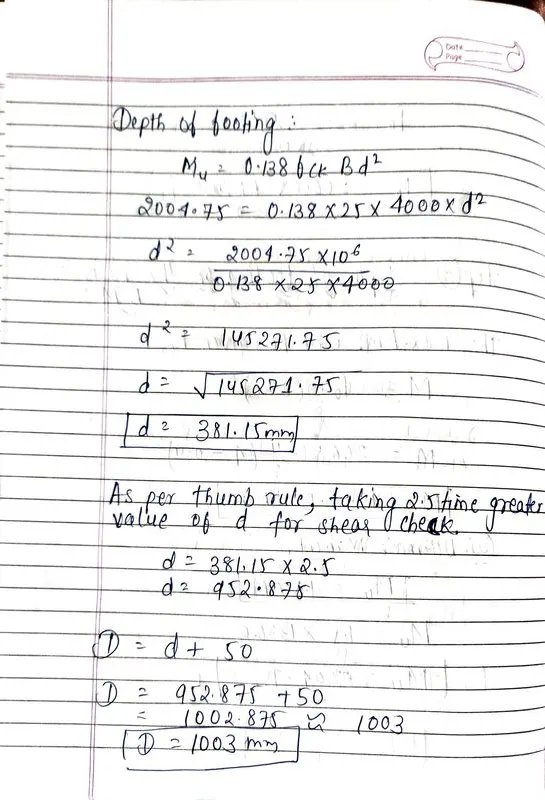

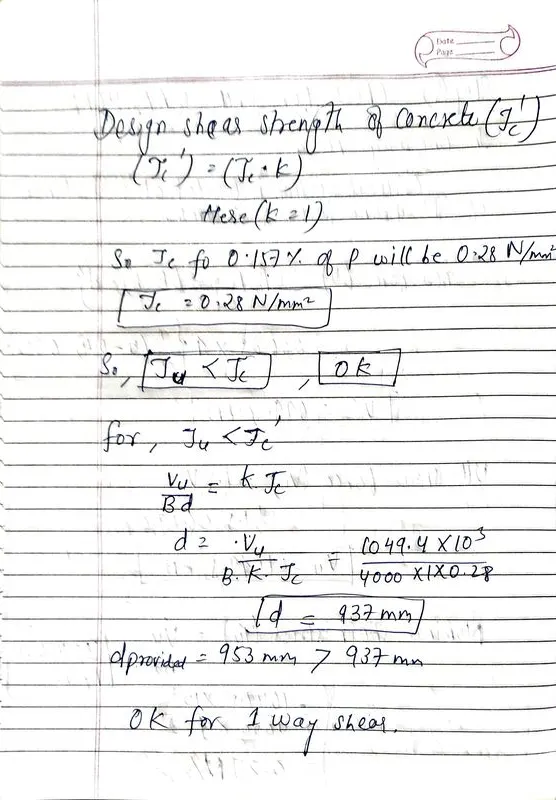

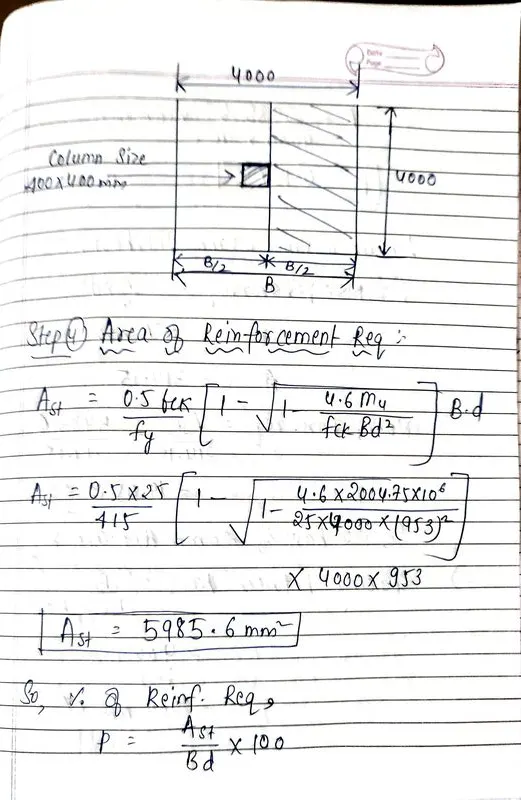

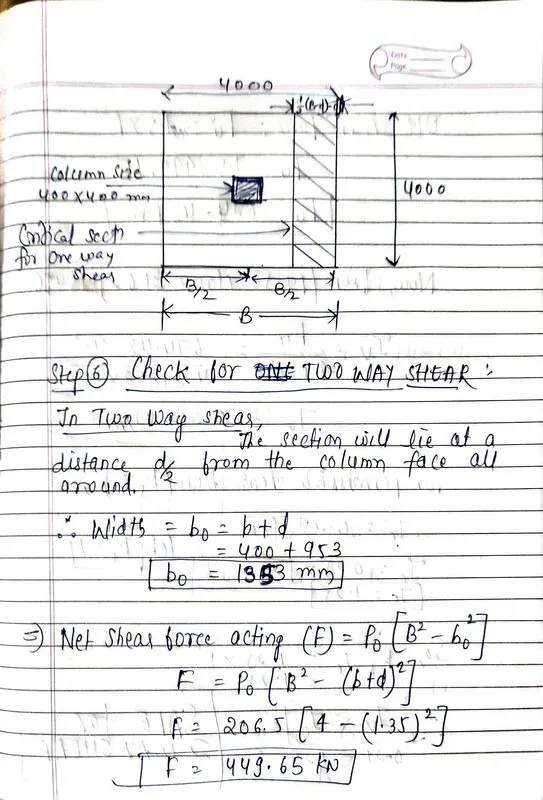

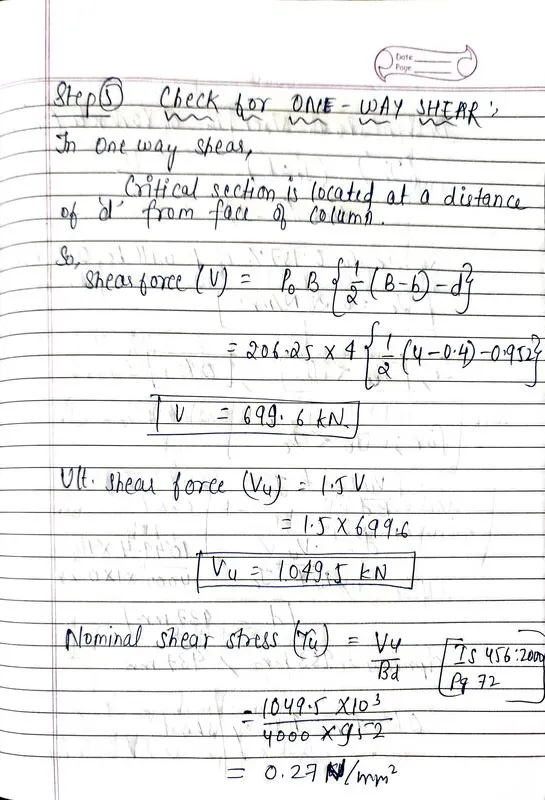

PROCEDURE :-

RESULT :-

Hence the footing has been designed successfully with the help of the given details and also checked for its sutability.
