Design of Shallow Foundation (Isolated Footings)

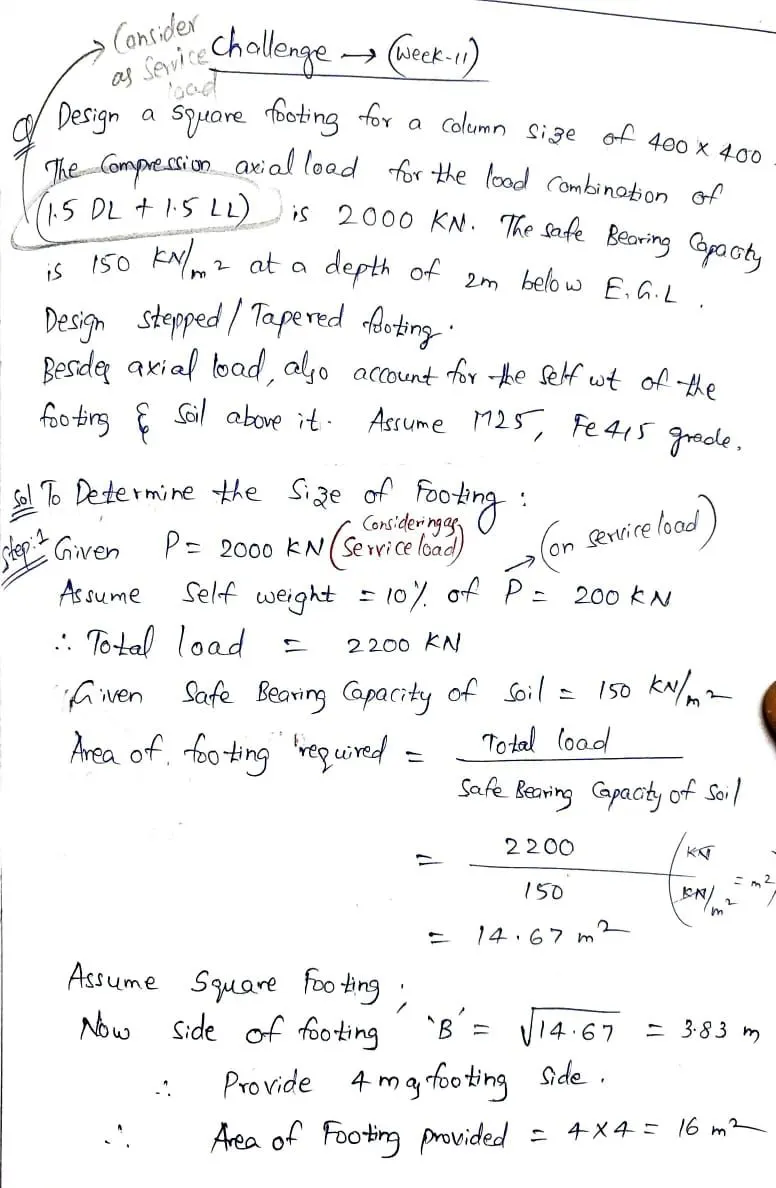

Design a square footing for a column size of 400x400. The compression axial load for the load combination of (1.5 DL + 1.5 LL) is 2000 KN. The safe soil bearing capacity is 150 KN/m2 at a depth of 2 metres below E.G.L. Participants are free to go for either a tapered or stepped footing.

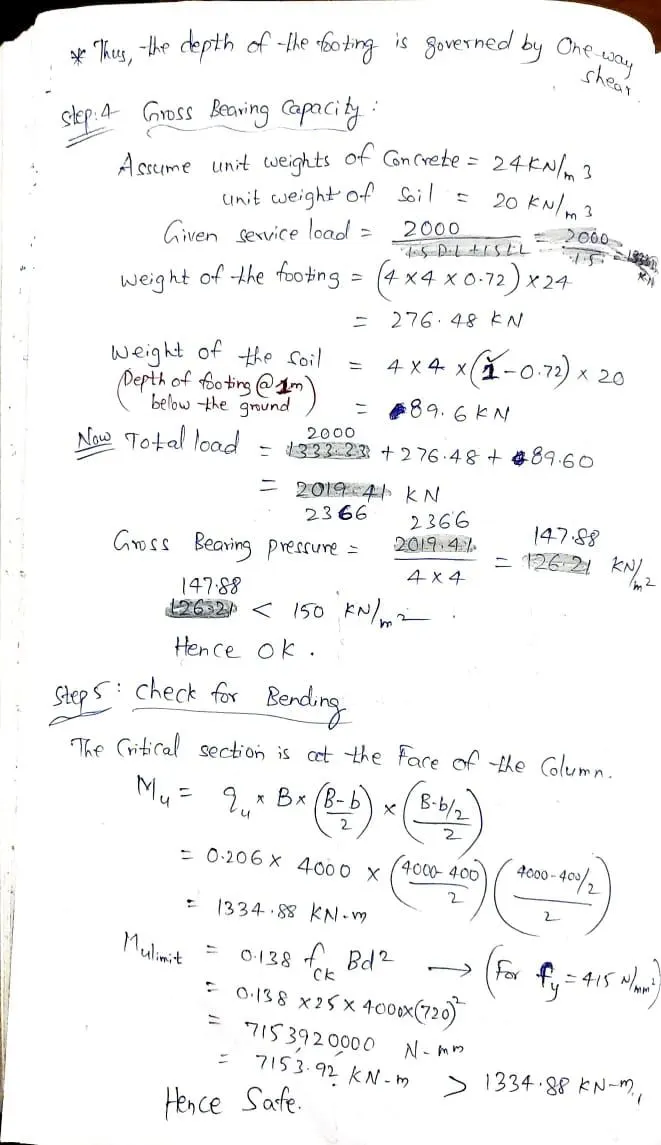

If the gross bearing pressure under the footing is within safe bearing capacity

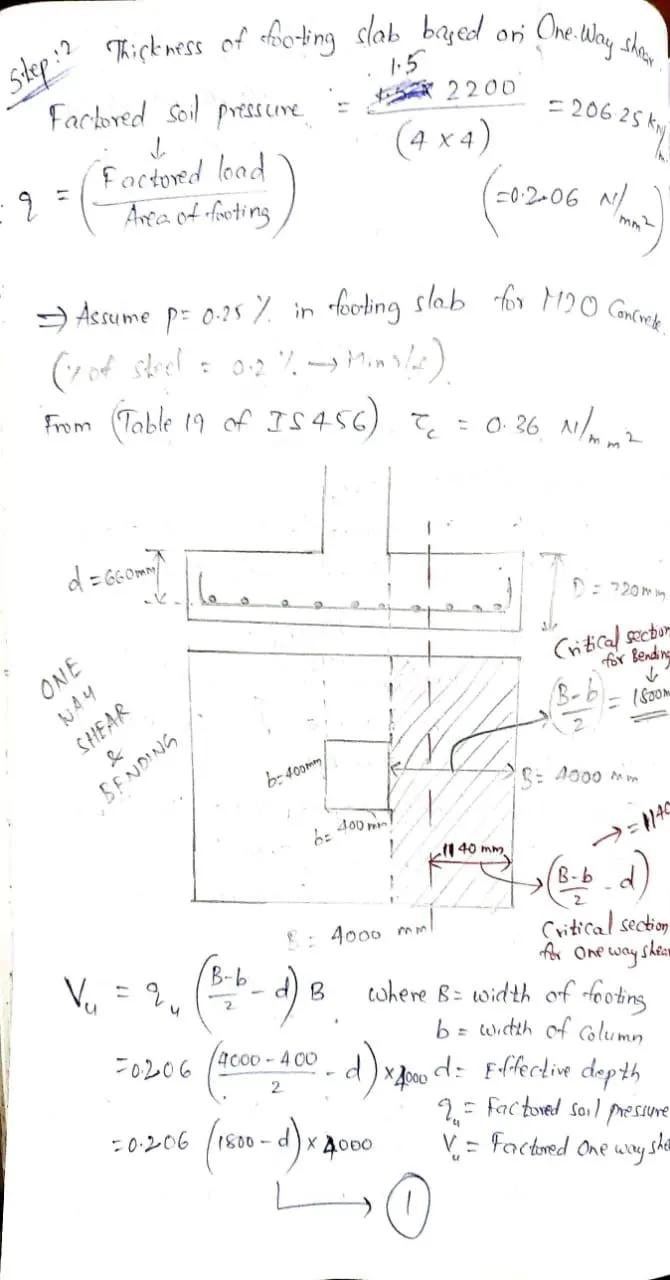

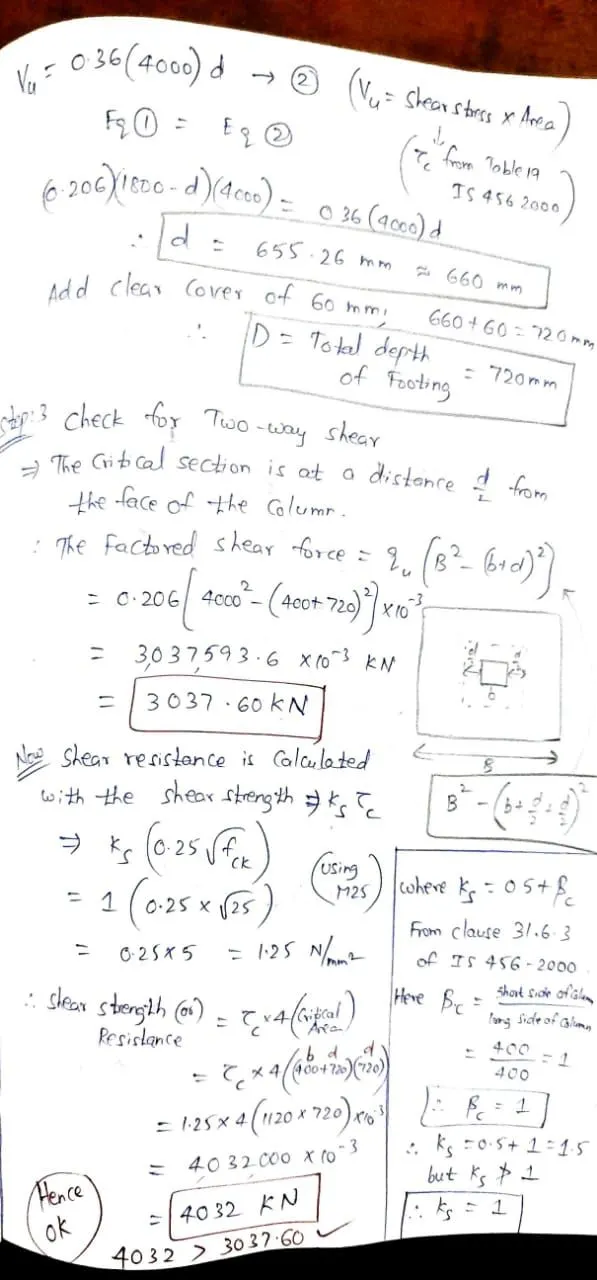

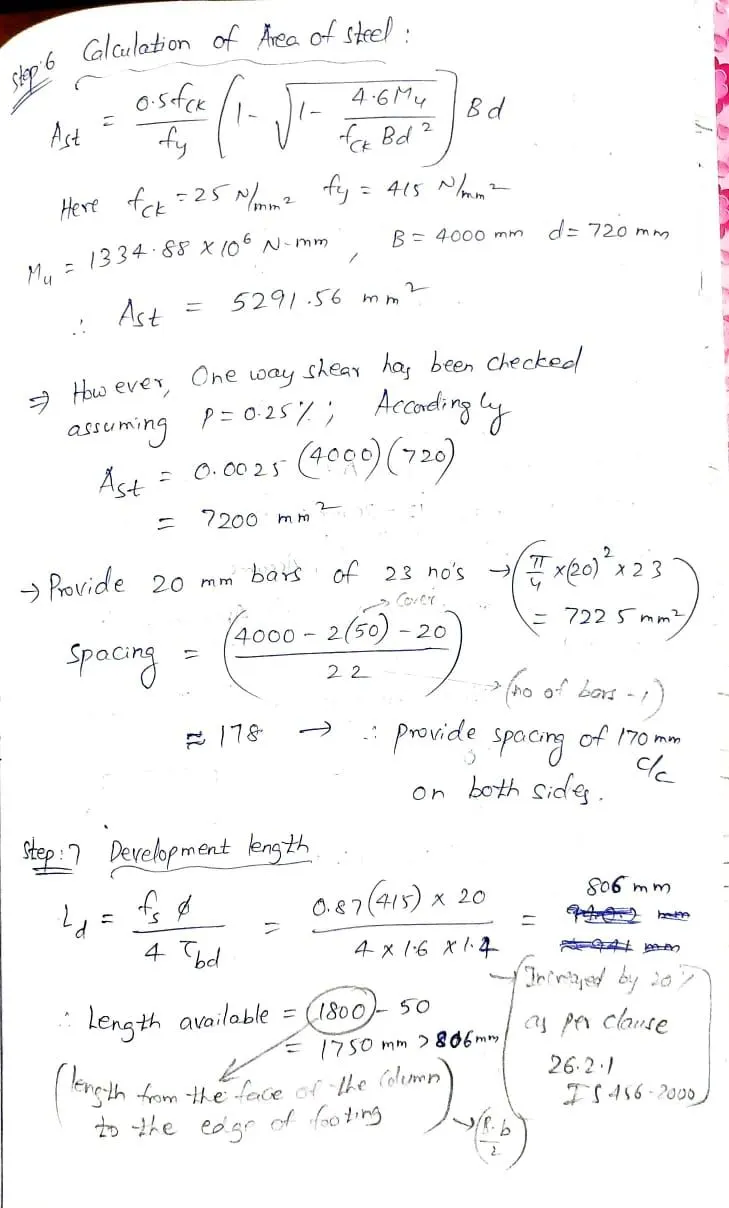

Provide sufficient depth and longitudinal steel for resisting bending and shear
Sufficient anchorage for column steel into the footing

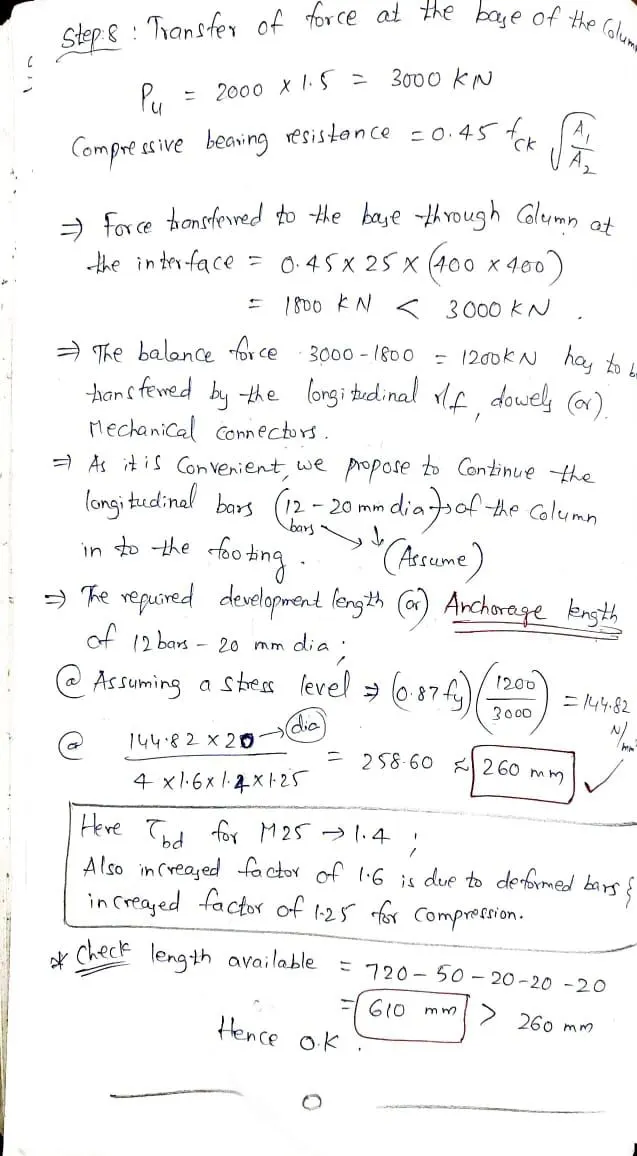

If the bearing pressure at column-footing joint is within 0.45 times the maximum concrete compressive strength

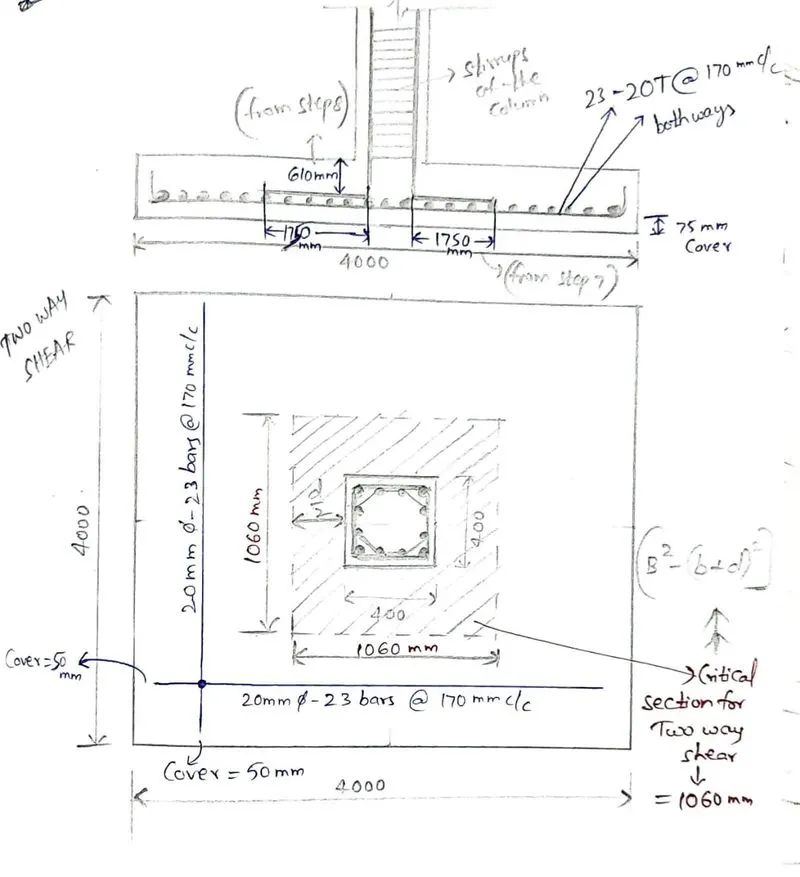

Provide a simple sketch showing the size of the footing, maximum and minimum depth of the section, flexural reinforcement in both directions and anchorage of column steel.
