AutoCAD_Drafting images by Coordinate System Methods_Week 1

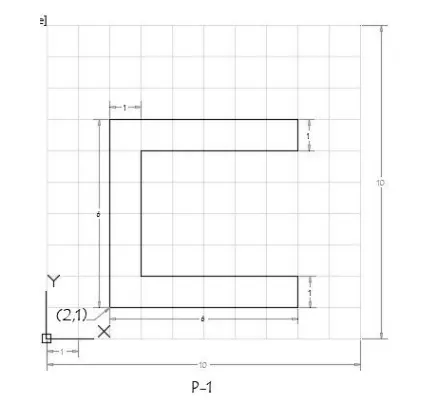

      Aim & Introduction: To draw the above diagram using ABSOLUTE COORDINATE SYSTEM Procedure: Command: DSDSETTINGSCommand: lLINESpecify first point: 2,1Specify next point or [Undo]: 8,1Specify next point or [Undo]: 8,2Specify next point or [Close/Undo]: 3,2Specify next point or [Close/Undo]: 3,6Specify…

    • krishna PEDDIBHOTLA NAGA VENKATA SAIKRISHNA TEJA

      updated on 04 Jan 2021







    Aim & Introduction:

    To draw the above diagram using ABSOLUTE COORDINATE SYSTEM

    Procedure:

    Command: DS
    DSETTINGS
    Command: l
    LINE
    Specify first point: 2,1
    Specify next point or [Undo]: 8,1
    Specify next point or [Undo]: 8,2
    Specify next point or [Close/Undo]: 3,2
    Specify next point or [Close/Undo]: 3,6
    Specify next point or [Close/Undo]: 8,6
    Specify next point or [Close/Undo]: 8,7
    Specify next point or [Close/Undo]: 2,7
    Specify next point or [Close/Undo]: C

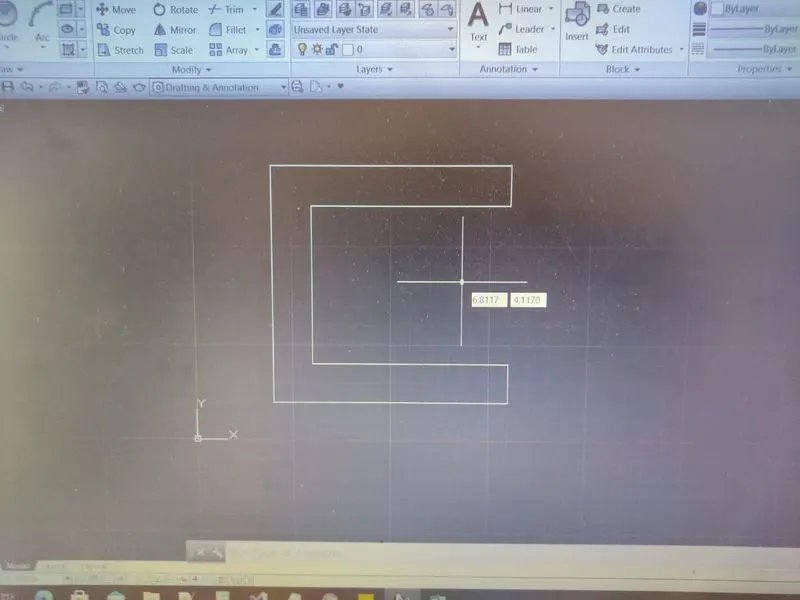

    Result:









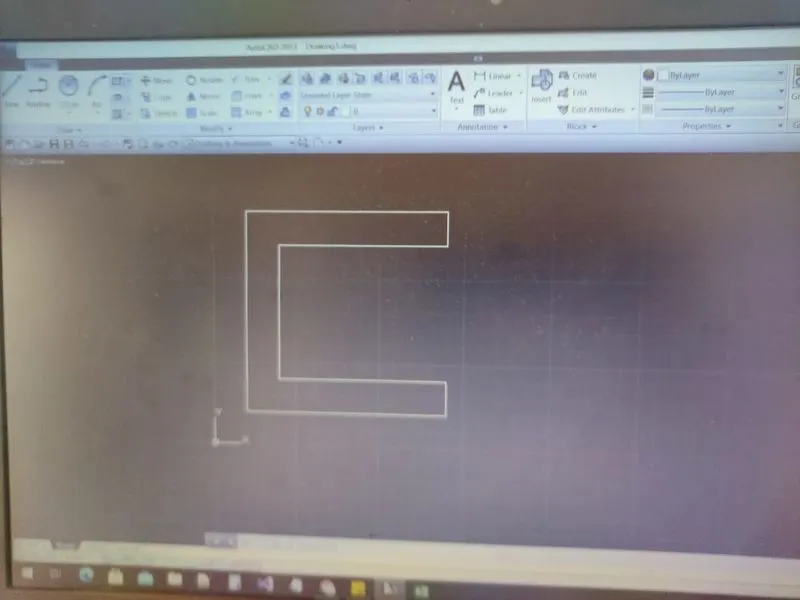

    Aim & Introduction:

    To draw the above diagram using RELATIVE COORIDINATE SYSYTEM

    1.RELATIVE RECTANGULAR COORDINATES

    Procedure:

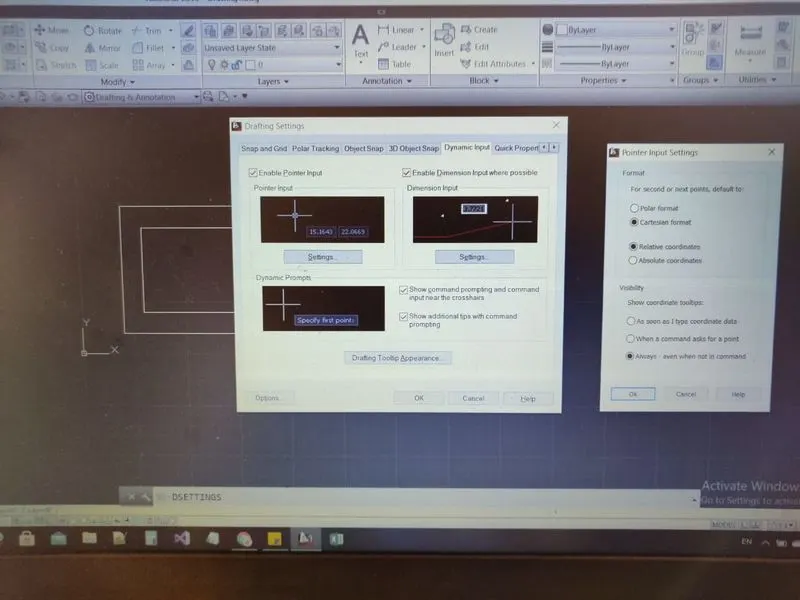

    Command: DS
    DSETTINGS
    Command: L
    LINE
    Specify first point: 2,1
    Specify next point or [Undo]: @6,0
    Specify next point or [Undo]: U
    Specify next point or [Undo]: @6,0
    Specify next point or [Undo]: @0,1
    Specify next point or [Close/Undo]: @-5,0
    Specify next point or [Close/Undo]: @0,4
    Specify next point or [Close/Undo]: @5,0
    Specify next point or [Close/Undo]: @0,1
    Specify next point or [Close/Undo]: @-6,0
    Specify next point or [Close/Undo]: C





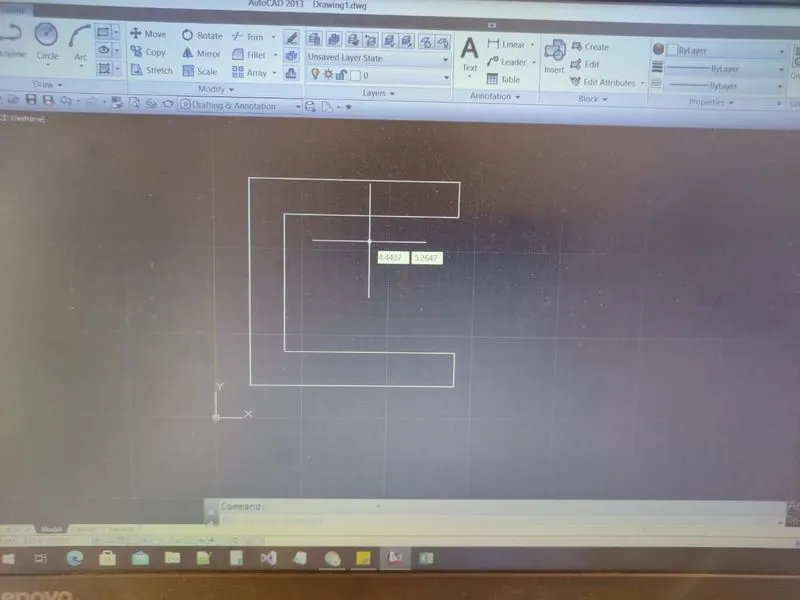

    Result:

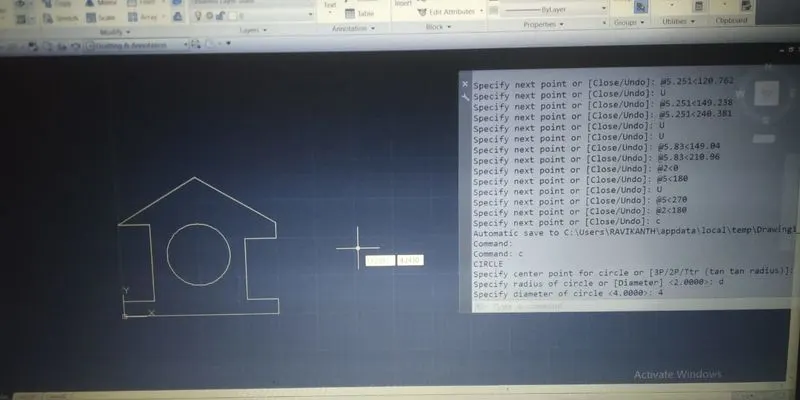

    Aim & Introduction:



    To draw the above diagram using RELATIVE COORDINATE SYSTEM

    2.RELATIVE POLAR COORDINATES

    Procedure:

    Command: DS
    DSETTINGS
    Command: L
    LINE
    Specify first point: 1,1
    Specify next point or [Undo]: @6<0
    Specify next point or [Undo]: @1<90
    Specify next point or [Close/Undo]: @5<180
    Specify next point or [Close/Undo]: @4<90
    Specify next point or [Close/Undo]: @5<0
    Specify next point or [Close/Undo]: @1<90
    Specify next point or [Close/Undo]: @6<180
    Specify next point or [Close/Undo]: C



     Result:







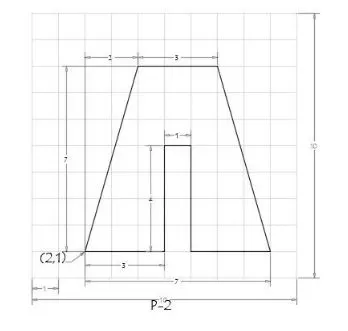

    Aim & Introduction:

    To draw the above diagram using ABSOLUTE COORDINATE SYSTEM

    Procedure:

    Command: DS
    DSETTINGS
    Command: L
    LINE
    Specify first point: 2,1
    Specify next point or [Undo]: 5,1
    Specify next point or [Undo]: 5,5
    Specify next point or [Close/Undo]: 6,5
    Specify next point or [Close/Undo]: 6,1
    Specify next point or [Close/Undo]: 9,1
    Specify next point or [Close/Undo]: 7,8
    Specify next point or [Close/Undo]: 4,8
    Specify next point or [Close/Undo]: C



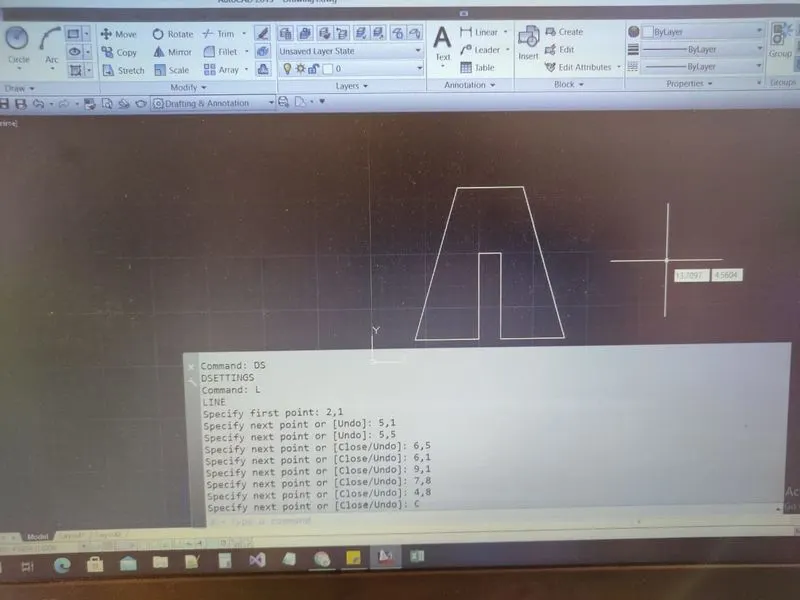

    Result:











    Aim & Introduction:

    To draw the above diagram using RELATIVE COORIDINATE SYSYTEM

    1.RELATIVE RECTANGULAR COORDINATES

    Procedure:

    Command: DS
    DSETTINGS
    Command: L
    LINE
    Specify first point: 2,1
    Specify next point or [Undo]: @3,0
    Specify next point or [Undo]: @0,4
    Specify next point or [Close/Undo]: @1,0
    Specify next point or [Close/Undo]: @0,-4
    Specify next point or [Close/Undo]: @3,0
    Specify next point or [Close/Undo]: @-2,-7
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @-2,7
    Specify next point or [Close/Undo]: @-3,0
    Specify next point or [Close/Undo]: C







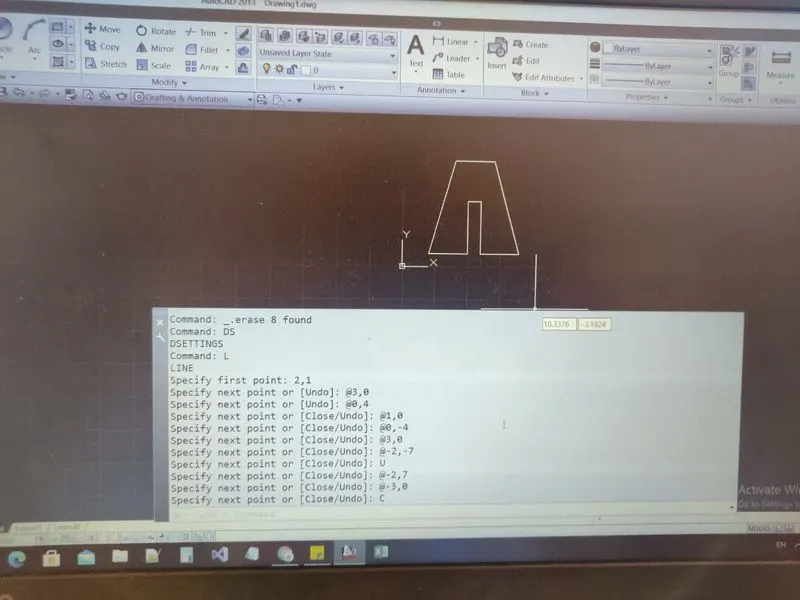

    Result:





    Aim & Introduction:

    To draw the above diagram using RELATIVE COORDINATE SYSTEM

    2.RELATIVE POLAR COORDINATES

    Procedure:

    Command: L
    LINE
    Specify first point: 2,1
    Specify next point or [Undo]: @3<0
    Specify next point or [Undo]: @4<90
    Specify next point or [Close/Undo]: @1<0
    Specify next point or [Close/Undo]: @4<270
    Specify next point or [Close/Undo]: @3<0
    Specify next point or [Close/Undo]: @7.61<156.80
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @7.61<113.20
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @7.28<105.90
    Specify next point or [Close/Undo]: @3<180
    Specify next point or [Close/Undo]: C



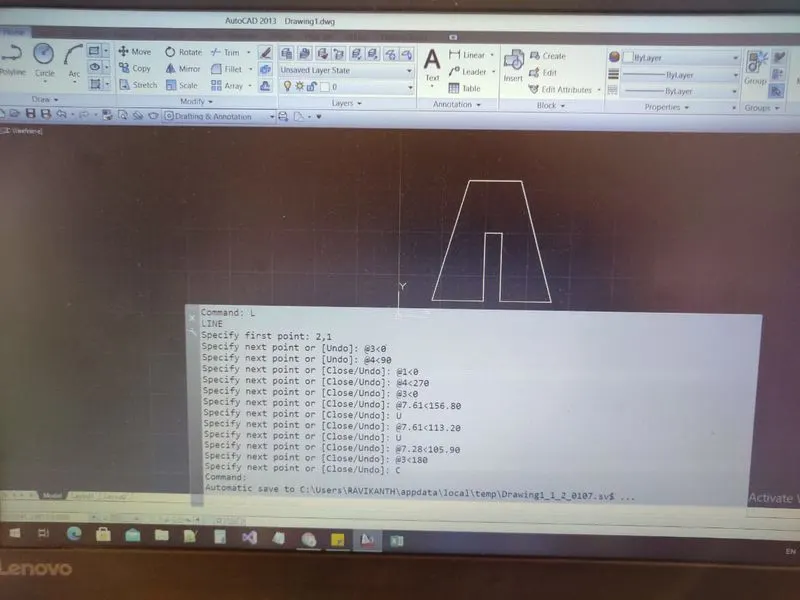

     Result:













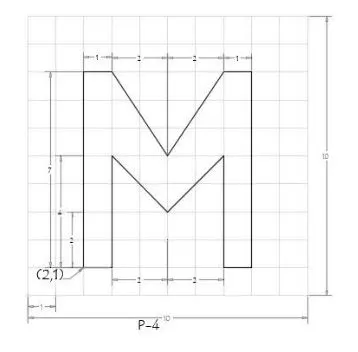

    Aim & Introduction:

    To draw the above diagram using ABSOLUTE COORDINATE SYSTEM

    Procedure:

    DSETTINGS
    Command: L
    LINE
    Specify first point: 2,1
    Specify next point or [Undo]: 3,1
    Specify next point or [Undo]: 3,3
    Specify next point or [Close/Undo]: U
    Specify next point or [Undo]: 3,6
    Specify next point or [Close/Undo]: 5,3
    Specify next point or [Close/Undo]: 7,6
    Specify next point or [Close/Undo]: 7,1
    Specify next point or [Close/Undo]: 8,1
    Specify next point or [Close/Undo]: 8,8
    Specify next point or [Close/Undo]: 7,8
    Specify next point or [Close/Undo]:
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: 5,5
    Specify next point or [Close/Undo]: 3,8
    Specify next point or [Close/Undo]: 2,8
    Specify next point or [Close/Undo]: C









    Result:

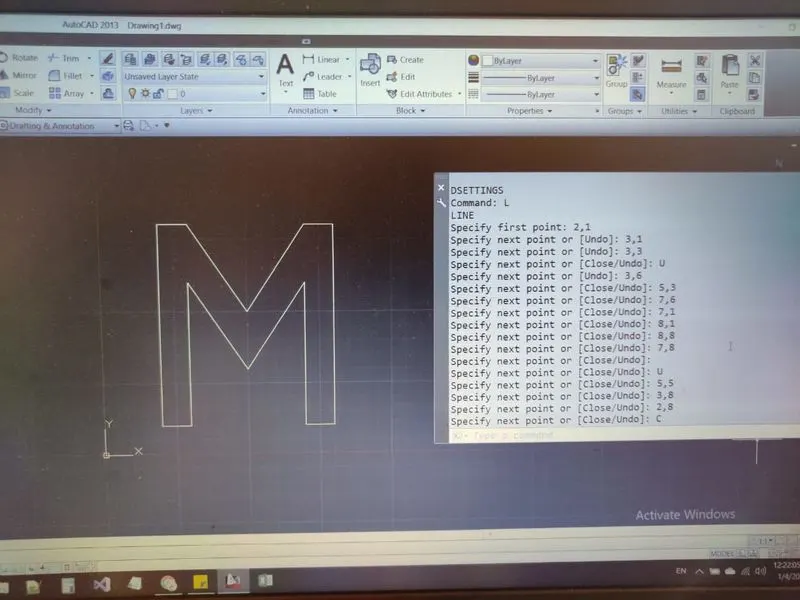

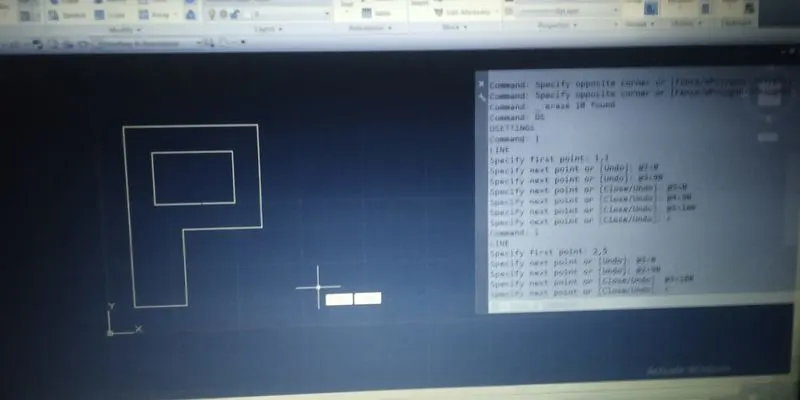

    Aim & Introduction:

    To draw the above diagram using RELATIVE COORIDINATE SYSYTEM

    1.RELATIVE RECTANGULAR COORDINATES

    Procedure:

    Command: L
    LINE
    Specify first point: 2,1
    Specify next point or [Undo]: @1,0
    Specify next point or [Undo]: @0,4
    Specify next point or [Close/Undo]: @2,-2
    Specify next point or [Close/Undo]: @2,2
    Specify next point or [Close/Undo]: @0,-4
    Specify next point or [Close/Undo]: @1,0
    Specify next point or [Close/Undo]: @0,7
    Specify next point or [Close/Undo]: @-2,-3
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @-1,0
    Specify next point or [Close/Undo]: @-2,-3
    Specify next point or [Close/Undo]: @-2,3
    Specify next point or [Close/Undo]: @-1,0
    Specify next point or [Close/Undo]: C







    Result:

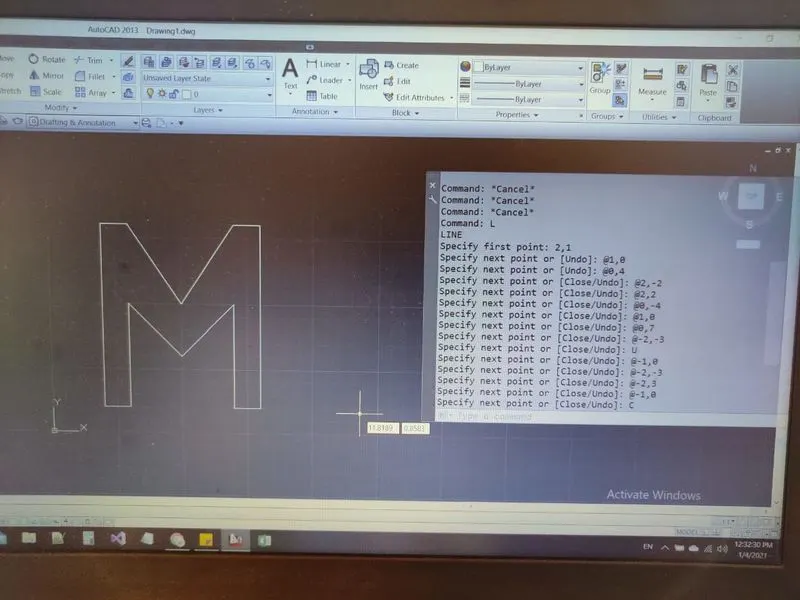

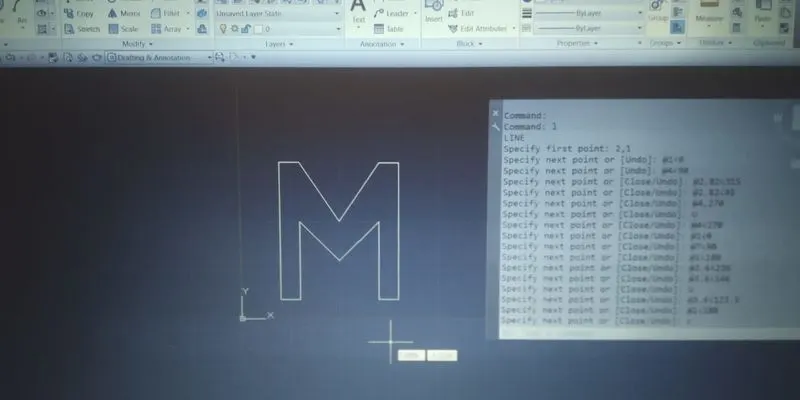

    Aim & Introduction:

    To draw the above diagram using RELATIVE COORDINATE SYSTEM

    2.RELATIVE POLAR COORDINATES

    Procedure:

    Command: L
    LINE
    Specify first point: 2,1
    Specify next point or [Undo]: @1<0
    Specify next point or [Undo]: @4<90
    Specify next point or [Close/Undo]: @2.82<315
    Specify next point or [Close/Undo]: @2.82<45
    Specify next point or [Close/Undo]: @4,270
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @4<270
    Specify next point or [Close/Undo]: @1<0
    Specify next point or [Close/Undo]: @7<90
    Specify next point or [Close/Undo]: @1<180
    Specify next point or [Close/Undo]: @3.6<236
    Specify next point or [Close/Undo]: @3.6<146
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @3.6<123.5
    Specify next point or [Close/Undo]: @1<180
    Specify next point or [Close/Undo]: c







    Result:

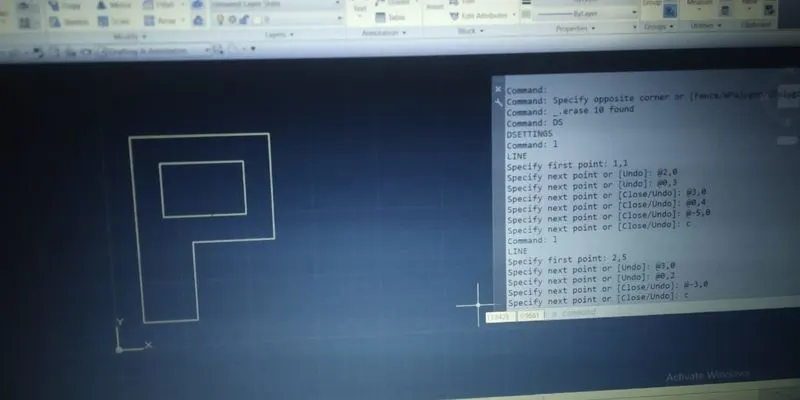

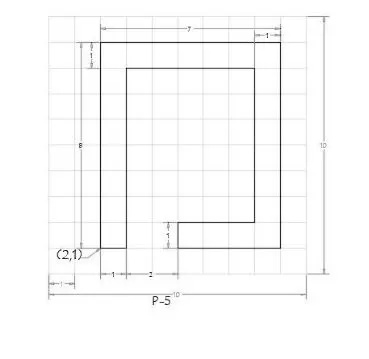

    Aim & Introduction:

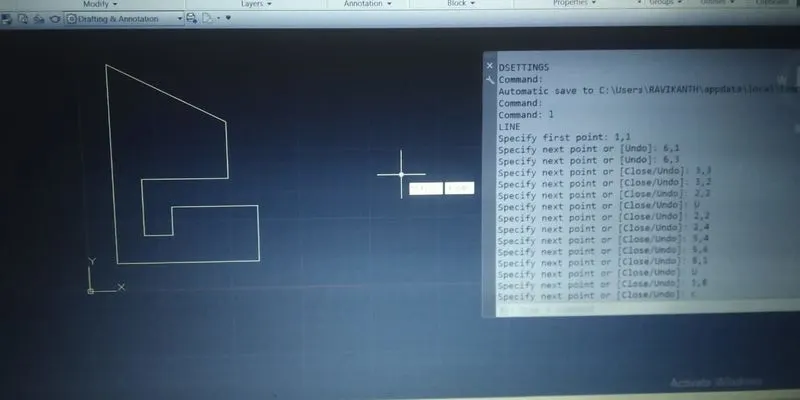

    To draw the above diagram using ABSOLUTE COORDINATE SYSTEM

    Procedure:



    DSETTINGS
    Command: l
    LINE
    Specify first point: 2,1
    Specify next point or [Undo]: 2,9
    Specify next point or [Undo]: 9,8
    Specify next point or [Close/Undo]: U
    Specify next point or [Undo]: 9,9
    Specify next point or [Close/Undo]: 9,1
    Specify next point or [Close/Undo]: 8,1
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: 5,1
    Specify next point or [Close/Undo]: 5,2
    Specify next point or [Close/Undo]: 8,2
    Specify next point or [Close/Undo]: 7,8
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: 7,6
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: 8,7
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: 8,8
    Specify next point or [Close/Undo]: 3,8
    Specify next point or [Close/Undo]: 3,1
    Specify next point or [Close/Undo]: c







    Result:





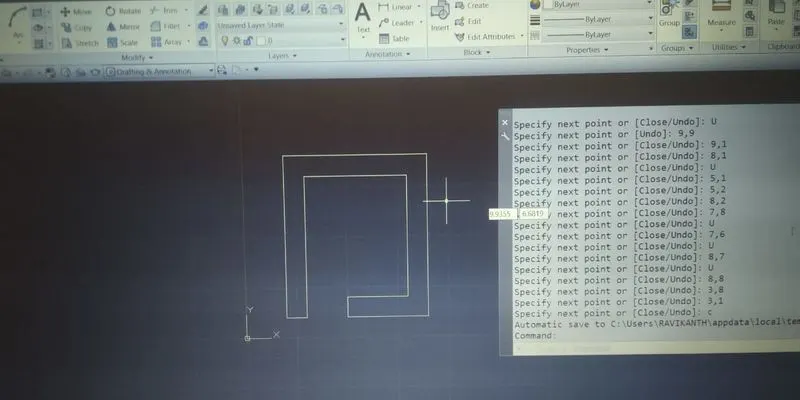

    Aim & Introduction:

    To draw the above diagram using RELATIVE COORIDINATE SYSYTEM

    1.RELATIVE RECTANGULAR COORDINATES

    Procedure:

    Command: DS
    DSETTINGS
    Command: l
    LINE
    Specify first point: 2,1
    Specify next point or [Undo]: @0,8
    Specify next point or [Undo]: @7,0
    Specify next point or [Close/Undo]: @0,-8
    Specify next point or [Close/Undo]: @-3,0
    Specify next point or [Close/Undo]: @0,1
    Specify next point or [Close/Undo]: @2,0
    Specify next point or [Close/Undo]: @0,7
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: 6
    Specify next point or [Close/Undo]: U
    Specify next point or [Undo]: @0,6
    Specify next point or [Undo]: @0,-6
    Specify next point or [Close/Undo]: U
    Specify next point or [Undo]: @-6,0
    Specify next point or [Close/Undo]: U
    Specify next point or [Undo]: @-5,0
    Specify next point or [Close/Undo]: @0,-7
    Specify next point or [Close/Undo]: c





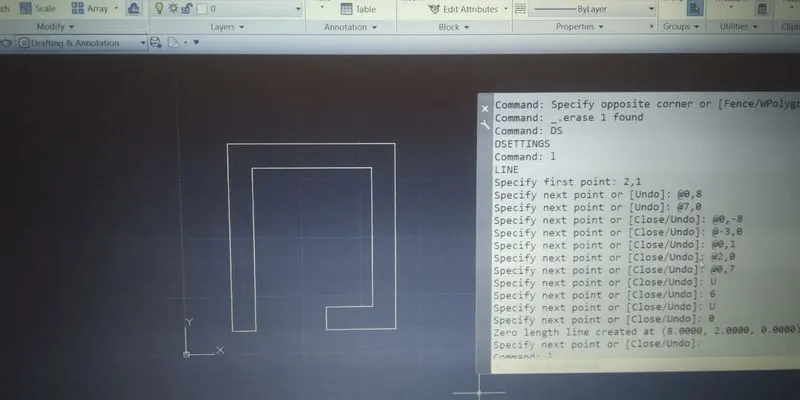

    Result:

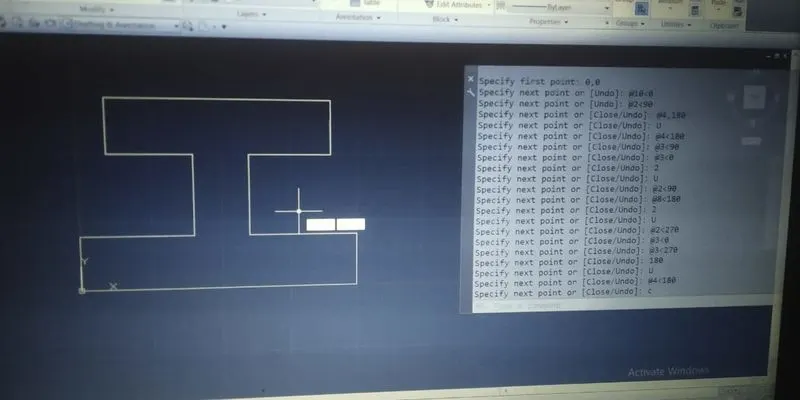

    Aim & Introduction:

    To draw the above diagram using RELATIVE COORDINATE SYSTEM

    2.RELATIVE POLAR COORDINATES

    Procedure:

    Command: DS
    DSETTINGS
    Command: l
    LINE
    Specify first point: 2,1
    Specify next point or [Undo]: @8<90
    Specify next point or [Undo]: @7<0
    Specify next point or [Close/Undo]: @8<270
    Specify next point or [Close/Undo]: @4<180
    Specify next point or [Close/Undo]: @1<90
    Specify next point or [Close/Undo]: @3,0
    Specify next point or [Close/Undo]: @7<90
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @6<90
    Specify next point or [Close/Undo]: @6<180
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @5<180
    Specify next point or [Close/Undo]: @7<270
    Specify next point or [Close/Undo]: c





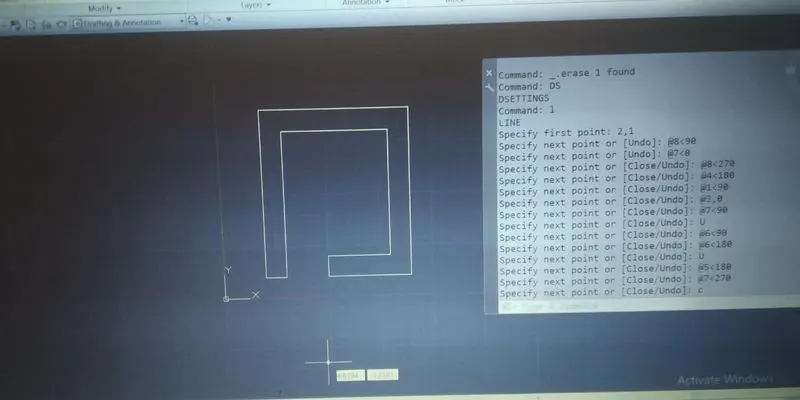

    Result:











    Aim & Introduction:

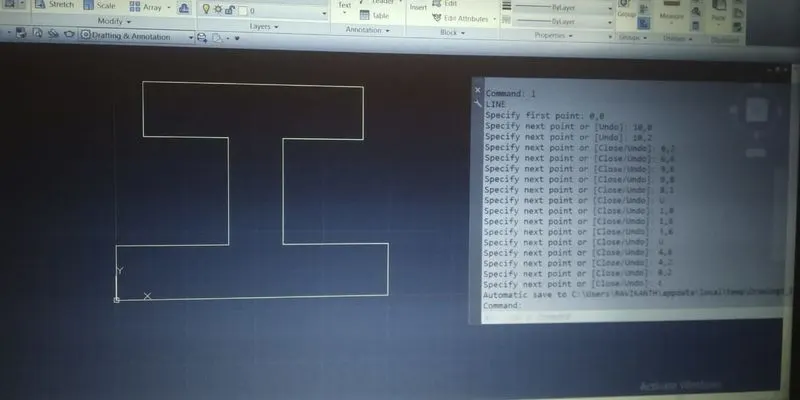

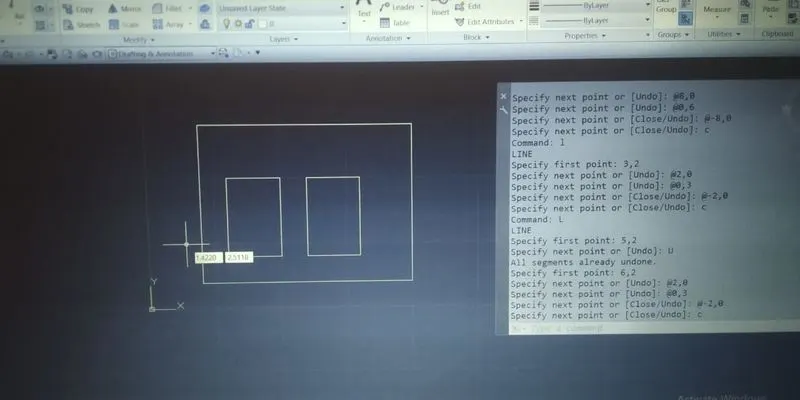

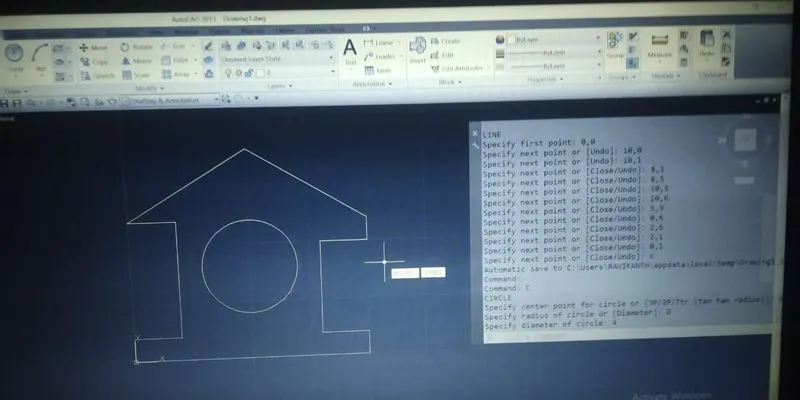

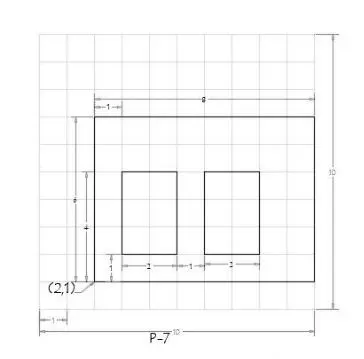

    To draw the above diagram using ABSOLUTE COORDINATE SYSTEM

    Procedure:

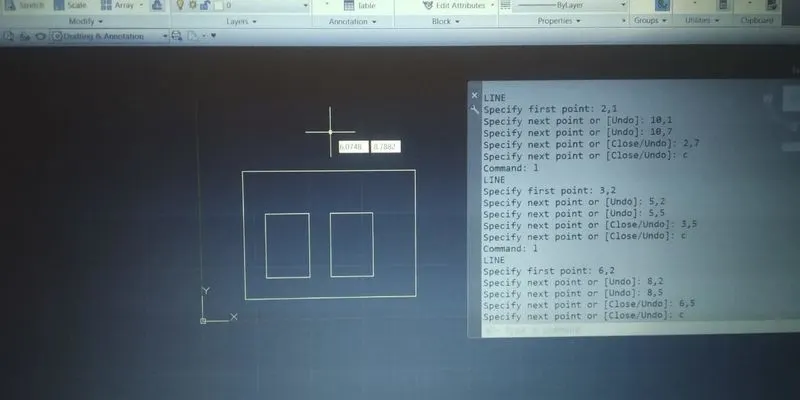

    Command: DS
    DSETTINGS
    Automatic save to C:\Users\RAVIKANTH\appdata\local\temp\Drawing1_1_1_1619.sv$ ...
    Command:
    Command: l
    LINE
    Specify first point: 2,1
    Specify next point or [Undo]: 10,1
    Specify next point or [Undo]: 10,7
    Specify next point or [Close/Undo]: 2,7
    Specify next point or [Close/Undo]: c
    Command: l
    LINE
    Specify first point: 3,2
    Specify next point or [Undo]: 5,2
    Specify next point or [Undo]: 5,5
    Specify next point or [Close/Undo]: 3,5
    Specify next point or [Close/Undo]: c
    Command: l
    LINE
    Specify first point: 6,2
    Specify next point or [Undo]: 8,2
    Specify next point or [Undo]: 8,5

    Specify next point or [Close/Undo]: 6,5
    Specify next point or [Close/Undo]: c







    Result:











    Aim & Introduction:

    To draw the above diagram using RELATIVE COORIDINATE SYSYTEM

    1.RELATIVE RECTANGULAR COORDINATES

    Procedure:

    Command: l
    LINE
    Specify first point: 2,1
    Specify next point or [Undo]: @8,0
    Specify next point or [Undo]: @0,6
    Specify next point or [Close/Undo]: @-8,0
    Specify next point or [Close/Undo]: c
    Command: l
    LINE
    Specify first point: 3,2
    Specify next point or [Undo]: @2,0
    Specify next point or [Undo]: @0,3
    Specify next point or [Close/Undo]: @-2,0
    Specify next point or [Close/Undo]: c
    Command: L
    LINE
    Specify first point: 5,2
    Specify next point or [Undo]: U
    All segments already undone.
    Specify first point: 6,2
    Specify next point or [Undo]: @2,0
    Specify next point or [Undo]: @0,3
    Specify next point or [Close/Undo]: @-2,0
    Specify next point or [Close/Undo]: c



    Result:









    Aim & Introduction:

    To draw the above diagram using RELATIVE COORDINATE SYSTEM

    2.RELATIVE POLAR COORDINATES

    Procedure:

    Command: DS
    DSETTINGS
    Command: l
    LINE
    Specify first point: 2,1
    Specify next point or [Undo]: @8,0
    Specify next point or [Undo]: @0,6
    Specify next point or [Close/Undo]: @-8,0
    Specify next point or [Close/Undo]: c
    Command: l
    LINE
    Specify first point: 3,2
    Specify next point or [Undo]: @2,0
    Specify next point or [Undo]: @0,3
    Specify next point or [Close/Undo]: @-2,0
    Specify next point or [Close/Undo]: c
    Command: L
    LINE
    Specify first point: 5,2
    Specify next point or [Undo]: U
    All segments already undone.
    Specify first point: 6,2
    Specify next point or [Undo]: @2,0
    Specify next point or [Undo]: @0,3
    Specify next point or [Close/Undo]: @-2,0
    Specify next point or [Close/Undo]: c



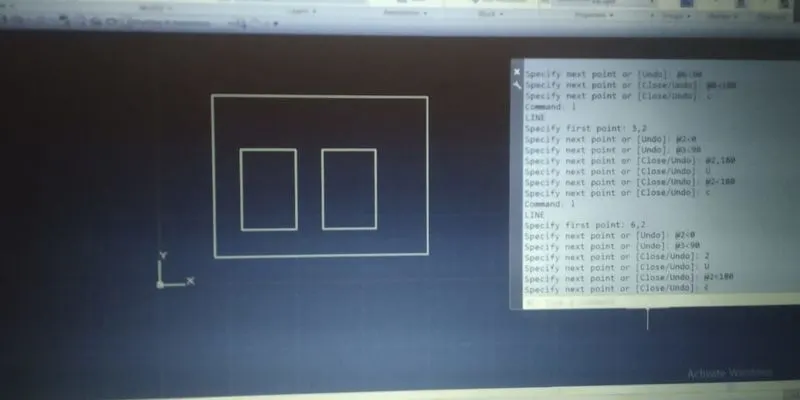

    Result:











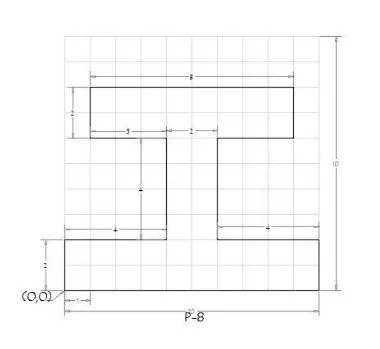

    Aim & Introduction:

    To draw the above diagram using ABSOLUTE COORDINATE SYSTEM

    Procedure:

    Command: ds
    DSETTINGS
    Command: l
    LINE
    Specify first point: 0,0
    Specify next point or [Undo]: 10,0
    Specify next point or [Undo]: 10,2
    Specify next point or [Close/Undo]: 6,2
    Specify next point or [Close/Undo]: 6,6
    Specify next point or [Close/Undo]: 9,6
    Specify next point or [Close/Undo]: 9,8
    Specify next point or [Close/Undo]: 8,1
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: 1,8
    Specify next point or [Close/Undo]: 1,6
    Specify next point or [Close/Undo]: 3,6
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: 4,6
    Specify next point or [Close/Undo]: 4,2
    Specify next point or [Close/Undo]: 0,2
    Specify next point or [Close/Undo]: c
    Automatic save to C:\Users\RAVIKANTH\appdata\local\temp\Drawing1_1_1_5723.sv$ ...
    Command:





    Result:









    Aim & Introduction:

    To draw the above diagram using RELATIVE COORIDINATE SYSYTEM

    1.RELATIVE RECTANGULAR COORDINATES

    Procedure:


    Command: DS
    DSETTINGS
    Command: l
    LINE
    Specify first point: 0,0
    Specify next point or [Undo]: @0,10
    Specify next point or [Undo]: U
    Specify next point or [Undo]: 0
    Zero length line created at (0.0000, 0.0000, 0.0000)
    Specify next point or [Undo]: @10,0
    Specify next point or [Close/Undo]: @0,2
    Specify next point or [Close/Undo]: @-4,0
    Specify next point or [Close/Undo]: @0,3
    Specify next point or [Close/Undo]: @3,0
    Specify next point or [Close/Undo]: @0,2
    Specify next point or [Close/Undo]: @-9,0
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @-8,0
    Specify next point or [Close/Undo]: @0,-2
    Specify next point or [Close/Undo]: @3,0
    Specify next point or [Close/Undo]: @0,-4
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @0,-3
    Specify next point or [Close/Undo]: @-4,0
    Specify next point or [Close/Undo]: c



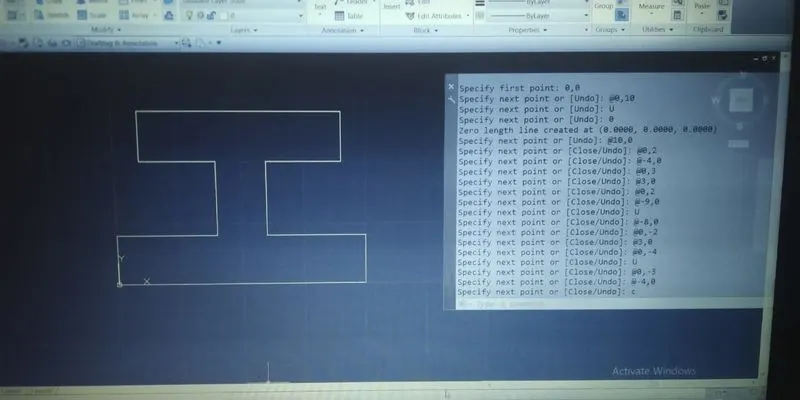

    Result:









    Aim & Introduction:

    To draw the above diagram using RELATIVE COORDINATE SYSTEM

    2.RELATIVE POLAR COORDINATES

    Procedure:


    Command: ds
    DSETTINGS
    Command: l
    LINE
    Specify first point: 0,0
    Specify next point or [Undo]: @10<0
    Specify next point or [Undo]: @2<90
    Specify next point or [Close/Undo]: @4,180
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @4<180
    Specify next point or [Close/Undo]: @3<90
    Specify next point or [Close/Undo]: @3<0
    Specify next point or [Close/Undo]: 2
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @2<90
    Specify next point or [Close/Undo]: @8<180
    Specify next point or [Close/Undo]: 2
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @2<270
    Specify next point or [Close/Undo]: @3<0
    Specify next point or [Close/Undo]: @3<270
    Specify next point or [Close/Undo]: 180
    Specify next point or [Close/Undo]: U

    Specify next point or [Close/Undo]: @4<180
    Specify next point or [Close/Undo]: c





     Result:











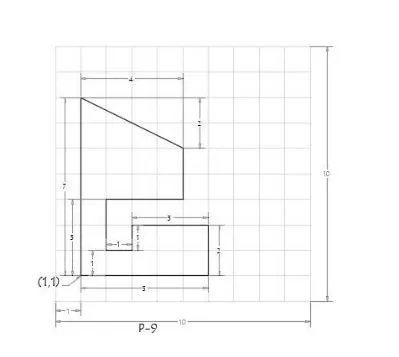

    Aim & Introduction:

    To draw the above diagram using ABSOLUTE COORDINATE SYSTEM

    Procedure:



    DSETTINGS
    Command:
    Command: l
    LINE
    Specify first point: 1,1
    Specify next point or [Undo]: 6,1
    Specify next point or [Undo]: 6,3
    Specify next point or [Close/Undo]: 3,3
    Specify next point or [Close/Undo]: 3,2
    Specify next point or [Close/Undo]: 2,2
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: 2,2
    Specify next point or [Close/Undo]: 2,4
    Specify next point or [Close/Undo]: 5,4
    Specify next point or [Close/Undo]: 5,6
    Specify next point or [Close/Undo]: 8,1
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: 1,8
    Specify next point or [Close/Undo]: c









    Result:





    Aim & Introduction:

    To draw the above diagram using RELATIVE COORIDINATE SYSYTEM

    1.RELATIVE RECTANGULAR COORDINATES

    Procedure:

    Command: DS
    DSETTINGS
    Command: l
    LINE
    Specify first point: 1,1
    Specify next point or [Undo]: @0,5
    Specify next point or [Undo]: U
    Specify next point or [Undo]: @5,0
    Specify next point or [Undo]: @0,2
    Specify next point or [Close/Undo]: -3
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @0,-3
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @-3,0
    Specify next point or [Close/Undo]: @0,-1
    Specify next point or [Close/Undo]: @-1,0
    Specify next point or [Close/Undo]: @0,2
    Specify next point or [Close/Undo]: @3,0
    Specify next point or [Close/Undo]: @0,2
    Specify next point or [Close/Undo]: @-4,2
    Specify next point or [Close/Undo]: c



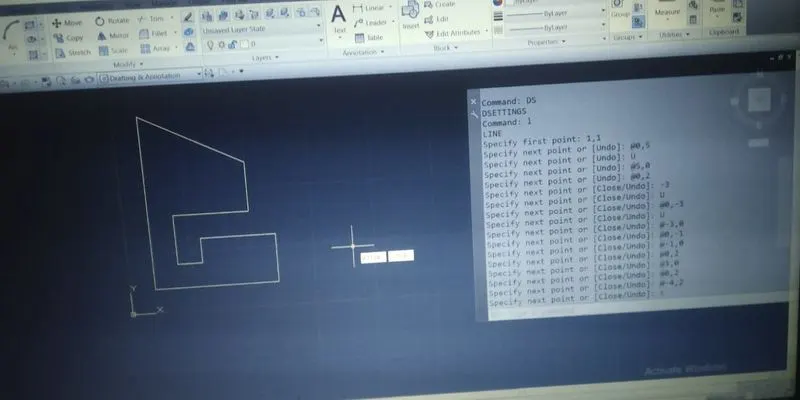

    Result:







    Aim & Introduction:

    To draw the above diagram using RELATIVE COORDINATE SYSTEM

    2.RELATIVE POLAR COORDINATES

    Procedure:


    Command: l
    LINE
    Specify first point: 1,1
    Specify next point or [Undo]: @5<0
    Specify next point or [Undo]: @2,90
    Specify next point or [Close/Undo]: U
    Specify next point or [Undo]: @2<90
    Specify next point or [Close/Undo]: @3,180
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @3<180
    Specify next point or [Close/Undo]: @1<270
    Specify next point or [Close/Undo]: @1<180
    Specify next point or [Close/Undo]: @2,90
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @2<90
    Specify next point or [Close/Undo]: @3,0
    Specify next point or [Close/Undo]: @2,90
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @2<90
    Specify next point or [Close/Undo]: @4.47<154.15
    Specify next point or [Close/Undo]: c



     Result:











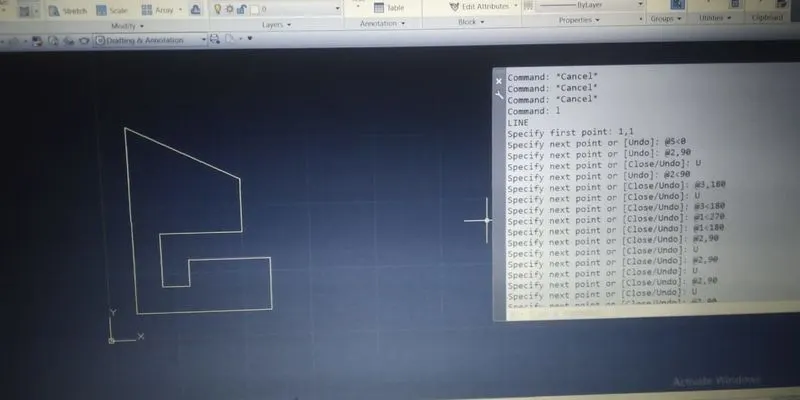

    Aim & Introduction:

    To draw the above diagram using ABSOLUTE COORDINATE SYSTEM

    Procedure:



    Command: DS
    DSETTINGS
    Command: l
    LINE
    Specify first point: 1,1
    Specify next point or [Undo]: 3,1
    Specify next point or [Undo]: 3,4
    Specify next point or [Close/Undo]: 6,4
    Specify next point or [Close/Undo]: 6,8
    Specify next point or [Close/Undo]: 1,8
    Specify next point or [Close/Undo]: c
    Command: l
    LINE
    Specify first point: 2,5
    Specify next point or [Undo]: 5,5
    Specify next point or [Undo]: 5,7
    Specify next point or [Close/Undo]: 2,7
    Specify next point or [Close/Undo]: c
    Automatic save to C:\Users\RAVIKANTH\appdata\local\temp\Drawing1_1_1_5723.sv$ ...
    Command:





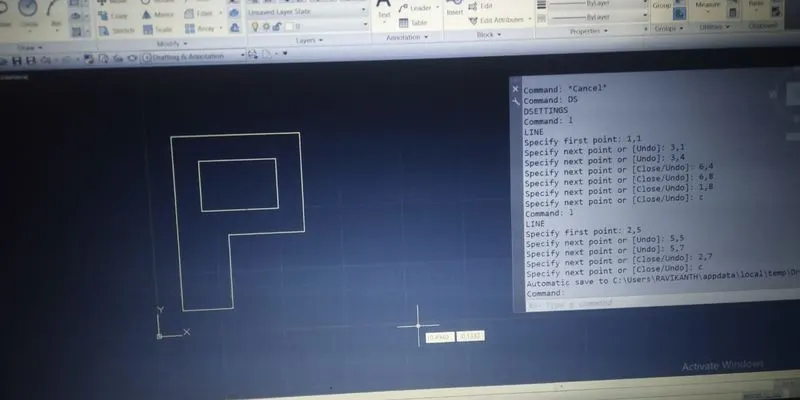

    Result:







    Aim & Introduction:

    To draw the above diagram using RELATIVE COORIDINATE SYSYTEM

    1.RELATIVE RECTANGULAR COORDINATES

    Procedure:

    Command: DS
    DSETTINGS
    Command: l
    LINE
    Specify first point: 1,1
    Specify next point or [Undo]: @2,0
    Specify next point or [Undo]: @0,3
    Specify next point or [Close/Undo]: @3,0
    Specify next point or [Close/Undo]: @0,4
    Specify next point or [Close/Undo]: @-5,0
    Specify next point or [Close/Undo]: c
    Command: l
    LINE
    Specify first point: 2,5
    Specify next point or [Undo]: @3,0
    Specify next point or [Undo]: @0,2
    Specify next point or [Close/Undo]: @-3,0
    Specify next point or [Close/Undo]: c



    Result:







    Aim & Introduction:

    To draw the above diagram using RELATIVE COORDINATE SYSTEM

    2.RELATIVE POLAR COORDINATES

    Procedure:

    Command: DS
    DSETTINGS
    Command: l
    LINE
    Specify first point: 1,1
    Specify next point or [Undo]: @2<0
    Specify next point or [Undo]: @3<90
    Specify next point or [Close/Undo]: @3<0
    Specify next point or [Close/Undo]: @4<90
    Specify next point or [Close/Undo]: @5<180
    Specify next point or [Close/Undo]: c
    Command: l
    LINE
    Specify first point: 2,5
    Specify next point or [Undo]: @3<0
    Specify next point or [Undo]: @2<90
    Specify next point or [Close/Undo]: @3<180
    Specify next point or [Close/Undo]: c





    Result:











    Aim & Introduction:

    To draw the above diagram using ABSOLUTE COORDINATE SYSTEM

    Procedure:



    Command: DS
    DSETTINGS
    Command: l
    LINE
    Specify first point: 0,0
    Specify next point or [Undo]: 10,0
    Specify next point or [Undo]: 10,1
    Specify next point or [Close/Undo]: 8,1
    Specify next point or [Close/Undo]: 8,5
    Specify next point or [Close/Undo]: 10,5
    Specify next point or [Close/Undo]: 10,6
    Specify next point or [Close/Undo]: 5,9
    Specify next point or [Close/Undo]: 0,6
    Specify next point or [Close/Undo]: 2,6
    Specify next point or [Close/Undo]: 2,1
    Specify next point or [Close/Undo]: 0,1
    Specify next point or [Close/Undo]: c
    Automatic save to C:\Users\RAVIKANTH\appdata\local\temp\Drawing1_1_1_5723.sv$ ...
    Command:
    Command: C
    CIRCLE
    Specify center point for circle or [3P/2P/Ttr (tan tan radius)]: 5,4
    Specify radius of circle or [Diameter]: D
    Specify diameter of circle: 4







    Result:







    Aim & Introduction:

    To draw the above diagram using RELATIVE COORIDINATE SYSYTEM

    1.RELATIVE RECTANGULAR COORDINATES

    Procedure:

    Command: DS
    DSETTINGS
    Command: l
    LINE
    Specify first point: 0,0
    Specify next point or [Undo]: 0
    Zero length line created at (0.0000, 0.0000, 0.0000)
    Specify next point or [Undo]: @10,0
    Specify next point or [Close/Undo]: @0,1
    Specify next point or [Close/Undo]: @-2,0
    Specify next point or [Close/Undo]: @0,4
    Specify next point or [Close/Undo]: @1,0
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @2,0
    Specify next point or [Close/Undo]: @1,0
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @0,1
    Specify next point or [Close/Undo]: @-5,-3
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @-5,-8
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @-5,3
    Specify next point or [Close/Undo]: @-5,3
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @-5,-3
    Specify next point or [Close/Undo]: @2,0
    Specify next point or [Close/Undo]: @0,-5
    Specify next point or [Close/Undo]: @-2,0
    Specify next point or [Close/Undo]: @-1,0
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: c
    Command: c

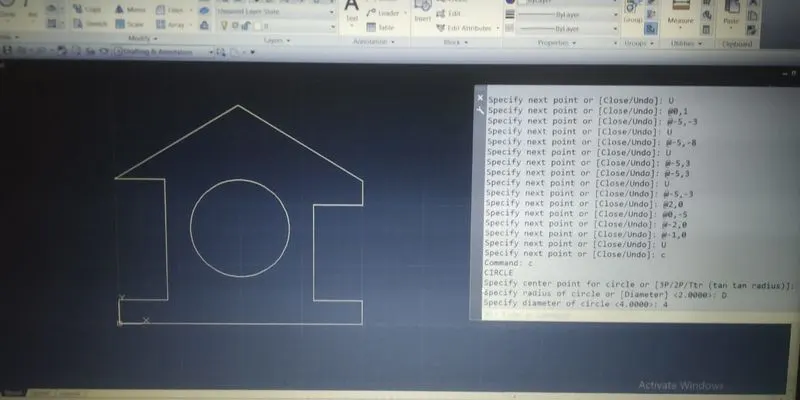

    CIRCLE
    Specify center point for circle or [3P/2P/Ttr (tan tan radius)]: 5,4
    Specify radius of circle or [Diameter] <2.0000>: D
    Specify diameter of circle <4.0000>: 4







    Result:

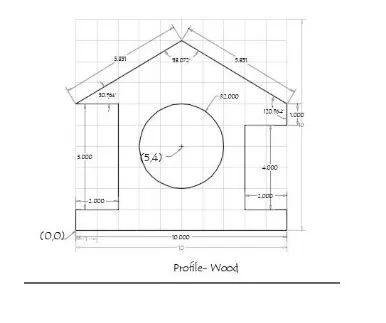

    Aim & Introduction:

    To draw the above diagram using RELATIVE COORDINATE SYSTEM

    2.RELATIVE POLAR COORDINATES

    Procedure:

    Command: ds
    DSETTINGS
    Command: l
    LINE
    Specify first point: 0,0
    Specify next point or [Undo]: @10<0
    Specify next point or [Undo]: @1<90
    Specify next point or [Close/Undo]: @2<180
    Specify next point or [Close/Undo]: @4<90
    Specify next point or [Close/Undo]: @2<0
    Specify next point or [Close/Undo]: @1<90
    Specify next point or [Close/Undo]: @5.251<120.762
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @5.83<149.04
    Specify next point or [Close/Undo]: @5.83<210.96
    Specify next point or [Close/Undo]: @2<0
    Specify next point or [Close/Undo]: @5<180
    Specify next point or [Close/Undo]: U
    Specify next point or [Close/Undo]: @5<270
    Specify next point or [Close/Undo]: @2<180
    Specify next point or [Close/Undo]: c
    Automatic save to C:\Users\RAVIKANTH\appdata\local\temp\Drawing1_1_1_5723.sv$ ...
    Command:
    Command: c
    CIRCLE
    Specify center point for circle or [3P/2P/Ttr (tan tan radius)]: 5,4
    Specify radius of circle or [Diameter] <2.0000>: d
    Specify diameter of circle <4.0000>: 4



    Result:















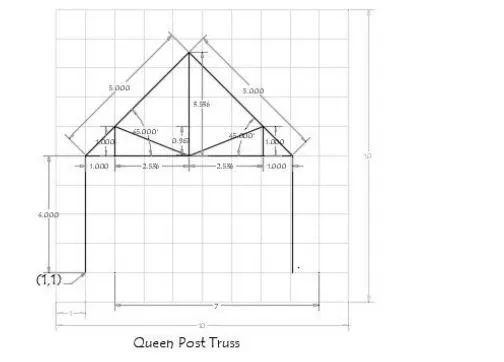

    Aim & Introduction:

    To draw the above diagram using ABSOLUTE COORDINATE SYSTEM

    Procedure:



    Command: l
    LINE
    Specify first point: 1,1
    Specify next point or [Undo]: @4<90
    Specify next point or [Undo]: @5<45
    Specify next point or [Close/Undo]: @5<315
    Specify next point or [Close/Undo]: @4<270
    Specify next point or [Close/Undo]: *Cancel*
    Command: l
    LINE
    Specify first point:
    Specify next point or [Undo]:
    Specify next point or [Undo]: *Cancel*
    Command: l
    LINE
    Specify first point:
    Specify next point or [Undo]:
    Specify next point or [Undo]: *Cancel*
    Command: l
    LINE
    Specify first point:

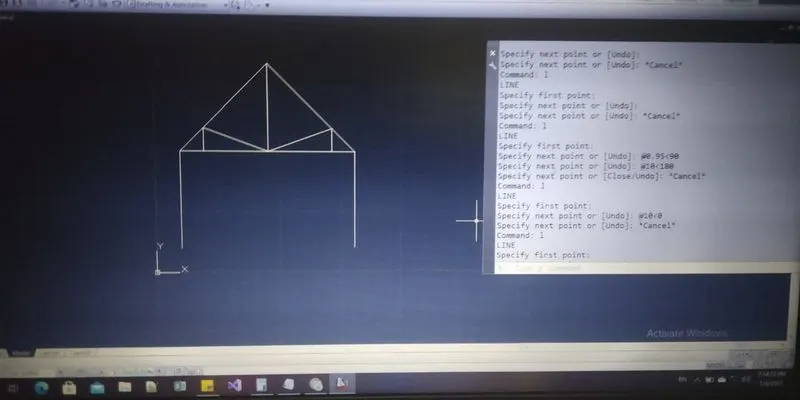

    Specify next point or [Undo]: @0.95<90
    Specify next point or [Close/Undo]: *Cancel*
    Command: l
    LINE
    Specify first point:
    Specify next point or [Undo]: @10<0
    Specify next point or [Undo]: *Cancel*
    Command: l
    LINE
    Specify first point:
    Specify next point or [Undo]:
    Specify next point or [Undo]: *Cancel*
    Command: l
    LINE
    Specify first point:
    Specify next point or [Undo]:
    Specify next point or [Undo]: *Cancel*
    Command:
    Command: _.erase 1 found
    Command:
    Command: _.erase 1 found
    Command: l
    LINE
    Specify first point:
    Specify next point or [Undo]:
    Specify next point or [Undo]: *Cancel*
    Command: l
    LINE
    Specify first point:
    Specify next point or [Undo]:







    Result:

















    Aim & Introduction:

    To draw the above diagram using ABSOLUTE COORDINATE SYSTEM

    Procedure:





    Command: DS
    DSETTINGS
    Command: l
    LINE
    Specify first point: 1,1
    Specify next point or [Undo]: 3,1
    Specify next point or [Undo]: 5,1
    Specify next point or [Close/Undo]: 7,1
    Specify next point or [Close/Undo]: 7,3
    Specify next point or [Close/Undo]: c
    Command: l
    LINE
    Specify first point: 5,1
    Specify next point or [Undo]: U
    All segments already undone.
    Specify first point: 5,1
    Specify next point or [Undo]: 5,1.333
    Specify next point or [Undo]: U
    Specify next point or [Undo]: 5,2.333
    Specify next point or [Undo]: 1
    Specify next point or [Close/Undo]: U
    Specify next point or [Undo]: 7,1
    Specify next point or [Close/Undo]:
    Command: l
    LINE
    Specify first point: 3,1
    Specify next point or [Undo]: *Cancel*
    Command: l
    LINE
    Specify first point: 3,1
    Specify next point or [Undo]: 3,1.667
    Specify next point or [Undo]: 5,1
    Specify next point or [Close/Undo]:





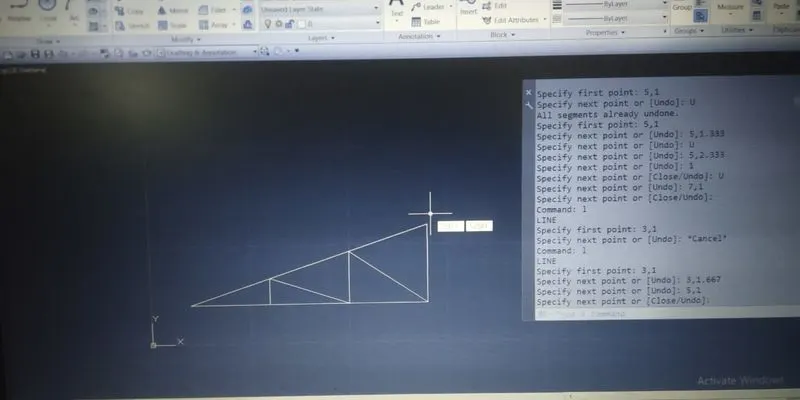

    Result:

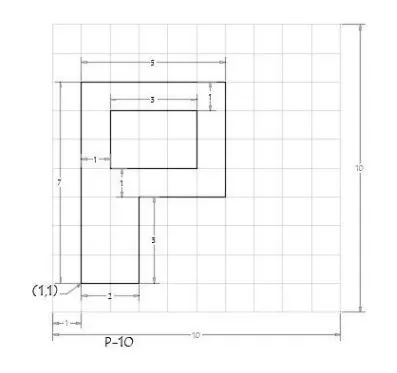

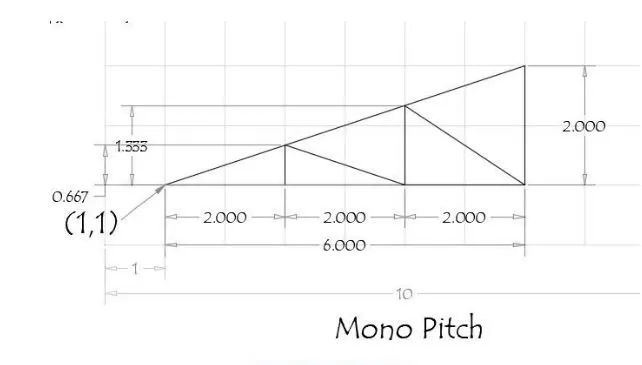

    Aim & Introduction:

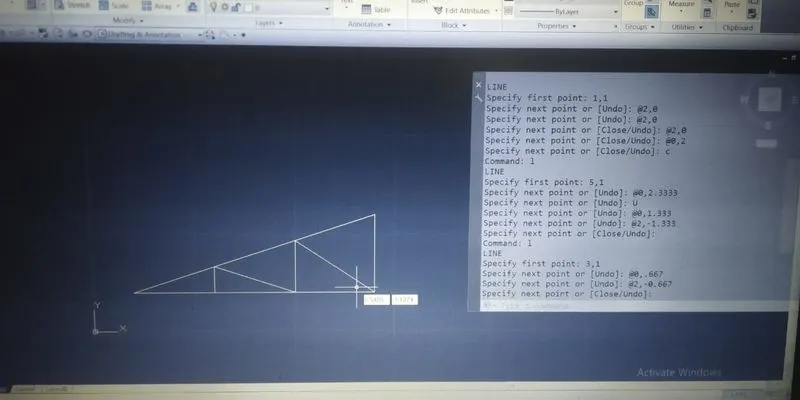

    To draw the above diagram using RELATIVE COORIDINATE SYSYTEM

    1.RELATIVE RECTANGULAR COORDINATES

    Procedure:


    Command: DS
    DSETTINGS
    Command: l
    LINE
    Specify first point: 1,1
    Specify next point or [Undo]: @2,0
    Specify next point or [Undo]: @2,0
    Specify next point or [Close/Undo]: @2,0
    Specify next point or [Close/Undo]: @0,2
    Specify next point or [Close/Undo]: c
    Command: l
    LINE
    Specify first point: 5,1
    Specify next point or [Undo]: @0,2.3333
    Specify next point or [Undo]: U
    Specify next point or [Undo]: @0,1.333
    Specify next point or [Undo]: @2,-1.333
    Specify next point or [Close/Undo]:
    Command: l
    LINE
    Specify first point: 3,1
    Specify next point or [Undo]: @0,.667
    Specify next point or [Undo]: @2,-0.667
    Specify next point or [Close/Undo]:





    Result:







    Aim & Introduction:

    To draw the above diagram using RELATIVE COORDINATE SYSTEM

    2.RELATIVE POLAR COORDINATES

    Procedure:


    Command: DS
    DSETTINGS
    Command: l
    LINE
    Specify first point: 1,1
    Specify next point or [Undo]: @2<0
    Specify next point or [Undo]: @2,90
    Specify next point or [Close/Undo]: U
    Specify next point or [Undo]: @2<0
    Specify next point or [Close/Undo]: @2<0
    Specify next point or [Close/Undo]: @2<90
    Specify next point or [Close/Undo]: c
    Command: l
    LINE
    Specify first point: 5,1
    Specify next point or [Undo]: @1.333<90
    Specify next point or [Undo]: @2.4<303.56
    Specify next point or [Close/Undo]: U
    Specify next point or [Undo]: @2.4<326.44
    Specify next point or [Close/Undo]:
    Automatic save to C:\Users\RAVIKANTH\appdata\local\temp\skill lync 1_1_2_6196.sv$ ...
    Command:
    Command: l
    LINE
    Specify first point: 3,1
    Specify next point or [Undo]: @0.667<90
    Specify next point or [Undo]: @2.11<341.23
    Specify next point or [Close/Undo]:



    Result:



    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by krishna PEDDIBHOTLA NAGA VENKATA SAIKRISHNA TEJA (57)

    Project 2

    Objective:

          Complete structural analysis and design of the sample precast building (G+6) in Bhopal, M.P., India using ETABS Key Highlights: Collaboration of course content from week 07 - Week 12 Interpretation of framing plans to develop the analytical model Preparation of analytical model in ETABS: Geometry…

    calendar

    12 Sep 2021 12:38 PM IST

    • DESIGN
    • ETABS
    Read more

    Project 1

    Objective:

              Development of structural system & framing plan of a Sample Precast building (G+ 6) in Bhopal, India as per Indian Structural codes. Collaboration of course content from week 01 - Week 06 Understanding of architectural layouts of the building Creating the load path of the various…

    calendar

    12 Aug 2021 03:43 AM IST

    • Buildings
    Read more

    Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

    Objective:

        Aim: To experience the entire design process from modelling, analysis, design, and preparation of construction drawings. The architectural drawings of a G+3 RCC building are provided.  Location – Guwahati, Assam Function – Hostel block in an academic institute   Codes used : IS 875 part…

    calendar

    25 Jul 2021 04:15 AM IST

    • DESIGN
    • ETABS
    Read more

    Project 1

    Objective:

        Given below is a floor plan of a building. The red lines running East-west are beams supported by the girders spanning North-South between columns. The floor system is 120 mm thick normal weight concrete floor. The floor finish and mech loads on the floor is 3 kPa. The live load on the floor is 5 kPa. All…

    calendar

    16 Jul 2021 12:41 PM IST

      Read more

      Schedule a counselling session

      Please enter your name
      Please enter a valid email
      Please enter a valid number

      Related Courses

      coursecard

      Design loads considered on bridges

      Recently launched

      10 Hours of Content

      coursecard

      Design of Steel Superstructure in Bridges

      Recently launched

      16 Hours of Content

      coursecard

      Design for Manufacturability (DFM)

      Recently launched

      11 Hours of Content

      coursecard

      CATIA for Medical Product Design

      Recently launched

      5 Hours of Content

      coursecardcoursetype

      Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

      Recently launched

      0 Hours of Content

      Schedule a counselling session

      Please enter your name
      Please enter a valid email
      Please enter a valid number

      logo

      Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

      https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

      Our Company

      News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
      map
      EpowerX Learning Technologies Pvt Ltd.
      4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
      mail
      info@skill-lync.com
      mail
      ITgrievance@skill-lync.com

      Top Individual Courses

      Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

      Top PG Programs

      Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

      Skill-Lync Plus

      Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

      Trending Blogs

      Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

      © 2025 Skill-Lync Inc. All Rights Reserved.

                  Do You Want To Showcase Your Technical Skills?
                  Sign-Up for our projects.
