Design of Shallow Foundation (Isolated Footings)

Aim:

To Design an Isolated Shallow Foundation as per the guidelines provided by IS 456:2000 and draw the Reinforcement details.

Procedure:

• First we need to go through the Data which is given such as the Axial Load, SBC of soil etc.,

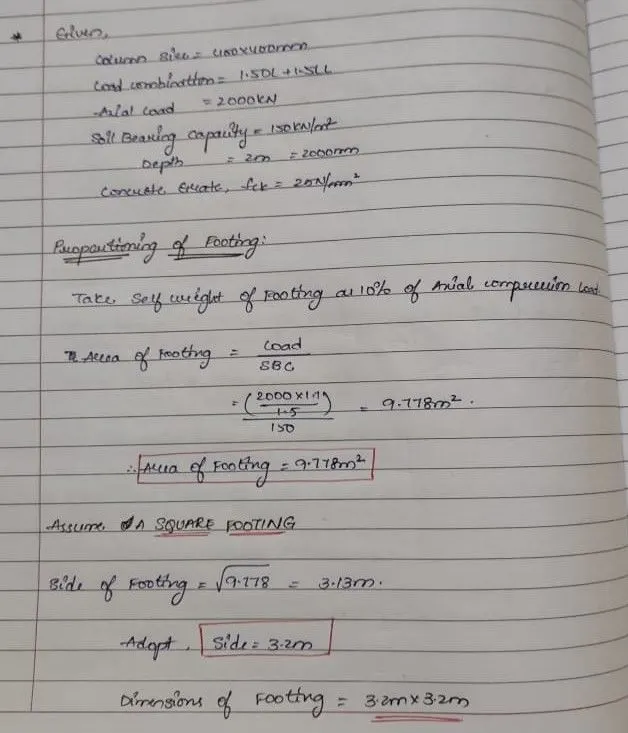

• The next step is Proportioning of Footing Dimensions with respect to the SBC of the soil.

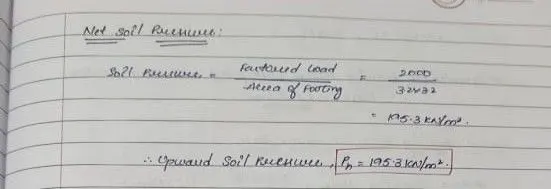

• Calculation of Net Soil Pressure as below

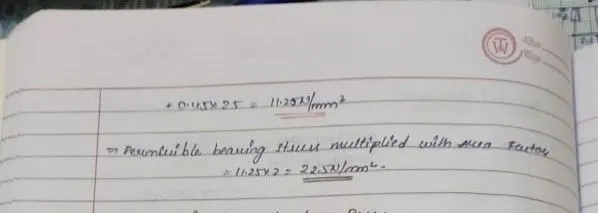

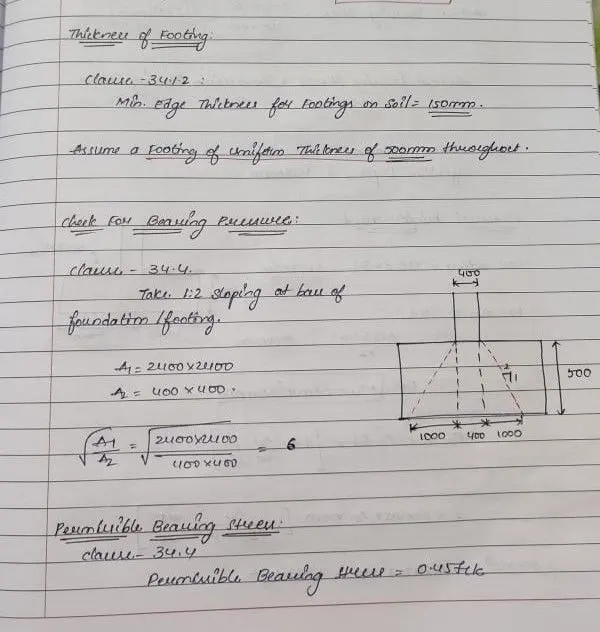

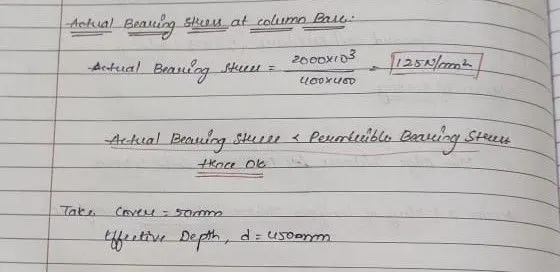

• Thickness of the Footing and Checking with respect to Bearing Pressure

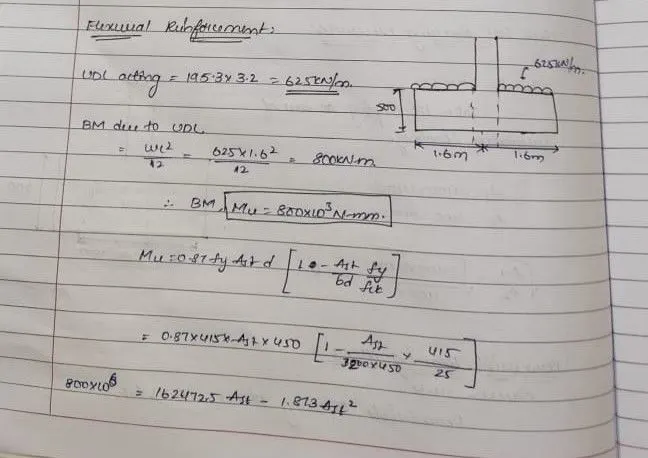

• Calculation of Flexural Reinforcement in Footing

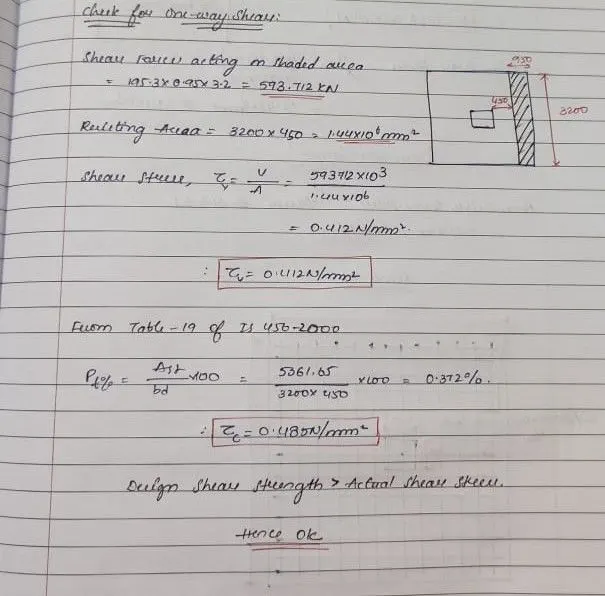

• Chech for One Way Shear:

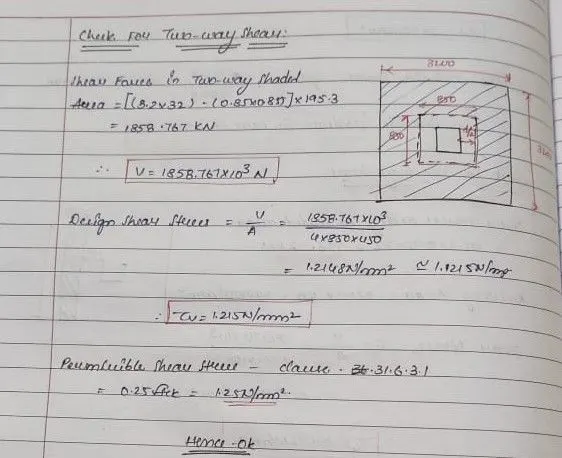

• Check for Two Way Shear

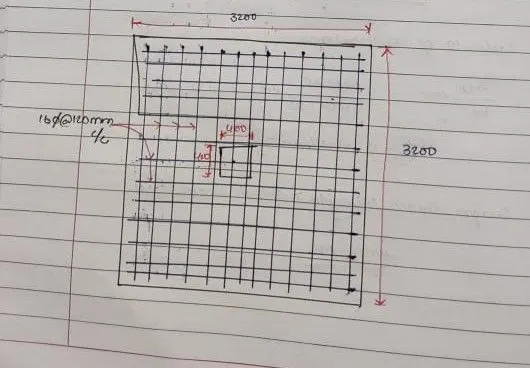

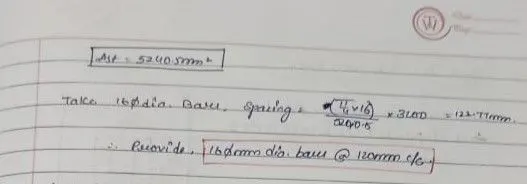

• Details of Reinforcement

Result:

The Isolated Footing has been Designed and checked for Permissible Stresses specified as per IS 456:2000. The Details of Reinforcement are drawn.
