Design of Shallow Foundation (Isolated Footings)

Q1] AIM: - Design a Warehouse Building located in Chennai using STAAD Pro Connect Edition Prepare a Design Basis Report for the project Create structural model using STAAD Pro Connect Edition Prepare DL, LL, WL and EQL load calculations as per IS 875 standards Design using MS – Excel Steel column Rafter Base plate Z- purlin…

AIM: To design a multi-story Residential Building located in Bangalore using STAAD Pro Connect Edition. Prepare a Design Basis Report for the project Create structural model using STAAD Pro Connect Edition Prepare DL, LL, WL and EQL load calculations as per IS 875 standards Design slab element using MS – Excel Design…

Q1] AIM: - (I). State the primary load cases to be considered for design. (II). Define One – Way slab? (III). What is the value of unit weight of structural steel and soil? (IV). Name few sections that can be defined using Properties tab in STAAD Pro. (V). Define Primary Beams. PROCEDURE: - (I)  The primary…

Q1] AIM:- 1. To assign Circular section to column 2. To assign Unit system to a .std model file 3. Parameters to be specified while using “Bay Frame” option 4. Name few codal standards incorporated in STAAD Pro software. 5. To specify the design compressive strength for a RCC section. PROCEDURE: - (1) Go to…

Q1] AIM: - 1.Write the steps involved to upload a .std file through web mail 2. Name the different materials that can be designed using STAAD Pro. 3. Is it possible to capture images in STAAD Pro? If yes how? 4. Name the three ways by which you can create a model. 5. Write the steps followed to assign properties in a model.…

Q1] (a) AIM: - Determine the loading on the beam indicated, Analyze the beams and draw bending moment and shear force diagram PROCEDURE: - Given Data The live load on the floor is 5 kPa The floor finish and mech loads on the floor is 3 kPa The floor system is 120 mm thick normal weight concrete floor. Beams have cross…

 AIM: - To model, analyze and design the given building. Location – Guwahati, Assam Function – Hostel block in an academic institute Produce the results of the following: ETABS model for the two blocks on either side of the expansion gap Foundation details illustrating the pile & pile cap reinforcement…

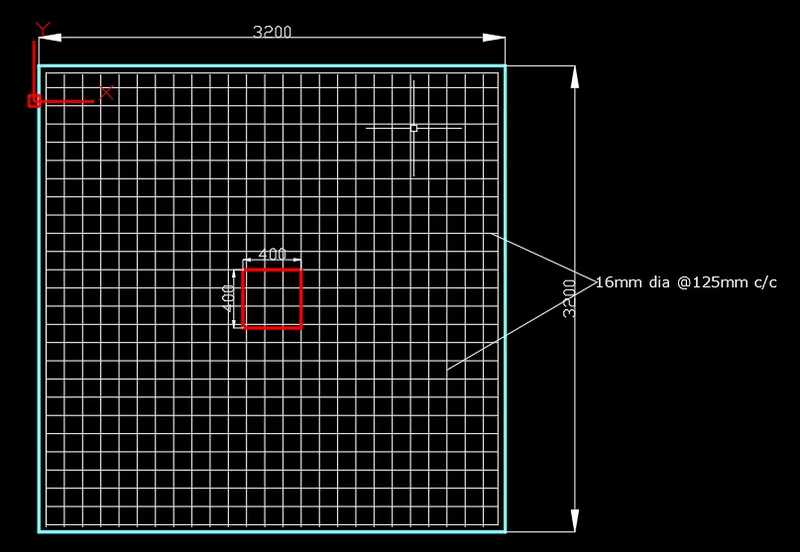

Q1] AIM: - Model the isolated footing provided in week 11 challenge on SAFE. Analyze and design it to verify the size, depth and steel provided as per calculations. PROCEDURE: - GIVEN DATA Column size- 400x400mm Soil bearing capacity = 150KN/m2 Footing Size= 3.2*3.2m Grade of concrete= M25 Let’s assume thickness…

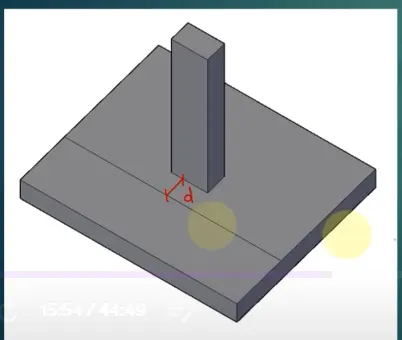

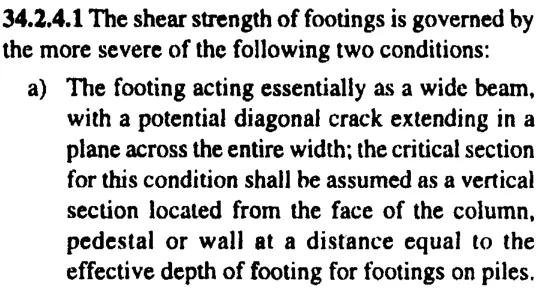

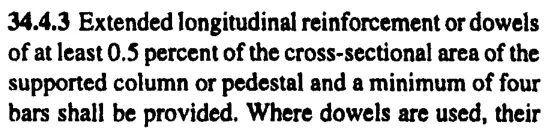

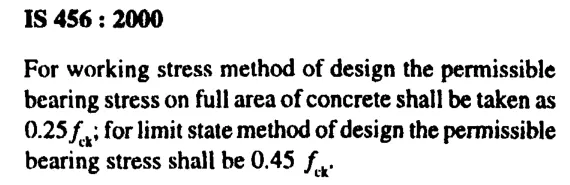

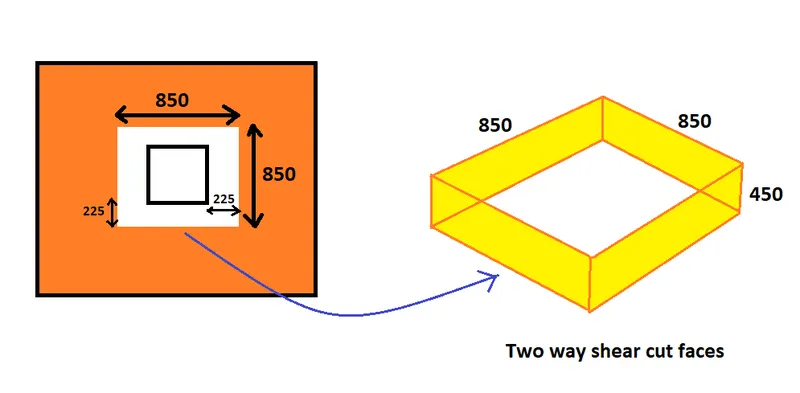

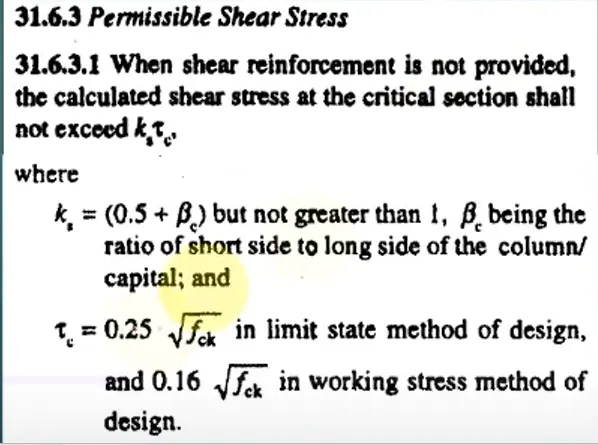

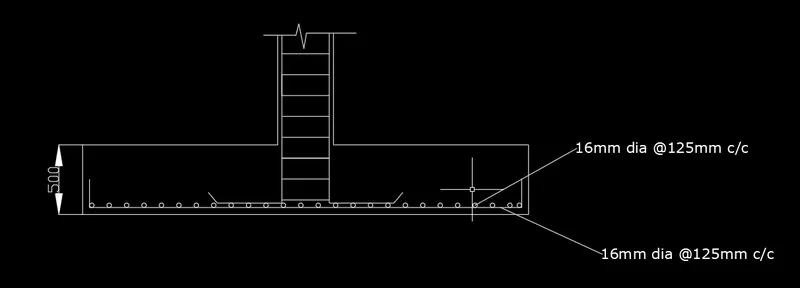

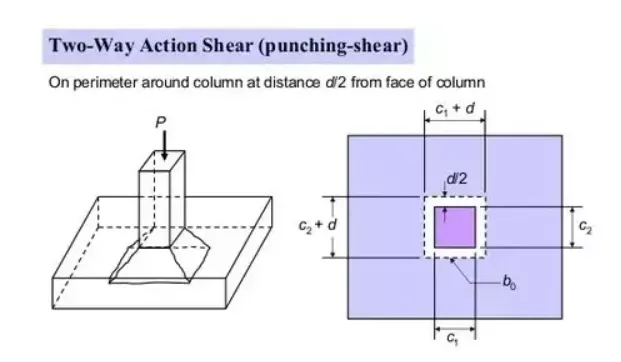

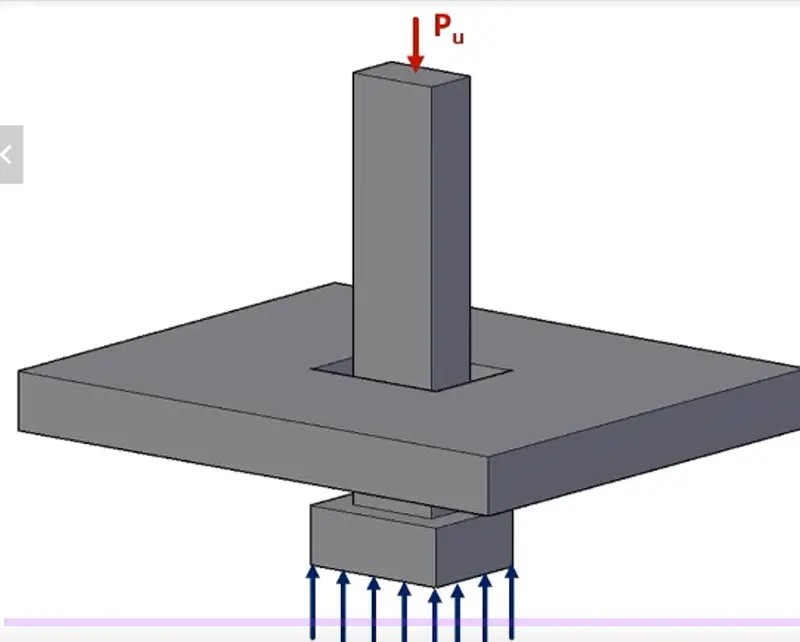

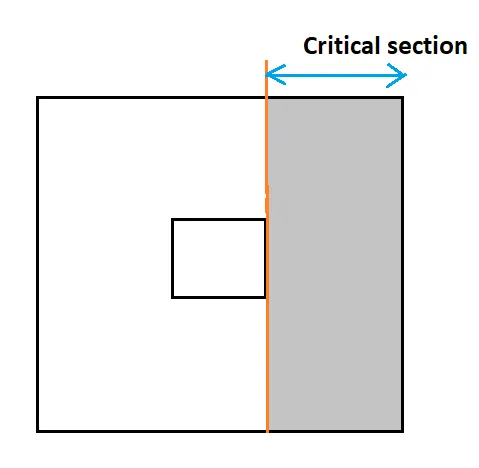

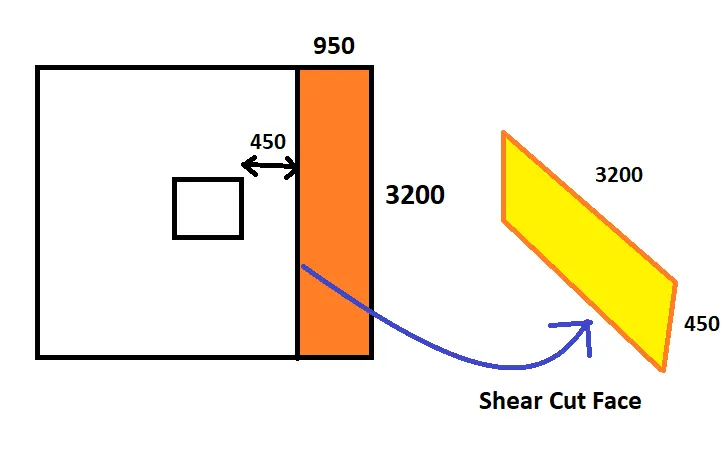

AIM: - Design a square footing for a column size of 400x400. Do the following checks: If the gross bearing pressure under the footing is within safe bearing capacity Provide sufficient depth and longitudinal steel for resisting bending and shear Sufficient anchorage for column steel into the footing If the bearing pressure…

AIM:- Model and Analyse G+7 residential plan from given architectural drawings using ETABS. Run a modal response spectrum analysis. Check analysis results of the ETABS model for: Inter-storey drift requirements, Vertical & Planar irregularities, Minimum shear wall requirements, Maximum axial load ratio for column…

AIM: - Run the analysis and design the RCC shear walls. Extract values of longitudinal steel ratio, boundary element length and shear reinforcing ratio from the design results. Provide cross sectional steel arrangement of the shear wall from its base up to terrace, in compliance with provisions of IS 13920 – 2016.…

AIM: - Run the analysis and design the RCC Moment ResistingFrame.  Provide details of longitudinal and shear reinforcement for the two Columns. Sketch the Column elevation details or draft it using autocad software. Show shear reinforcement & lapping details as per special confining reinforcement provision of…

AIM: - Run the analysis and design the RCC Moment ResistingFrame.  Provide details of longitudinal and shear reinforcement for the two continuous beams. Sketch the beam elevation details or draft it using autocad software. Provide reasons for failure of the middle span along grid A. What are the possible ways this…

1Q]  AIM: - Factors influencing the Natural Period of a building Effect of stiffness on T: Compare fundamental natural periods of buildings E & F as well as G & H. Why is there a marginal or significant difference in the fundamental natural periods? Effect of mass on T: Compare fundamental natural periods…

1Q] AIM: - Model a 25-storey building on ETABS with structural properties as specified below. Ground floor or plinth floor level can be taken at a height of 1.5 metres from the base  Each of the successive 25 storeys has a storey height of 3 metres. Carry out the following exercises: Check if the translational fundamental…

1Q] Plan (a) Plan (b) Plan (c)   AIM: - To Compare the three alternatives, considering the following elements.: The restraint of floor shrinkage The lateral stiffness The torsional one with respect to the vertical axis The vertical reinforcement required for the same total flexural capacity at the base, The static…

1Q] AIM: - Comment on the layout of the framing plan concerning earthquake resistance in the two horizontal directions. Look into aspects of symmetry, redundancy and bi-directional stiffness and ductility. PROCEDURE: - SYMMETRY IN-PLAN: - To achieve uniformity, a symmetrical, well distributed in-plan layout of structural…

1Q] AIM: - Compute `L_n`, `M_n` and `Gamma_n` for each of the 5 modes. Calculate the Effective Modal Mass Mn* and the Modal mass Participating Ratio for the 5 modes. Obtain the Base Shear for each of the 5 modes. Obtain the combined Base Shear as per SRSS rule. Calculate how many modes to be considered such…

1Q] AIM: - Compute lateral stiffness of the one-storey frame with an intermediate realistic stiffness of the beam.   PROCEDURE: - We use STIFFNESS co-efficient to analyse the given structure. Stiffness is defined as force required too produce unit deformation Stiffness is defined as moment required to produce unit rotation.…

1Q] A) OBSERVATIONS: - Concrete crushed and the Reinforcement is exposed. Concrete spalled beyond the reinforcement which may be a sign of rupture. Beam top portion looks safe because of the flange advantage from slab The crack develops from bottom to top means rebar yielding occurs in support bottom only. MODE OF FAILURE:…

1Q] AIM: - Download the NAVISWORKS EXPORTER. Export the Revit Architecture model and Structural model to Navisworks cache file. PROCEDURE: - Open the Google Type NAVISWORKS EXPORTER Click on Autodesk.com website link   Scroll down to Navisworks Exporter download list Click on the required Version   Download and…

1Q] AIM: - Create a set of Sinusoidal points using Dynamo Create a Curve Create a Surface out of the curve. PROCEDURE: - Open Architectural Template in Revit Click on MANAGE TAB Go to Visual Programming panel Select Dynamo Dynamo app opens In the Home page click on New New Home page opens Now, we have to Insert Integer…

1Q] AIM: - Use the Shortcut key in Revit and complete the given tasks PROCEDURE: - Using 3D model create a section Box Open the Revit File In the Properties box Go to Extents parameter Click Tick mark on Section box or Type BX Section box appears arround the model Move the cursors of the Section Box as per the requirement.…

1Q] HVAC: - Heating, ventilation, and air conditioning (HVAC) system is designed to achieve the environmental requirements of the comfort of occupants and a process. It is a technology of indoor environmental comfort. The main purpose of HVAC system is to satisfy the thermal comfort of occupants by adjust and changing…

1Q] The type of Structure I want to build is Office Building 2Q] Modelling Requirements for the Office Building as per NBC based on the type of Structure. Type of Occupancy: As per NBC part 4 Fire and Life safety Clause No: 3.1.6 Business Building Sub division E-3: Information Technology Park F.A.R: Type 2 Construction…

1Q] AIM: - Create Architecture Template Set Project Base point Set Project Shared Coordinates PROCEDURE: - Open the Revit software Click on NEW New Project dialogue box opens Select Architecture Template Create: New Project Press OK Click on Architecture Tab Go to Datum panel Select Grid Choose Line from the Draw panel…

1Q] The National Building Code of India (NBC) is a comprehensive building code, providing guidelines for regulating building construction activities across the country. It serves as a Model Code for adoption by all agencies involved in building construction works. The building code mainly contains administrative regulations,…

1Q] AIM: - Create a Ceiling for the model drawn Assign material to the ceiling Change the thickness properties to the ceiling PROCEDURE: - Open the Revit Software. Open the File in which we created the Floor plan. Select ARCHITECTURE tab Go to BUILD panel and choose Ceiling tool In Modify Ceiling tab choose Sketch Ceiling…

1Q] AIM: - Draw the Floor to the layout Assign material to the Floor Change the thickness properties of the floor. PROCEDURE: - Open REVIT software. Click on open Open the Challenge_2 Ques-5 File. Draw the Floor for the walls created. Select Architecture Tab Go to BUILD panel and chose ARCHITECTURAL FLOOR tool.…

1Q] BIM: - Building Information Modelling (BIM) is a process of creating and managing information for a built asset throughout its lifecycle—from planning and design to construction and operations. BIM is used for creating and managing data during the design, construction, and operations process. BIM integrates multi-disciplinary…

1Q] AIM: - Create a new project. Name the project. PROCEDURE: - Open the REVIT software Click on NEW                New Project dialogue box opens                Select one of the Template File: Structural Template                Select one of the options in Create new: PROJECT                Press OK Create Folder Name…

AIM: - Create a 3D model of a Residential Building. Apply Material to the Building. Create a render view of the model. PROCEDURE: - Start the AutoCAD with units as IMPERIAL Set the Units to ENGINEERING. In RIBBON, got to VIEW palette. In VIEW, go to Viewport tools and turn on the UCS icon, NAVIGATION bar, and VIEW CUBE…

1Q] AIM: - Create 3D Isometric View of given Building. Use 3D modelling commands to draw the 3D model. PROCEDURE: - Start the AutoCAD with units as IMPERIAL Set the Units to ENGINEERING In RIBBON, got to VIEW palette. In VIEW, go to Viewport tools and turn on the UCS icon, NAVIGATION bar, and VIEW CUBE Switch the Workspace…

1Q] AIM: - Create a 3D furniture element as shown in Figure. PROCEDURE: - Start the AutoCAD with units as IMPERIAL Set the Units to ENGINEERING In RIBBON, got to VIEW palette. In VIEW, go to Viewport tools and turn on the UCS icon, NAVIGATION bar, and VIEW CUBE Switch the Workspace to 3D MODELLING Type LINE               …

1Q] AIM: - Create a LAYOUT of the Plan and Section A-A of the project 7 by using the template Tutorial-march.dwt Use the MV command to create the viewport Use ATTEDIT command to the information. Take a Plot. PROCEDURE: - Type LAYOUT             Select Template            …

1Q] AIM: - Create Layouts of Kitchen Provide Hatches pattern as shown. Use blocks wherever required. Provide appropriate Dimensions and Annotation. PROCEDURE: - Start the AutoCAD with units as Metric Set the Units to Decimals Type XREF             Open External References…

1Q] A] AIM: - Create the Templates. Use the Text and Attributes wherever required. Save the Templates as Blocks. PROCEDURE: - Select Line command Draw Table of 4 Rows and 4 Columns. Select ANNONTATE in Ribbon Under TEXT dialogue box Choose Multiline Text tool Using MTEXT label the details Select command: ‘_STYLE…

1Q] AIM: - Design and draft a Residential Building  Plot size: 60’ x 20’ Facing EAST Create Architectural Drawings- Floor plan, Sectional Plans and Elevations Create Structural Drawings – Column, Footing and Beam PROCEDURE: - Set the units to ENGINEERING using UNITS command Set the lower limit and…

1Q] AIM: - Create the FLOOR PLAN Use proper dimension techniques and dimension styles Use Layers. PROCEDURE: - Set the units to DECIMAL using UNITS command Set the lower limit and upper limit of the screen using LIMITS command Lower limit: 0,0 Upper limit: 20,000,20,000 Choose the Construction line command Draw a vertical…

1Q] AIM: - Draw the Elevation and details of the wardrobe Insert dimensions and text Use Layers PROCEDURE: - Choose command: UN for drawing units Set length type to DECIMAL. Set the lower limits and Higher limits using LIMITS command Select command XLINE Draw Vertical line and Horizontal line. Use drawing tools to draw…

1Q] AIM: -  Create a column schedule with the help of lines. Insert text with the help of Dtext or Single Line text. PROCEDURE: - Choose command: UN for drawing units Set length type to Engineeering. Select Line command Using Line draw table of 12 columns and 5 rows Choose Command: ST for text style Create new style…

1Q] AIM: - Sketch the layout of a Residence using AutoCAD Tools and Layers Option PROCEDURE: - Set the units to Engineering using UNITS command Set the lower limit and upper limit of the screen using LIMITS command Lower limit: 0’,0’ Upper limit: 100’,100’ Choose the Construction line command Draw…

1Q] AIM: - Draw the figures using AutoCAD tools. PRODEDURE: - Select the command: DDPTYPE Select point style Select Multiple points command Specify a point: A (1,1) Specify a point: B (@3,0) Specify a point: C (@2.12<45) Specify a point: D (@2.83<135) Specify a point: E (@-2,0) Select line tool and join the…

1Q] AIM: - Draw cross section of Load Bearing Wall over spread footing PROCEDURE: - Turn on ORTHO command on Select line tool. Specify 1st point: A (1,1) Position the cursor to the up direction (making angle of 90 degrees) from previous point and specify the distance 0.25 units. Mark as B Position the cursor to the right…

1Q] AIM: - To create the geometry using all the co-ordinates system using LINE tool in AutoCad PROCEDURE ABSOLUTE CO-ORDINANTE SYSTEM Choose the Line tool. Line Specify first point: 2,1 (X= 2,Y= 1) Specify next point: 8,1 Specify next point: 8,2 Specify next point: 3,2 Specify next point: 3,6 Specify next point: 8,6 Specify…

  AIM: - 1) According to Vaastu Shastra sketch a G+1 Residential plan. 2) List down the names of the structural drawings required. 3) As per IS code, calculate the individual corresponding loads from the members or structural elements.                     IMPORTANT…

Q1] AIM: - Mix Design of M35 grade concrete with fly Ash. 1. STIPULATIONS OF PROPORTIONING: - a Grade Designation M 35 b Type of Cement OPC 43 Grade conforming to IS 8112 c Type of mineral admixture Fly ash conforming to IS 3812 (part 1)  d Maximum nominal size of Aggregate 20 mm e Maximum water-cement ratio 0.45…
