Design of backdoor

QUESTION:- Q1. Flatten the harness assembly completed in “ week 4 challenge”. Place the flattened view on drawing sheet. Ensure bundles with protective coverings has different visuals on drawing view. Answer:- Step - 1: Create a product file and navigate to the Electrical Harness Flattening for wire harness…

Question:- 1.Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use the connectors provided. After completion of routing, Check the bundle Continuity. Add snap of result in submission Add annotation to all connectors. Make an assumptions for annotations like connect…

AIM :- Aim:  1) To Route the following harness layout in the Electrical workbench. 2) Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Given: CAD data of the following Connectors:  DT06-4S DT06-6S DT06-2S DT06-08SA ANSWER:- Steps to be followed: STEP 1. Download connector 3D data from www.te.com…

Question 1: Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties Answer 1: P - CLAMP Steps:- Create two points one as entry and another as exit point. create planes at two points and another at base. Switch to Electric part desgn Click…

Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge AIM:- Download the following connectors & Connector clip cad data from the given link & define it as Electrical Connector using the Electrical Part Design Workbench. Define all the necessary properties of Connectors & clips.   Deutsch…

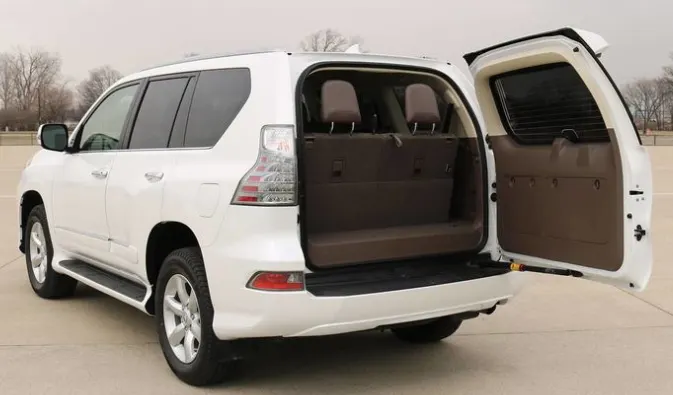

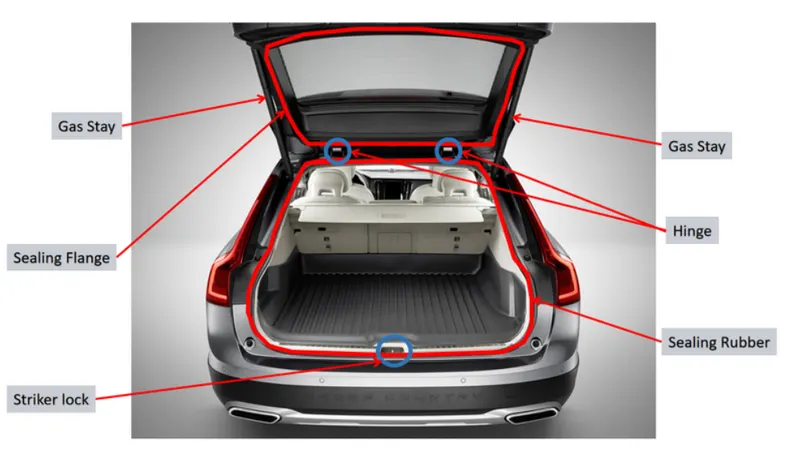

Design of Backdoor Objective:  To design Back door of car using the given Class ‘A’ surface. Using the provided styling surface to come up with a back door and using appropriate design methodologies and make the necessary reniforcements and emboss Introduction It is a hinged board or door at the rear of the vehicle that…

Design of Backdoor Objective:  To design Back door of car using the given Class ‘A’ surface. Using the provided styling surface to come up with a back door and using appropriate design methodologies and make the necessary reniforcements and emboss Introduction It is a hinged board or door at the rear…

Aim: To a given roof styling, create essential flanges and reinforcement. Objective: To design the automotive roof based on the given styling surface and to analyze the prepared model to check the manufacturability and the feasibility of the design. To perform the section modulus study for the master sections and create…

Answer:- 1.Quick return motion mechanism:- 3D Assembly drafting 2. CV Joint:- 3D Assembly drafting Result please find the attachment of part,assembly and drafting.

Question:- Create the A pillar considering the design rules mentioned in the video. Consider the thickness of the part to be as per the Master section. Answer:- Tree Structure Ensure Proper Tree Structure Geometrical sets should have a proper name based on the sketches present inside of it All the sketches…

Question:- Create the Door Trim Lower Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.  Create the Heat Stakes and the locators considering…

Your Answers Question:- Create the Dog House for the Door Trim considering the design rules mentioned in the video. Consider the thickness of the part to be 2.5 mm. Answer:- Tree Structure Ensure Proper Tree Structure Geometrical sets should have a proper name based on the sketches present inside of it All…

Your Answers Question:- Create the rib for the Drill Handle considering the design rules mentioned in the video Answer:- Tree Structure Ensure Proper Tree Structure Geometrical sets should have a proper name based on the sketches present inside of it All the sketches should be created under the Geometrical set  Use…

Question:- Create the Core and cavity blocks for the switch bezel designed in the earlier challenge Answer:- Tree Structure Ensure Proper Tree Structure Geometrical sets should have a proper name based on the sketches present inside of it All the sketches should be created under the Geometrical set  Use the Close…

Question:- Create the Bumper Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.  Take the Thickness of the component to be 3 mm…

Question:- Create the Coin Holder Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.  Take the Thickness of the component to be 2.5…

Question:- Create the Switch Bezel Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.          Take the Thickness…

Question:-      Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model Answer:- Tree Structure Ensure Proper…

Title:-      SECTION MODULUS OF THE HOOD Objectives:-       To find the section modulus of the hood and optimisation to improve the overall section modulus Construction:- The section modulus (S) is geometric property of the cross section used for designing beams and flexural members.…

Fender Design Aim:-    The objectives of this project is to design a fender using the given skin in NX 12 software Given master Diagram:- Introduction:- Design of any product starts from an requirement . The design engineer sketches the product based on the the requirement . Then the 2D sketch  with the…

TITLE:-      Fender Design - Wheel Arch Challenge OBJECTIVES:-     The objective of the wheel arc challenge is to calculate the wheel arc area using Siemens NX CAD and to prove whether the given fender of car will Satisfies the European standards or not. GIVEN:- CONSTRUCTION:- 1.WHEEL ARCH:-…

AIM: My aim for this project is to create a hood assembly from the hood outer panel which is provided as input surface to us according to the master section sketch. INTRODUCTION: The hood is the hinged cover over the engine of motor vehicles. Hoods can open to allow access to the engine compartment (or trunk on rear-engine…

UNDERBODY COATINGS:         Underbody coatings are those which are used to prevent car bodies against rust & corrosion. This underbody coating helps in protection from dust and moisture also some other factors such as poor road conditions, rocks getting thrown from tires and denting the metal and…

REPORT The above case of Mr. Pughazhyendhii leads to following filters. They are The number of commuters is five including a child and hence the vehicle should be spacious with enough leg room He uses his car for Daily office commute and a monthly trip to his native .This would give a total estimate of more than 2500km/month…
