Design of backdoor

* Aim -
    Use the provided styling surface to come up with a back door design, use appropriate
    design methodologies, and provide the necessary reinforcements and embosses.

* INTRODUCTION -
     BACK DOOR

Back door or tail gate  simply refers to the back of the car that can open and close.it covering the rear of the vehicle.It provide access to a cargo area (trunk/boot ).A tailgate hinged at the roof is a predominant characteristic of hatchbacks, estates/station wagons and liftbacks .The door or opening of a cargo area may be hinged at the top, side, or bottom.

 In most cars, usually this process will be done manually. One has to get down the car to open and close the tail-gate with the car key.Nowadays, automobile manufacturers providing Advanced features like the automated tail-gate. An automatic tail-gate in the car will do the process of shutting and opening the tail-gate electronically.



* Process -
process



1. Blanking
  When required, blanking is the first step of the stamping process. Blanking is the process of cutting larger sheet or coils of metal into smaller, more manageable pieces. Blanking is usually performed when a stamped metal piece will be drawn or formed.

2.Piercing
If a part requires slots, holes, or other cutouts, piercing can be employed. Piercing, which can be performed simultaneously with blanking, punches the requisite shapes out of the metal sheet.

3.Drawing
Drawing is the actual stamping in the metal stamping process. A punch forces a section of metal through a die, providing the primary shape of the part. When the depth of the part is less than the primary opening, it is considered shallow drawing; parts with a depth greater than the opening are deep drawn.

4.Bending
Bending is a fairly self-explanatory process. The part-in-progress is placed on a specially designed die and a ram pushes against the metal, providing the required bend. Bending is performed after drawing, as attempting to punch an already bent piece of metal causes the entire part to deform.

5.Hemming

Hemming is a technology used by the automotive industry to join inner and outer closure panels together (hoods, doors, tailgates, etc.). It is the process of bending/folding the flange of the outer panel over the inner one. The accuracy of the operation affects significantly the appearance of the car’s outer surfaces and is therefore a critical factor in the final quality of a finished vehicle.

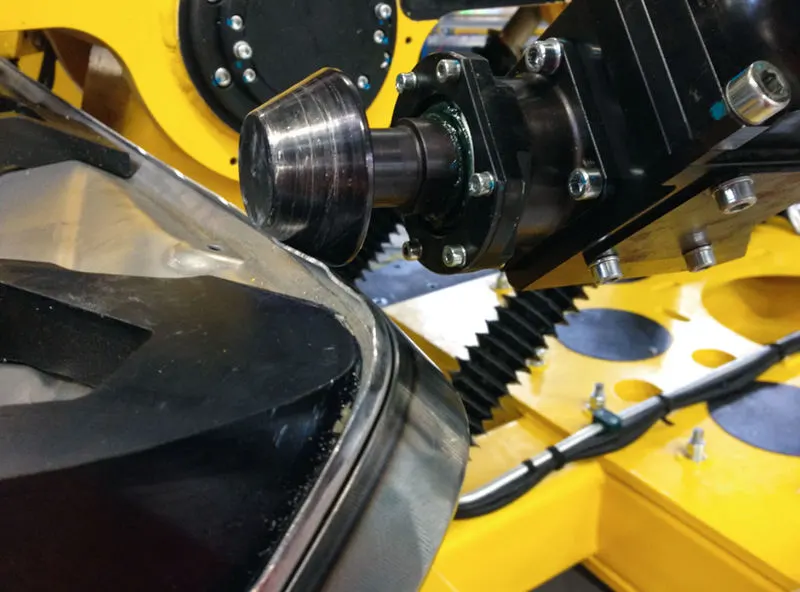

roller hemming :-The robotized hemming systems use a standard industrial robot integrated with a roller hemming head, offering a very flexible solution. This roller hemming head consists of a body, some guides and a number of rolls that are designed according to the geometry of the part in each case.



* BACK DOOR DESIGN

The design consideration of back door are ,

Visibility Criteria
Force Dissipation
Latch and Stricker Positions
Hinge Position
Gas Stay Position
Hemming and Relief Areas
 PARTS OF BACKDOOR

Back door outer panel (upper and lower)
Back door inner panel
Hinge reinforcements
Gas stay reinforcements
Latch and striker reinforcements
Wiper motor reinforcements

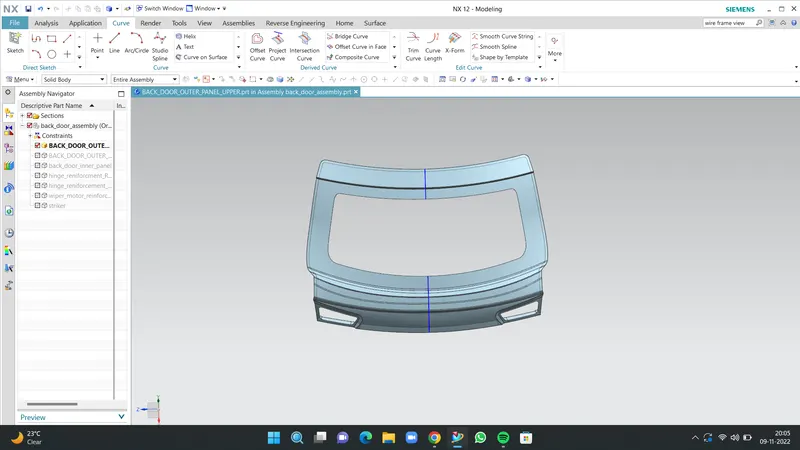

1. BACK DOOR OUTER UPPER PANEL

In this design back door is created as two different parts back door outer panel upper and lower. This outer panel designed based on visibility criteria and proper reliefs provided at the corner for hemming operation .The thickness of outer panel is 0.75 mm .

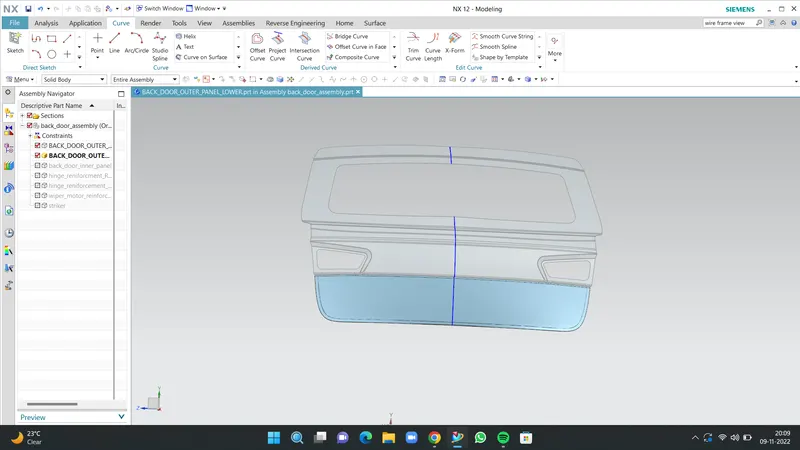

- BACK DOOR LOWER OUTER PANEL

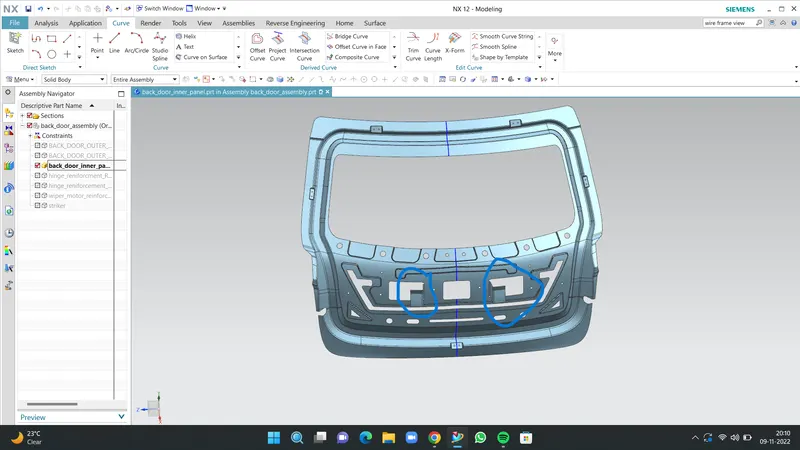

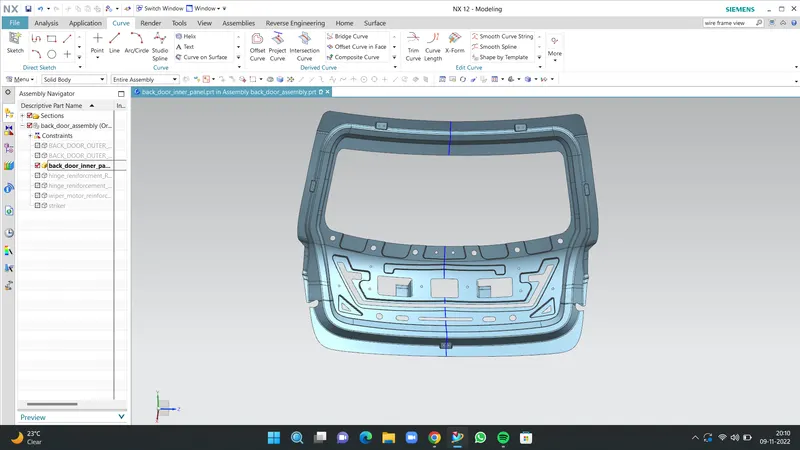

2.BACK DOOR INNER PANEL

Back door Inner panel  designed based  on hinge, gas stay, wiper motor position and reinforcement as well as visibility criteria .Suitable tooling direction is created  for trouble free manufacturing process.In this design stamping operations created based on this tooling direction. Embosses are provided in this design for force dissipation. In this design appropriate clearance given in mastic areas .The inner panel thickness is 0.75 mm



• Mastic Area

Mastics sealants used for  joining of outer panel and inner panel. It increase the strength of back door and good NVH. So accurate clearance given for mastic sealant.

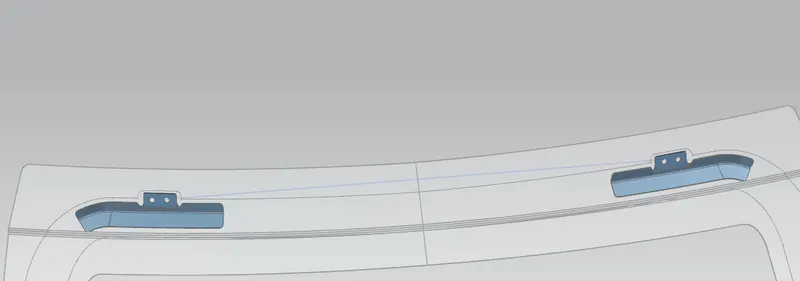

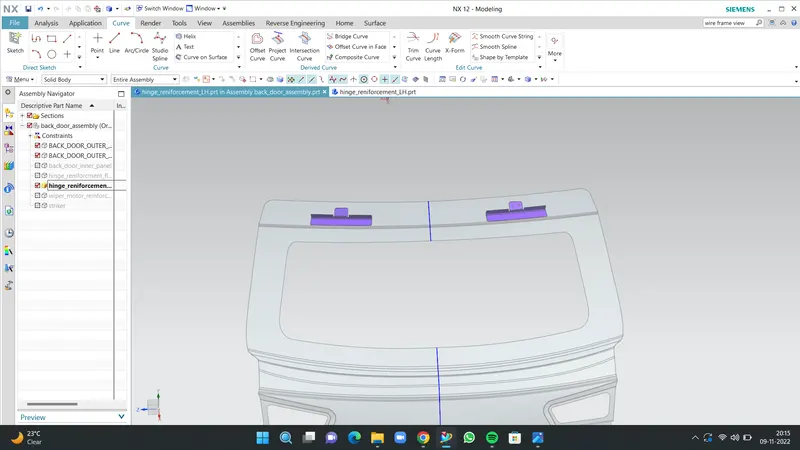

• Hinge reinforcement

In this design hinges provided on the top side of the door. Appropriate  reinforcement given for hinge mounting areas to improve the strength.

• Gas stay reinforcement

Gas stays support the weight of the back door while they are open. More load act on this region ,So suitable  reinforcement provided  for better strength

it is spot  welded on the inner panel.

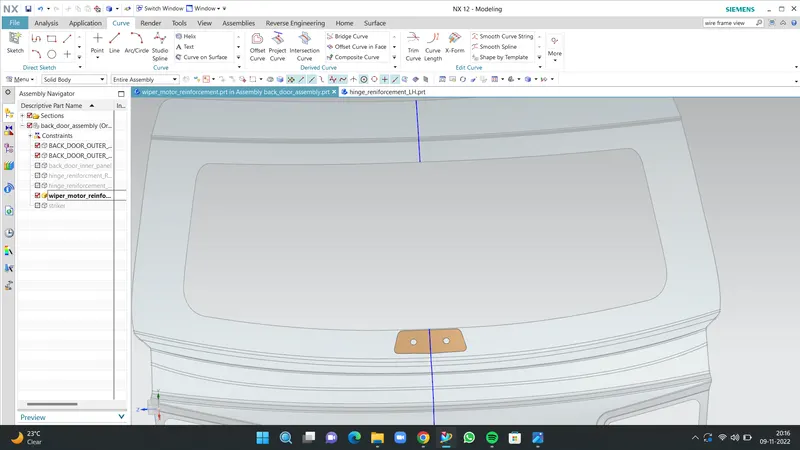

• Wiper motor reinforcement

Reinforcement provided in this region for fixing the wiper motor.

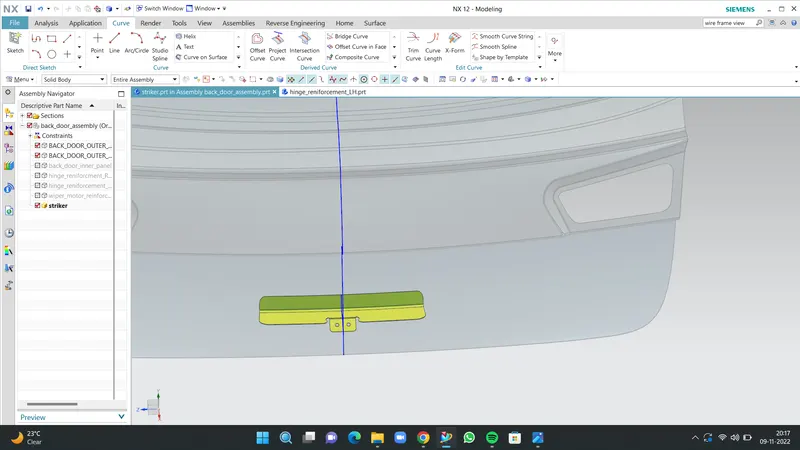

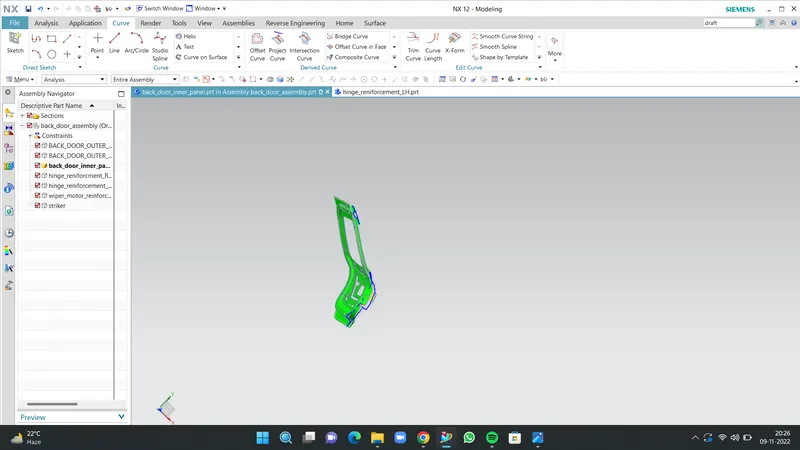

•  striker reinforcement

The striker is designed to create a tight fit between the door and the seal on the cab. The door open and shut several times in a day.So more force acting on  this area.The reinforcement given in the latch and striker mounting area to increase the strength.it is  spot welded on the inner panel

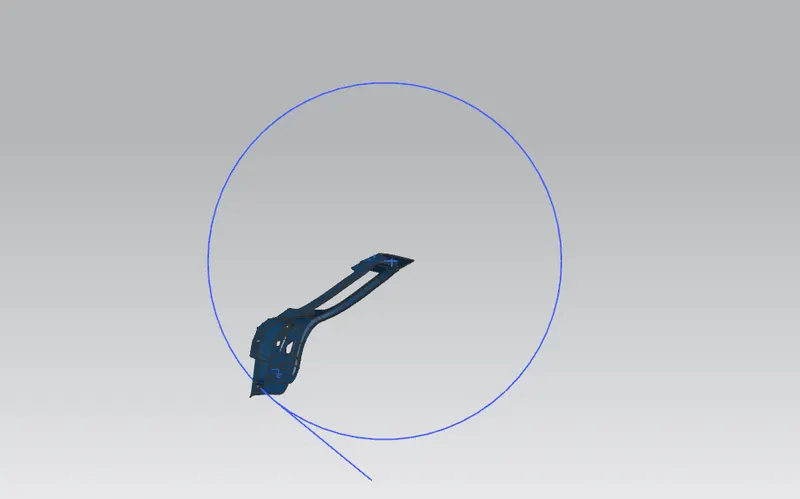

• trajectory

The trajectory is created to position the latch and striker .latch system must be able to catch the striker of the door  the while  closing. Circle is drawn from the hinge axis. The striker follow this path.

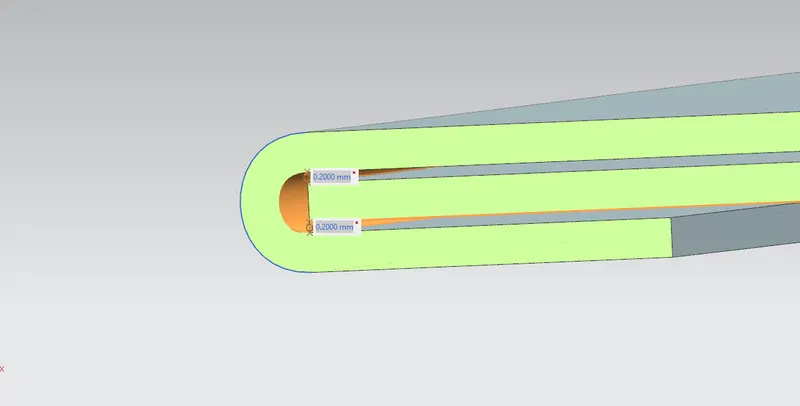

• Hemming

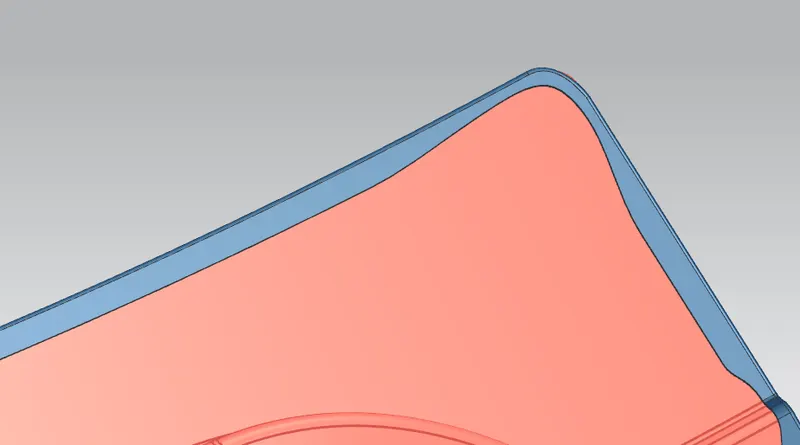

Hemming is a technology used by the automotive industry to join inner and outer closure panels together (hoods, doors, tailgates, etc.).In addition adhesive bond provide for excellent joining of panels it also reduce vibration .here this design 0.2mm clearance provided for hem glue .

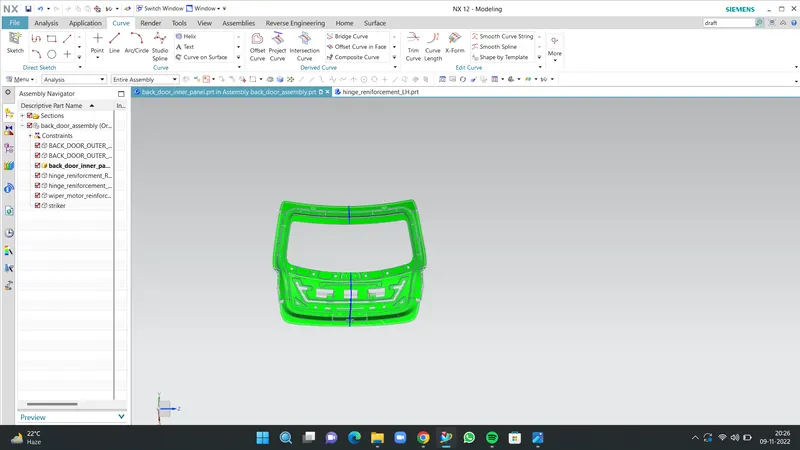

Draft Analysis

 draft analysis performed to check the designed part  is suitable for stamping operation with respect to the tooling direction.We can find out the  errors by using this feature.The minimum draft angle is 7.The negative draft is  denoted by different colour so we can easily find out the unsuitable areas.

CONCLUSION

The backdoor is designed  based on design considerations .Required  reinforcement provided on inner panel. The design is checked by using draft analysis feature .
