Design of backdoor

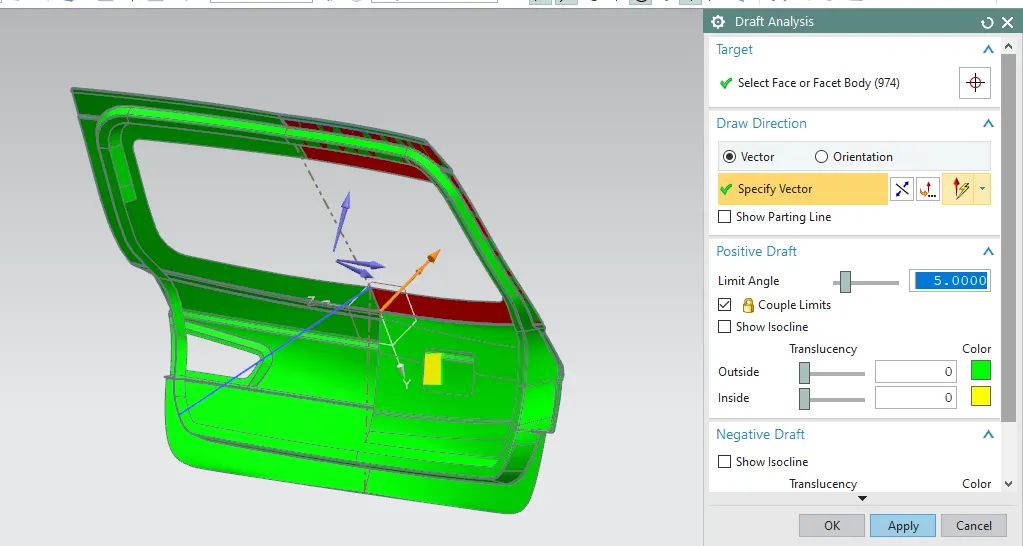

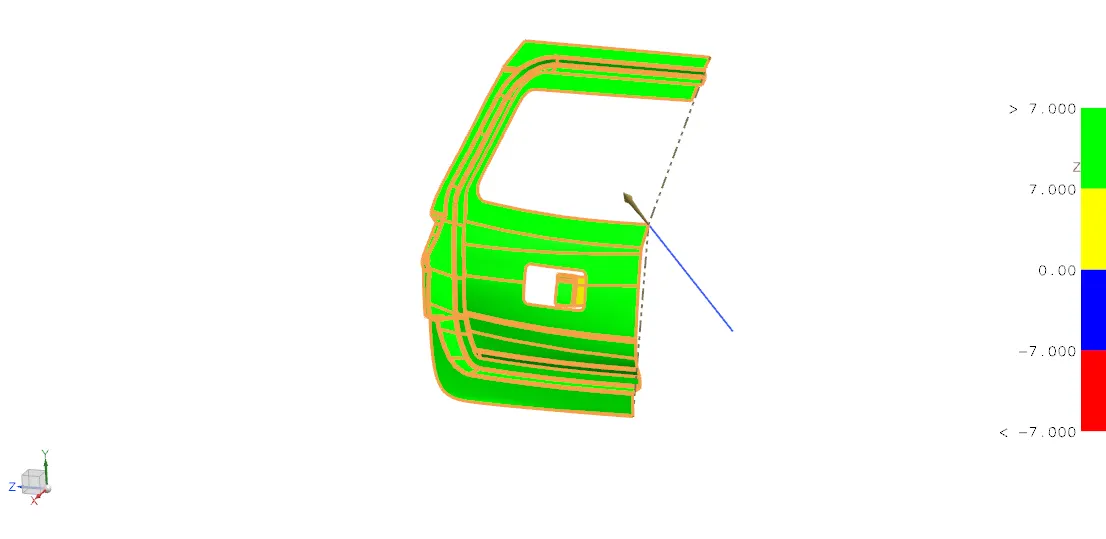

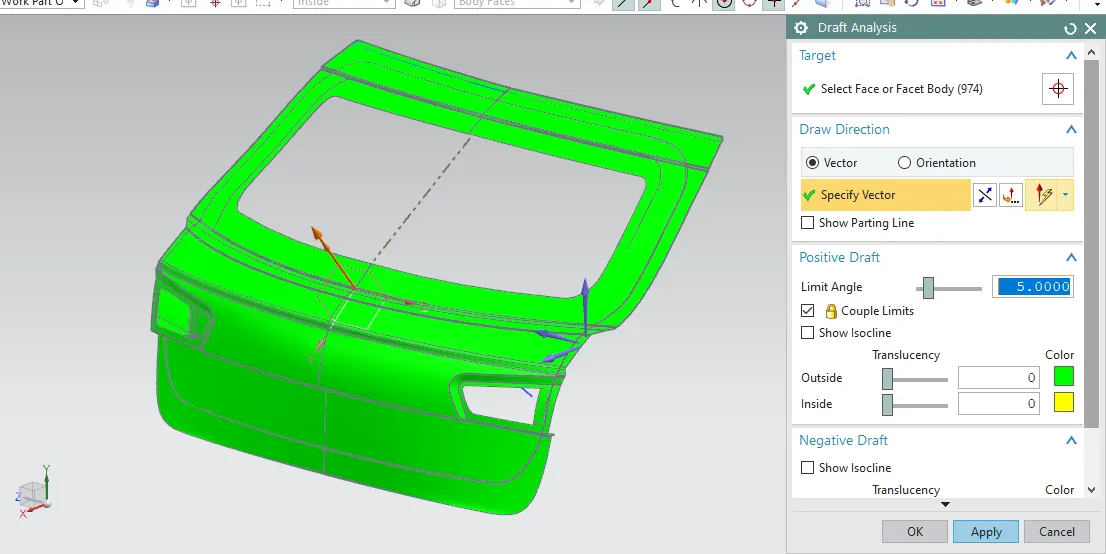

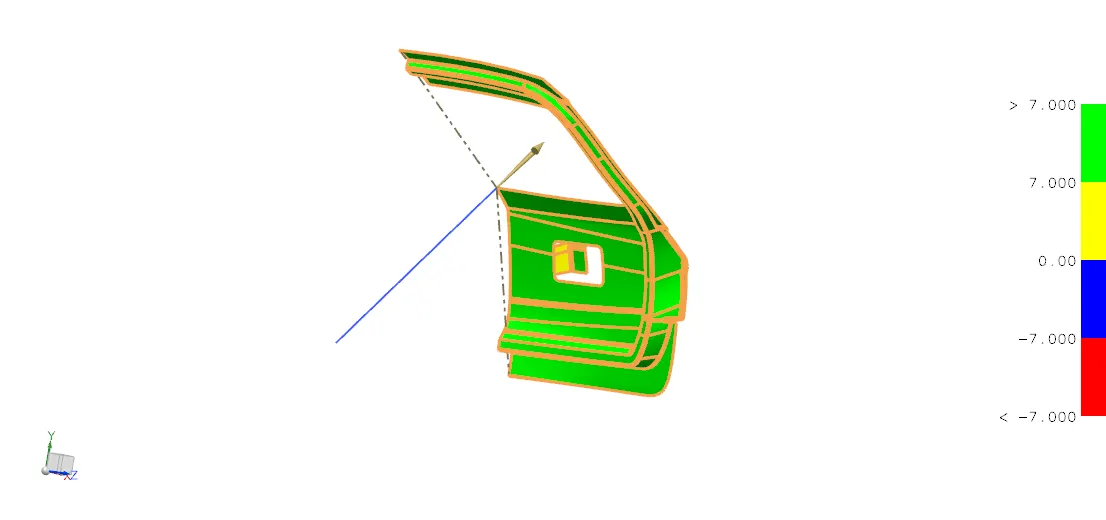

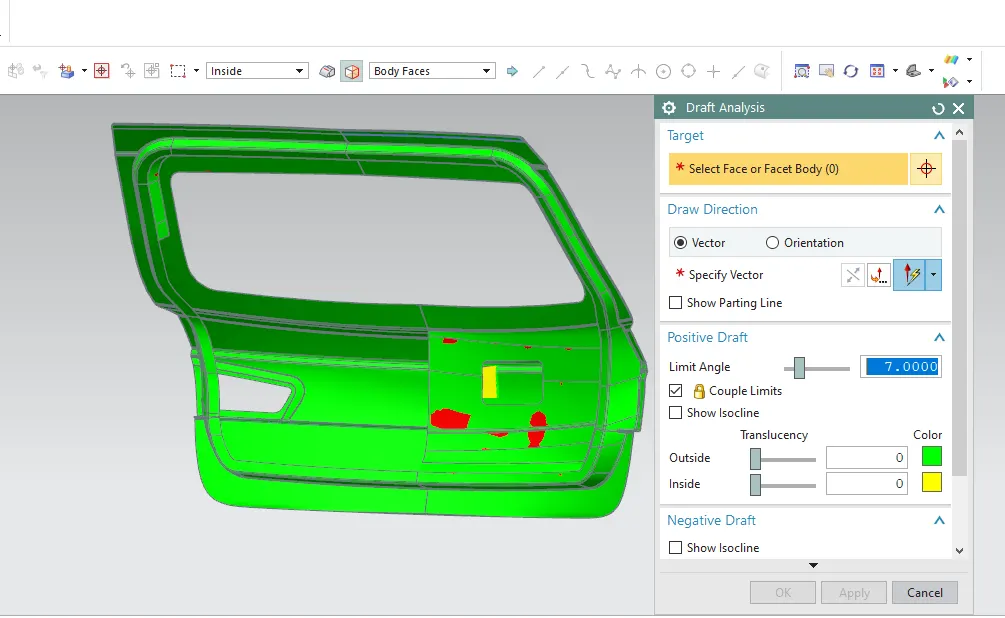

BACK DOOR DRAFT ANALYSIS VIEWS:

BACK DOOR:

• Embosses are created to provide the strenght to car body.
• The sheet thickness is 0.75 mm used for inner and outer panel.

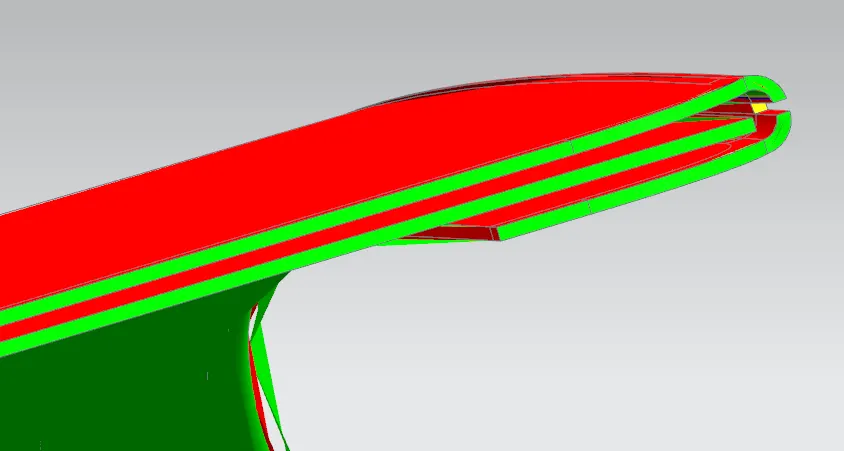

• the gap between the two sheet is also 0.75 mm.
• Dratf analysis is done with an angel of 5.

 Find the attached cad files in the drop box.
