Design of backdoor

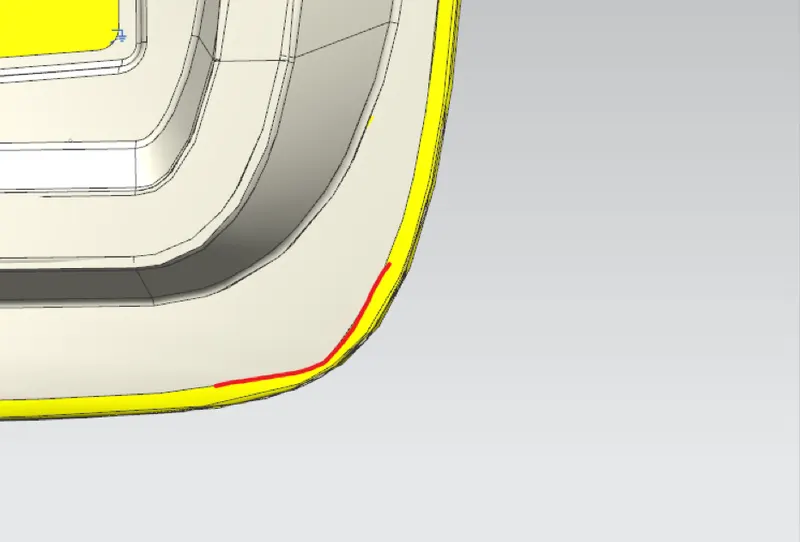

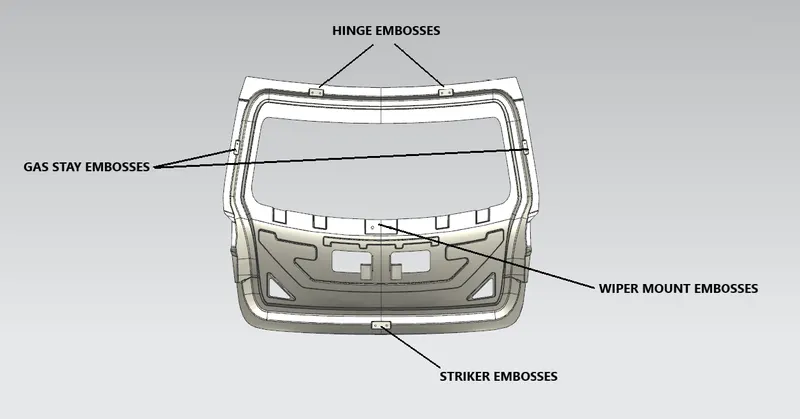

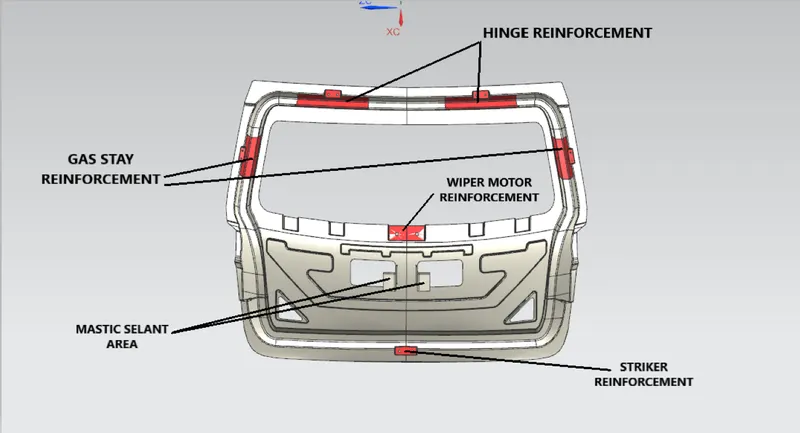

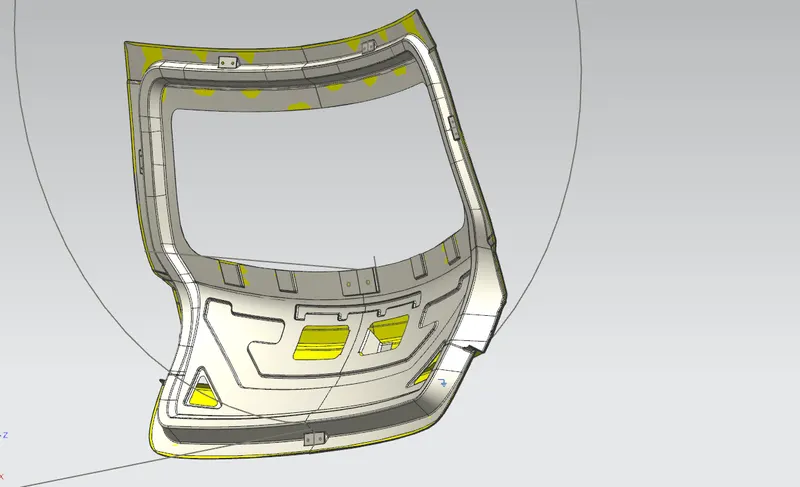

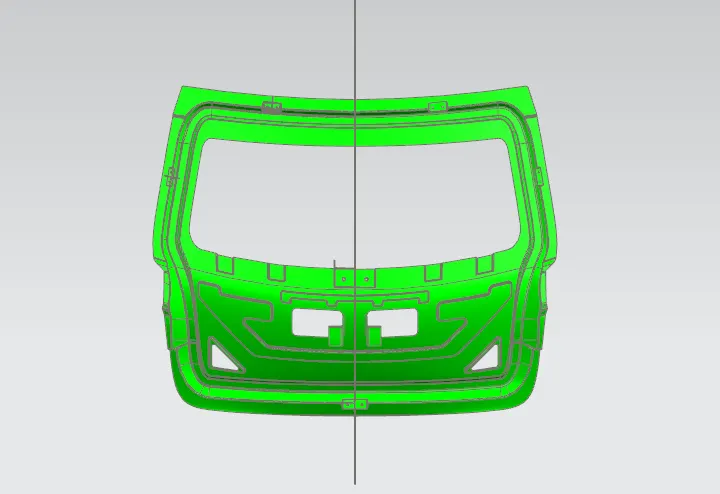

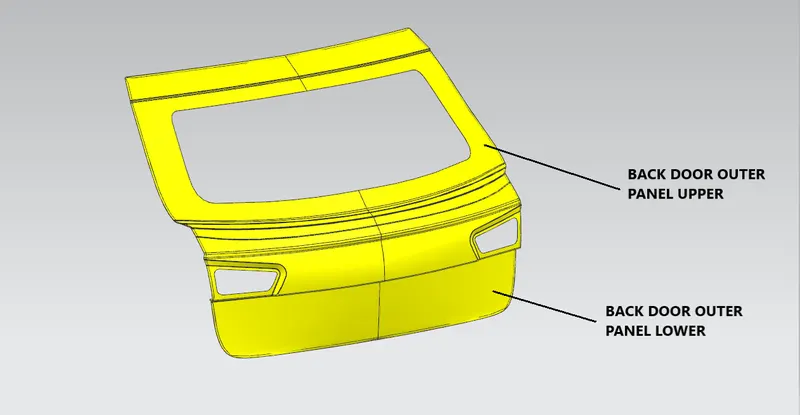

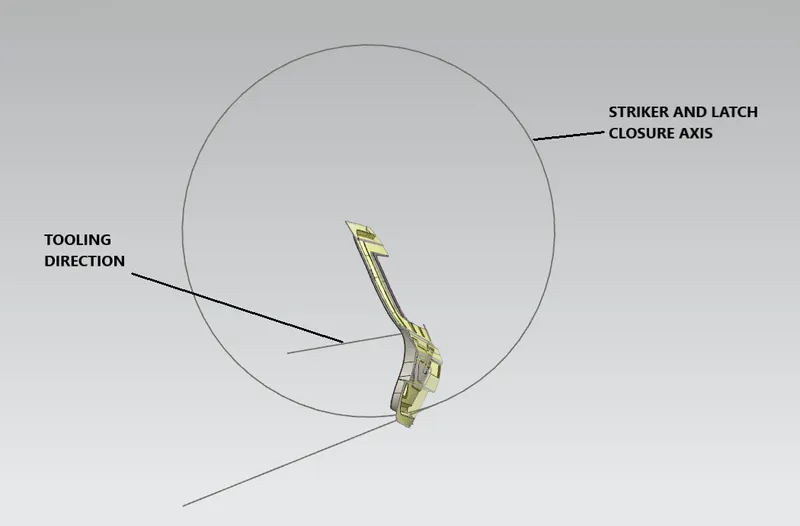

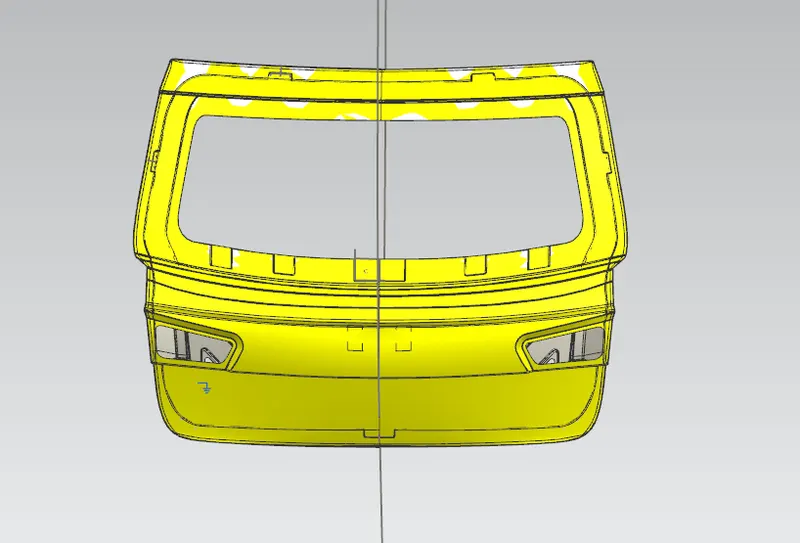

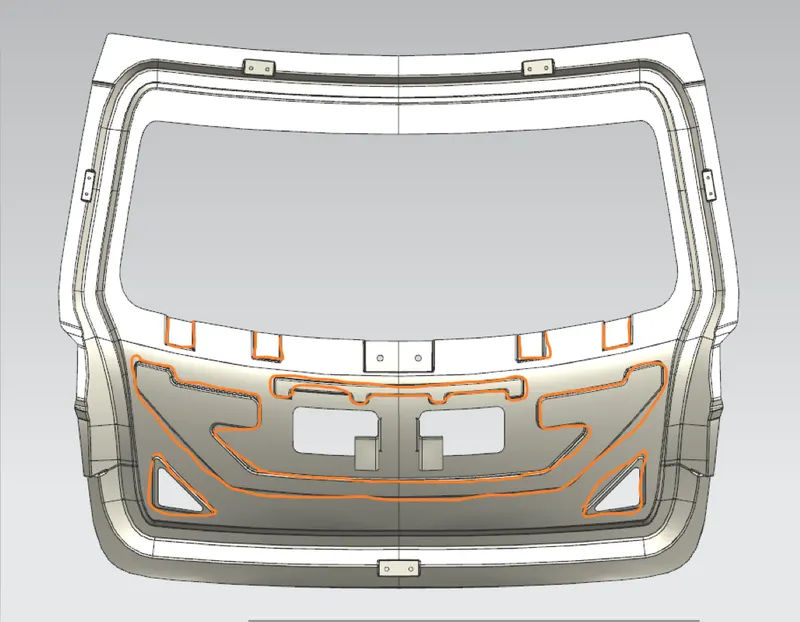

DESIGN OF A BACK DOOR :- AIM:-       The Aim of this project is to do a backdoor from the given input surface.   SOFTWARE USED:-       Siemens NX CAD.   BACK DOOR:-        The back door is a one of the important closure component to the car. and it is the…

Section Modulus Calculation and Optimization:-         In this project i have done section modulus of the hood and optimization to improve the overall section modulus of the Hood.  Objective:-          I have used the Hood design and calculate the section modulus using…

ROOF DESIGN:- Objective:-       In this project, i have done the automobile car roof from the given input skin data and also followed a Mastersection of the Roof rails and BOWs. Software used:-       SIEMENS NX CAD Roof :-       Roof is a component to encloses a passenger…

Aim :-      To create a CAD model of the "Door trim" by following the OEM standard from the given Class-A Surface and the Input Mastersection. Software Used :-           CATIA V5 Input Surface :-          DOOR TRIM OF A CAR :-        …

FENDER DESIGN :-       In this,I have done a project on Fender and Here I am going to give my complete view on fender. Fender:-     There is a two fender they are front fender and  rear fender, the rear fender comes with the body part,the front fender is a separate component having lots of…

DESIGNING A HOOD FROM THE GIVEN INPUT DATA IN A NX CAD:- HOOD:-         The Hood or Bonnet is a component act as closure to the Engine compartment. As we see from our eyes the hood is a normal component to close the engine compartment but the thing is not like that. The hood is one of the well engineered…

FENDER WHEEL ARCH:- THE FENDER IS ONE OF THE IMPORTANT COMPONENTS IN THE AUTOMOTIVE CARS. IT ACTS AS THE SIDE CLOSURE TO THE ENGINE. AT THAT FENDER THERE IS ONE IMPORTANT PARAMETER THAT NEEDS TO CONSIDER WHICH IS THE FENDER WHEEL ARCH. IT AVOIDS THE ABRASIVE PARTICLES THROWN INTO THE VEHICLE AND ONTO THE PEDESTRIANS. FOR…

HERE I HAVE CHOSEN THE BIG CARS BECAUSE PUGAZHENDI IS FOND OF BIG CARS THAT'S WHY:-   " Pugazhendi Fond of Big Cars So I Benchmarking big cars here the price of the Base model is Falls between the 8-10 lakhs range ".  " From my perspective pugazhendhi's condition on a statement was he wants to travel long with…

UNDERBODY COATING:-          Mainly underbody coating is given to the car for protection purpose of the car, After a long time of using a vehicle the underbody chassis get damaged due to some impact avoiding that impact to creates a major issue for that purpose only many OEMs provide underbody…

MAKING A-PILLAR OF A CAR FOLLOWING MASTER SECTIONS:- (THICKNESS:2.5mm) A-PILLAR:   A-PILLARS ARE THE VERTICAL AND INCLINED STRUCTURAL SUPPORT TO THE AUTOMOTIVE BODY STRUCTURE, AND IT HELPS TO ENCLOSE THE FRONT DOORS AND FOR THE ROOF."THE RED-MARKED AREA IS THE A-PILLAR OF A CAR" AND THERE ARE TWO A-PILLARS ARE…

ENGINEERING FEATURES:- HEAT STAKES AND LOCATORS:- " HEAT STAKES "ARE ONE KIND OF PLASTIC WELDING USED TO FIX THE PARTS BY PLASTIC HEATING ON THE TOP THEN IT WILL STICK ONTO THE MATING PART(CONTRADICT PART)                                …

ENGINEERING B-SIDE FEATURES:- DOG HOUSE DESIGN:- DOG HOUSE IS ONE OF THE ENGINEERING FEATURES THAT HELPS THE SCREW BOSSES AND SNAP TO IMPROVISE THE HEIGHT OF THE COMPONENT WITHOUT CREATING THE PLASTIC DEFECTS (SINK MARKS).                            …

ENGINEERING B-SIDE FEATURES:- RIBS AND SCREW BOSSES: (DOOR HANDLES) RIBS: RIB IS ONE OF THE ENGINEERING FEATURES USED FOR THE COMPONENT TO ADD ADDITIONAL SUPPORT AND STRENGTH TO THE COMPONENT WITHOUT ADDING THICKNESS TO THE COMPONENTS, AND IT IS USED FOR POSITIONING THE INSIDE COMPONENTS.          …

BUMPER: THE OBJECTIVE OF THE BUMPER DESIGN IS TO CREATE THE SURFACE USING THE CLOSURE SURFACE METHOD.   CLASS A SURFACE: "CLASS A SURFACE" IS THE SURFACE WE CAN SEE EASILY IN THE VEHICLE IT ONLY HAS AESTHETIC DESIGN, HERE THERE IS NO ENGINEERING FEATURE PRESENT IN CLASS A SURFACE. HERE THE INPUT FOR THE BUMPER DESIGN…

SWITCH BEZEL DESIGN: THE OBJECTIVE OF THE SWITCH BEZEL DESIGN IS TO CREATE THE SURFACE USING THE CLOSURE SURFACE METHOD.   CLASS A SURFACE: "CLASS A SURFACE" IS THE SURFACE WE CAN SEE EASILY IN THE VEHICLE IT ONLY HAS AESTHETIC DESIGN, HERE THERE IS NO ENGINEERING FEATURE PRESENT IN CLASS A SURFACE. HERE THE INPUT…

BASE BRACKET: THE OBJECTIVE OF THE BASE BRACKET DESIGN IS TO CREATE THE SURFACE AND USE THE CLOSURE SURFACE METHOD.   CLASS A SURFACE: "CLASS A SURFACE" IS THE SURFACE WE CAN SEE EASILY IN THE VEHICLE IT ONLY HAS AESTHETIC DESIGN, HERE THERE IS NO ENGINEERING FEATURE PRESENT IN CLASS A SURFACE. HERE THE INPUT FOR…

  QUICK-RETURN-MECHANISM CV-JOINT    ASSEMBLY FILES,CAD PARTS AND CAD DRAWINGS ARE ATTACHED.

Develop a Double-acting actuator model in SIMULINK using Simscape blocks. The mechanical system of the cylinder needs to be built using Simscape Multibody library components/blocks and the hydraulic system needs to be modelled using Simscape Hydraulics library physical components/blocks. (Reference Model Link: https://in.mathworks.com/help/sm/ug/hydraulic-interface-dump-trailer-with-hydraulic-cylinder.html) …

Mass Spring Damper System:- A Mass Spring Damper System is a Mechanical System , Here the system is mechanically made and this System is now used in the Different areas of Engineering Applications .This have been applied in the most dynamic suspension.                    …

1.Identify the Major elements in the above automotive wiring diagram. The major Elements are Generator Distributor Battery Fuse Ammeter Starters Breakers Current and Voltage Regulators Ignition Coil Gas tank Unit Light switches Junction Block   2.Explain the purpose and working of any three elements briefly? In this elements…
