Design of backdoor

AIM :

To use the provided styling surface to come up with a back door design, use appropriate design methodologies, and provide the necessary reinforcements and embosses.

Backdoor/Reardoor/Tailgate/Trunk:

A Door is a hinged part which is used for entry and exit of the vehicles. Backdoor are one of the type of door of the vehicle which are located next to the passanger seat which provides access to the luggage compartment. This kind of system is also called a powered trunk lid system hatchback or station wagons are sold as 3 doors or 5 doors models. In this case, the rear hatch is classified as door this is because it enters the passenger compartment. The naming is mainly used in Europe countries.

Types of Backdoor based on working positions:

The door or opening of a cargo area may be hinged at the top, side & bottom. If the door hinged in the bottom it is called as a tailgate.

1.Top mounted

2.Side mounted doors

3.Bottom type

1.Top mounted:

This type of back doors is used in a station wagon, pickup trunk and some of the spot utility vehicles. Today's modern cars use top mounted tailgating system which are both powered and also gas stay supported. These top mounted tailgates provide greater rear visibility compared to side mounted or backdoor which have center pillars in it.

2.Side mounted door:

As the name signifies the side mounted doors are the one which is used in the van type MPVs, SUVs, pickup truck vehicles. These side mounted doors or barn doors are a lot easier compare to top mounted doors. These doors are generally smaller in size and can be easily accessed. These doors are more convenient for the goods handlers for long pipe and lengthy components where one door is kept open. These door also save accidental head impacts.

3.Bottom type:

This bottom type type backdoor system are used in the car type such as car, pickup truck and some luxuary SUVs. These are the most convenient type of back door in which the bottom split is used as a support or even as a table for the tour going people.

Backdoor Assembly:

1.Inner Panel

2.Outer Panel

3.Hinge Reniforcement.

4.Gas Stay Reniforcement.

5.Wiper Motor Reniforcement.

6.Latch and Striker Reniforcement.

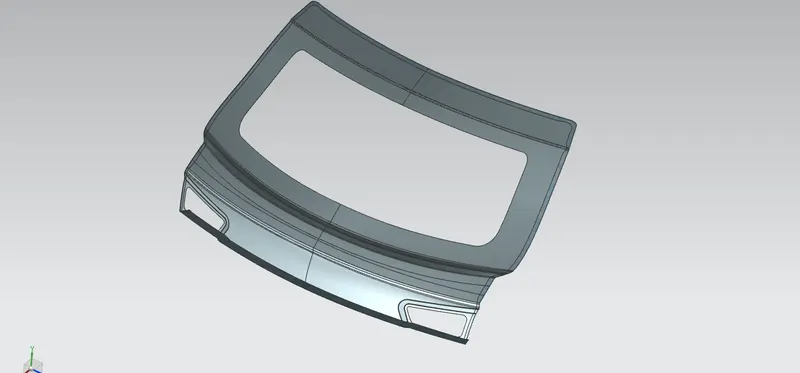

BACK DOOR :

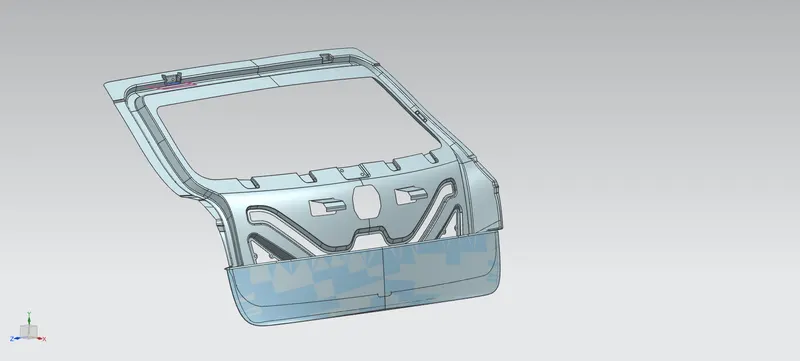

BACKDOOR ASSEMBLY :

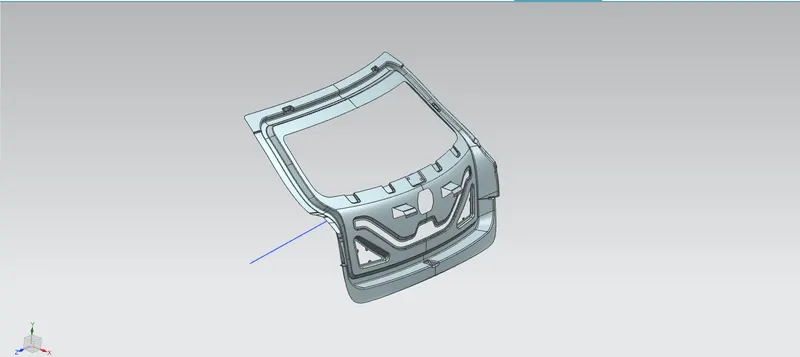

BACKDOOR UPPER PART :

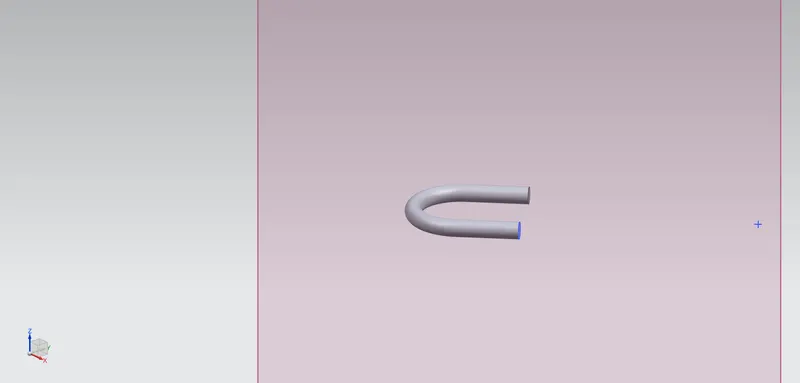

HINGE1:

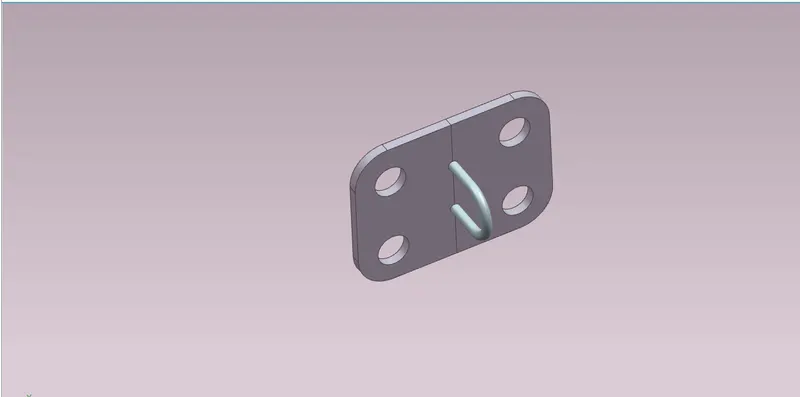

HINGE 2:

RESULT :

Finally the back door design was drawn using appropriate design methodologies, and provide the necessary reinforcements and embosses respectively .
