Week 9 - Project - A pillar Design with Master Section

a pillar

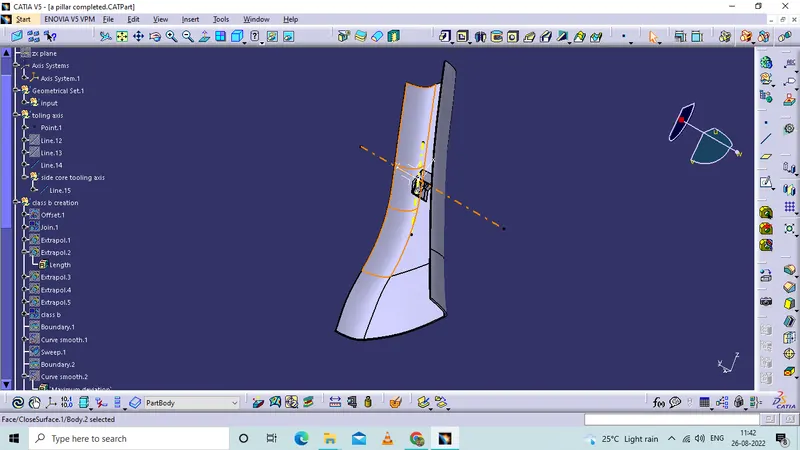

tooling axis

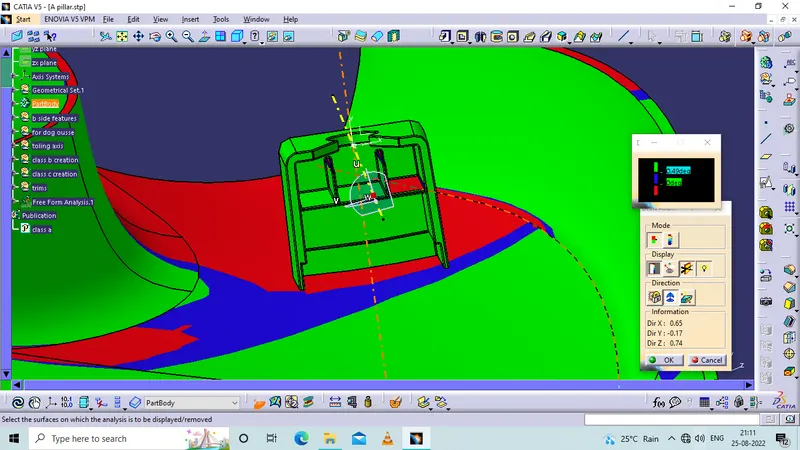

draft analysis with tooling axis

tree structure:

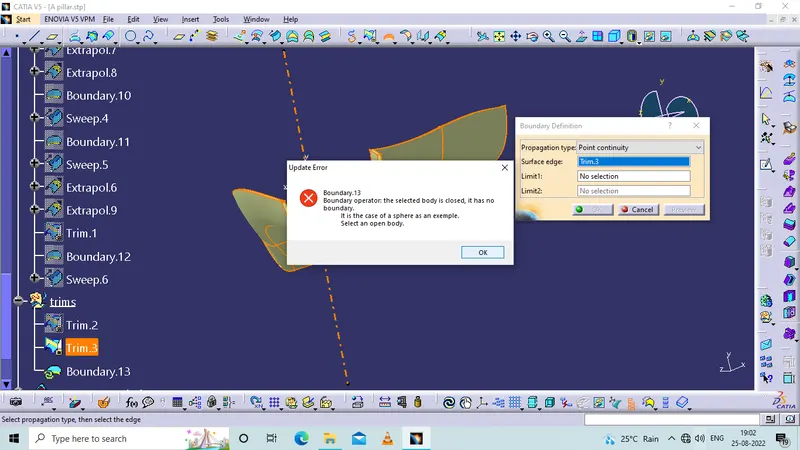

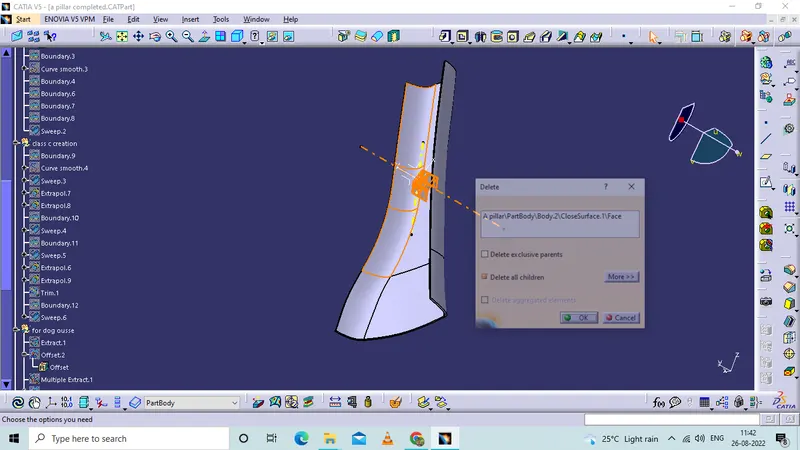

closed surface created with class a,b,c

final class

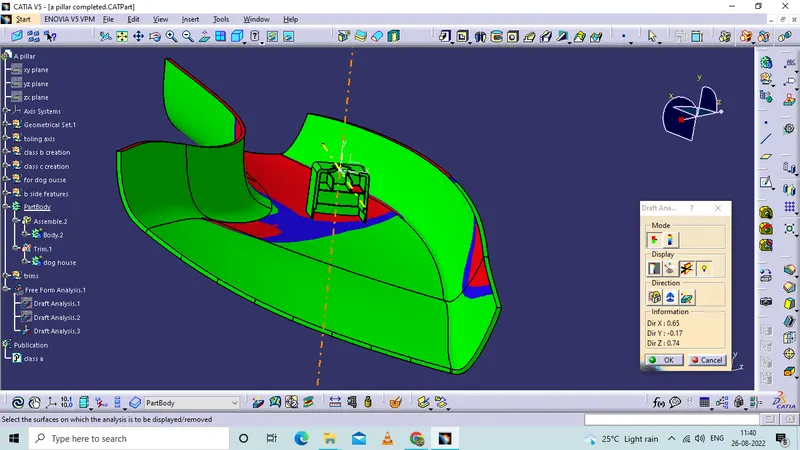

draft analyses are done with the 2.9 degree.

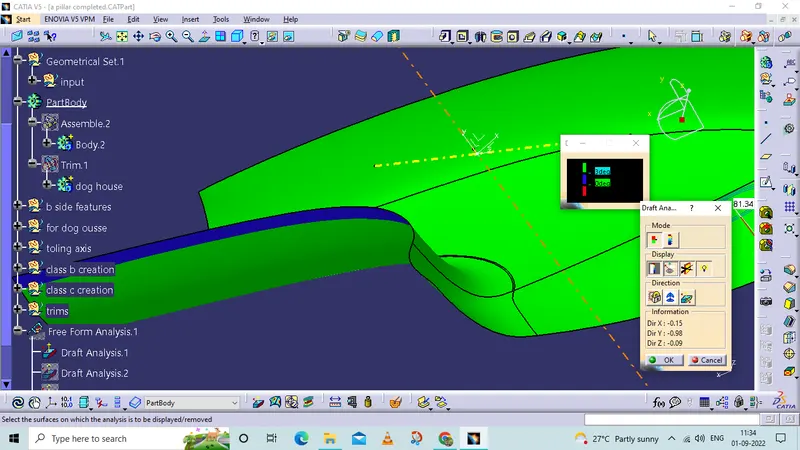

dog house draft analysis

.5 degree draft analysis are done

given class a

some areas are not clearing a draft analysis. so doing my best. with a given surface and

dog houses are also one of the face deviations on the surfaces.
