Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

• Challenge one

• Challenge two

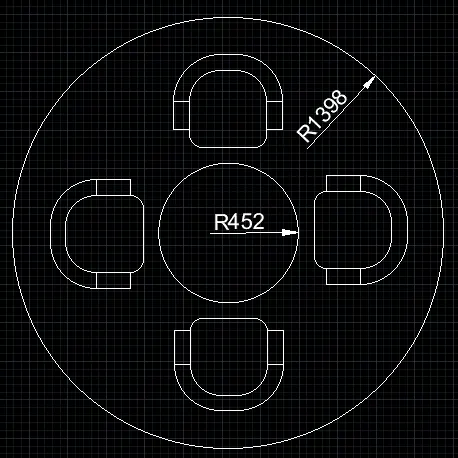

• Procedure

1. select a circle command
2. specify the center
3. draw a circle of radius 452mm
4. with the same center draw a circle of radius 1398 mm
5. place the chairs symetrically between the two circles

RESULT

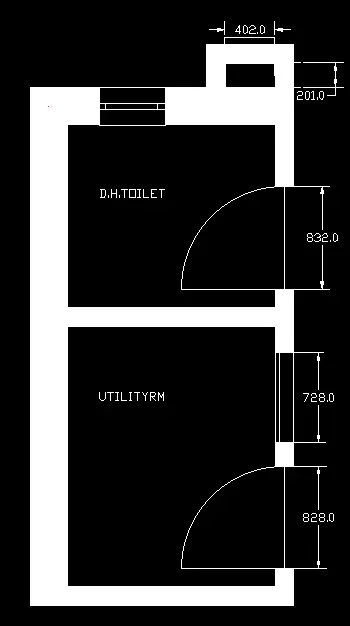

• Challenge three
