Creation of geometries by Coordinate system methods using AutoCad

                                                                            Project-2              …

                                                                       Challenge-13                …

                                                                       Challenge-12                                                Design of Shallow Foundation (Isolated Footings) Design a square footing for a column size of 400x400. The compression axial load for the load combination of (1.5 DL + 1.5 LL) is 2000 KN. The…

                                                                   Challenge-11                                                Structural Modelling using Etabs 2018 The architectural drawings for a G+7 residential building in zone 5 has been provided. The floor plan is the same for all 7 floor levels. Possible column positions…

                                                                 Challenge-10                      …

                                                               Challenge 8                          …

                                                               Challenge 7                                              Detailed design of concrete buildings -1 Detail design of beams in Etabs 2018.The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment ResistingFrame. The following challenge…

                                                                     Project :- 1                            Comparative study of different storey buildings for Seismic forces   Aim :- The model and analyse multiple building with different floor levels and design parameters using ETabs software and compare the results…

Question :- Model a 25 storey building on ETABS with structural properties as specified below. Ground floor or plinth floor level can be taken at a height of 1.5 metres from the base. Each of the successive 25 storeys has a storey height of 3 metres. Structural Element Sizes  Beams : 300 × 400 mm  Columns : 800 × 800 mm …

Question 1: The building shown, 20 × 35 m in plan, has columns on a 5 × 5 m grid and shear walls (with dimensions shown in m, 250 mm in thickness) in three alternative arrangements, (a), (b), (c), all with the same total cross-sectional area of the shear walls. Compare the three alternatives, taking into account…

Question 1:- Comment on the layout of the framing plan concerning earthquake resistance in the two horizontal directions X or Y (dots are columns, lines depict beams). Look into aspects of symmetry, redundancy and bi-directional stiffness and ductility.   Answer :-   Symmetry - Having a look over aspects of symmetry…

Question 1: A five storey structure with 5 translational DOF is shown here. Each storey has mass ‘m’. The eigenvalue problem has been solved and the 5 periods of vibration Tn and their corresponding mode shapes, φn has been derived. The fundamental period of vibration (T1 = 2 seconds) and…

Question 1:- Compute lateral stiffness of the one story frame with an intermediate realistic stiffness of the beam. The system has 3 DOFs as shown. Assume L = 2h and Elb = Elc .   Aim :- Compute lateral stiffness of the one story frame with an intermediate realistic stiffness of the beam.   Introduction :- The lateral…

Question 1: What is the mode of failure or damage of the beams in the figure above? Are the damages repairable? Elaborate.   A). This cracks are formed due to flexural failure of a beam. Flexural strength, also known as modulus of rupture, or bend strength, or transverse rupture strength is a material…

NavisWorks Introduction :- It is a project review software that allows Architecture, Engineering and Construction professionals holistically review integrated models and data with stakeholders during preconstruction to better control project outcomes. Navisworks is available in three versions namely Freedom, Simulate and…

Introduction of Dynamo :- Dynamo is an open source visual programming language for Revit, written by designers and construction professionals. It is a programming language that allows you to type lines of code; while also creating an algorithm that consists of nodes. Using Dynamo, you can work with enhanced BIM capabilities…

Question :- 1 Use the shortcut keys in Revit discussed in class to complete the following tasks and list them belowa. Using 3D model create a section boxb. To create similar doors and windows in a floor plan layoutc. To reduce the thickness of lines visible in plan viewsd. To apply override settings to a floor in the model…

Question :- 1 What are HVAC systems? Why are they essential in the modeling of buildings.   Aim :- To Discuss about HVAC System.   Result :- The HVAC Full form is Heating, Ventilation, and Air Conditioning with respect to building structures. HVAC systems & types are important areas in the field of mechanical…

Question:- 1 Select the type of structure you want to build from one of the three below:a. Multi-Unit Residential Apartmentb. Office Buildingsc. School   Result :- From the above options, I will go with Multi-Unit Residential Apartment.   Question:- 2 Assume reasonable assumptions for geographic and location…

Question :-1 Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project.   Aim :- To Open an architectural template and Using the Manage tab set project base point and project shared coordinates for the project. Introduction :- The project base point can be used…

Question :-1 Why are building codes or standards essential for the modeling/ efficiency of drawings in Revit ?    Essentiality of Building Codes os Standards :- Model building code organisation is a set of building codes that are developed and maintained by standard organization. Building code is a set of rules…

Question :-1 Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.   Aim :- To model a ceiling from architecture tab above the walls at the first floor. Intoduction :- Ceiling, the overhead surface or surfaces…

Question :-1 Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids…

1. What is BIM? Summarize the features of BIM and benefits of using BIM over 2D CAD tools.   Aim :- To analyze the summarize and benefits of BIM.   Introduction :- Building Information Modelling is an advanced technology that assists architects, engineers, and construction professions in planning, designing,…

1. From the file menu, create a new project (Structural / Architectural / Construction template ) and name the project appropriately.   Aim :- To create a new project And name it appropriately. Procedure :- Open Revit 2021. Click New from Models. Then new box will Pop-up named New Project. So choose the tempalate…

Create a 3 dimensional model of the residential building with a rendered view.     Aim :- To create the 3D model of residential building.   Introduction :- Autocad is mostly used for the 2D drawings. There is a wide range of pre-defined objects in the Autocad. There are some different commands wit hrespect…

1. Create a 3D Isometric View of the building with plan and elevation given.   Aim :- To Create a 3D Isometric View of the building with plan and elevation. Introduction :- A Plan view of 2 walls is given. There is separate window in both the walls. Width of both the windows of A side and B side is 3' and 3'2" respectively.…

1. Create a 3D Furniture element as shown in the Figure. Assume dimensions which are missing.   Aim :- To create 3D furniture with dimension. Procedure :- Create a box of size 3' X 2'6" and height of 2'6".   Type UCS command and set the X-axis horizontally and Y-axis Vertically as shown in picture below.   Now draw the…

1. Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout.…

1.) Aim :- To Create the layouts of the Kitchen and provide hatches with use blocks wherever required. Procedure :- Type Line command and draw rectangle of size 4700 X 3700. Type offset command of size 250 mm inside the rectangle. Draw the door using line and arc command. Draw the window as per the drawing. Type HATCH…

1.) Aim :- To Create the templates as shown in Figure. Procedure :- Custom2_title block :- Create the rectangle of size 70 mm and 158mm. Draw the block as per given in the drawing by line and offset command. Add text as per given in the drawing. For making block, Type B in coomand line and select BLOCK command. Then select…

Aim :- To Design and Draft a layout of a residential building with size of 60' X 20'.   Architectural Plan  Procedure :- First, Set the units as Engineering and Lomits. Draw the plot of size 60' X 20' as the orientation of the building stays in east direction. So the main door should be in east direction.…

Aim :- To draw the Plan and Sections as shown in the Figures with Using proper dimension techniques and dimension styles to document the project. Procedure :- 1st, 2nd and 3rd Floor Plan :- Plan drawing is drawing on a horizontal plane showing the view from above. Firstly, Set the limits and units as Decimal. Then draw…

1. Aim :-  To draw the  elevations and deatails of wardrobe as shown in figure. Procedure :- Draw the rectangle of size 2800 X 2600, then offset it with 12 and 488 mm from upper side. For Front elevation use line command and offset command as per the dimension. After making the wardrobe box, use hatch command…

1. Aim :- Creating a column schedule as shown in the figure. Introduction :- There are 5 column schedules are diven in the table. Column C1 has size 9"X24", 4 nos. of 20 mm dia. and 6 no. of 12 mm dia. and 12 mm dia. bars are denoted as 'a'. Column C1a has size 9"X24", 12 nos. of 16 mm dia. Column C2 has size 9"X24", 8…

Aim :- Creating a Residence Layout using AutoCad.   Drawing :- Result :- Draw the Outer boundary wall with XLINE Horizontally and Verically. and take offset of 9". Then as per the drawing, make the rooms, toilets and kitchen with the sizes with the line and offset command. Then draw the stairs with the tread…

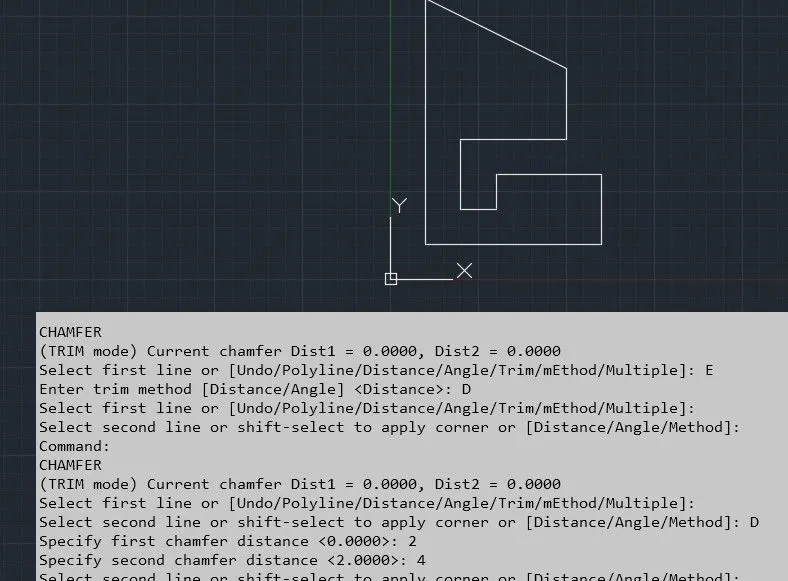

Aim :- To Draw the geometrics using Chamfer, Fillet tool in AUTOCAD. Drawing-1 :- Procedure :- Select the line tool by entering LINE Command in tab. Specify the starting coordinate of point and @3,0 in command line. Now give line command @2.12<45, @2.83<135, @2<180 and close. Select…

Aim :- To creating the floor plan, flooring detail and isometric view using Autocad. Introduction :- The main objective of this assignment is to get in touch with various tools in AUTOCAD like the rectangle, polylines, modifications tools . These tools will be understood by creating a flooring detail, two bedroom building,…

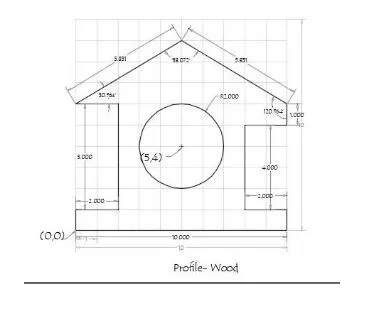

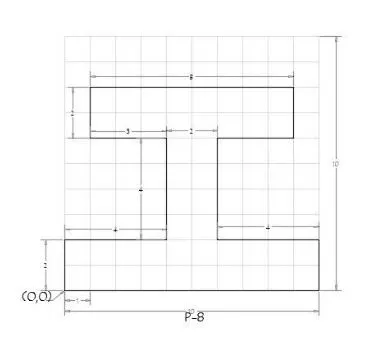

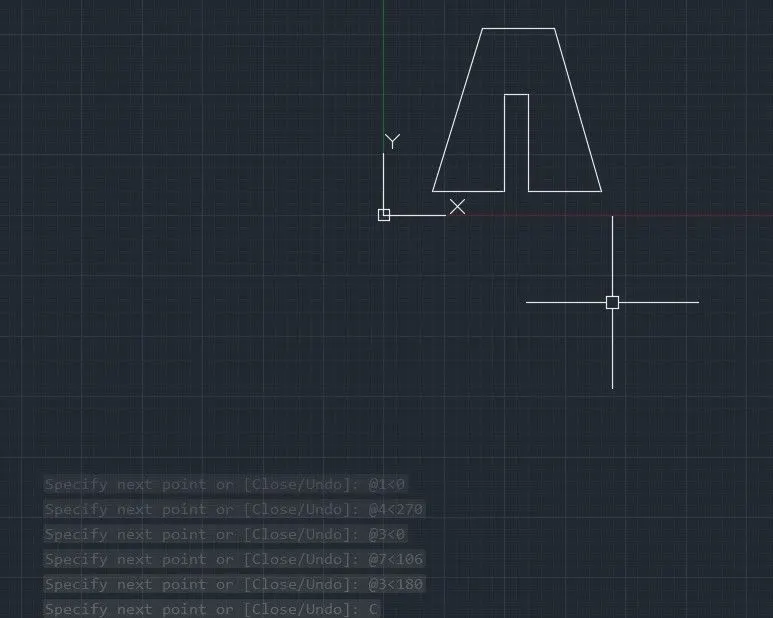

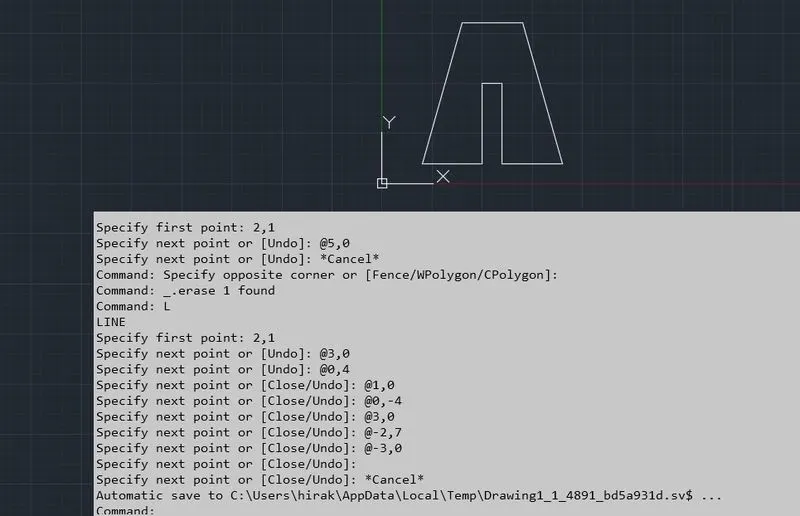

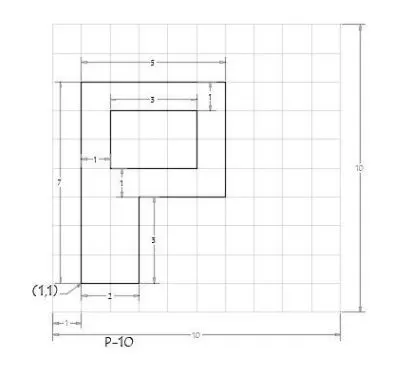

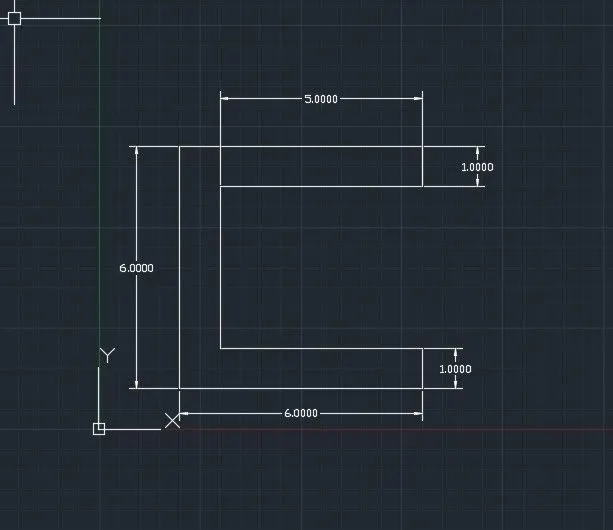

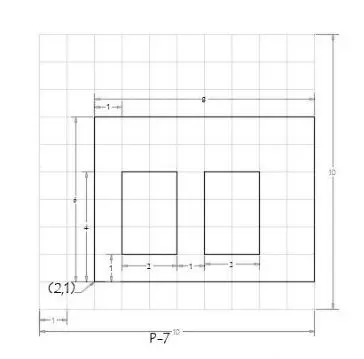

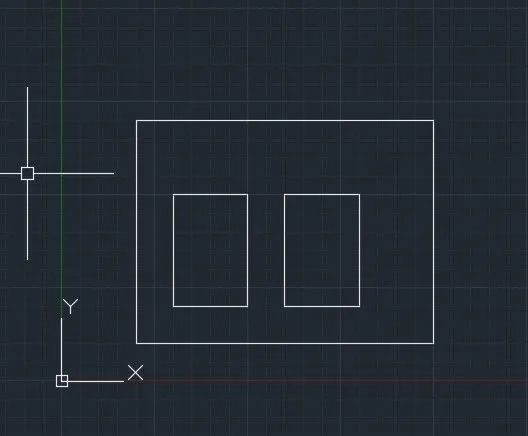

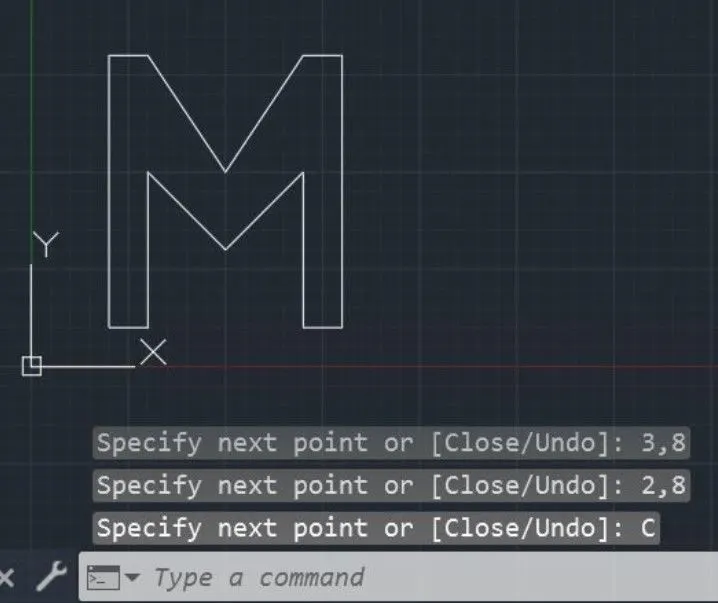

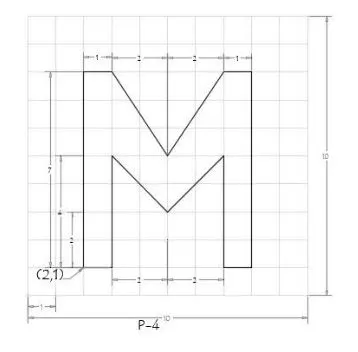

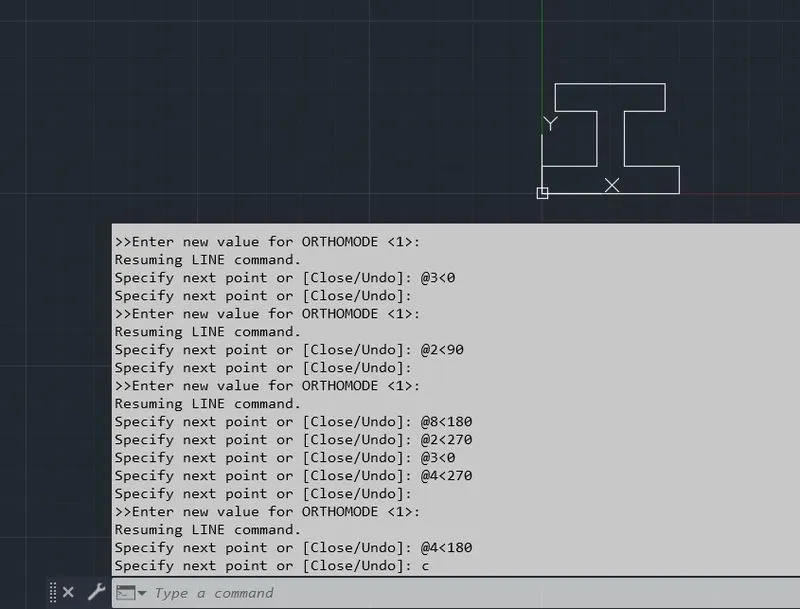

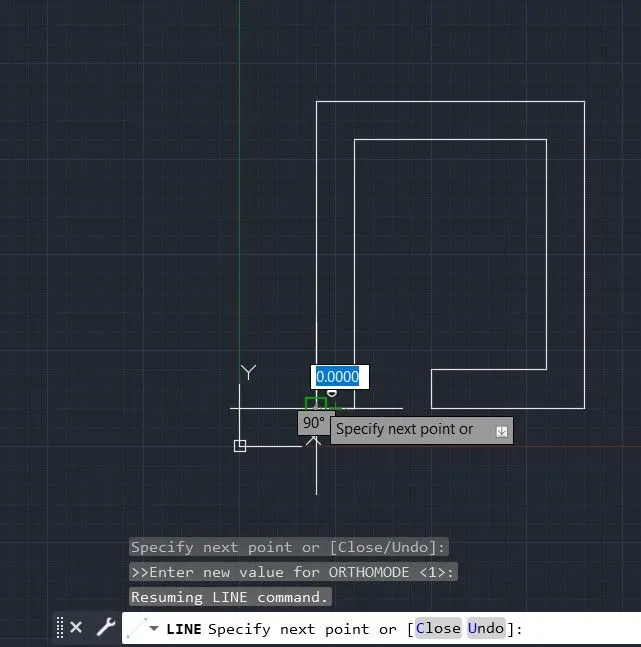

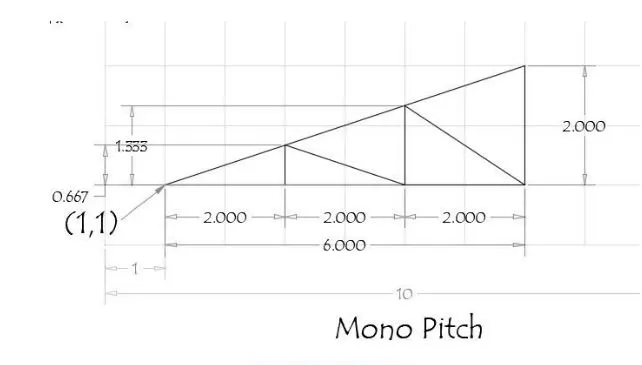

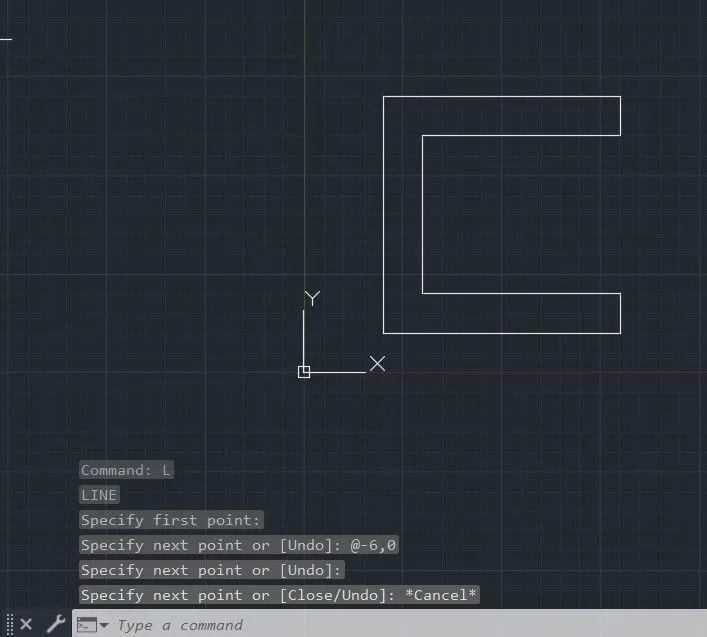

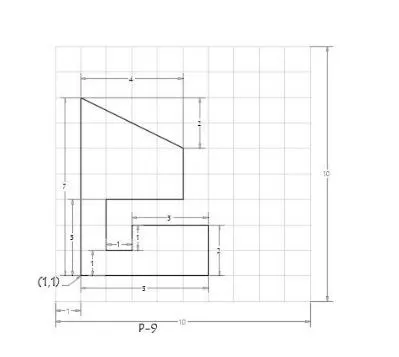

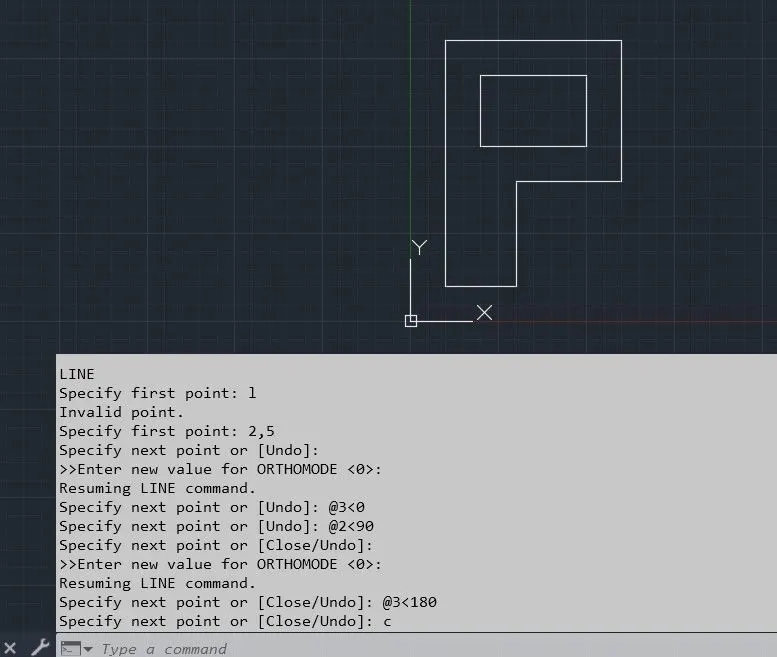

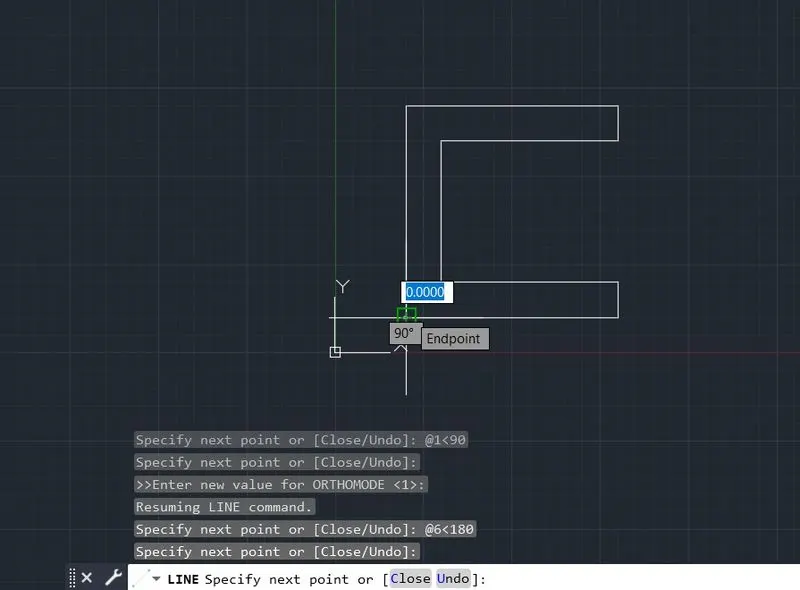

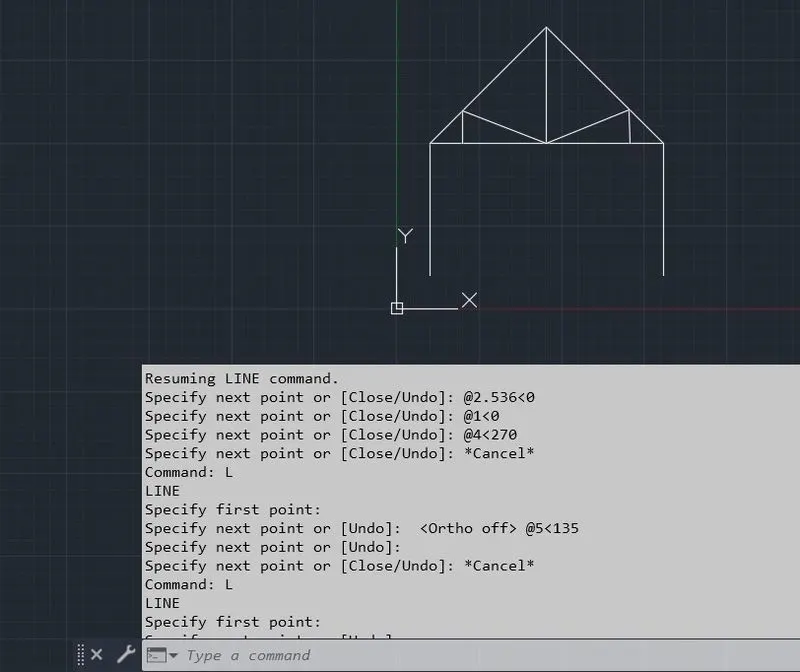

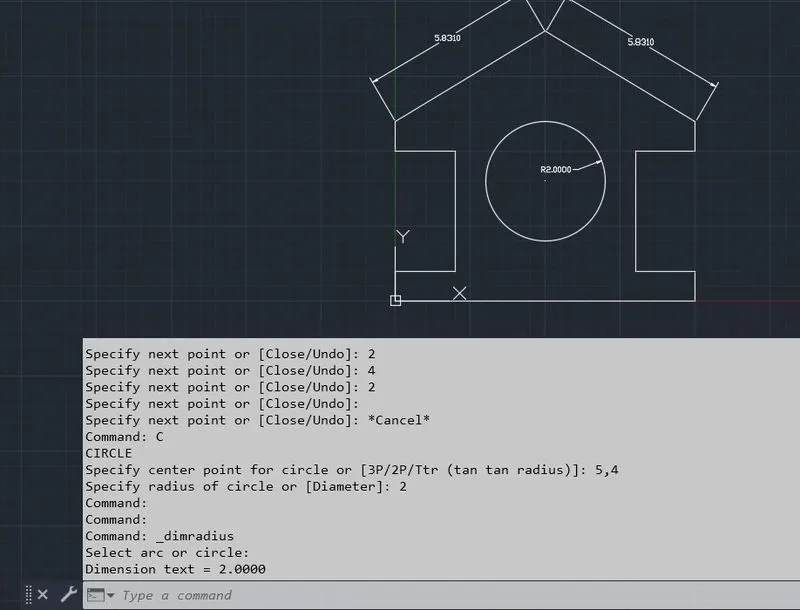

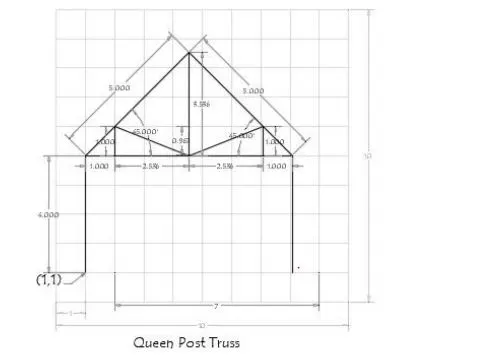

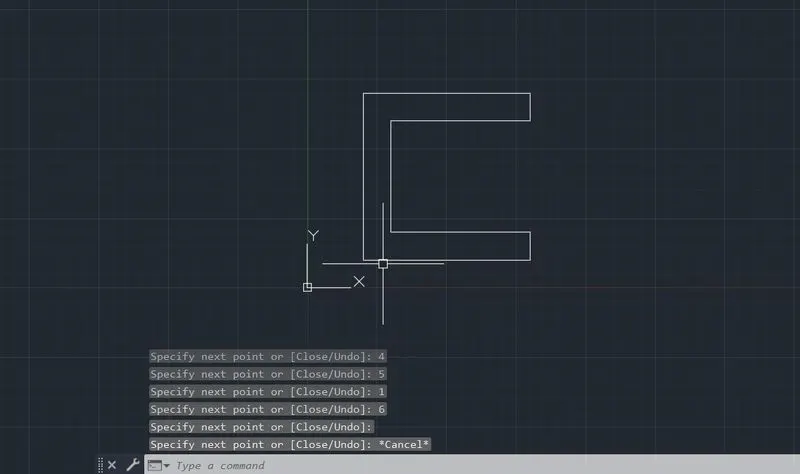

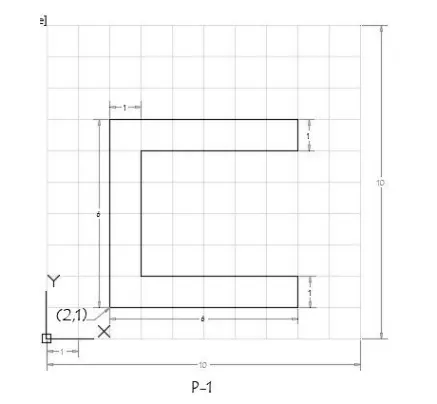

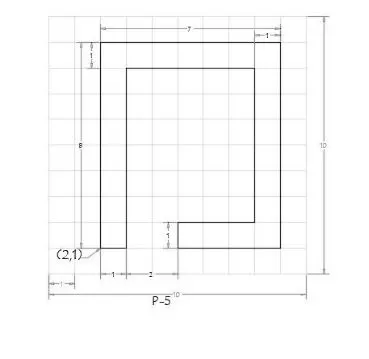

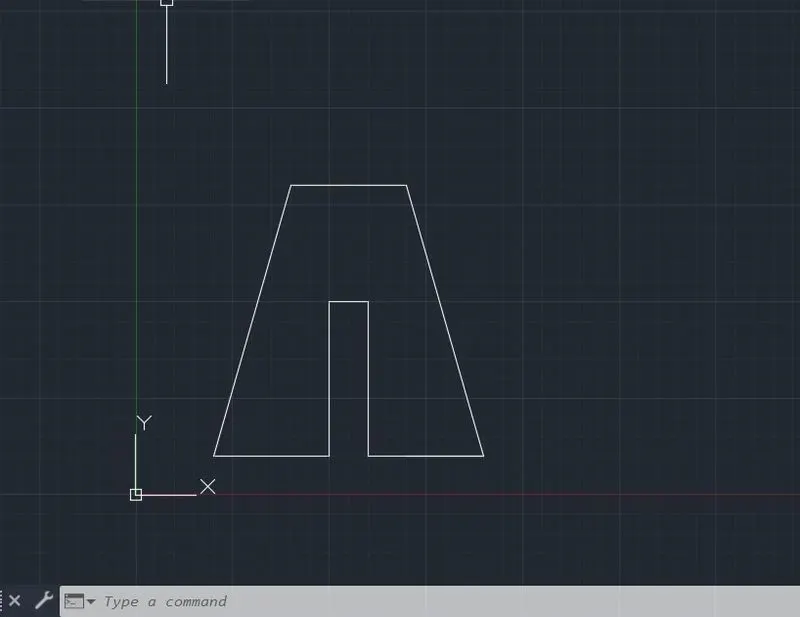

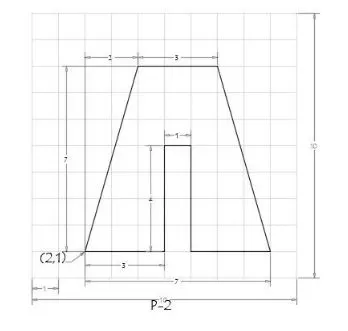

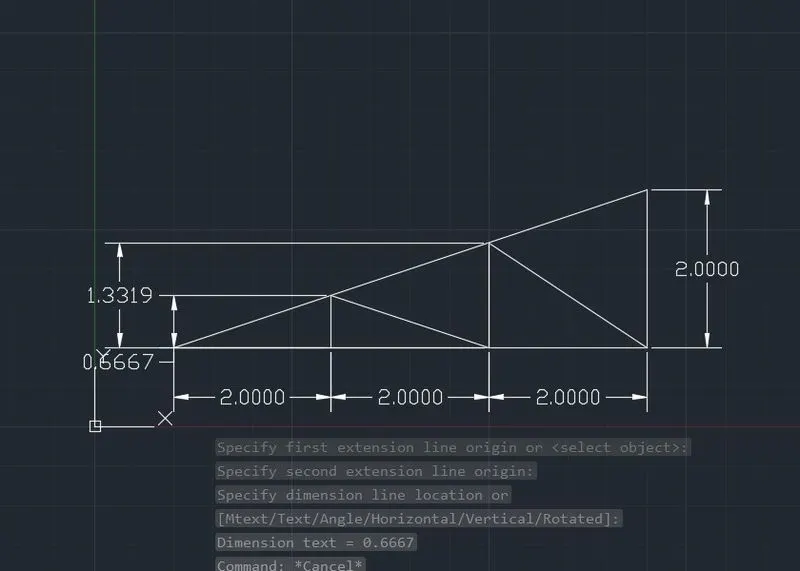

Aim :- To Create the given geometries and trusses in Autocad, using all the coordinates system methods and using  the Line tool and circle tool. Geometries P1 and P2 drawn using all coordinate system, and each of the reamining geometries are drawn using any one of the coordinate systems or the direct distanance method.…

Aim :-  Sketching a G+1 floor residential plan satisfying Vaastu Shastra and calculating load acting on the building with giving information of required drawings. Answer :- Opening is provided above the ground level for aesthetic look. All doors are inward. Main door is facing north direction. Toilets are not placed…

Answer-1 :- Aim :- Mix Design for M35 Grade Concrete with Fly Ash. Stipulations for Proportioning :- Grade designation : M35 Type of cement : OPC 53 Grade Conforming to IS 8112 Type of Admixture : Fly Ash Conforming to IS 3812 Maximum nominal size of aggregate : 20mm Minimum cement content : 320 kg/m3 (IS 456:2000) Maximum…
