Creation of geometries by Coordinate system methods using AutoCad

Aim

To Create Geometries using all co ordinate system

Steps followed

Step 1 - using UCS command fixing 0,0 for x and y axis

Step 2 - using line command specify the origin point

Step 3 - drafting line by using @ coordinate system specifying x, y dimensions and angles

Step 4 - annotating all dimensions

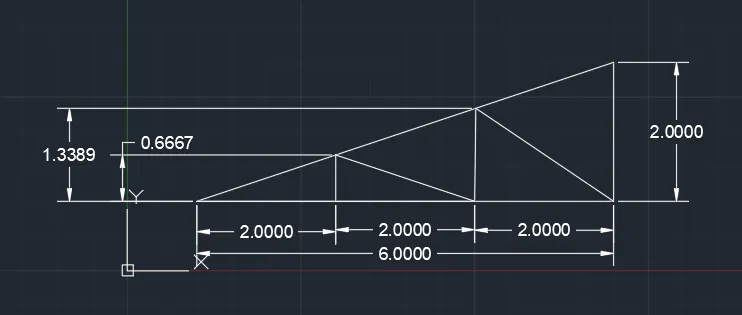

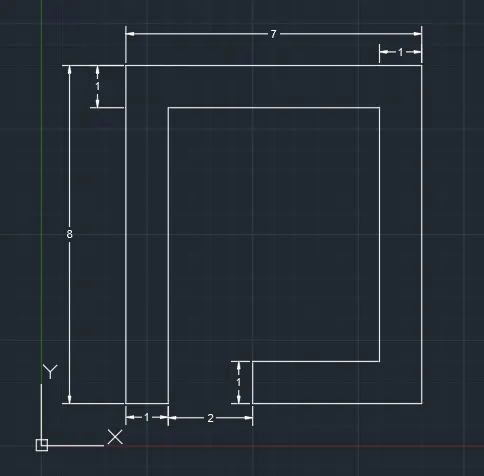

1.

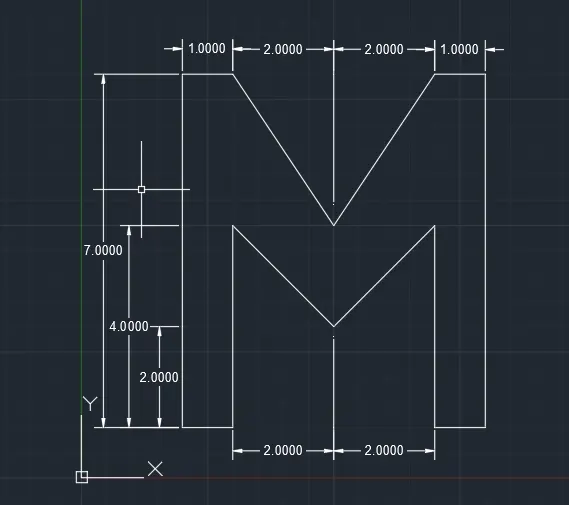

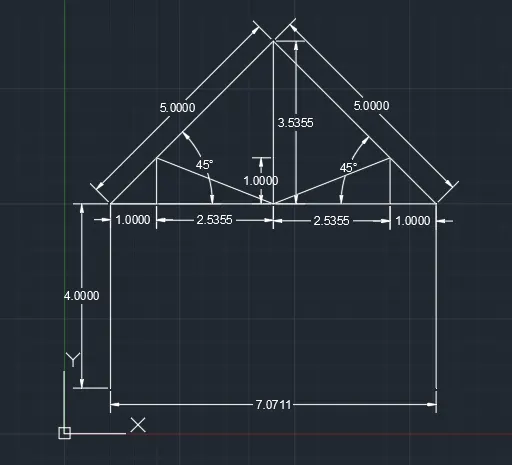

2.

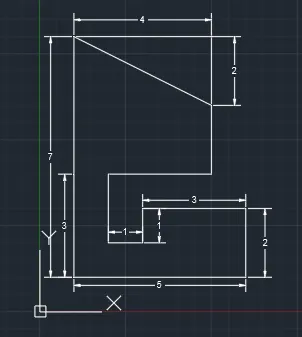

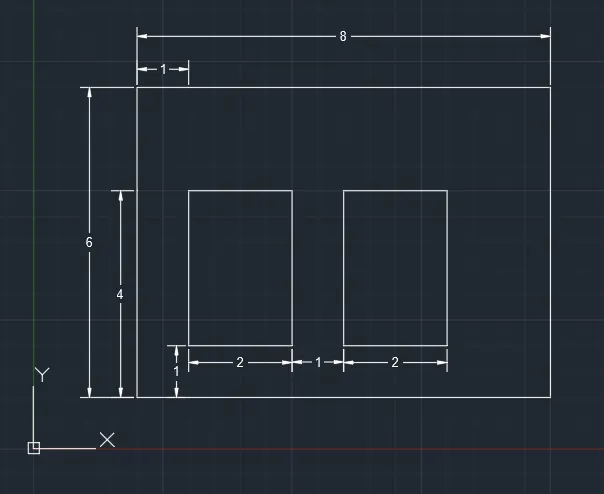

3.

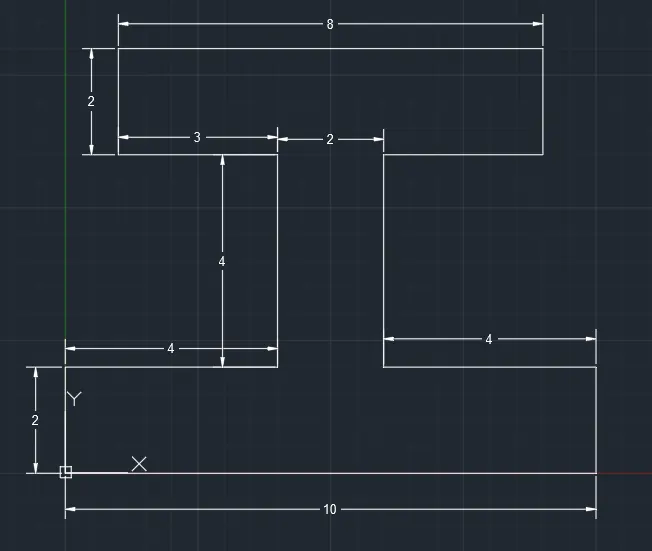

4.

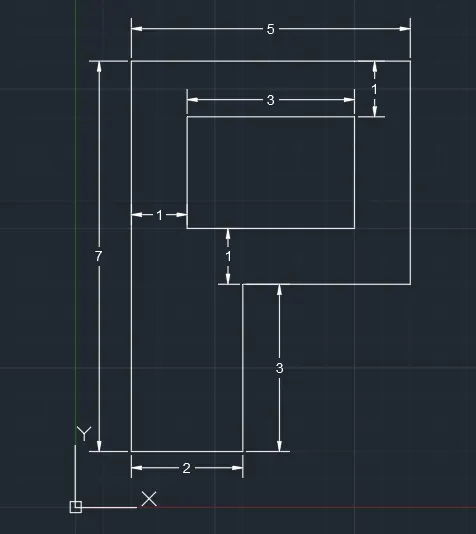

5.

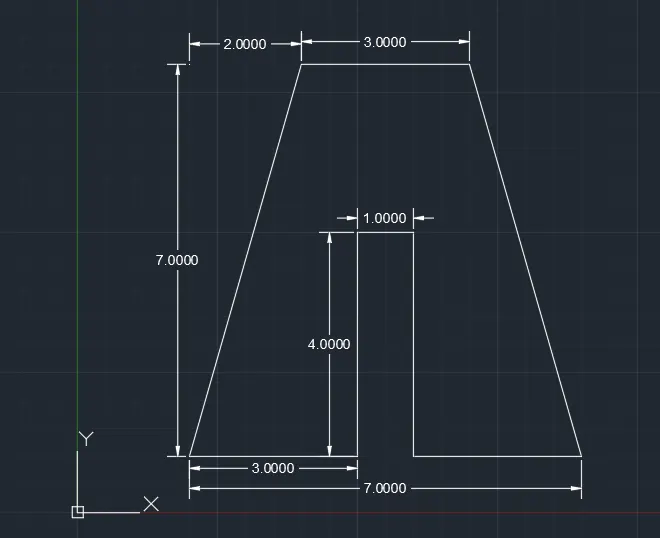

6.

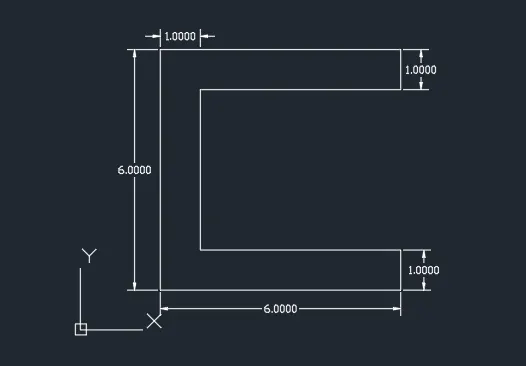

7.

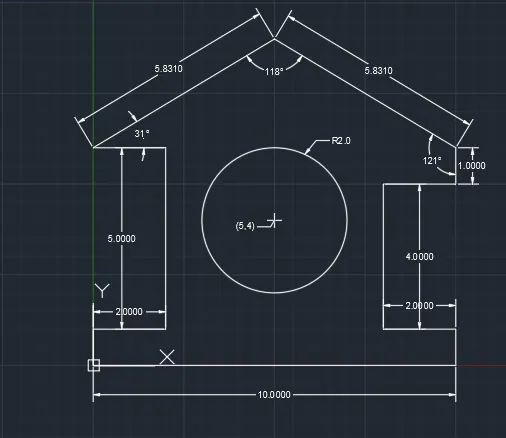

8.

9.

10.

11.
