Creation of Column Schedule and Drawing Template using AutoCad
Q-1:
AIM:

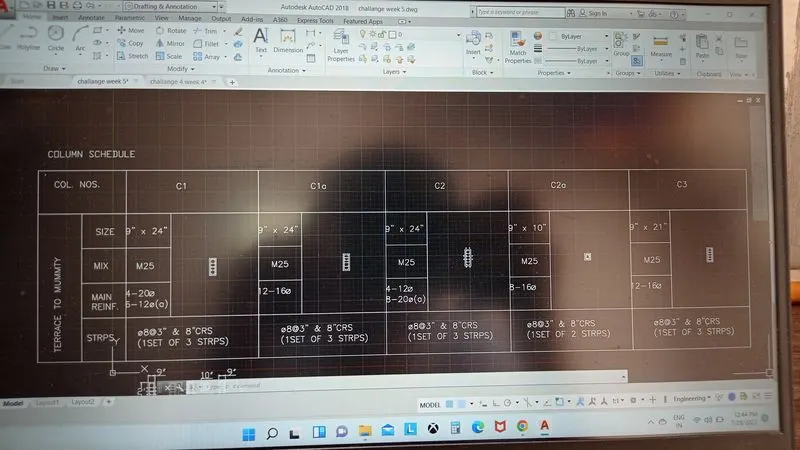

To Create a column schedule as shown in the figure:
INTRODUCTION:

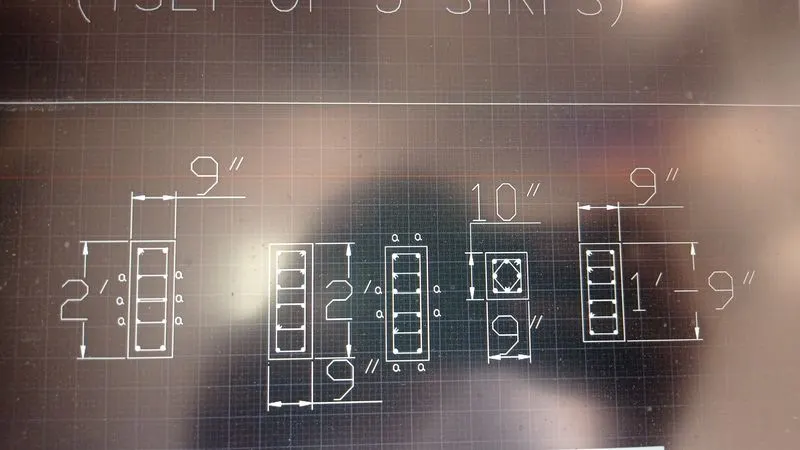

1. Column C1 is provided with 4 bars of 20 mm dia. and 6 bars of 12 mm dia. The 12 mm dia bars are marked with 'a'.
2. Column C1a and Column C3 are provided with 12 bars of 16 mm dia bars.
3. Column C2 is provided with 8 bars of 20 mm dia and 4 bars of 12 mm dia. The 20 mm dia bars are marked with 'a'.
4. Column C2a is provided with 8 bars of 16 mm dia.
5. All columns are provided with 8 mm dia stirrups with 3" spacing c\c near the ends and 8" c\c in mid-length.
6. The clear cover for all the columns is assumed to be 1.5" (approx 40 mm). As per IS 256, the minimum cover to the column should not be less than 40 mm
PROCEDURE:
STEP1
- In the command prompt type line to create tables
- In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left (justify)
- In the command prompt type text to text the given text in the drawing
- In the command prompt type MTEXT (multiline text) > symbols > to get diameter symbol.
RESULT:
Q-2:
AIM:

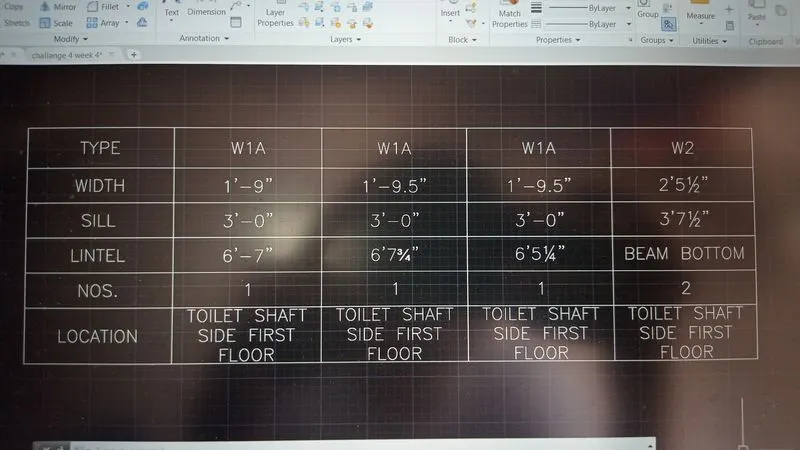

To Create a window schedule as shown in the figure:
INTRODUCTION:
The table contains the width, sill and lintel height, their numbers and respective location for different types of beams.
PROCEDURE:
- In the command prompt type line to create tables
- In the command prompt type ST (text style ) > romans.shx (font name ) > 8" (height ) > center(justify )
- In the command prompt type text to text the given text in the drawing .
RESULT:
Q-3:
AIM:

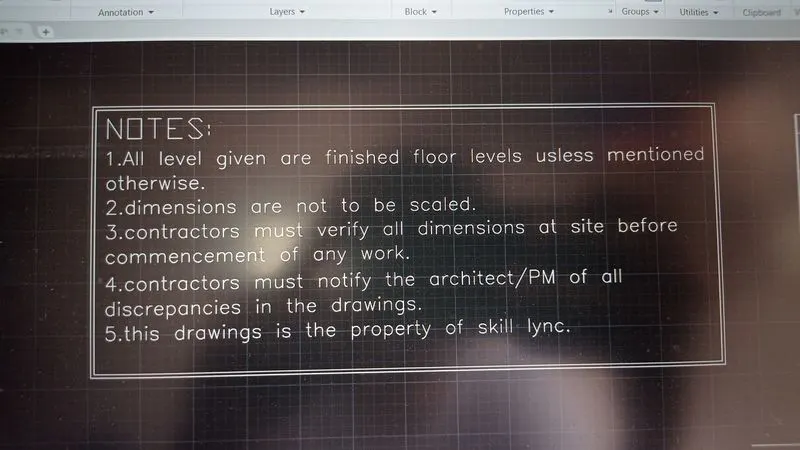

To Create the drawing template as shown in the figure:
PROCEDURE:
- In the command prompt type line to create tables .
- In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left(justify).
- In the command prompt type text to text the given text in the drawing .
RESULT:
Q-4:
AIM:

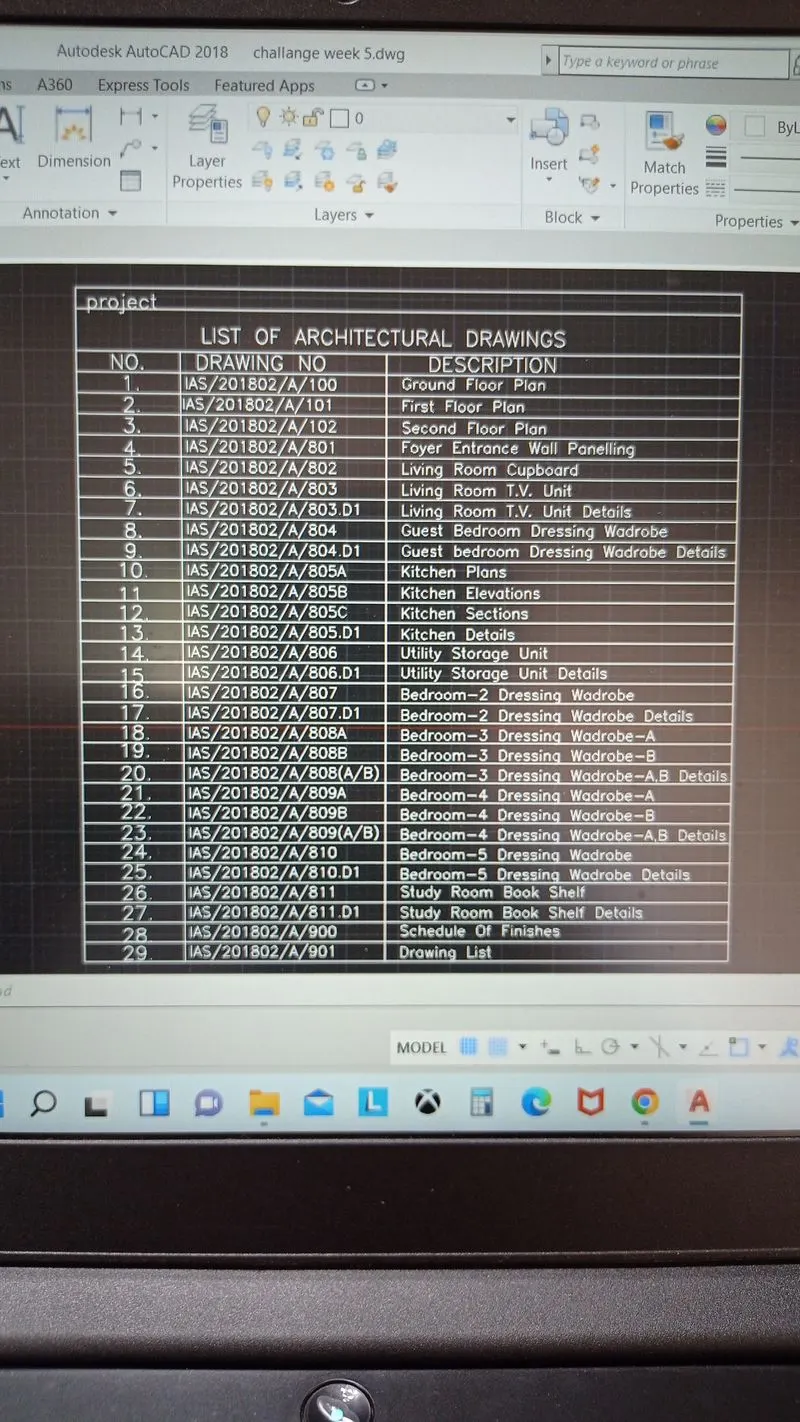

To Create the list of drawing schedule as shown in the figure:
PROCEDURE:
- In the command prompt type line to create tables .
- In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left(justify) .
- In the command prompt type text to text the given text in the drawing .
RESULT:
Q-5:
AIM:
To Create the beam detail as shown in the figure:
PROCEDURE:
STEP 1:
- In the command prompt type UNITS > Engineering> Inches .
STEP 2:
- In the command prompt type Line (to create the column) .
- In the command prompt type Text to text the given drawings .
- In the command prompt type HATCH to hatch the given drawings .
RESULT:
