Creation of Column Schedule and Drawing Template using AutoCad

Aim: -

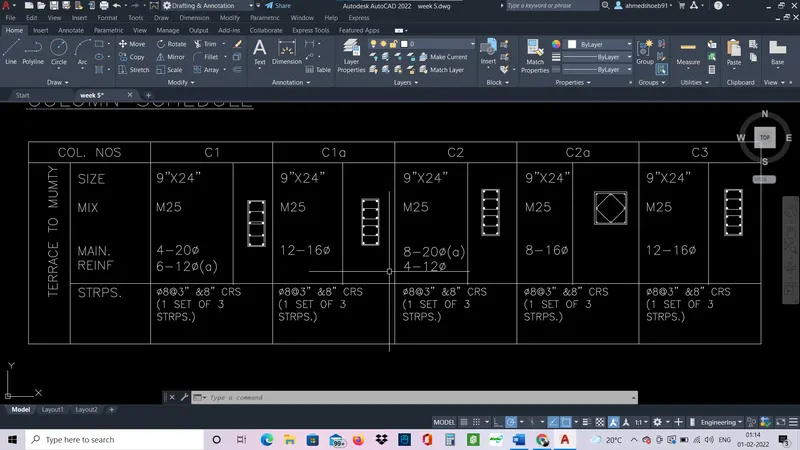

To create a column schedule as shown in figure in AutoCAD.

Procedure: -

Creating Table

• Line command is selected and 60’x20’ table is drawn.
• Offset command is used to divide the table in required schedule.
• Offsets are done to give enough space for text and column diagrams.
• Trim the unnecessary lines.

Entering the text

• Use command Mtext and draw the box, give the text height as 8”. Write ‘COLUMN SCHEDULE’ above the table.
• Again use the Mtext command and write ‘Col. Nos.’, C1, C2 etc, in first row.
• Use Dt or single text for ‘terrace to mumty’. Give a height of 8” and on angle write 90. This will make the text vertical.
• Use Mtext command for everything else.
• For ease of use copy one mtext command and then edit it rather than making new everytime.
• Enter the texts as given, for symbols there is a an option on top right “symbols” where you can select diameter, degrees etc.

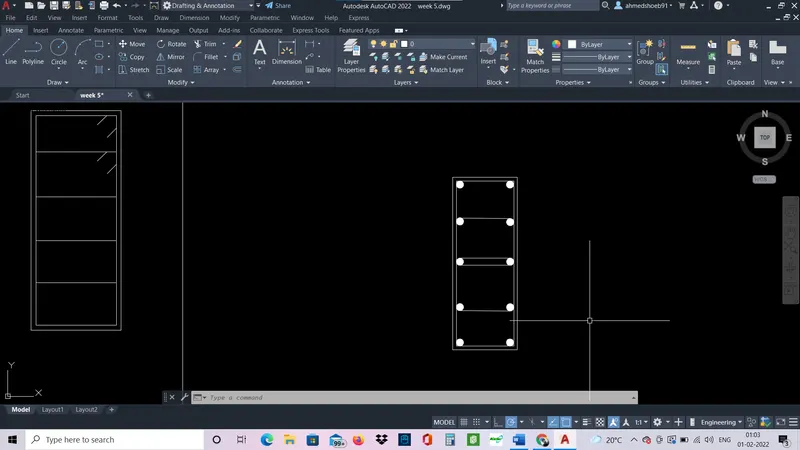

Creating column

• Command rectang is used is draw a rectangle of 9”x24”. Give an offset of 0.5.
• Select circle command and choose tan tan radius and draw a circle in corner for 0.5”.
• Copy the circles in required corners.
• Choose donut command, select inside point as 0 and outer point as 1”. And fill the circles.
• Use lines command to draw reinforcements.

Result: -

AIM: -

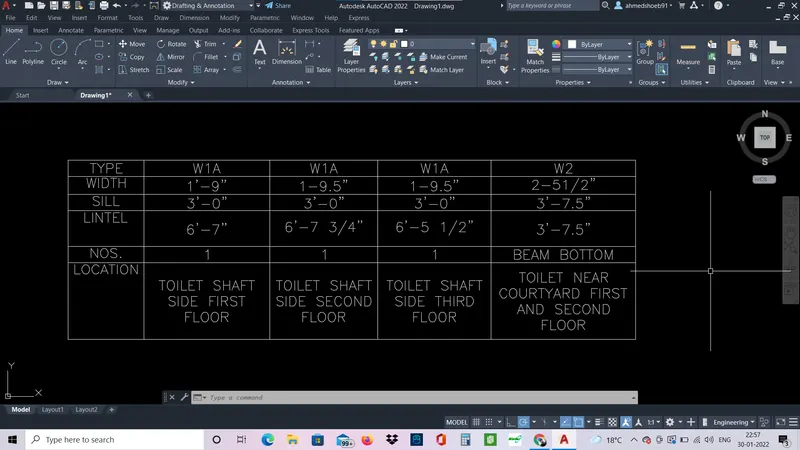

To create a window schedule in AutoCAD.

Procedure: -

• Select table command and draw an table for 5 columns and 6 rows.
• Select window selection.
• Draw the table. And fill the cells as given in the figure.
• Cells grip can be manipulated for width and height by clicking on it.

Result: -

Aim: -

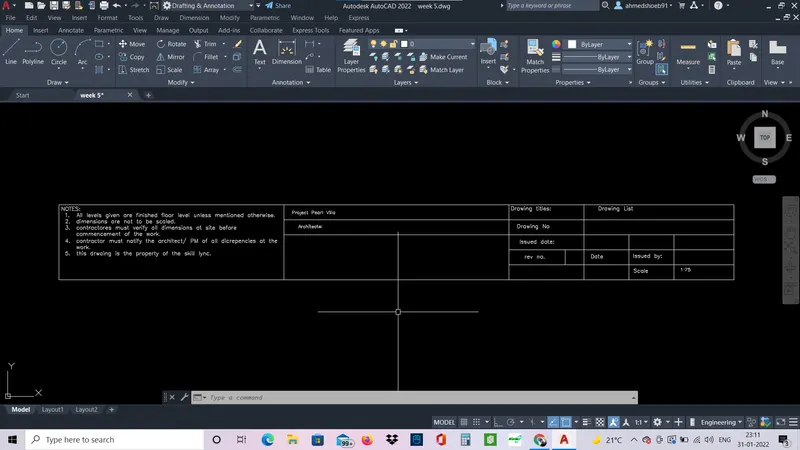

To create a drawing template as shown in figure in AutoCAD.

Procedure: -

• To create this template line and offset command is used.
• Draw a vertical line of 180’ and vertical line of 20’. Use offset command and divide the 180’ line in 60’ thrice.
• Draw the necessary line and trim the excess lines to resemble the given template.
• For “NOTES” text use command Mtext. Select a height od 10” and write the given text.
• Use Mtext command and write the given texts.

Result: -

Aim: -

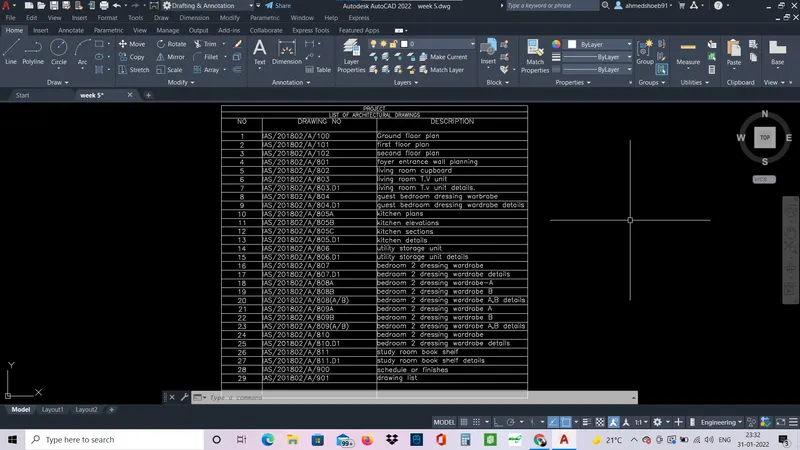

To create the list of drawing schedule as shown in figure in AutoCAD.

Procedure: -

• Select the table command.
• Select 1^st and 2^nd as title and 3^rd as data.
• Divide the table in 3 columns and 29 rows.
• For no. write 1 and then hover on that cell in the corner and continue it down till 29.
• For drawing no. “IAS/201802/A/” and copy it till end edit it to add numbers.
• Fill the descriptions.

Result: -

Aim: -

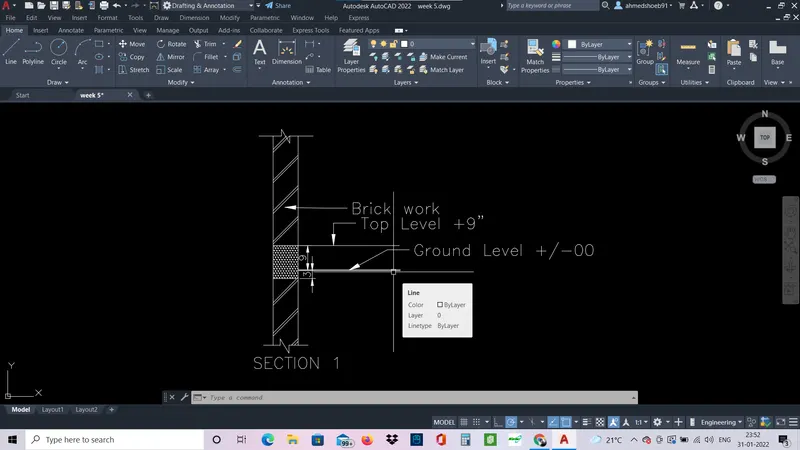

To create a beam detail in AutoCAD.

Procedure: -

• Create a wall section of 9” width and height of 5’
• Give a line in middle and give an offset of 3” and 9” for beam section.
• Extend the top of 9” line and 3” line.
• Trim the inside 3” line.
• Select hatch command and give different hatch for brick wall and beam section.
• Select the label command and give labels for “Top level” and “ground level”
• Give dimensions.
• Select Mtext and and height of 4” and write “SECTION 1”.

Result: -
