Creating Walls, Partition walls and Floors for a residential layout using REVIT
Challenge 3
1.

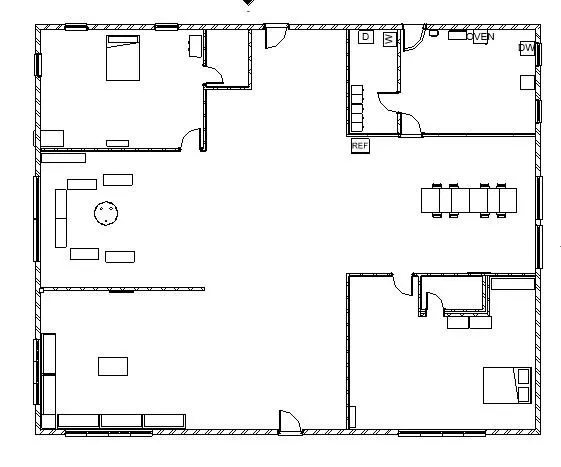

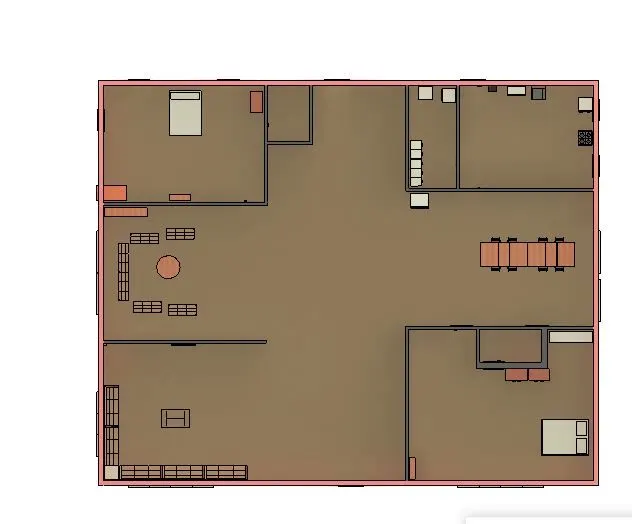

Aim: To create floor plan and to apply the materials and thickness using property browser
Procedure:
-

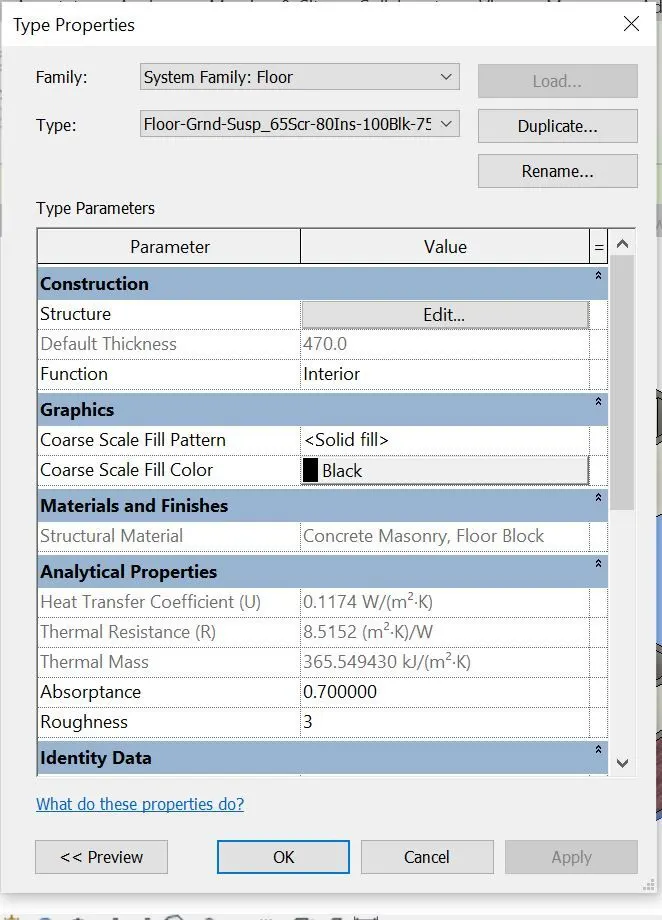

- Now select the floor, click edit type from the properties browser

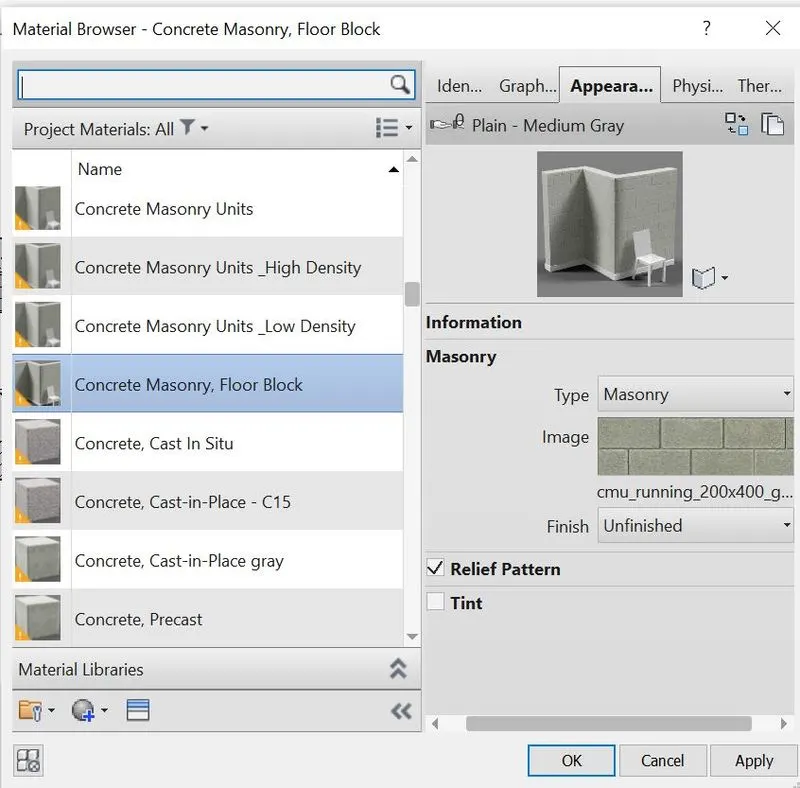

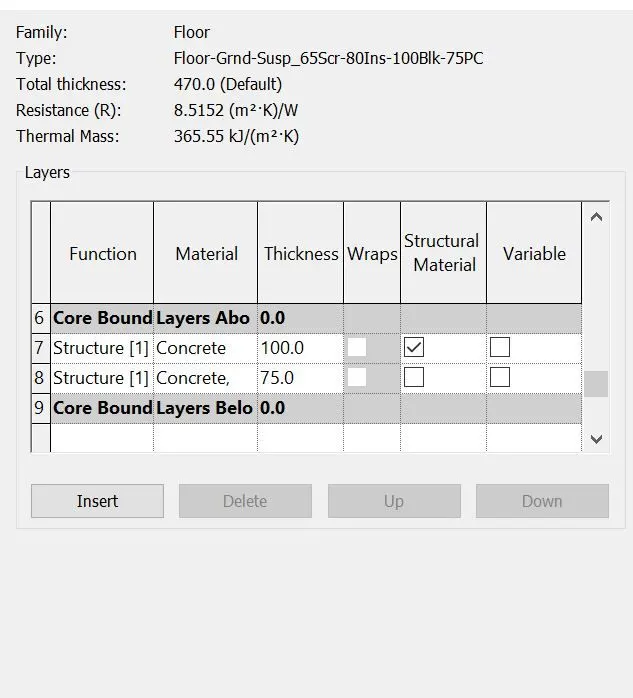

- Now click the edit option and edit assembly tab appears, select material type and apply
- Finally the material is applied to the floor
- Now align the floor plan to the levels and grids
RESULT
2.
Aim: To create walls using property browser
Procedure:
- Select the project

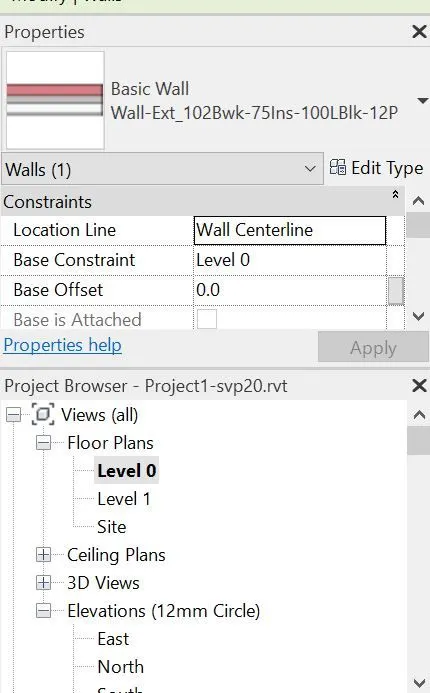

- Click on the walls, select the property browser and select edit
- Now go to the Top constrain and select level to level 1

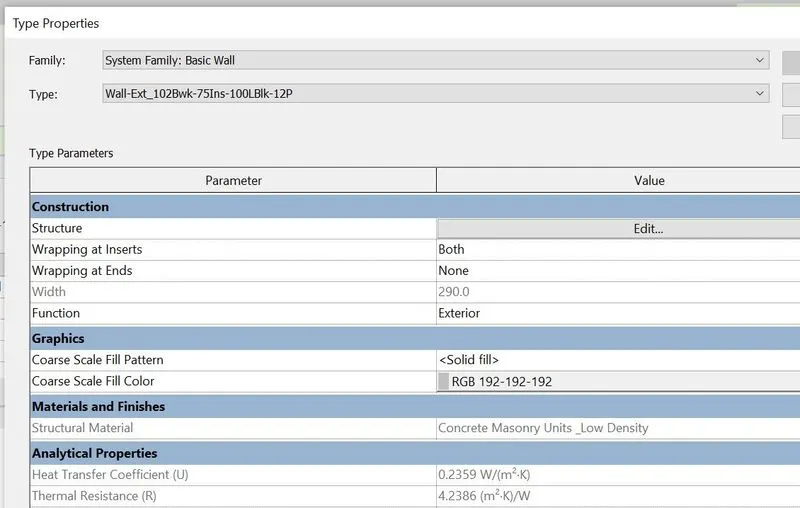

- Using the Edit type, select structure to change the properties
RESULT:
- a) According to my observation, connecting the walls can change the level height of the wall, and if we choose the top constraint as unconnected, the height of the wall doesn't change with the levels.
- b) If we select the height option for the wall, the wall will be created above the level. Height option is convinient for modeling walls
3.

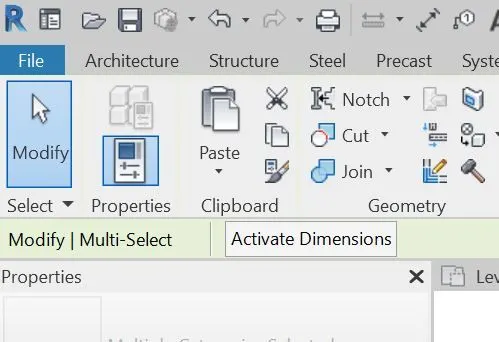

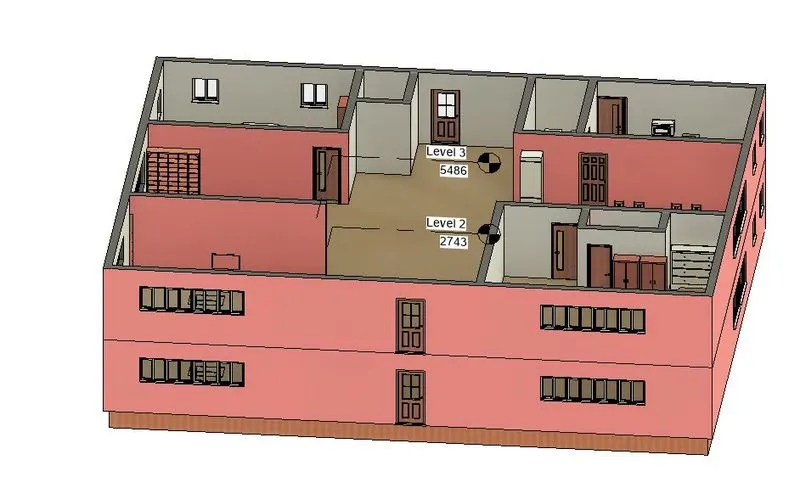

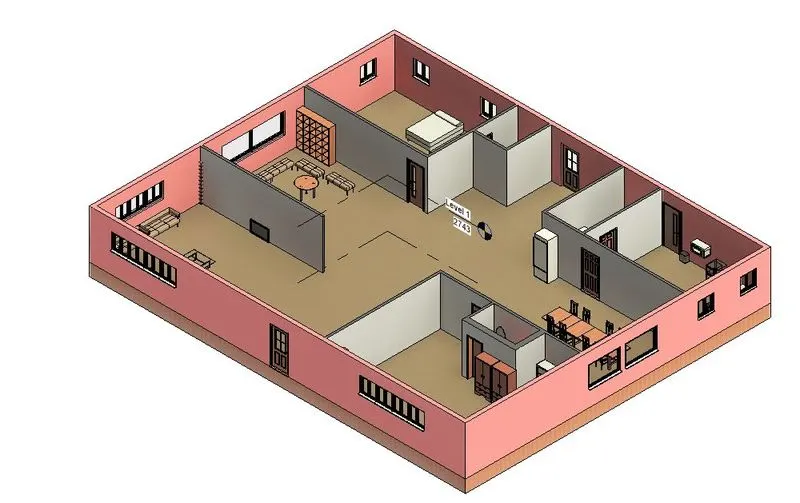

Aim: To use the modify tab to utilize copy and paste options to align elements to a different level
Procedure:
- Select the groundfloor plan and copy to clipboard
- Use paste option to align elements to a different level
- Now align the elements to the different level
RESULT
4.

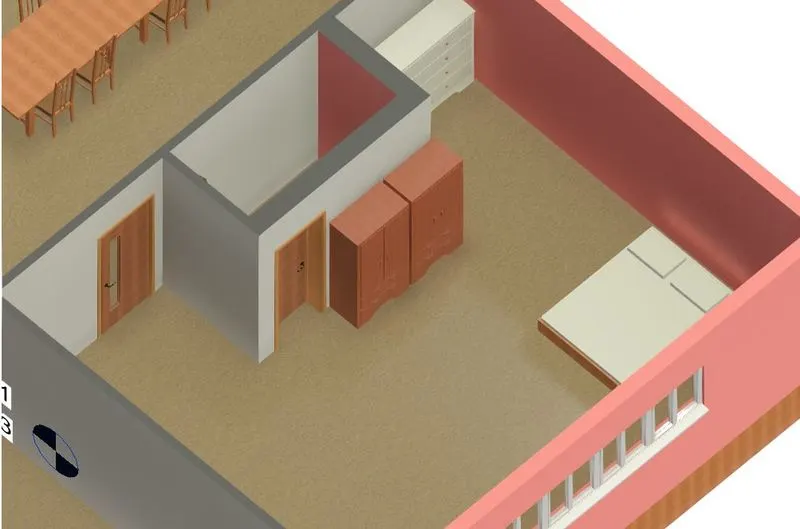

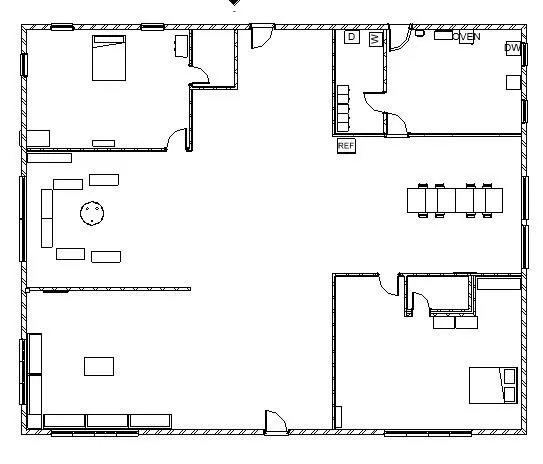

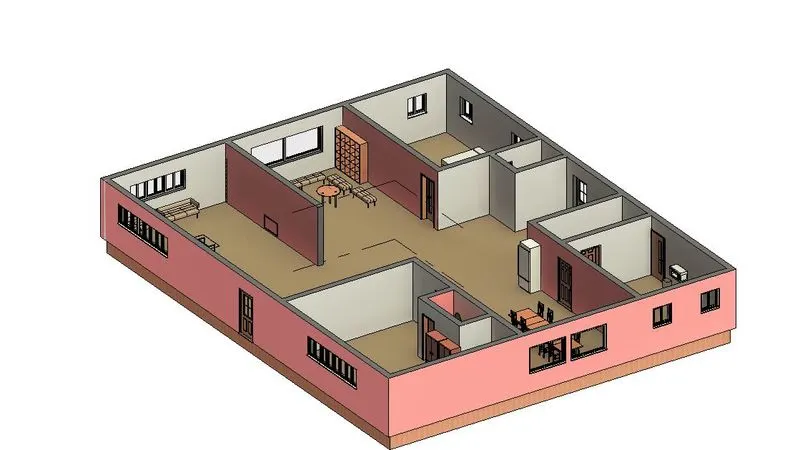

Aim: To create seperate rooms within the residential unit using the interior partition walls
Procedure:
- Select the walls that need to be changed to interior walls and change the wall type
- And place the walls
RESULT
5.
Aim: To insert the appropreate components in appropreate locations to add to the redidential model based on the week 2 assignments
Procedure:

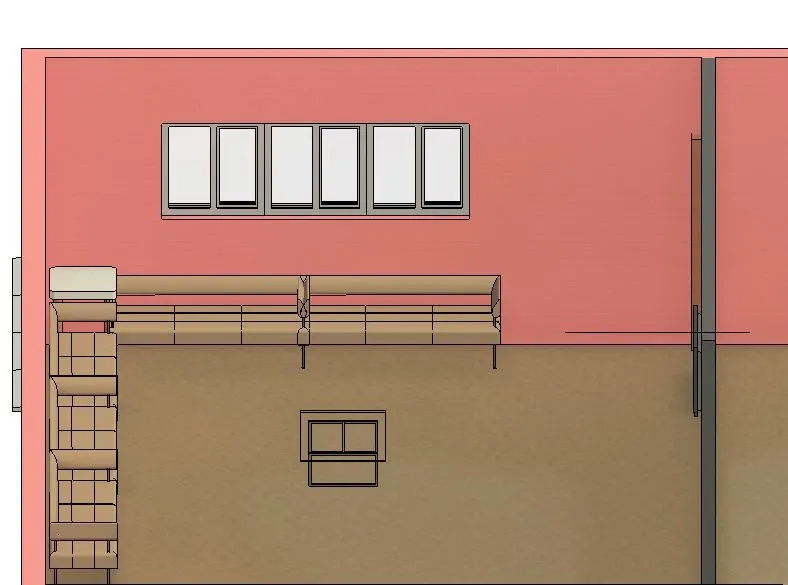

- Insert the furniture component in the hall

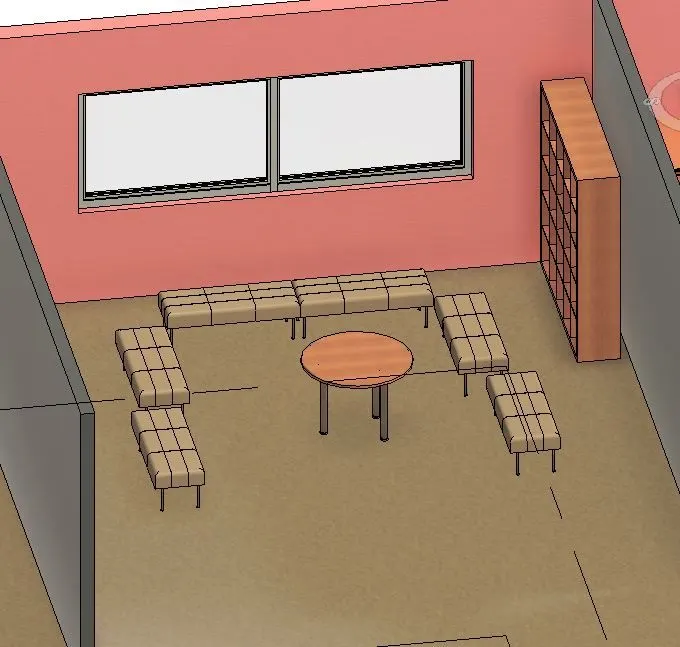

- Now insert the furniture in the Living room

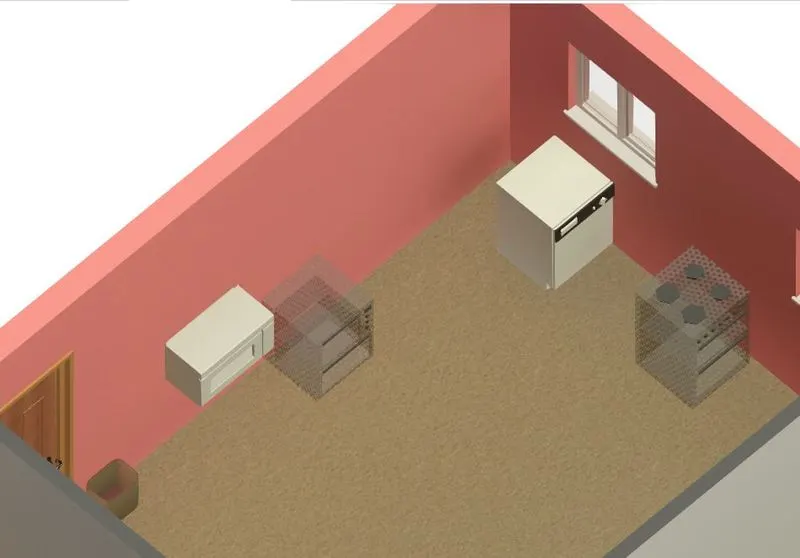

- Now insert the kitchen components from the library
- Now insert the components in the bedroom
RESULT

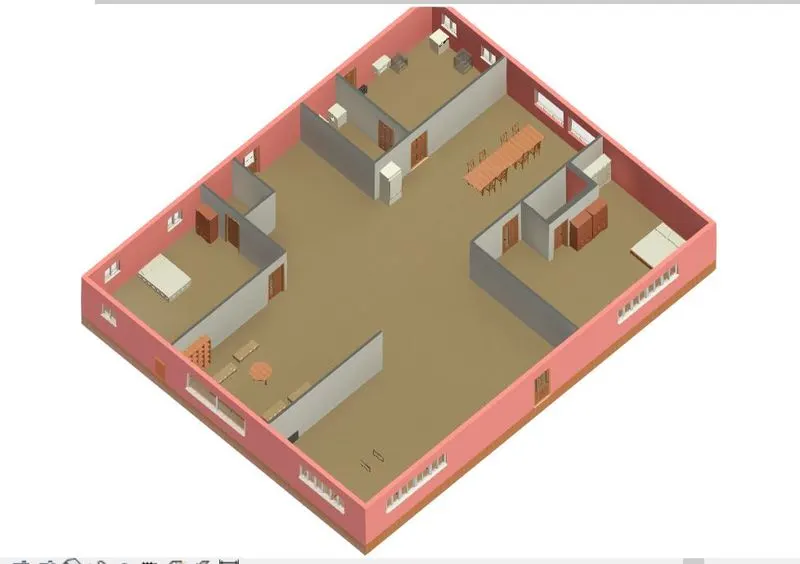

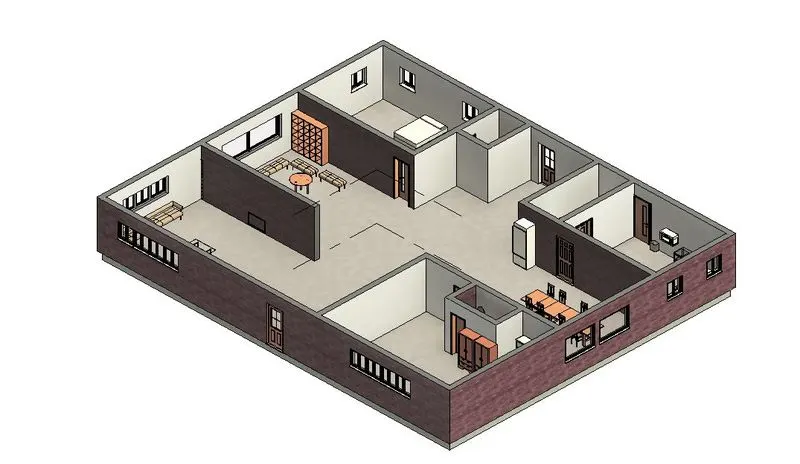

Components are added at appropreate locations
