Creating Walls, Partition walls and Floors for a residential layout using REVIT

1) AIM:

To Create floor layout From week 2 project

PROCEDURE:

STEP 1:

Open week 2 project

STEP 2:

Go to architecture tab > floor >boundary lines> pick lines

STEP 3:

Property browser >edit type> change the floor

click on structural material to change the material

select the desired floor material

click on duplicate to change the thickness

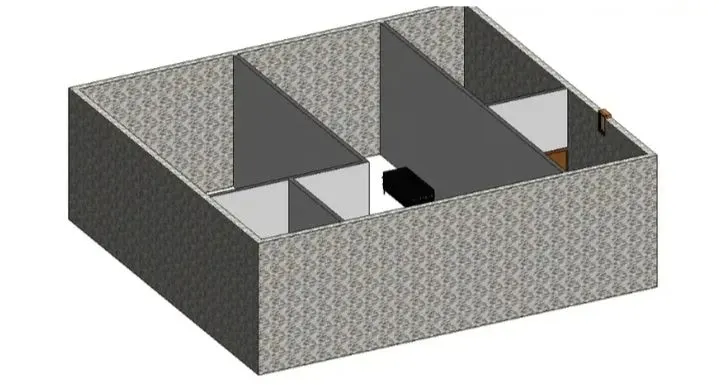

2)AIM:

To create walls using property browser

PROCEDURE:

STEP 1:

Open week 2 project file

STEP 2:

. Click on walls > property browser> edit > walls

Go to top constrain > level 2

edit type> structure > to change the properties

select the material and click apply

A) ANS:- According to my observation connecting with walls with associated levels is beneficial as if change the levels atomatically even the walls will change

B) ANS:- Both are convenient but i prefer depth as height can be changed by constrainted method

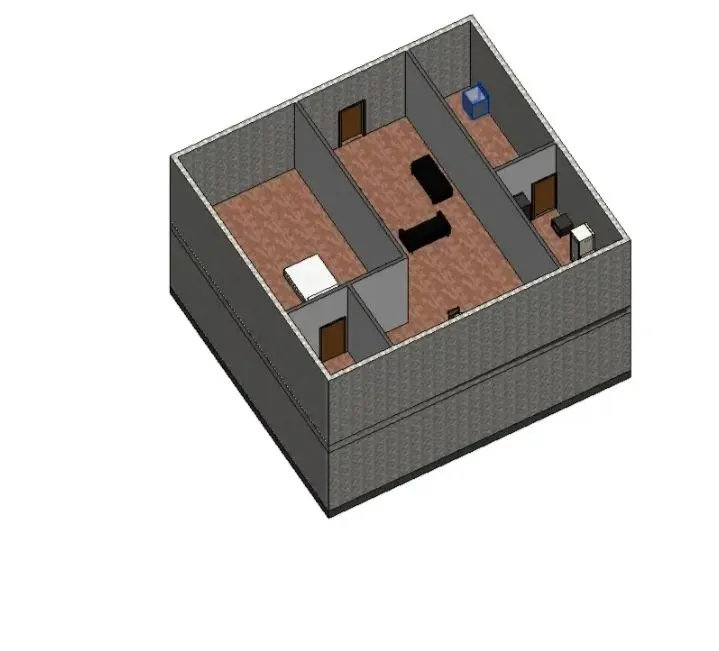

3) AIM:

To Copy the model elements (wall, floor) modelled to Ground Floor Level and paste it aligned to First Floor Level. PROCEDURE:

STEP 1:

go to elevation > create level 2

STEP 2:

modify tab >Copy the model>clipboard

paste >alinged to selected leves> place in 3d view

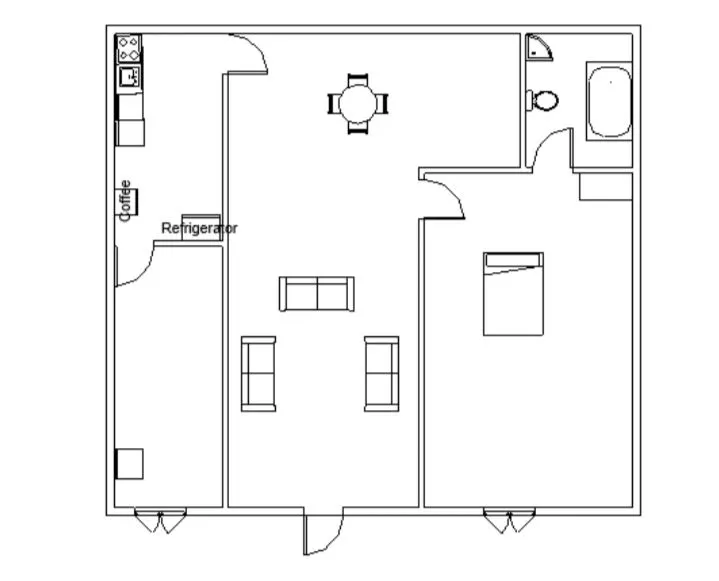

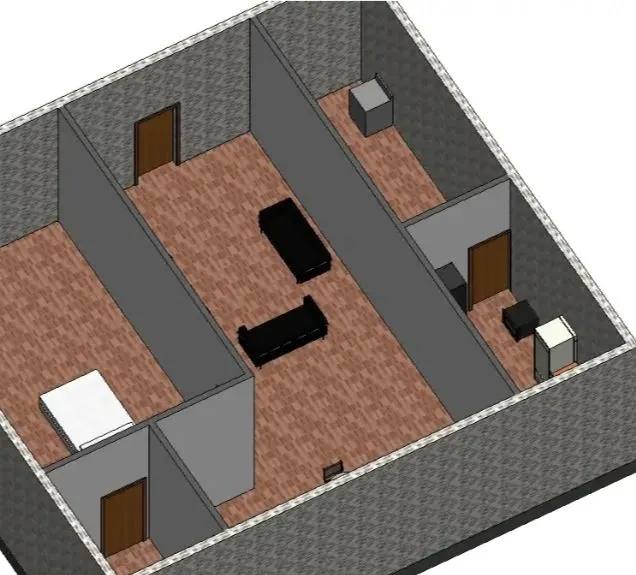

4) AIM:

To create

a. Living Room/ Drawing Room (15' X 18') b. Dining Room (9' X 11')

c. Bed Room (9' X 12' and 15' X 11')

d. Rest Room (10' X 12')

e. Kitchen (8' X 10')

PROCEDURE:

Go to architecture tab > walls > property> interior walls > create walls in your model

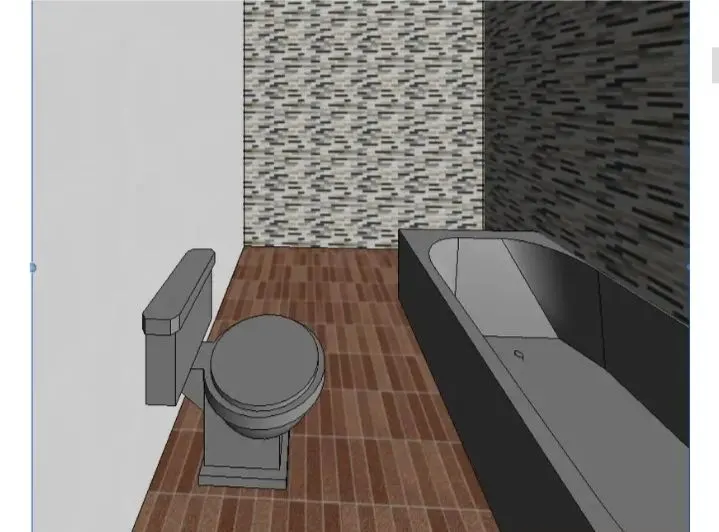

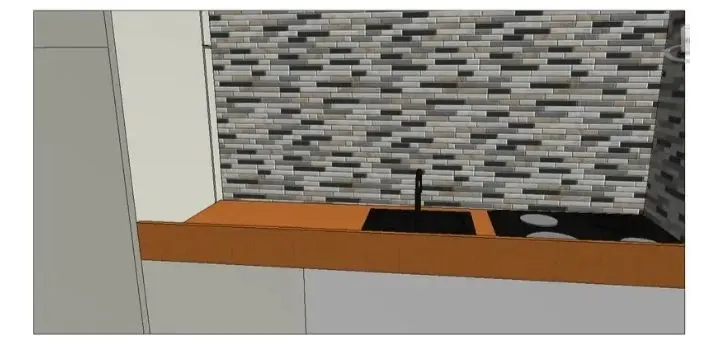

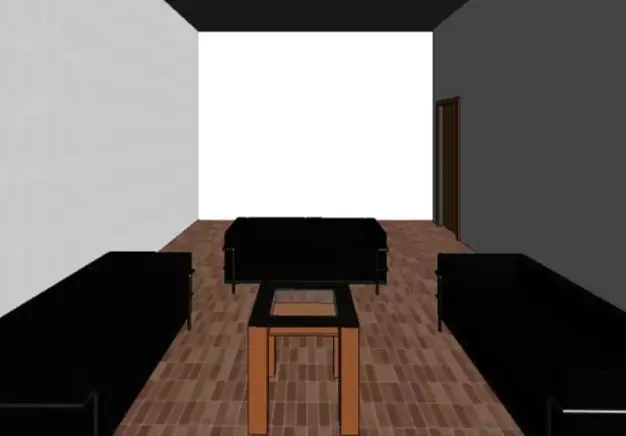

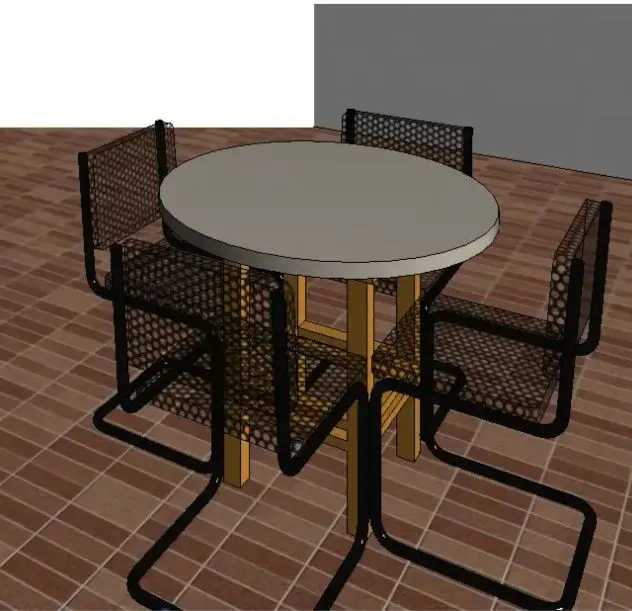

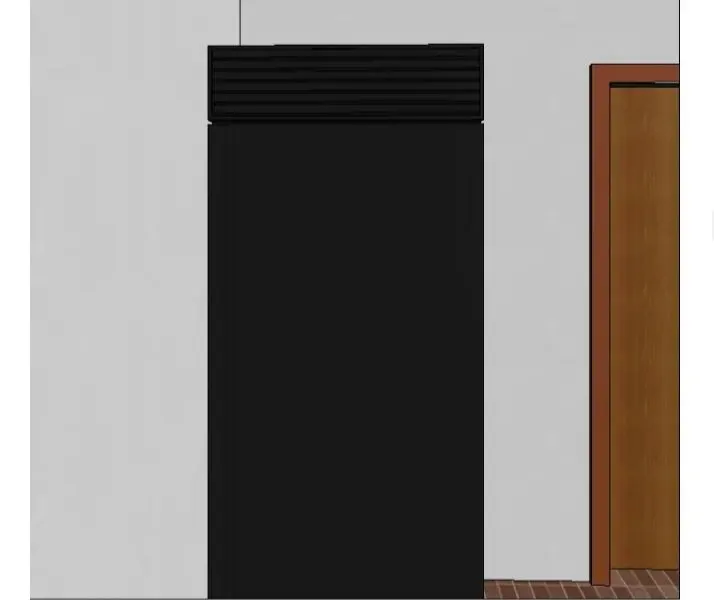

Go to architecture tab> place a componet >load families >add furnitures, plumbing fixtures, kitchen appliances etc

5)AIM:

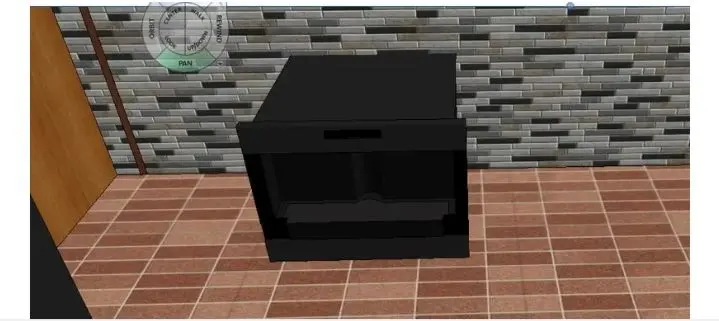

To add components to be included in a residential unit were inserted to the Revit file.

PROCEDURE:

Go to architecture tab> place a componet >load families >add furnitures, plumbing fixtures, kitchen appliances etc
