Creating Velocity vs Shock Curve for front and rear suspension using Octave and Excel

https://drive.google.com/file/d/1aX1pZMvvYGigJV2dYjFepRHc6lyjZ60o/view?usp=sharing

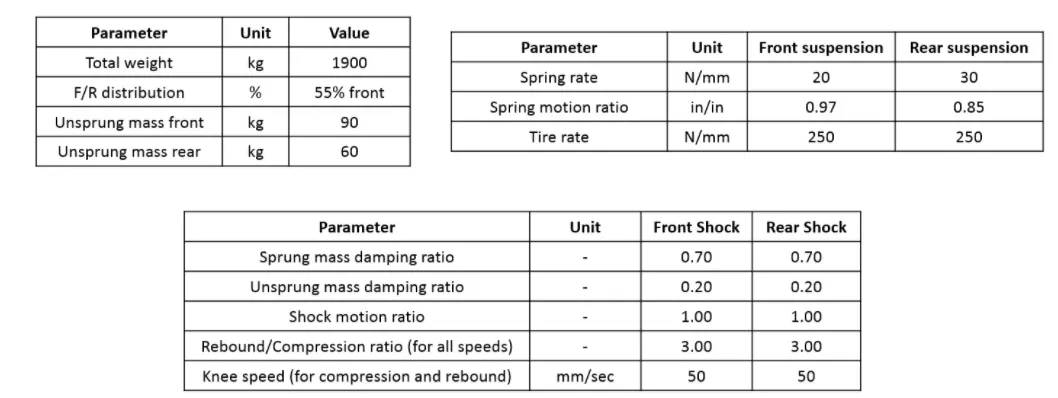

Data Available :

Aim : To calculate the damping force vs Velocity curve of a corner mass of a vehicle

Software used :

• Excel for preliminary calculations
• Octave for creating the force vs velocity curve

Flow of the calculation :

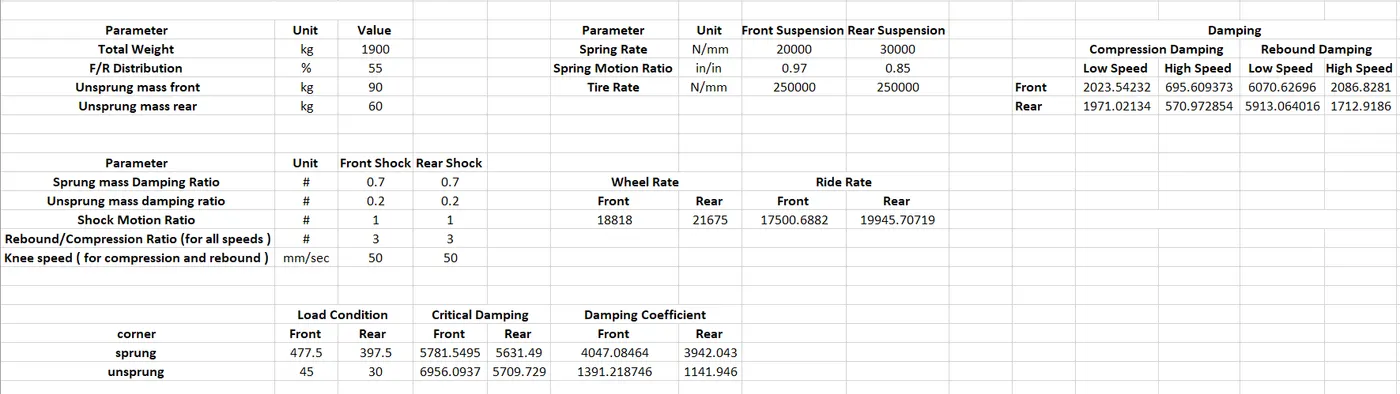

1. Ride rate , Wheel Rate
2. Load Condition ( corner mass ; Sprung-Unsprung )
3. Critical Damping
4. Damping Coefficient
5. Damping ( Compression-Rebound )

Formula used :

1. Wheel Rate = Spring Rate * (MR)^2
2. Ride rate = (Wheel rate*Tire Rate )/(Wheel rate+Tire Rate )
3. Corner sprung mass(Front)= ((Total mass*FR ratio )-front axle unsprung mass)/2
4. Critical Damping (Sprung mass ) = 2*sqrt( Ride rate * Corner sprung mass )
5. Critical Damping ( Unsprung mass ) = 2*sqrt((wheel rate + Ride rate )*Corner Sprung Mass )
6. Sprung mass initial damping coefficient = Sprung mass Damping Ratio* Sprung mass Critical Damping
7. Unsprung mass initial damping coeffcient = Unsprung mass Damping ratio * Unsprung mass Critical Damping
8. High Speed Compression Damping Coefficient = Unsprung mass initial damping coeffcient/2
9. Low Speed Compression Damping Coefficient = Sprung mass initial damping coeffcient/2
10. High Speed Rebound Damping Coefficient = Rebound/Compression Ratio * High Speed Compression Damping Coefficient
11. Low Speed Rebound Damping Coeffcient = Rebound/Compression Ratio * Low Speed Compression Damping Coefficient
12. Force Calculation

Below Knee Speed (<=50mm/sec)

• Compression Force = Low Speed Compression Damping Coefficient * Velocity
• Rebound Force = - Low Speed Rebound Damping Coefficient* Velocity

Above Knee Speed

• Compression Force = Compression Force(n-1) +[Velocity(n) -Velocity(n-1)]*High Speed Compression Damping Coefficient
• Rebound Force = Rebound Force(n-1) +[Velocity(n) -Velocity(n-1)]*High Speed Rebound Damping Coefficient

Theory

• Compression damping is lower than rebound damping by factor of 2 or 3 because during compression spring absorbs half of the energy , so not much damping force is needed force but when the reboud happens the springs releases the energy so the damper now has to control the spring energy and also control & damp the unsprung mass .

• There are 4 different curves in a Force velocity graph to account for the Sprung masses ( low velocity ) , Unsprung masses ( high velocity ) .

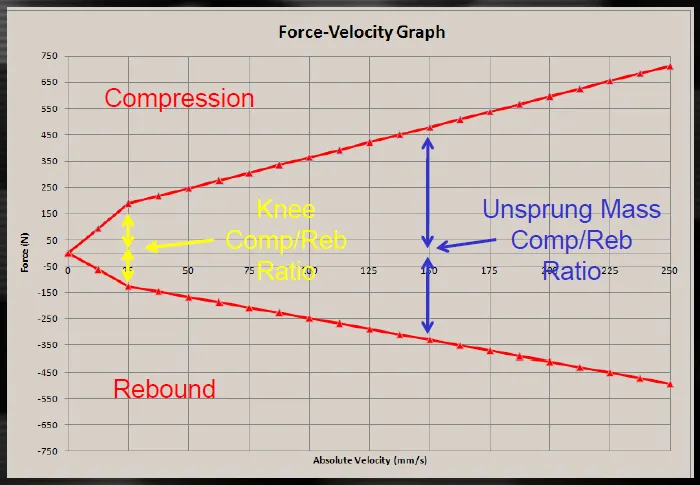

• In circuit racing the shaft velocity between 0-50 mm/s are considered low speeds and contribute to driver feel and car body's movements ( sprung mass ) .Speeds betwen 50-150 are called mid range velocities and these affect the braking and or sharp turns . Above 150 mm/s are high speed shaft velocities and they absorb the energy form bumps and control the energy from unsprung mass .

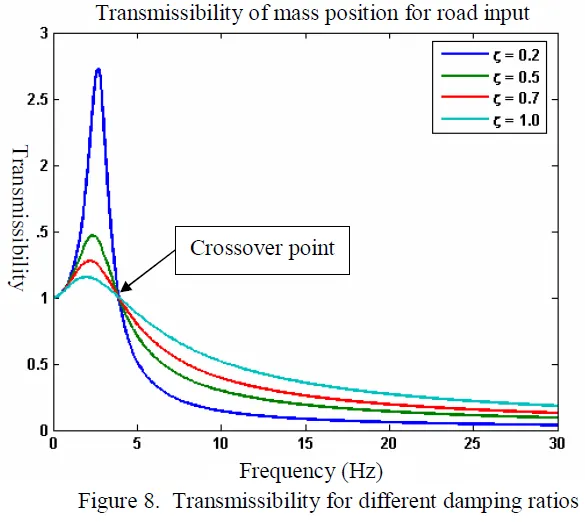

• We chose high damping ratio ( high damping ) for when we are at the low frequency this will reduce the transmissibility and low damping ratio for ( low damping ) for high frequencies to also reduce the transmissibilty .

Concept used to create the code :

• For loop
• Basic Graph Commands
• Concept of Dynamic Array Initialisation

clear all
close all
clc
#Force_vs_velocity_curve
cdamp_low_front=2023.54232 # N/m/sec
cdamp_low_rear=1971.021339 # N/m/sec
cdamp_high_front=695.6093731 # N/m/sec
cdamp_high_rear=570.972854 # N/m/sec
rdamp_low_front=6070.62696 # N/m/sec
rdamp_low_rear= 5913.064016 # N/m/sec
rdamp_high_front=2086.828119 # N/m/sec
rdamp_high_rear=1712.918562 # N/m/sec
vel=(0:5:500);
t=1;

for i=1:101

  if i==1
    cforce_front(t)=0;
    cforce_rear(t)=0;
    rforce_front(t)=0;
    rforce_rear(t)=0;

     elseif i<=10
      cforce_front(t) = cdamp_low_front*vel(i) ;
      rforce_front(t) = -rdamp_low_front*vel(i) ;
      cforce_rear(t) = cdamp_low_rear*vel(i);
      rforce_rear(t) = -rdamp_low_rear*vel(i);

     else i>10
      cforce_front(t) =cforce_front(t-1)+(vel(i)-vel(i-1))*cdamp_high_front;
      rforce_front(t) =rforce_front(t-1)-(vel(i)-vel(i-1))*rdamp_high_front;
      cforce_rear(t) =cforce_rear(t-1)+(vel(i)-vel(i-1))*cdamp_high_rear;
      rforce_rear(t) = rforce_rear(t-1)-(vel(i)-vel(i-1))*rdamp_high_rear;
    end
    t+=1;
end

figure(1);
plot(vel,cforce_front);
hold on
plot(vel,rforce_front);
hold off
box on
grid on

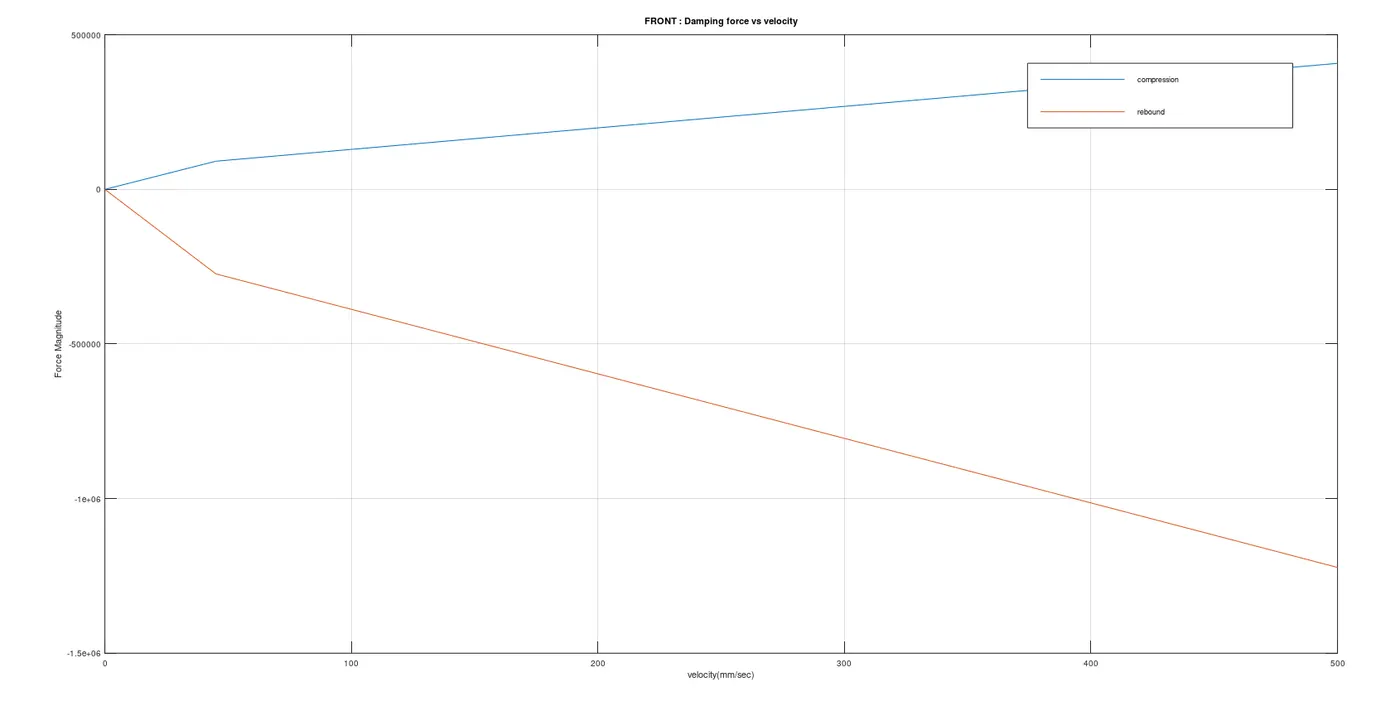

title('FRONT : Damping force vs velocity');
xlabel('velocity(mm/sec)');
ylabel('Force Magnitude');
legend('compression','rebound');

figure(2);
plot(vel,cforce_rear);
hold on
plot(vel,rforce_rear);
hold off
box on
grid on

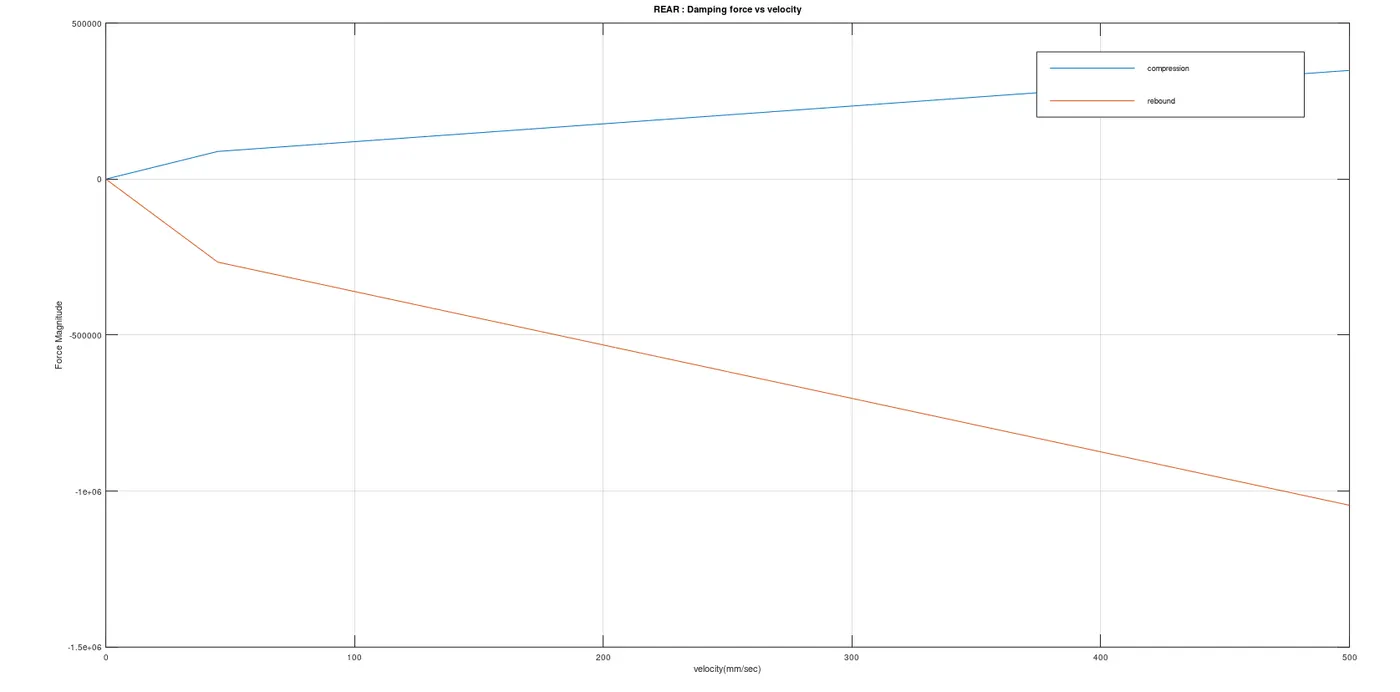

title('REAR : Damping force vs velocity');
xlabel('velocity(mm/sec)');
ylabel('Force Magnitude');
legend('compression','rebound');


Observation & Conclusion

• As you can see the slope of rebound is twice/thrice larger than the compression curve in both the front and rear cases . And both the graphs are quite similar which shows there is no irregularity in the damping forces experienced by the corner masses .
