Determination of Front Roll Center of a car using Excel
https://drive.google.com/file/d/1BQ2_gtEAeMvrkIpAUnUXM90v-9Rff0Ny/view?usp=sharing
Aim
To Determine the front roll center of a given vehicle data using Excel
Software Used
Excel
Concept used
A(inverse) =Adjoint (A)/Det(a)
X=A(Inverse)*B

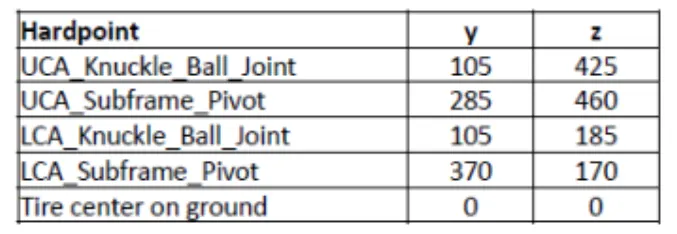

Given data

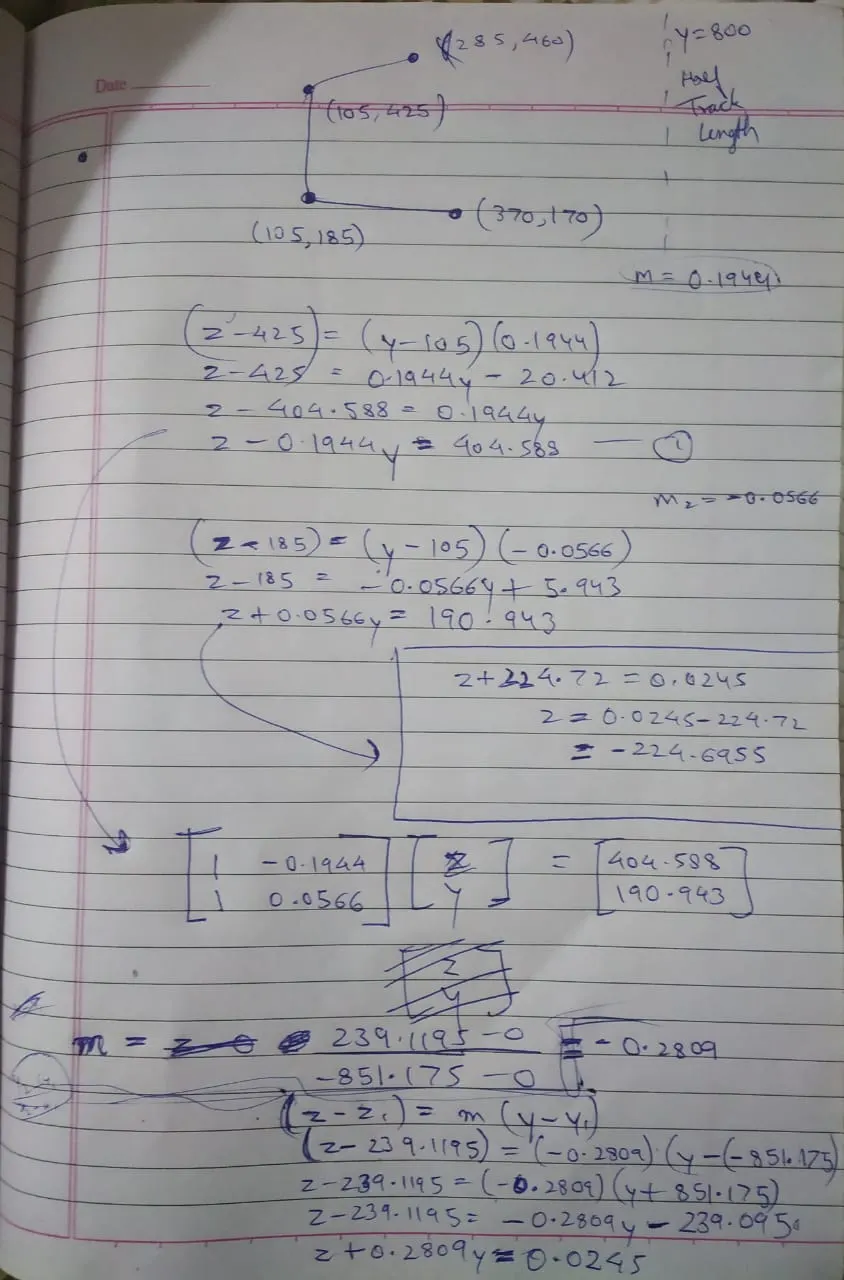

Rough diagram with Rough calculations

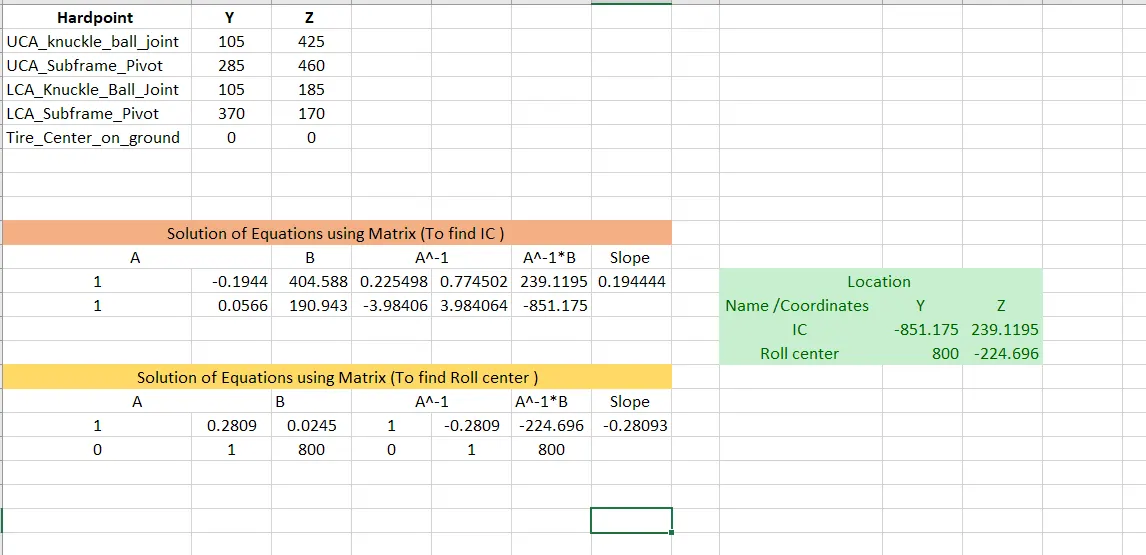

Calculations in EXCEL
RESULT
- The coordinates of IC (y,z)=(-851.175,239.1195)
- The height of roll center or the displacement from the ground is -224.696.
