Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad

1. Aim: Create a 3D furniture element.

Procedure:

• To create a projection of the 3D element in X-Y axis
• According to the dimensions.
• Extrude it using extrude tool.
• Give the dimensions.

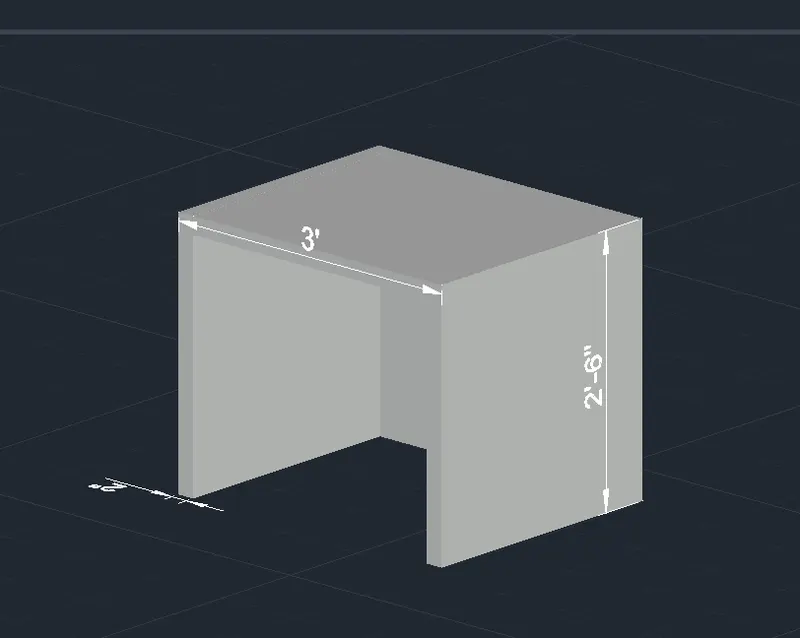

• The figure is in solids
• Made by solids

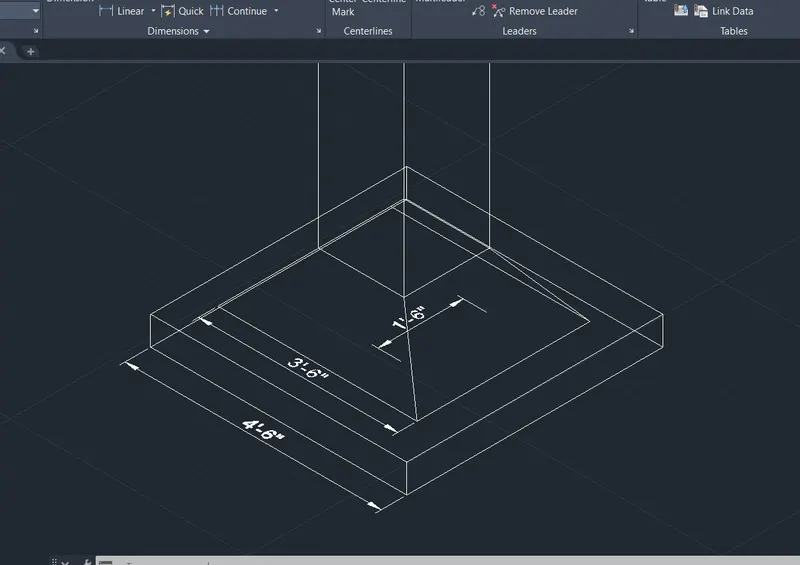

2. Aim: Create 3D model of an isolated footing.

Steps:

• A rectangle is drawn with an assume dimention
• Extrude using extrude command with height 6 inches

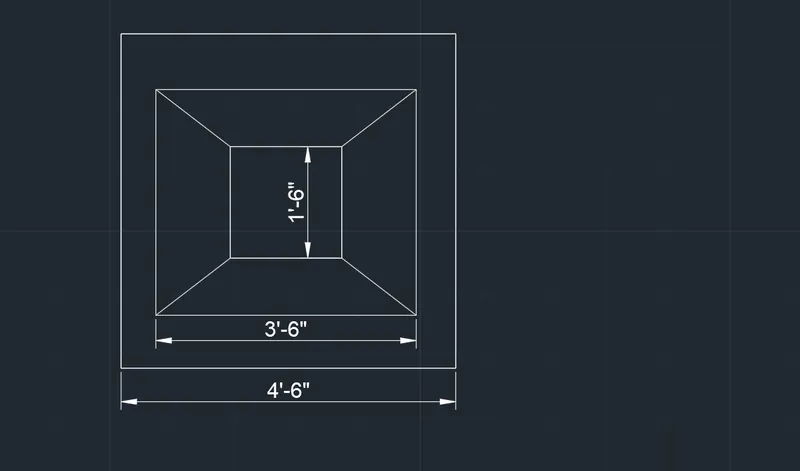

• The second square is drawn using pyramid tool with dimension given

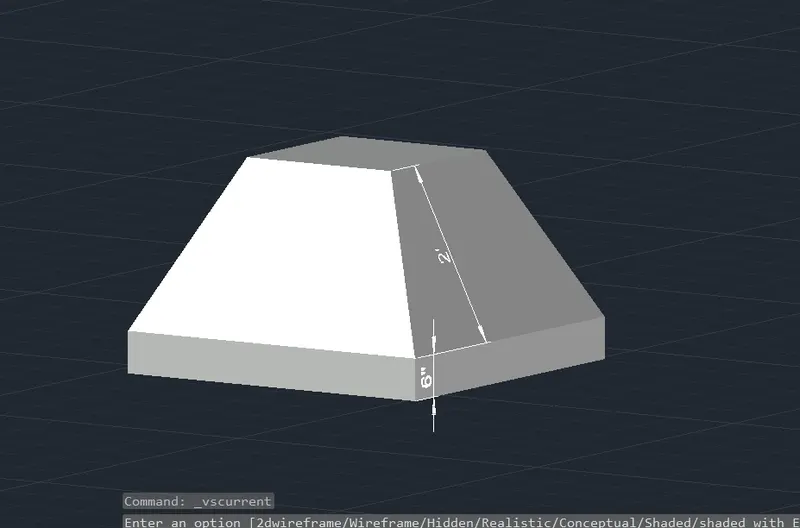

• The figure is drawn in solids
• The dimension given.

3. Aim: Create the 3D view of the AASTHO type girder.

Steps:

• Drawn from the top view as given dimension.
• Extruded in solids with distance 10 feet

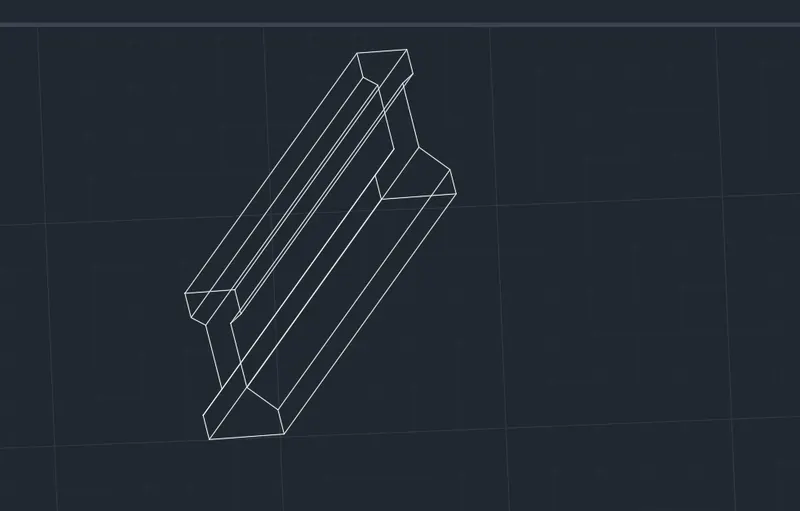

• The figure is in wireframe

• This figure is in solids with dimension given.

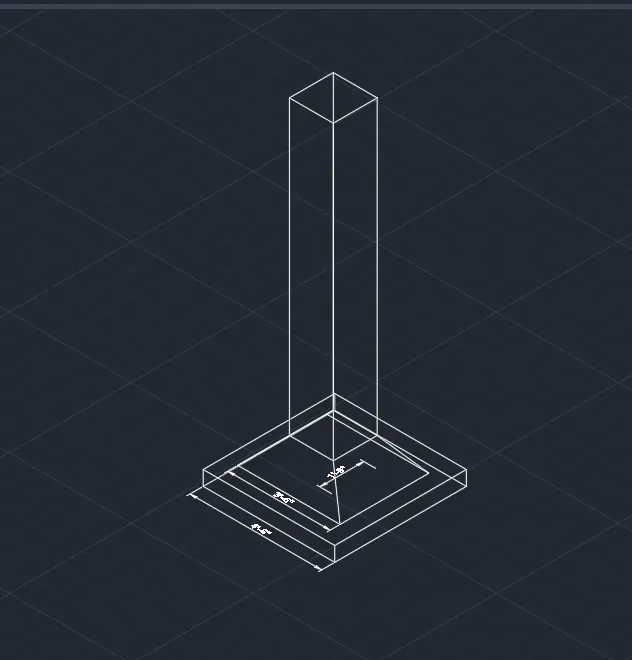

4. Aim: Create a 3D model of dropped column.

Steps:

• The column is drawn in X-Y plane .
• Then extruded with a height of 6 inches.
• The second rectangle is drawn on the top face .
• Pyramided with top radius and height of 1feet.
• A rectangle is drawn tracing the top radius and the extruded with height of 10 feet

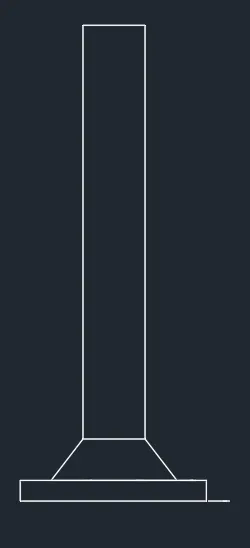

• This is the left view of the column

• Top view of the column

• Figure in wireframe.

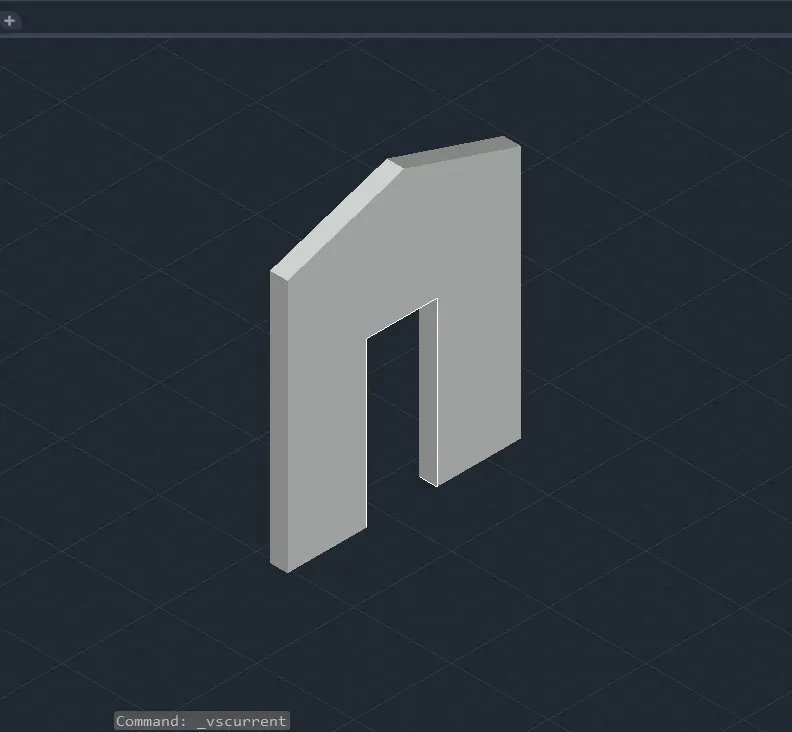

5. Aim :Create 3D model of a wall

• Steps:

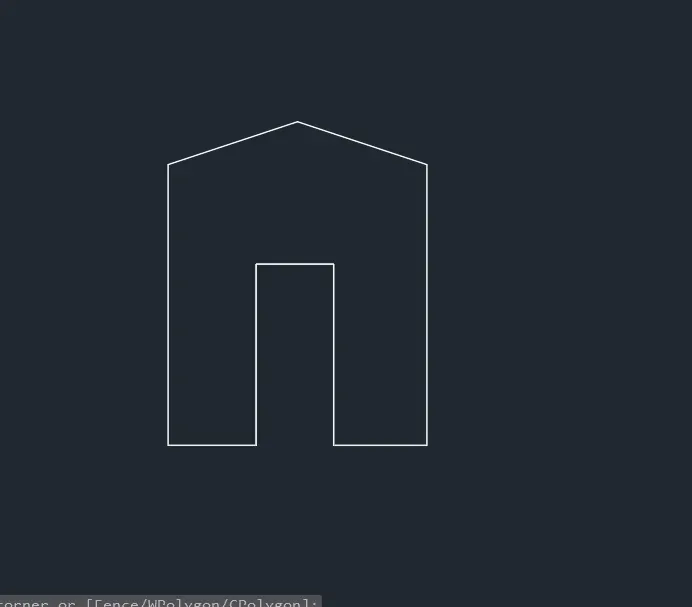

• First sketch from the top view
• Rotate using orbit.
• Now Draw the slope from the side view with assumed angle
•
• Extrude it.
• Draw a door of height 7 feet and width 3feet
• Trace the rectangle drawn from the top view.
• extrude it with 9 inch thickness
• Subtract using solidsub command
• Select the odject and object to be subtracted
• Press enter

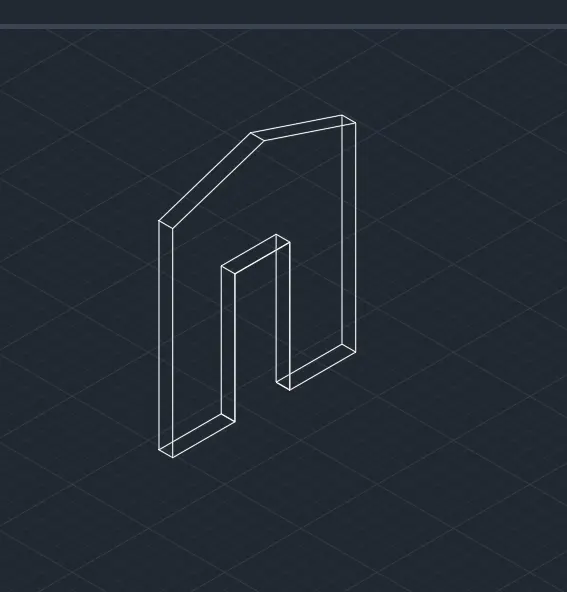

• The door part is extruded

• This figure is in solids

ALL THE IMAGS ARE SCREENSHOTED FROM AUTOCAD WITH AN APP NAME SNIP&SHOT.
