Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

1.Aim: To draw a template.

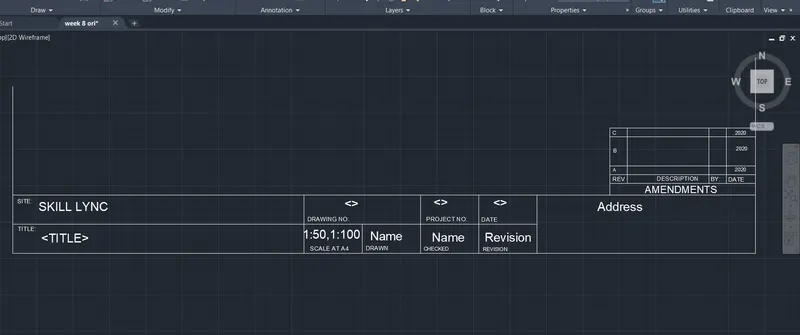

Template1

Procedure:

• The template is drawn by the following tools:

1. lines
2. Offfset
3. Fillet
4. Text

• Create attributes
• Command:ATTDEF
• enter tag, promps and enter.
• Now the attributes are created.
• Attributes are created for entering the data.

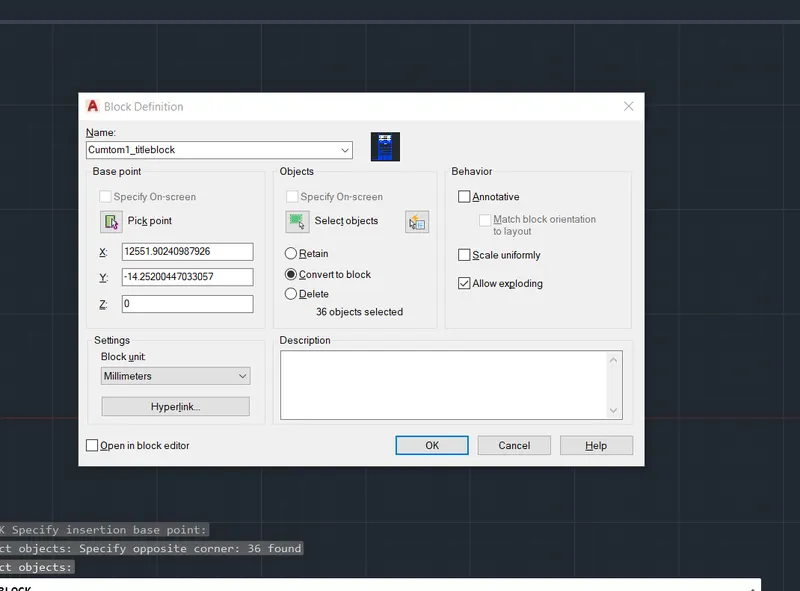

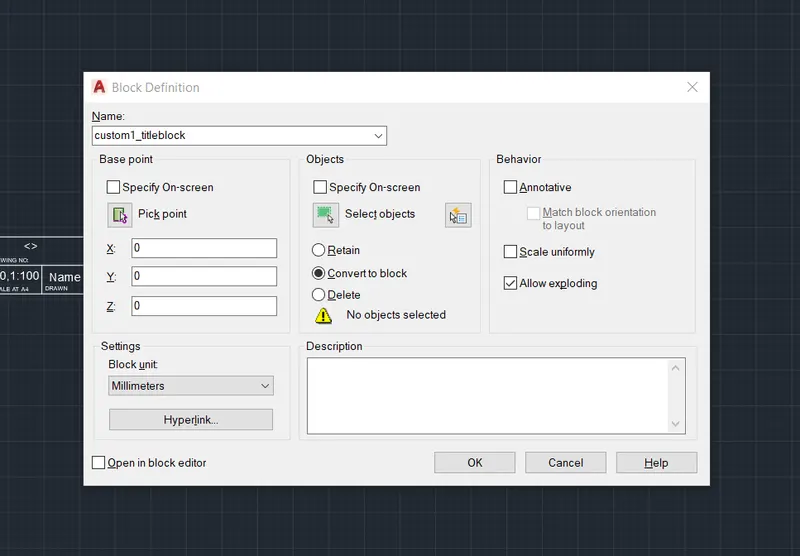

• After entering the attributes block is created as custom1_titleblock

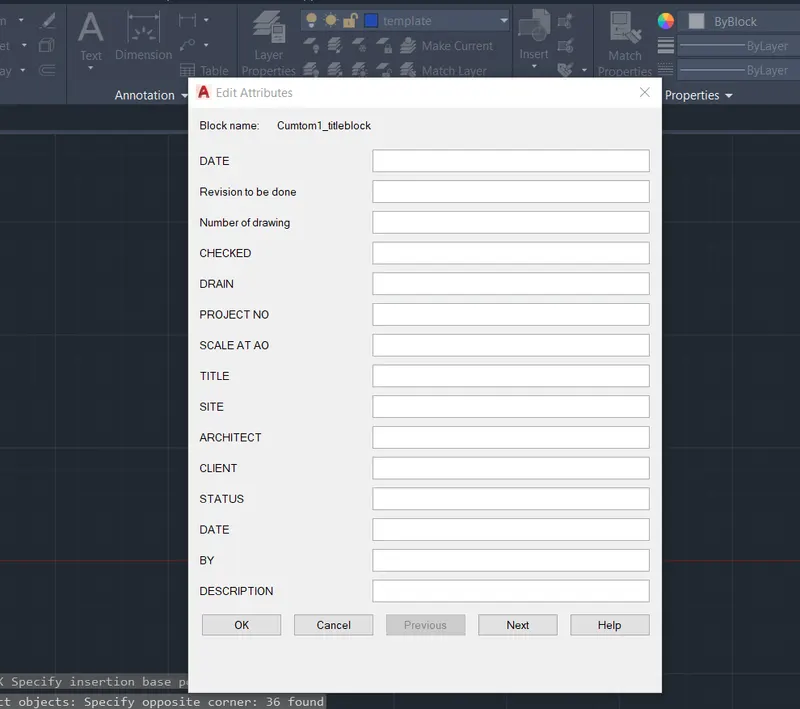

• After entering the block this table appears as the attributes is created.

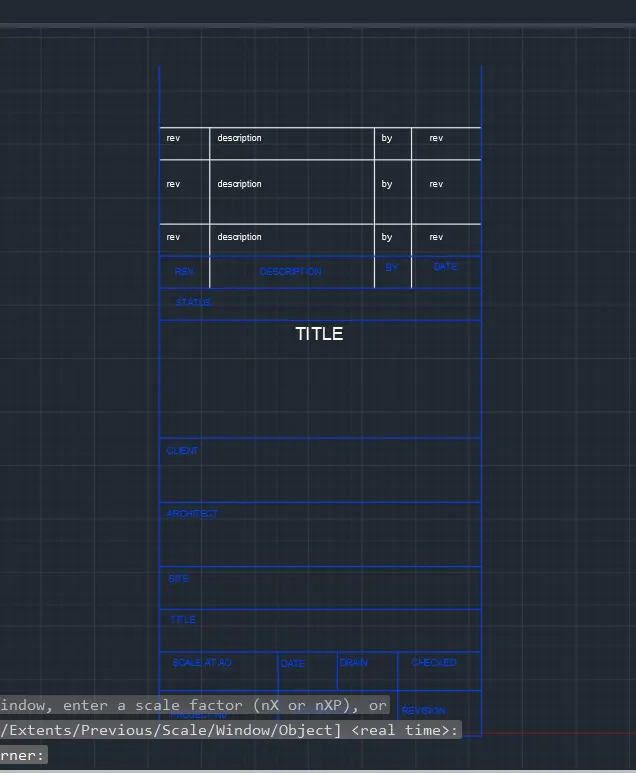

Template2:

Procedure:

• The template is drawn by the following tools:

1 lines

2 Offfset

3 Fillet

4 Text

• Attributes is used for the data:

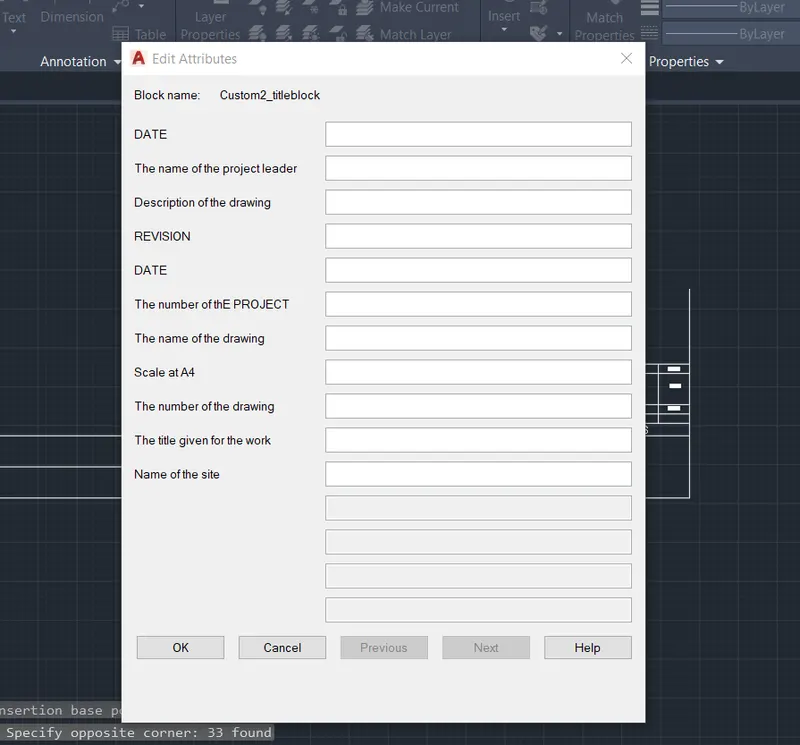

• After entering the attributes block is created as custom2_titleblock

The attributes are created and the data can be entered.

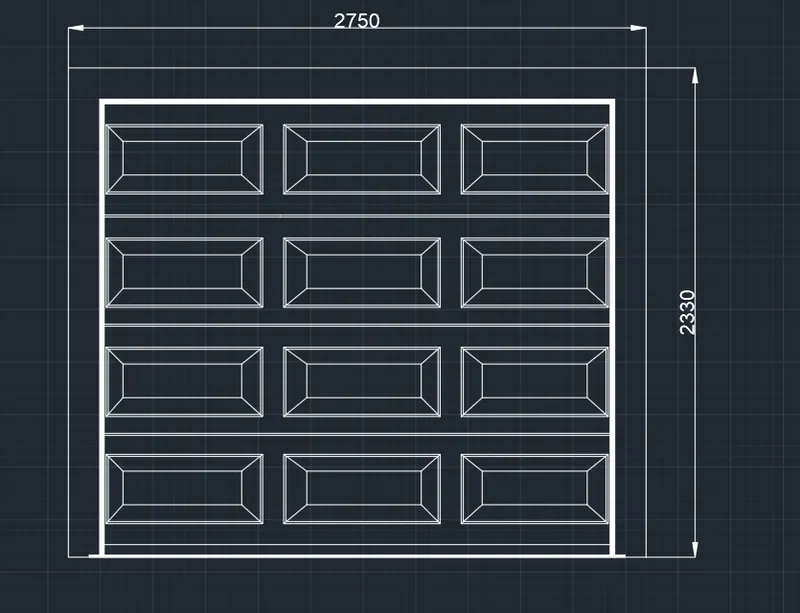

2. Aim: Create the door type for warehouse

Procedure:

• Drawn using following tools:

1. Line
2. Fillet
3. Offset

• After the drawing is completed, Create a block

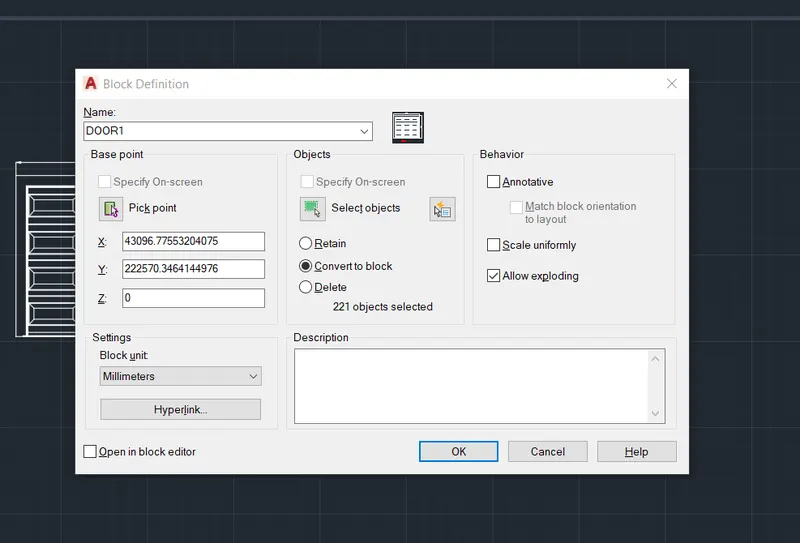

• To create a block.
• Command:B
• Enter the name of the block
• Pick a point fronm where its gonna be inserted.
• Slected object.

• Convert it to block
• Click OK.

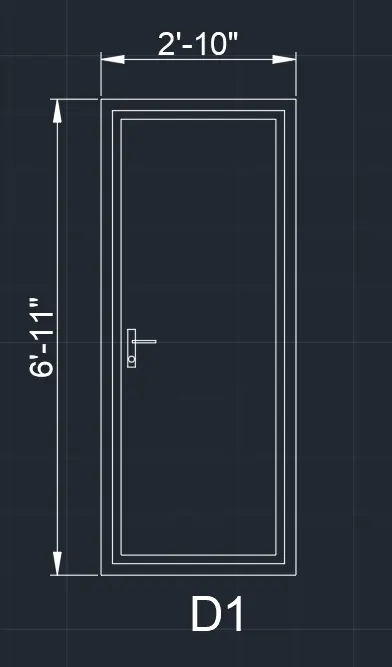

Now the block is created for the Door 1.

.

The door 1 can alsobe inserted where required.

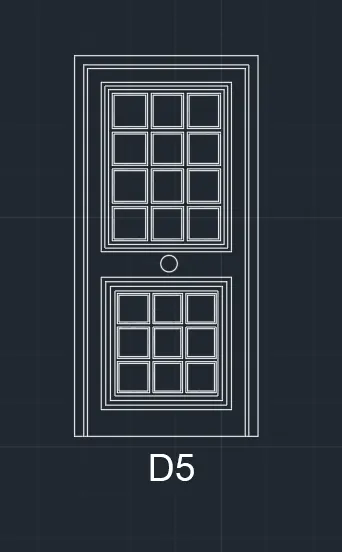

• Similarly Door 2,3,4,5,6, is also made as a block.

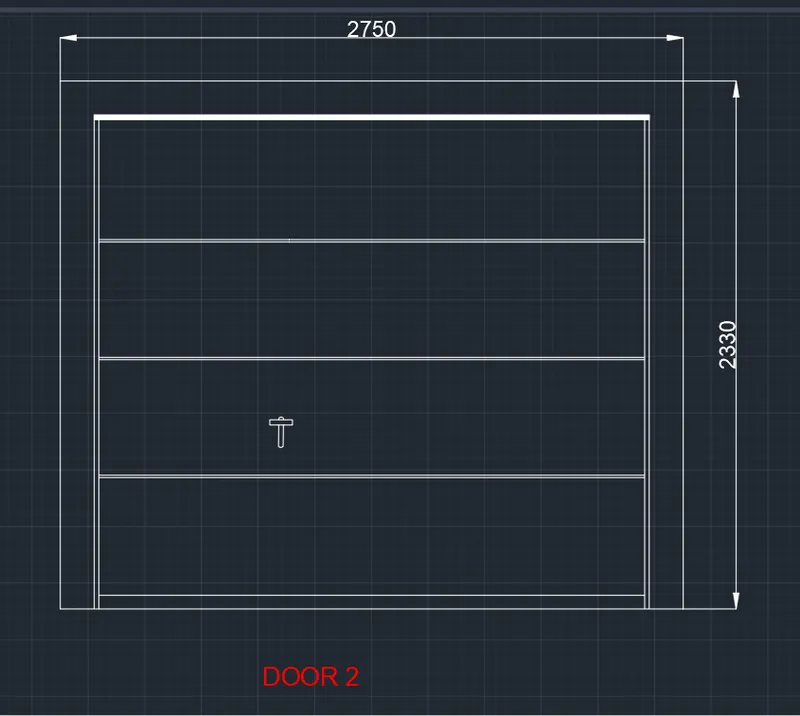

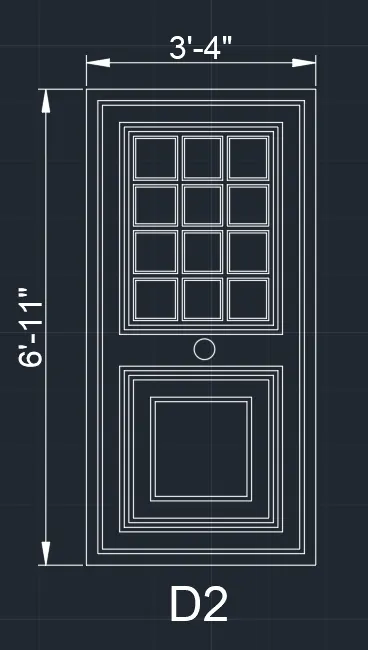

• DOOR2

3.Aim: Creating given symbol with name as a block and arranging it.

Procedure:

• Drawn using the following tool:

1. line
2. fillet
3. circle
4. join

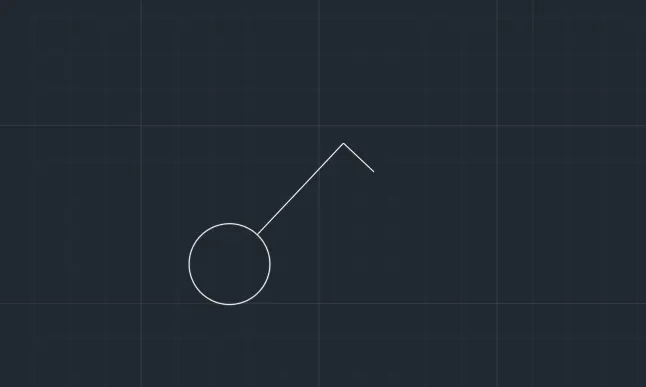

• After the symbol is drawn
• Eg:

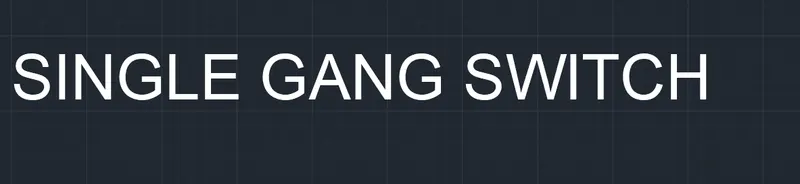

• Give a name using TEXT command.

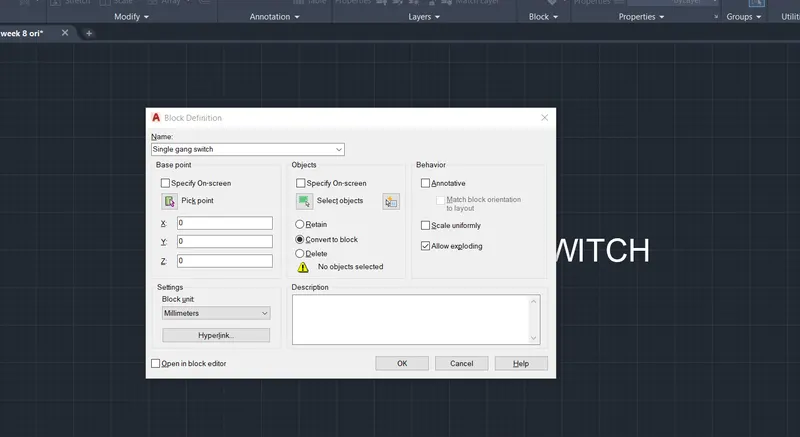

• Create block
• To create a block.
• Command:B
• Enter the name of the block
• Pick a point fronm where its gonna be inserted.
• Slected object.
• Convert it to block
• Click OK.

• Similarly draw all the symbol and create a block out of it.

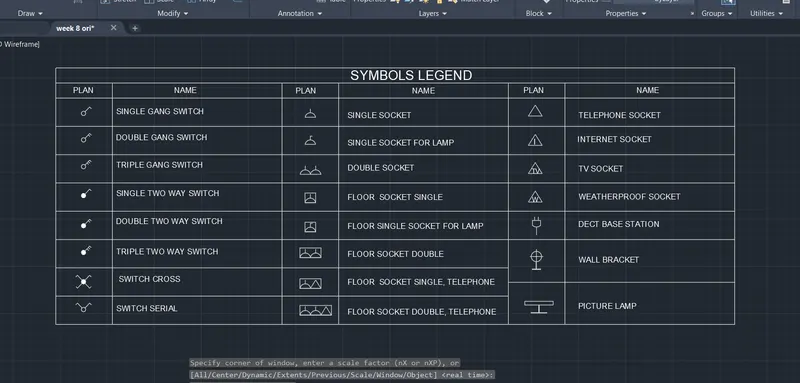

• Now after creating a block draw a table
• Insert the blocks in the table.

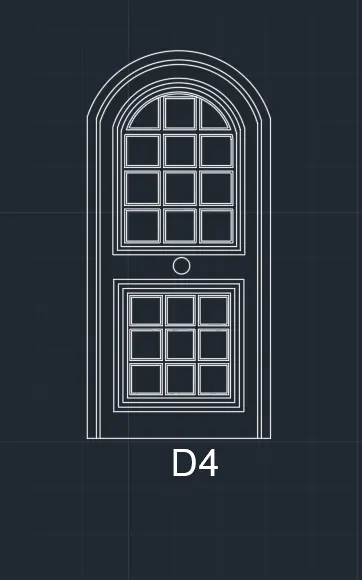

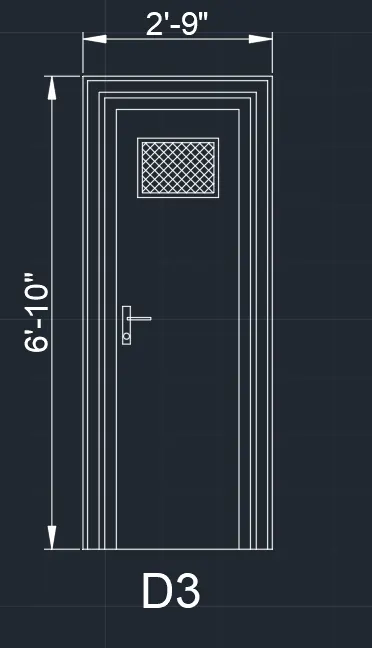

4. Aim: Create a door type for residential building.

This drawing is completed using the following tools:

1. Line
2. Fillet
3. Offset

• After the drawing is completed, Create a block
• To create a block.
• Command:B
• Enter the name of the block
• Pick a point fronm where its gonna be inserted.
• Slected object.
• Convert it to block
• Click OK.

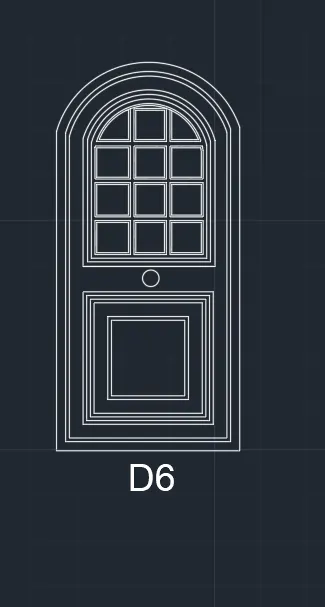

Now the block is created for the Door 1,2,3,4,5,6.

5.Aim : Creating all the given figure as a block and inserting them in the table.

Procedure:

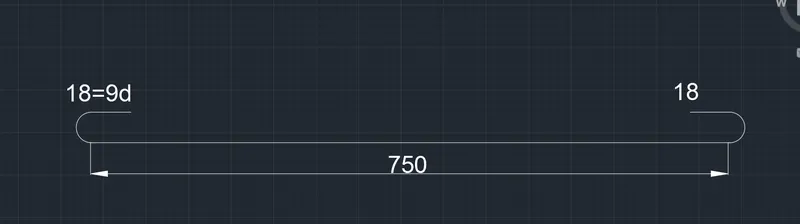

• For Example:A(20mm) is drawn

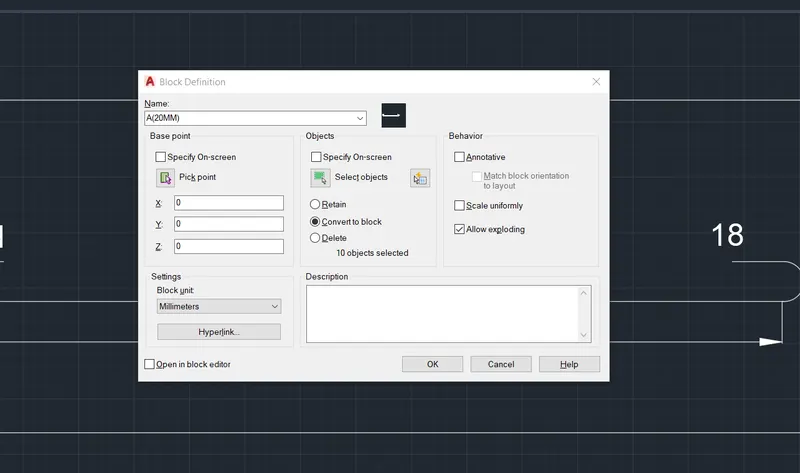

• Create a block.
• Command:B
• Enter name :A(20mm)
• Pick a point
• Select the object

• Similarly, draw all the figure and createe a block out of it.

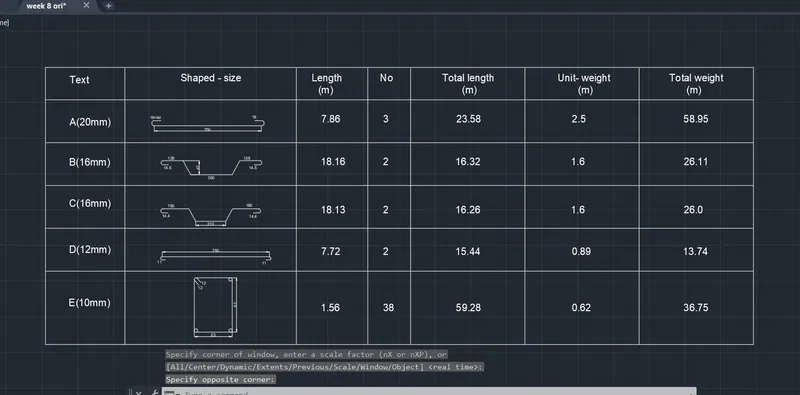

• Draw the table.
• Enter the names
• Insert the drawing

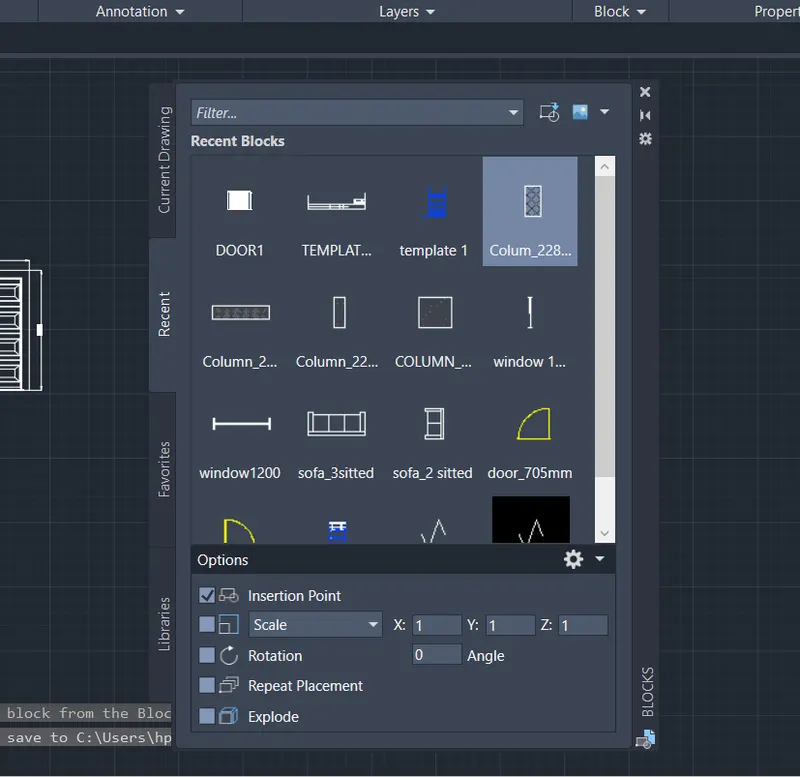

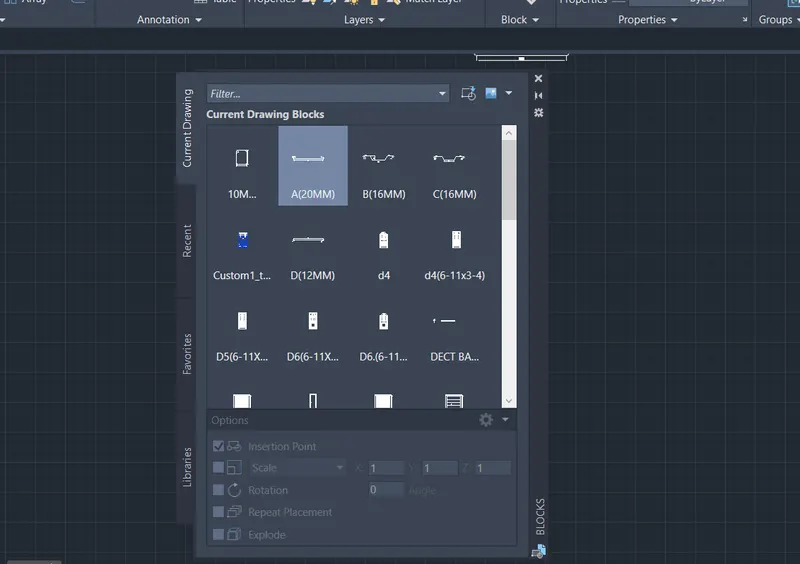

• Command:I
• Choose the blocked saved to be inserted
• EG:

• Similarly all the figure created as a block can be inserted

The names and values are inserted using text command.

ALL THE SCREENSHOTS ARE TAKEN BY A COMPUTAER APPLICATION NAMED : SNIP & SKETCH
