Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad by Imtiaz Ahmed

AIM to draw the furniture as shown in figure in 3 d

procedure :1 open autocad

2 select newsheet from the home rebbon

3 select the units

4 select the limits

5 now go to the isometric drafting and select the isoplane left and draw a line of 2

6 now draw a line in y axis direction of 2.6

7 now take isoplane right and from that line draw a line of 3 in the x direction

8 now draw a line isoplane top

result

2 aim to create a 3d model of isometric footing

1 open autocad

2 select newsheet from the home rebbon

3 select the units

4 select the limits

5 now select the isometric top and draw a square of 1

6 now draw a linee by taking isometric left of 2 from the 3 points of the square

7 now draw the line by taking isoright of height 6 and join all the lines

8 result

3 aim to draw the 3d view of assthotype grinder

open autocad

2 select newsheet from the home rebbon

3 select the units

4 select the limits

5 now use the iso metric right to draw the rec of 10 on both side

6 now use isometric left to draw the frame in between with proper measurment

7 result

4 aim to cratee sa 3d model of dropcoloum as shown

1 open autocad

2 select newsheet from the home rebbon

3 select the units

4 select the limits

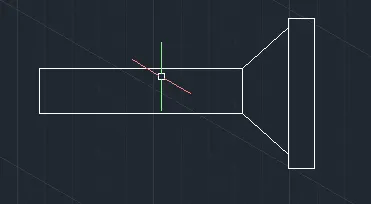

5 now draw a rec of 10,1.6

6 now leave a distnce of 1 and draw another rec 4.6.6

7 now leave a gap of 0.5on each side and join the lines

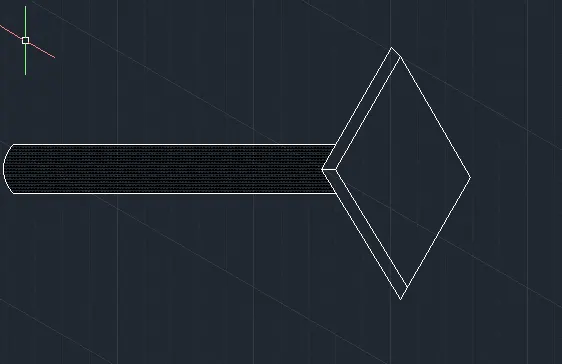

8 use the hatch command to hath the rec

9 draw a arc at thebottom part of the rec

8 result

5 aim to crate a 3 d section as shown

1 open autocad

2 select newsheet from the home rebbon

3 select the units

4 select the limits

5 now use the iso left the draw a rec

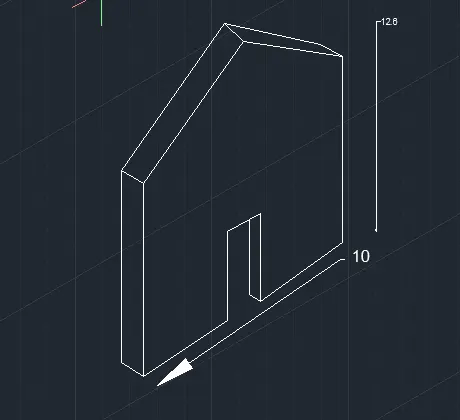

6 and use isoright to draw a line of 4 now give it a height of 7

7 now use isoleft to make the 3 d effect

8 use the iso left to draw a line of 12.6 and join the lines

9 use leader and mtext to write the dimentions
