Creating Levels, Grids, Layout and model elements for a residential unit using REVIT

1 bim is the process that begins with the creationof an intelligent 3d model and enable documents managment cordination and

siulat during tthe entire lyfecycle of a project

2 for example wall is a family ex walls is a family basic wall curten wall are the elements and the sizes of the walls are the instences

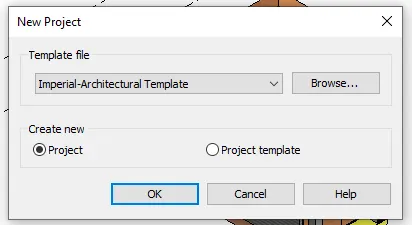

3 to open a file in aricetectural template go to the home tab select new

2 now

select the tamplate to arcitectural

3 now go to file and save the project with a name

4 to change the units go to the manage tab and go to the project units option

4 to understand the concept of level and grids

1 first go to the left corner of the propertys

2 where revit has already created the 1 and 2 levels

3 go to level one and rename it to grounfd floor

4 rename the level two to 1 st floor

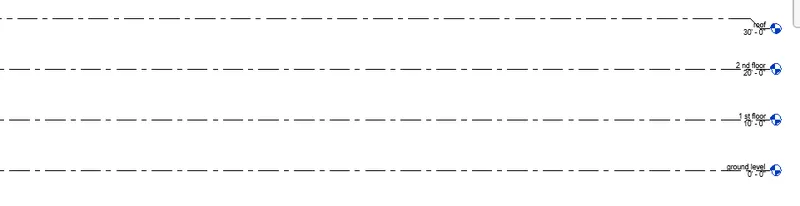

5 nw opn the elevation view and create 2 more levels and name it as 2 nd floor and roof

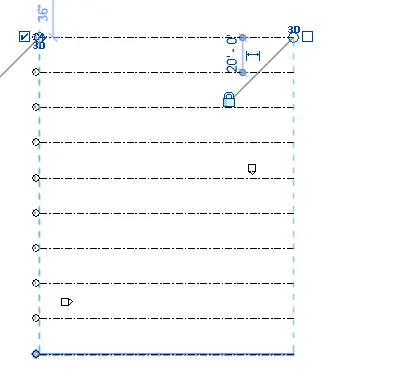

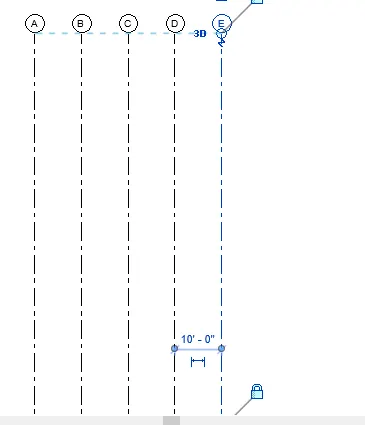

6 clock on the grid line and give the desired values

5 AIM TO CREATE A 3D MODEL OFA RESIDENTIAL HOUSE

PROCEDURE

1OPEN REVIT

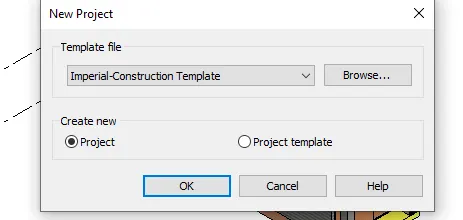

2 Cchoose a new architectural template

3 now tke the wall option and draw a rec

4 now give the heght of walls

5 niw go to the rcitectural tab and select the floor option

6 now select the boundry of the floor

7 now go to the roof option and select the roof boundrys and select ok

8 now a 3 d model of th hous will be created

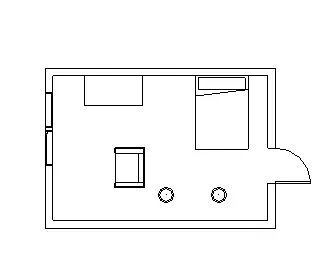

7 aim to place reidential model in a project

1 open revit

2 select a new architectural template

3 now go to the arictecture tab and draw a rec section

4 now go to the insert tab and go to the load family

5 and search the items in the load family such as doors wimdos bed lamp etc

6 and place it inside the residential model

resut
