Creating Levels, Grids, Layout and model elements for a residential unit using REVIT

AIM - WHAT IS  BIM. SUMMAZE THE  FEATURE OF BEAM AND BENIFITS OF              USING BIM OVER 2D CAD TOOL.

ANS -  BIM ( BUILDING INFORMATION MOUDLING ) - IT IS USE TO DESIGN AND DOCUMENTATION SYESTEM , DRAWING AND SHEDULE A REQUIREMENT FOR THE BUILDING PROGRAMME. WHICH CONDUCT BY REVIT SOFTWARE  IT IS ALSO CALLED AS REVIT MOUDELING

REVIT BUILDING ELEMENT HAVE THREE TYPE

1. VIEW ELEMENTS

2. MODEL ELEMENTS

3. ANNOTATE ELEMENTS

ANNOTATE ELEMENTS HAS

A. ANOTATION ELEMENT

B. DATUM ELEMENT

BIM IS A  PROCESS OF CREATING AND MANAGING INFORMATION FOR BIM ASSECTS. IT IS VISUAL REPRESENTATION OF THE PHYSICAL AND FUNCTIONAL CHARECTIRISTIC OF A FACILLITY FROM INCEPTION ONWARDS

IT INTEPRETS STRUCTURE MULTIDICIPLINERY DATA TO PRODUCE DIFICULT REPRESENTATION ABOUT PLANNING AND DESIGN TO CONSTRUCTION OPERTATION.

FEATURE OF BIM

1. EASY ACCSES TO INFORMATION

2. MAKING THE PROCESS MORE EXPRESSIVE

3. COMPREHSIVE VIEW OF THE PROJECT

IT ALLOWS TO WORK IN FIVE DIMENSIONAL. IT ALSO PROVIDE MORE COMPRENSIVE OVERVIEW OF THE BUILDING PROCESS. ALSO PROVIDE TOPOGRAPHIC INFORMATION.

THE FOLLLOWING BENIFITS OF BIM HAVE

1. COMPLETE REPRESENTATION - BIM IS PROVIDE MORE THAN THE BUILDING. IT ALLOWS YOU TO DESIGN ELECTRICAL AND HVAC SYESTEM AS WELL AS THE BUILDING ITSELF.

2. INSTANT UPDATES - BIM ALLOWS YOU TO PROVIDE INSTANT UPDATES OF THE WHOLE PROJECT REQUIRED COMPPONENT.

3. TIME CONSTAINTS - BIM IS ALLOWS YOU TO THE REFEBRICATE IMPORTANT COMPONENT AHEAD OF TIME.

4. RESOURCE TRACKING - IT IS ALSO HELP TO TRACK THE RESOURCE WHEN . BIM GIVES THE MODEL TO THE CLIENT UPDATE CONSTENTLY. AS YOU WORK ON OVER THE THE PROJECT AND CLIENT IS CHECKING ANY TIME AND IT LEADS TO QUICK APPROVEL FOR MILESTONE AND MORE EFFICIENT PROJECT DEVLOPMENT.

AIM - UNDERSTAND THE CONCEPT OF CATEGORIES, FAMILIES, .........ELEMENTS,INSTANCE IN REVIT,GO TO INSERT TAB AND CHOSE TO CATEGORIES,PICK A FAMILEY AND ELEMENT.UNDERSTAND THE INSTANCE AND INSERT IT TO REVIT BIM.

ANS - FOLOOWING CONCEPT WERE USING IN UDERSTANT AND USED IN REVIT FOR VARIOUS PURPOSE

1. CATEGORIES - IT CONTROLS THE ORGANISATION DISABILITY THE GRAPHICAL REPRESENTATION AND SCHEDULING OPTION OF A FAMILIES WITH IN THE PROJECT. IN RIBBON THERE IS A INSERT TOOLBAR AND SHOWING VARIOUS CATEGORIES.

2. FAMILY - FAMILY IS THE GROUP OF 2D AND 3D INFORMATION THAT SHOWS TO REPRESENT WHERE DISCRIPT BUILDING OR DOCUMENTATION ELEMENT. IN THE PROJECT ACTUALLY DEFINE PARAMETRICAL GRAPHICAL DOCUMENTATION REPORT ALSO.

3. TYPE - TYPE IS HAVING FOR SPECIFIC REPRESENTATION IN THE FAMILY DEFINE BY DISTINCE PARAMETRIC GRAPHICAL AND DOCUMENTATION CHARECTORISTIC WHICH MAKES IS UNIQUE FROMOTHER TYPES IN THE FAMILY.

3. INSTANCE - IT IS INDIVISUAL REPRESENTATION OF A TYPE IN THE PROJECT DEFINE BY THE UNIQUE PARAMETRIC GRAPHICAL AND DOCUMENTATION CHARECTORISTIC WHICH MAKES HERE UNIQUE.

AIM - SETTING UP A PROJECT - OPEN A PROJECT FILE WITH ARCHITECTURAL TEMPLETE.SAVE THE FILE .........WITH APPROPRIATE NAME.SET UP THE PROJECT UNIT IMPERIAL BASED ON YOUR CONVENIENCE TO MODELING.COMPLETE THE PROJECT INFORMATION UNDER MANAGE TAB SET UP THE MAXIMUM BACKUP FOR PROJECT FILE TO 3

ANS -

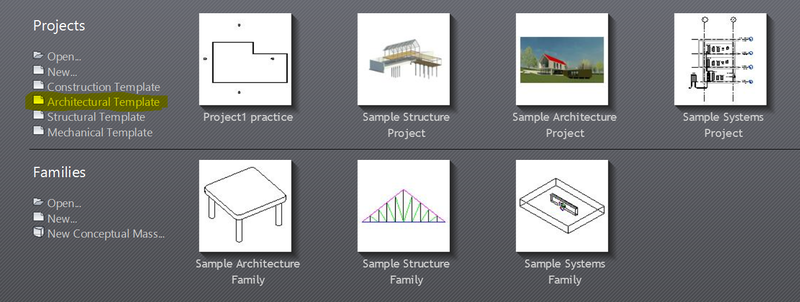

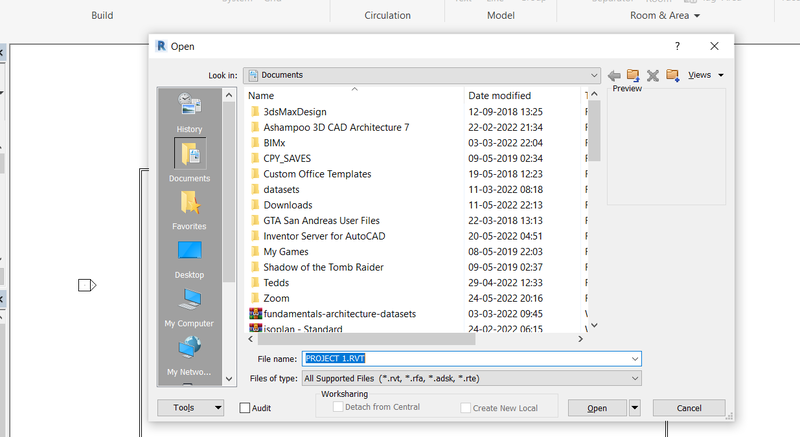

 OPEN PROJECT FILE - FOR OPENING A PROJECT FILE FOR ARCHITECTURAL TEMPLETE. IT IS ALSO SHOW IN MAIN OPENING DISPLY AFTER CLICKING ON IT IT WILL BE OPENENIG A ARCHITECTURAL TEMPLETE.

 SAVING THE FILE - FOR SAVING THE FILE CLICK ON FILE AND IT WILL SHOW THE DISPLY OF PROVIDE A PROPER NAME TO THE FILE. AND SAVING IT BY PROVIDED NAME.

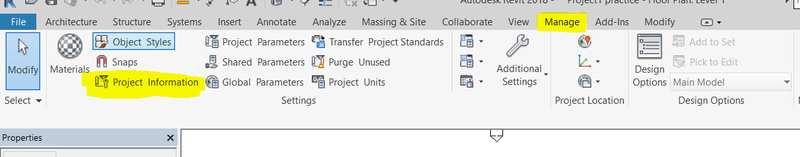

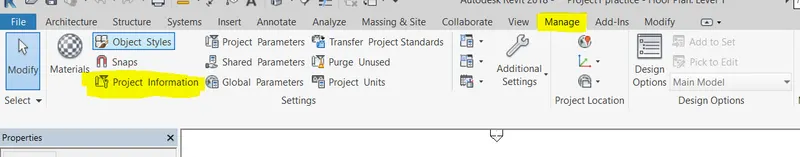

PROJECT MANAGE TAB - AFTER GOING IN TO MANAGE TAB THERE IS A OPTION FOR PROJECT INFORMATION

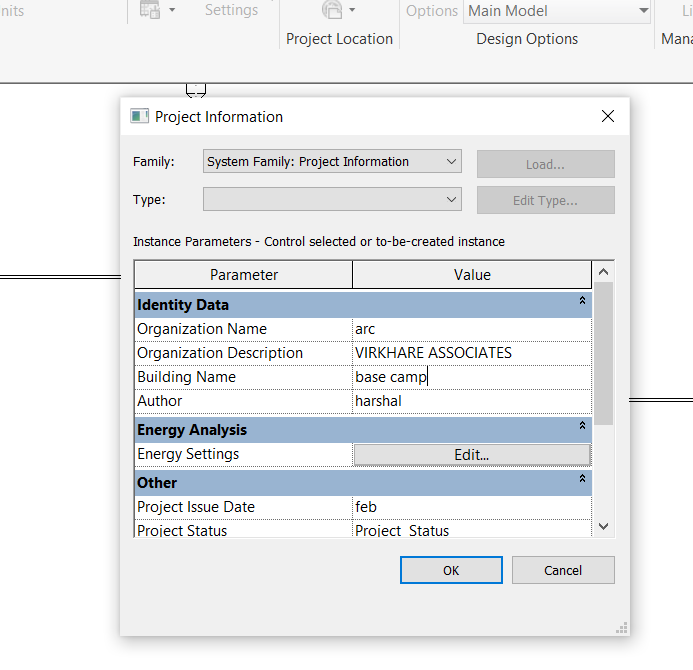

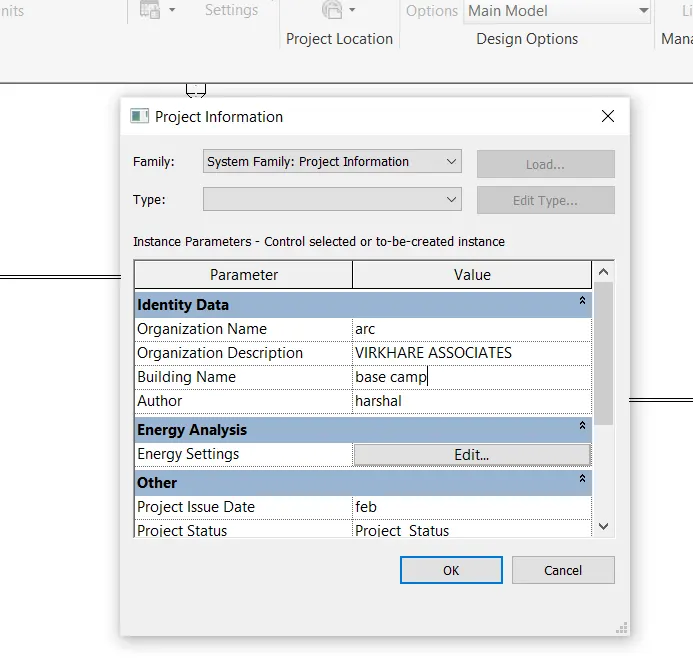

 AFTER CLICKING IT WILL BE OPEN NEW FILE TO SAVE THE NAME OF ORGANISATION . BUILDING NAME , DISCRIPTION.AUTHOR, PROJECT STATUS, ISSUE DATE AND ENERGY SETTING ALSO.

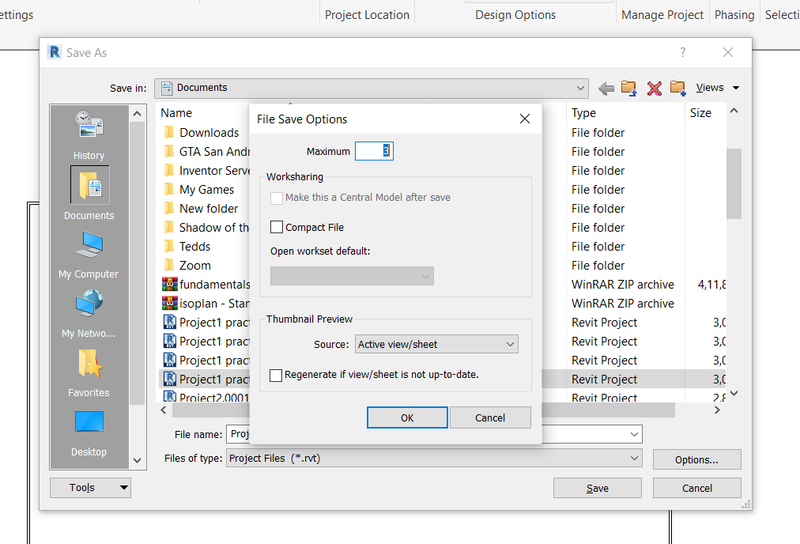

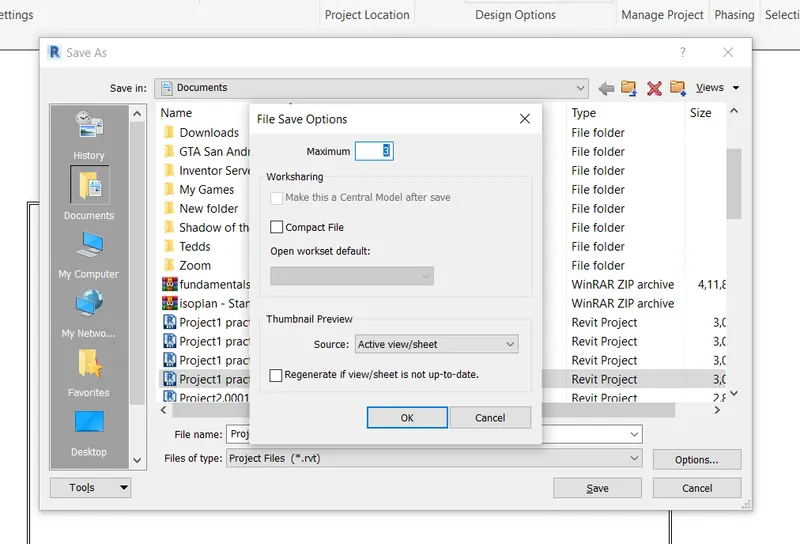

 SAVE PROJECT - FOR SAVE A NEW PROJECT CLICK ON THE FILE FROM THE RIBBION AND AFTER THAT CLICK ON SAVE AS AN PROJECT AFTER CLICKING THE OPTION IT WILL BE SHOWS THE OPTION IT IS BACKUPS.

 CLICK ON OK AND SAVE AS THE BACKUPS BY THREE TIMES.

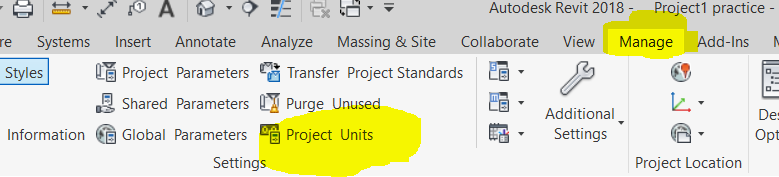

PROJECT UNITS -  ALSO IN MANAGE TAB THERE IS A OPTION AVILABLE WHICH IS PROJECT UNITS AFTER CLICKING ON IT .............................IT OPEN THE UNITS AND SET ACCORDING TO OVER CONVENIENCE.

 AIM - UNDERSTAND THE CONCEPT OF LEVELS AND GRIDS. FOLLOW THE NAMING AND CONVENTIONS. CREATE .........THE FOLLOWING LEVELS AND CONVERT TO METRIC EQUIVELENTS IF WERE MATRIC IS THE UNIT.

 GROUND FLOOR @ 0' , FIRST FLOOR 10' , SECOND FLOOR 20' , ROOF @30'

GRID TRANSVERSE GRID A,B,C,D,E @10'   LONGITUDINAL GRIDS FROM 1 TO 10@20' SPACING.

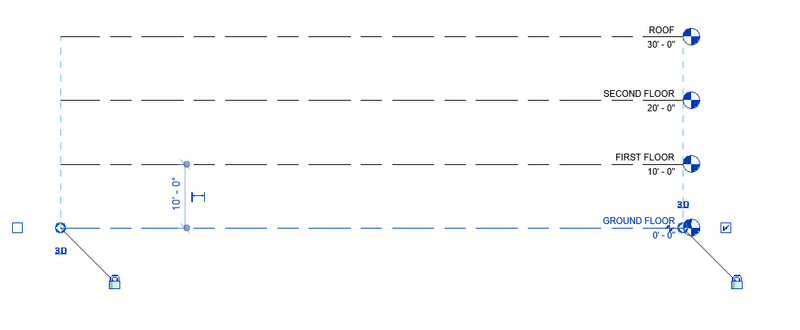

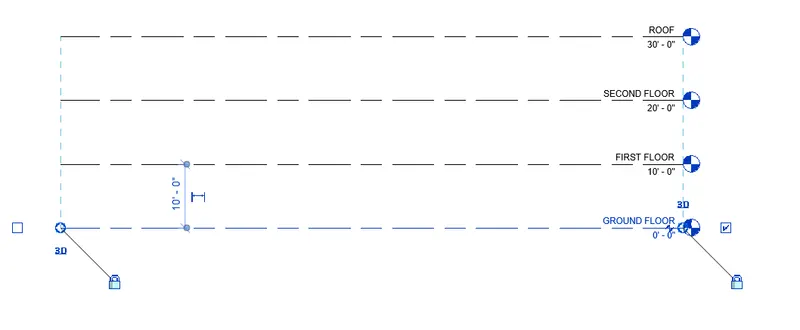

 ANS -   LEVELS -  TO CREATE LEVELS CLICK ON SOUTH ELEVATION IN ARCHITECTURAL TAB THERE IS A LEVEL TOOL AILABLE CLICK ON IT. AFTER IN MODIFIED TAB CLICK ON CLICK POINT TAKE A OFFSET 10' AND CONTONOUSELY CLICK 3 TIMES FOR CREATING GROUND FLOOR. FIRST FLOOR, SECOND FLOOR , AND ROOF.

                                                  LEVELS FIRST FLOOR TO ROOF

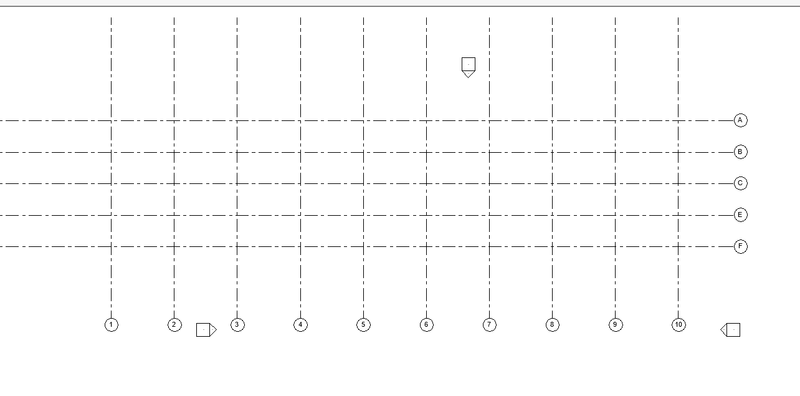

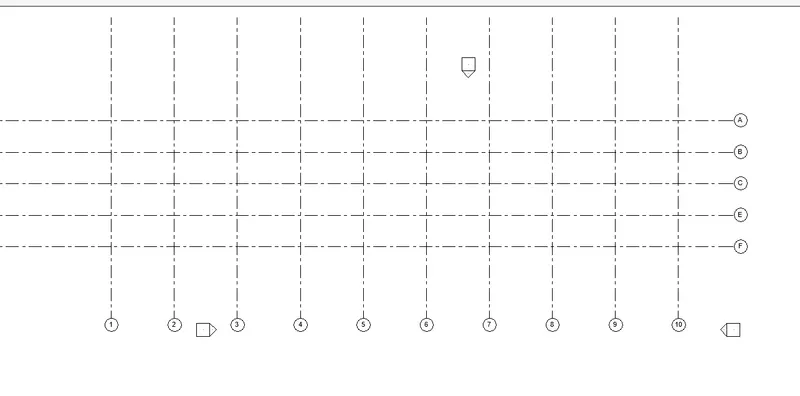

TRANSVERSE AND LONGITUDINAL GRIDS - FOR TRANSVERSE GRID IN ARCHITECTURAL PANNEL THERE IS OPTION AVILABLE GRID CLICKING ON IT . AND AFTER TAHT TAKING LINE FROM MODIFIED PANNEL AND CREATE A GRID . AFTER THAT TAKING GRID AGAIN AND TAKE PICK POINT FROM MODIFIED PANNEL AND TAKING OPTION IS 10' AND CREATE CONTINUES 4 GRID IN TRANSVERSE DIRECTION.

 LONGITUDANAL DIRECTION --   FOR LONGITUDANAL GRID IN ARCHITECTURAL PANNEL THERE IS OPTION AVILABLE GRID CLICKING ON IT . AND AFTER TAHT TAKING LINE FROM MODIFIED PANNEL AND CREATE A GRID . AFTER THAT TAKING GRID AGAIN AND TAKE PICK POINT FROM MODIFIED PANNEL AND TAKING OPTION IS 20' AND CREATE CONTINUES 10 GRID IN  LONGITUDANAL DIRECTION.

 RESULT -



  AIM -   3D MODELLING OF RESIDENTIAL UNIT FROM LOOKING AT YOUR HOUSE OR PLACE YOU ASPIRE.CREATE A CONCEPTUAL LAYOUT OF THE RESIDENTIAL UNIT YOU CAN MEASURE A TAPE USING YOU CAM ACCES YOUR PLAN TO CREATE SIMILLER LAYOUT.

ANS - I HAVE CREATE MY OWN DESIGENED TWO ROOM BUILDING MODELING.

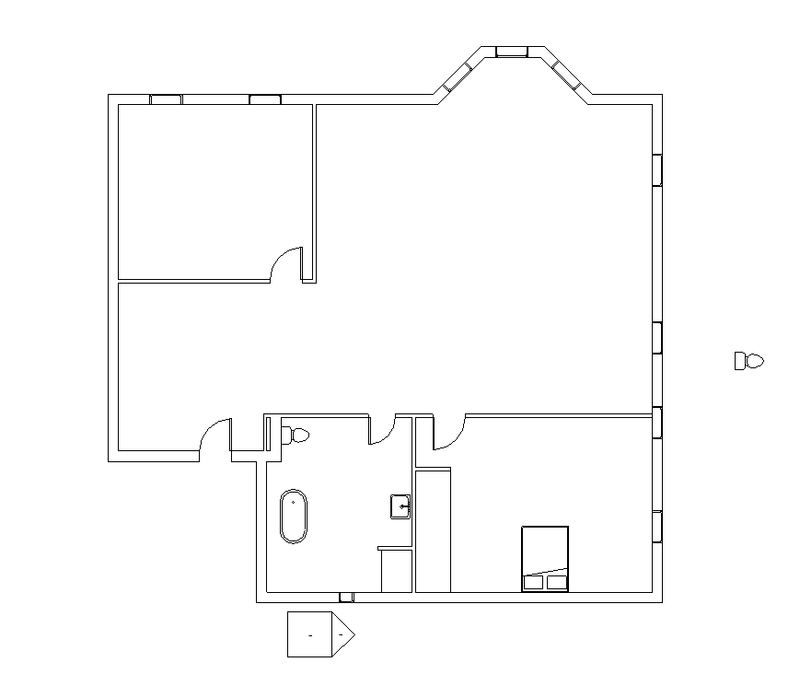

1. WALL - TO CREATE A WALL GOING TO ARCHITECTURAL PANNEL AND SELECT A WALL TAKING A WALL. AND CREATE HORIZONTALY WITH A DISTANCE OF 3700 MM AFTER THAT IN VERTICAL DIRECTION TAKING 2500MM AND 1900 MM. AFTER THAT TAKING 1900MM IN HORIZONTAL DIRECTION AND JOIN IT TO THE STARTING POINT. AND PLACING A WINDOW AND DOOR FOR TWO ROOM.



AIM - IN THE LAYOUT CREATED DRAFT THE LEVEL OF DETAILS YOU ARE PLANNING TO INCLUDE DIMENSION OF THE ROOM COMPONENTS YOU PLANNING TO ADD IN RESIDENTIAL BUILDING.

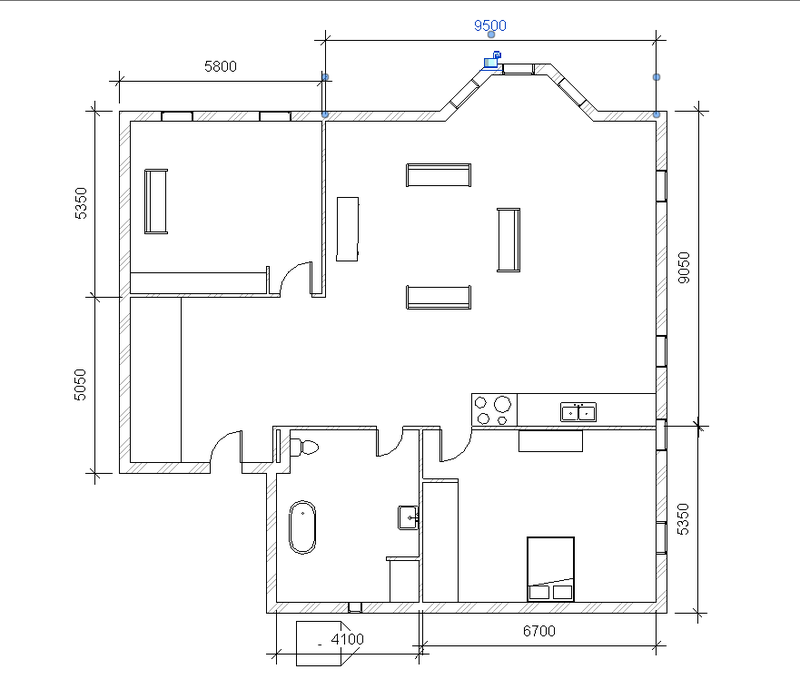

ANS -  DIMENSIONS - TO CREATING DIMENSION FOR THE PLAN IN RIBBON SELECT ANNOTATE BAR AND TAKING LINER TOOL TO SHOW THE MEASURMENT OF THE PLAN. AFTER SELECTING A WALL FIRST AND SECOND CORNER IT WILL SHOW THE DISTANCE OF THE WALL. AND CREATE DIMENSION FOR WHOLE HOUISE PLAN.

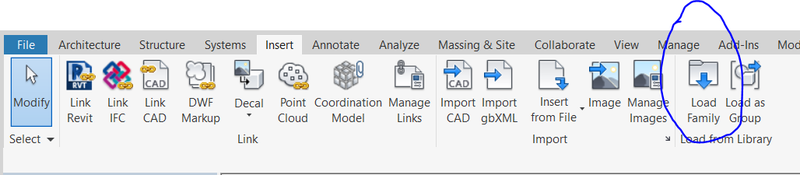

COMPONENTS - TO ADD COMPONENTS IN ARCHITECTURAL CLICK ON COMPONENTS SELECT LOSD FAMILEY AND ALSO ADD.



AIM -    IDENTIFY THE RESIDENTIAL MODEL ELEMENT SUCH AS DOOR, WINDOW TABLE, CHAIR, COUCH, BED, LAMPS FROM THE LIBRERY AND INSERT THEM TO THE MODEL AND SAVED THEM. FOR ASSIENGMENT 3.

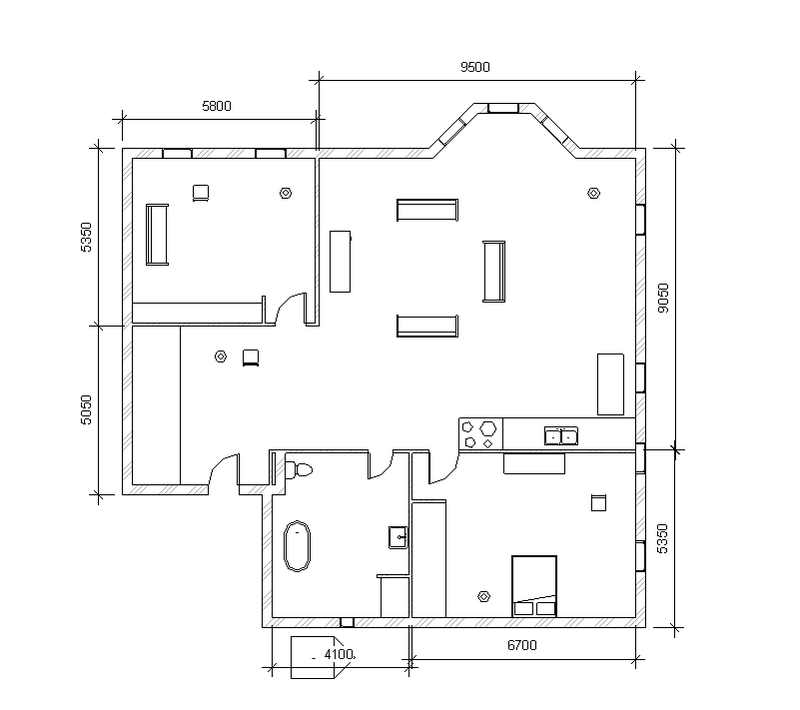

ANS -  I HAVE CREATED A OWN DESIGN TO SHOW THE DIMENSIONS AND LAYOUT

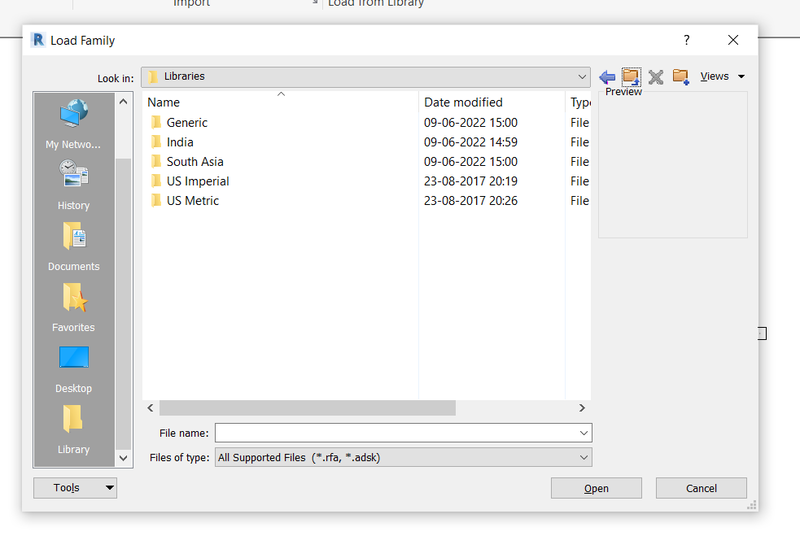

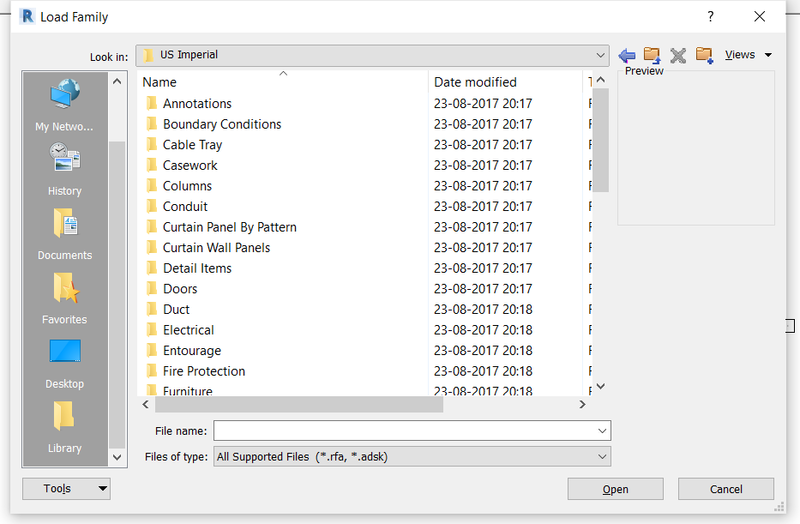

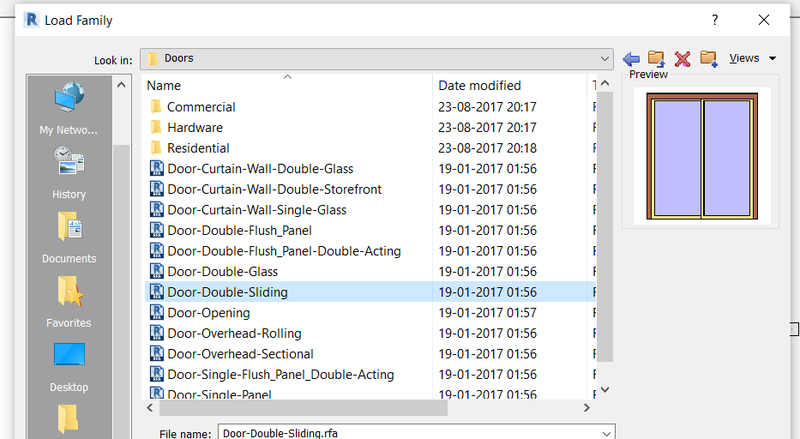

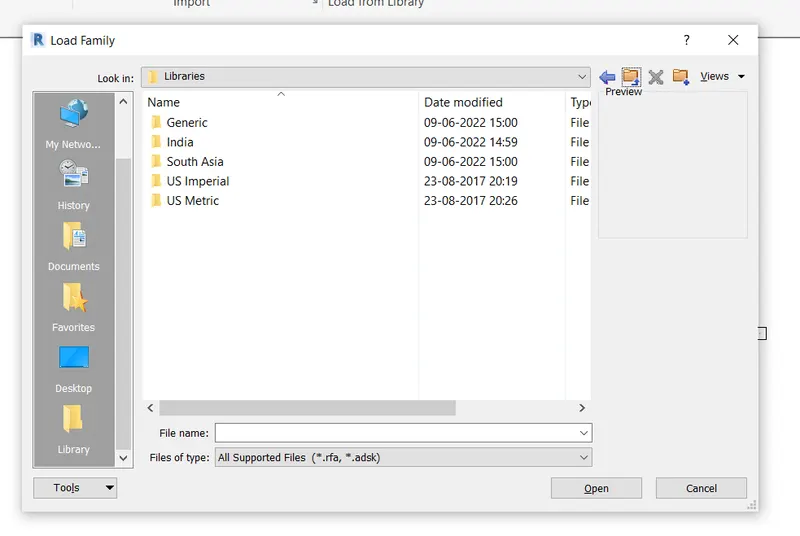

TO IDENTIFY THE RESIDENTIAL UNIT SUCH AS DOOR TABLE CHAIR COUCH BED LAMPS IN ARCHITECTURAL PANEL SELECT COMPONENT SELECT LOAD FAMILY AND CREATE THE ALL OBJECT WE NEED.

RESULT -
