Creating a Floor plan, Footing detail and Isometric view using AutoCad
object p-1

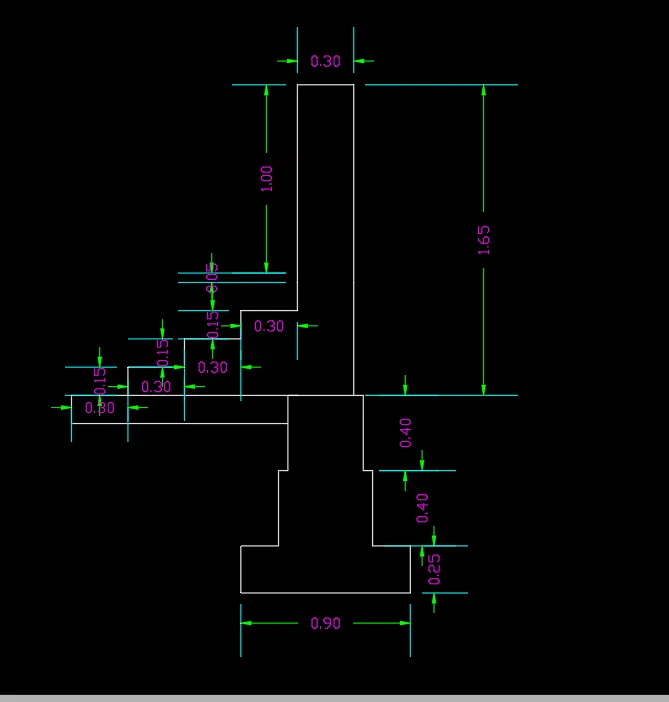

CS OF LOAD BEARING WALL OVER SPREAD FOOTING.
THE FOLLOWING STEPS WERE USE C.S. OF LOAD BEARING WALL
1. LINE START FROM 1,1
2. @.90,0
3. @0,.25
4. @-.25,0
5. @0,.40
6. @-0.05,.40
7. CLOSE THE LINE AND GET OFFSET IS 0.05 IN BOTH SIDE
8. @-.30,0
9. @0,-1
10. @-.30,-.15 CREATETING THIS STEP CONTINUES IN 4 TIMES
AND CLOSE LINE TO THE OUTER SIDE OF THE FOOTING.
que 2 drawing object c-2
ANS -

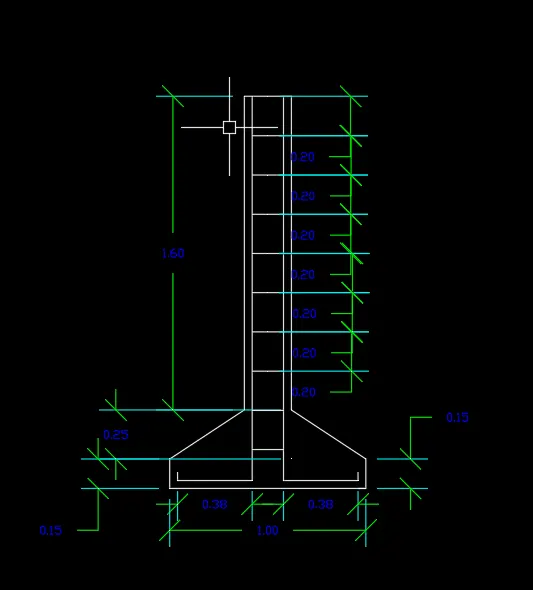

C.S. ISOLATED FOOTING
SYMETRIC.
THE FOLLOWING STEPS WERE USE TO MAKE C.S. ISOLATED FOOTING.
1. STARTING A LINE FROM THE 1,1 POINT
2. @0,.15
3. @.38,.25
4. @0,1.60
5. @.16,0
6. @0,-1.60
7. @.38,.25
8. @0,-.15
9. @-.38,0
10. @-.16 CLOSE THE OUTER SIDE
11.SPECIFY A FIRST POINT FROM {1,1}
12. @0,0.04
13 @.38,0
14. @0,2
15. @0.08,0
16. @0,-2
17 @.38,0
18. @0,0.04 CLOSE TE LINE COMMAND.
QUE 3 - DRAW LINE DIAGRAME OF A TWO LINE BUILDING
ans -

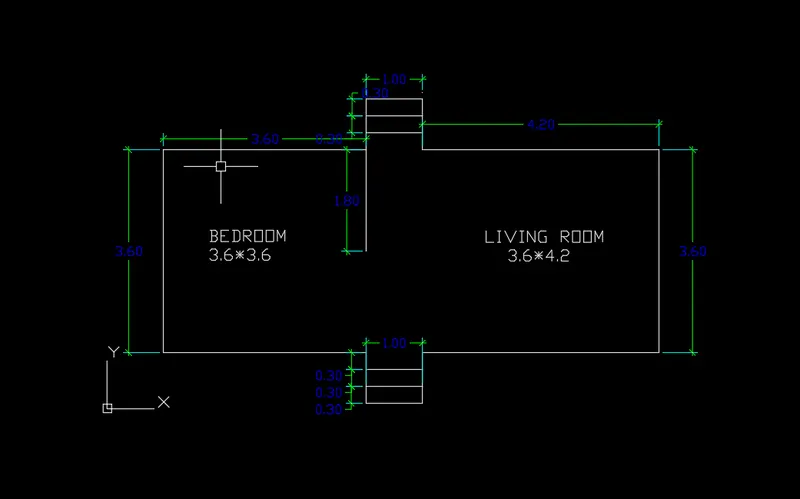

LINE DIAGRAME OF TWO BEDROOM BUILDING
THE FOLLOWING STEPS WERE USED TO DRAW LINE DIAGRAM OF TWO BEDROOM BUILDING
1. @.36,0
2. @0,-.30 MAKE THREE STEPS DOWN IN Y DIRECTION
3. @1,0
4. @0,-.30 MAKE THREE STEPS IN Y DIRECTION
5. @4.20,0
6. @0,-3.60
7. @-4.20,0
8. @0,.30 MAKE THRE CONTINOUSE STEPS HAVING .30 LEANGTH IN Y DIRETIOMN
9. @-1,0
10. @0,-.30
11. @-3.60,0
12. @0,-3.60
13. FROM POINT 11 WE CEATE A LINE HAVING LEANGTH IS 1.83 IN Y DIRECTION.
que 4 - DRAW A OBJECT WHO SHOW A LOAD BEARING WALL AND DETAILS OF FOUNDATION
ANS -

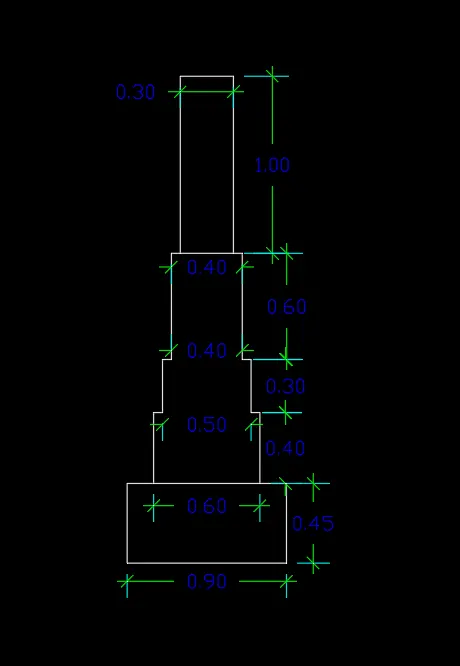

C.S. OF LOAD BEARING WALL
SHOWING FOUNDATION DETAILS.
THE FOLLOWING STEPS USE TO MAKE C.S. OF LOAD BEARING WALL.
1. SPECIFYING FIRST POINT IS 1,1
2. @.90,0
3. @0,0.45
4. @-.15,0
5. @0,.40
6. @-0.05,0
7. @0,.30
8. @-0.05,0
9. @0,.60
10. @-0.05,0
11. @0,1
12. @-.30,0
13. @0,-1
14. @-0.05,0
15. @0,-.60
16 @-0.05,0
17. @20,-.30
18. @-0.05,0
19. @0,-0.40
20. @-.15,0
21. @0,-.45 CLOSE
.
QUE 5 - DRAW ISOMETRIC VEIW OF STEPS.
ANS, -

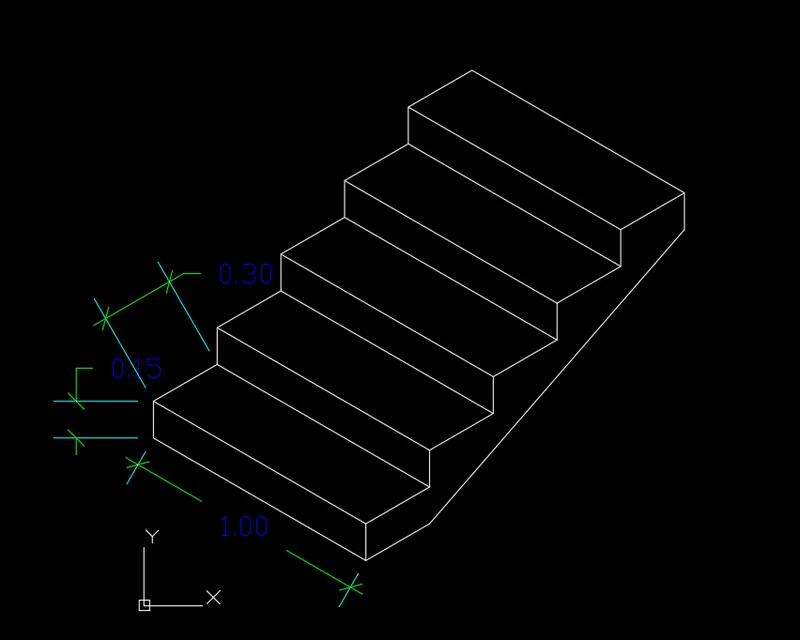

ISOMETRIC VEIW OF STEPS
THE FOLLOWING STEPS WERE USE TO DRAW ISOMETRIC STAIRS.
1. START AND ON ISOMETRIC VIEW FROM LEFT
2. @ 1,1
3. @.15 UP
4. @ .30 RIGHT
5. @.15 UP
6. @.30 RIGHT
7. @.15 UP
8. @ .30 RIGHT
9. @.15 UP
10. @ .30 RIGHT
11. SAMETHING WE DO ON LEFT WAY
12.. @.15 UP
13. @ .30 RIGHT
14. @.15 UP
15. @.30 RIGHT
16. @.15 UP
17. @ .30 RIGHT
18. @.15 UP
19. @ .30 RIGHT
20. AND JOIN ALL CORNER LINE BEETWEEN LEFT TO RIGHT CLOSE .
QUE 6 - DRAW
ANS -

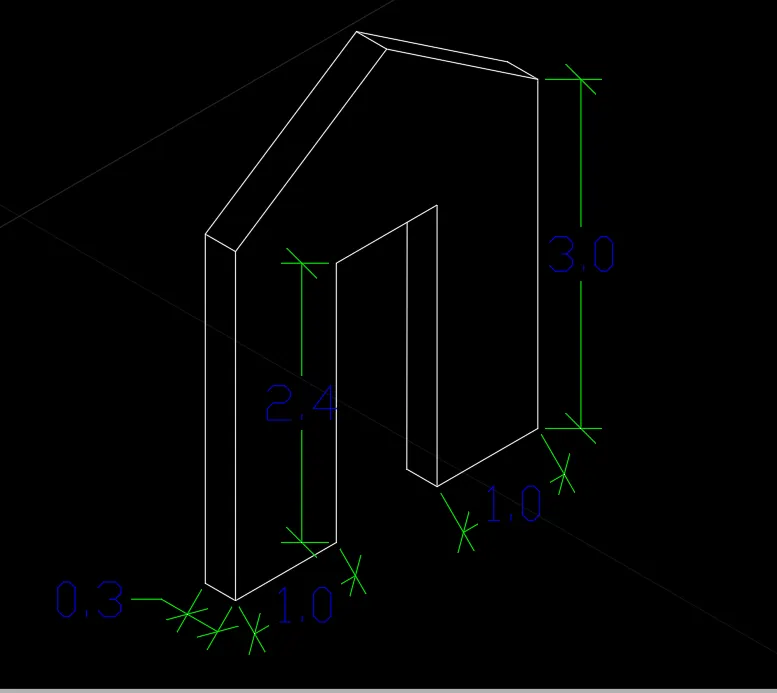

ISOMETRIC VIEW OF GABBLE WALL
THE FOLLOWING STEP WERE USE TO DRAW ISOMWTRIC GABBLE WALL.
1. 1,1
2. CHANGE GRID TO Y TO X DIRECTION AND PICK A LEFT ISOMETRIC VIEW
3. @1,0
4. @2.42 AT TOP
5. @1 TO RIGHT
6. @2.42 AT DOWN SIDE
7. @1 AT RIGHT SIDE
8. @3 AT TOP SIDE
9. COPIYING 4 LINE OF .30 LENGTH 2 AT BOTTOM AND TWO AT TOP.
10. TAKE .25 LEANGTH LINE AT TOP AND JOIN BOTH TOP LINE WITH ITS ADGE.
