Challenge

Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad by Sathish B

1. Creation of the Kithcen Layout.

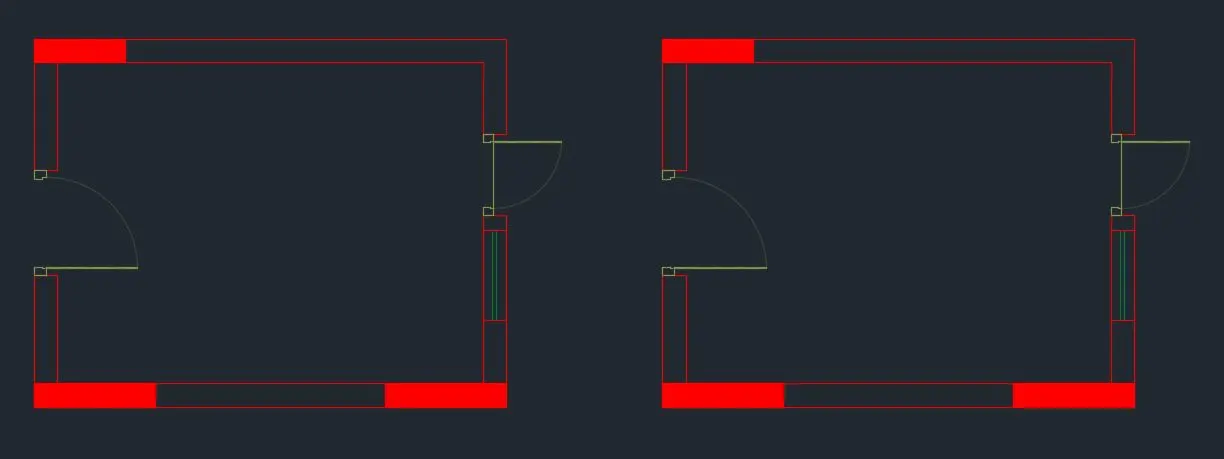

a. Creation Layers and Sketching of the Plan and and Insertion of the Columns,Window, Doors Block:

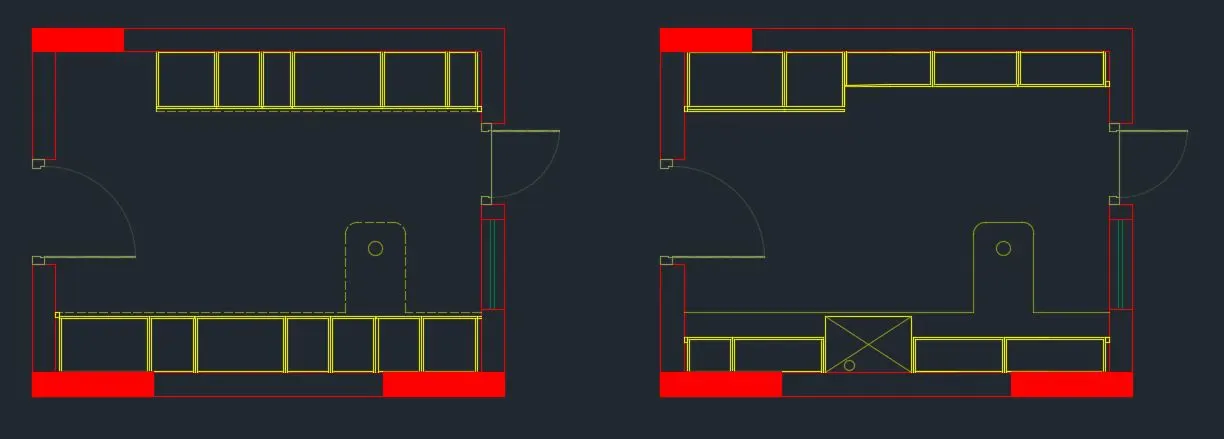

b. Sketching of the furnitures layout:

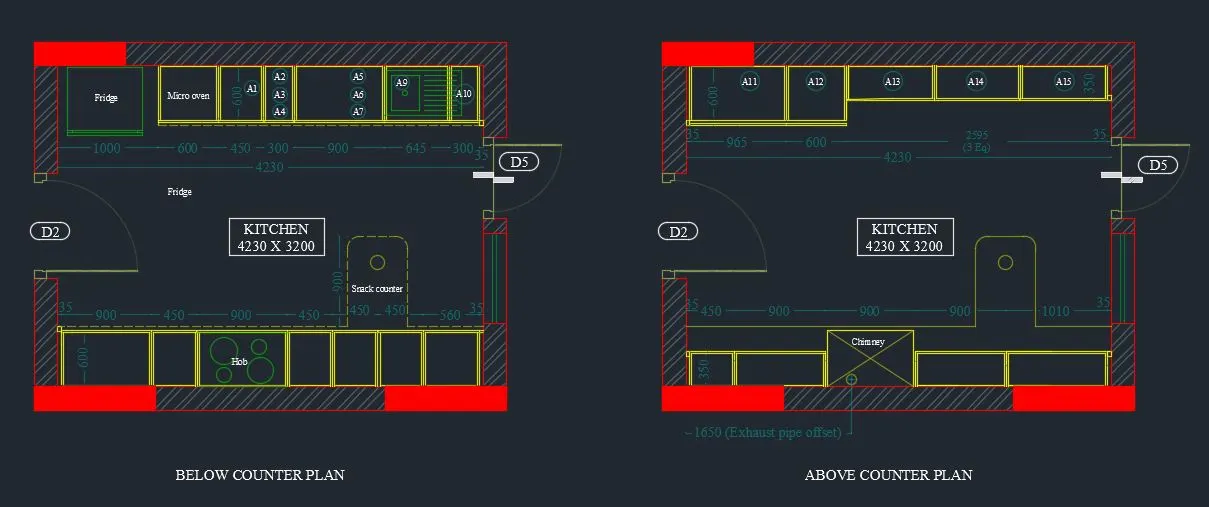

c. Creation of the Annotations and insertion of the kitchen appliences and Results:

2. Creation of the Elevation for the Week-7 Plan.

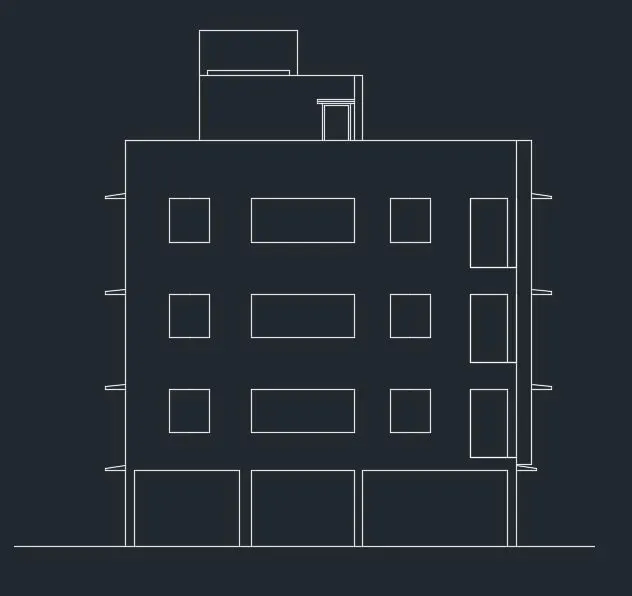

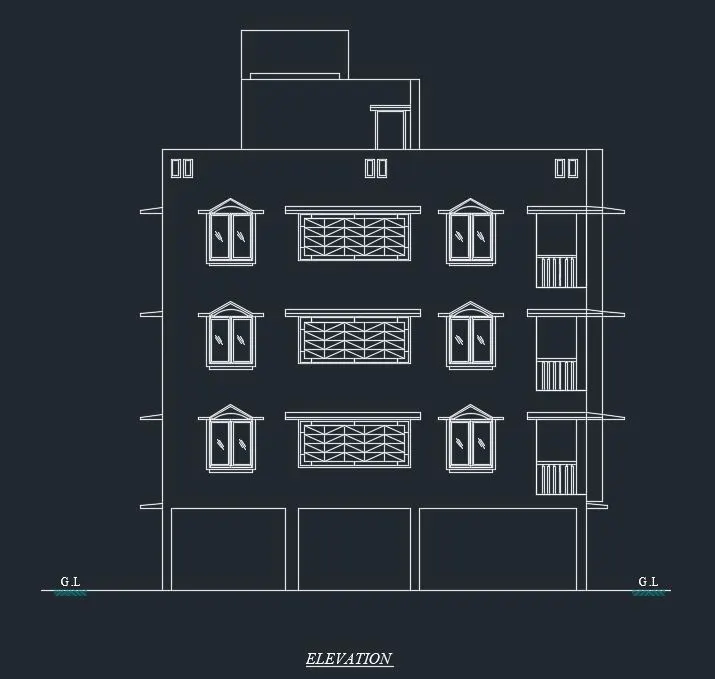

a. Creation of the Elevation Outer Lines by Refering Plan and Sections:

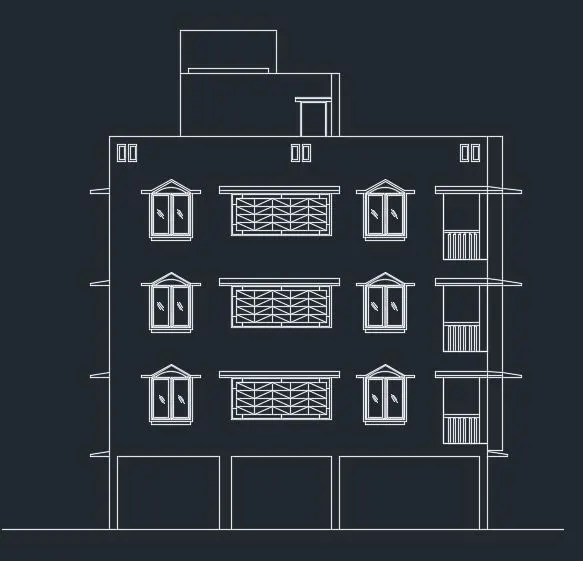

b. Creation of the Windows, Verandha Grill, Balcony Grills and Projections in Elevations:

c. Creation of annotation and Results:

3. Creation of the Pump Room Section View.

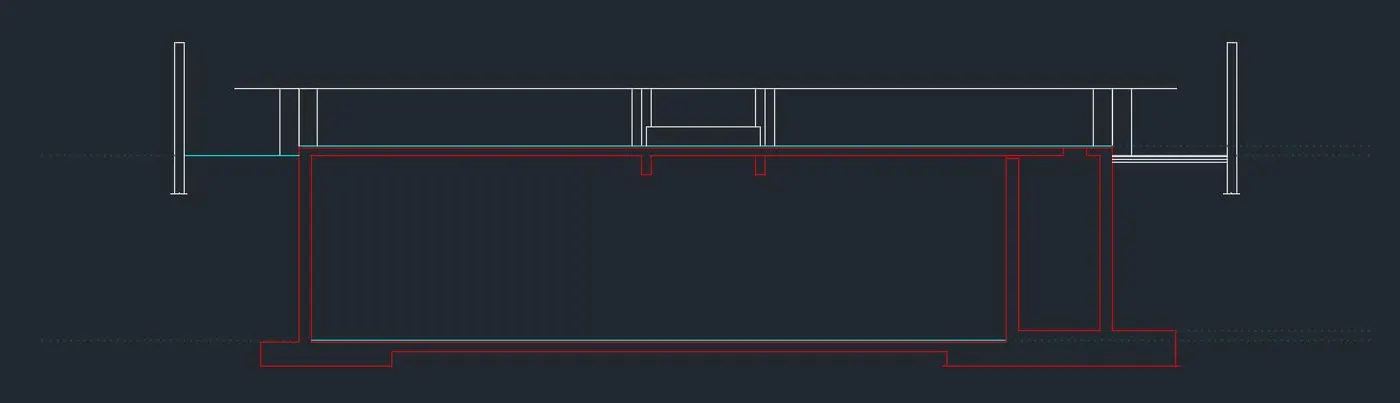

a. Creation of the layers and Sketching of the Pump Room Sections:

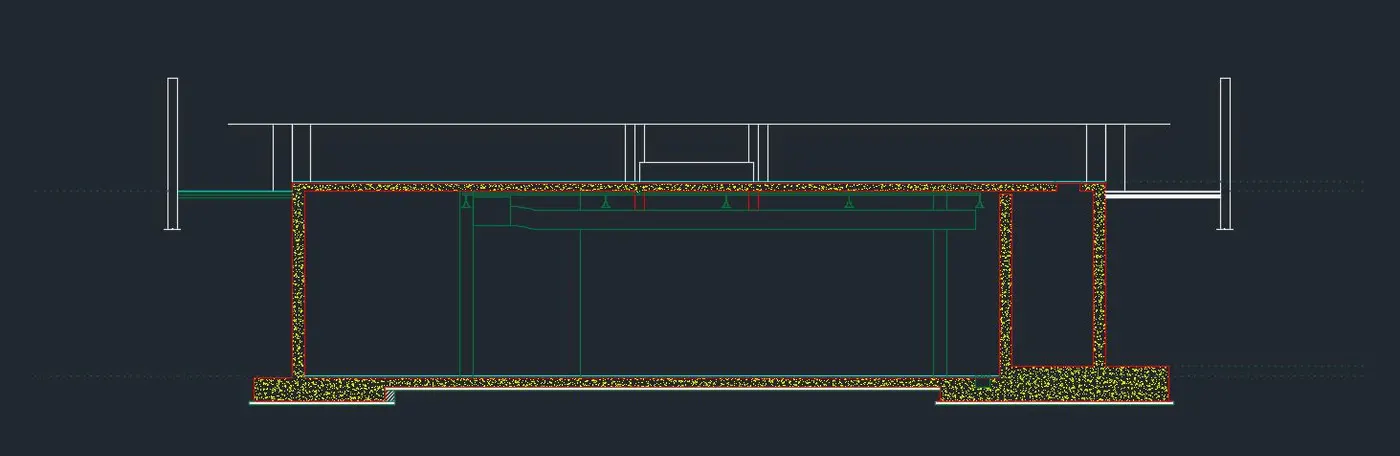

b. Creation of the MEP Fixtures and Hatches:

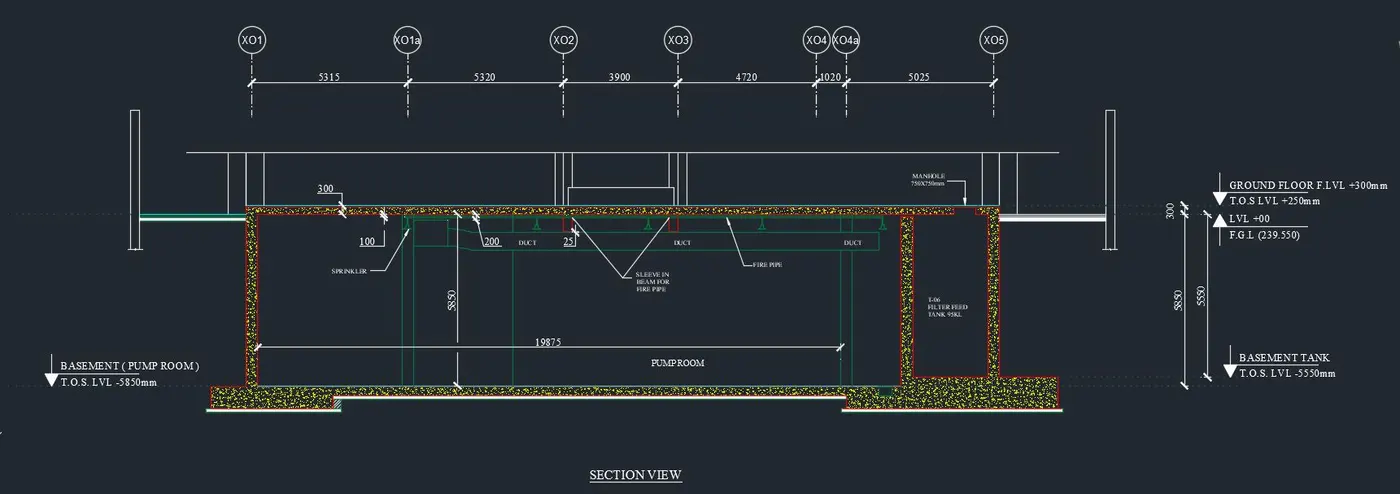

c. Creation of the Annotations and Insertion of the Blocks and Attributes and Results:
