Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

1.)

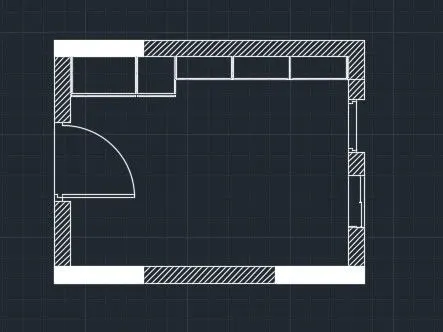

Aim :-

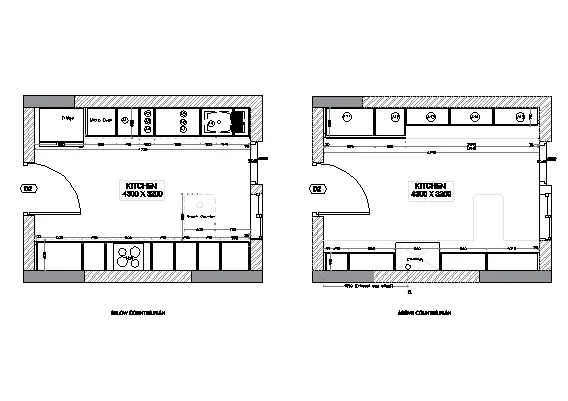

• To Create the layouts of the Kitchen and provide hatches with use blocks wherever required.

Procedure :-

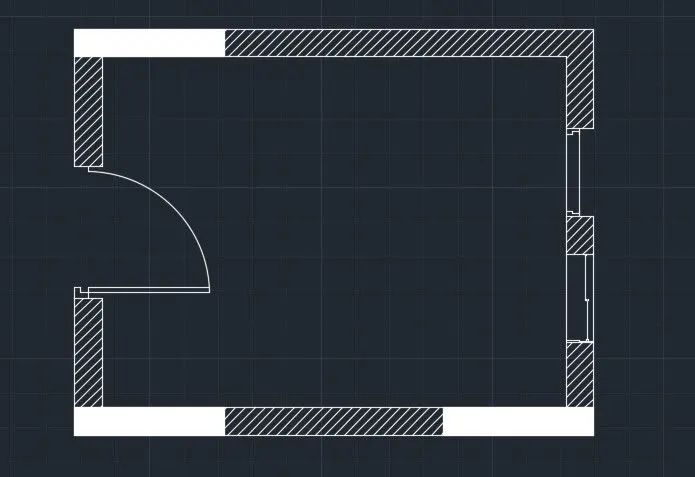

• Type Line command and draw rectangle of size 4700 X 3700.
• Type offset command of size 250 mm inside the rectangle.
• Draw the door using line and arc command.
• Draw the window as per the drawing.
• Type HATCH command in command line.
• Choose the type of hatch you want to use in the drawing.
• Type the scale and click at the object.

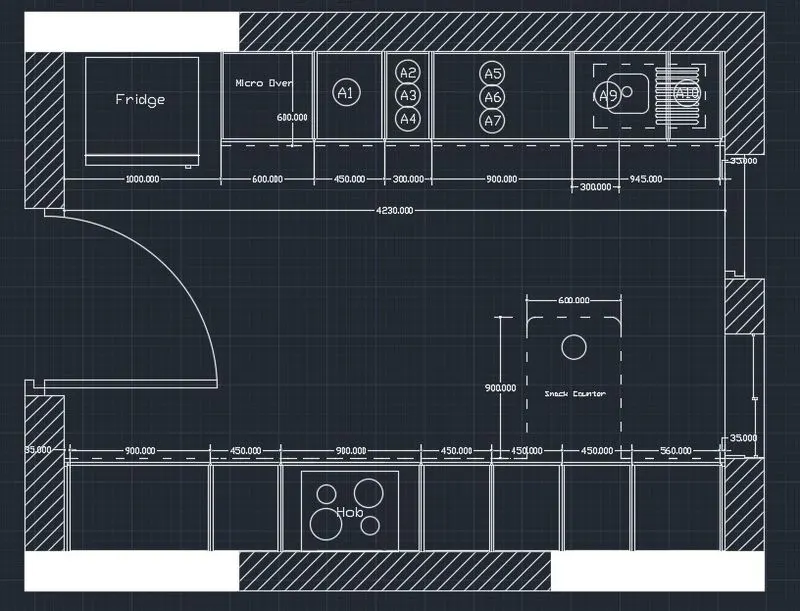

• Then Offset the lines with size of 1000, 600, 450,300, 900, 945, 35 units as per the drawing.

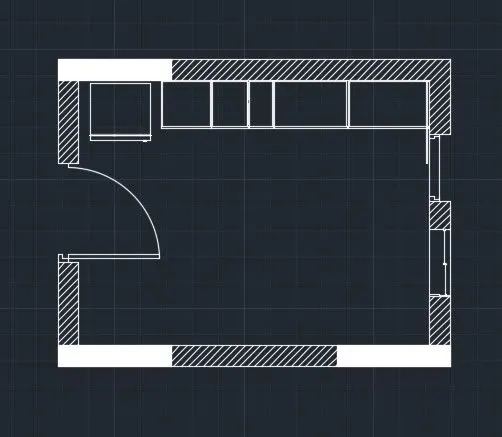

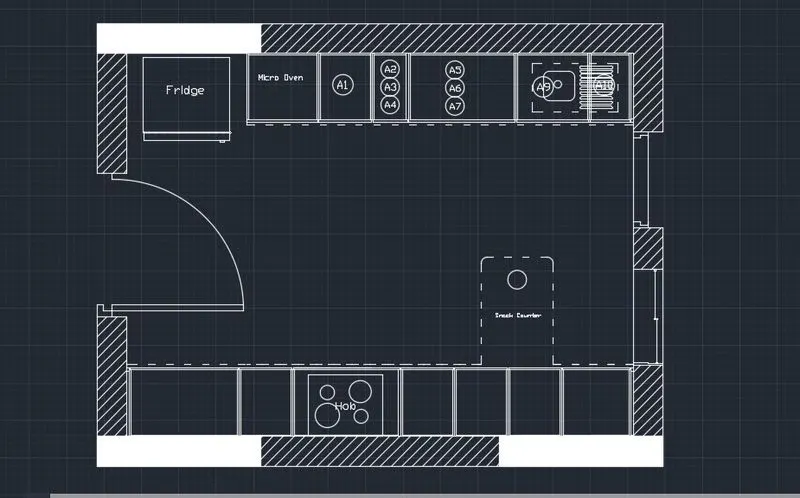

• And make the Platform and Fridge as per the drawing.

• Draw the same platform at the other side.
• Type offset command of size 35, 900, 450, 900, 450, 450, 450, 560, 35 .

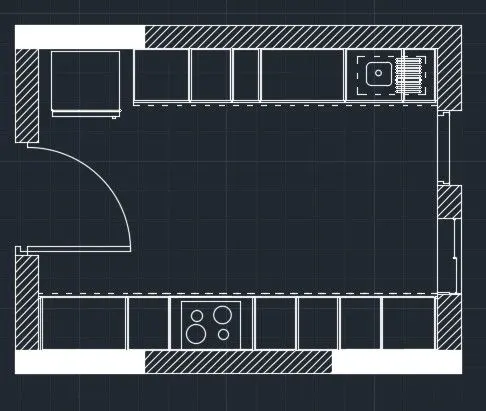

• Draw the hob and place the circle in the hob.

• Using dotted line draw snack counter of size 600 X 700.

• Do the Proper dimensionig and placing names as per the drawing.

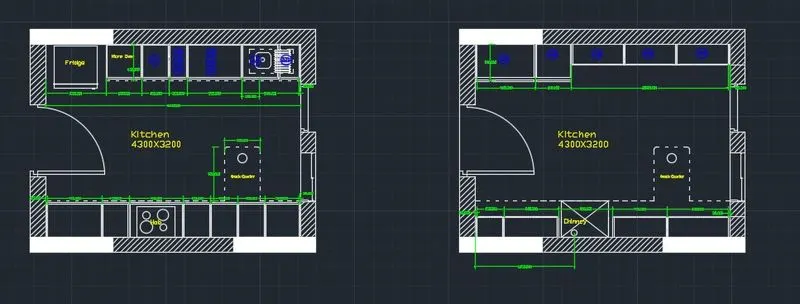

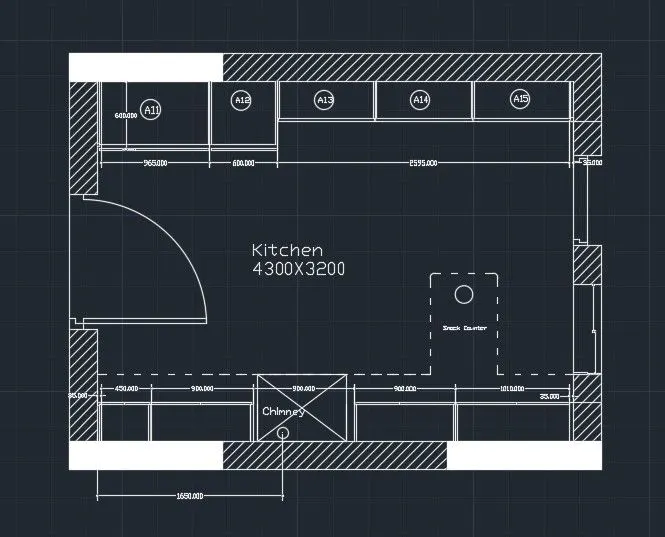

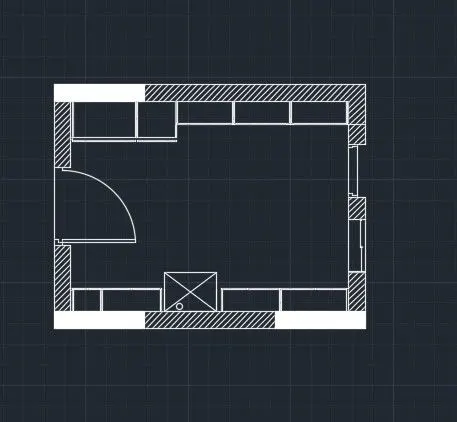

• For above counter plan, use same rectangle box as used before.
• Use line and offset command to make proper platform.

• Draw the same at other side.
• But the sizes are different with compared to below counter plan.

• Annotate proper text and dimensions as per drawing.

• Use layer command to show different layers that are used in the drawing.

Result :-

2.)

Aim :-

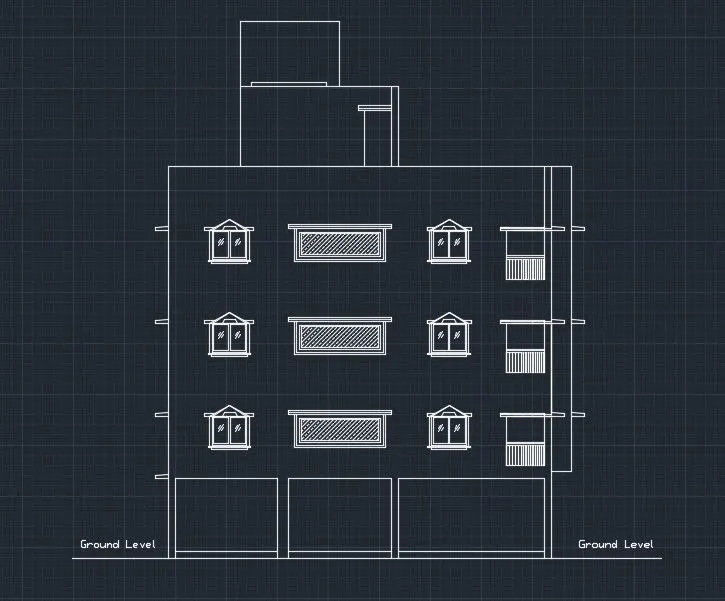

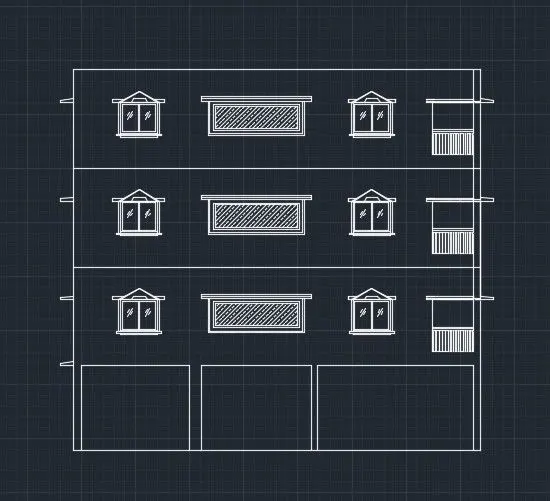

• To Create the elevation of the plan created as shown in drawing and apply proper hatch in the walls, doors, windows, and other architectural elements.

Procedure :-

• Use Xline commnad to project the lines in downward direction.
• Project the lines of Columns First.
• Then Project the Lines for window and Balcony.
• Project the lines for levation of verandah(just like Big Balcony).
• Offset 150, 2450, 2850, 2850, 2850 and 1000mm.
• For stairs offset 1250 mm for tread and 150 mm for riser.
• Take 100 mm offset for slab.
• Draw the windows and chhajjas by projectting lines from plan.
• Draw the railings in the balcony by showing column at the corner.
• Give the dimension at suitable places.
• Select the MTEXT command to show the texts in the drawing.

• Project the Chhajjas from the Plan.
• Use the HATCH Command to show hatch in the drawing.

• Draw the Overhead tank above the parapet wall.
• Show the door in the elevation side.
• Draw the text wherever used.
• Use the dimensions wherever used.

Result :-

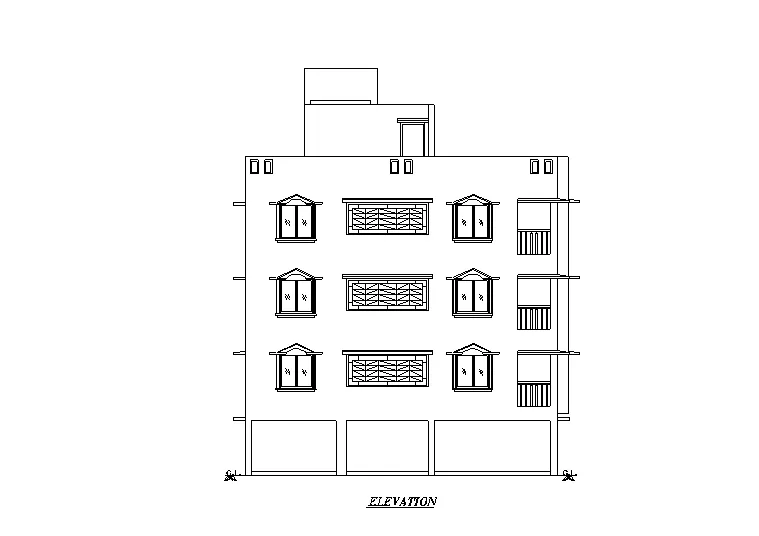

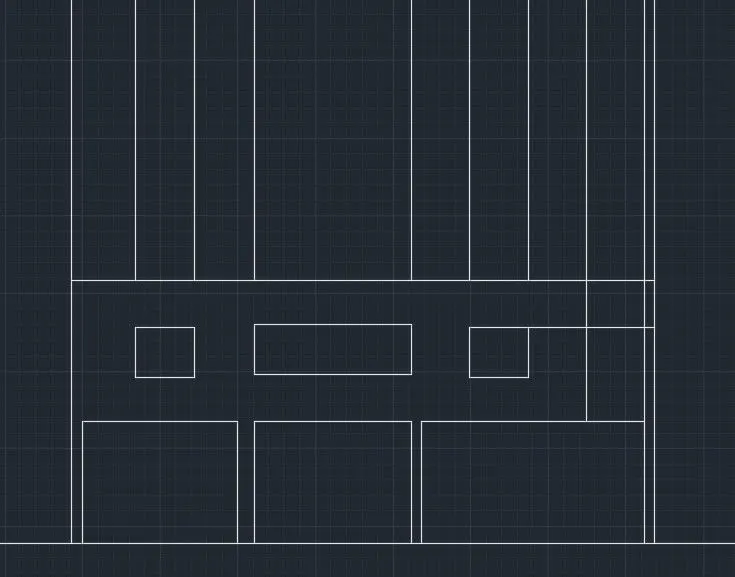

This picture is showing the elevation view.

3.)

Aim :-

• To create the sectional vie of Indutrial Building.

Procedure :-

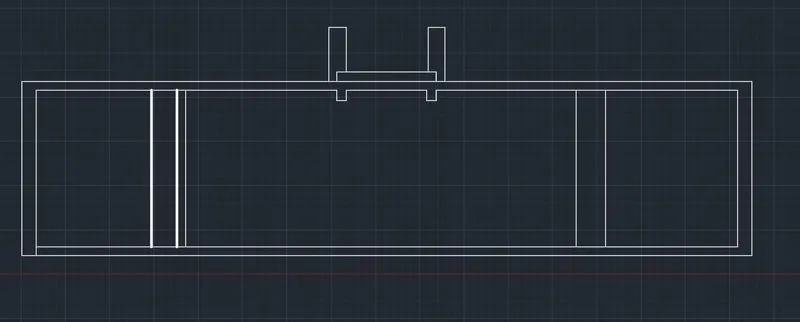

• Type Line command in command line and draw the lines as per drawing given.
• Height of footing column is 5550 mm and thickness of base footing is 300 mm.
• Draw the ducts below the center column.

• Draw the footing of size 300 mm in depth.
• Draw the footing as per the drawing and set the lineweight.

• Use HATCH Command to fill the HAtch in the columns and footings.
• Use proper dimentioning as per given in the drawing.
• Use MTEXT command to annotate the Text in the drawing.

Result :-

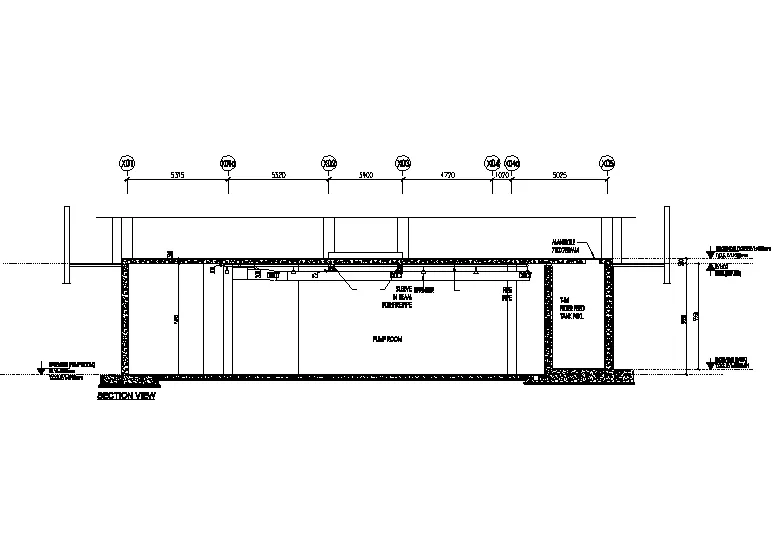

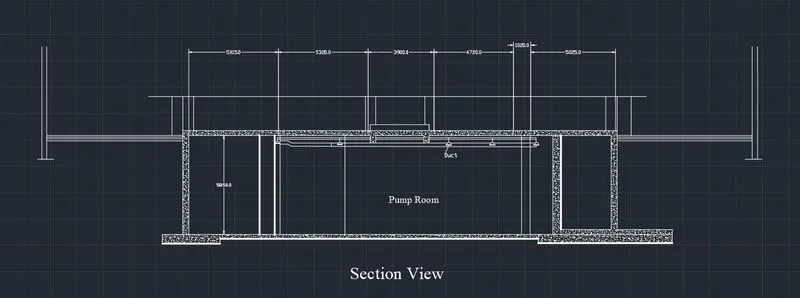

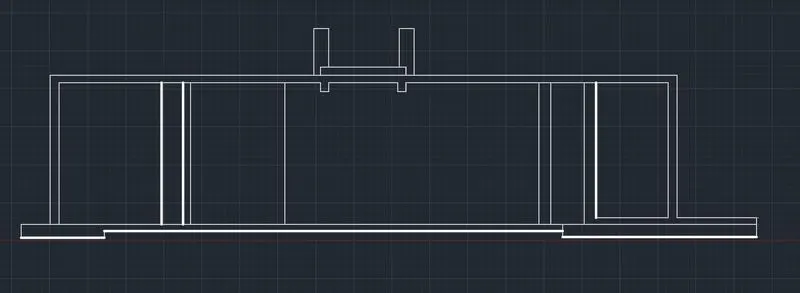

This is the Section view of Industrial building.
