Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

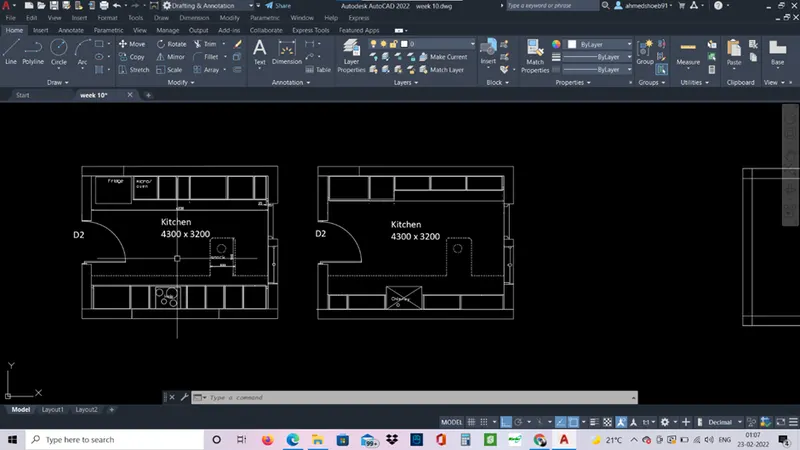

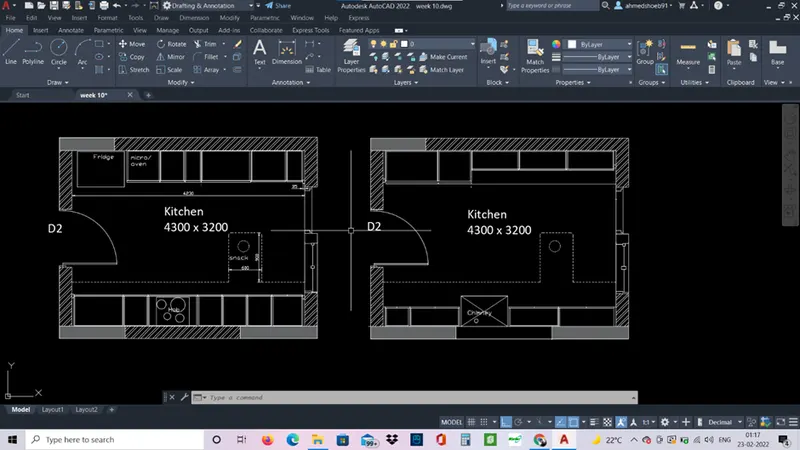

Aim: - to create a kitchen layout in AutoCAD with proper dimensions and hatch it.

Procedure: -

• Units – decimal.

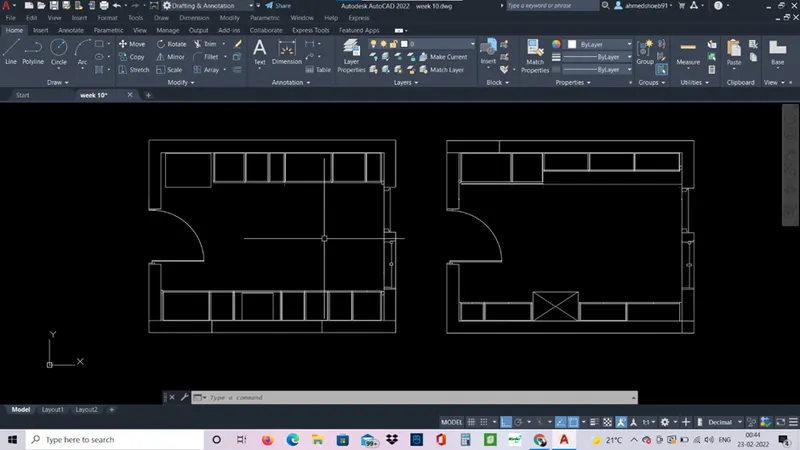

• Use xline command and draw a horizontal and vertical line.
• Give required offsets to the line to create walls.
• Trim the excess lines.
• Draw furniture using line command.
• Add doors and windows.
•
• Use dtext command for text and dimlinear and dimcontinue for dimensions.
•
• Use hatch command and select required hatch to be provided in the walls.
•

Result: -

The kitchen layout is created in the AutoCAD with hatch.

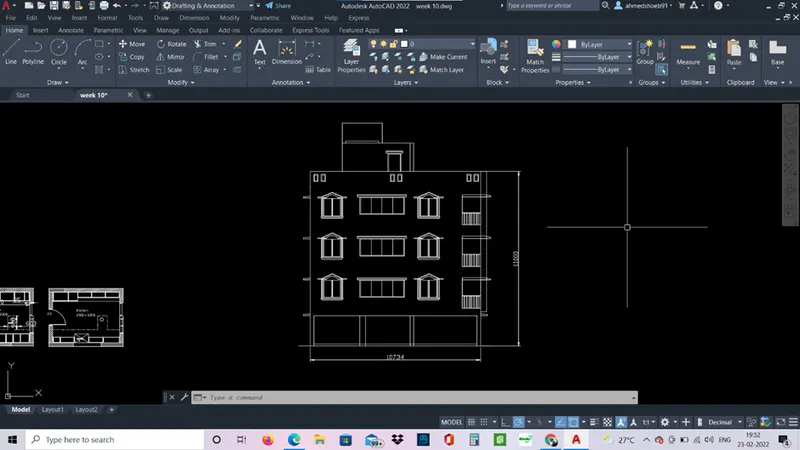

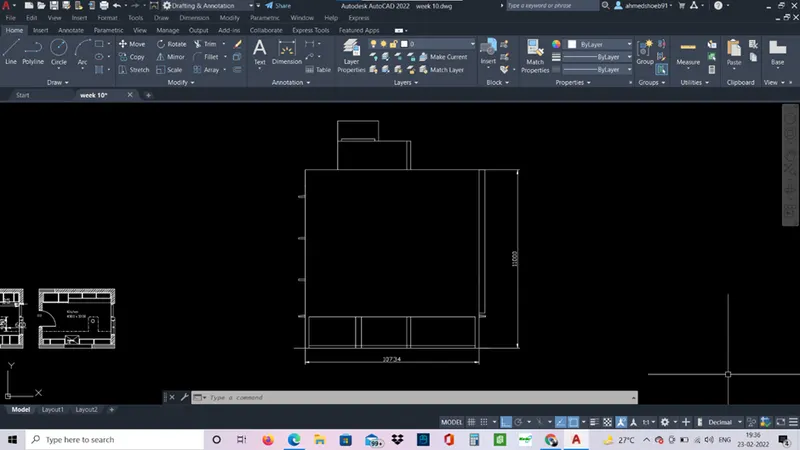

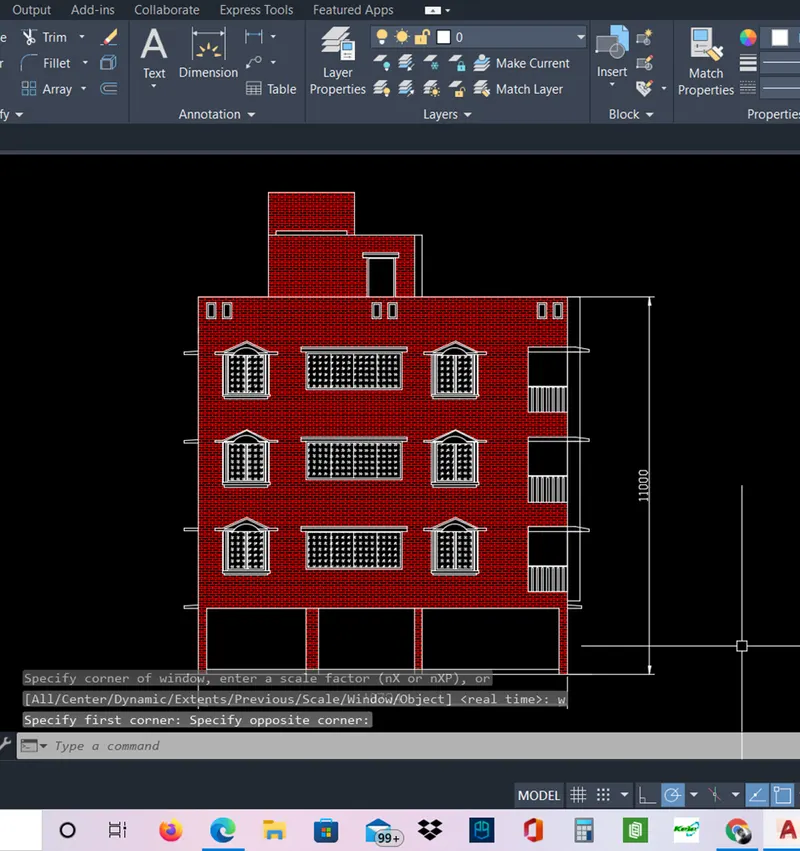

Aim: - to create the elevation of the plan in the AutoCAD and apply hatch to walls, doors and windows.

Procedure: -

• Use line command to draw the line.
• Dimensions are taken from week 7 challenge.
• Create a frame of the building.
•

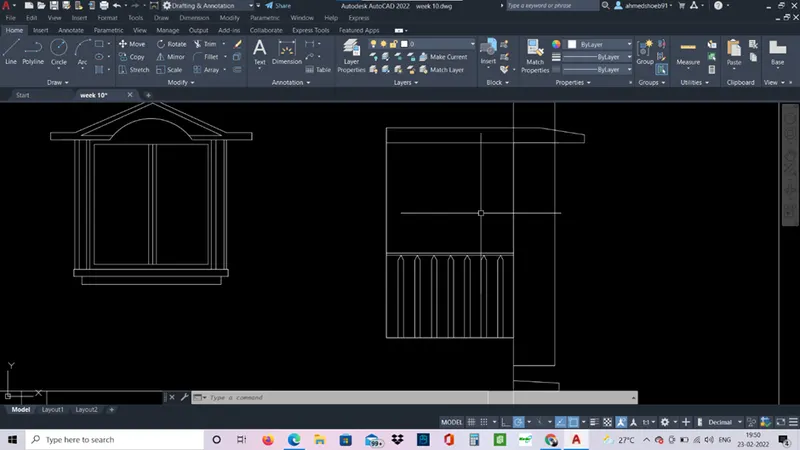

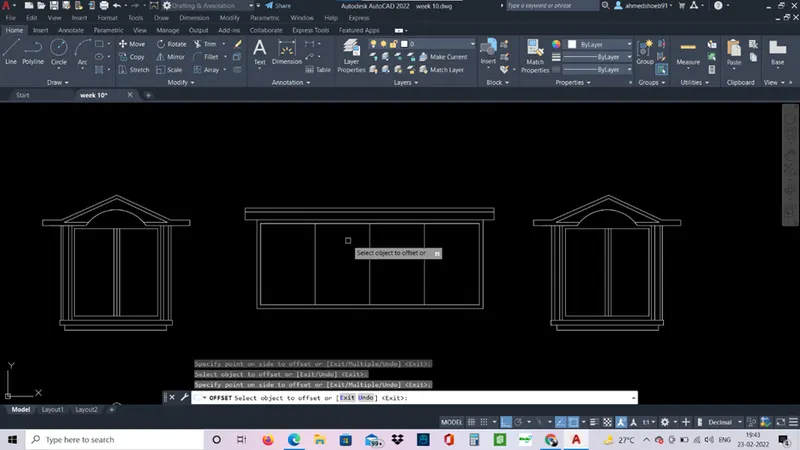

• Use line, trim, offset and arc command for the windows.
•
• Balcony is created with line command.
•
• Copy paste the windows in the required position.
•

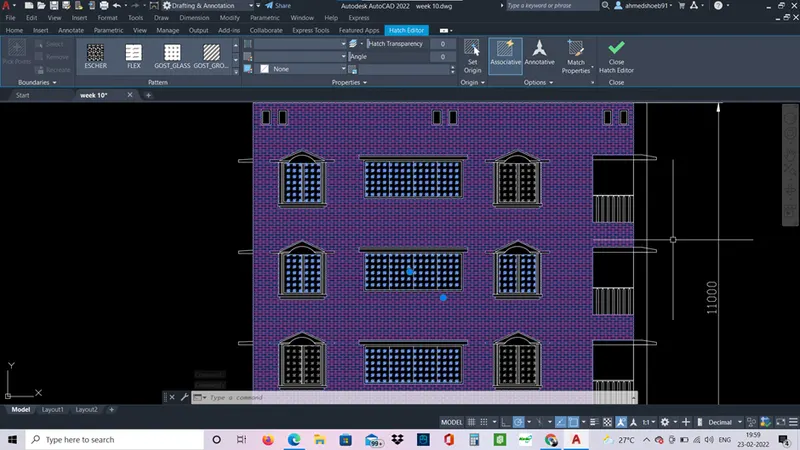

• Use hatch command and hatch the walls and window glass.
•

Result:-

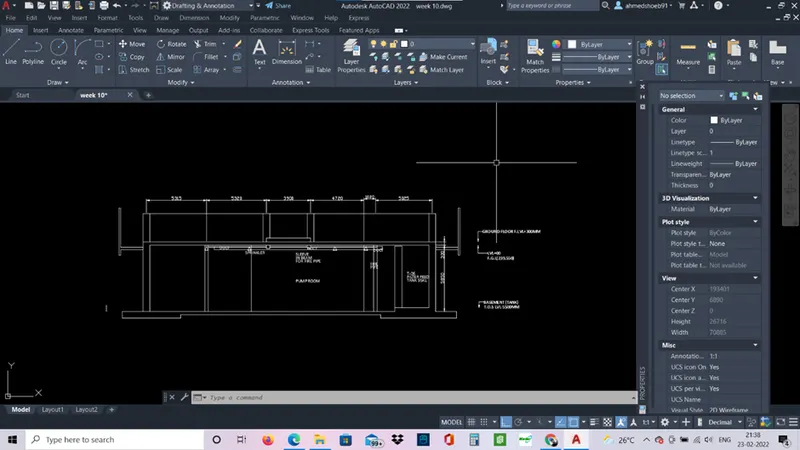

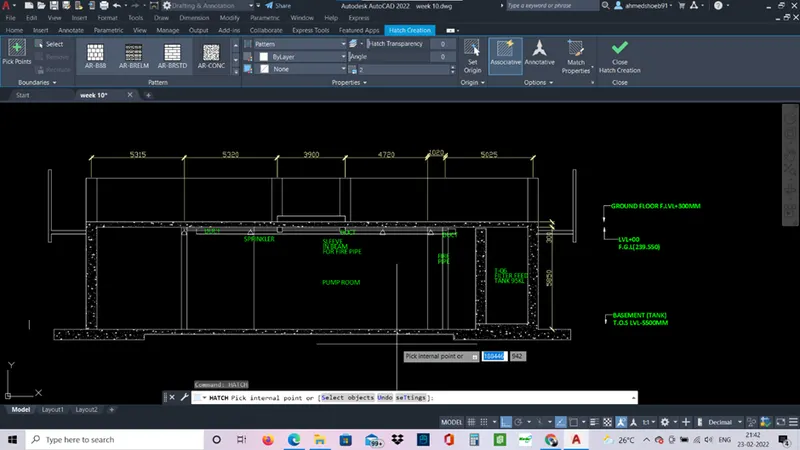

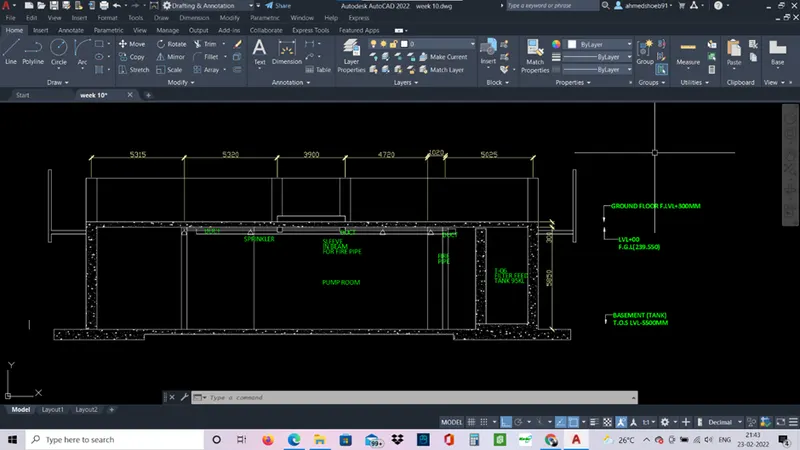

Aim: - to create a section view of the industrial building in the AutoCAD.

Procedure: -

• Draw a section view of the building using line command.

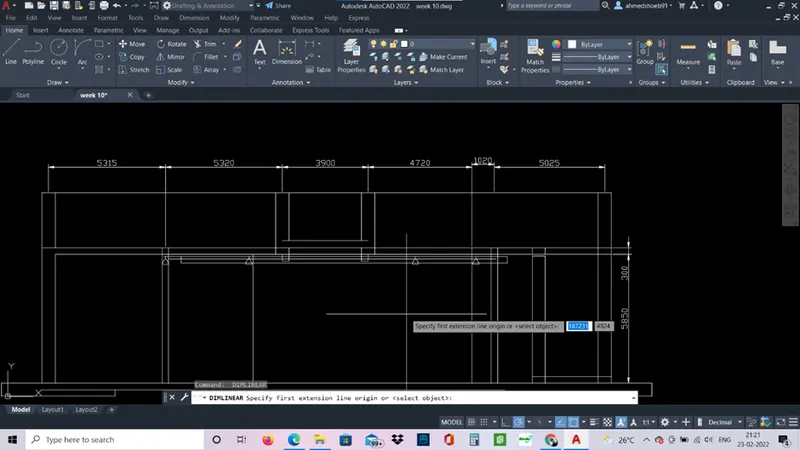

• Give dimensions accordingly.
• Use dtext for text and qleader for annotation.
•
•
• Use hatch command to give show concrete sections.
• Select AR.conc hatch in hatch and give it accordingly.
•

Result: -
