Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.

Aim:
Procedure:

Dynamo is a visual programming language.

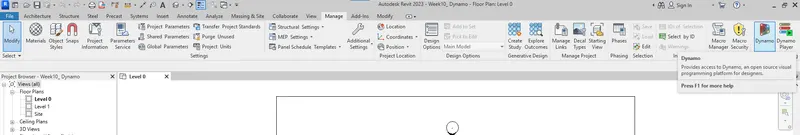

Manage > Dynamo > New

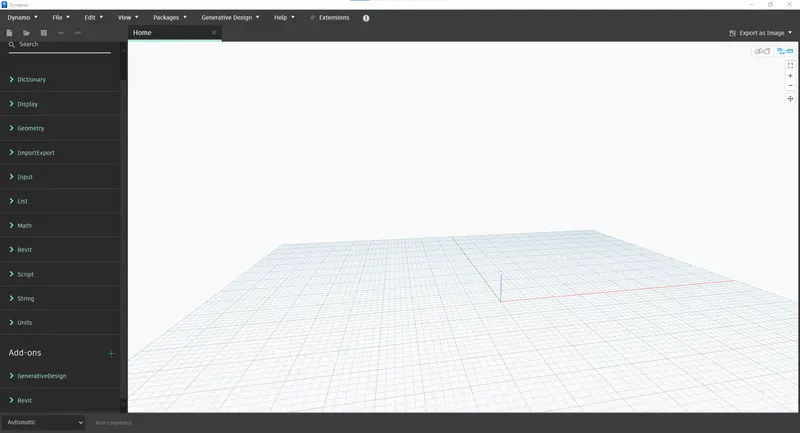

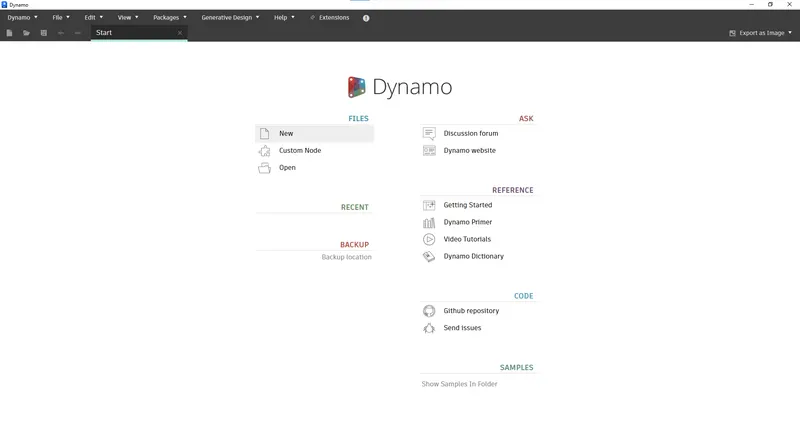

Dynamo will open

Interface

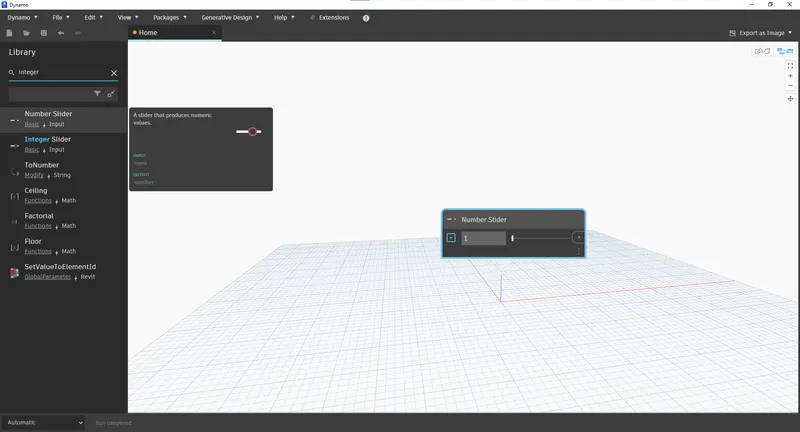

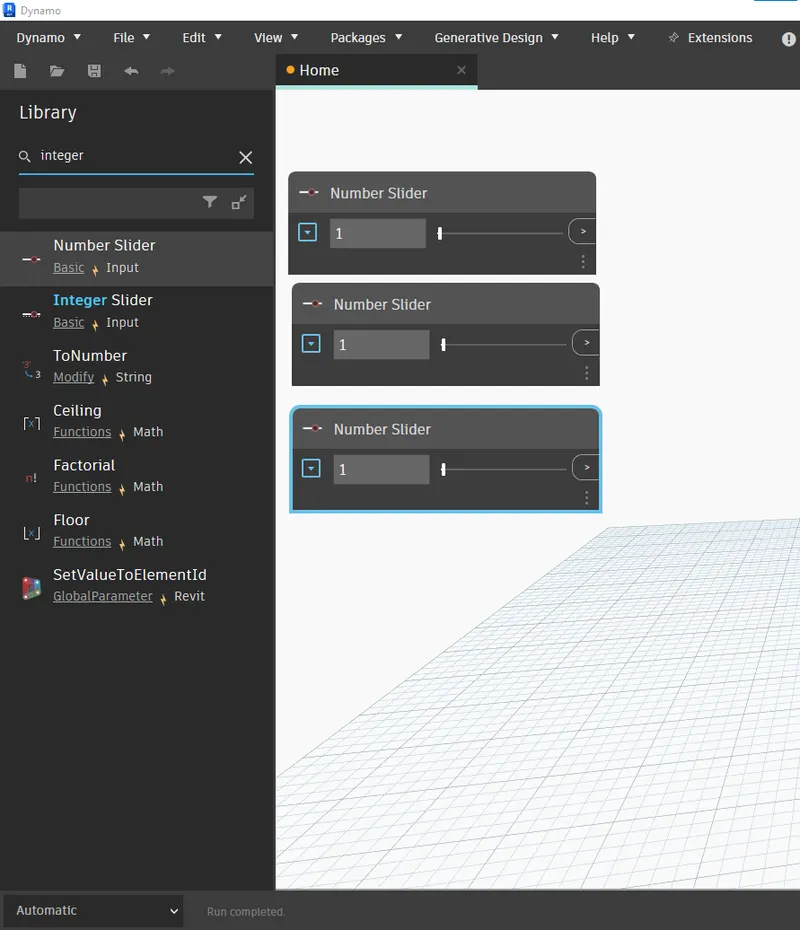

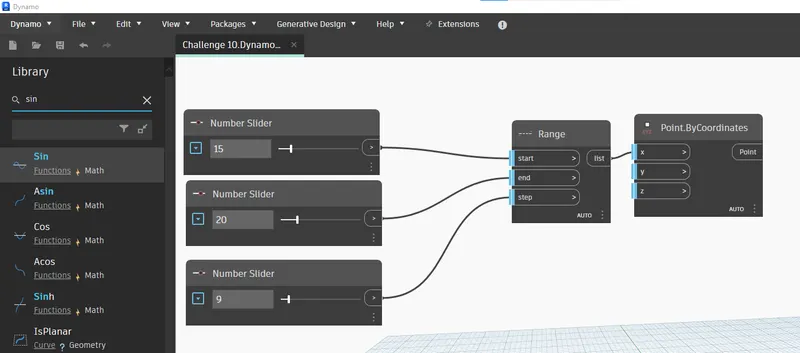

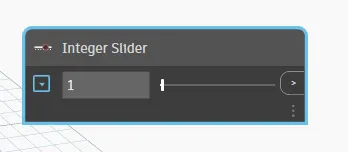

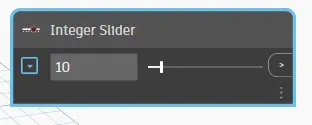

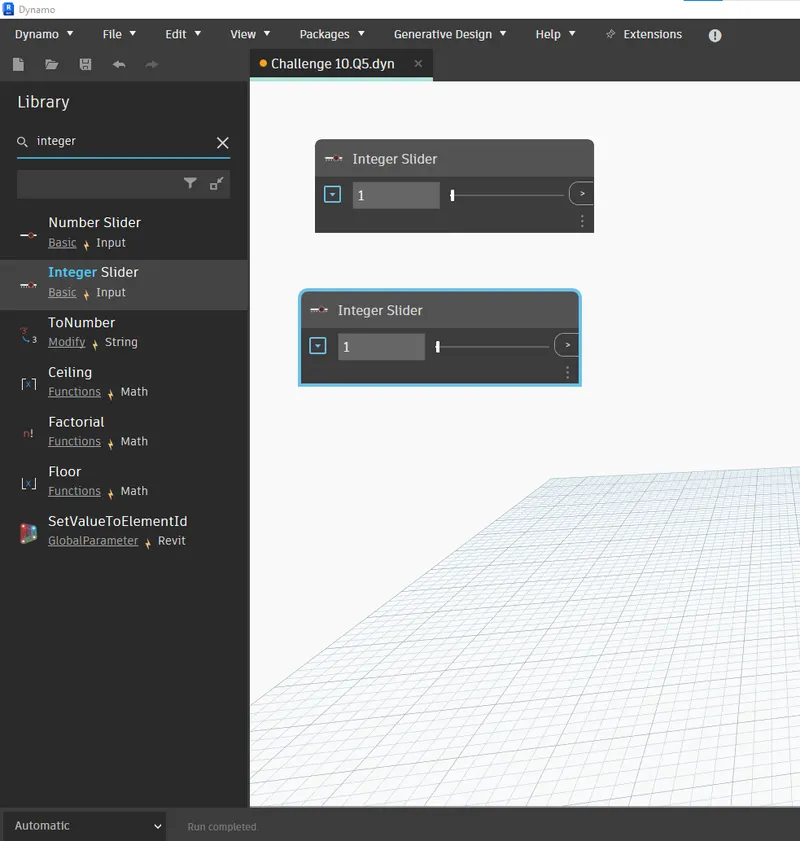

In the search tab type Integer slider and click that

Take 2 copies of the tab by ctrl +c & ctrl +v

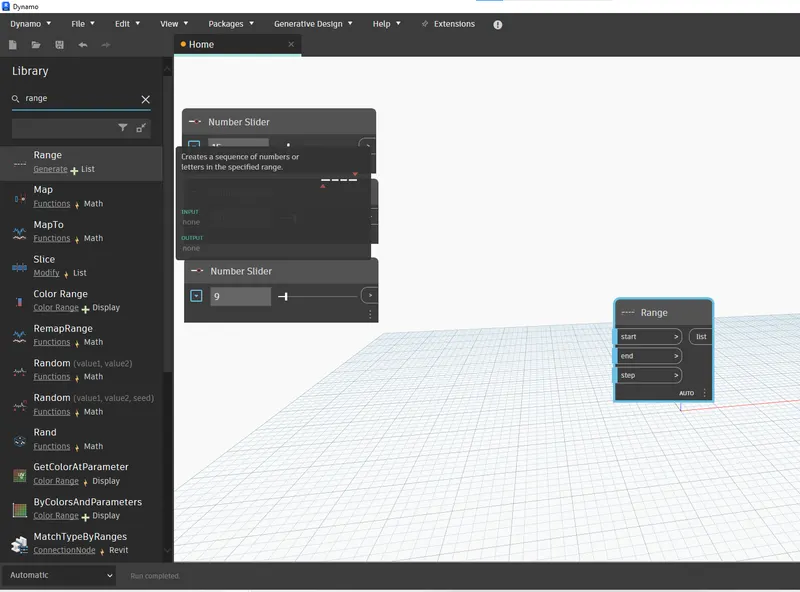

Create Range

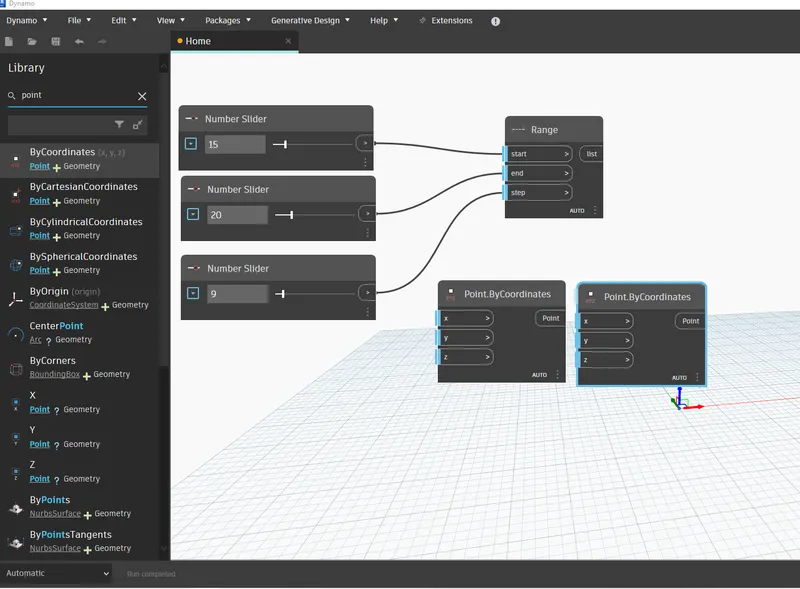

Create two numbers of PointByCoordinates

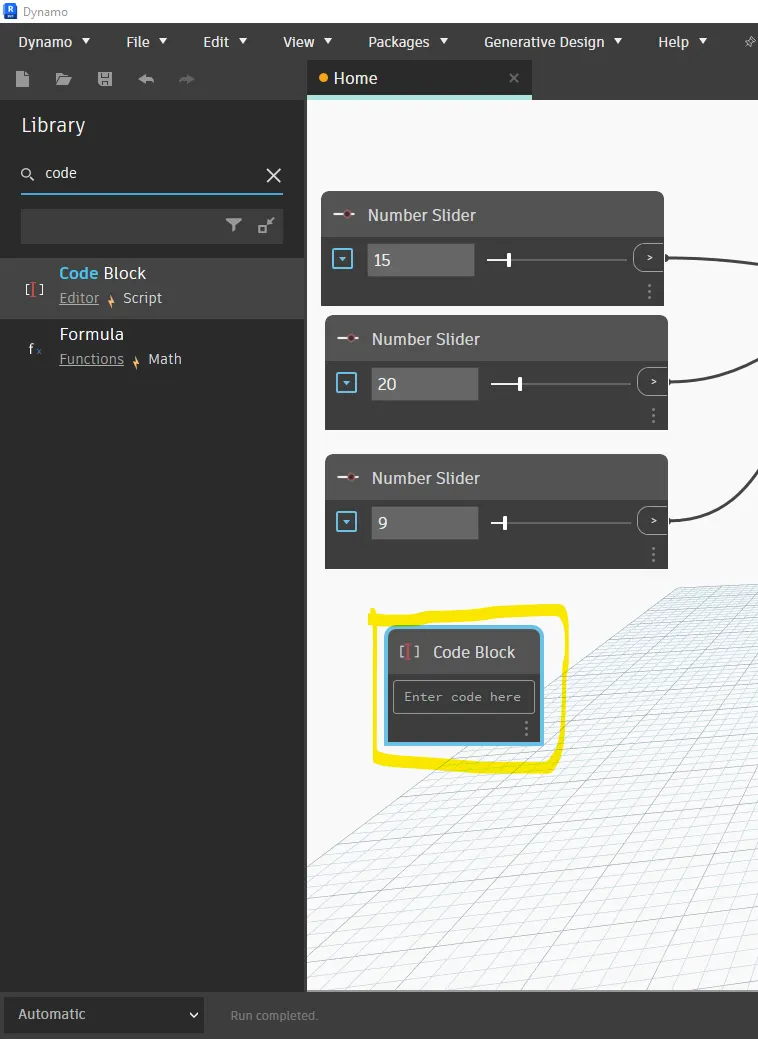

Create CodeBlock. Input as 50

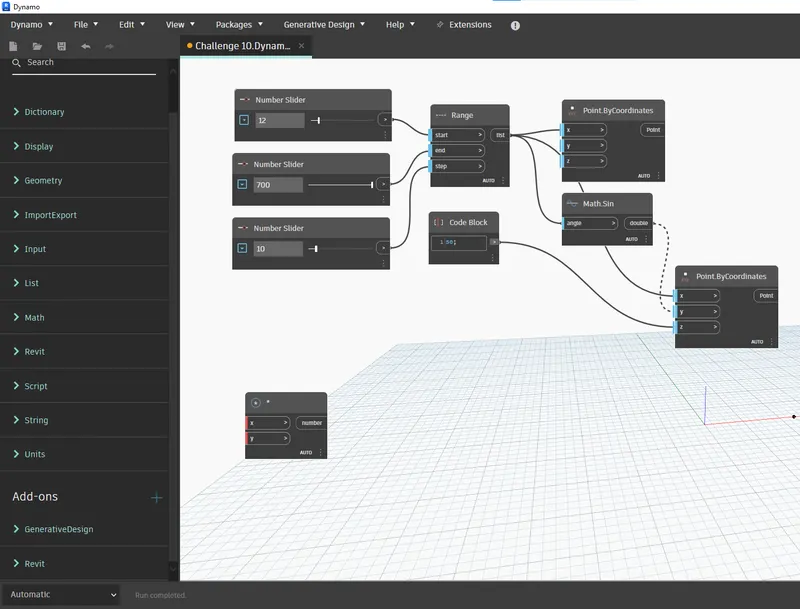

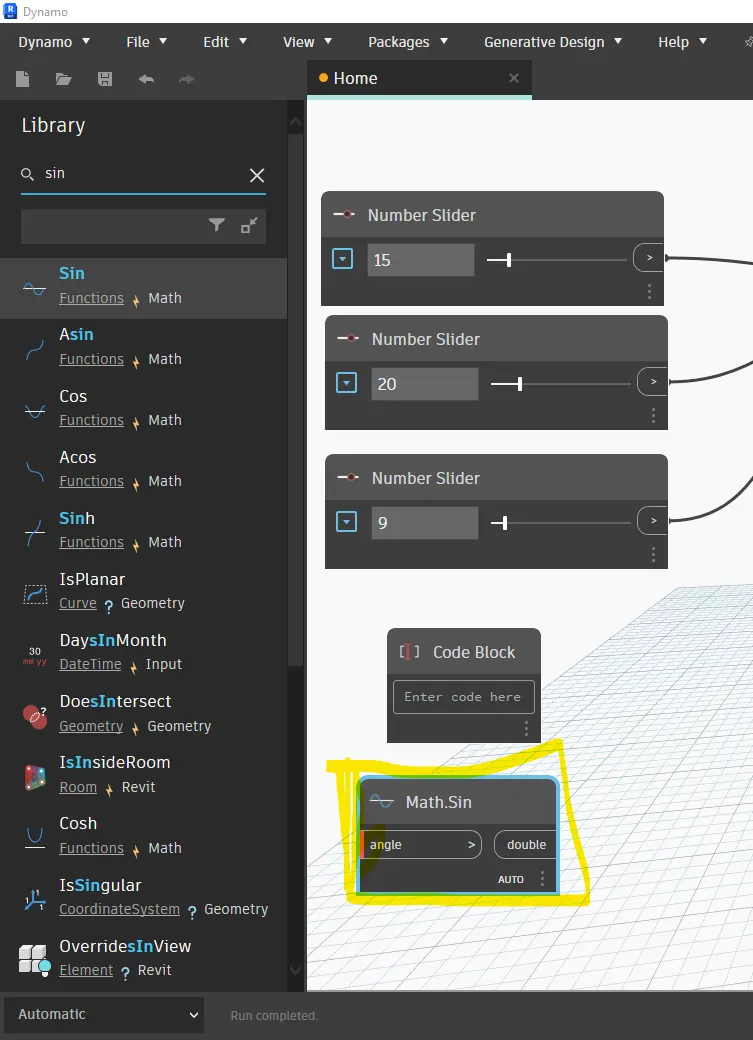

Create math.sin

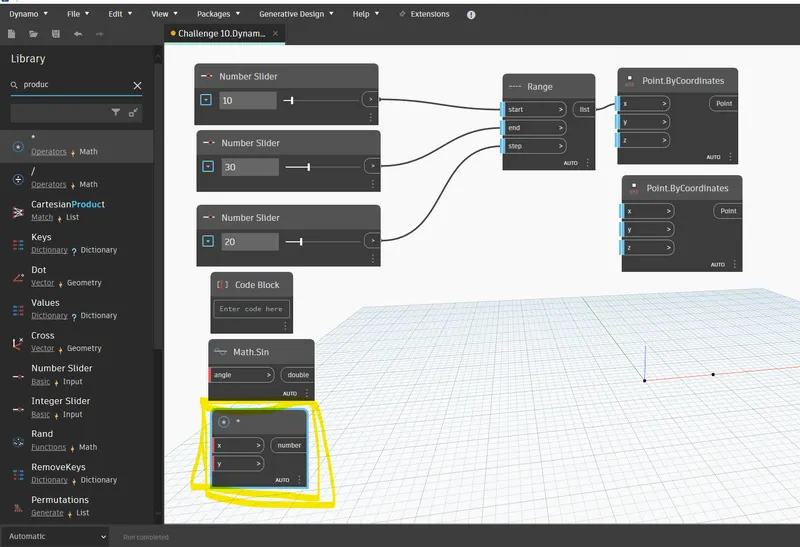

Create Product

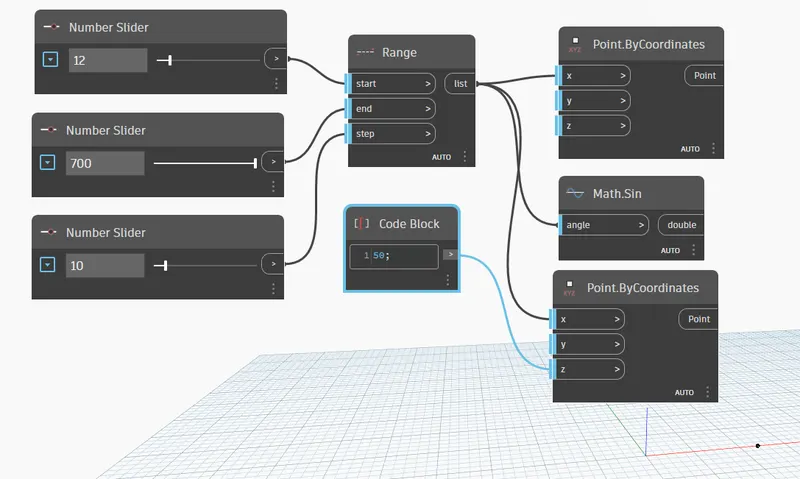

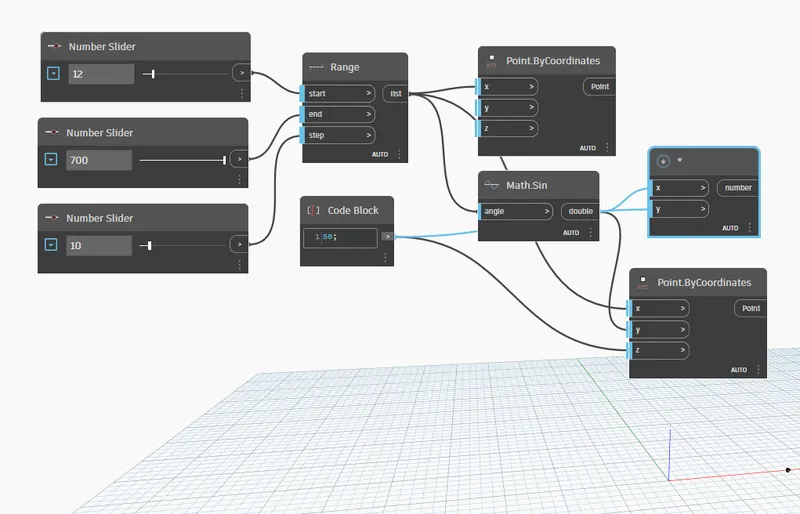

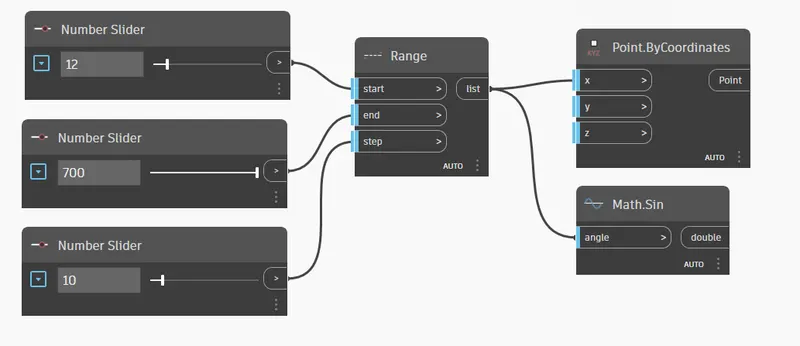

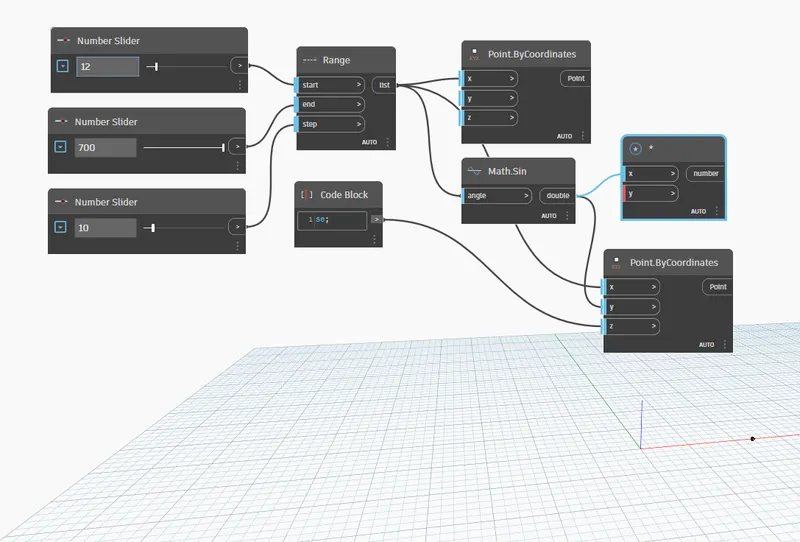

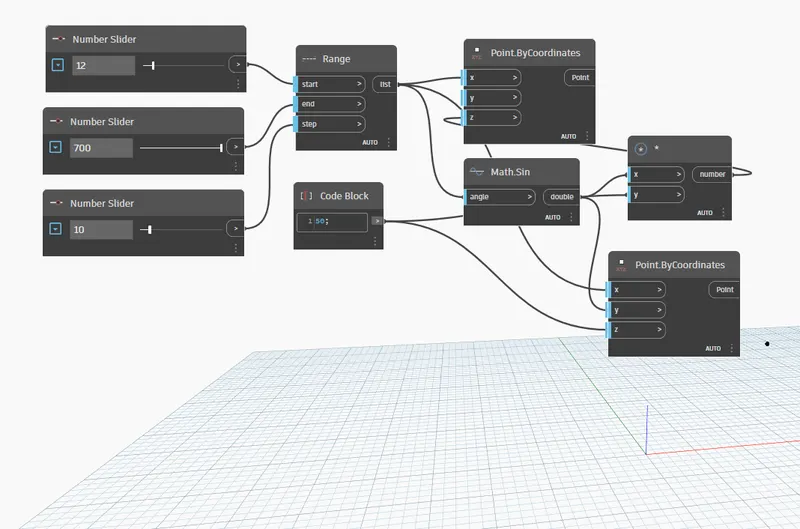

Connections

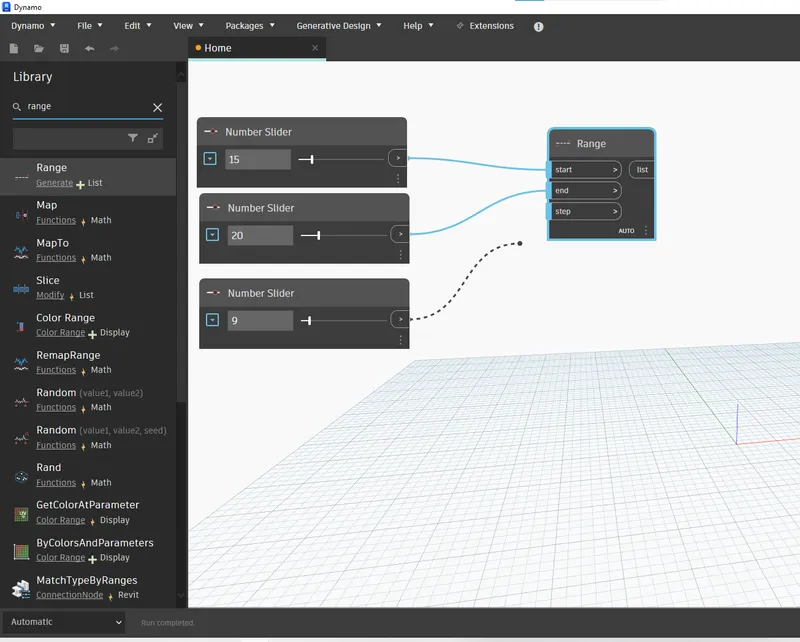

For connecting the integers create a Range

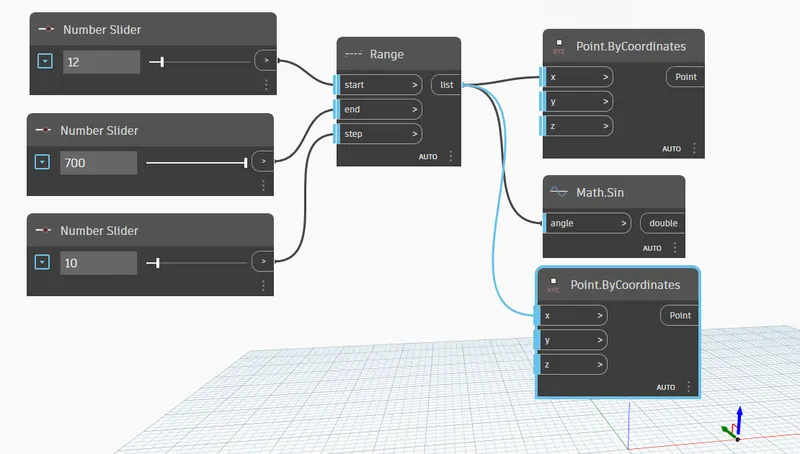

Now connect the Range to PointByCoordinate X

Connect Range to Math.sin

Connect Range to PointByCoordinates X

Conncect CodeBlock to PointByCoordinate Z

Connect Math.sin to PointByCoordinate Y

Connect Math.sin to Product X

Conncect CodeBlock to Product Y

Connect Product Varient to PointByCoordinate Z

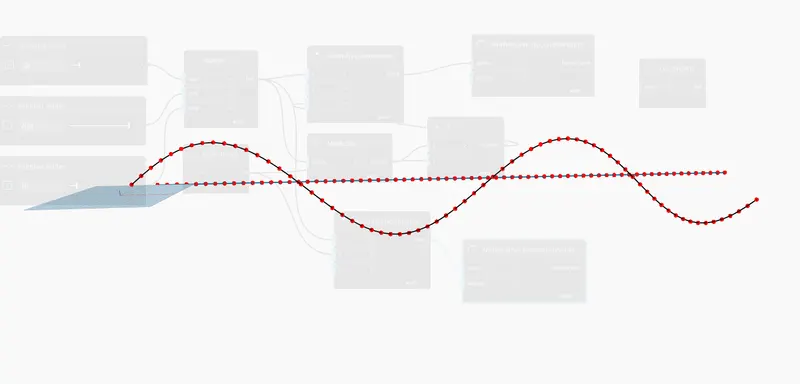

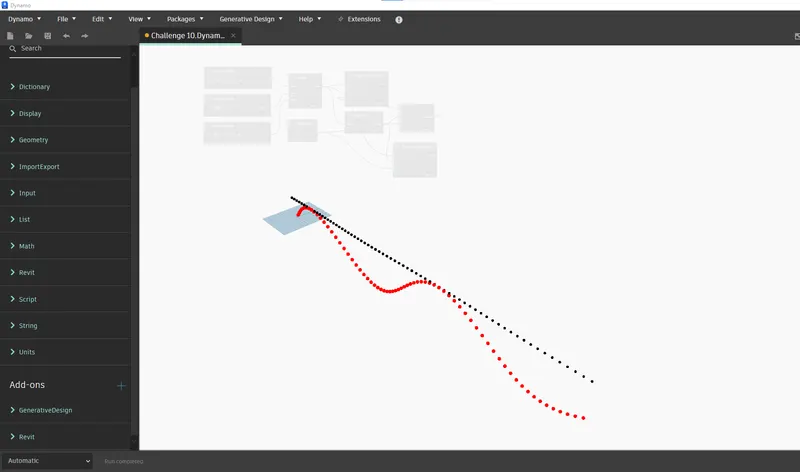

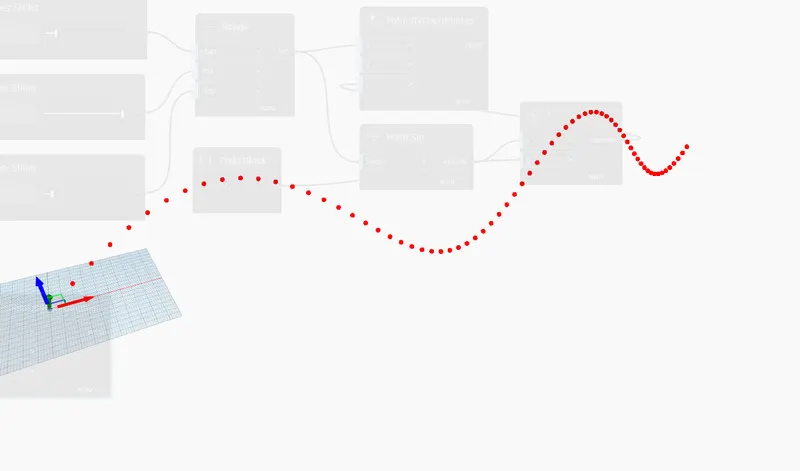

Result:

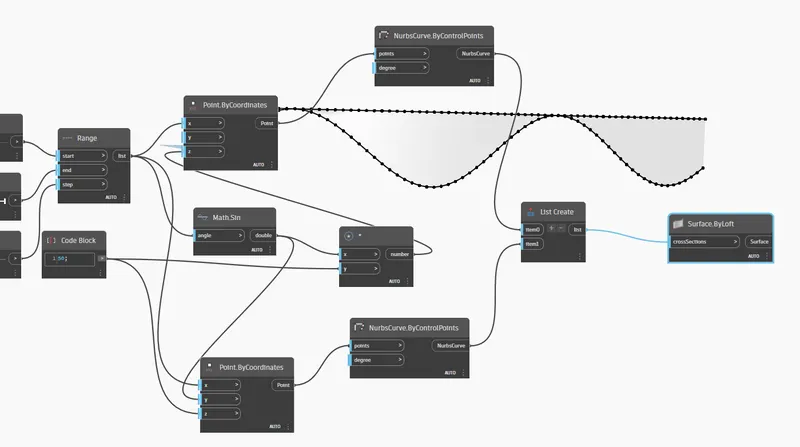

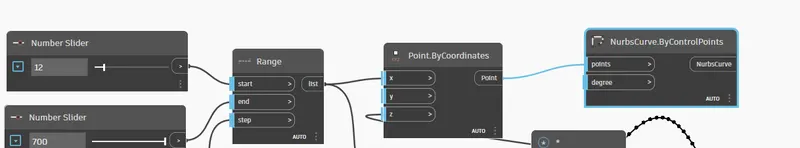

For Creating Curve

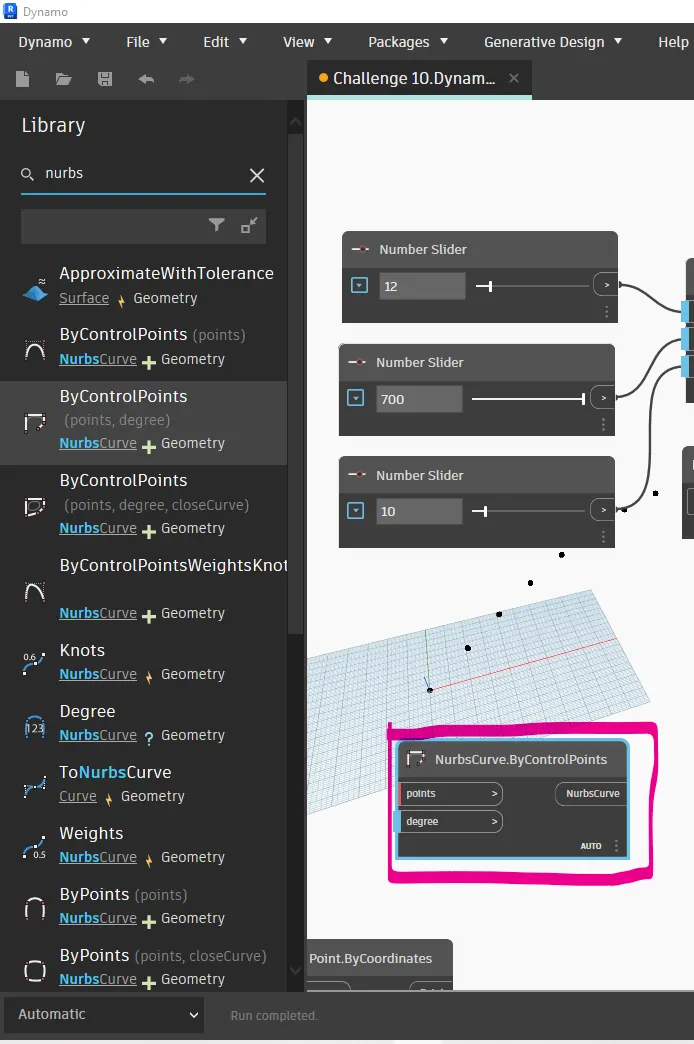

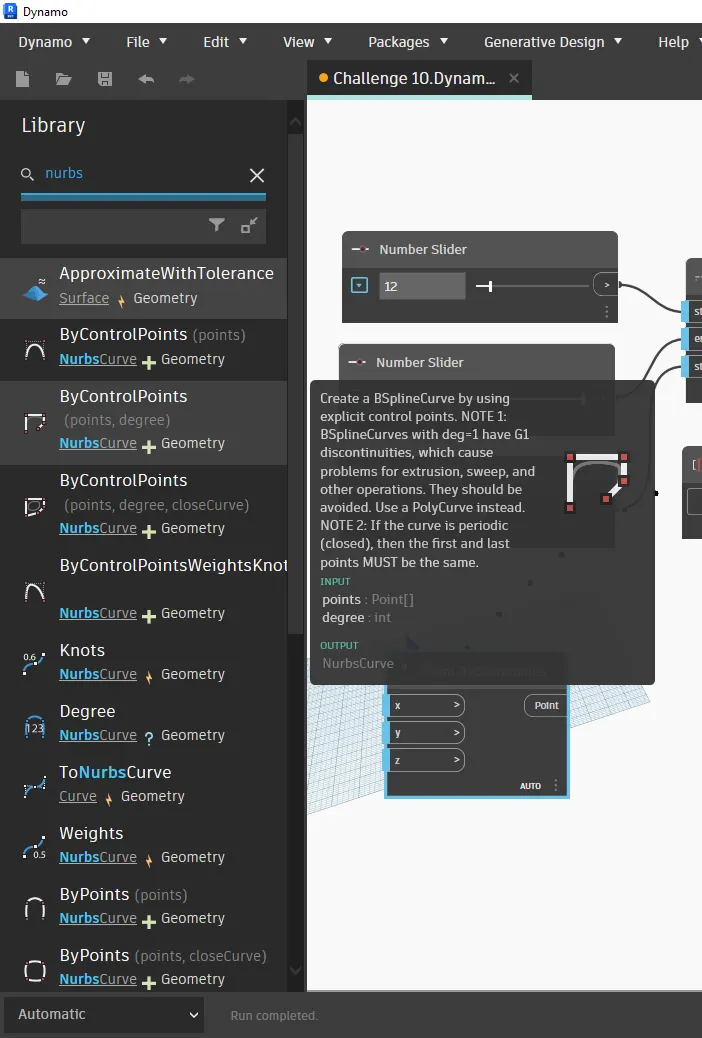

Create NurbsBy Point

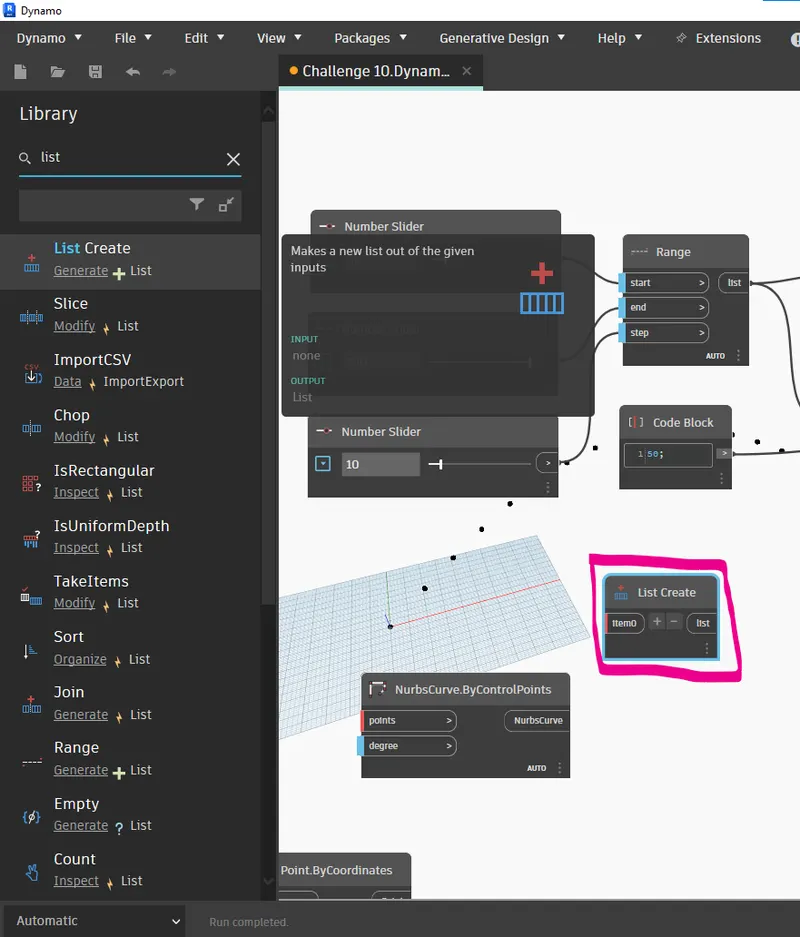

Create List Create

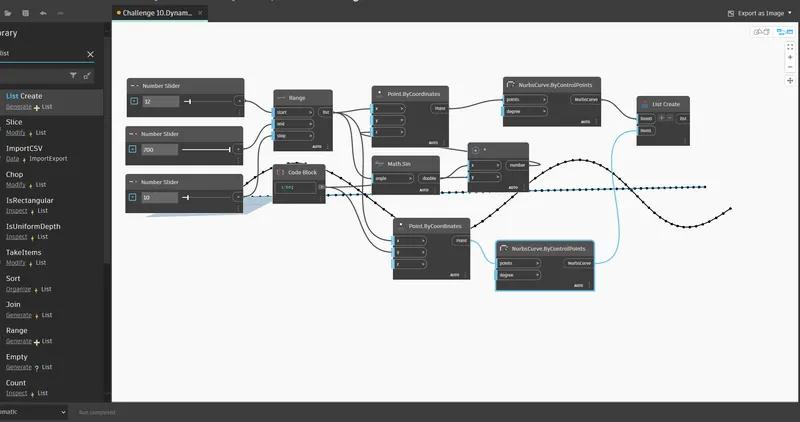

Connect for Creating curves PointByCoordinates to NurbsCurve.ByControlPoints

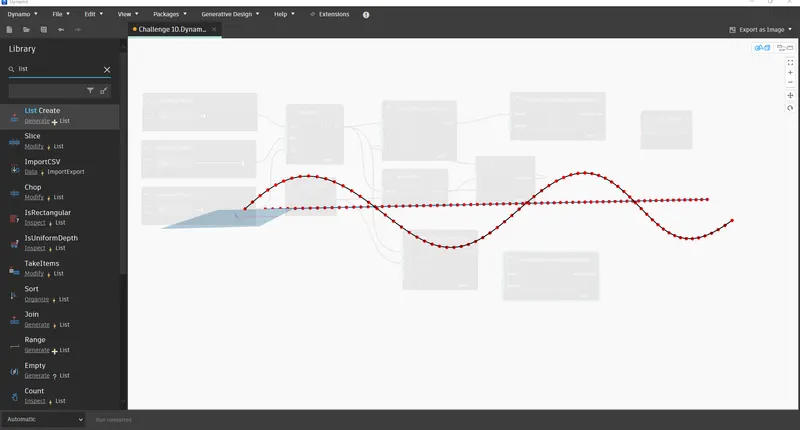

Results:

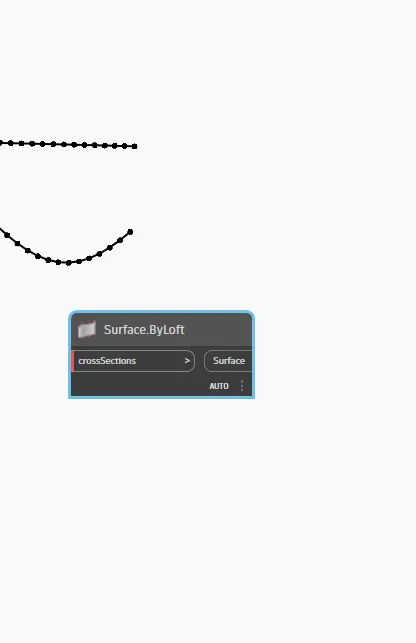

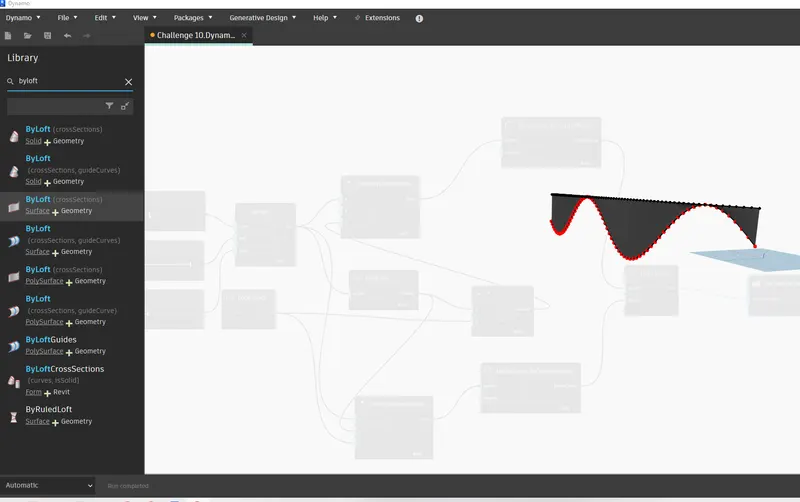

For creating Surfate type Byloft

Connect List Tto Byloft

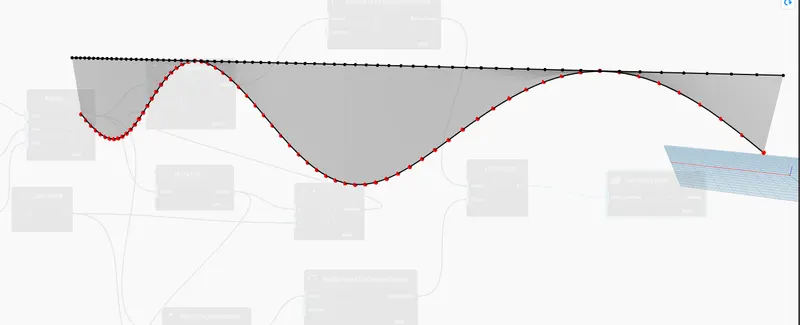

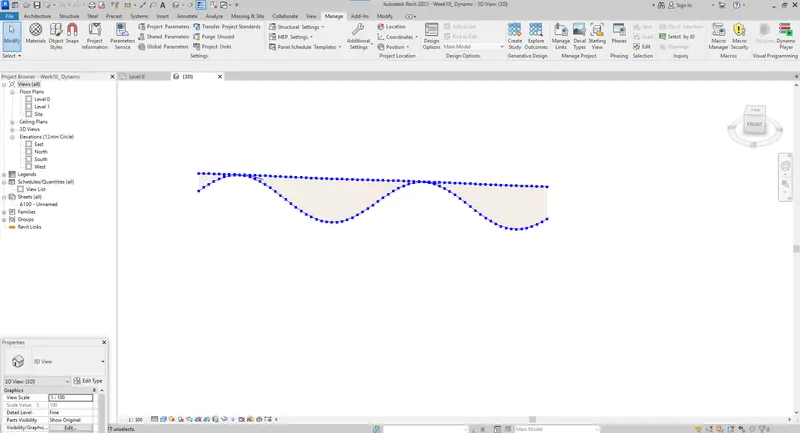

Final Result:

2) Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall parameters. Make use of the sliders to slide through the height of the wall and length of the wall.

Aim: To Create a conceptual layout of floor plan in dynamo

Procedure:

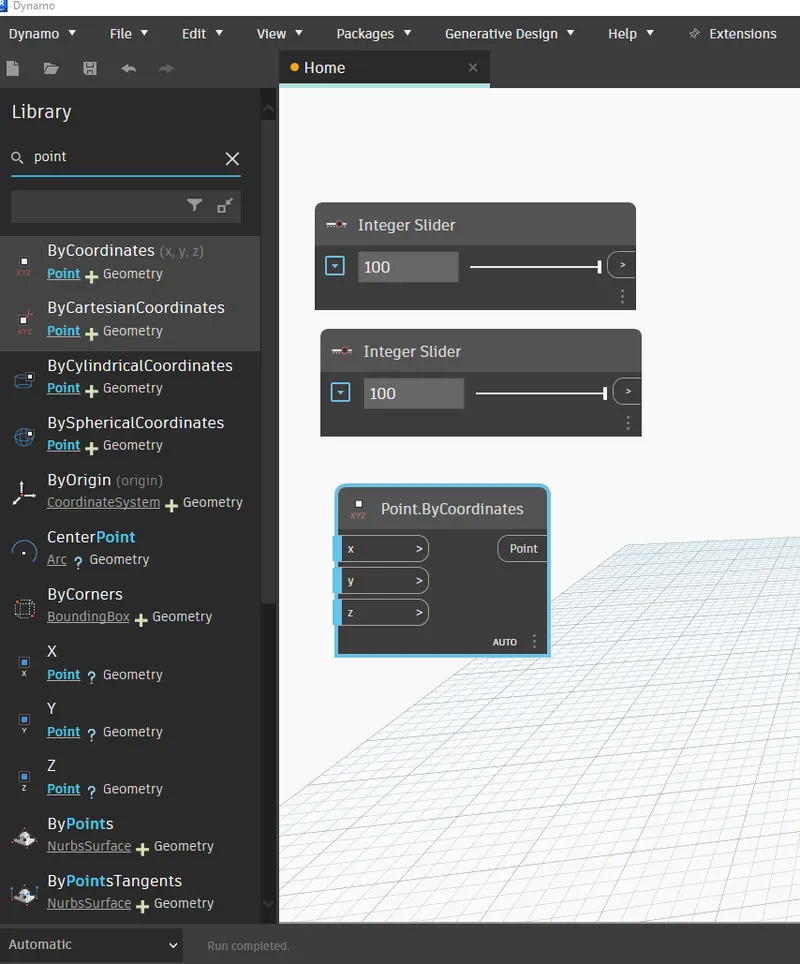

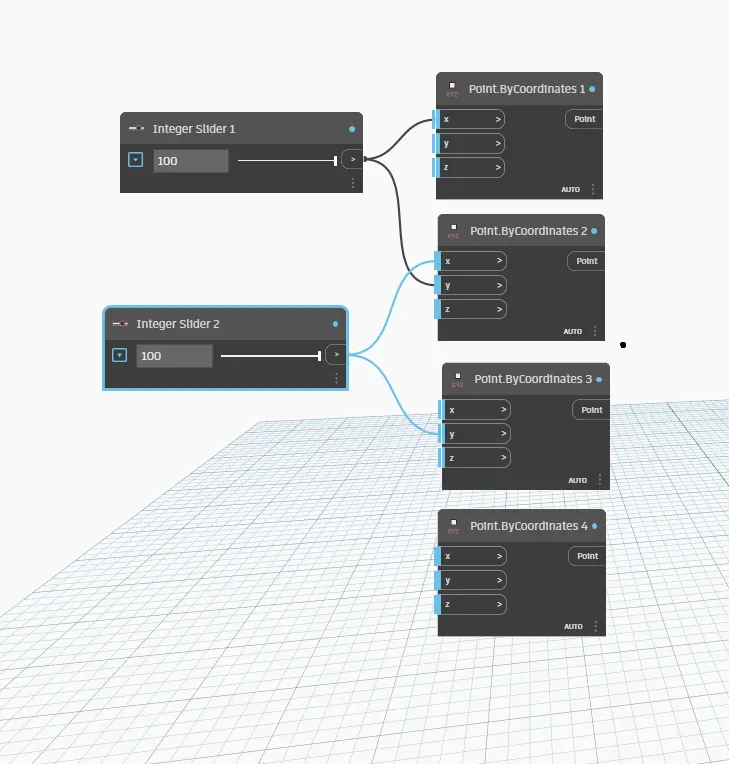

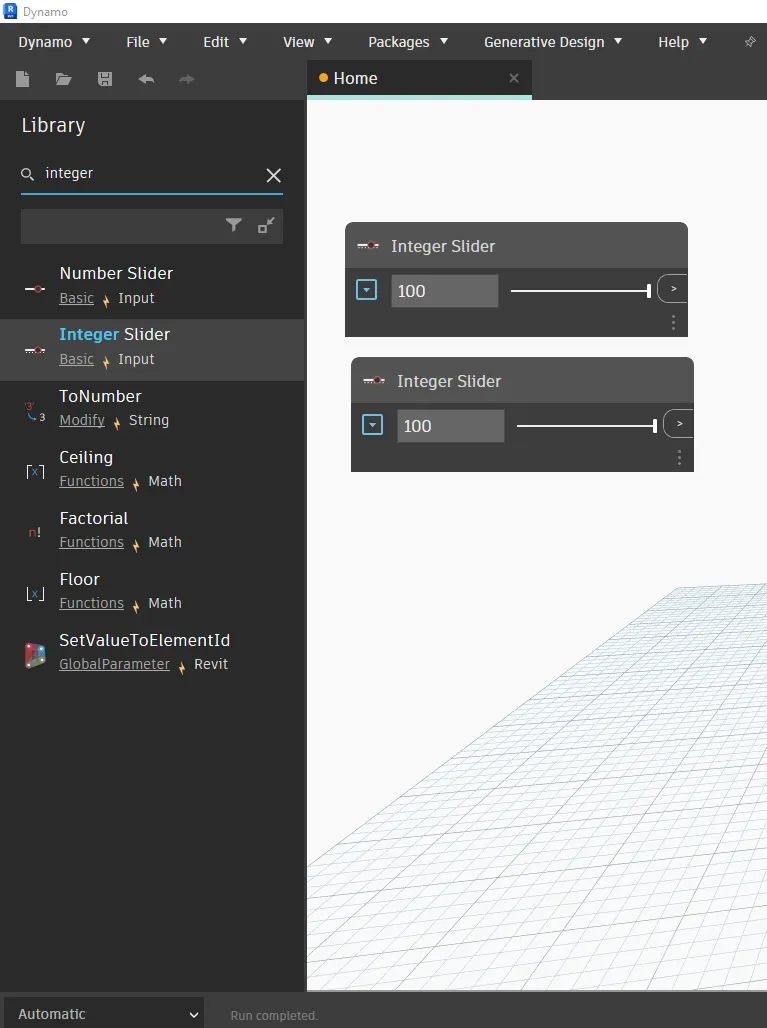

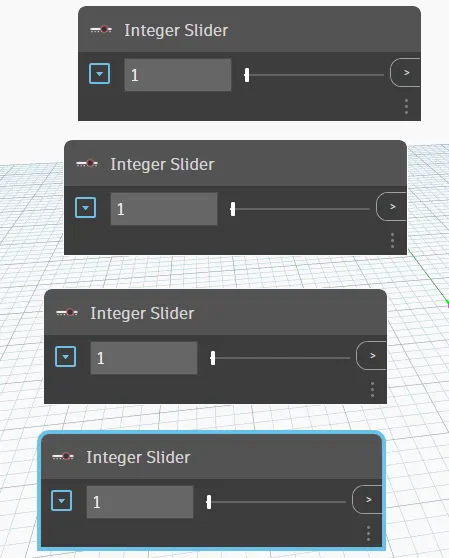

Create two integer Slider &input the value as 100 in both.

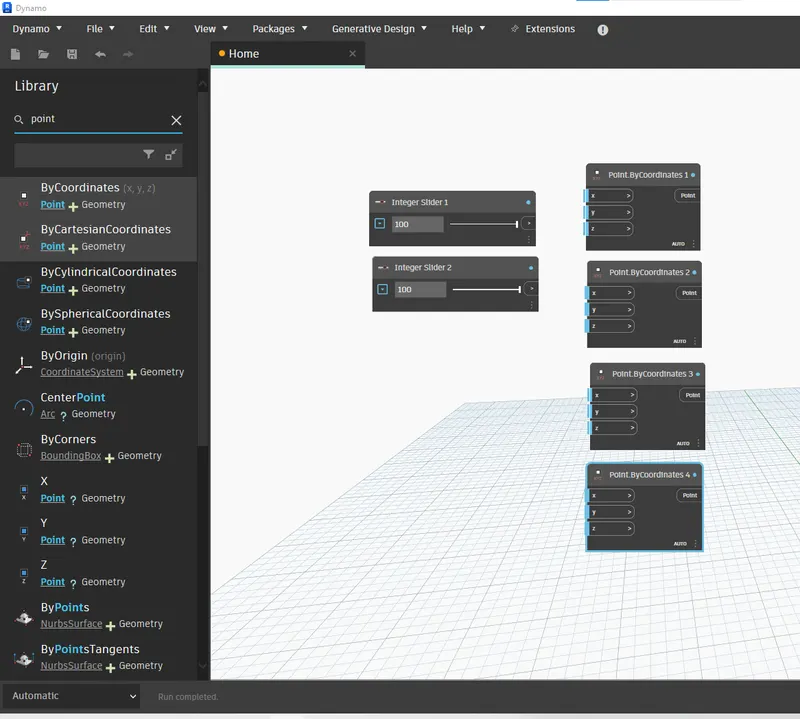

Create PointByCoordinate (x y z) & take 3 copies

Connect IntegerSlider 1 to PointByCoordinate1 X & PointByCoordinate2 Y

Connect IntegerSlider 2 to PointByCoordinate2 X & PointByCoordinate3 Y

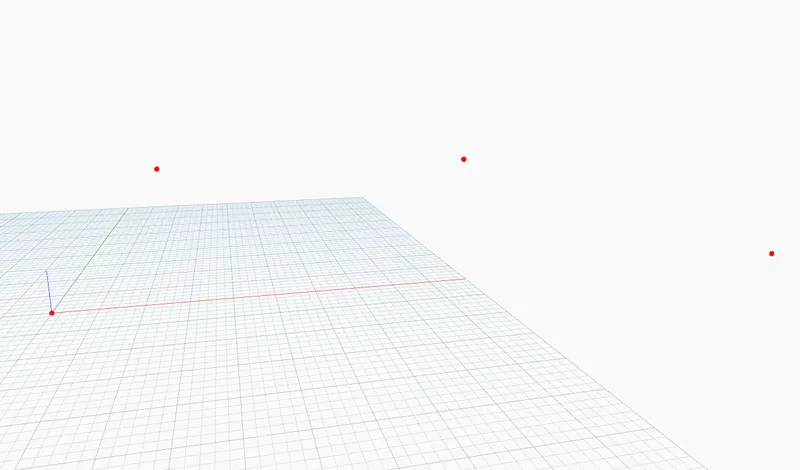

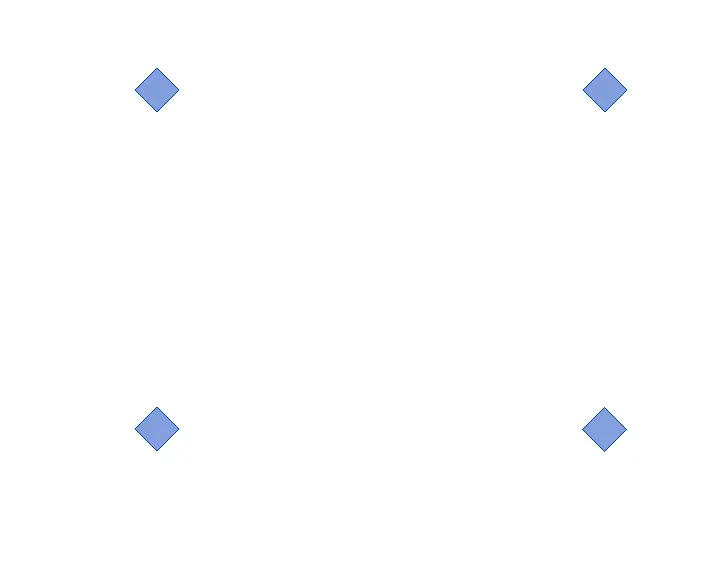

So now we created 4 points

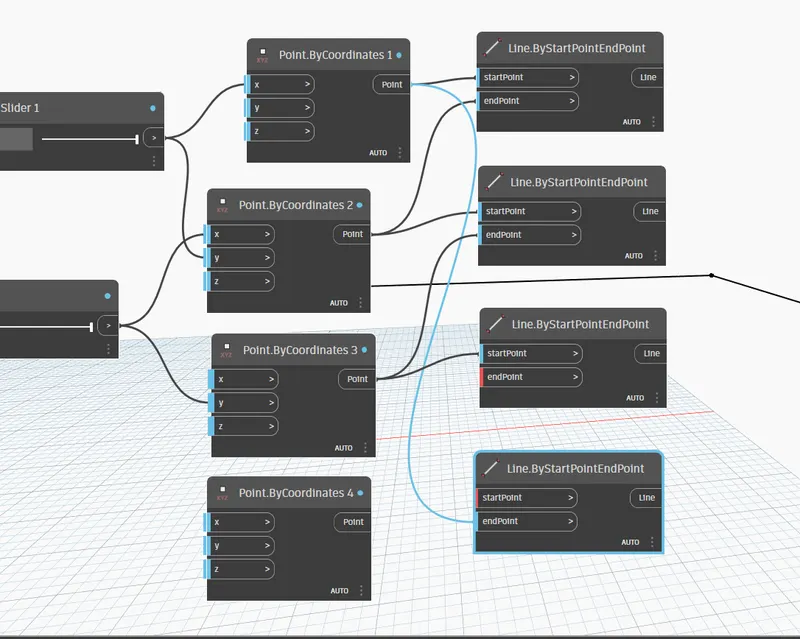

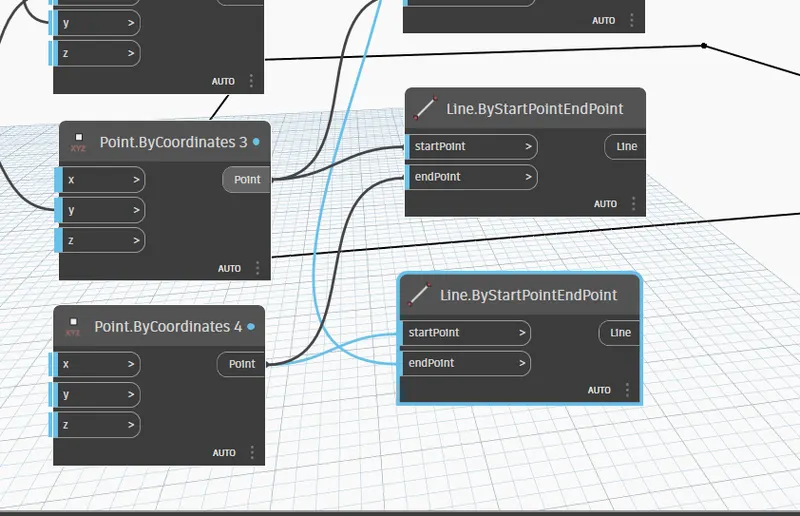

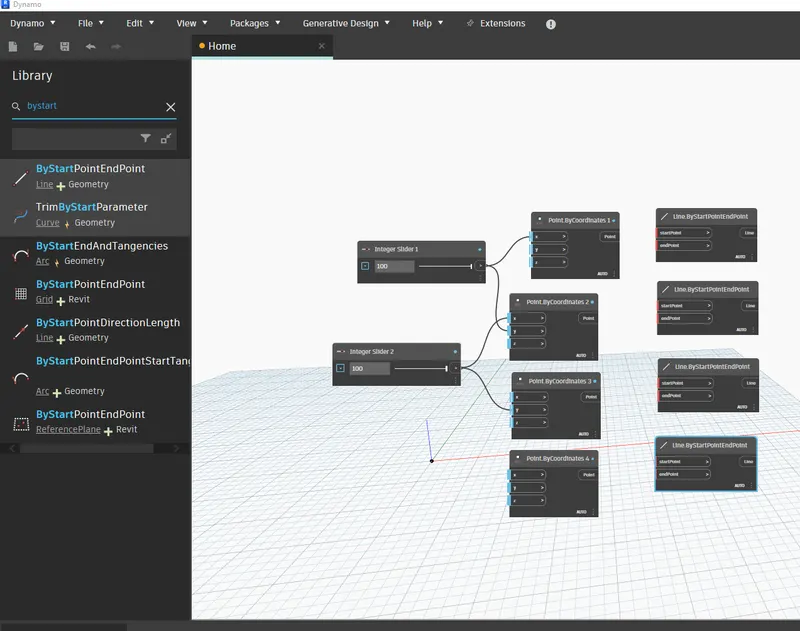

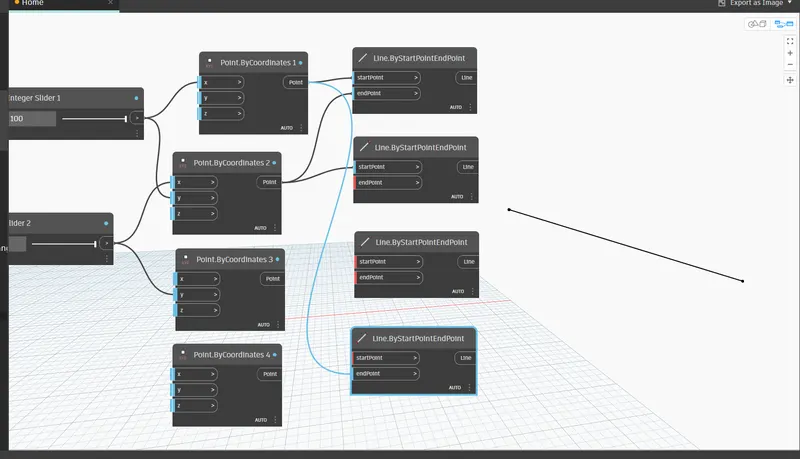

For creating the lines, Create line ByStartPointEndPoint & take 4 copies

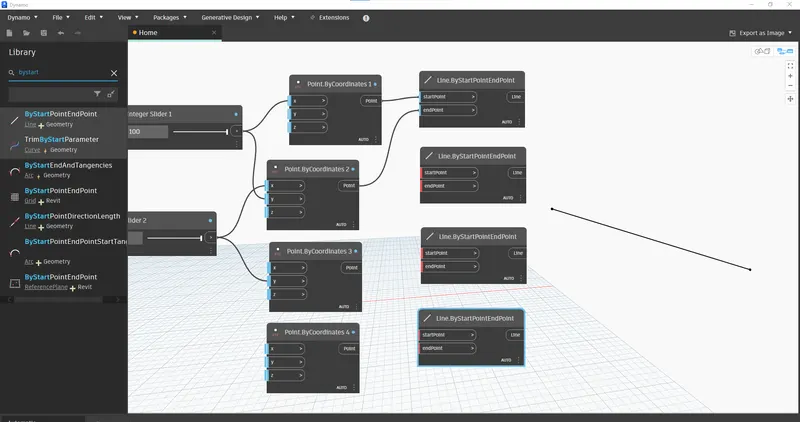

And connect as follows

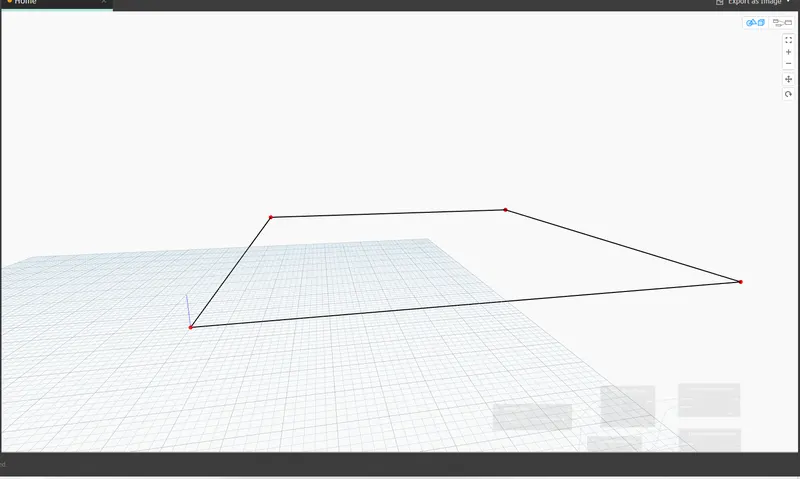

Results:

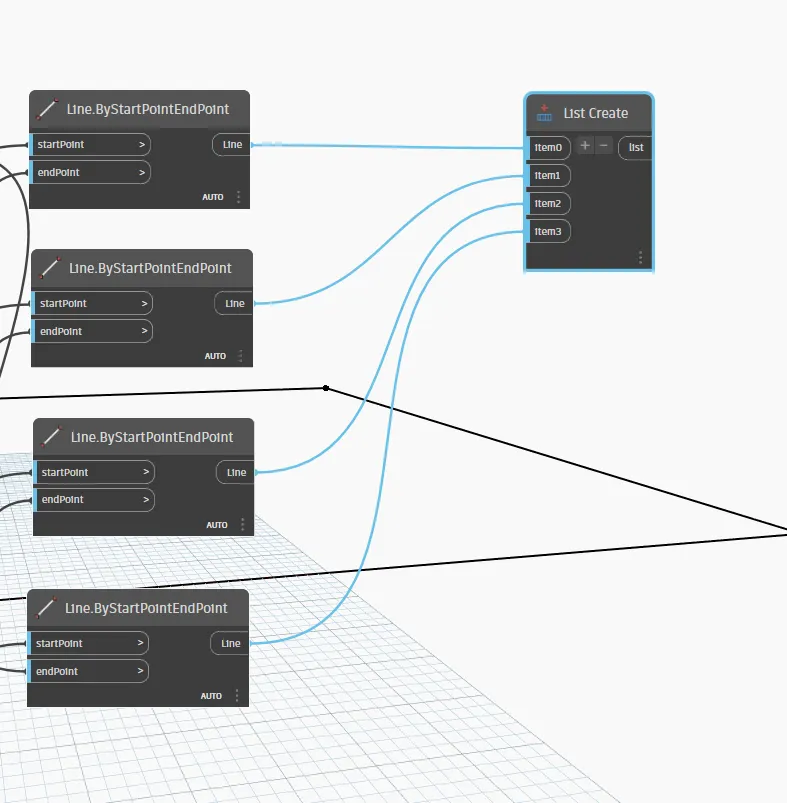

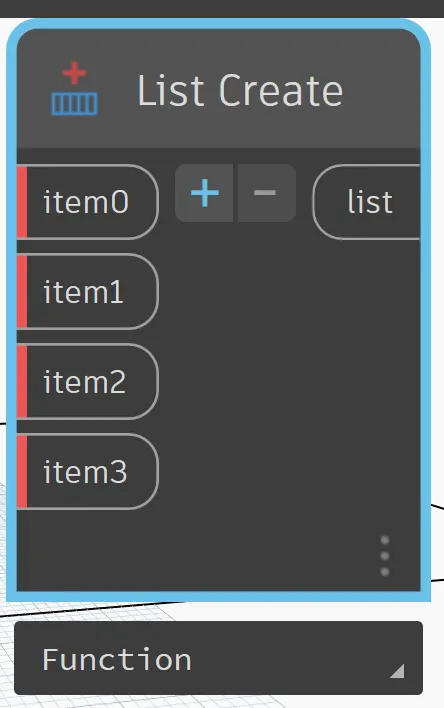

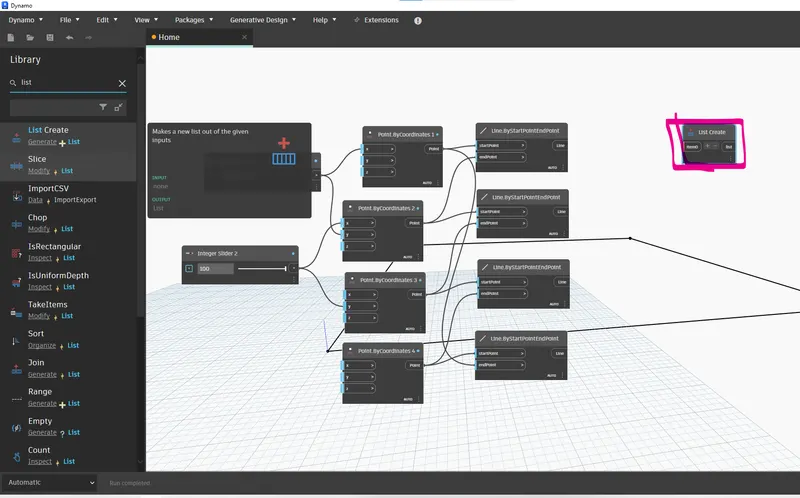

In order to create the complete wall we need to connect with List Create option

Create 3 more items by clicking +

Connect each Line with Items

For Setting the levels
Create levels make it as Level 1

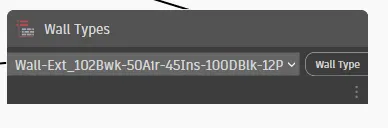

Create Wall Type Slect Wall Type


Create IntegerSlider Choose as 10

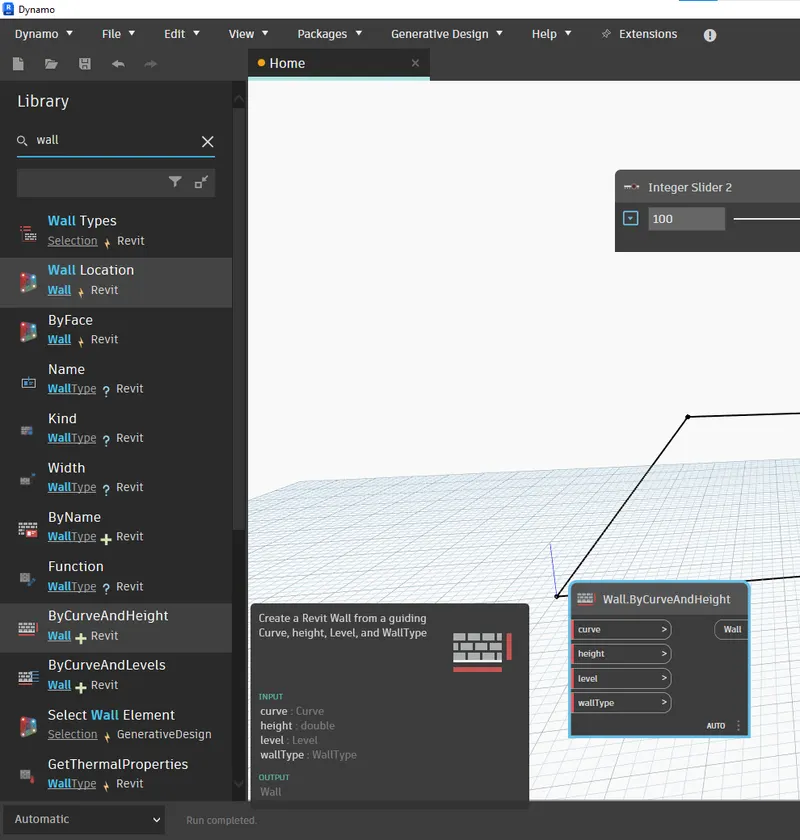

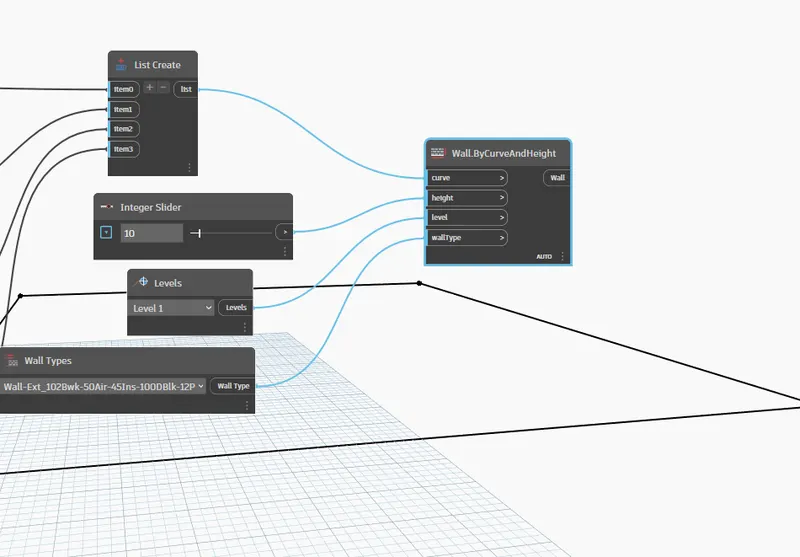

Create Wall ByCurveandHeight option

Connect as shown

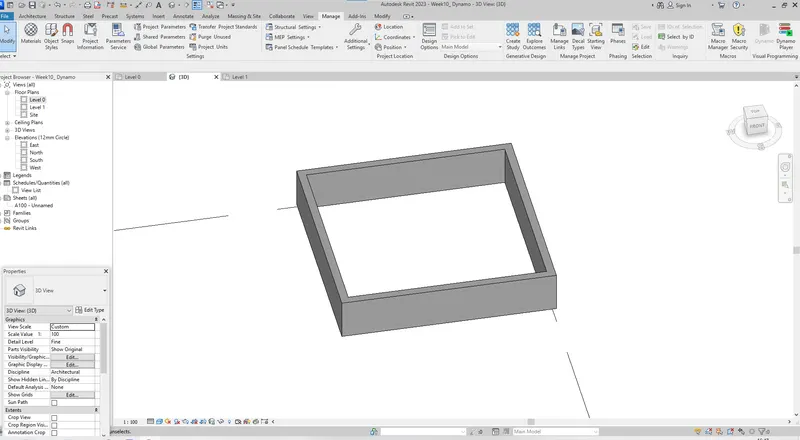

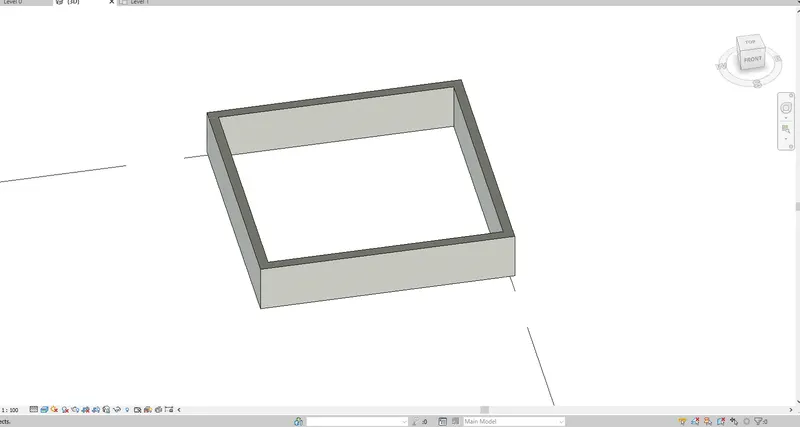

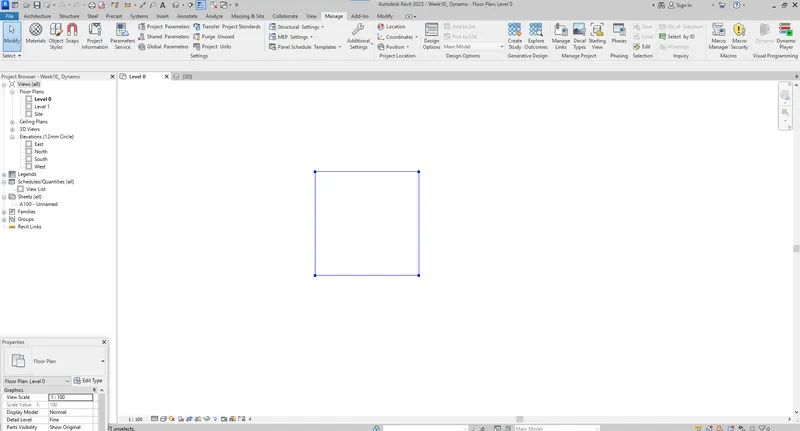

Results:

For Creating the floor

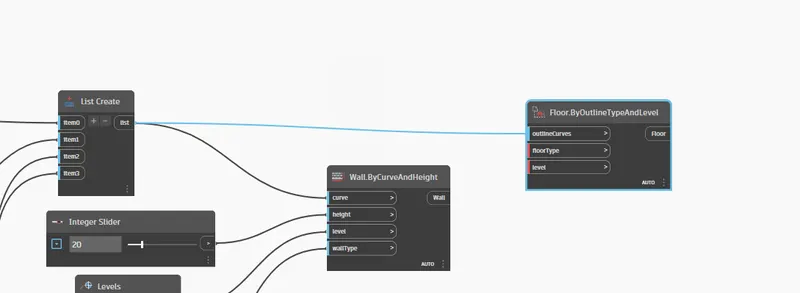

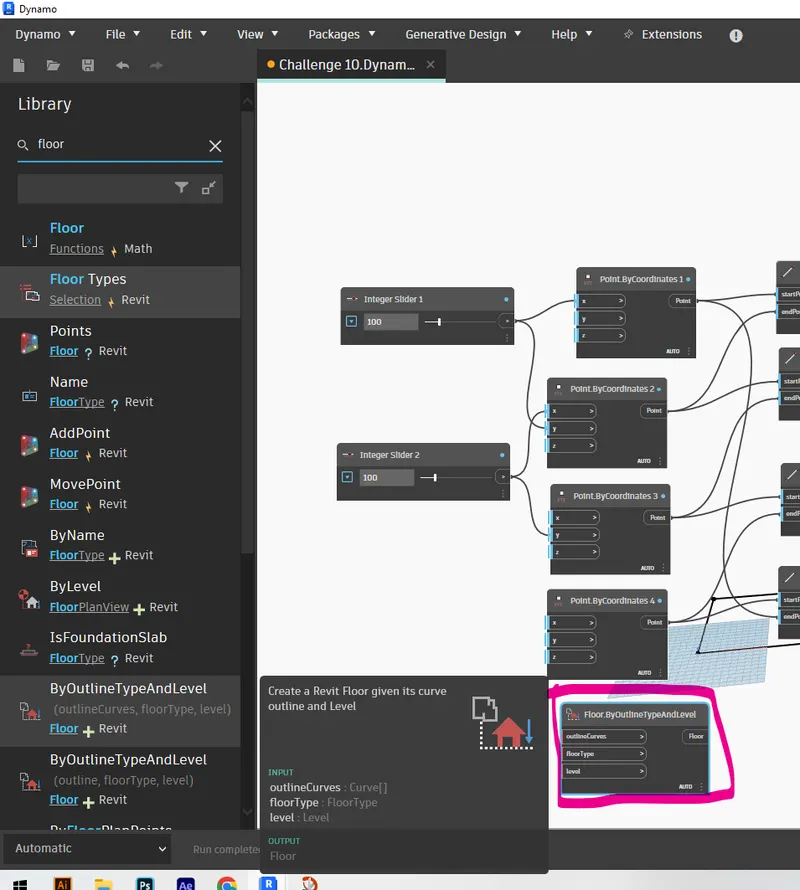

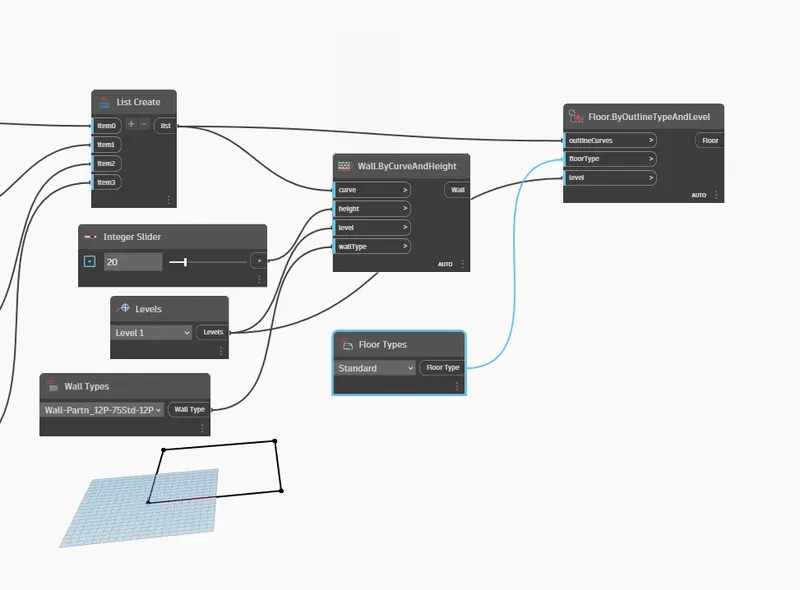

Create Floor.ByOutlineTypeAndLevel & FloorType



Connections

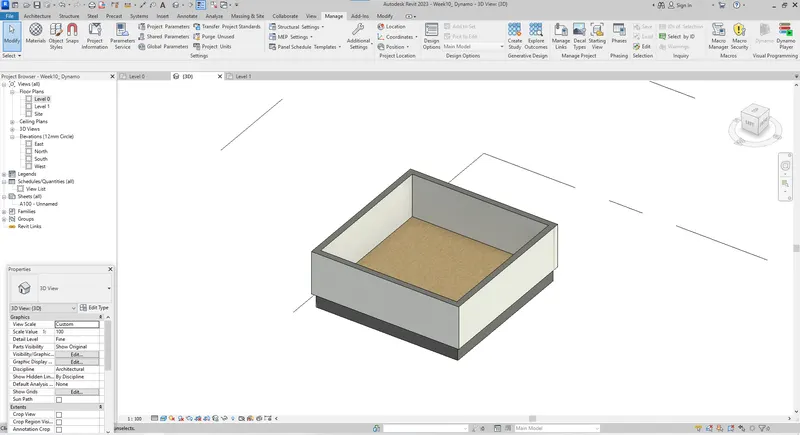

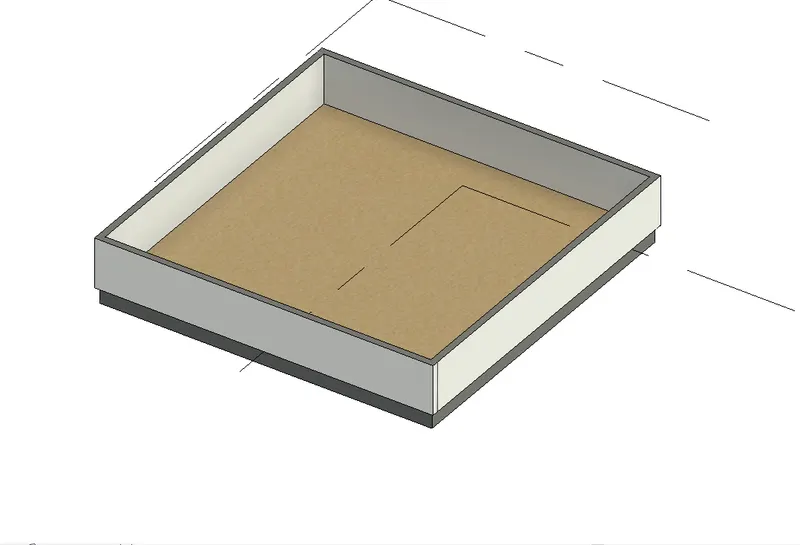

Results:

3) Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block

Aim: To create an array of model elements in Revit
Procedure:

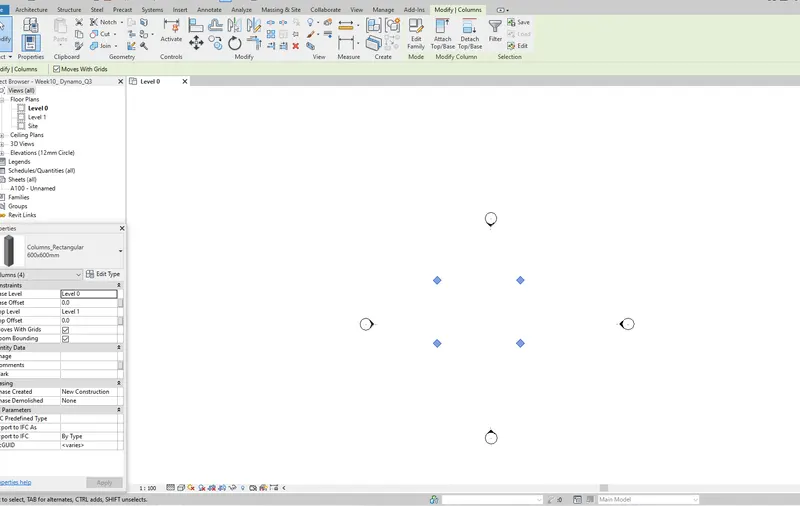

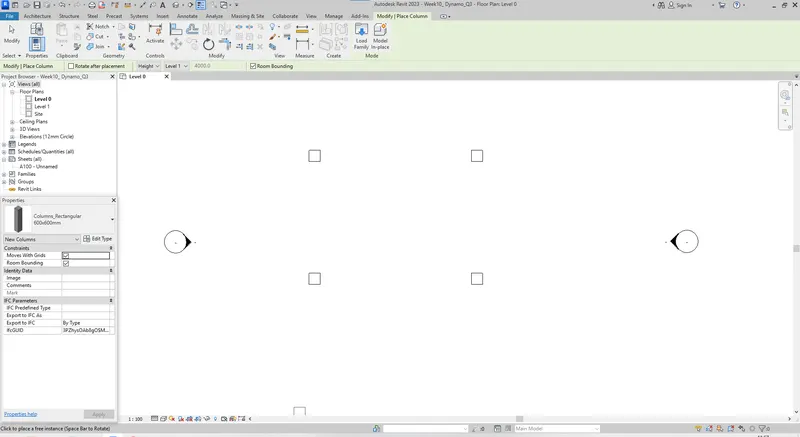

Place 4 columns in the Revit architectute

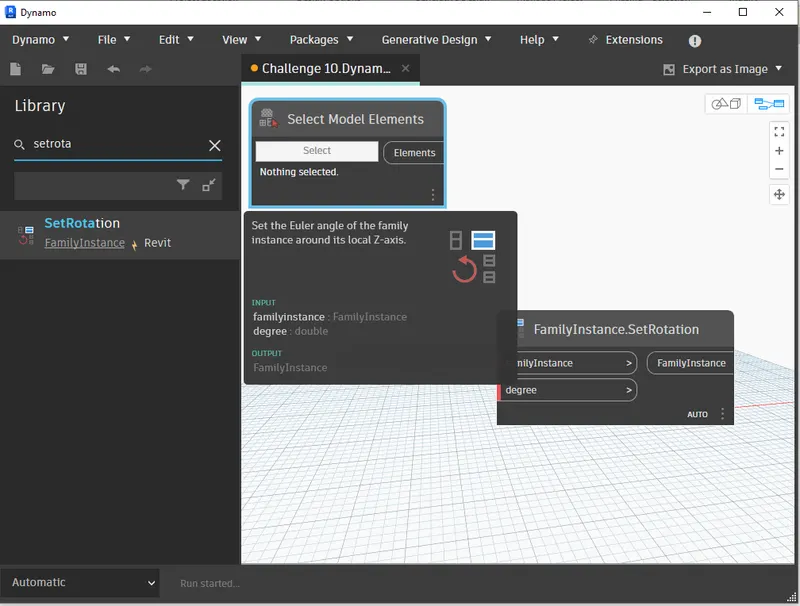

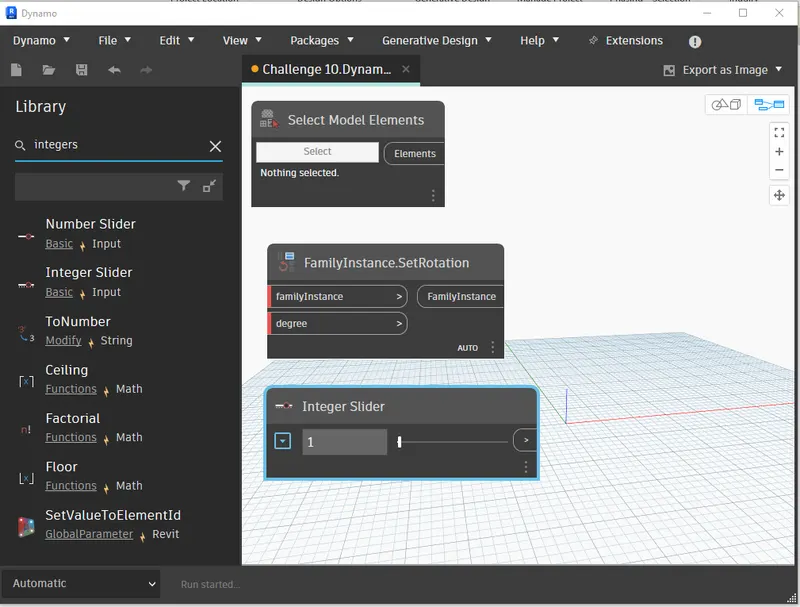

For rotation the column as 45 degree Create SetRotation & IntegerSlider

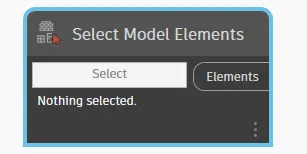

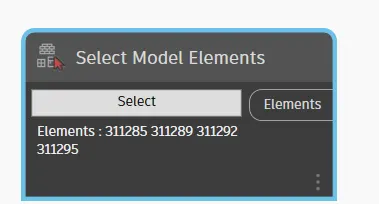

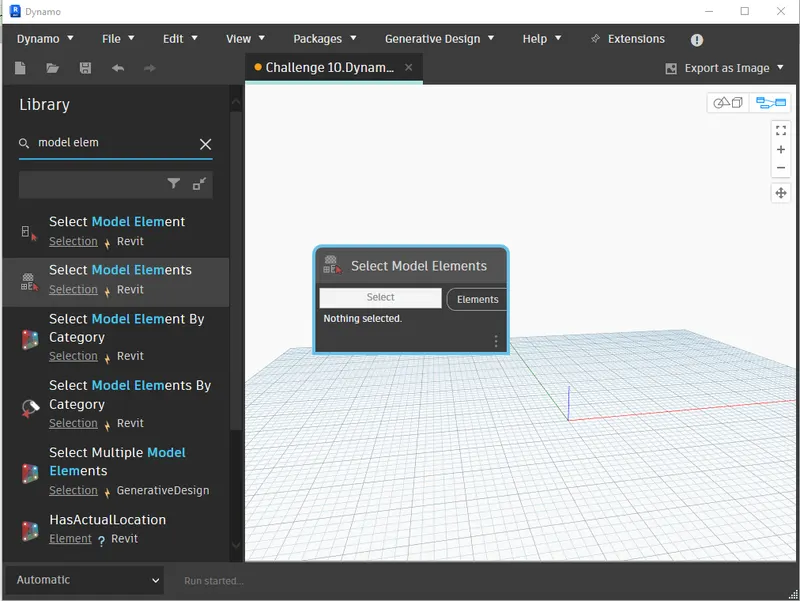

For selecting the model elements from Revit Choose Select option from Dynamo then go to Revit select 4 columns

After Selection

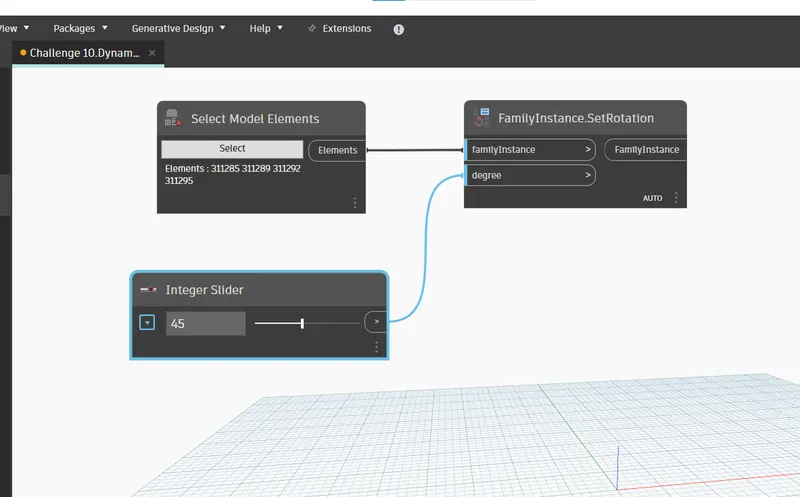

Input IntegerSlider as 45( 45 Degree Rotation) &Connect Elements to FamilyInstance & IntegerSlider to degree

Results:

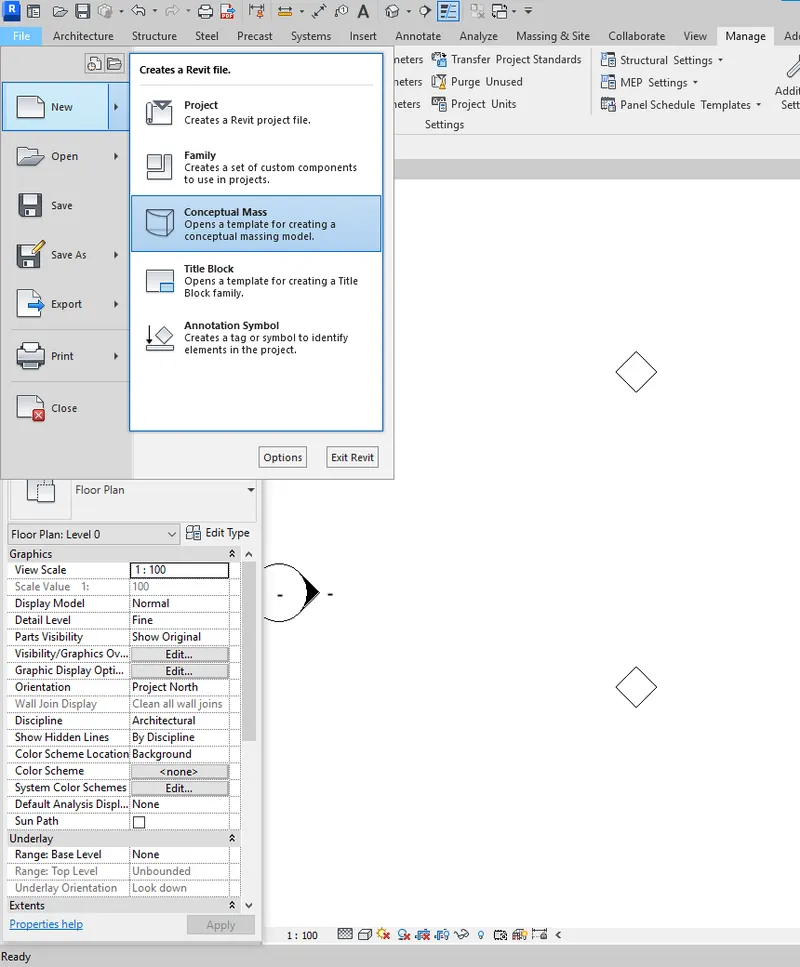

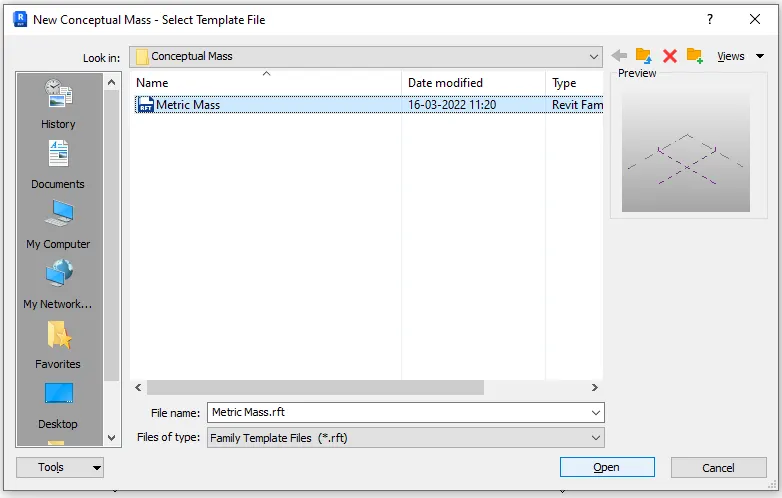

4) Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. Use triangular bent or square shaped panels to add finish to the parametric column

Aim: To create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling
Procedure:

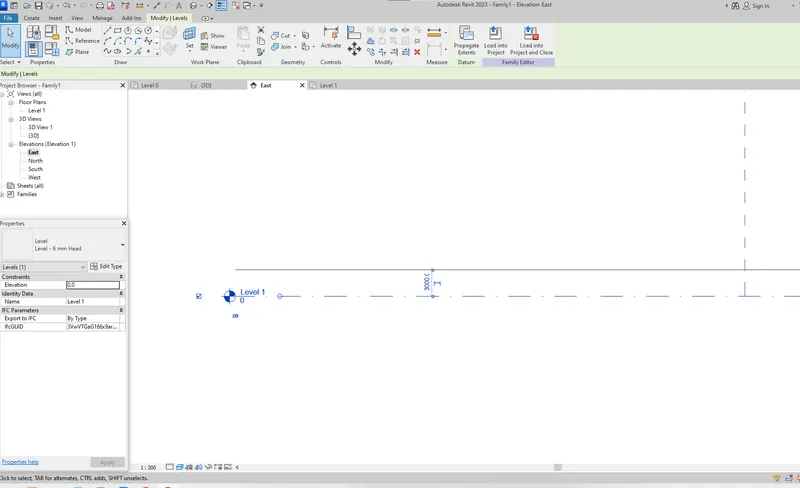

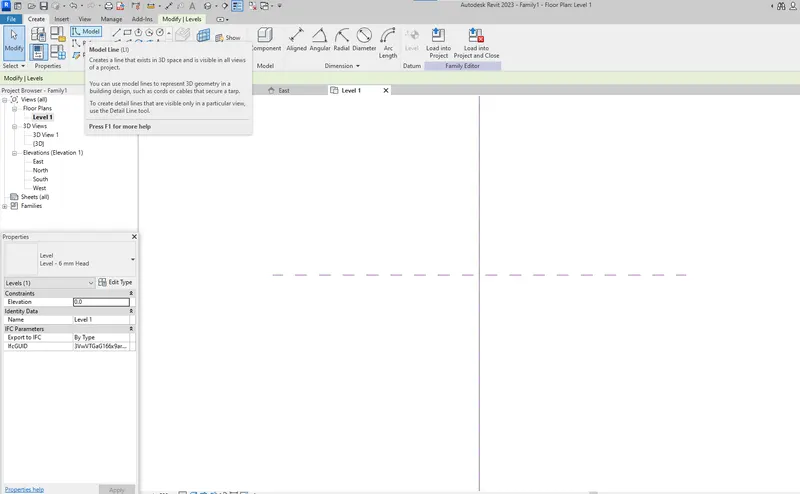

Create a 3m height level in the elevation in revit

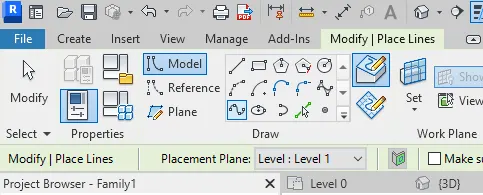

Go to floor plan choose create >model> Spline

Choose Spline option

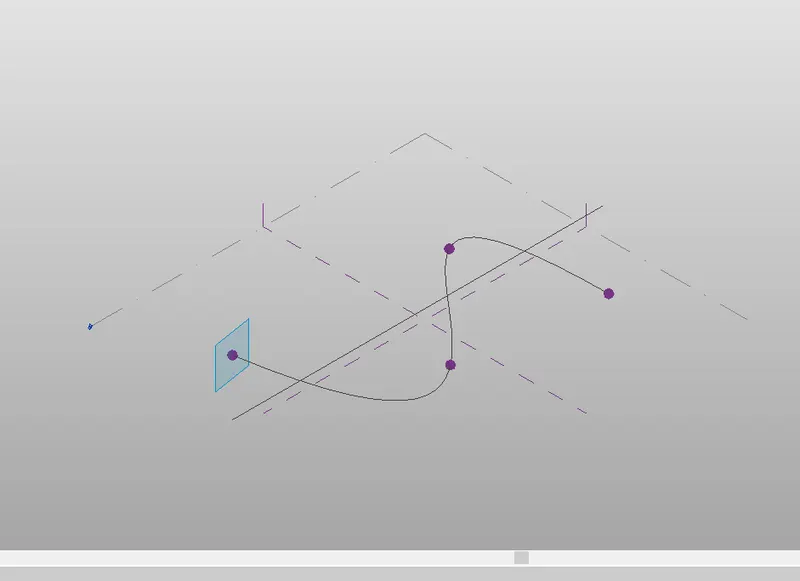

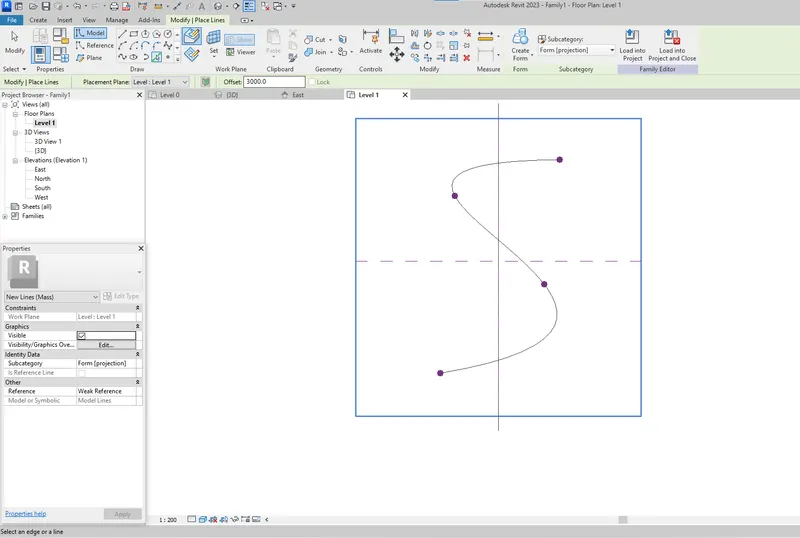

Draw a 'S' shape and press enter

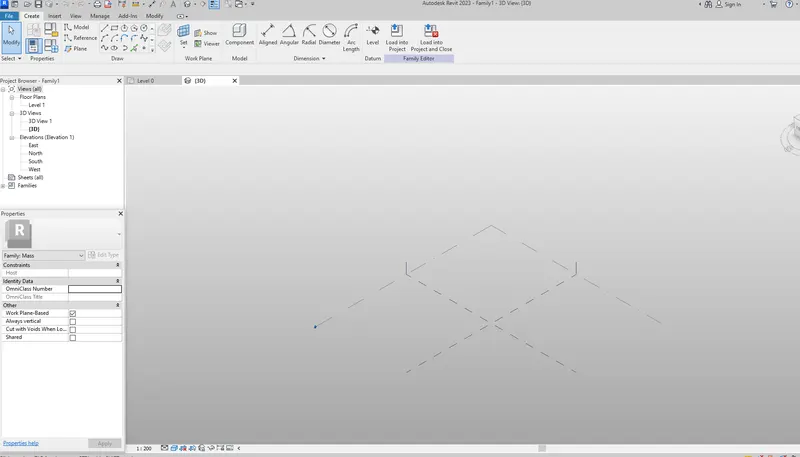

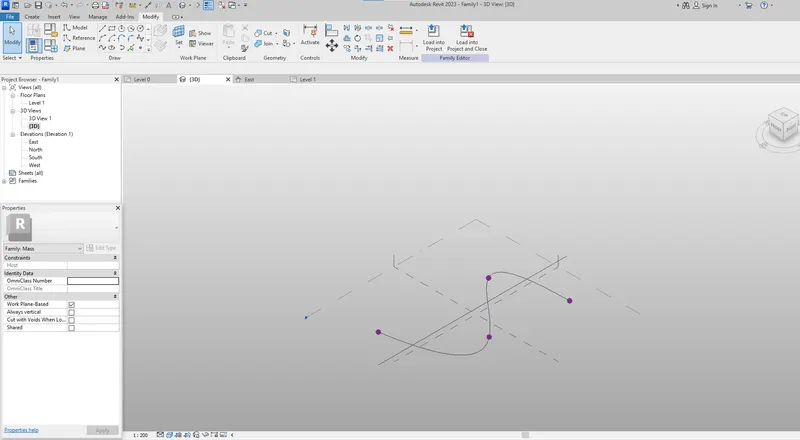

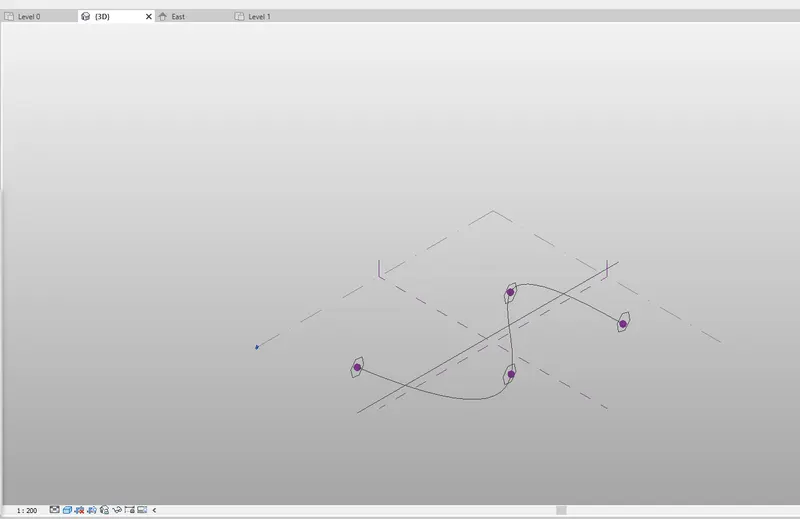

3D view

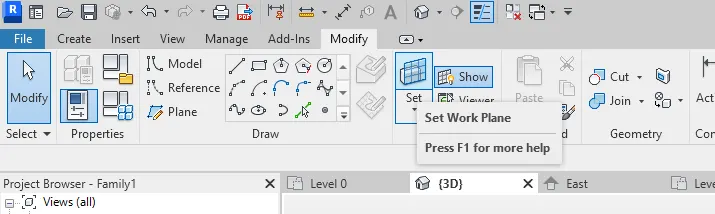

Now we need to set the plane ,For that choose Set option, to see the plane choose show option

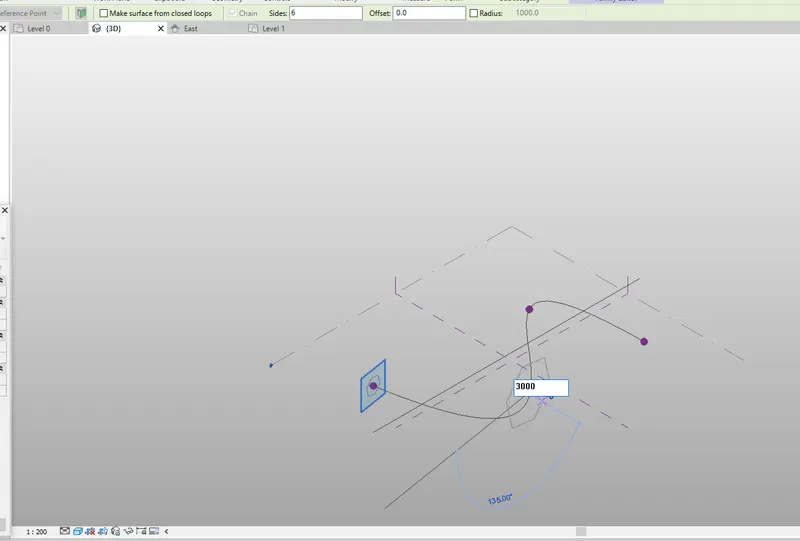

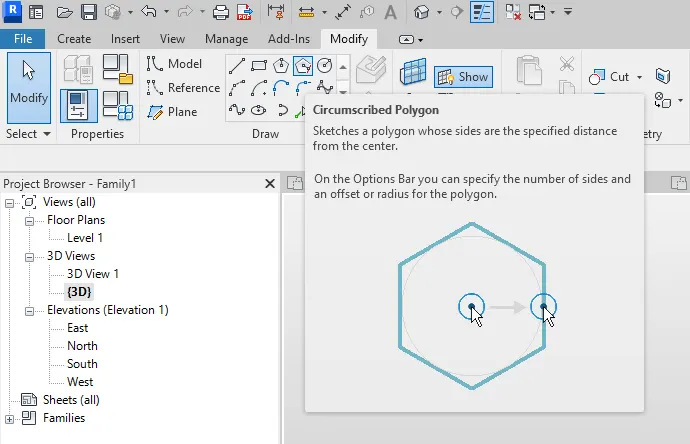

Choose Circumscribed Polygon and place it at 4 points on S shape as 3m height

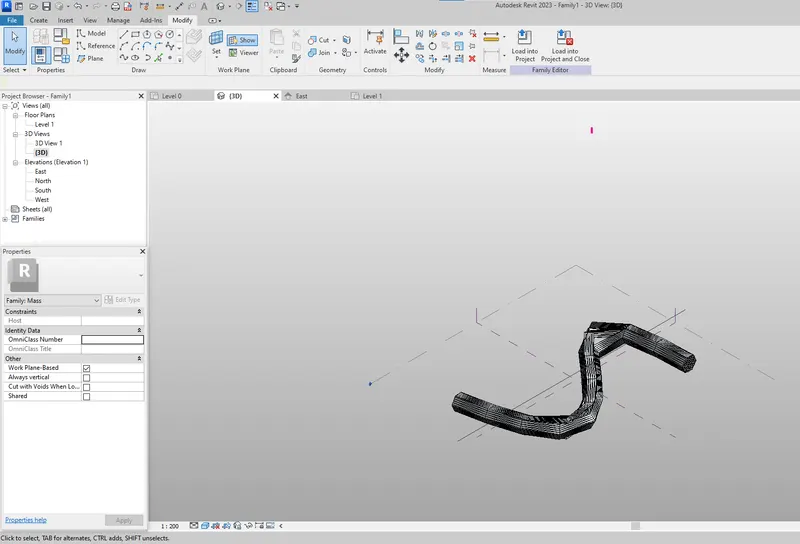

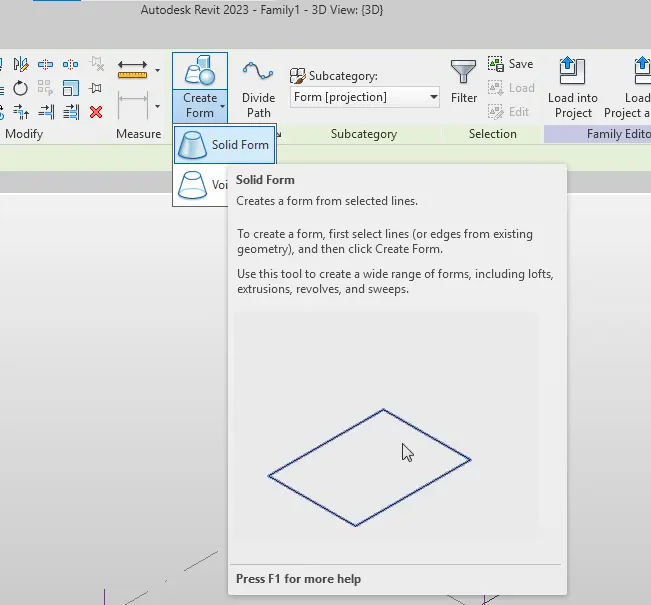

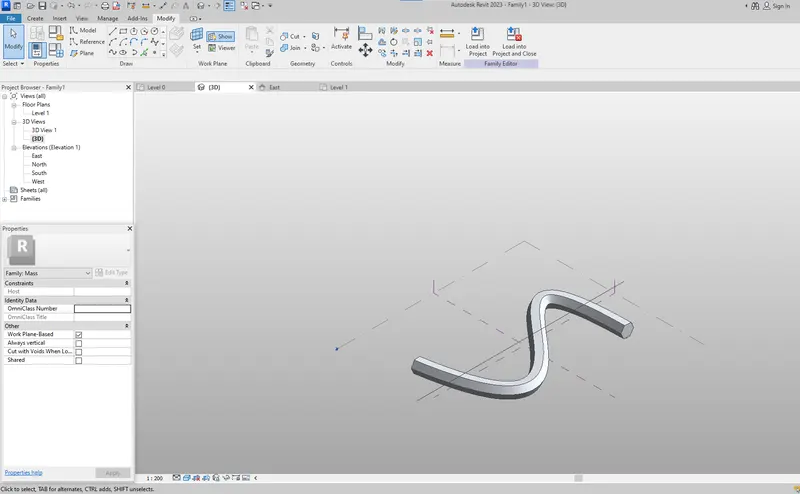

To convert the S shape as solid form, create > Select the S shape and one polygon > create form > Solid form

For applying the Triangular Bent

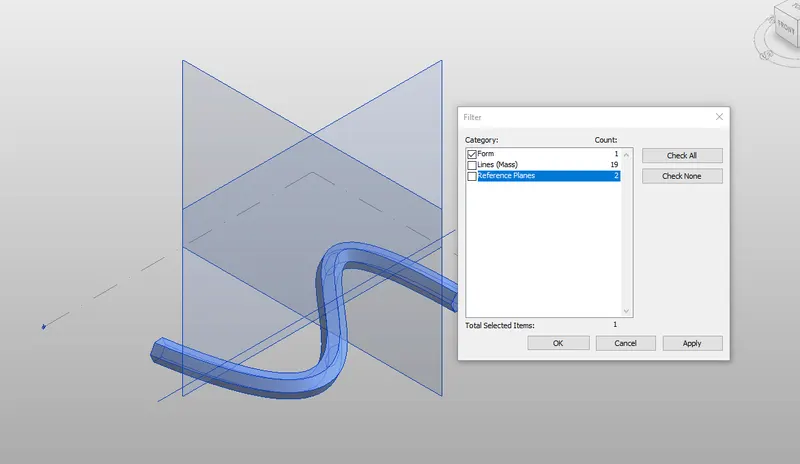

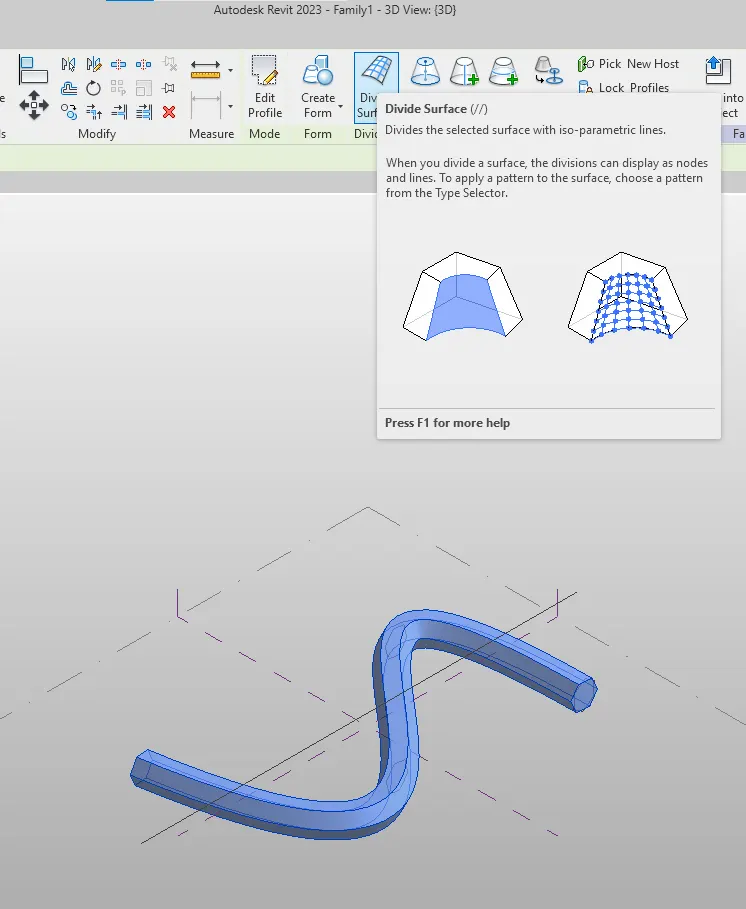

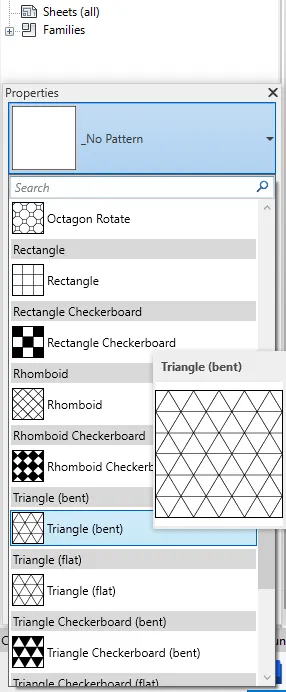

Select the model > Filter> choose only form >ok >divide Surface > from property browser choose pattern choose triangular bent.

5) Use Dynamo to work on developing a Parametric Stadium. List your parameters and use the visual programming approach to complete the modelling, You can use the concepts discussed in parametric high rise tower in class for reference.
Aim: Using Dynamo to work on developing a Parametric Stadium
Procedure:

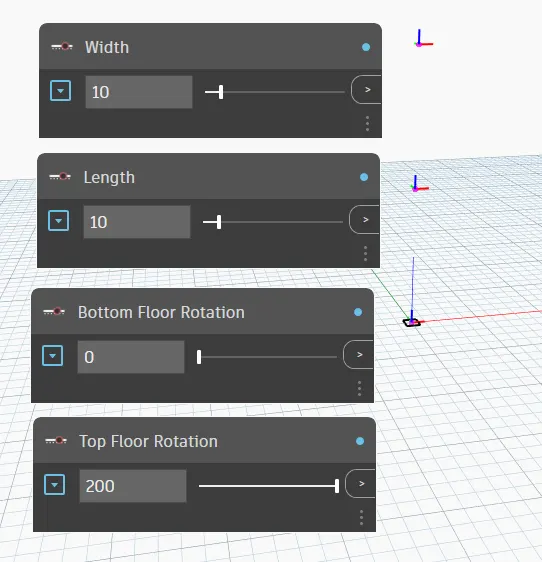

Create two IntegerSlider Rename and Input

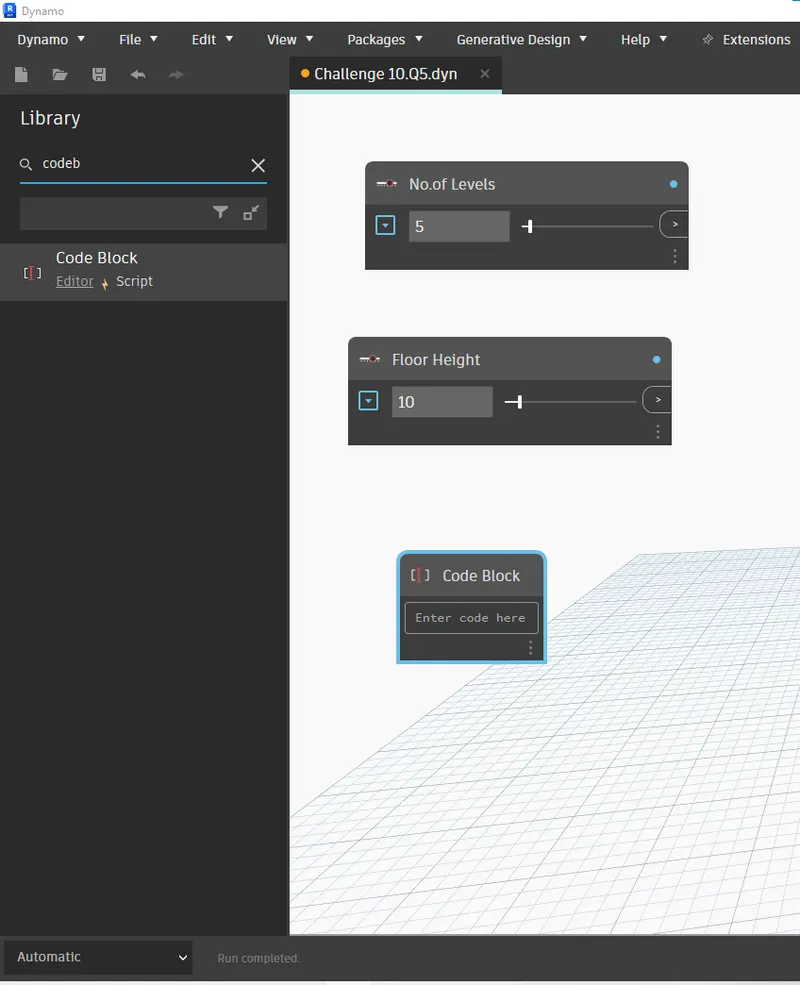

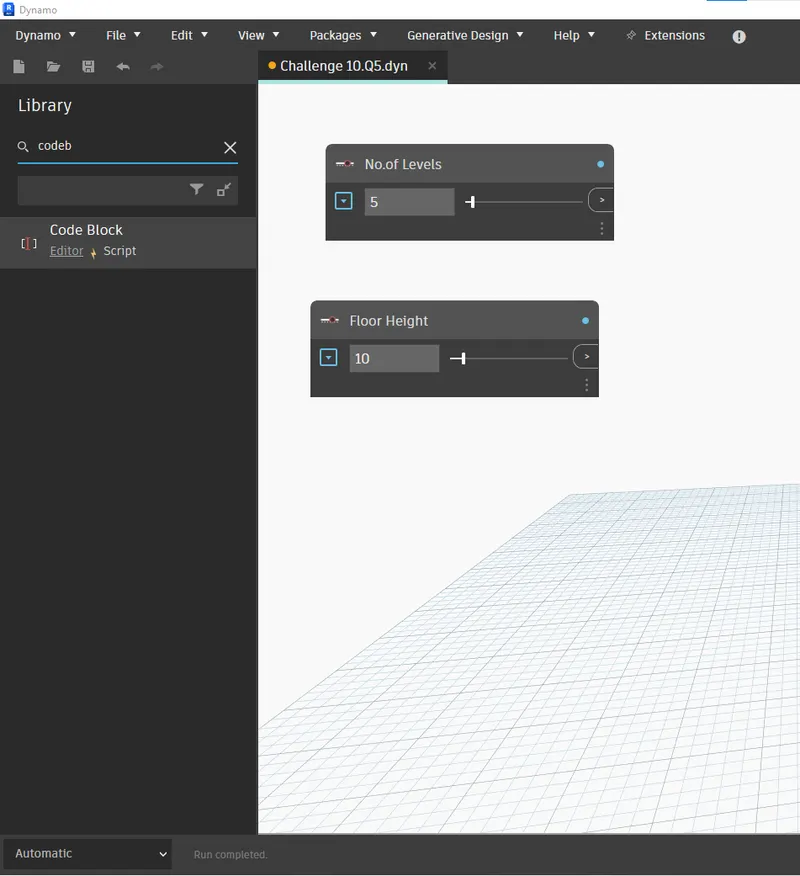

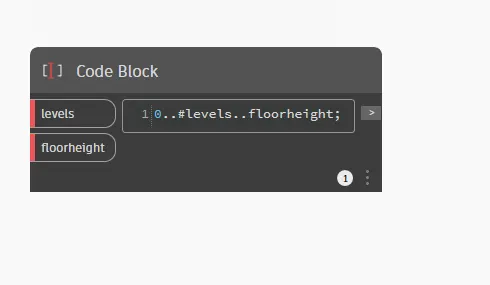

Create CodeBlock

Describe the width &Length of building

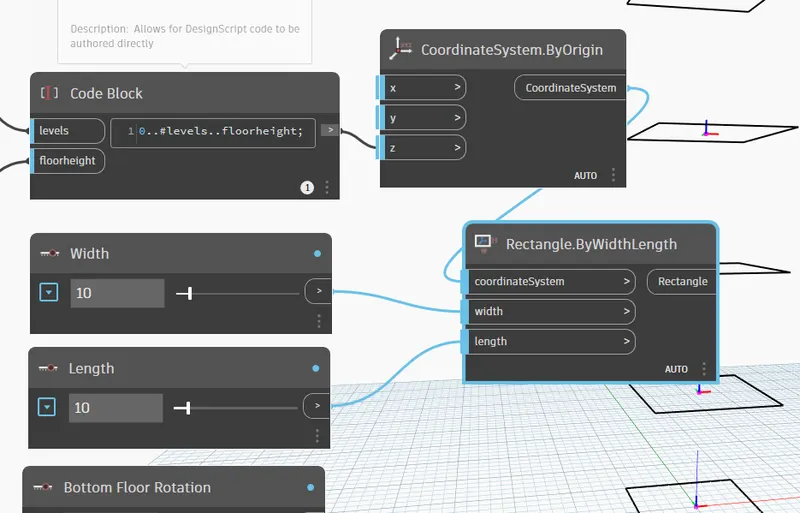

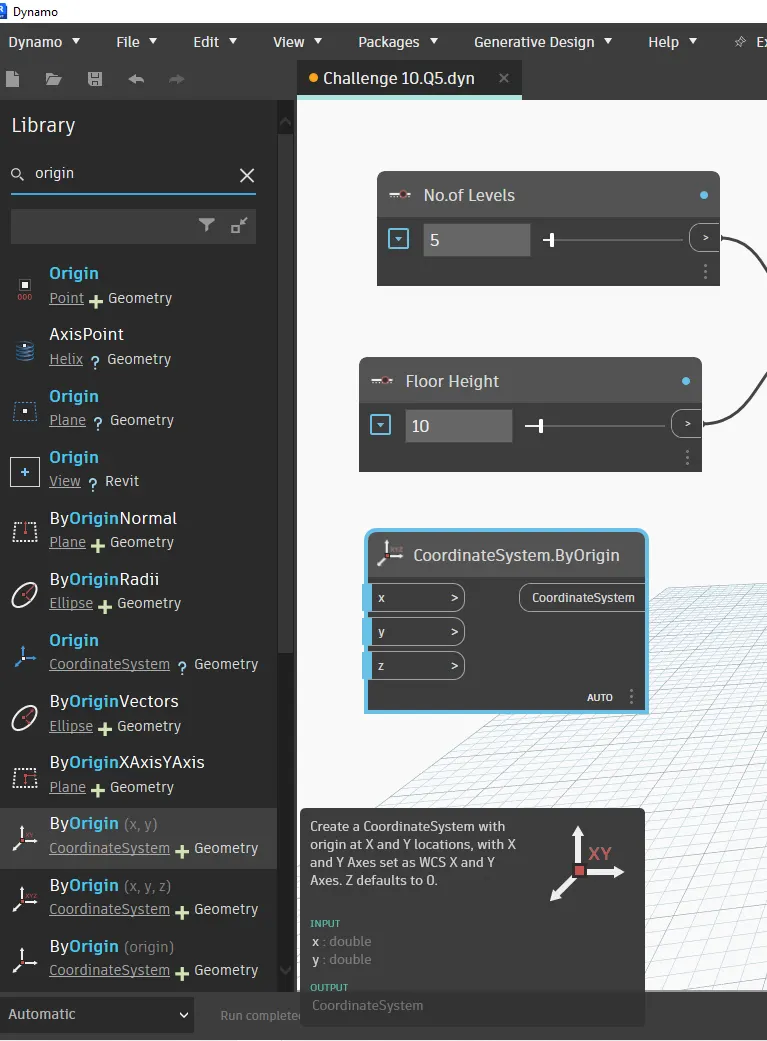

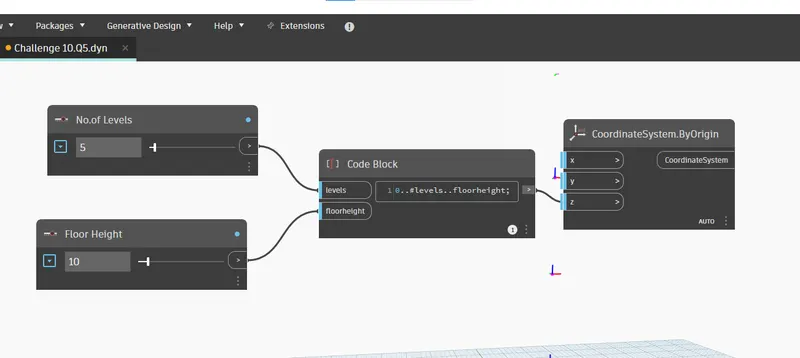

Create CoordinateSystem.ByOrigin (x y z)

Connect

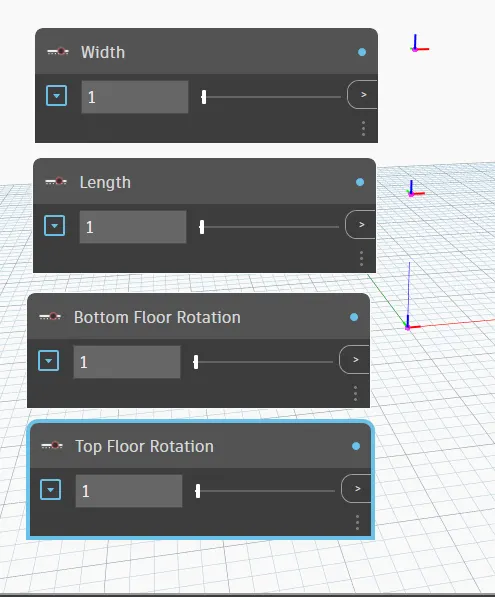

Insert IntegerSlider for width and Length

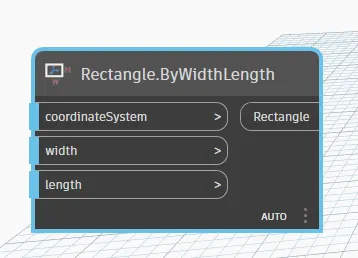

Create RectabgleByWidthLength

Connection

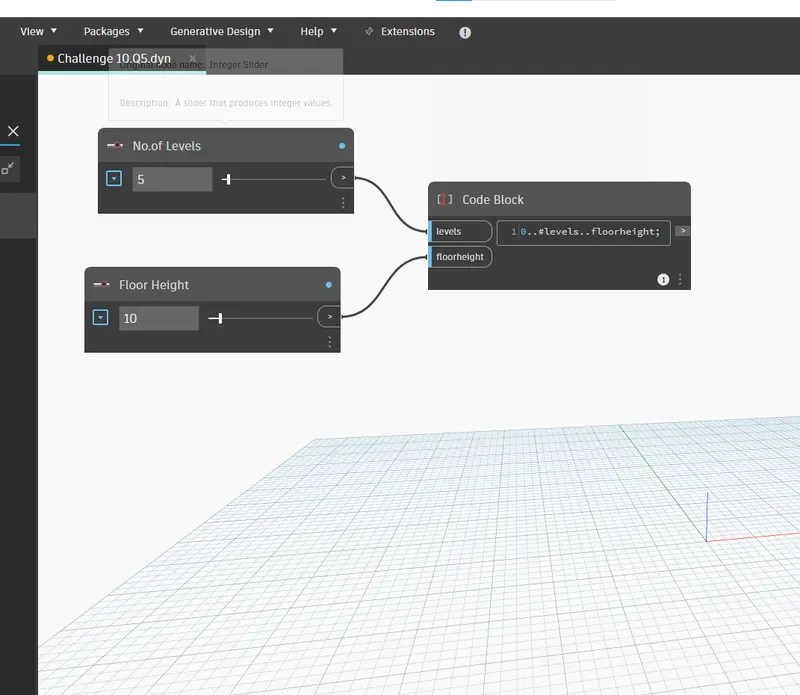

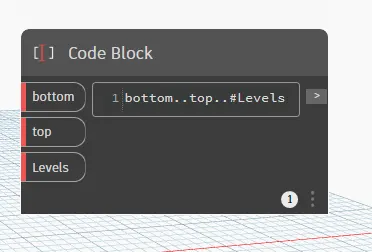

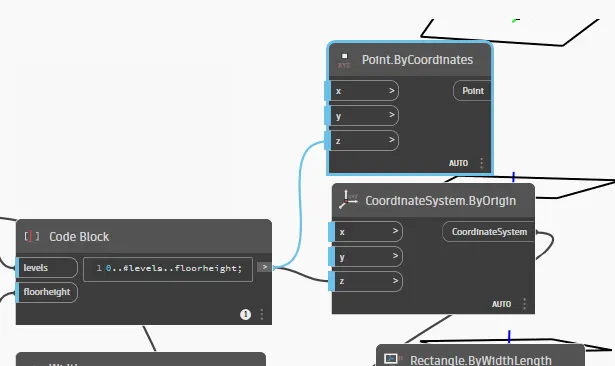

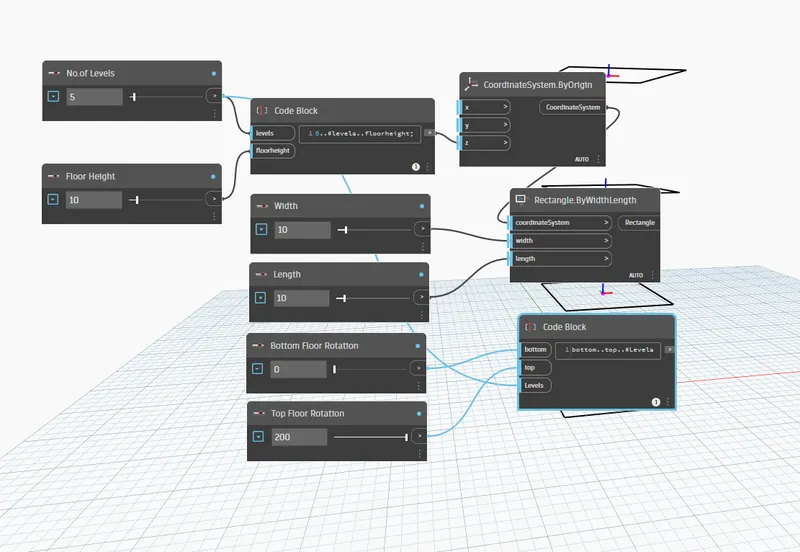

Create New CodeBlock and input (bottom..top..#levels)

Connection

Create a PointByCoordinate and connect

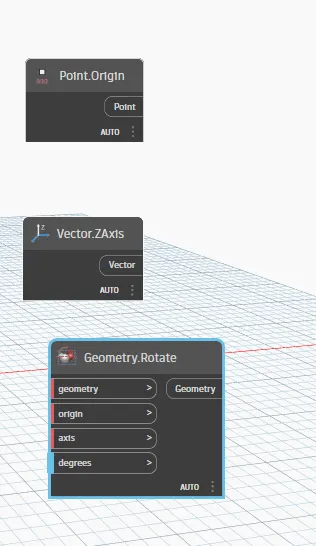

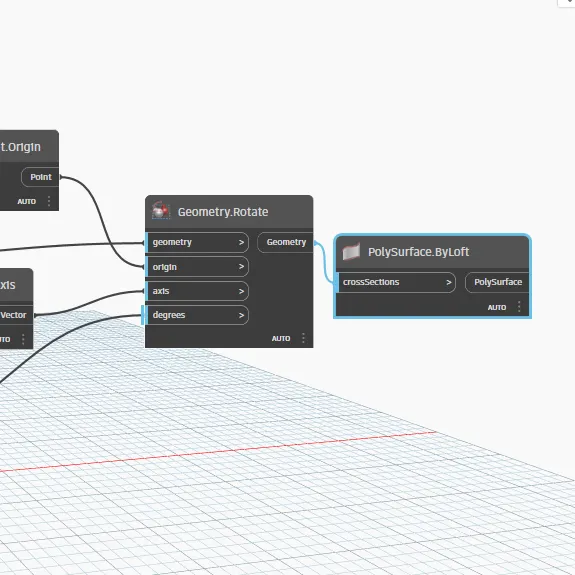

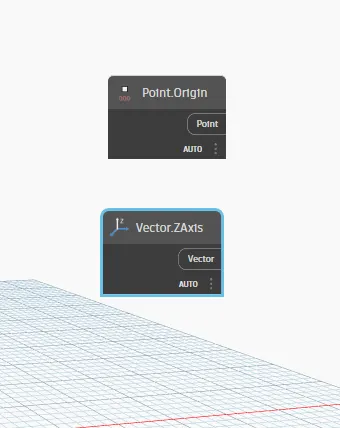

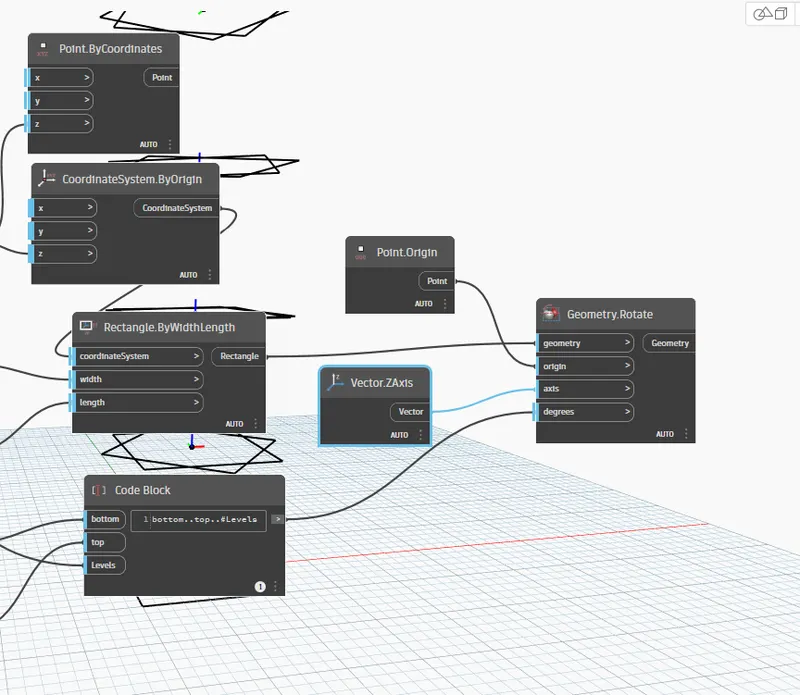

Create Origin , VectorZaxis & Geometry.Rotate

Connection

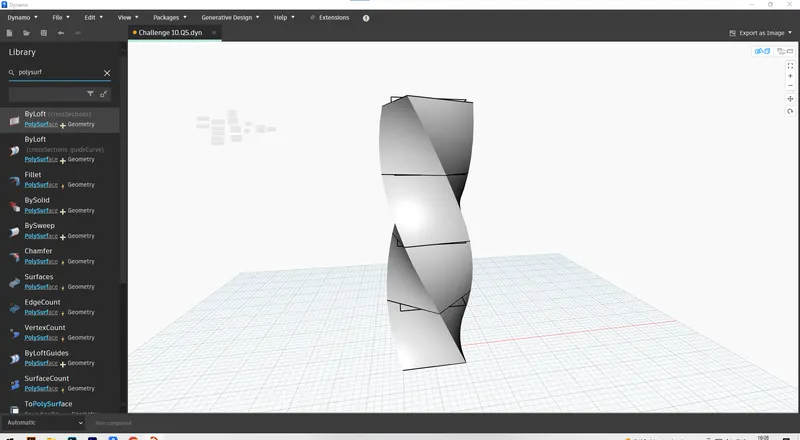

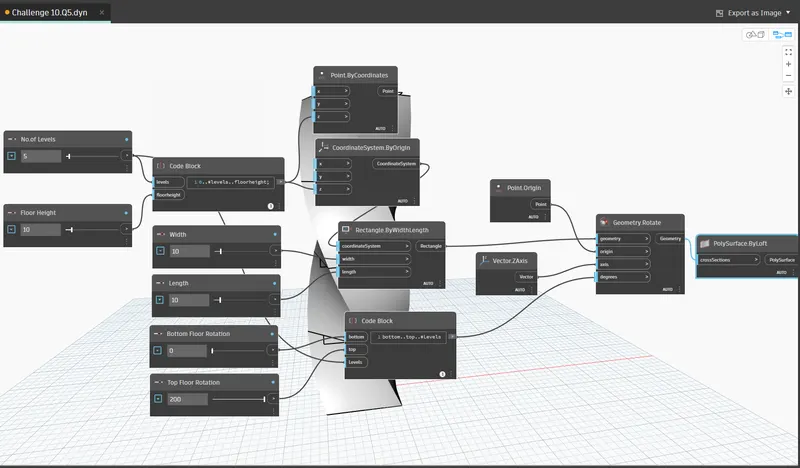

To make the Surface Create PolySurf and connect to previous One

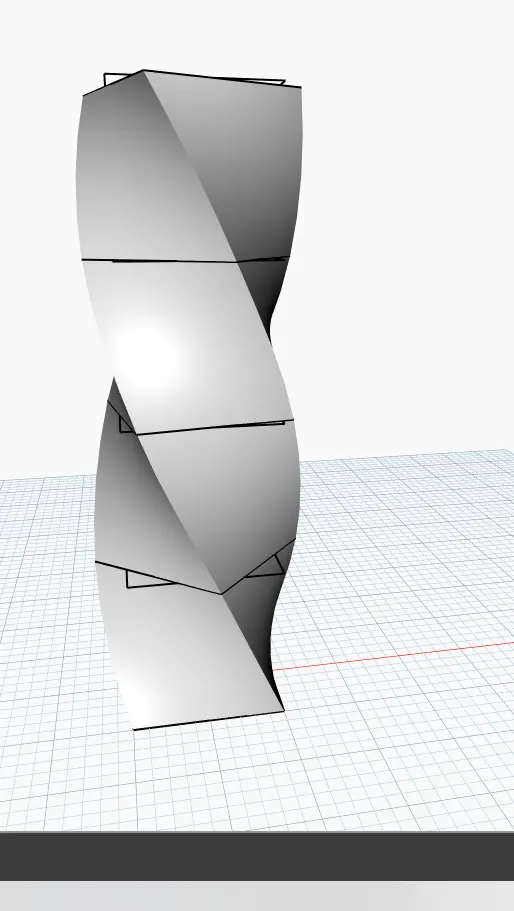

Results:
