Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

Q.1

Aim - Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric tower using Dynamo

Introduction - Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.

Procedure -

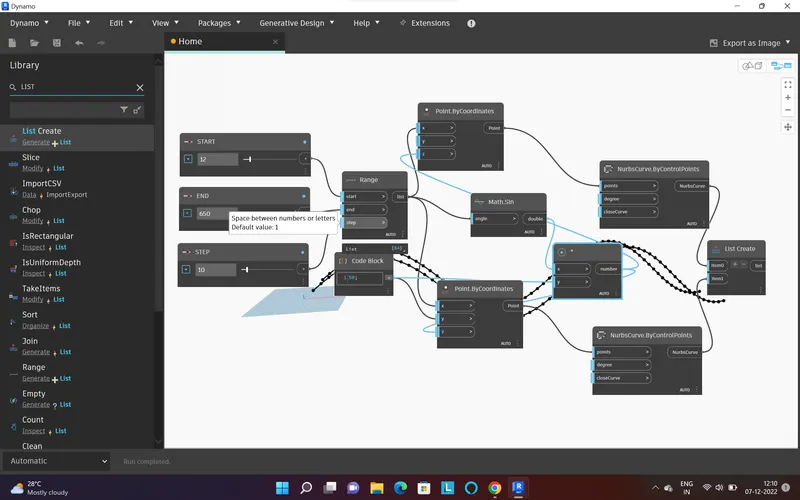

1. To create sinusoidal curves first open Revit then go to the manage tab then click dynamo

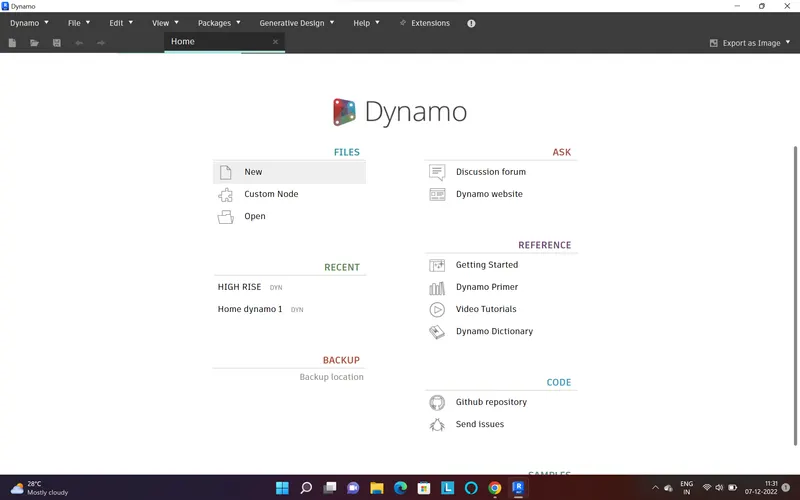

2. Open dynamo and start with new file

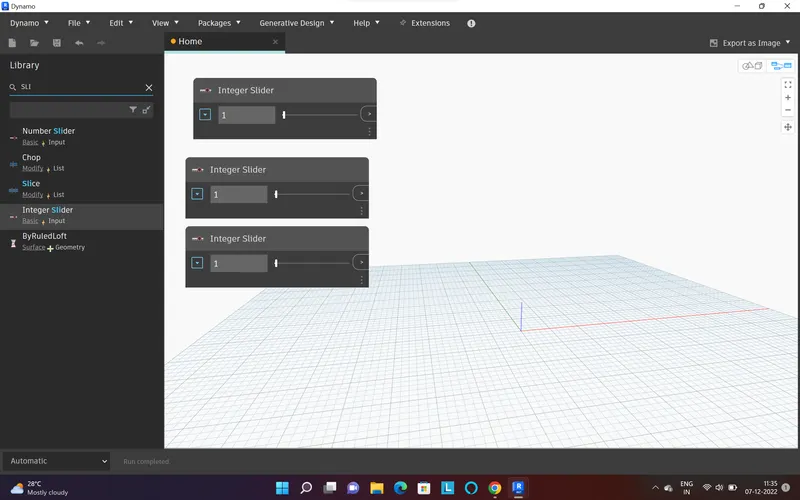

3. First add the integer sliders
4. Set the sliders and required limits

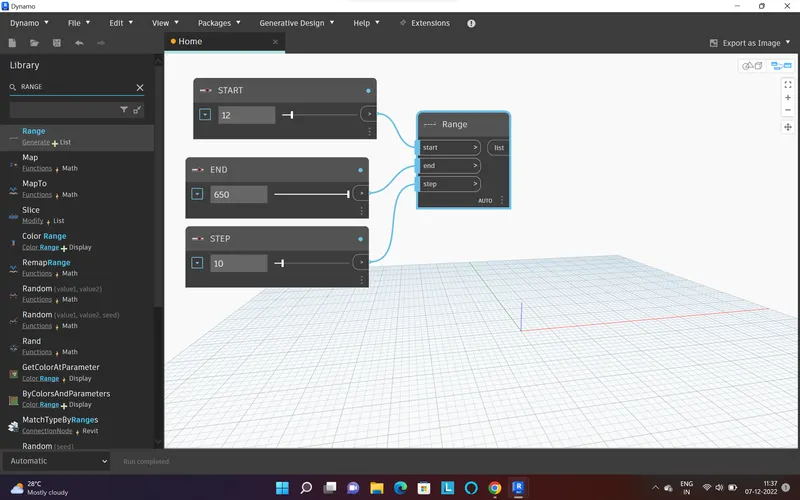

5. Then add the range block connect the slider to the range block

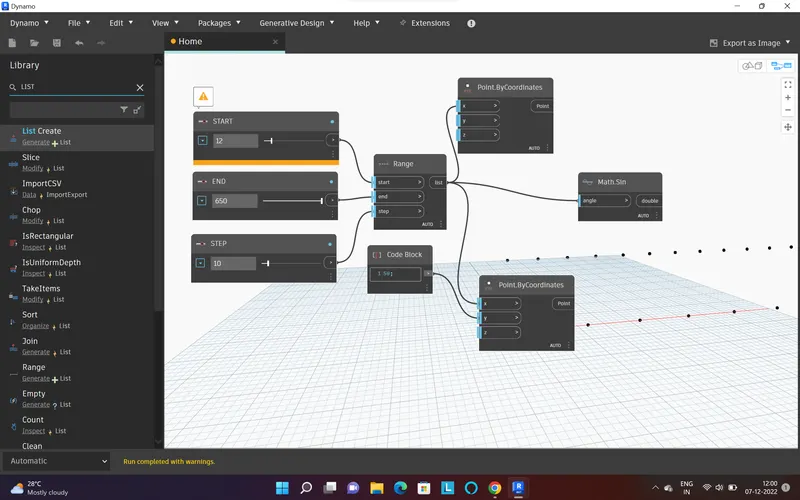

6. Then add points by co ordinates conned the range block to the X co ordinate
7. Then add the math sin. Connect the range block to the math sin
8. Then create the code block and connect both code block and range block to the product

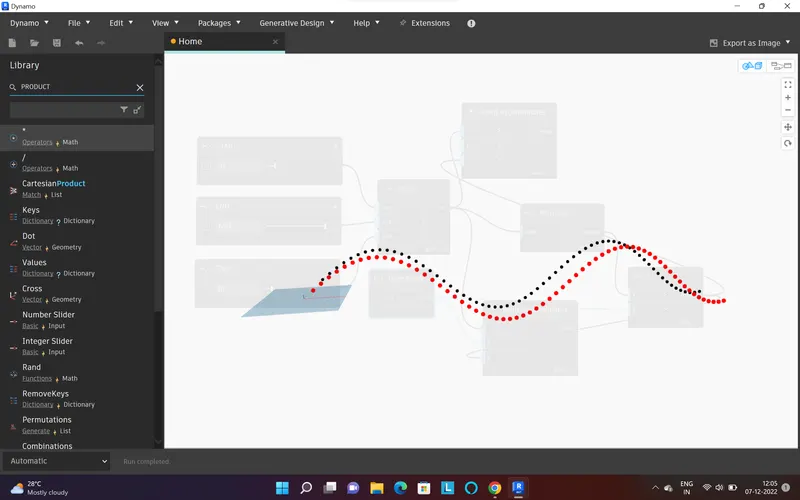

9. Then connect the product to the Z co ordinate the first curve will be crated
10. To create the second curve add the 2^nd co ordinate block and connect the code block to Y co ordinate , range block to X and product to Z ordinate the 2^nd cure will be created

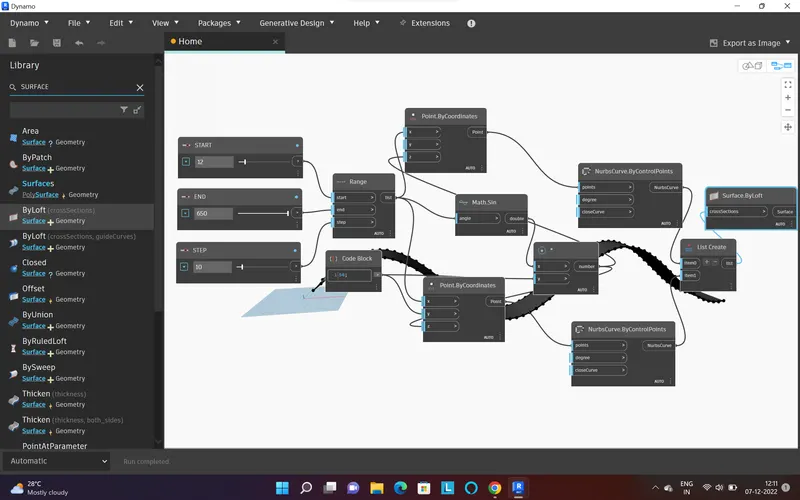

11. Then add two blocks of nurbs curve and connect the co ordinates of both the curve to the nubs curve
12. Then make the list of curves

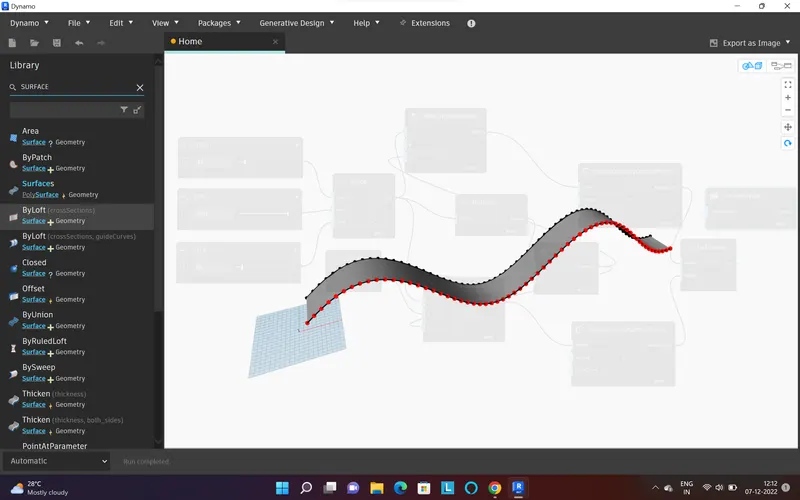

13. And add the surface by loft

Result -

Q.2

Aim - Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric tower using Dynamo

Introduction - Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall parameters. Make use of the sliders to slide through the height of the wall and length of the wall.

Procedure -

1. To create the wall and floors first open revit then open dynamo
2. Then create new file

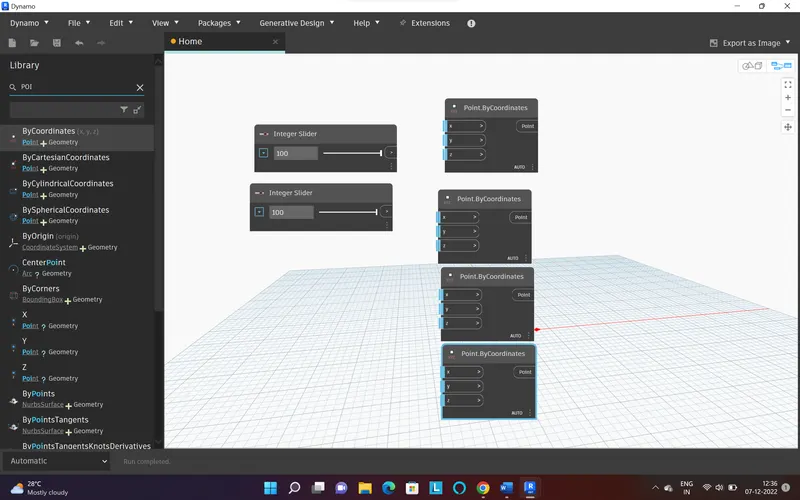

3. Then add 2 integer sliders and 4 points by coordinates

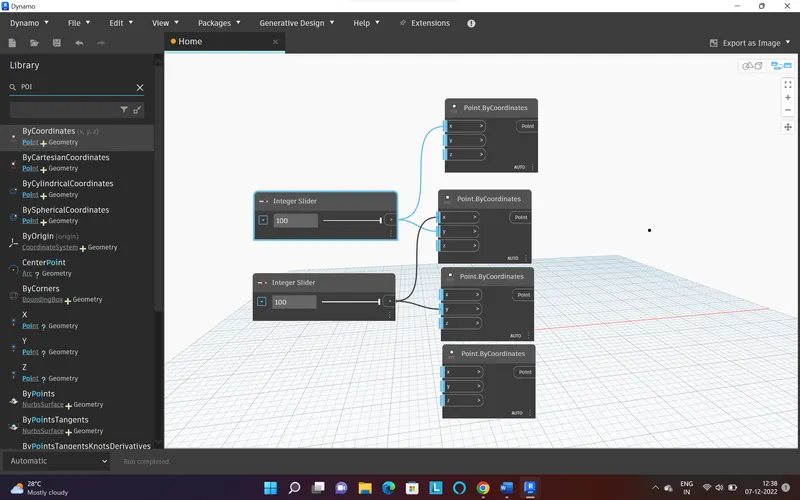

4. Then connect the sliders to the co ordinated to create the points as rectangle

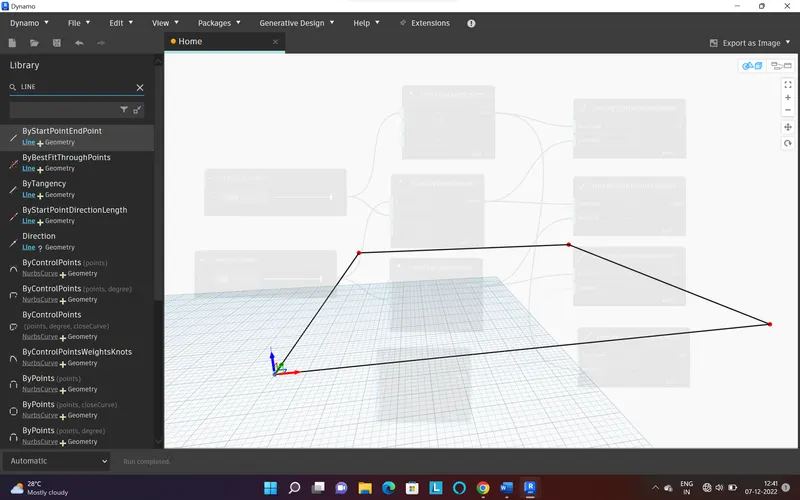

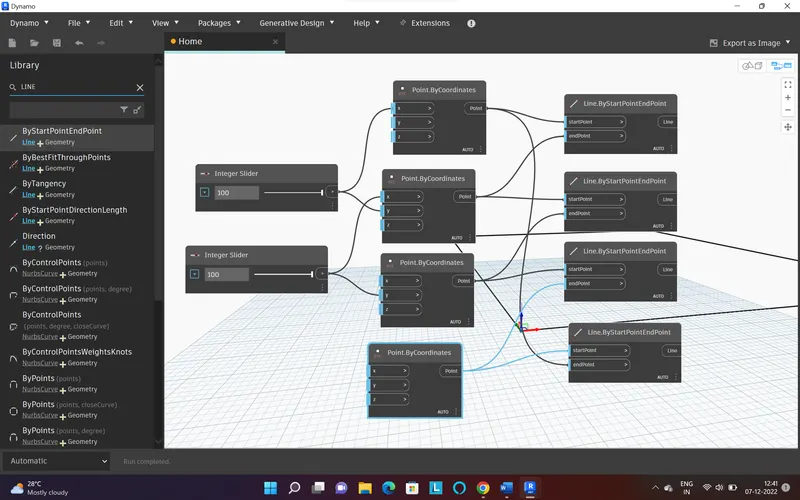

5. Then create the line by start point connect the co ordinates to the line block to create the line

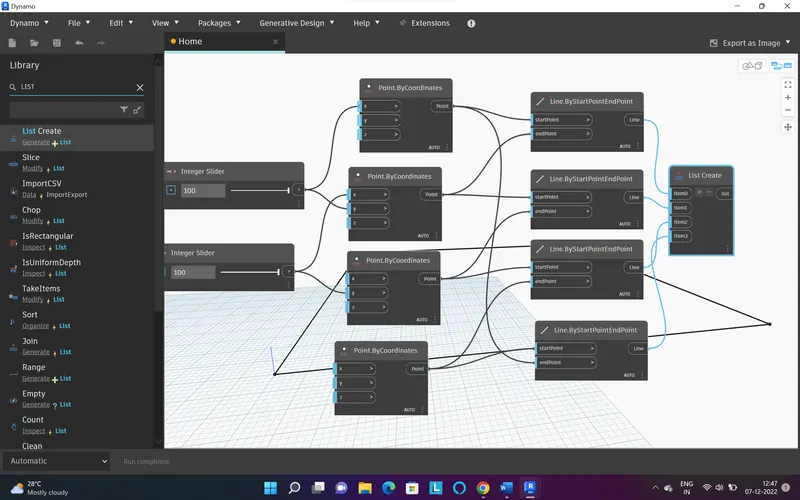

6. Then create the list of lines

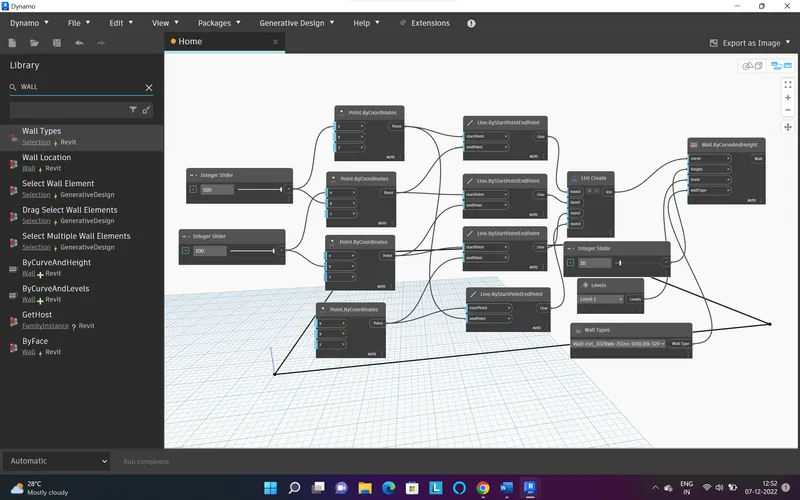

7. And create the wall by wall by curve and height
8. For curve connect the list for height add the slider for levels add levels for wall type add wall type

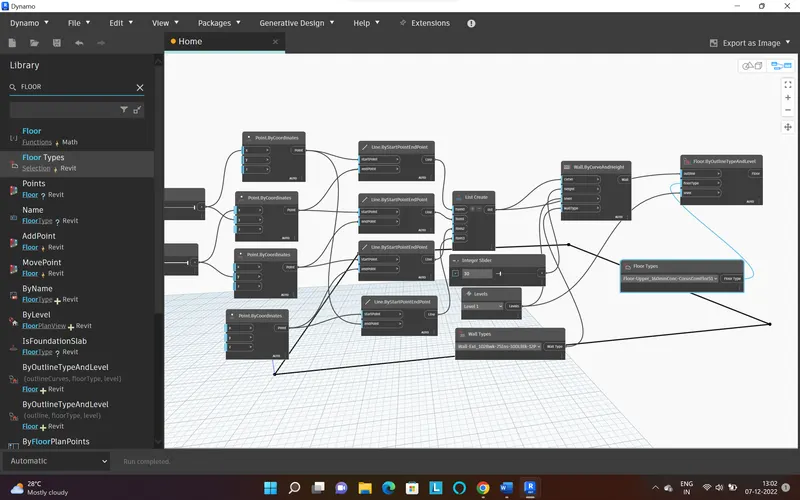

9. To create the floor use floor by outline type and leveL
10. For outline connect list for floor type add floor type for levels connect levels

Result -

Q.3

Aim - Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric tower using Dynamo

Introduction - Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block

Procedure -

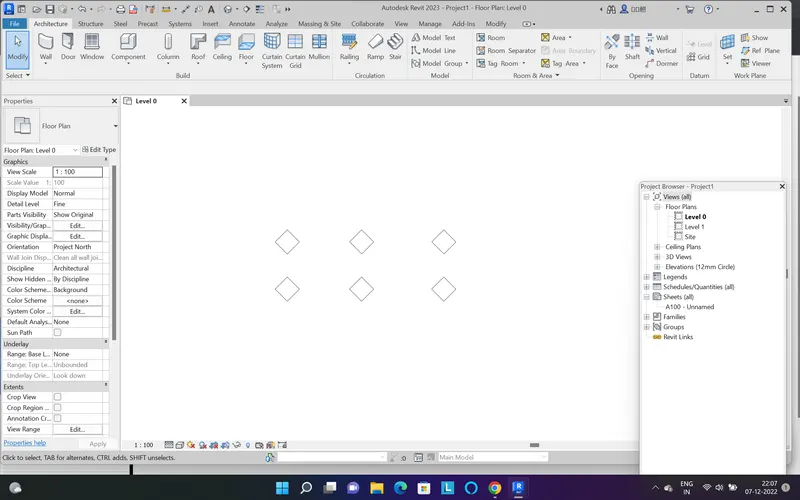

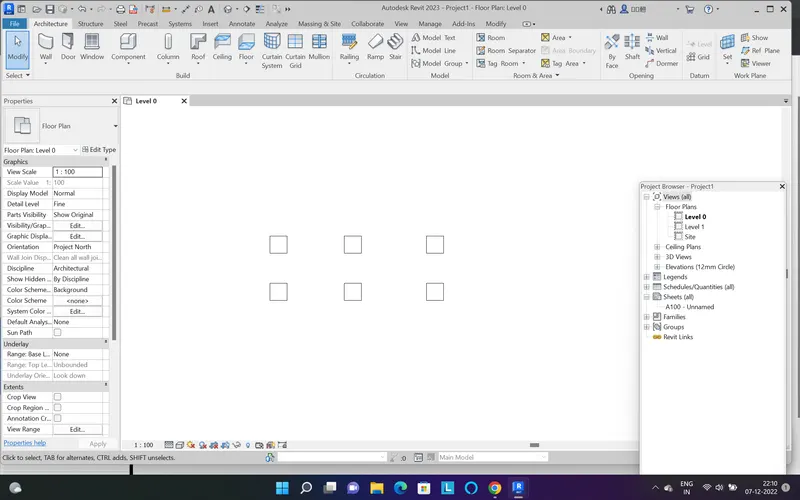

1. First create column array in the revit by using architectural column
2. Then open the dynamo

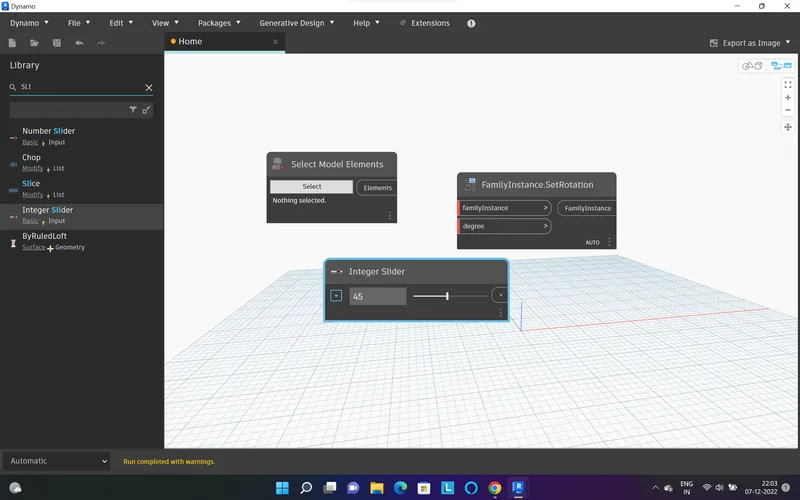

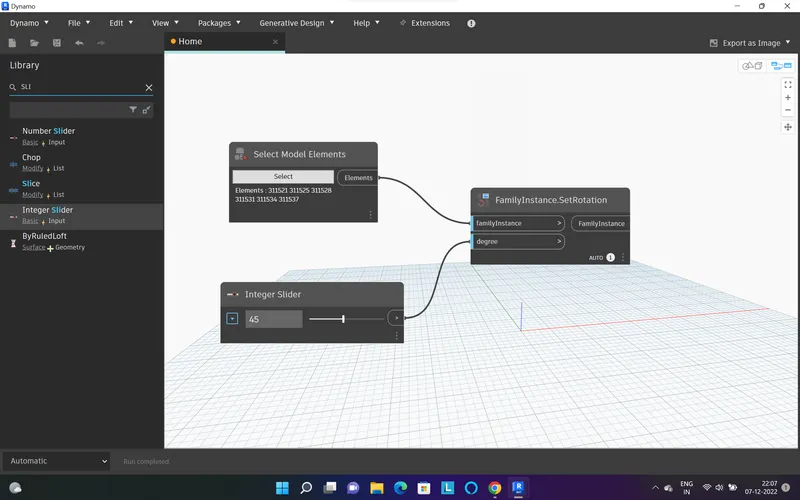

3. Then add select model elements and integer slider and set rotation
4. Select the columns and set the slider to 45
5. Then connect slider and model elements to the rotation block

The columns will be rotated at 45 degrees

Result -

Q.4

Aim - Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric tower using Dynamo

Introduction - Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. Use triangular bent or square shaped panels to add finish to the parametric column

Procedure -

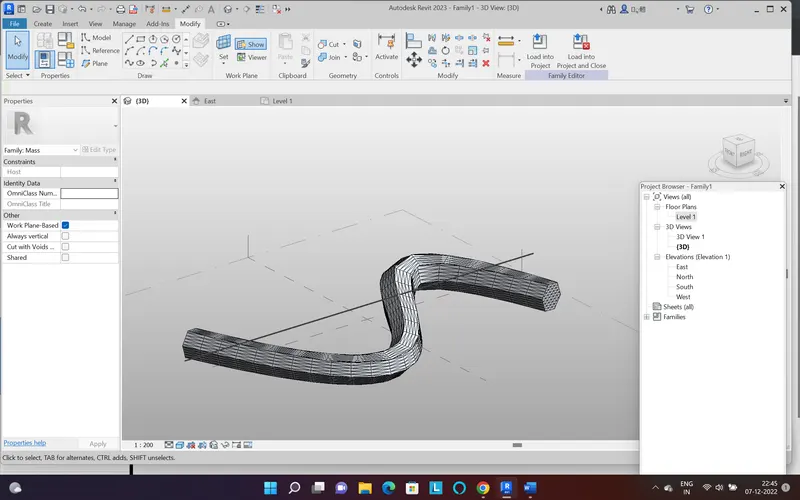

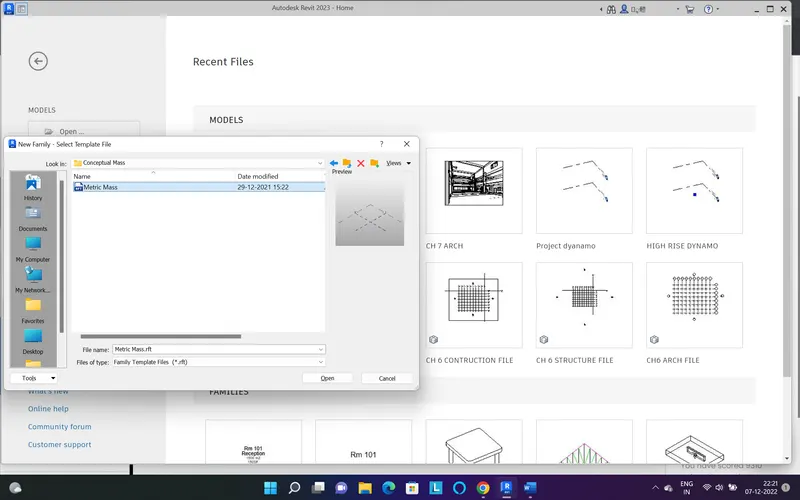

1. To create the parametric struc. First open the the conceptual mass template

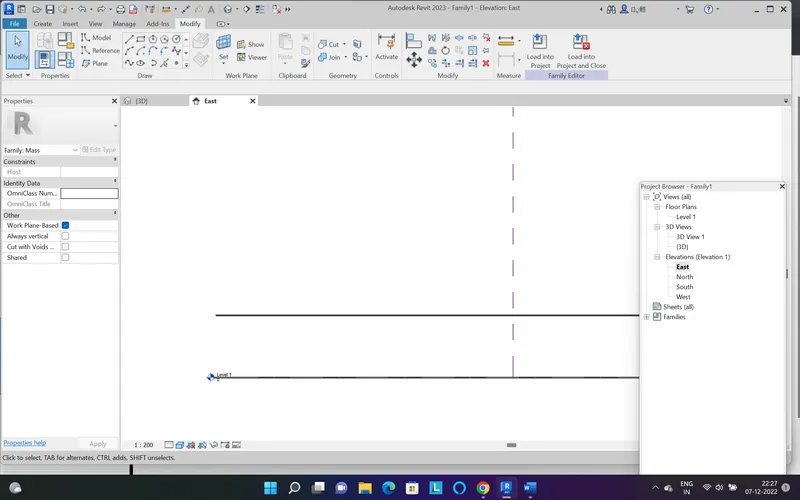

2. Then create the 4m level

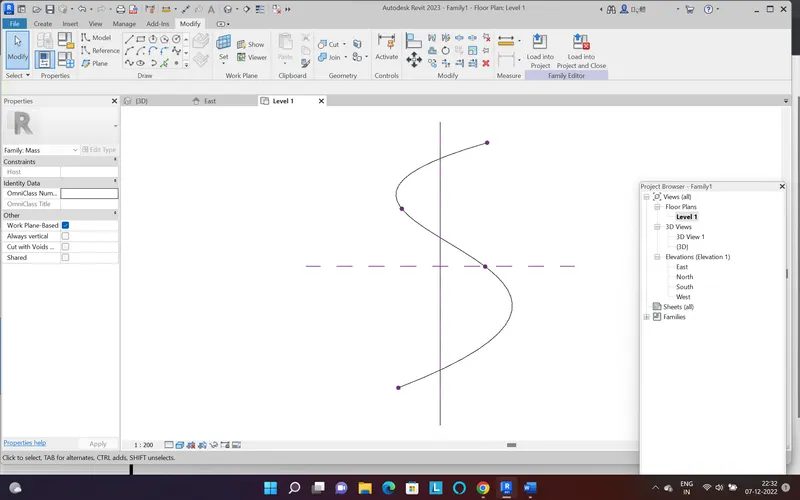

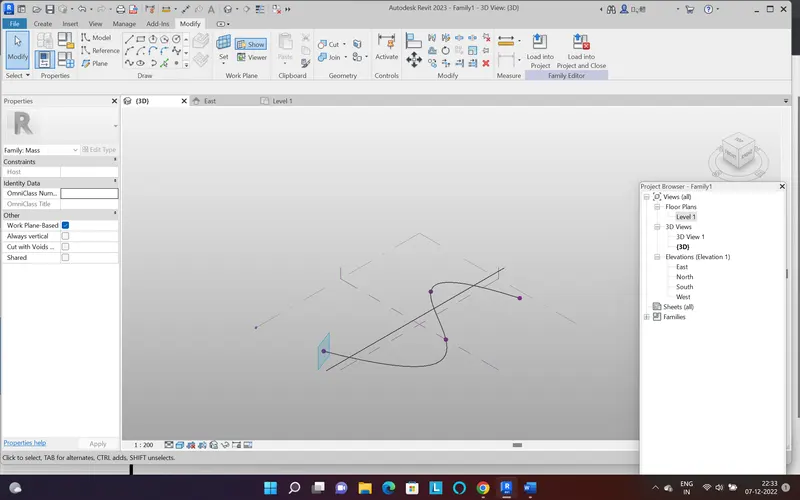

3. Then create the spline shape

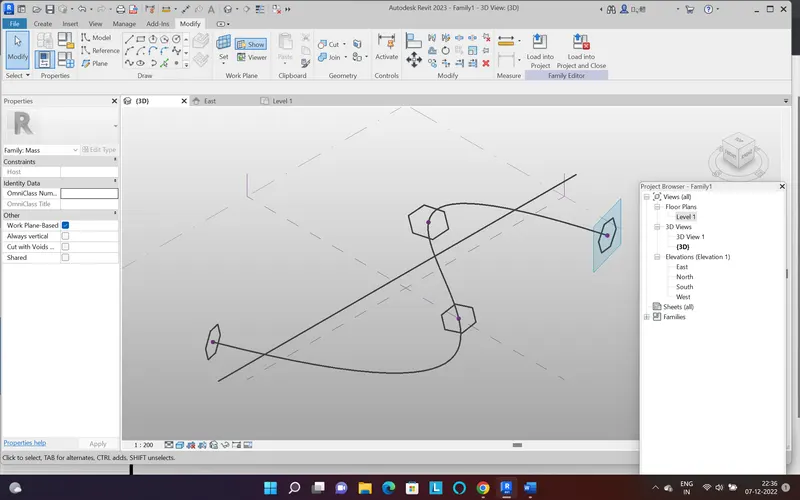

4. Then create the plane at point
5. And add the shape to the set plane

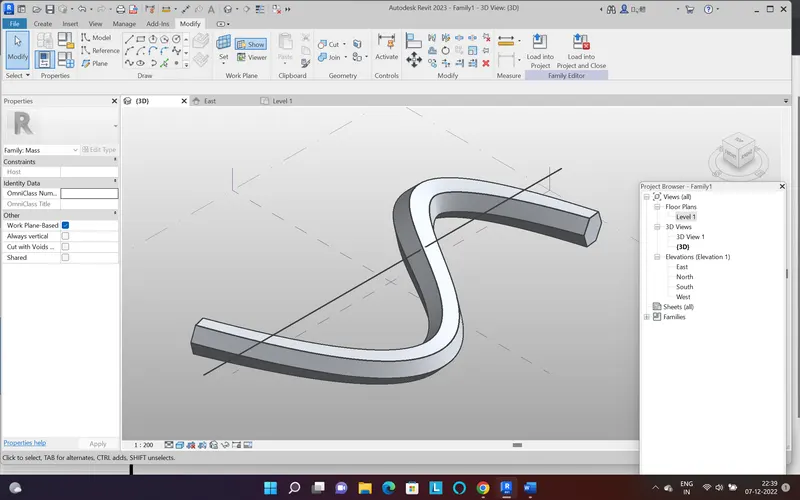

6. Then select the spline and curve and create the mass

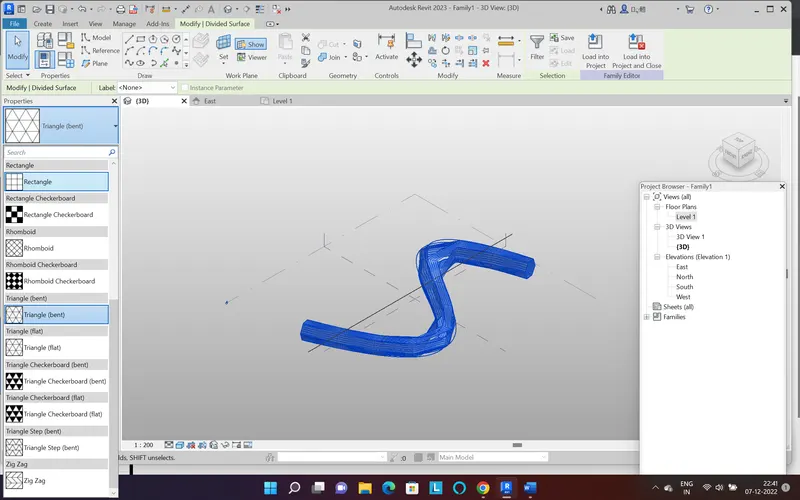

7. Then select the foam and split the plane and give the triangular bent option to the planes

Result -

Q.5

Aim - Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric tower using Dynamo

Introduction - Use Dynamo to work on developing a Parametric tower. List your parameters and use the visual programming approach to complete the modelling,

Procedure -

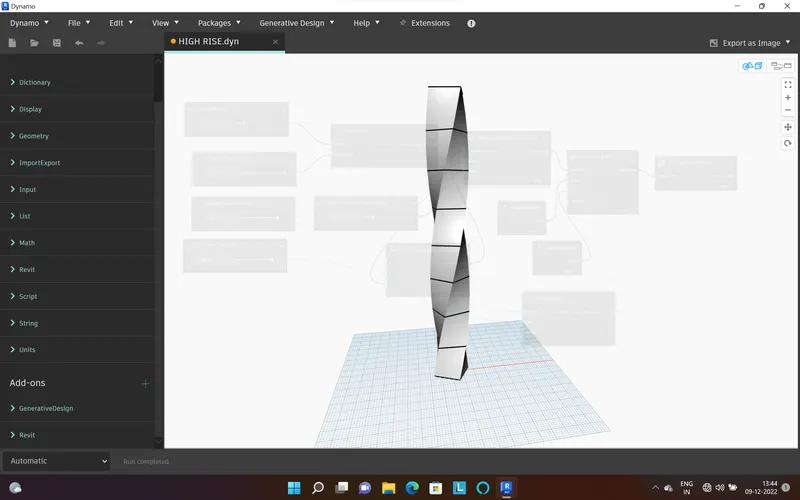

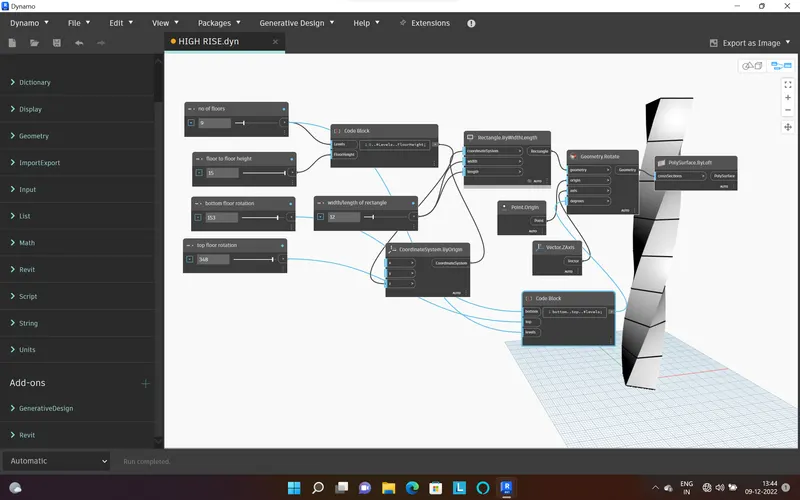

1. To create the parametric building first open REVIT then open the dynamo
2. Then first add 4 sliders one for no of floors 2^nd for floor to floor height 3^rd for bottom rotation angle 4^th for top rotation angle
3. Then add code block and write a code for levels and floor height
4. Then add co ordinate system connect code block to the Z axis
5. Then add slider for width and length of building
6. Then add block for rectangle by width and length connect the co ordinate and with and length to the block
7. Then to rotate the building add rotation block connect the rectangle as geometry connect point origin to origin and vector Z axis to axis and for angle add the code block and connect the top and bottom rotation sliders
8. Then to add surface to the model use poly surface by loft and connect rotaion geometry to the surface block

Result -
