Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo
AIM - Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.
ANS - DYANAMO / SINUSOIDAL POINTS -

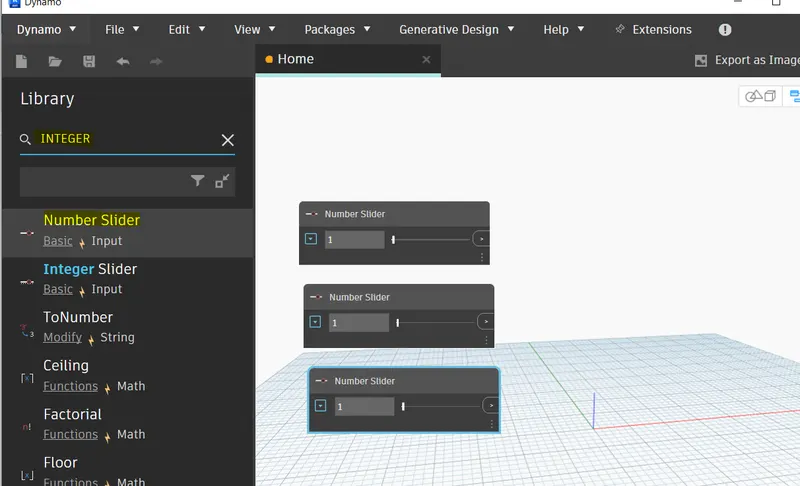

TO CREATE SINUSOIDEAL POINT OPEN DYNAMO FROM MANAGE TAB AND CREATE INTEGER SLIDER SEARCH FROM LIBRARY. IN TO THREE TIMES.
AFTRE CREATING SLIDER NEED TO PROVIDE NUMBER TO THE SLIDER ACCORDING TO OUR REQUIRMENT.

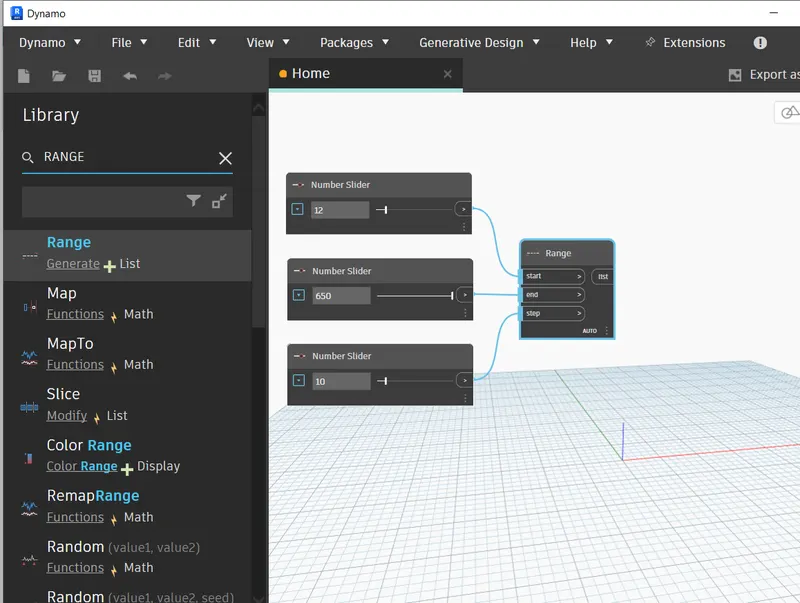

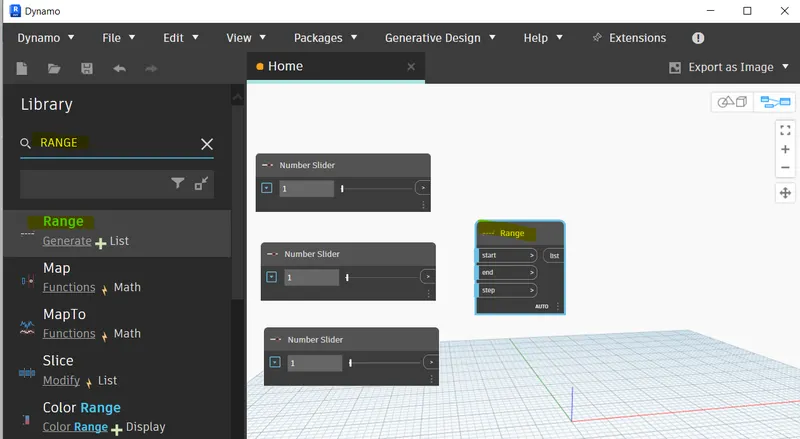

RANGE - AFTER CREATING NUMBER SLIDER NEED TO PROVIDE RANGE. CRAETE RANGE SEARCHING IN LIBRARY AND CLICK ON RANGE
AFTER CREATING RANGE IT HAS THRE OPTION START, END, STEP, AND CONNECTING ALL THREE STEPS TO THE NUMBER SLIDER.

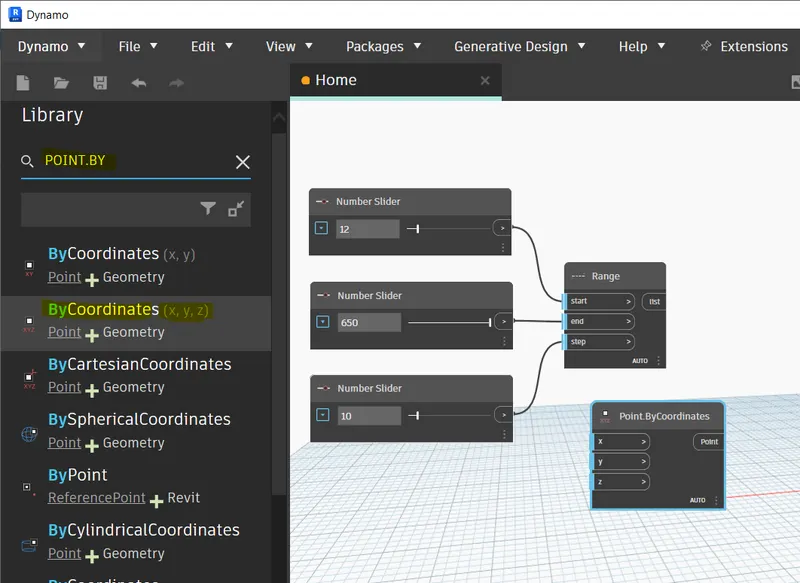

TO CREATE NEXT SINUSOIDEAL OPTION NEED TO CREATE POINT BY COORDINATE.FOR CREATE POINT BY COORDINATE SEARCHING IN THE LIBRARY POINT.BYCOORDINATE AND SELECT (X,Y,Z) COORDINATE

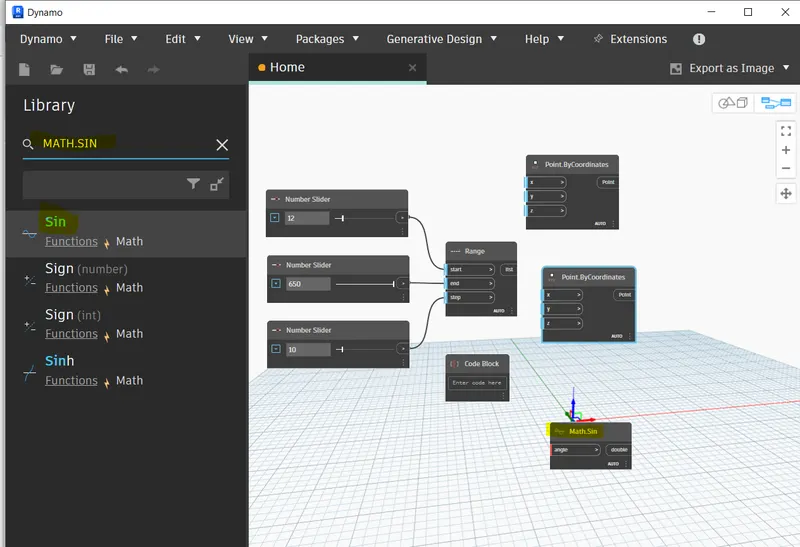

FOR CREARTING DUAL SINUSOIDEAL POINT NEED TO CREATE CODE BLOCK. SEARCH CODE FROM THE LIBRARY AND NEED TO CREATE COPY OF THE POINT BY COORDINATE FOR ONE TIMES. AND ALSO NEED MATH.SIN FOR SINUSOIDEAL CURVE.

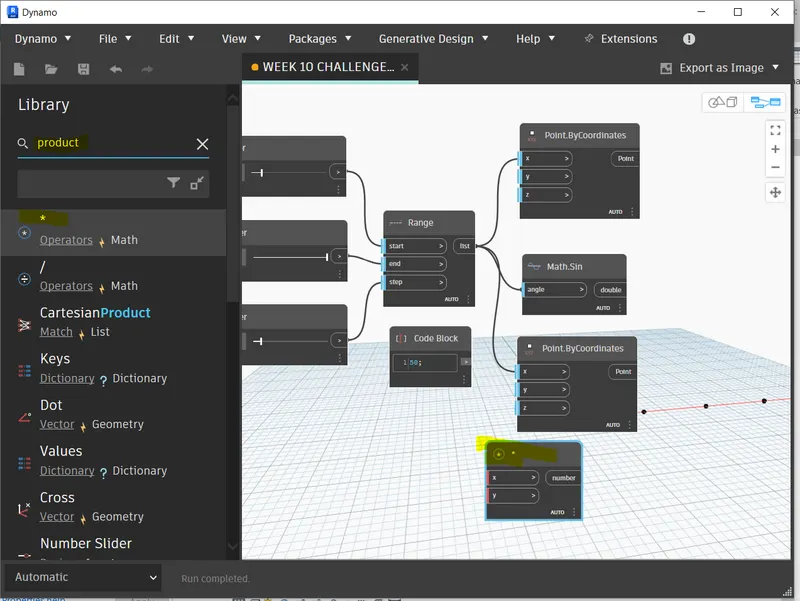

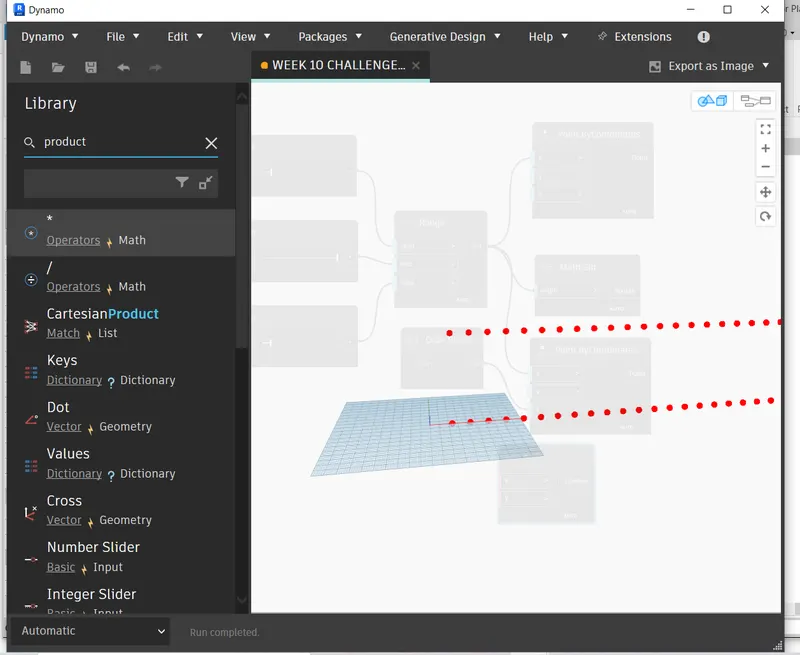

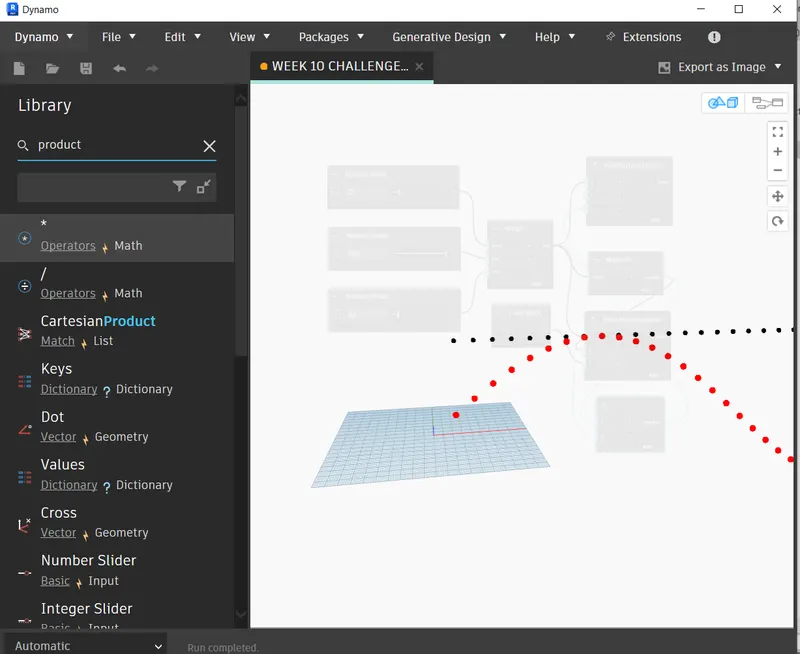

after that set range list to both x coordinate which is set in point by coordinate and also set range to math.sin angle . and set code block to 50; after that create the product by searching on the library search.
to get the another set of sinusoideal point need to set code block to z(direction) coordinate to point by coordinate.
and y coordinate to math.sin
math.sin to product varient x,and product varient to first coordinate z (direction ) and set code block to y product. after that it will create a point.

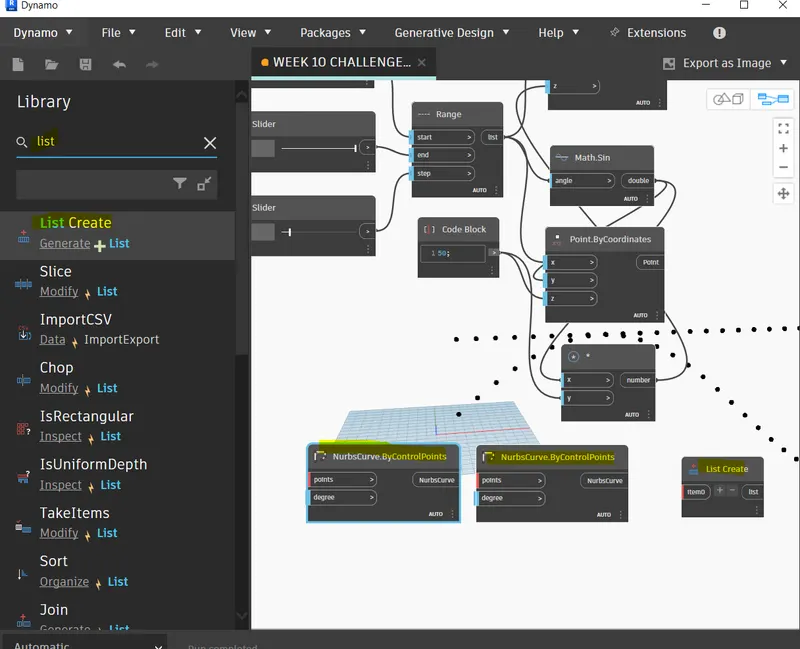

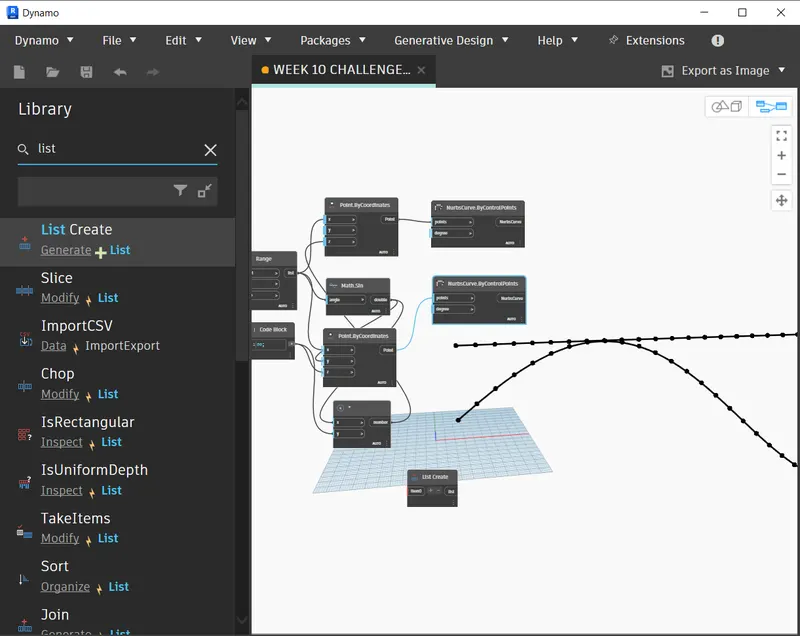

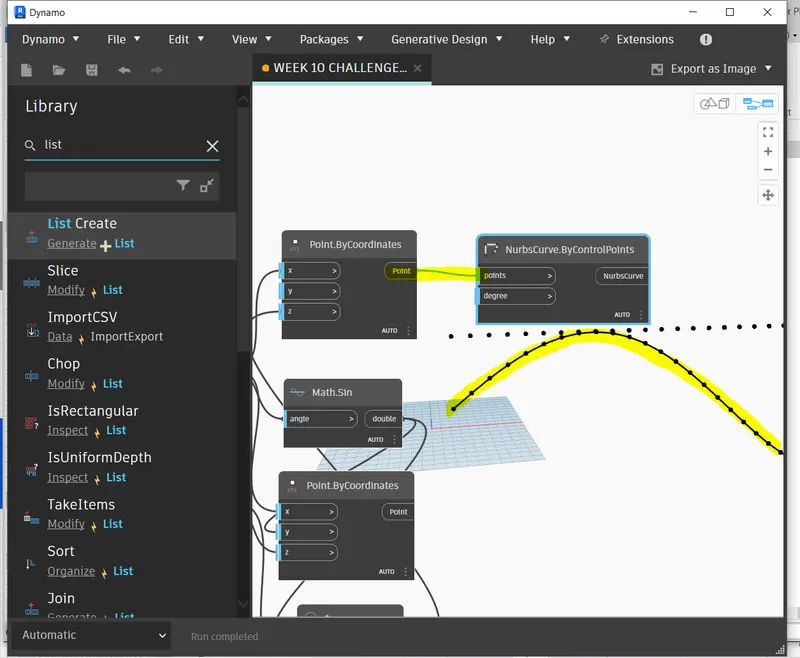

for creating curve need 2 nurbs by curve option. creating by searching from the library and clicking two times. after that create a list . by searching inthe library.
to get curve line need to coonect point by coordinate to nurbs by curve. for another sinusoidel point doing the same thing.

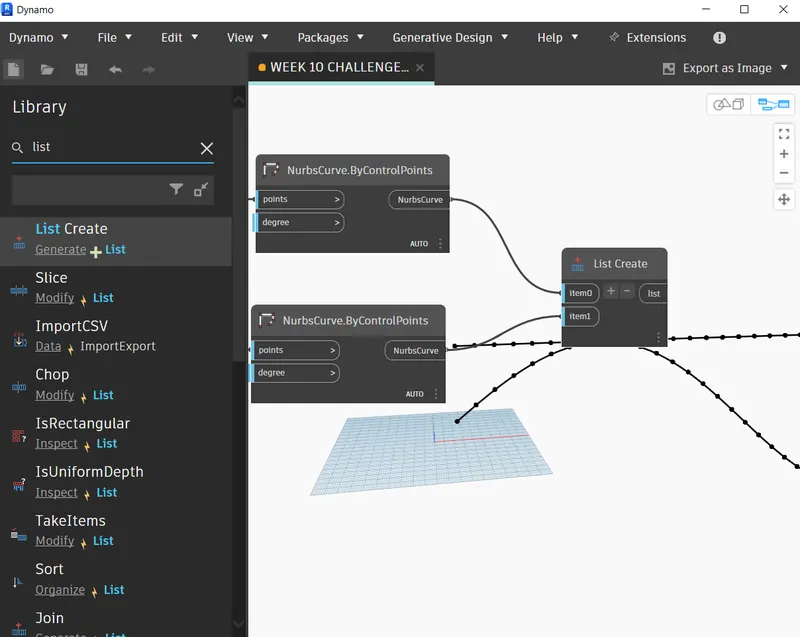

selecting nurbcurve to item 0 and another curve to item 1.

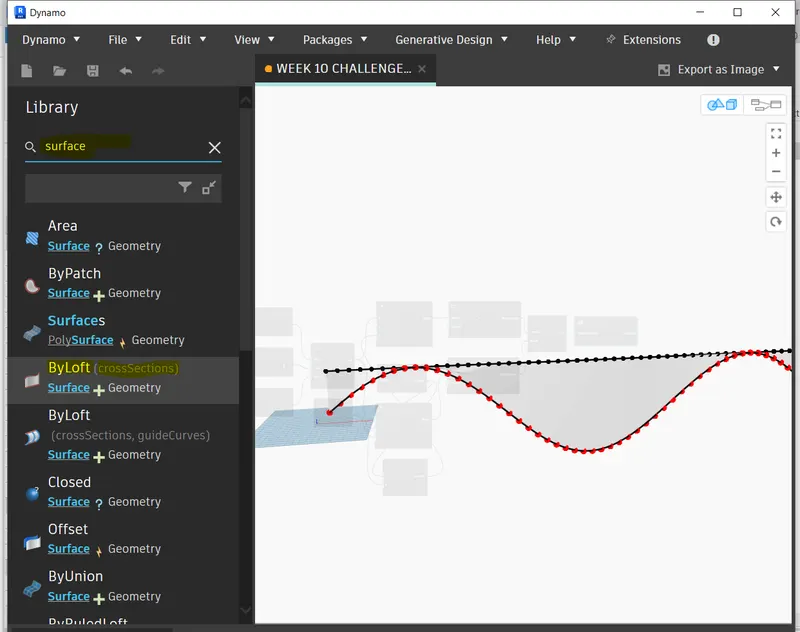

surface - to make the surface search searface in the search library and create it. and connect the list to cross section surfacre.
RESULT -
AIM - Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall parameters. Make use of the sliders to slide through the height of the wall and length of the wall.
ANS - CREATE LAYOUT IN THE DYNAMO -

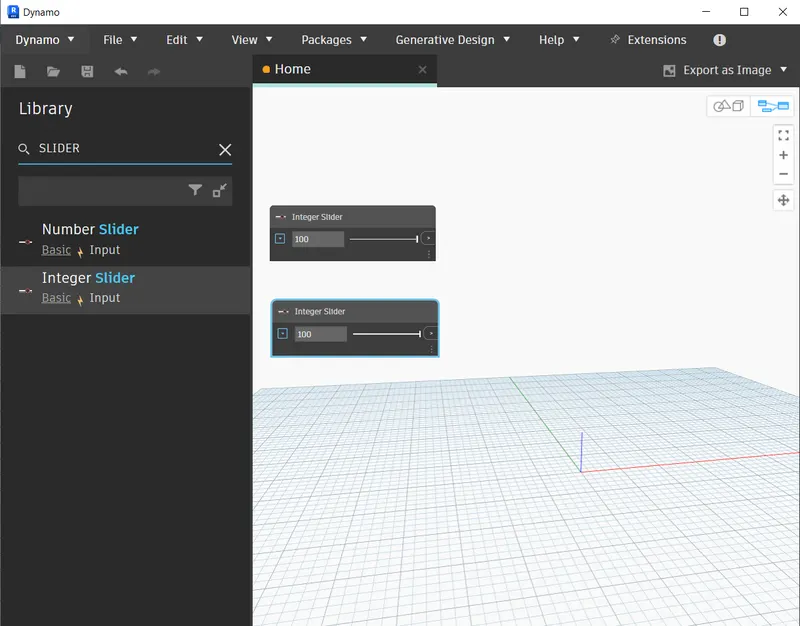

TO CREATE FLOOR PLAN IN THE DYNAMO. OPEN DYNAMO AND NEED TWO INTEGER SLIDER FROM SEARCH LIBRARY AND ASSIGN A VALUE OF 100.

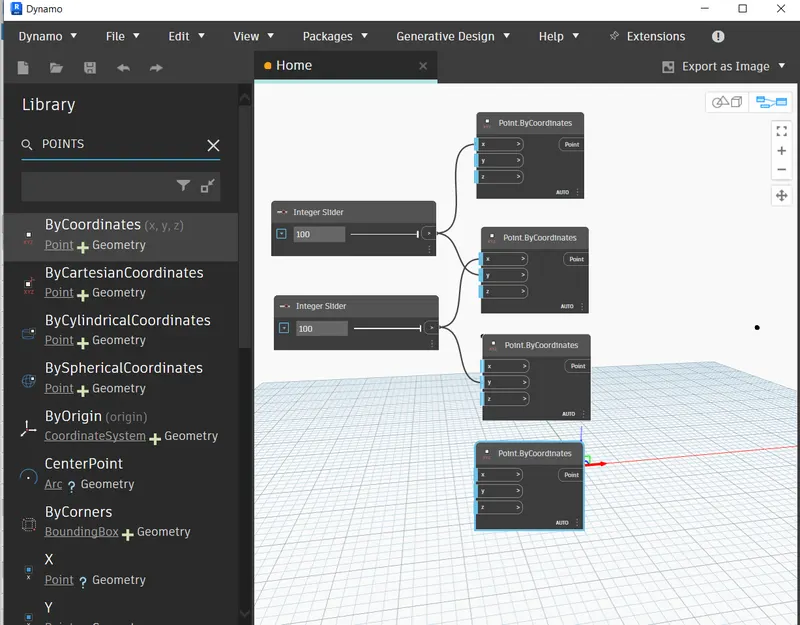

AFTER THAT NEED TO ADD 4 TIMES POINT BY COORDINATE TO CREATE WALL POINTS. SELECT FIRST INTEGER SLIDER TO FIRST X COORDINATE AND SECOND Y COORDINATE. AND SECOND INTEGER SLIDER CONNECT TO SECOND X COORDINATE AND THIRD Y COORDINATE.

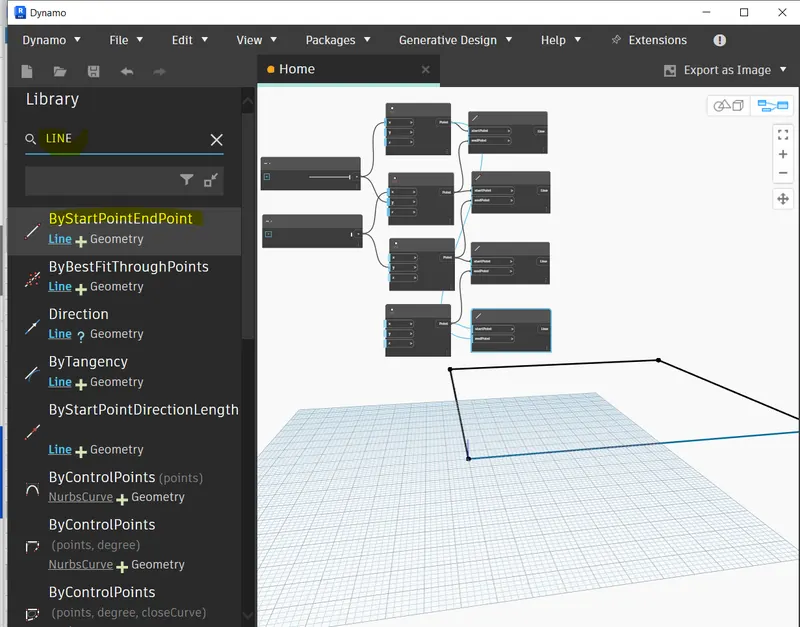

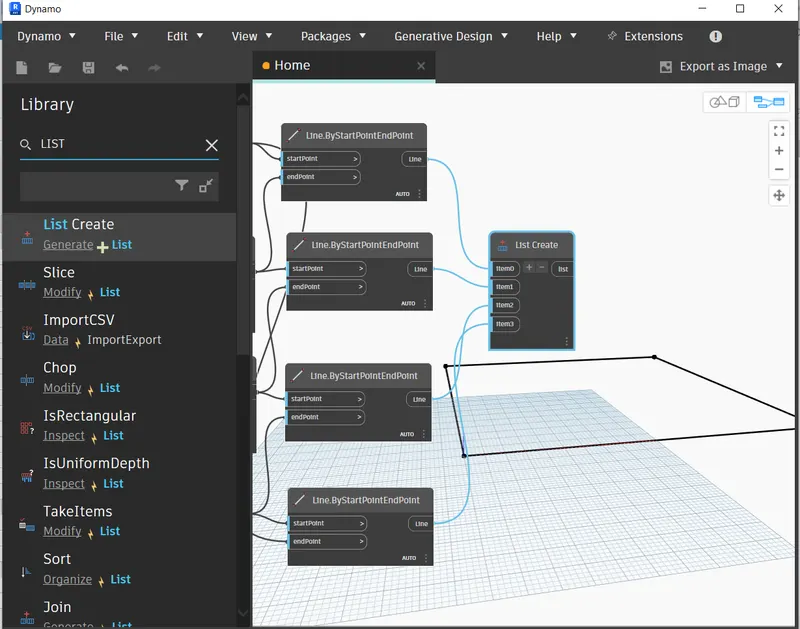

MAKING LINE THROUGH THIS FOUR POINT NEED TO CREATE LINE START AND END POINT. 4 TIMES. AND CONNECT POINT BY COORDINATE BY LINE IN CROSS SECTIONAL AFTER THAT IT WILL BE CREATE A WALL.
AND IT IS ALSO VISIBLE IN REVIT.
TO CREATE COMPLETE WALL CONNECT THE POINT TO THE LINE OPTION. IN LIST OPTION DROP DOWN FOUR ITEM. AND SIMILLERLY CONNECT FOUR POINT TO CONTINOUSLEY FOUR ITEM.

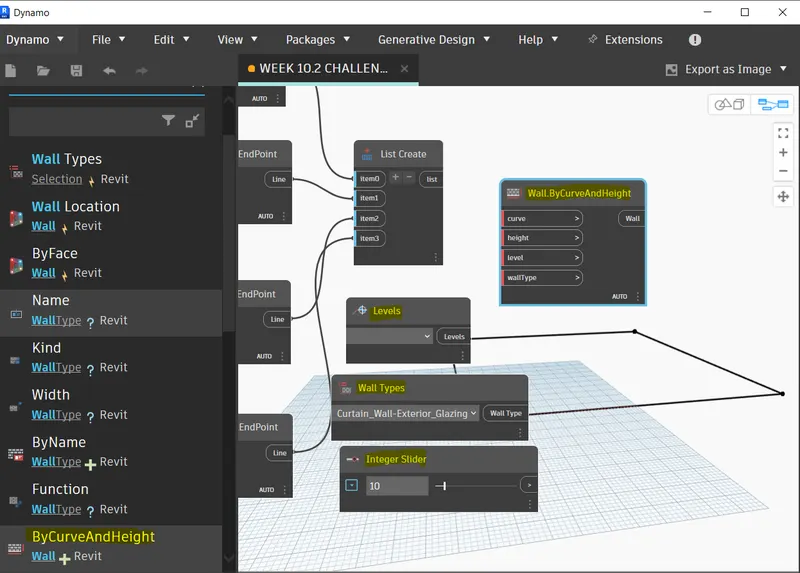

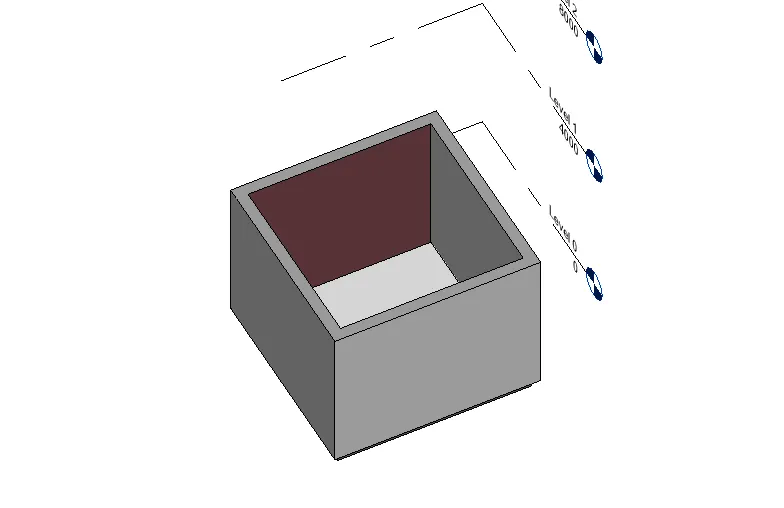

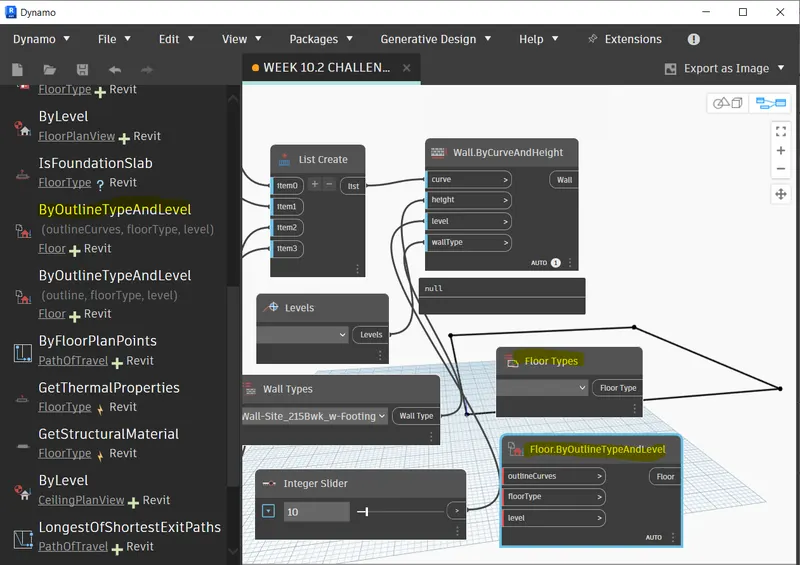

AFTER THAT TAKE A INTEGER SLIDER AND PUT THE 10NO. TO INTEGER SLIDER. ADDING WALL TYPES BY SEARCH IN LIBRARY. ALSO ADD WALL BY CURVE AND HEIGHT.
AFTER THAT ADDING A FLOOR SEARCH FLOOR TYPES AND ALSO ADD FLOOR BY OUTLINE TYPE AND LEVEL.

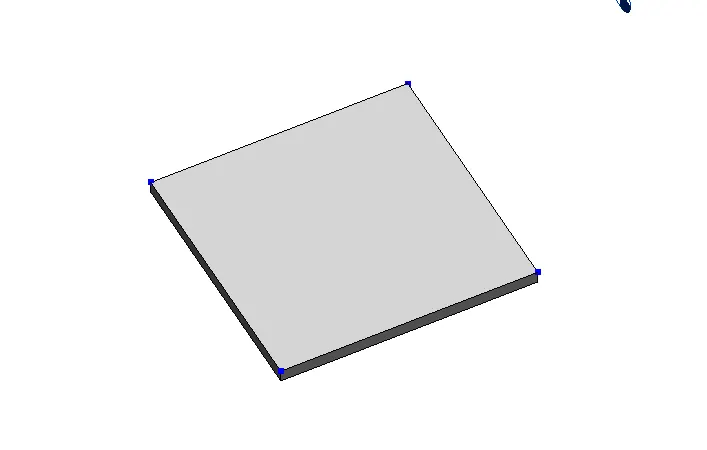

AFTER THAT CREATE A LINE LIST TO OUTELINE CURVE.CHOOSE FLOOR TYPES AFTER THAT CREATED FLOOR IS VISIBLE.

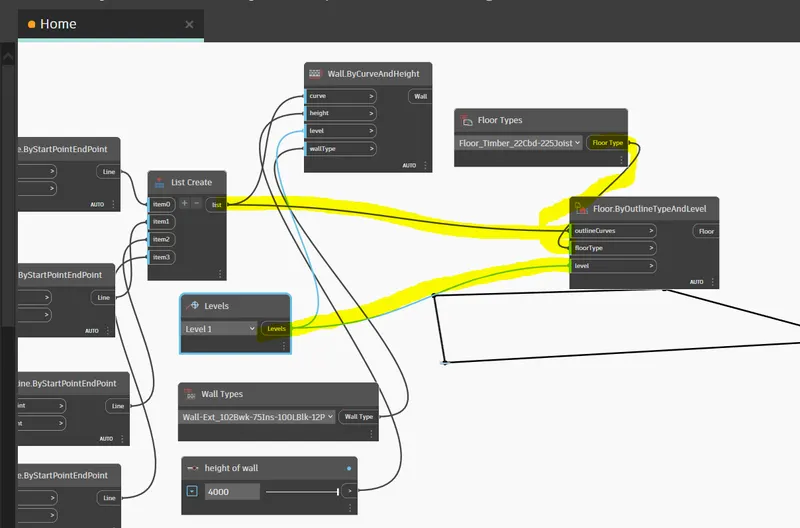

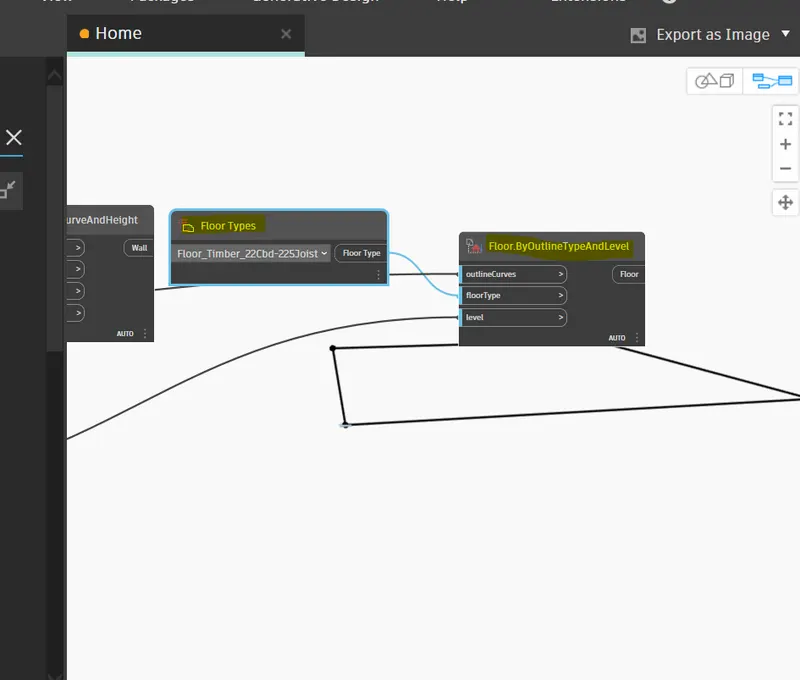

FLOOR - TO CREATE FLOOR IN DYNAMO ADD FLOOR BY OUTLINE TYPE AND LEVEL, FLOOR TYPE.
AFTER THAT CONNECT TO THE LEVELS TO LEVEL, FLOOR TYPES TO TYPE AND OUTLINE TO CURVE TO LIST.

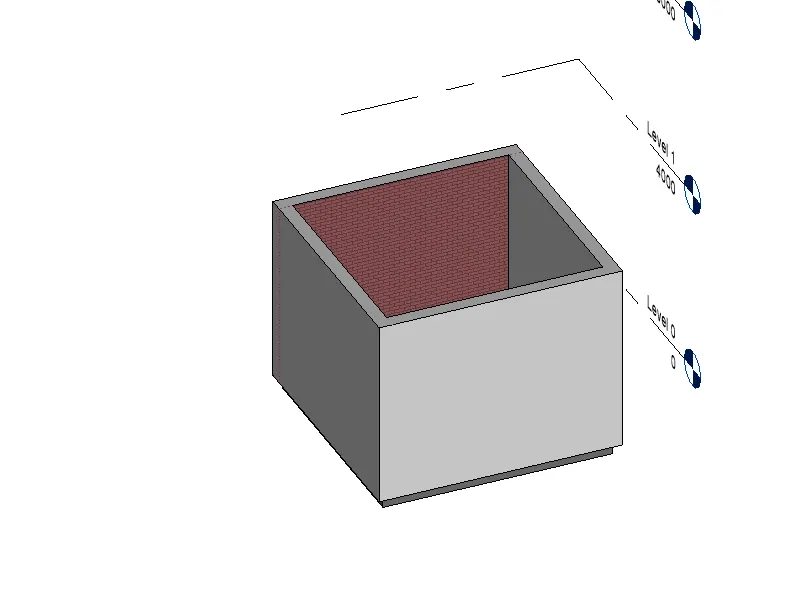

RESULT -
AIM - Create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block
ANS - CREATE AN ARREY OF MODEL ELEMENT -

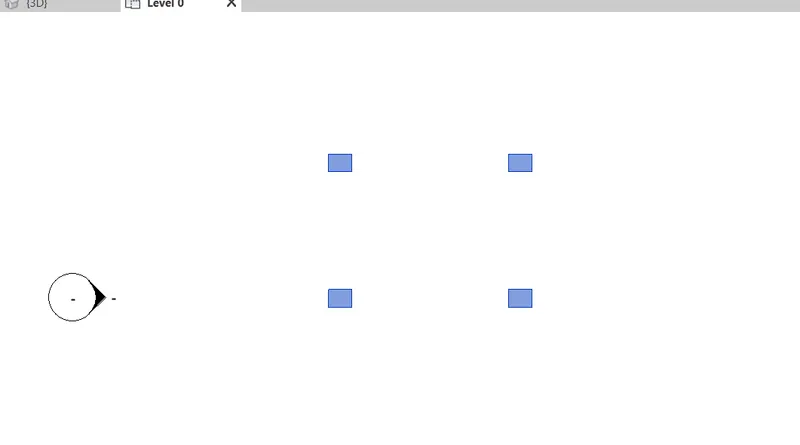

CREATE A FOUR ARCHITECTURAL COLUMN AFTER THAT OPEN A DYANAMO FROM MANAGE TAB AND CREATE MULTIPLE ELEMENT BY SEARCHING IN LIBRARY.

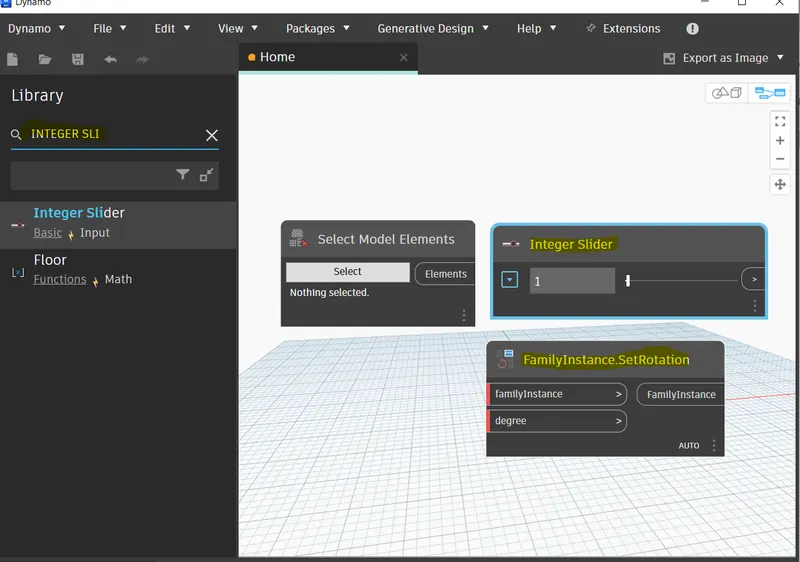

AFTER THAT CREATE ROTATION ANGLE AND ADD INTEGER SLIDER. THESE ARE THREE IMPORTATNT TOOL TO CREATE AN ARRY.

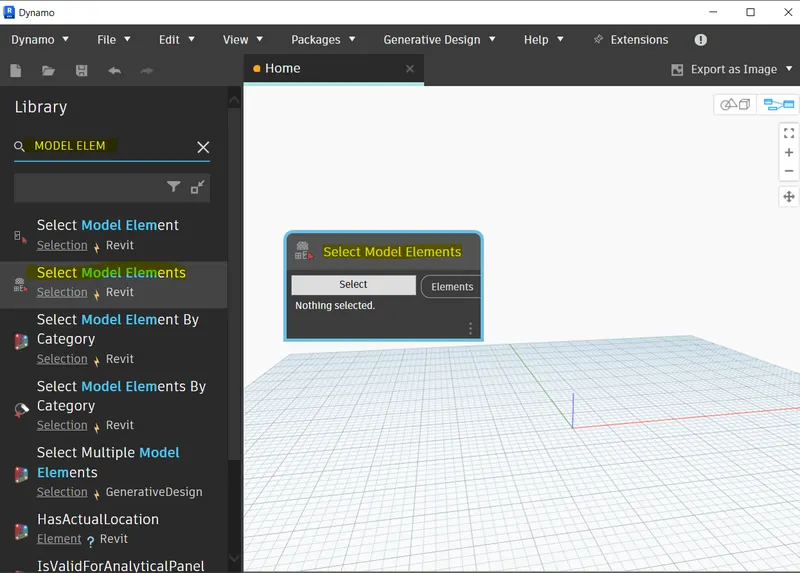

AFTER THAT SELECT A MODEL ELEMENT FROM DYNAMO AND SELECT A FOUR COLUM WHICH I HAVE CEATED.
AFTER THAT ELEMENT WILL BE SELECTED.

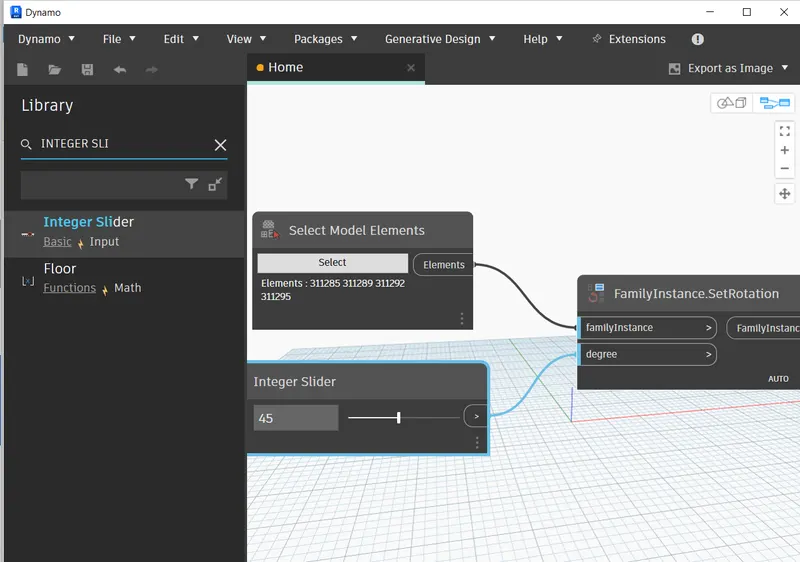

SET ROTATION ANGEL AT INTEGER SLIDER IS 45.SELECT ELEMENTS TO FAMILLY AND INTEGER SLIDER TO DEGREE.
AFTER CROSS CHECKING.THE COLUMN IS ROTATED.
RESULT -
AIM - Create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. Use triangular bent or square shaped panels to add finish to the parametric column
ANS - CREATE CONCEPTUAL MASS -

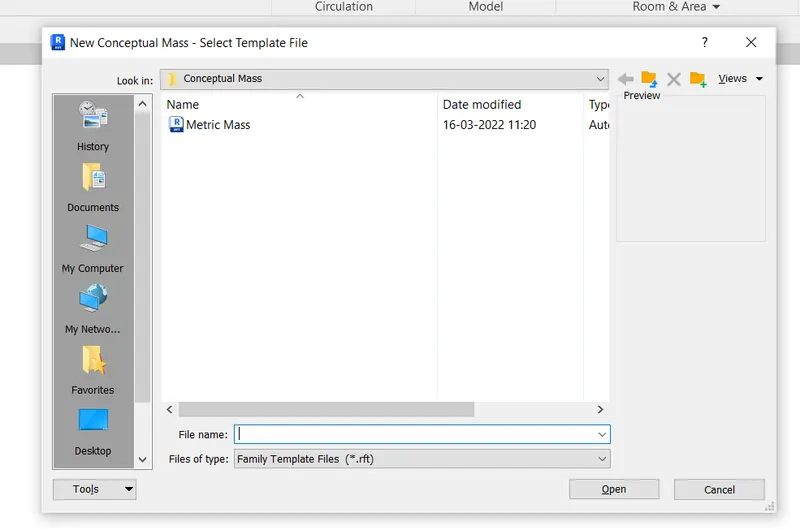

TO CREATE CONCEPTUAL MAS CLICK ON FILE INSIDE NEW OPTION THERE IS A CONCEPTUAL MASS OPTION SELECT IT. FROM TEMEPLETE SELECT CONSEPTUAL MASS AND AFTER THAT IOPEN METRIC MASS OPTION.
AFTER THAT SELECT ELEVATION FOR HAT SELECT A PICK LINE OPTION. AND TAKE ANOTHER LEVEL OF 12'

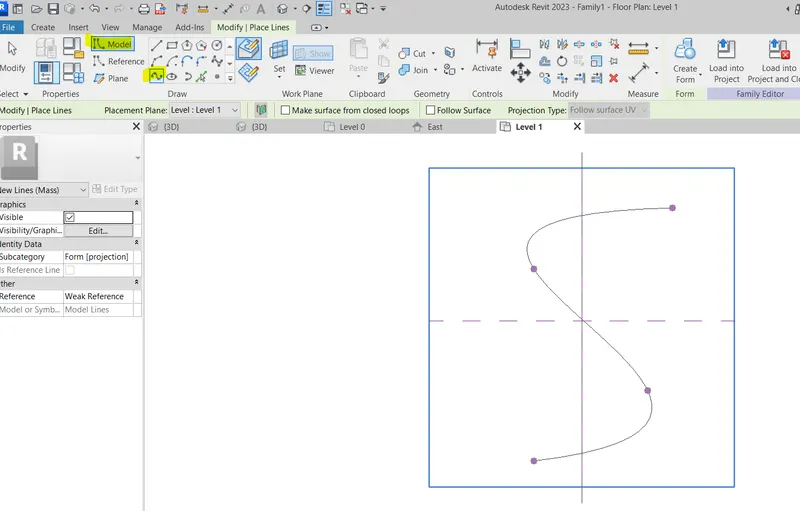

BY SETTING A 12' IN OFFSET. TAKING MODEL LINE AND AFTER THAT SELECT SPLINE FROM VIEW TAB AND CREATE A (S) SHAPE SPLINE.
SET THE PLANE -

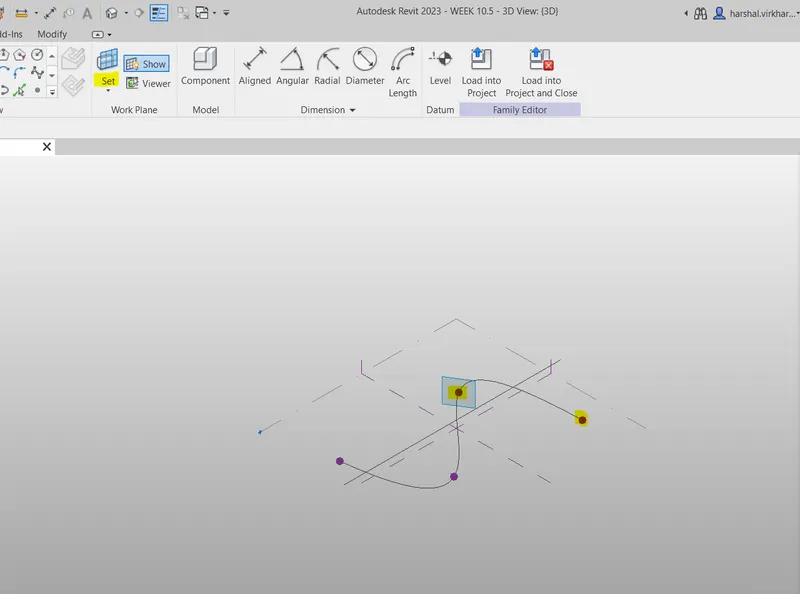

AFTER THIS PROCESS NEED TO SET THE PLANE. AND CLICK SHOW SHOW OPTION AND SELECT SET AT SPLINE POINT.

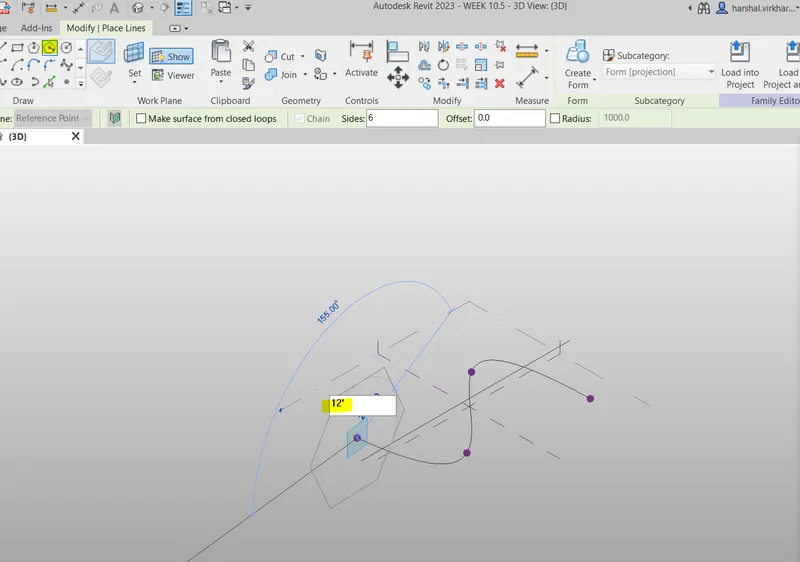

AFTER THAT SELECT A POLYGONE FROM MODIFY PANNEL AND SET POLYGONE TO 12' (FEET). IN ALL THE SPLINE POINT.

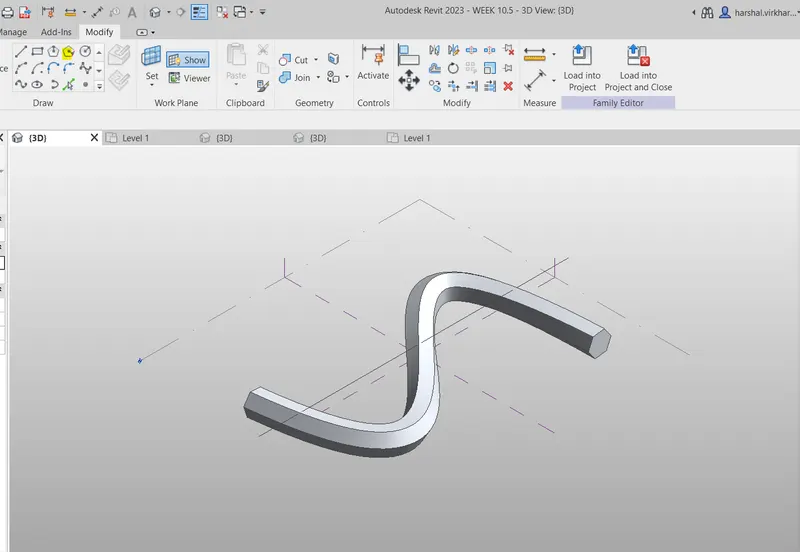

after the selecting spline and all polygone using control option. after that object mass will be created.
to divide the object select whole object and fillter the object and check the form and click ok.
SQUARE SHAPED PANNEL -

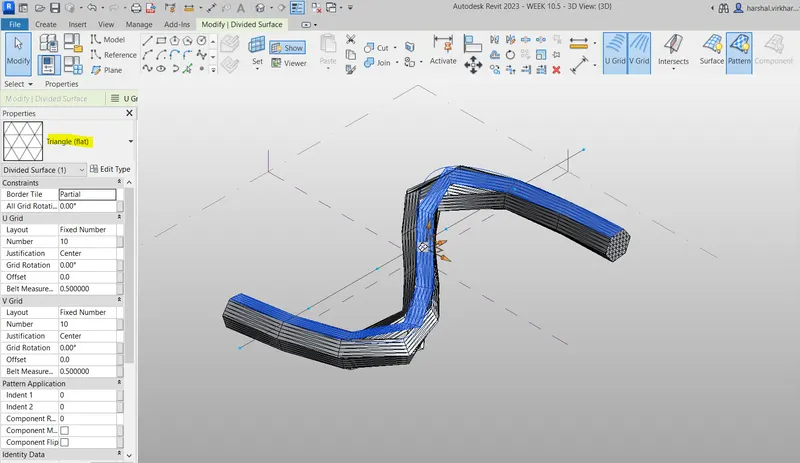

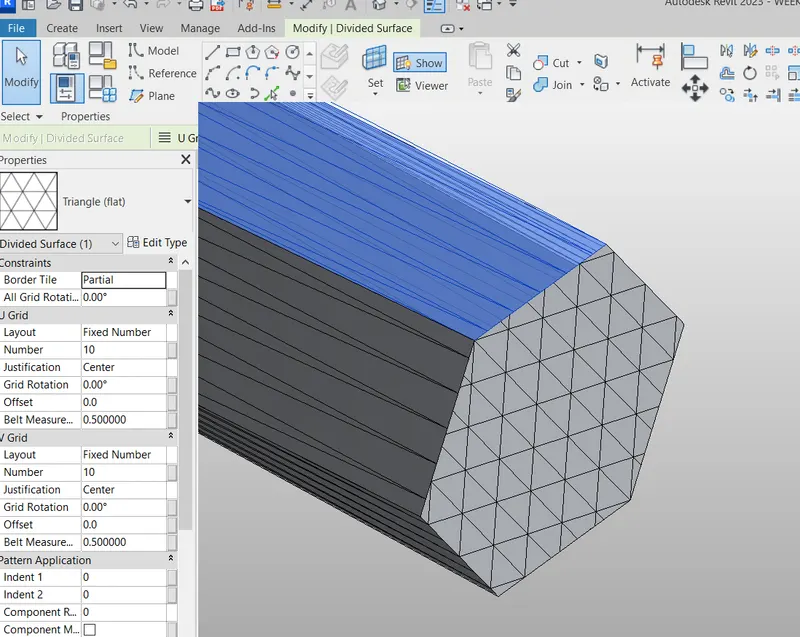

TO ADD SQUARE SHAPED PANNEL SELECT ALL THE OBJECT.AFTER THAT DIVIDED INTO PARTS THEN SELECT A OBJECT AND CREATE A TRANGLED PORTION FROM PROPERTIES BROWSER.
RESULT -
AIM - Use Dynamo to work on developing a Parametric Stadium. List your parameters and use the visual programming approach to complete the modelling, You can use the concepts discussed in parametric high rise tower in class for reference.
ANS - PARAMETRIC STADIUM -

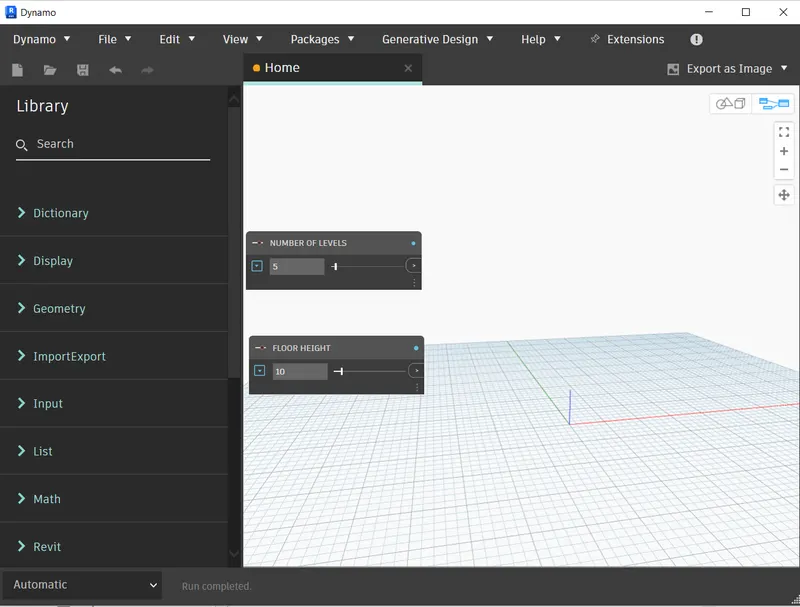

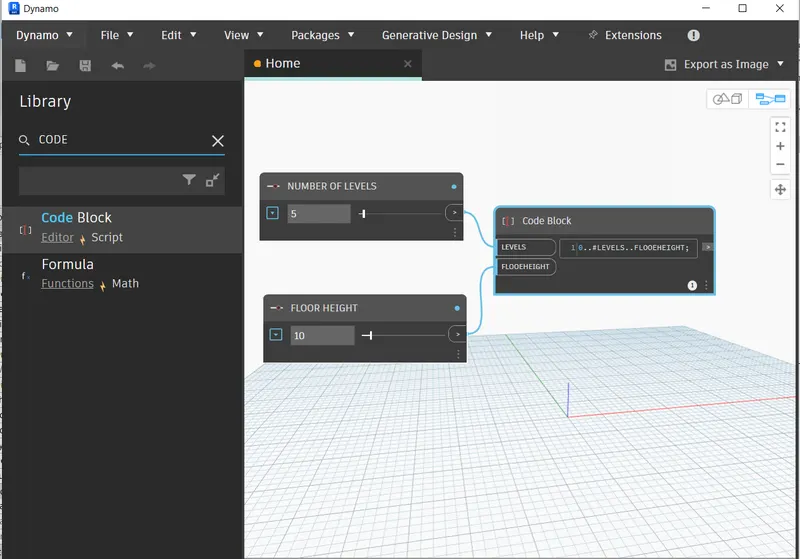

TO CREAT PARAMETRIC STADIUM IN THE DYNAMO. USE TWO INTEGER SLIDER.RENEME IT NUMBER OF LEVELS AND FLOOR HEIGHT.ALSO PUT VALUE FOR LEVELS AND FLOOR. 5 AND 10 NO.
AFTER THAT CREATE A CODE BLOCK AND PUT SOME CODE LIKE 0..LEVELS..FLOORHEIGHT AND CREATE A LINE TO NUMBER OF LEVELS AND FLOOR HEIGHT.

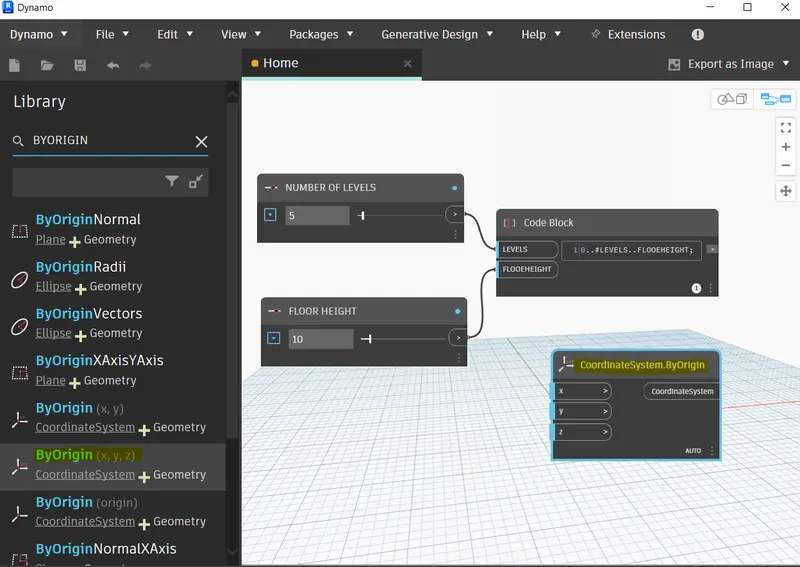

AFTER THAT NEED TO CREATE LEANGTH AND WIDTH OF THE BUILDING. SO CREATE BYORIGIN (X,Y,Z,).
THEN CONNECT THE CODE BLOCK TO (Z) AXIS. AFTER THAT CREAT CONTINUE FOUR INTEGER SLIDER AND RENAME IT. WIDTH,LENGTH,TOP FLOOR ROTATION, BOTTOM FLOOR ROTATION.
AND ALSO RENAME IT LIKE WIDTH,LEANGTH,BOTTOM FLOOR ROTATION,TOP FLOOR ROTATION.

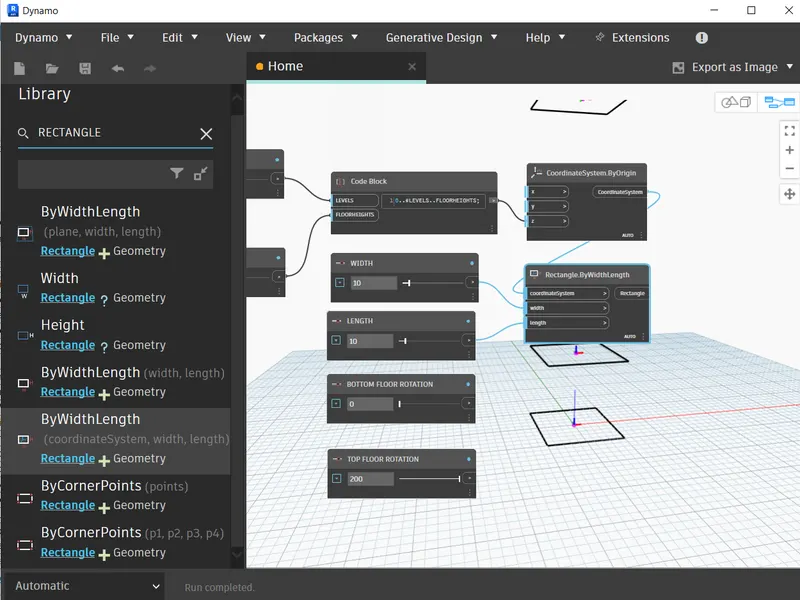

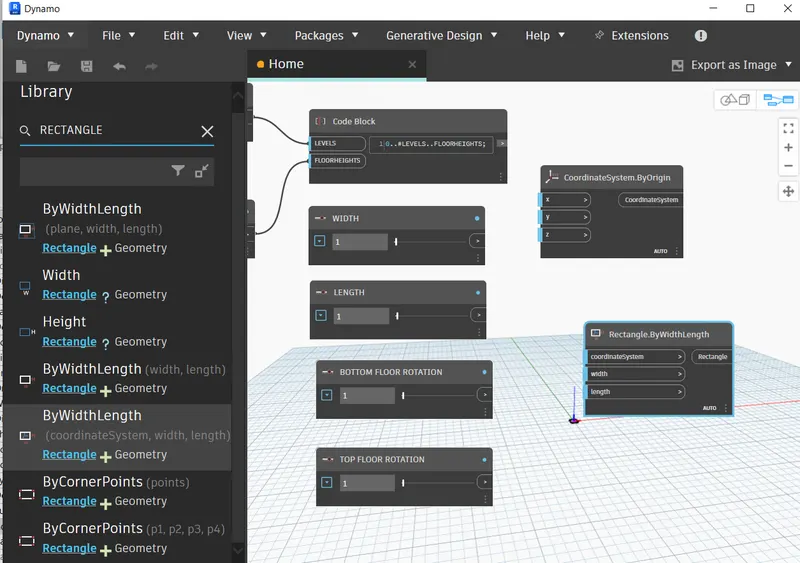

AFTER THAT CREATE A RECTANGLE BY SEARCHING IN LIBRARY.
AFTER THAT SET LENGTH,WIDTH, BY SET AN 10 UNIT AND IT WILL BE CREATED A RECTANGLE. SELECT COORDINATE SYESTEM TO COORDINATE SYESTEM.
SETTING A LENGTH IS 10.
BOTTOM FLOOR ROTATION IS 0
TOP FLOOR ROTATION IS 200

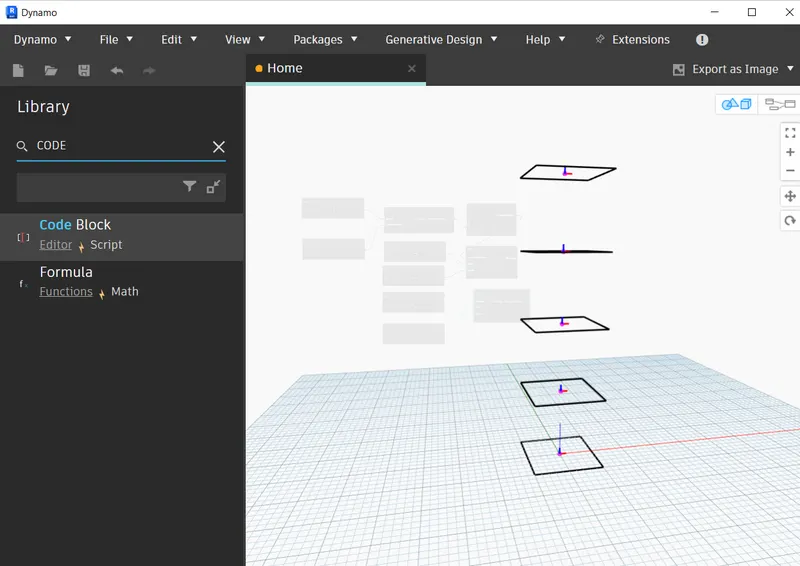

ADD ANOTHER CODE BLOCK FOR FLOOR ROTATION. AND ADD CODE IS BOTTOM..TOP..#LEVELS AFTER THAT CODE WILL BE CREATED. AND SET A CODE LEVELS TO LEVELS,TOP TO TOP,BOTTOM TO BOTTOM.
AFTER SETTING THIS ELEMENT THE RESULT IS.
AFTER THAT CREATE Z ORIGIN
AFTER THAT CREATE VECTOR (Z)AXIS.

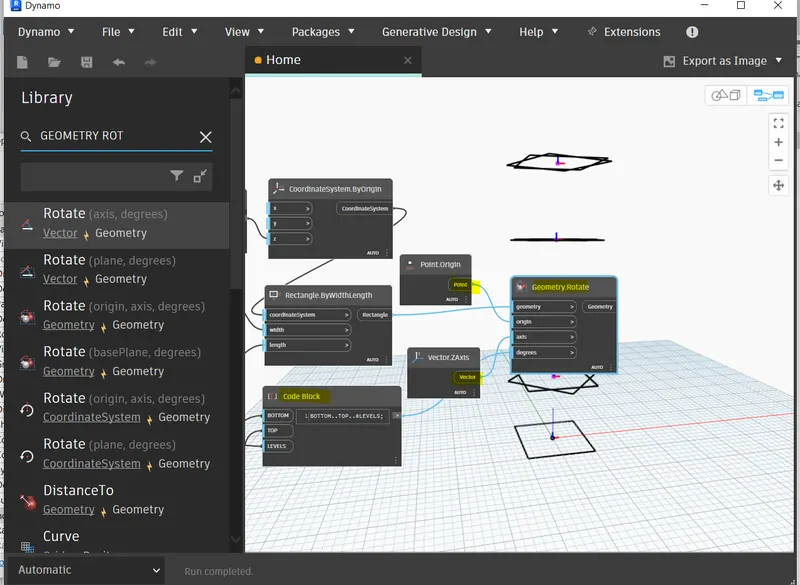

AND CRTEATE GOEMETRY ROTATE ,AXIS , AND DEGREE.
AFTER CREATED THIS SELECT RECTANGLE TO GEOMETRY
POINT ORIOGIN TO ORIGIN.
VECTOR Z AXIS TO AXIS.
CODE BLOCK TO DEGREE.

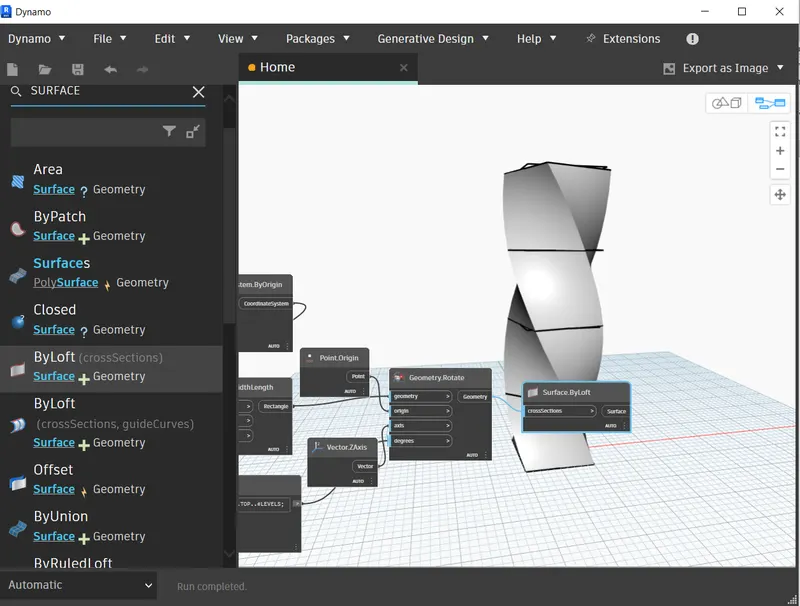

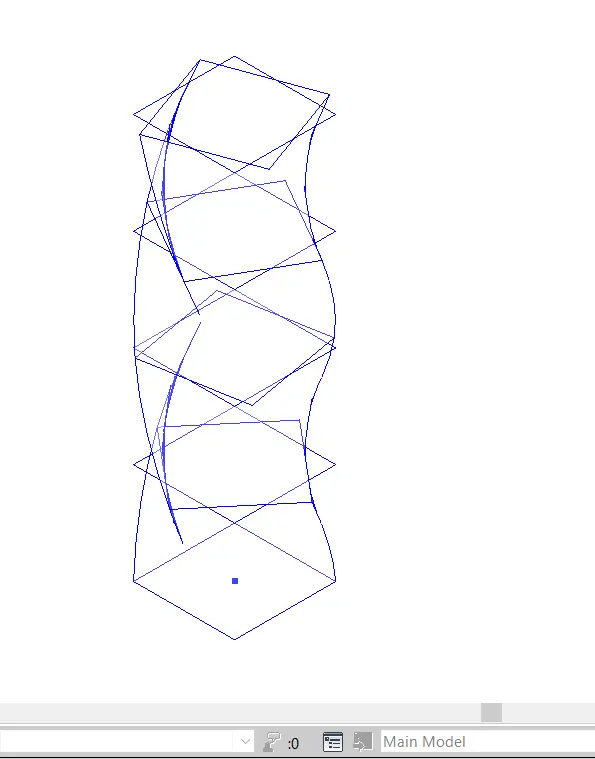

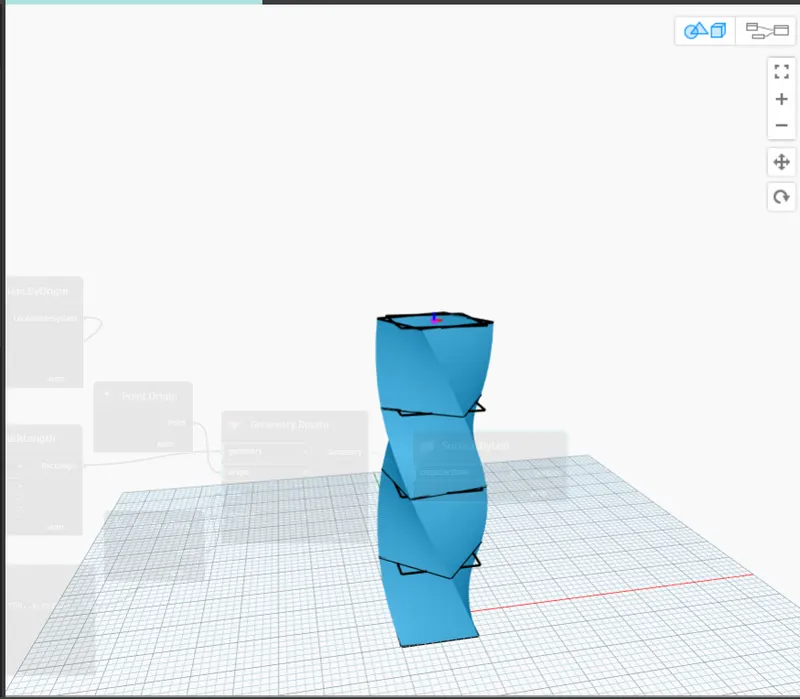

FINALLY MAKE SURFACE OF THIS PARAMETRIC DESIGN. SO THAT CREATE POLY SURFACE BY LOFT.
SO CONNECT THE GOEMETRY TO CROSS SECTION.
RESULT - PARAMETRIC STADIUM
