Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

1.

AIM:

To Create Custom1_titleblock and Custom2_titleblock using Attributes and block command from Autocad software.

Step 1 ( custom1_tittleblock)

• In the command prompt type L to draw the lines.
• In ribbon tab > Annotate > Mtline ( to draft the text ).
• go to properties tab to change the colour.

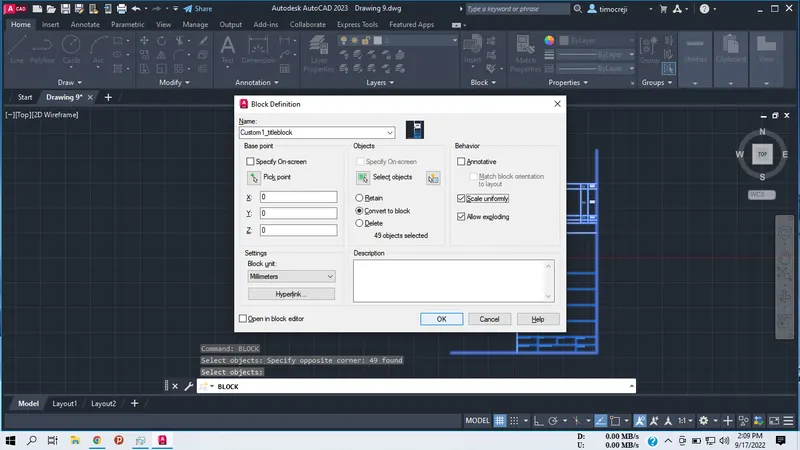

• In the riibon bar >block > create block and name it Custom1_titleblock.Therefore the block is created.

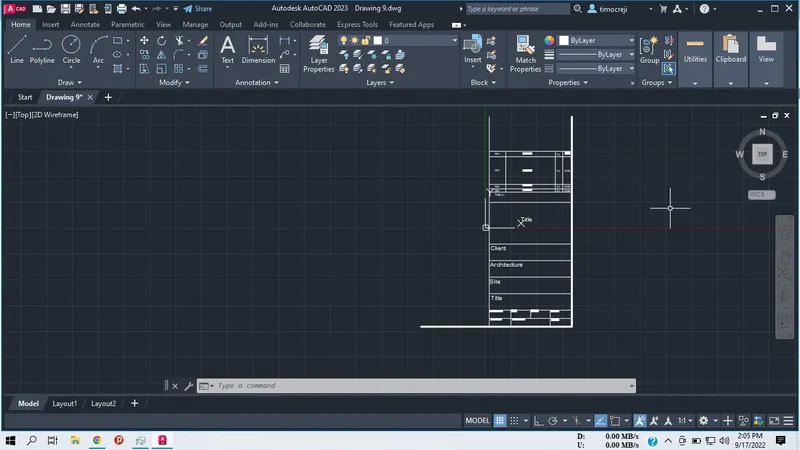

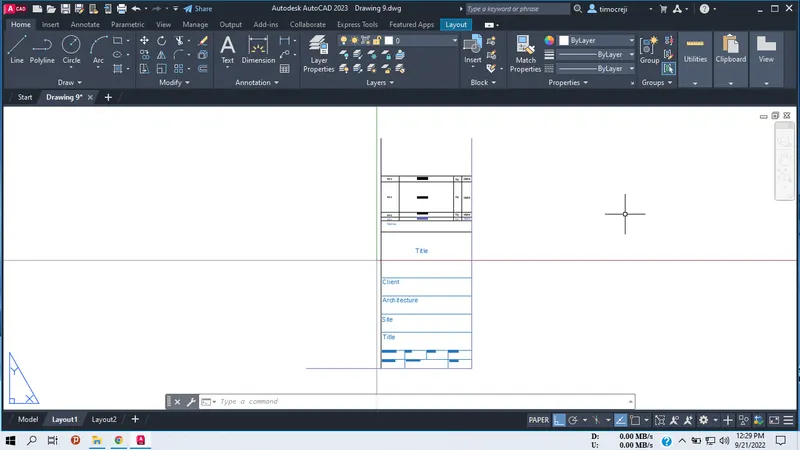

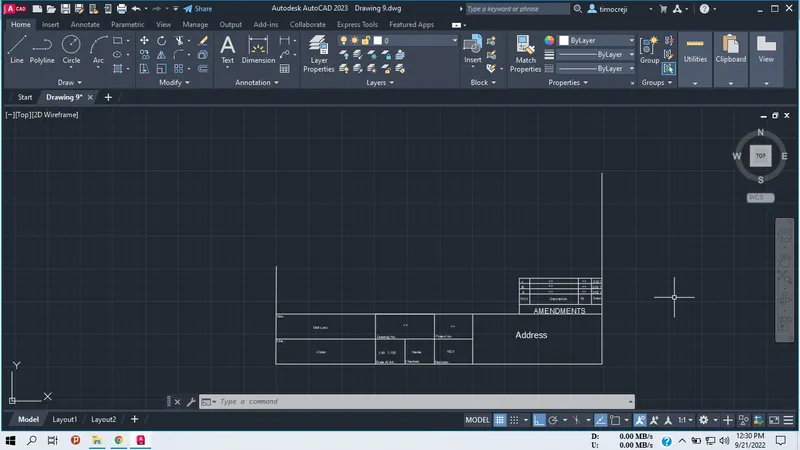

custom1_tittlebox result:

STEP 2 (custom2_tittleblock)

• In the command prompt type L to draw the lines .
• In ribbon tab > Annotate > Mtline ( to draft the text ).
• go to properties tab to change the colour.

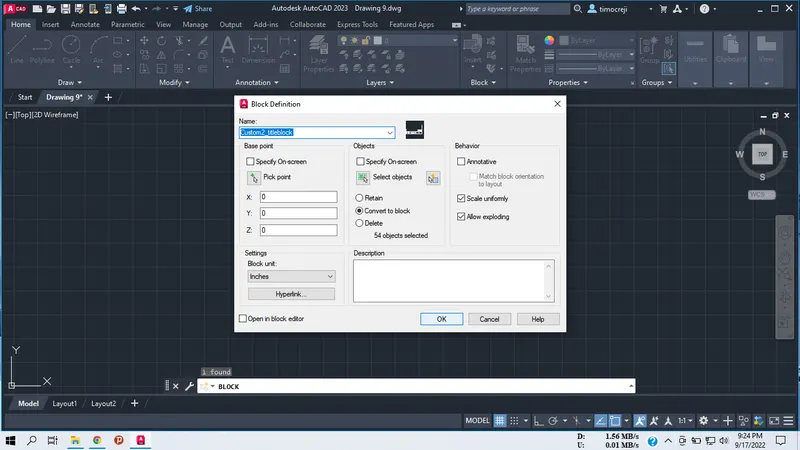

• In the riibon bar >block > create block and name it Custom2_titleblock.Therefore the block is created .

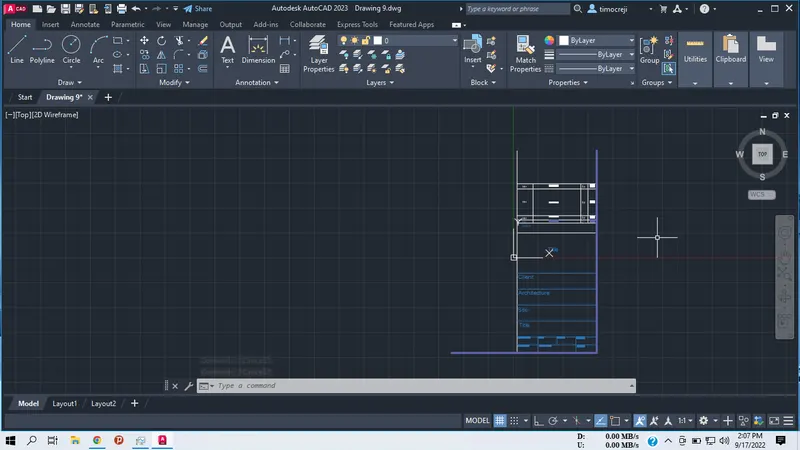

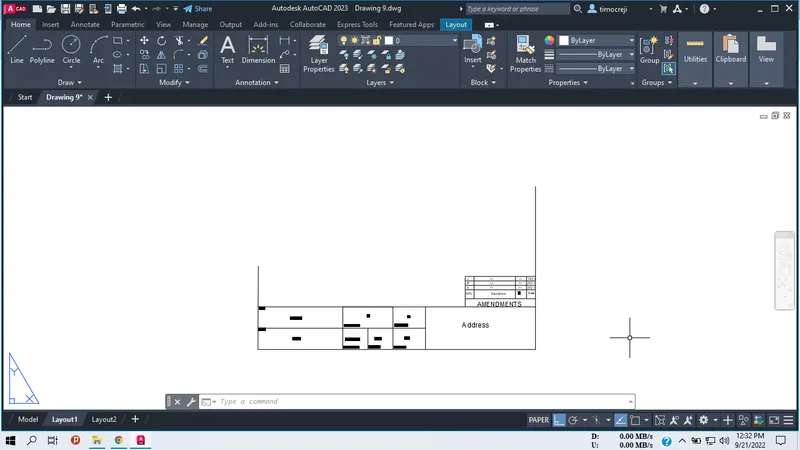

custom2_tittlebox result:

2.

AIM:

To create the doors type for warehouse and to also create the block of this door type after creating them using AutoCAD.

PROCEDURE:

step 1:

• In the command prompt type the units > mm
• In the command prompt type the limax > 100,100
• In the command prompt type the limits >0,0

step 2 :

• In the command prompt type l to draft the lines .
• In the command promt type rec to draft the boxes or rectangle .
• In the command prompt type fillet to get the curve edges.

• In the ribbon bar > dimensions ( to give the dimensions of the door ).
• In the ribbon bar > annotation > text ( to give the text for the door ).

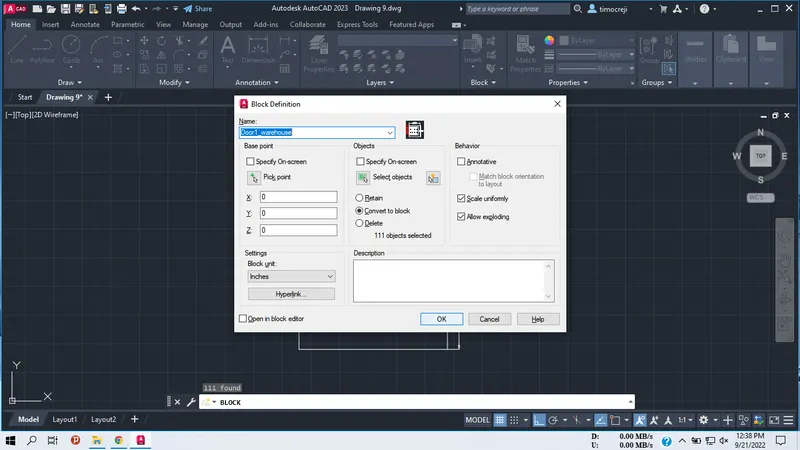

• In the ribbon bar >block >create block ( to create the door block ).

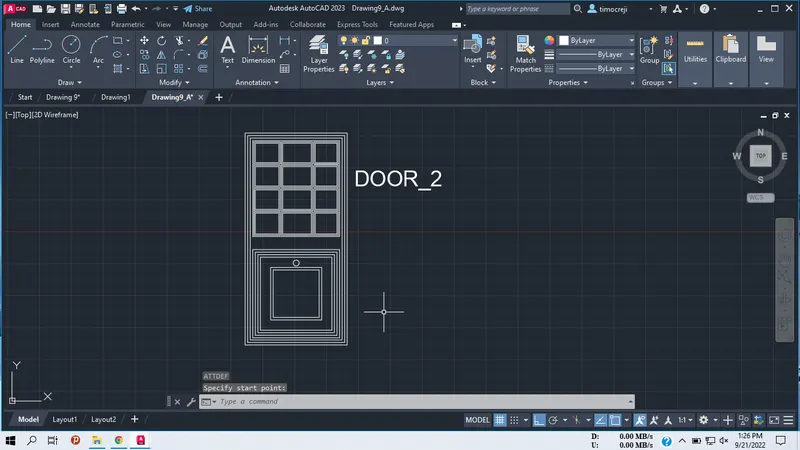

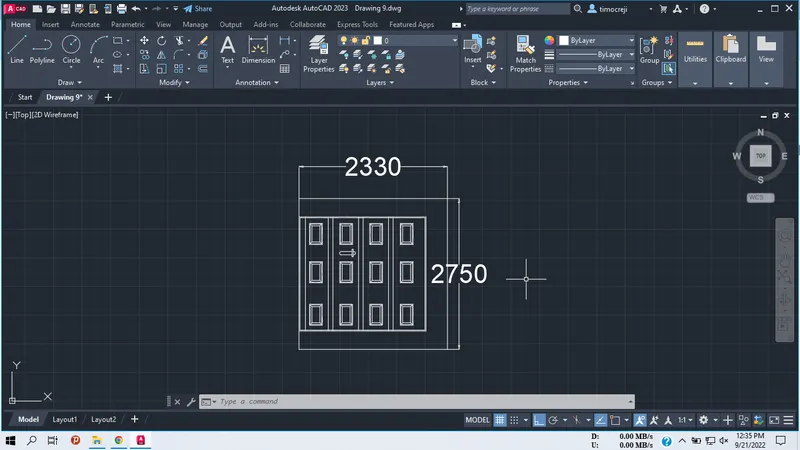

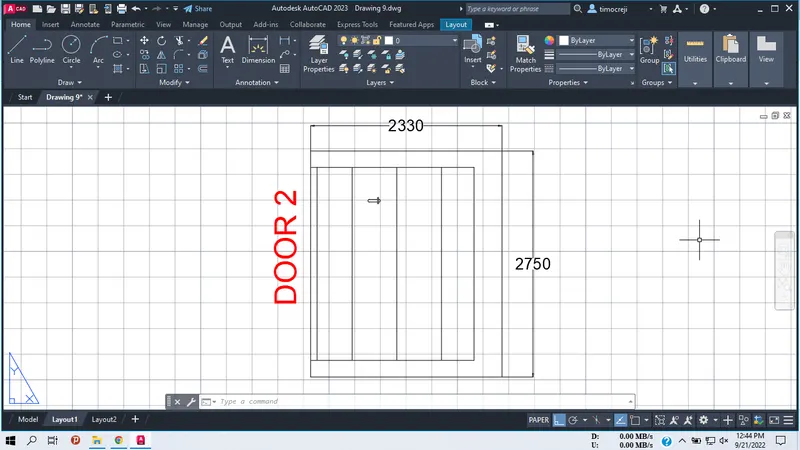

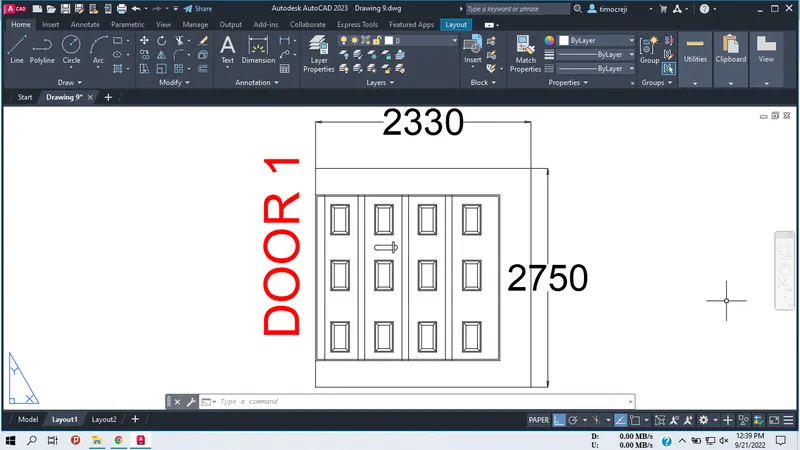

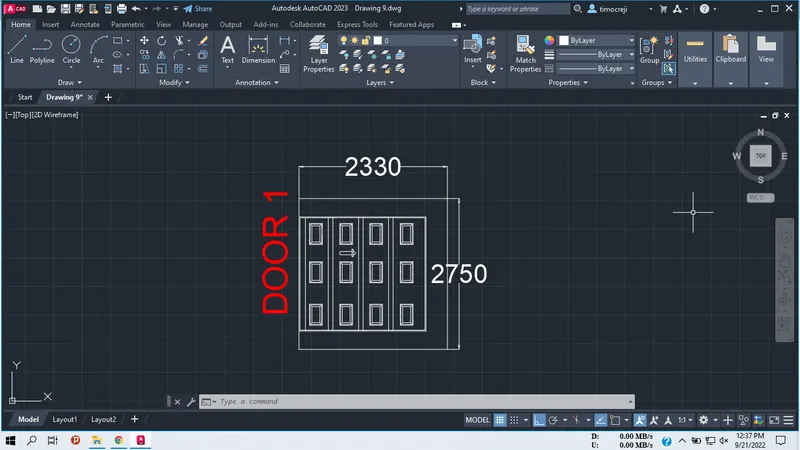

DOOR1_WAREHOUSE RESULT:

step 3 :

• In the command prompt type l to draft the lines .
• In the command promt type rec to draft the boxes or rectangle .
• In the command prompt type fillet to get the curve edges.
• In the ribbon bar > dimensions ( to give the dimensions of the door ).
• In the ribbon bar > annotation > text ( to give the text for the door) .

• In the ribbon bar >block >create block ( to create the door block )

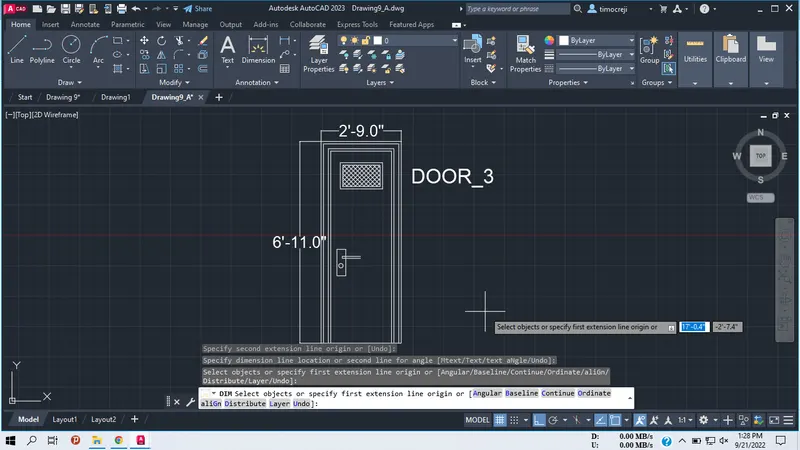

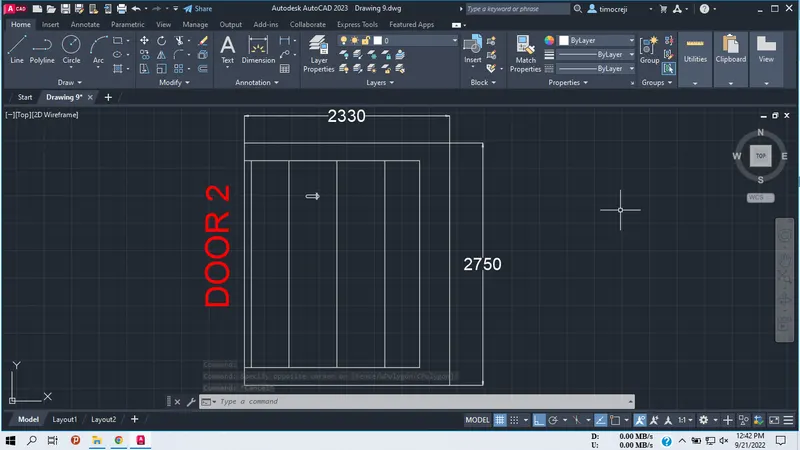

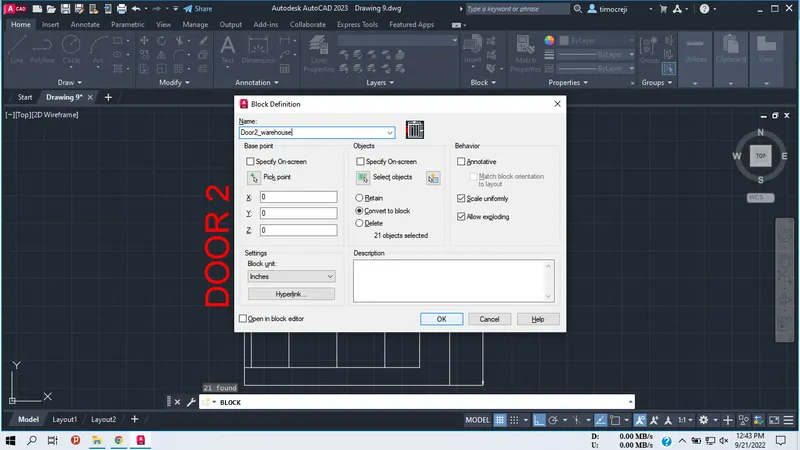

DOOR2_WAREHOUSE BLOCK RESULT:

3.

AIM:

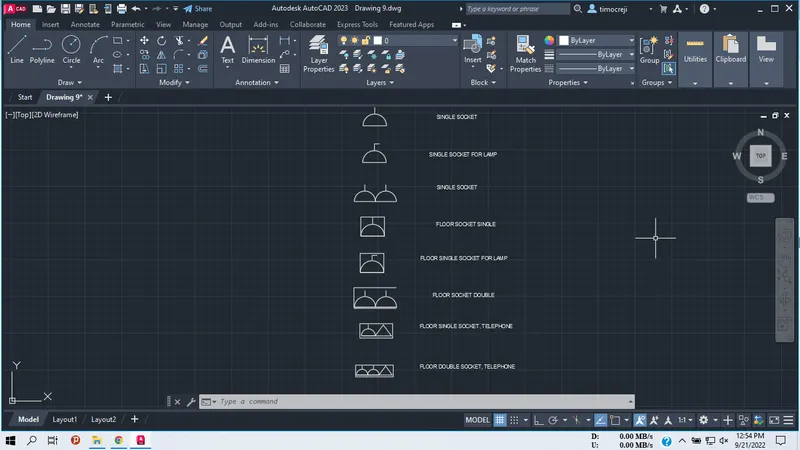

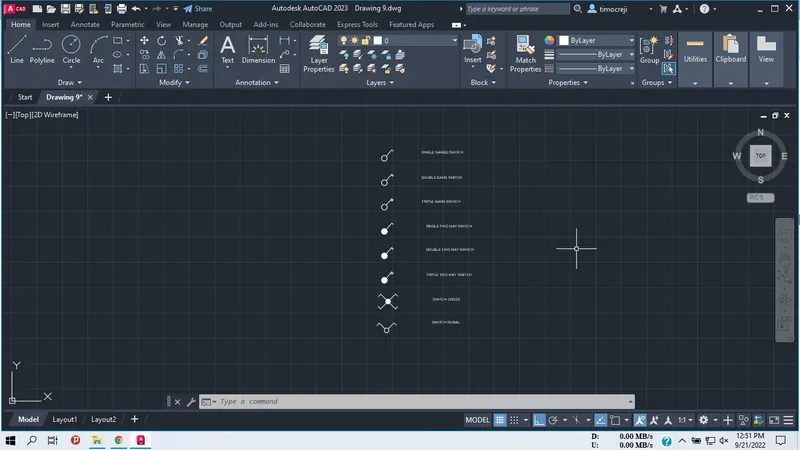

To create each symbol as a block with the name and then arrange them in the legend .

PROCUDER:

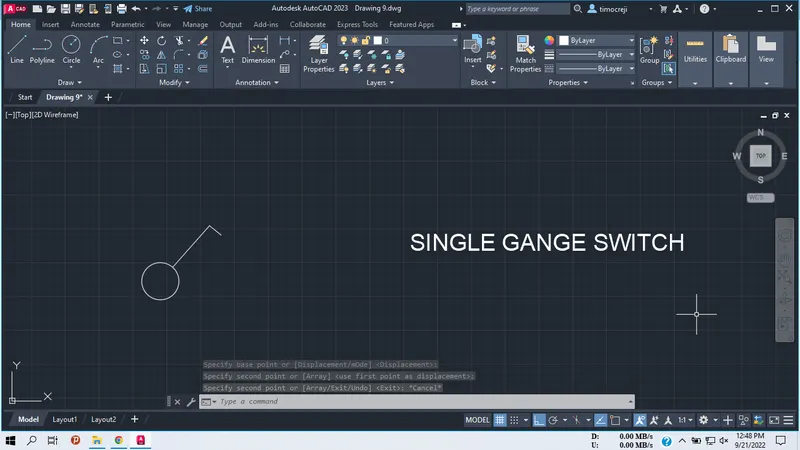

• In the command prompt type C to get the circle.
• In the command prompt type L to get the lines .
• In the ribbon bar > annotation> Multiline text .

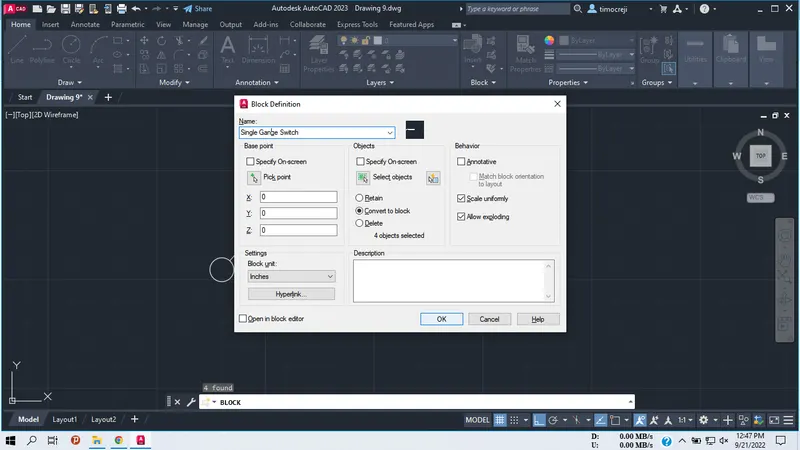

• In the ribbon bar >block >block edit .

• same commands and procedure are followed for all the symbols .

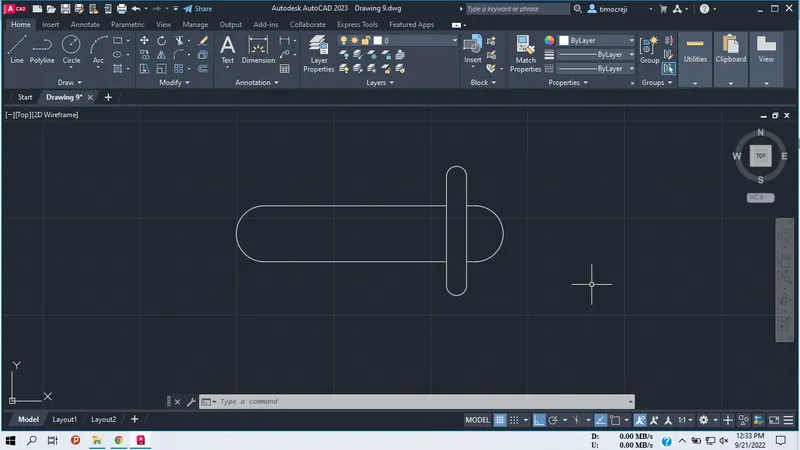

• In the command prompt type l to draw the lines .
• In the command prompt type arc to draw the arc .
• In the command prompt type Mtext.
• In the ribbon bar > block>create block .

• In the command prompt type l to draw the lines .
• In the command prompt type Mtext.
• In the ribbon bar > block>create block .

• In the coomant prompt type I to insert the blocks .

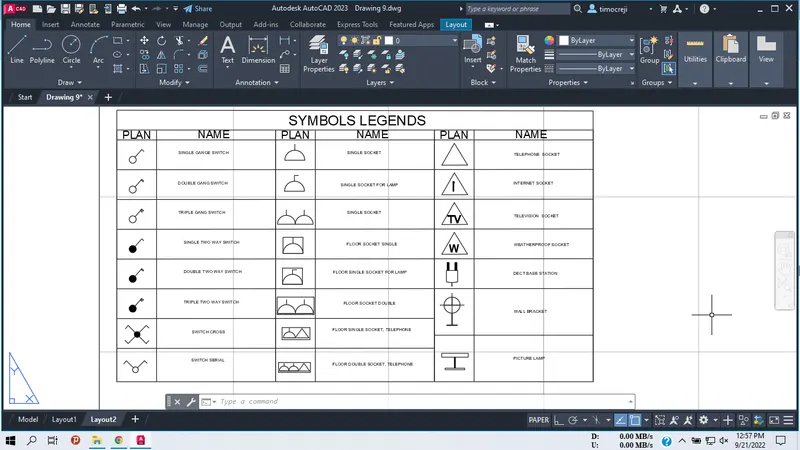

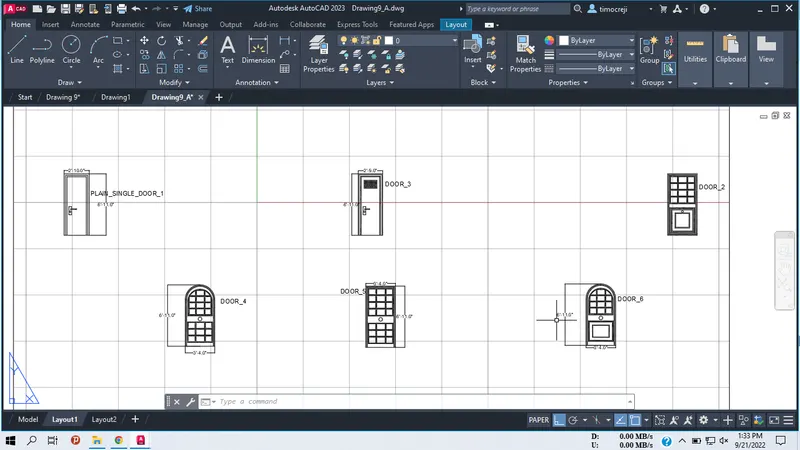

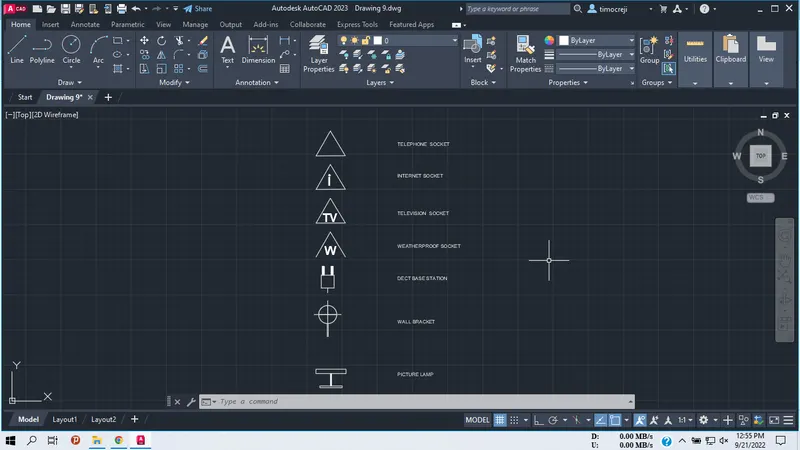

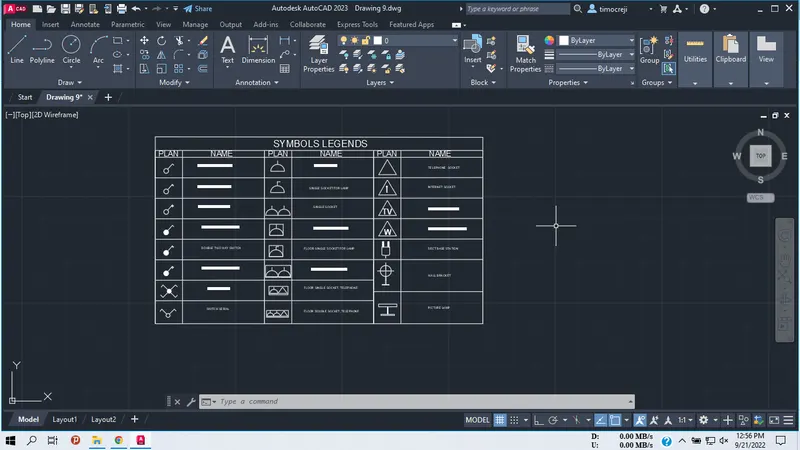

FINAL RESULT :

4.

AIM:

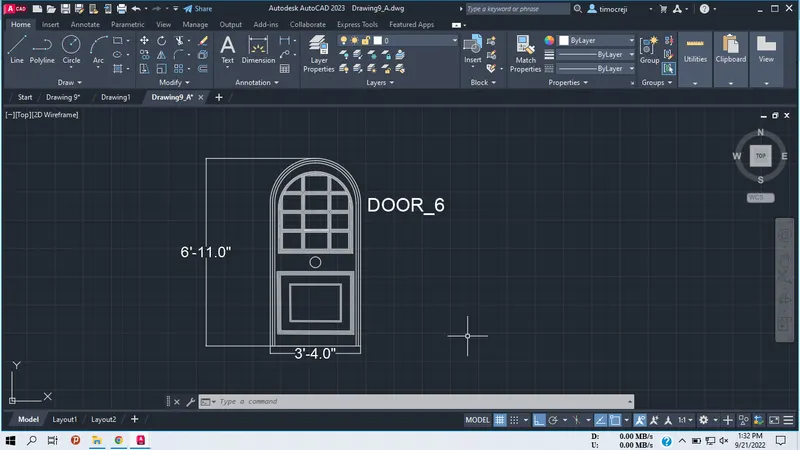

To Create the door type for residential building as a block .

PROCEDURE:

step 1:

• In the command prompt type units > engineering >inches.
• In the command prompt type limits>0,0 , limax >100,100.
• In the command prompt type zoom > a .

step 2:

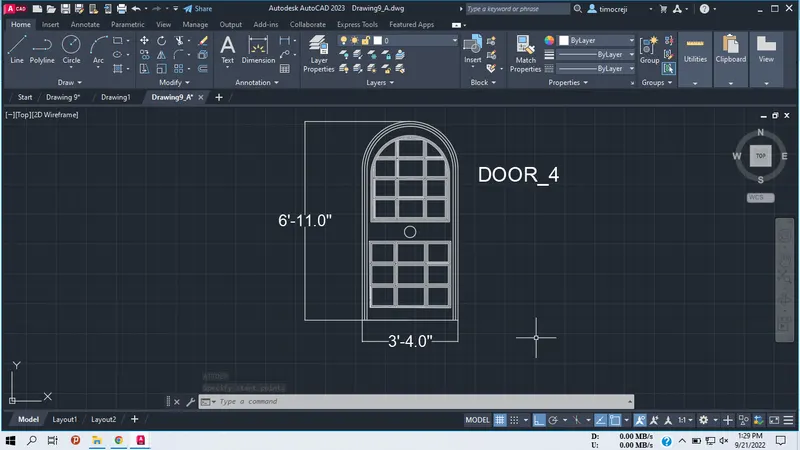

• In the command prompt type l to draw the lines .
• In the command prompt type B to create a block .

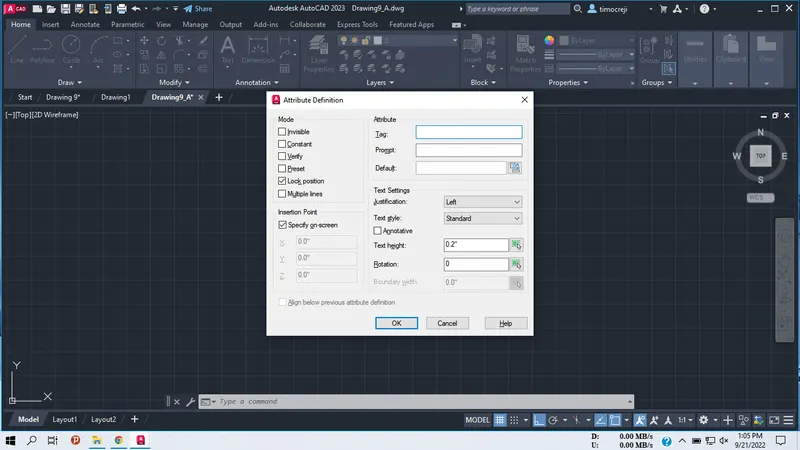

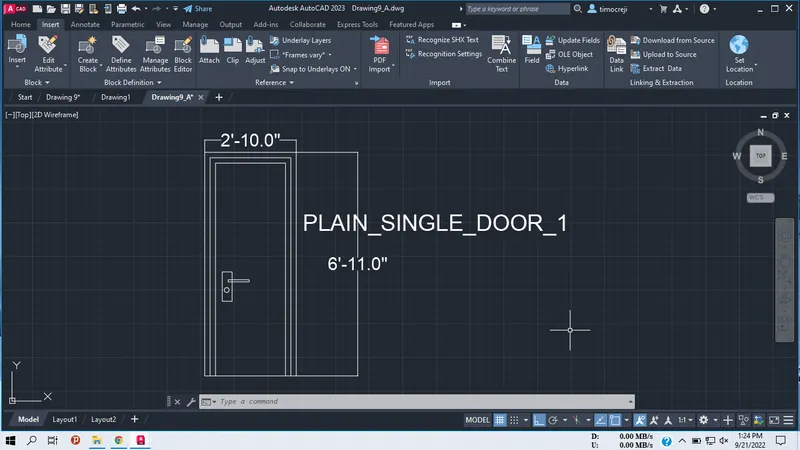

• In the command prompt type ATT >name of the block is save as type ( PLAIN SINGLE DOOR )

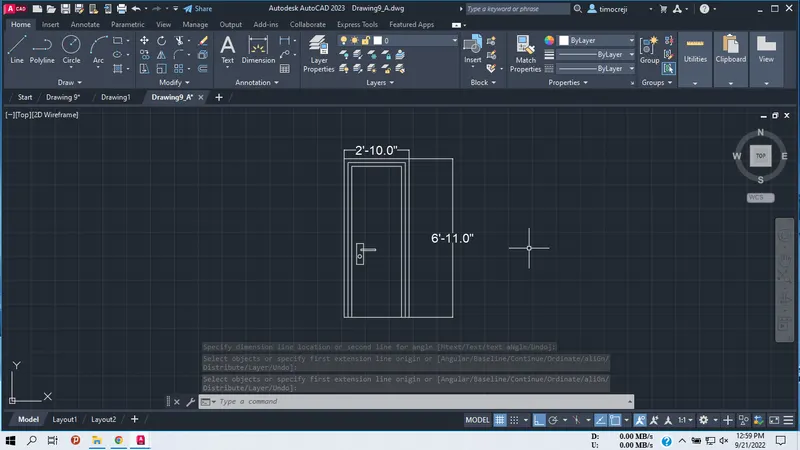

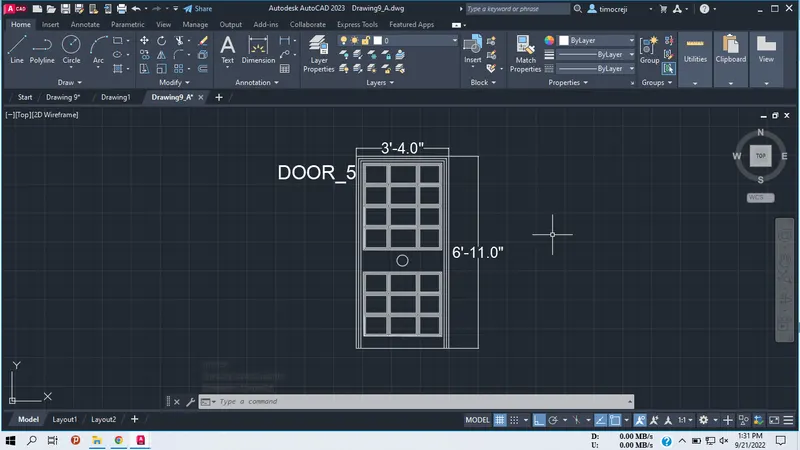

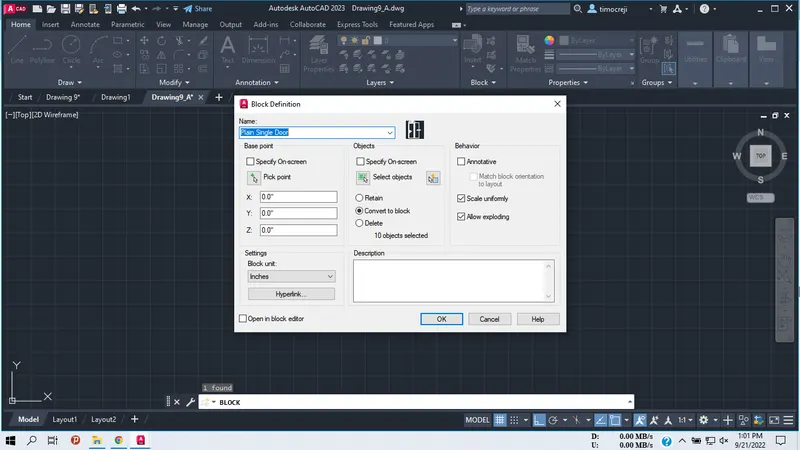

FINAL RESULT:

5.

AIM:

To Create each shape as ablock and insert them on the table as given in the picture .

PROCEDURE:

step 1:

• In the command prompt type Unit>decimal>meters.
• In the command prompt type limits>0,0.
• In the command prompt type limax >100,100.

step 2:

• In the command prompt type l to draw the desired lines .
• In the command prompt type pl to draw the desired arc,poly lines .
• In the command prompt type mt to give annotation and text.
• In the command promt type B to create the block .
• In the command promt type I to insert the created in the block.
• In the command prompt type table to inset the table .

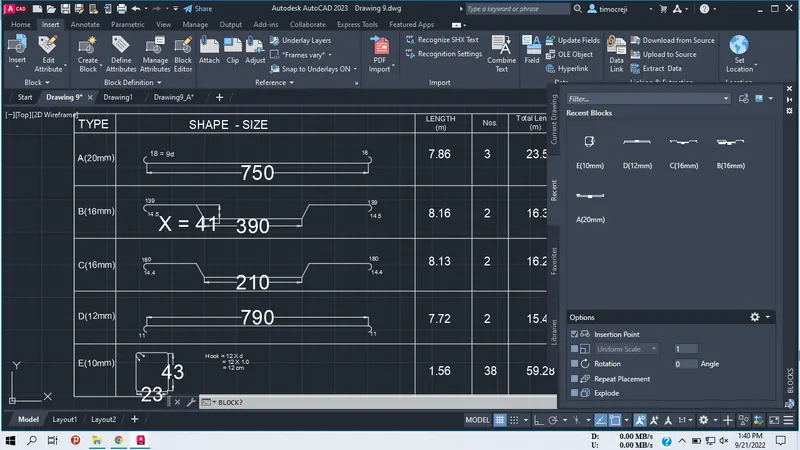

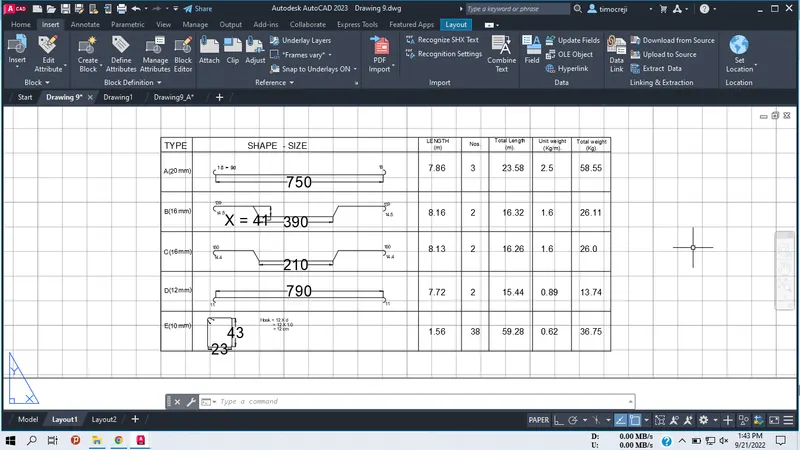

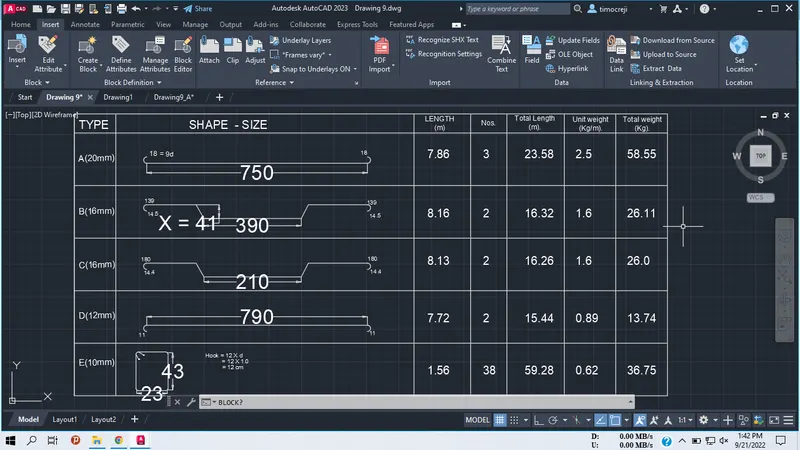

FINAL RESULT:
