Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad
QUESTION 1 :
AIM:
To create Custom1_title block and Custom2_title block using attribute and block command from AutoCAD software
PROCEDURE:
Custom1_titleblock
1.Enter line command
2.In ribbon tab > annotate > Mtline
3.Change the color from properties

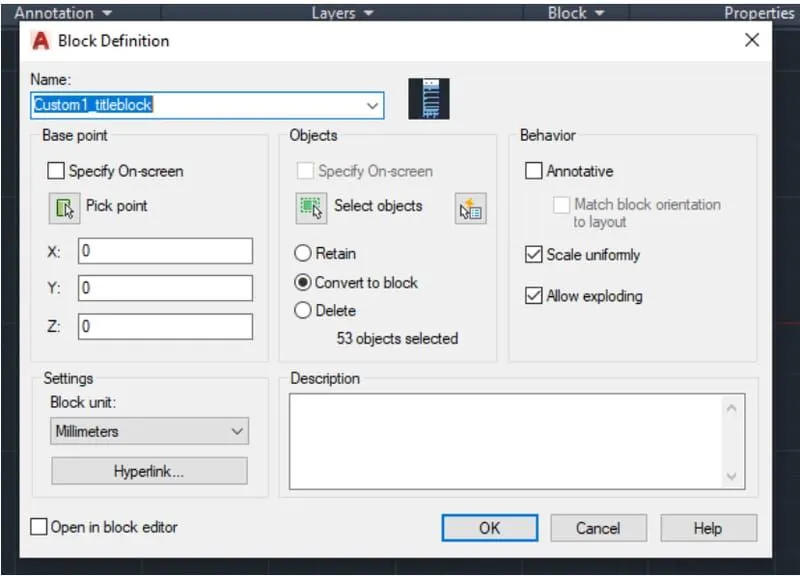

4.In the ribbon bar > block > create the block and name it custom1_title block is created.

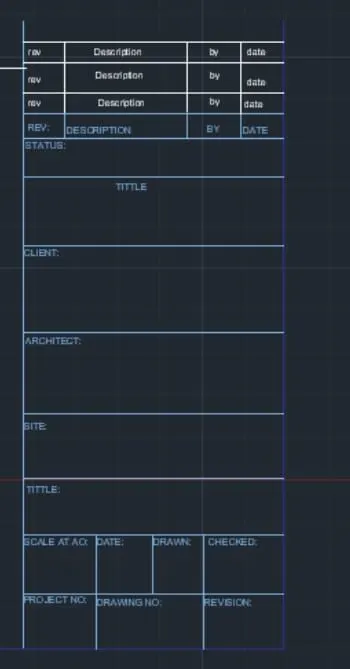

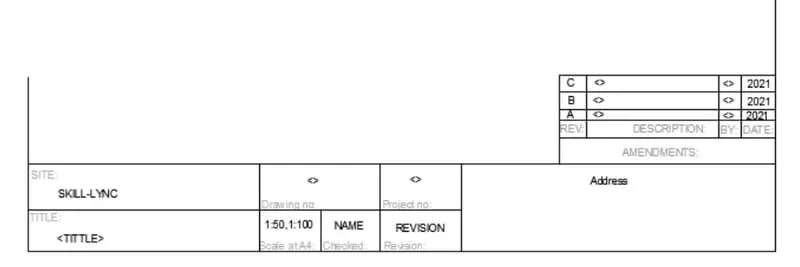

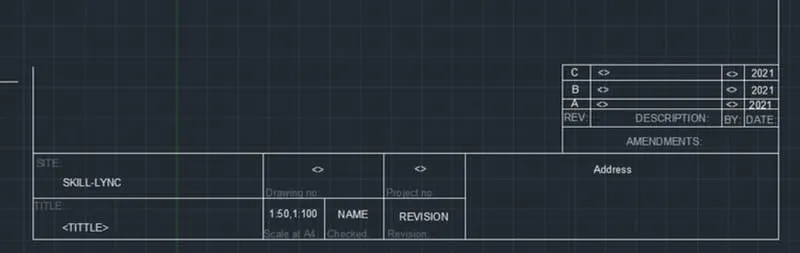

Custom1_titleblock result:
Custom2_title block:
1.Enter line command
2.In ribbon tab > annotate > Mtline
3.Change the color from properties
4.In the ribbon bar > block > create a block and name it custom1_title block is created.

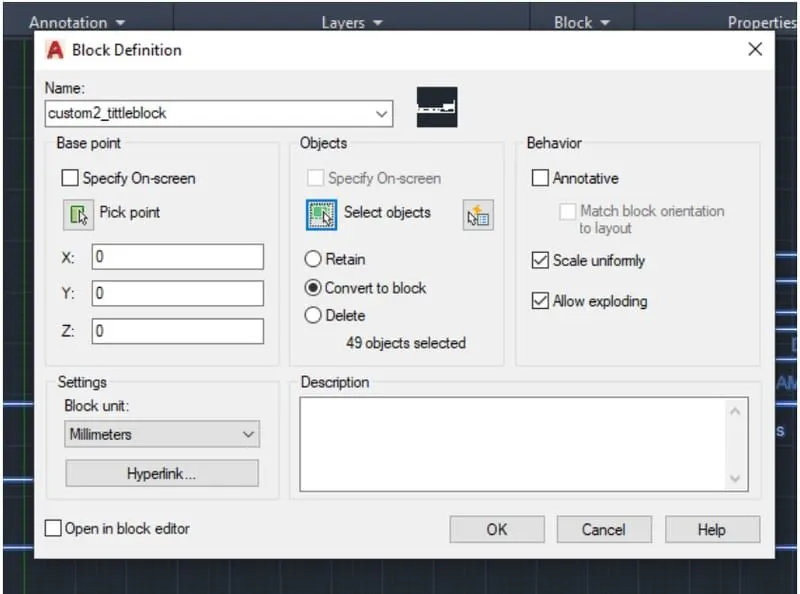

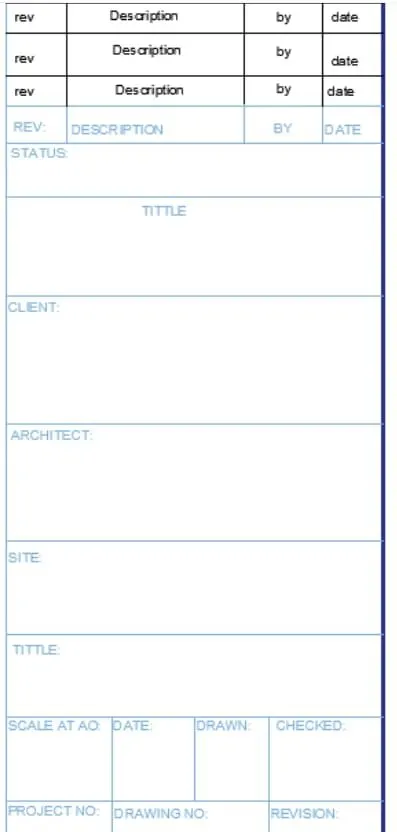

Custom2_title block result:
RESULT:
The given title block is created using AutoCAD.

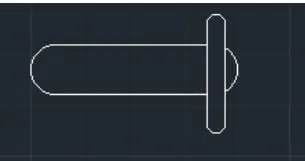

QUESTION 2:
AIM:
To create doors type for warehouse and to also create the block of door type using AutoCAD
PROCEDURE:
DOOR1:
1.Set unit and limit in the AutoCAD
2.Draw a rectangle and using fillet cure the edges
3.Show the dimension and give annotation and text

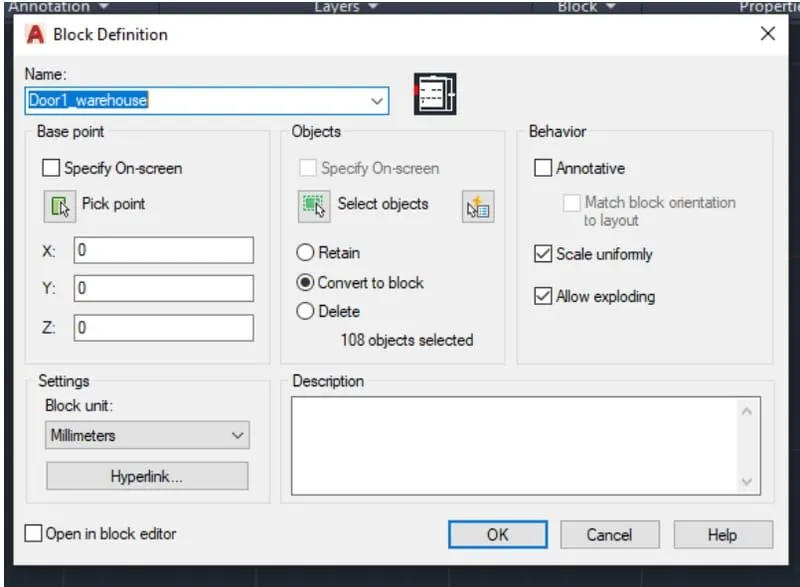

4.Create the image to block and type door.

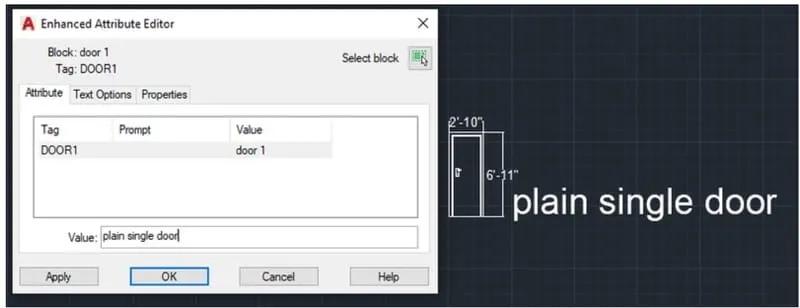

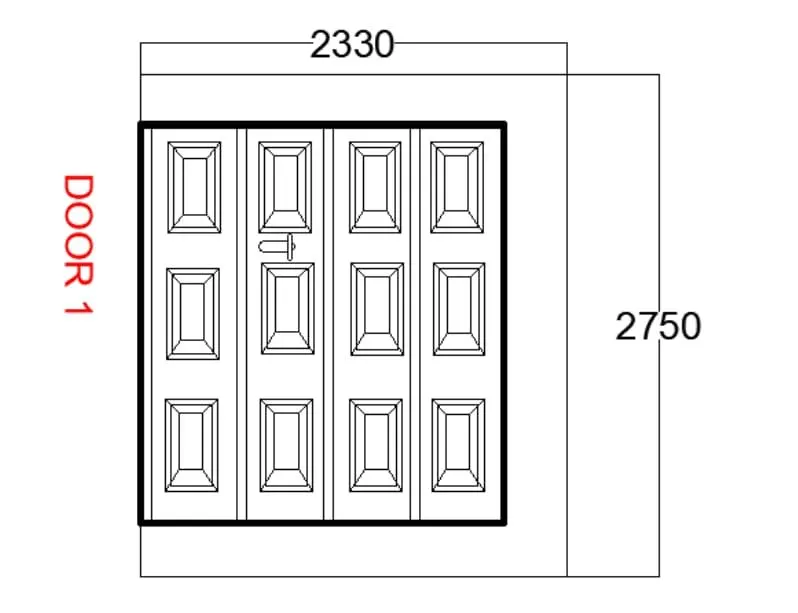

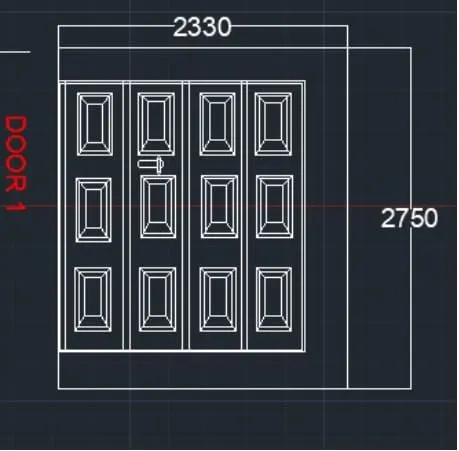

DOOR 1 RESULT:
DOOR2
1.Set unit and limit in the AutoCAD
2.Draw a rectangle and using fillet cure the edges
3.Show the dimension and give annotation and text

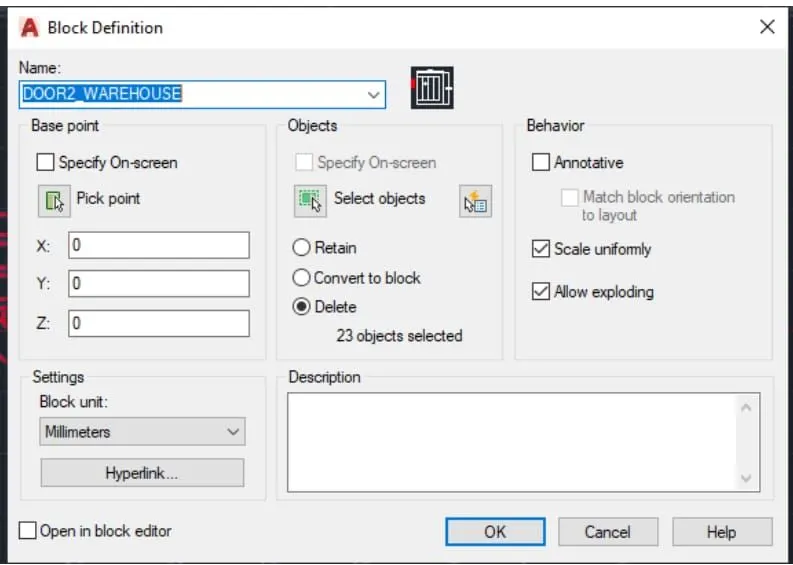

4.Create the image to block and type door.

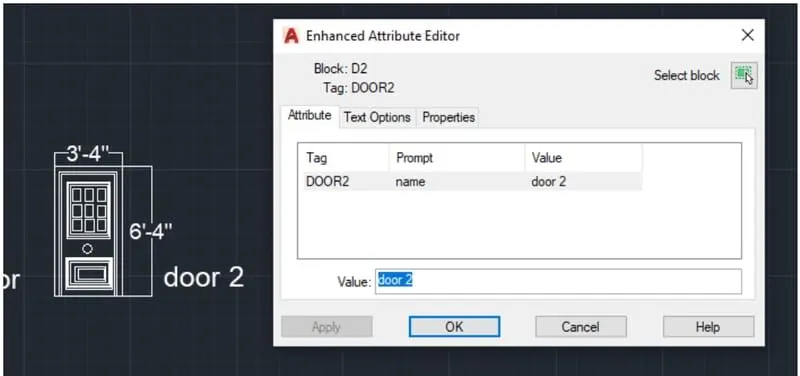

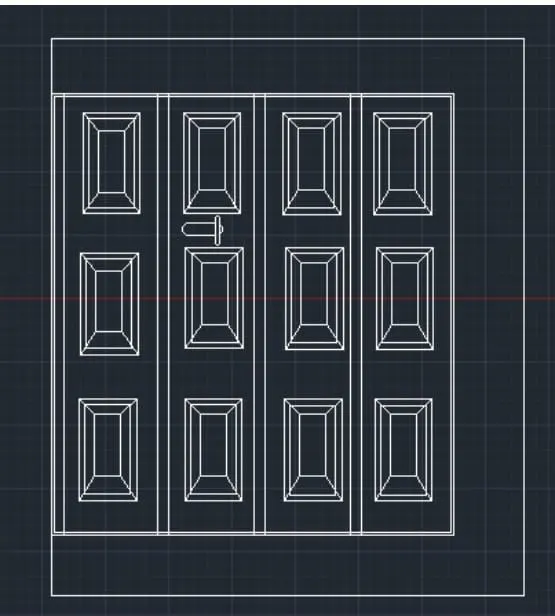

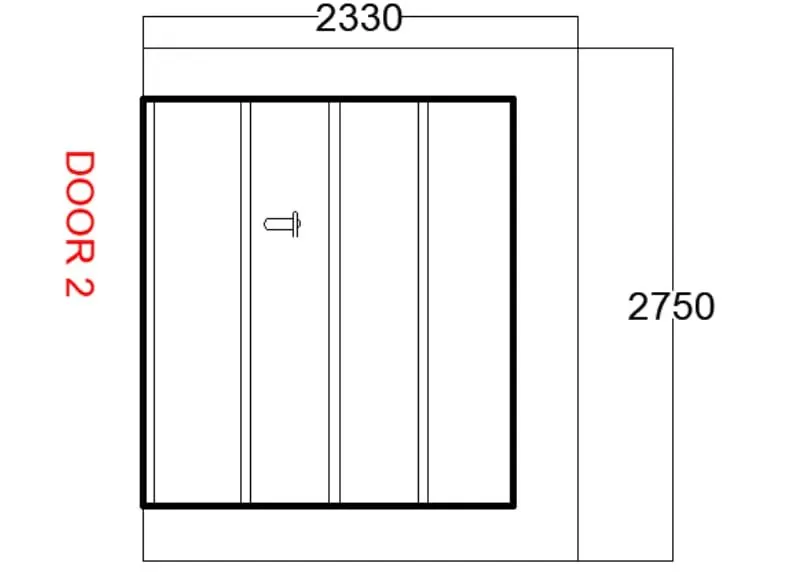

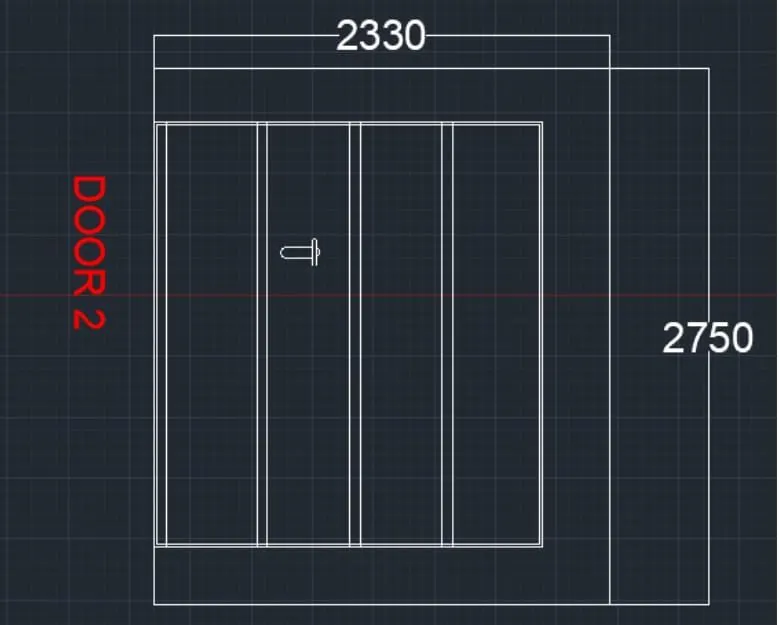

DOOR 2 RESULT:
RESULT:
The given doors are created as shown in the figure using AutoCAD.
QUESTION 3:
AIM:

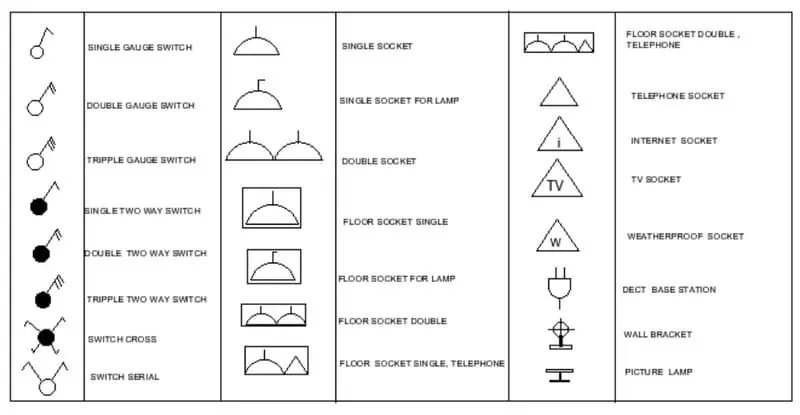

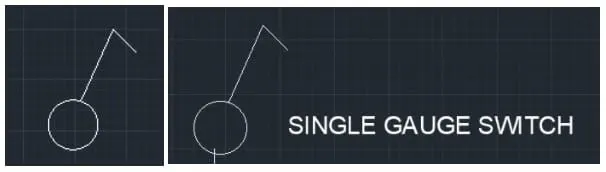

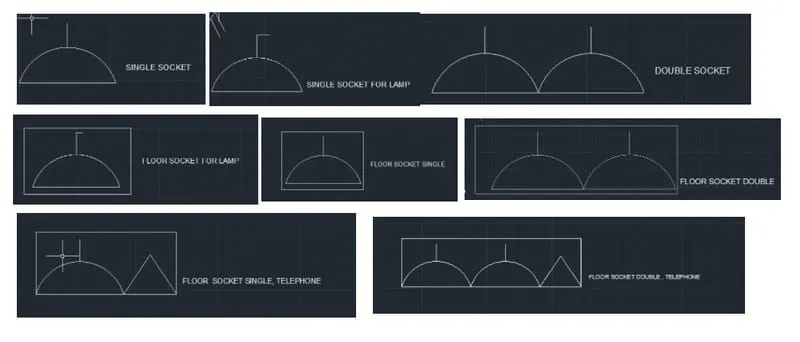

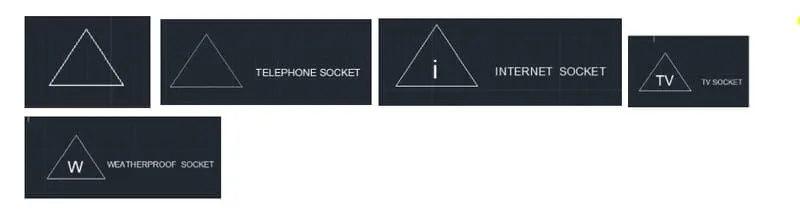

To create each symbol as a block with the name given in the legend. After creating the blocks they should be arranged in the legend as shown in the Figure.
PROCEDURE:
1.Enter line and circle command to create the symbol
2.In the ribbon bar > annotation > Multiline text
3.In the ribbon bar > block > block edit

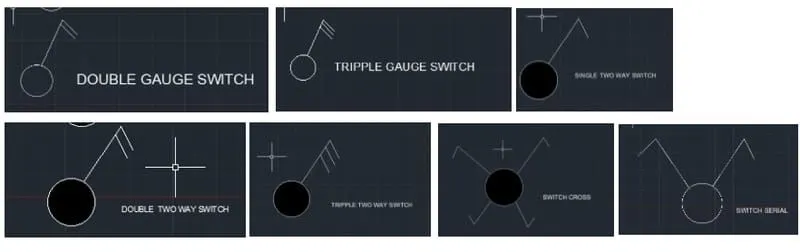

4.The same command and procedure is used for all other symbols.
5.Draw line and arc
6.Type Mtext

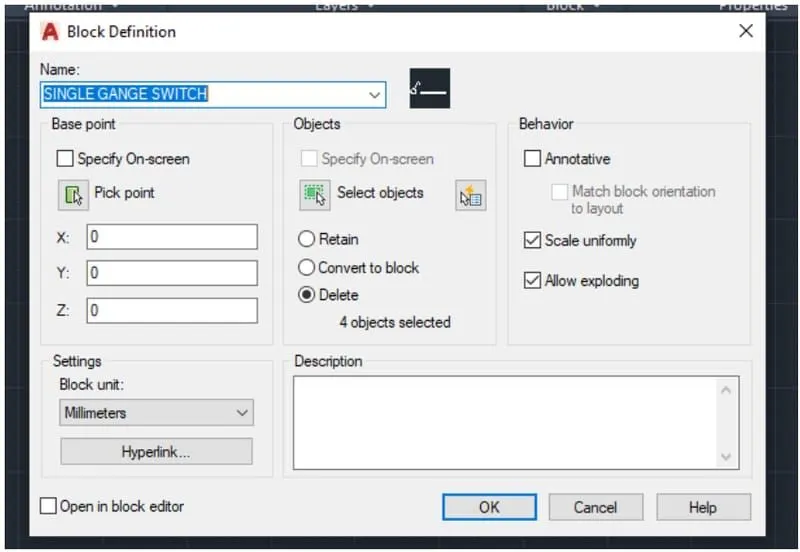

7.In the ribbon bar > block > create block

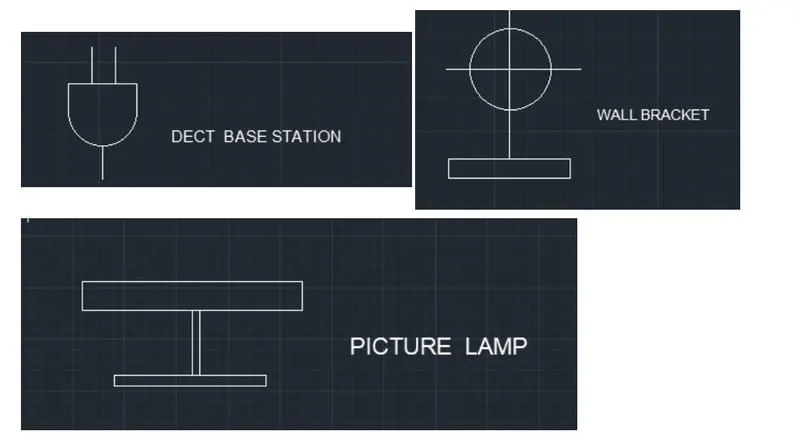

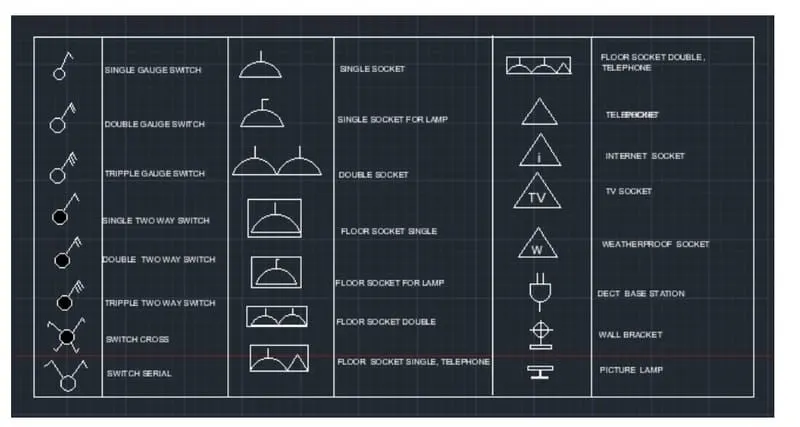

FINAL RESULT:
RESULT:
The symbols are created and the block is done using AutoCAD.
QUESTION 4:
AIM:

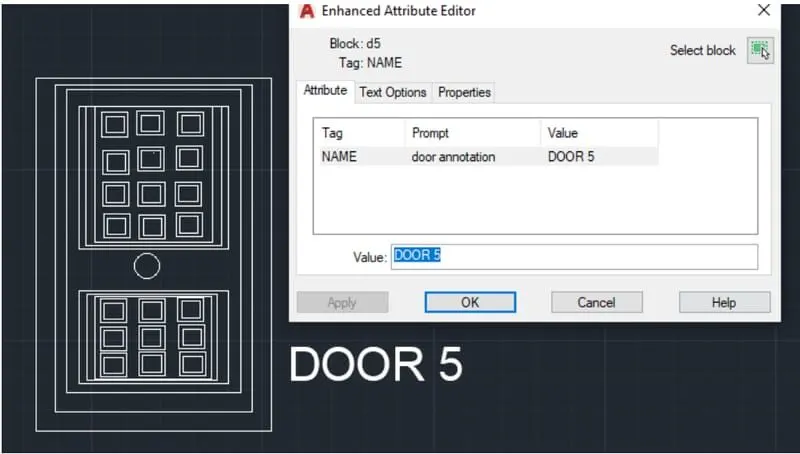

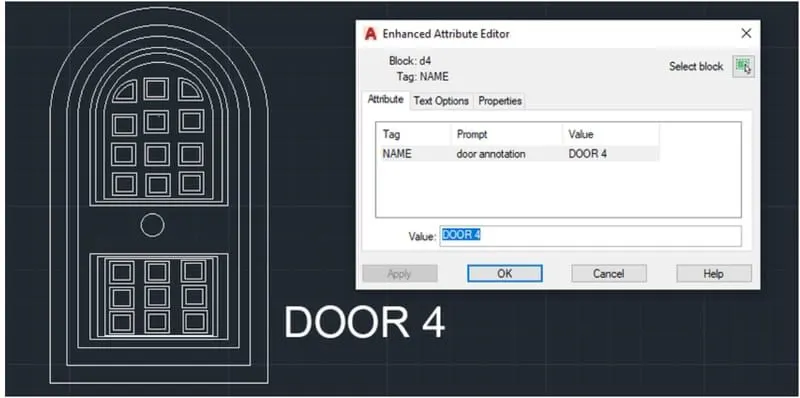

To create door types of a residential building as a block
PROCEDURE:
1.Open AutoCAD and set limits and units

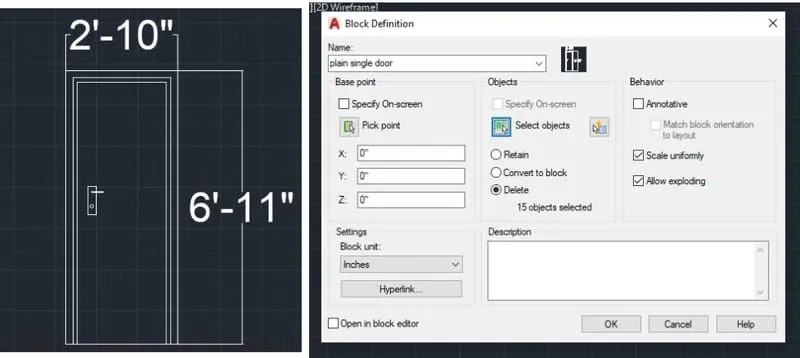

2.Using rectangle command and line command draw the door as shown in the diagram
3.Type B to block the diagram

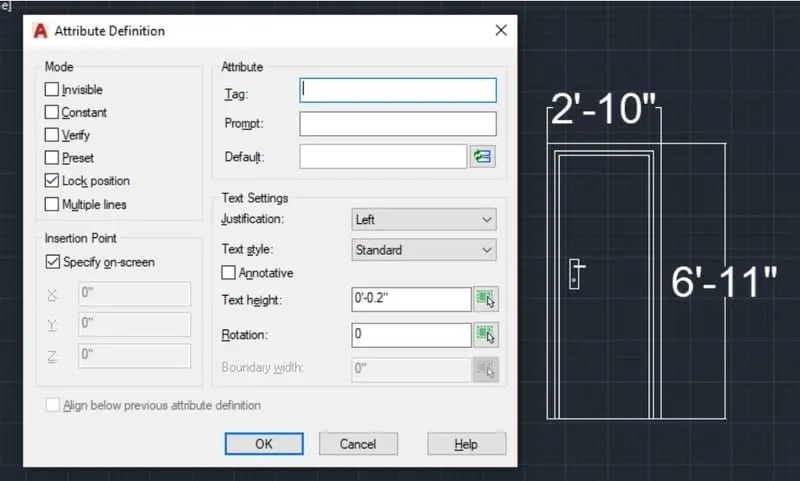

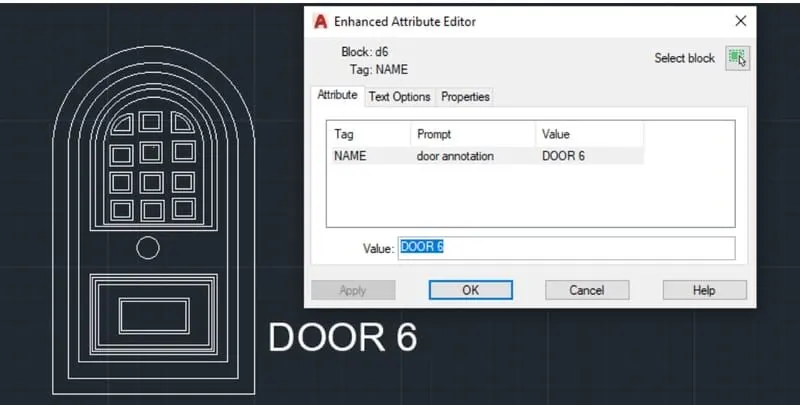

4.Type ATT> name of the block is saved as type
5.Using chamfer and fillet tooth curve the edges
6.The same procedure is used for other diagrams.

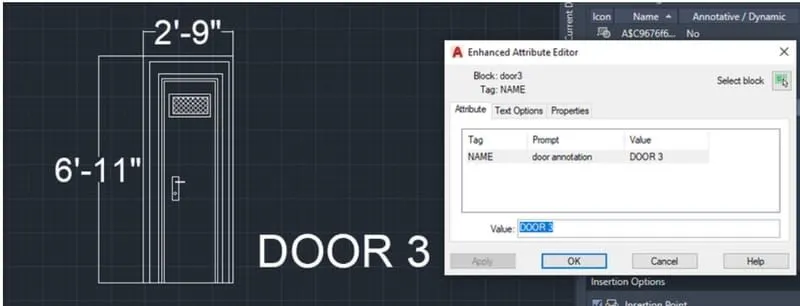

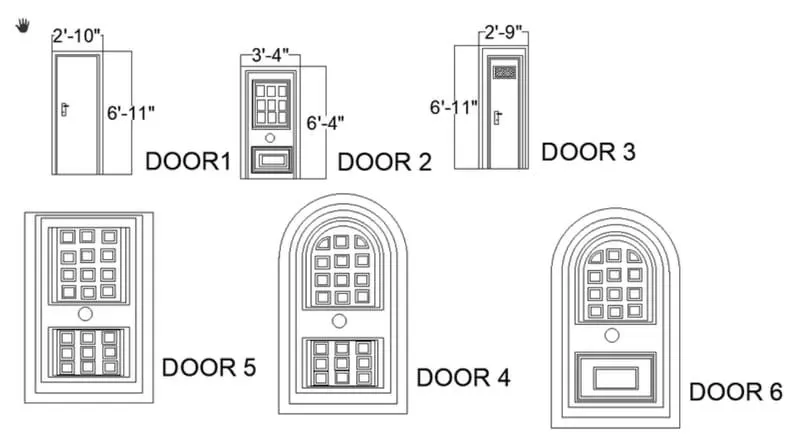

After creating block
RESULT:
The given different types of the diagram are created using AutoCAD.

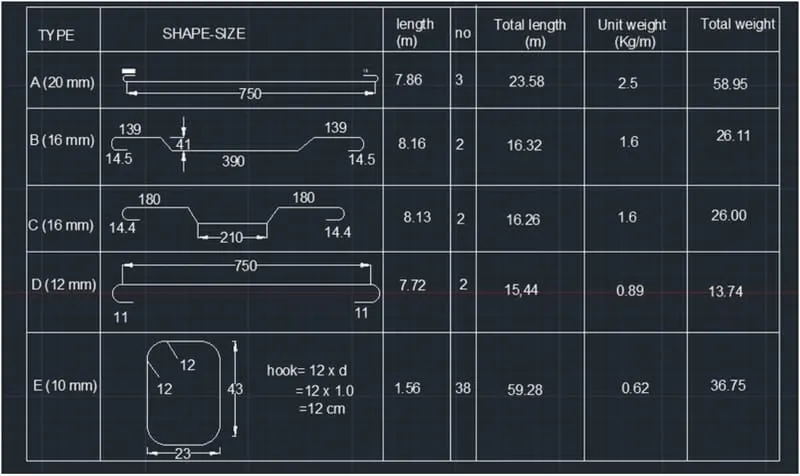

QUESTION 5:
AIM:

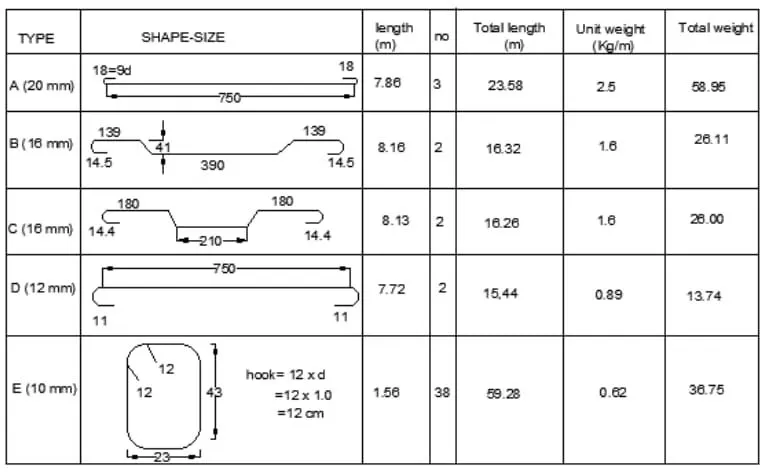

To create each shape as a block and insert them on the table as given in the picture
PROCEDURE:
1.In AutoCAD set units and limits
2.Then draw the desired line
3.Type pl to draw the desired arch, polyline
4.Type mt to give annotative and text
5.Type B to block the diagram
6.Type I to insert the created block
7.Type table to insert the table

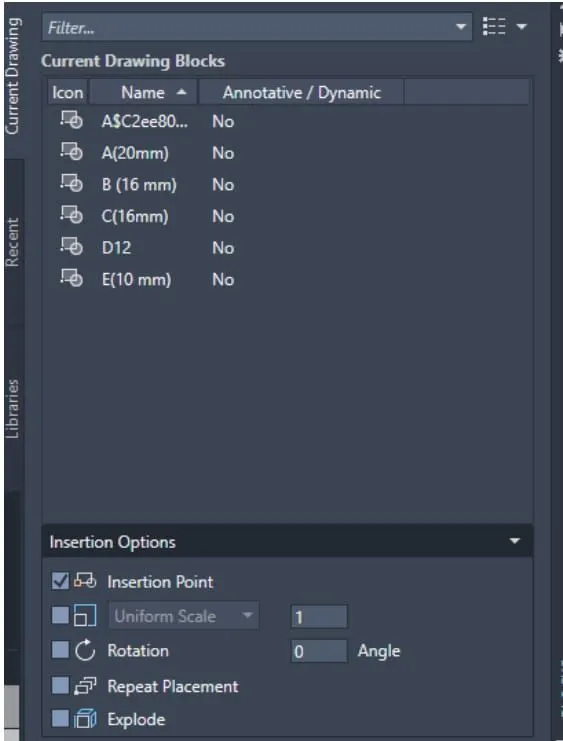

After creating in block,
RESULT:
The given shapes are created using AutoCAD.
