Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

AIM : To Create the given templates by using autocad.

PROCEDURE :

• Take the size of the title block as per industry standards or you can assume it as per the size of the paper.
• Use text and attributes where ever required.
• After creating the block you need to save it as block with names : custom1,titleblock and custom-titleblock,respectively.

Steps :

1. We create the templates with the hekp of lines.
2. Also insert text with help of DTEXT command or single line text.
3. Use the font names : Romans , Height : 8" and justify left.
4. First create a tabular title blocks to type the names.
5. Click "B" block command to create the block.
6. And select the object and click enter to create the block.
7. once everything is done using ' snipping tool ' take a screenshot & save the copy.

RESULT : The imges  of templates og given figures are mentioned in above created drawing pictures.

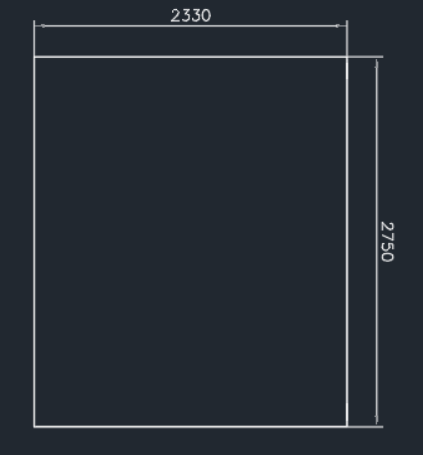

2. AIM : To create the doors type of ware house as shown in figure.

PROCEDURE:

• You need to create each door type as per standard size or for given dimenssions.
• create the blocks of this doors after creating them.

Steps:

1. We create the templates with the help of lines.
2. Click 'REC' command to create rectangle blocks of outer lines.
3. Then take offset of rectangle as 50mm by using 'OF' command.
4. Next we need to create the doors as per given style and dimenssions when after one door is created thyen copy the door and paste. so that Door1 and Door 2 are created as per figure given.
5. Also insert text with help of DTEXT command or single line text.
6. Use the font names : Romans , Height : 8" and justify left.
7. First create a tabular title blocks to type the names.
8. Click "B" block command to create the block.
9. And select the object and click enter to create the block.
10. once everything is done using ' snipping tool ' take a screenshot & save the copy.

RESULTS :  The drawings of doors types for ware house are menationed in above images.

3.AIM : To create the blocks as shown in figure using autocad.

PROCEDURE:

• Create each symbol as a block with the name given in legend.
•  After creating the blocks  arrange them in the legend as shown in figure.

Steps:

1. We create the blocks  with the help of lines.
2. Click 'REC' command to create rectangle blocks of outer lines.
3. Craete the symbol as per drawing.
4. Draw the symbols using command line "L" and circle coomand "C" .
5. Aftyer we create the line we need create the text.
6. Also insert text with help of DTEXT command or single line text.
7. Use the font names : Romans , Height : 8" and justify left.
8. First create a tabular title blocks to type the names.
9. Click "B" block command to create the block.
10. And select the object and click enter to create the block.
11. once everything is done using ' snipping tool ' take a screenshot & save the copy.

RESULTS :  The drawings of blocks created are menationed in above images.

4. AIM : To create the doors type of ware house as shown in figure.

PROCEDURE:

• You need to create each door type as per standard size or for given dimenssions.
• create the blocks of this doors after creating them.

Steps:

1. We create the doors types for residential building with the help of lines.
2. Click 'REC' command to create rectangle blocks of outer lines.
3. Then take offset of rectangle  by using 'OF' command.
4. Next we need to create the doors as per given style and dimenssions when after one door is created thyen copy the door and paste. so that Door1 to Door 6 are created as per figure given.
5. Also insert text with help of DTEXT command or single line text.
6. Use the font names : Romans , Height : 8" and justify left.
7. First create a tabular title blocks to type the names.
8. Click "B" block command to create the block.
9. And select the object and click enter to create the block.
10. once everything is done using ' snipping tool ' take a screenshot & save the copy.

RESULTS :  The drawings of doors types for Residential building are menationed in above images.

 5. AIM : TO create each shape as a block as shown in the figure.

Steps:

1. Create the shape and block with use of line command.
2. First we create the tabular column..
3. 3Then we create the text to create the symbol.
4. We create the symbol and use fillet command for Curve.
5. Then click " B " block command tro create blocks.
6. And now select thje objects and click enterr to create the block.
7. once everything is done using ' snipping tool ' take a screenshot & save the copy.

RESULTS : The images of barbending shedule created is as mentioned in above figures.
