Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

1.)

Aim :-

• To Create the templates as shown in Figure.

Procedure :-

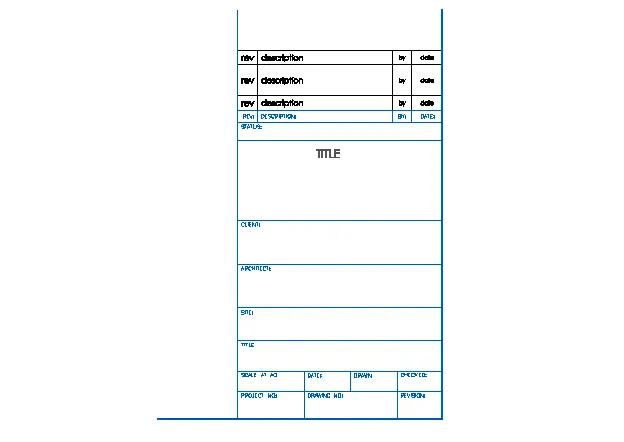

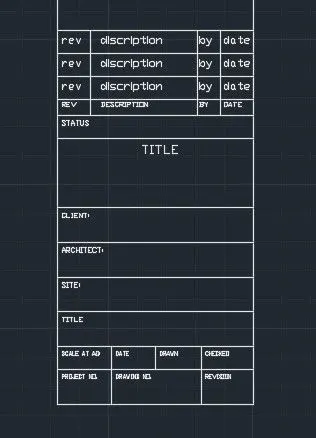

Custom2_title block :-

• Create the rectangle of size 70 mm and 158mm.
• Draw the block as per given in the drawing by line and offset command.
• Add text as per given in the drawing.
• For making block, Type B in coomand line and select BLOCK command.
• Then select Pick Point the select the object and name the block.
• So the block is created.
• Name the block as Custom1-title block.

Result :-

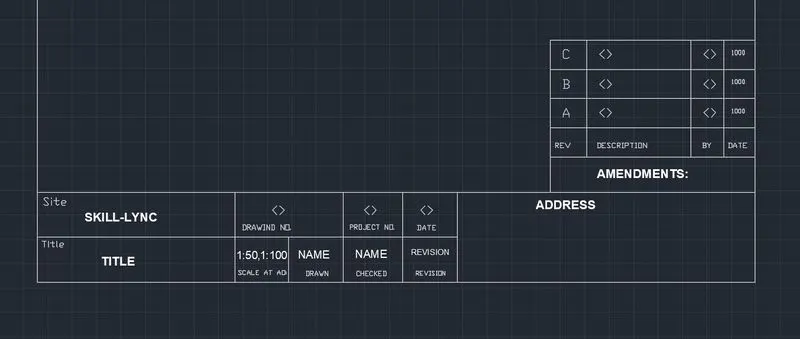

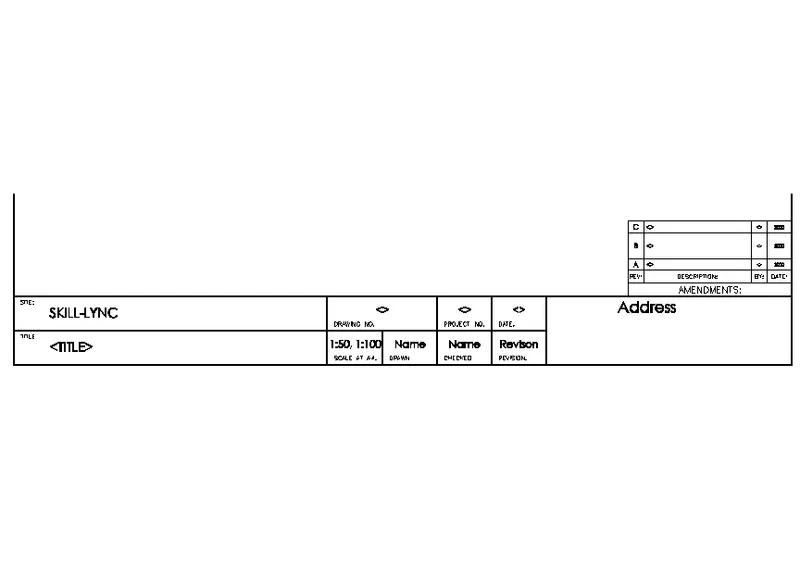

Custom2_title block :-

• Create the rectangle of size 250 mm and 60mm.
• Then create the drawing as per the drawing using line and offset coomand.
• Use MTEXT command to insert the text in the drawing.
• Use diffrent text size for different texts.
• Then create the block named custom2_title block.

2.)

Aim :-

• Create the doors type for warehouse as shown in figure.

Procedure :-

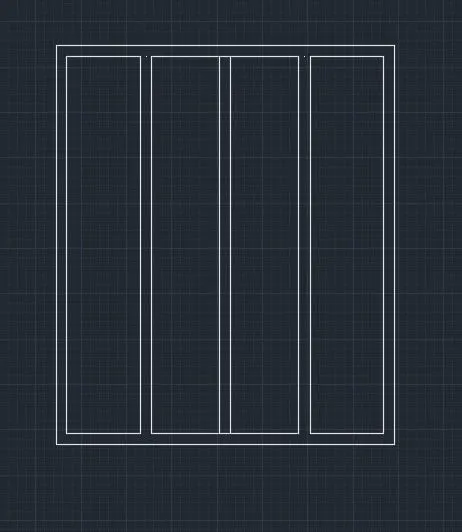

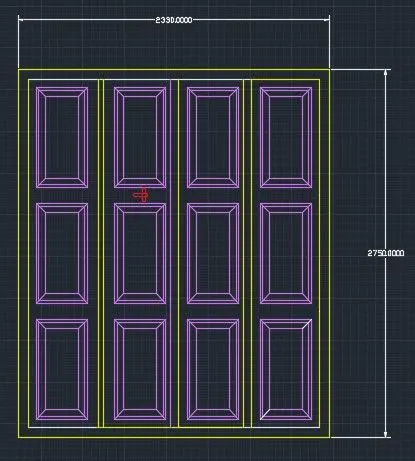

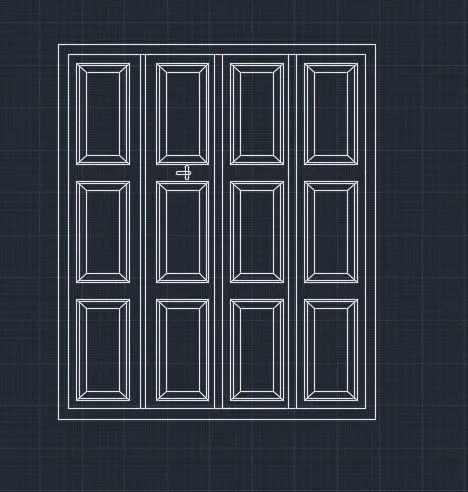

Door-1 :-

• Draw the rectangle of size 2330 X 2750 mm.
• Then offset the lines with 50 mm.
• After dividing the line in 4 parts, create the frames of the drawings.
• Then create the panels in between the panels.
• Then copy the panels in different frames.

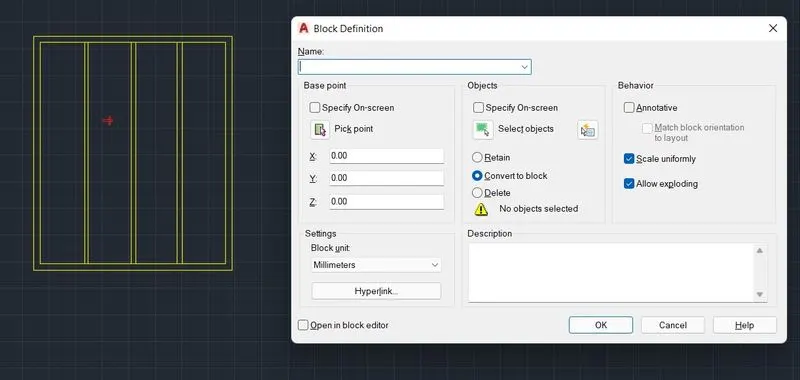

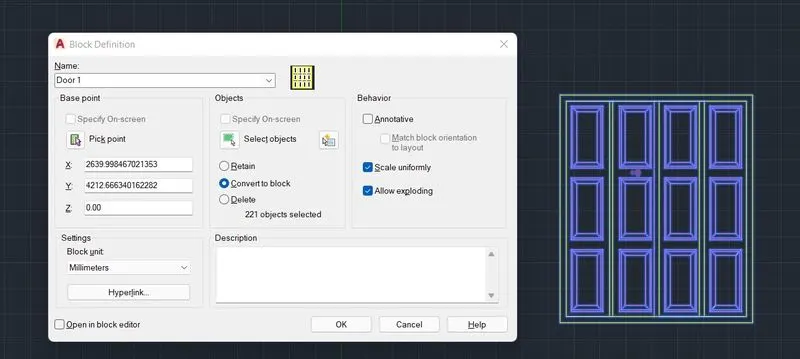

• For making block, Type B in command line and select BLOCK command.
• Then select Pick Point the select the object and name the block.
• So the block is created.
• Name the block as D1.

Result :-

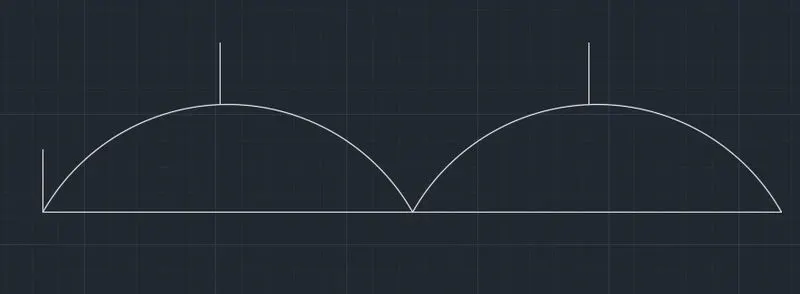

Door-2 :-

• Draw the rectangle of size 2330 X 2750 mm.
• Then offset the lines with 50 mm.
• After dividing the line in 4 parts.
• For making block, Type B in command line and select BLOCK command.
• Then select Pick Point the select the object and name the block.
• So the block is created.
• Name the block as Door 2.

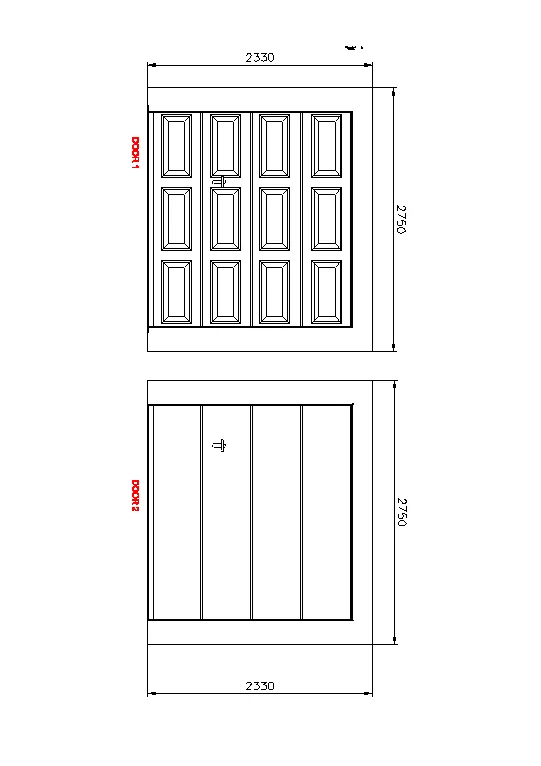

These are the drawings of doors.

3.)

Aim :-

• To create the Electrical Legend.

Procedure :-

• To create electrical legend, firsty we have to make different blocks of every electrical signs.

Single Gang Switch:-

Double Gang Switch:-

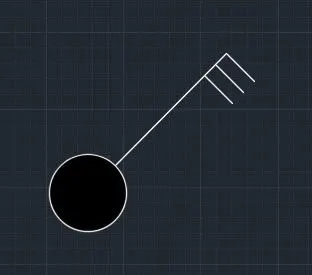

Triple Gang Switch:-

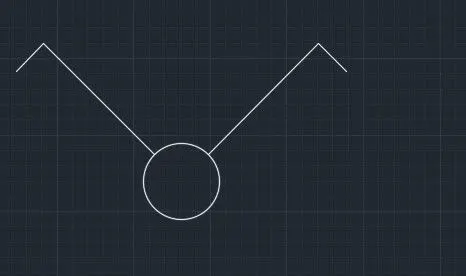

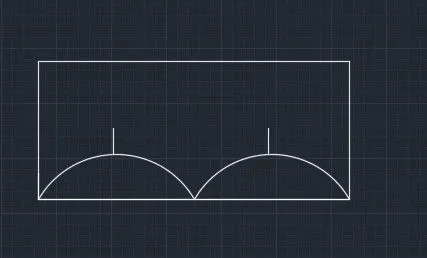

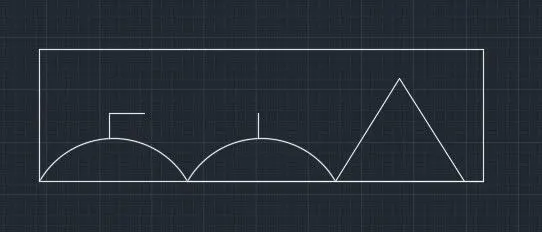

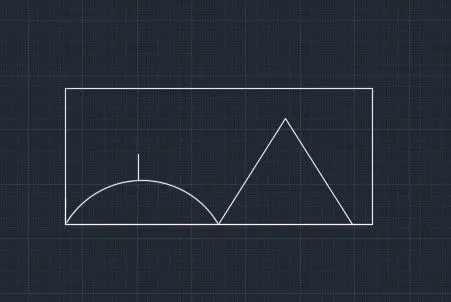

Single Two Way Switch:-

Double Two Way Switch:-

Triple Two Way Switch:-

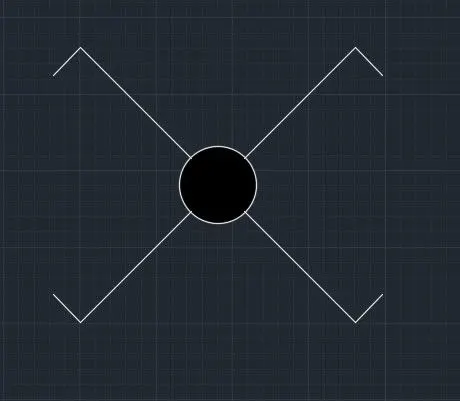

Switch Cross :-

Switch Serial :-

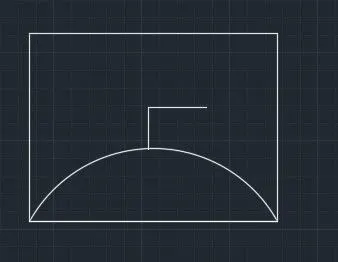

Single Socket :-

Single Socket for lamp :-

Double Socket :-

Floor Socket Single :-

Floor Single Socket for lamp:-

Floor Socket Double :-

Floor Socket Single Telephone :-

Floor Socket Double Telephone :-

Telephone Socket :-

Internet Socket :-

TV Socket :-

Weatherproof Socket :-

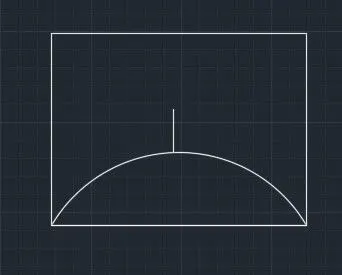

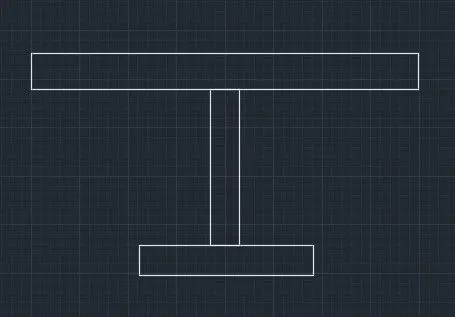

Duct Base Section :-

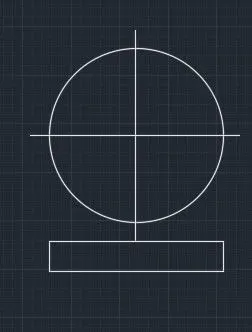

Wall Bracket :-

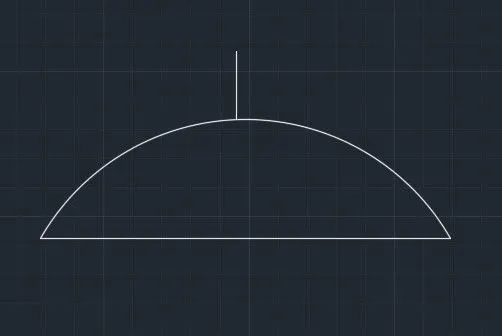

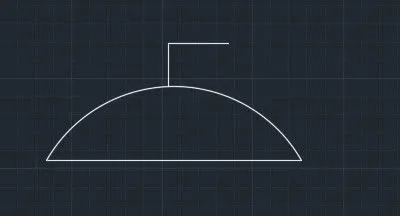

Picture Lamp :-

• Now create the rectangle of 10 rows and 6 columns.
• Place each blocks in respective rows and columns.
• To place the name, Select Fields the select object and choose name option and then OK.
• Place the TExt in respective Rows.

Result :-

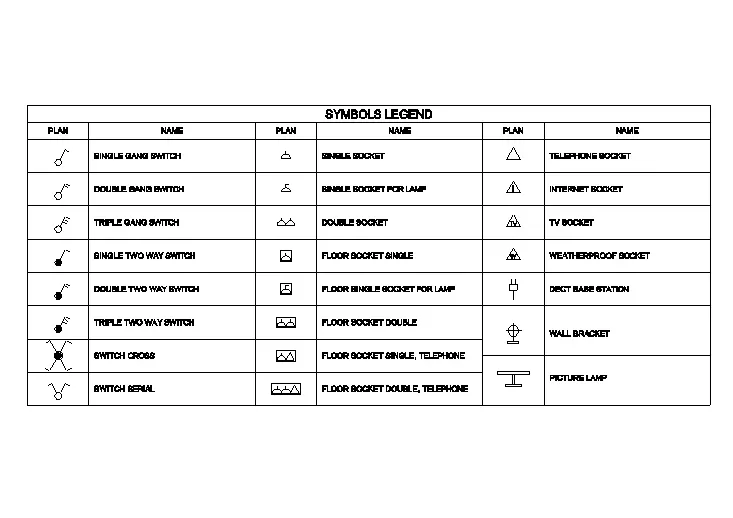

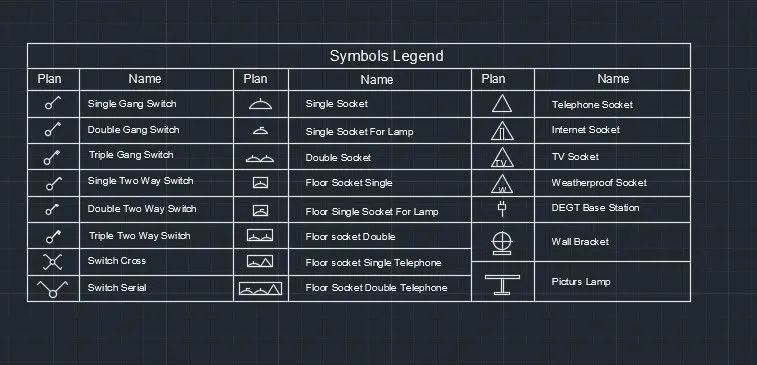

Above Picture is the Electrical Symbol Legend.

4.)

Aim :-

• To draw the doors and make the blocks of doors.

Procedure :-

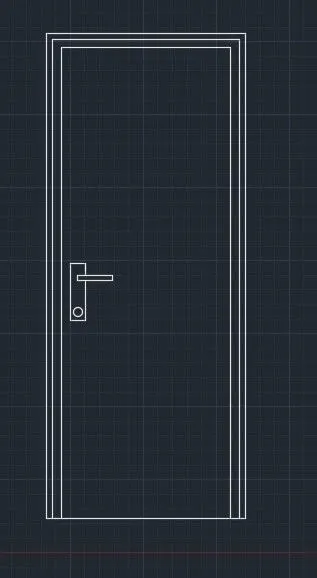

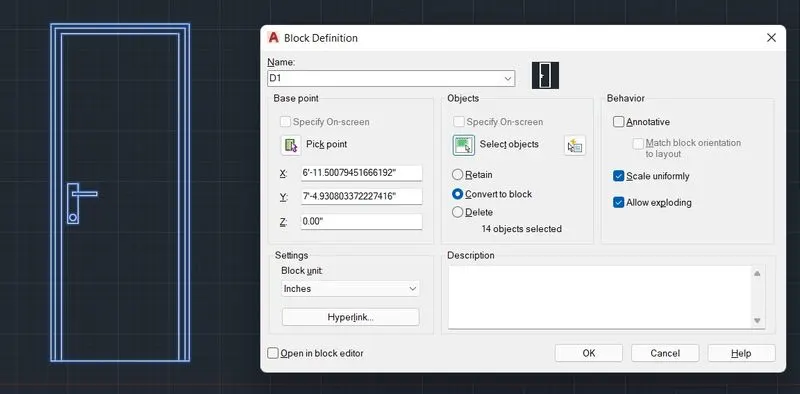

D1 :-

• Draw the Rectangle of size 2'10" X 6'11".
• offset the lines with 1.5" and 1" to make the Frame.
• Draw the lock by Rectancles and Circle.
• Annotate it with dimensions.
• Create the Block of the door.
• Name- D1, Select the Object, Pick Point, OK.

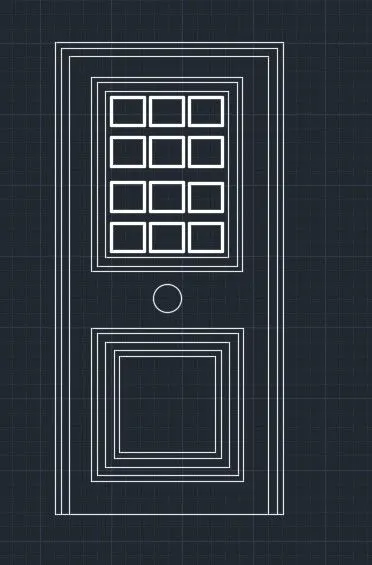

D2 :-

• Draw the Rectangle of size 3'4" X 6'11".
• Then draw the rectangle panel and offset it with 1" and 1.5".
• Draw the squares in the panel and increase the lineweight of squares.
• Draw the Rectangle below the rectanular panels.
• and offset the rectangles.
• Place the circle of 3" in between both the panels.
• Annotate it with dimensions.
• Create the Block of the door.
• Name- D2, Select the Object, Pick Point, OK.

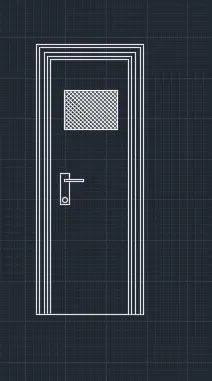

D3 :-

• Draw the Rectangle of size 2'9" X 6'11".
• Offset the lines with 1" and 1.5" and make Panels.
• Draw the rectangle of 1.5" and 9".
• Hatch the rectangle by relative scale.
• Draw the lock by Rectancles and Circle.
• Annotate it with dimensions.
• Create the Block of the door.
• Name- D3, Select the Object, Pick Point, OK.

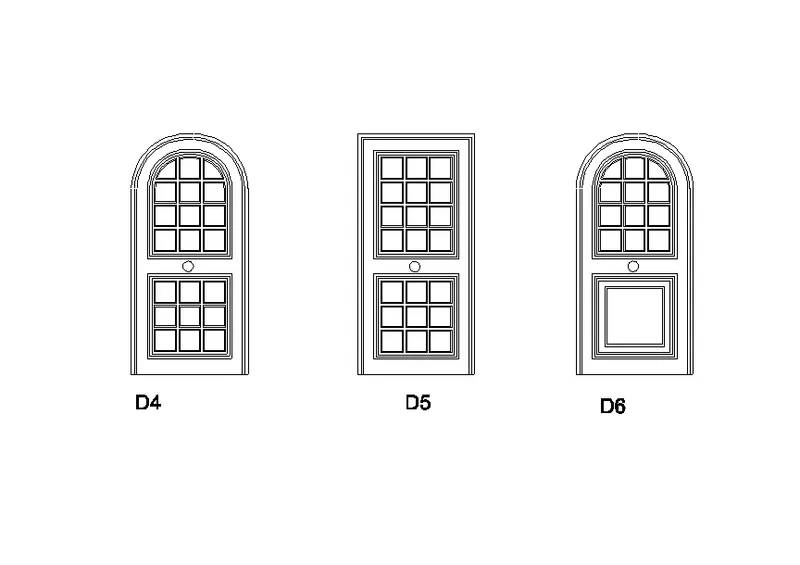

D4 :-

• Draw the line of size 3'9.5" X 8'3.6".
• Draw the Arc of length 3'9.5".
• Offset the arc by 1" and 1.5" for panels.
• Draw the Rectangle below the rectanular panels.
• Place the rectangles in the rectangle.
• And offset the rectangles.
• Place the circle of 3" in between both the panels.
• Annotate it with dimensions.
• Create the Block of the door.
• Name- D4, Select the Object, Pick Point, OK.

D5 :-

• Draw the Rectangle of size 4' X 8'3.6".
• Offset the lines with 1.5" and 1" to make the Frame.
• Draw the squares in the panel and increase the lineweight of squares.
• Draw the Rectangle below the rectanular panels.
• and offset the rectangles.
• Place the circle of 3" in between both the panels.
• Annotate it with dimensions.
• Create the Block of the door.
• Name- D5, Select the Object, Pick Point, OK.

D6 :-

• Draw the line of size 3'9.5" X 8'3.6".
• Draw the Arc of length 3'9.5".
• Offset the arc by 1" and 1.5" for panels.
• Draw the Rectangle below the rectanular panels.
• And offset the rectangles.
• Place the circle of 3" in between both the panels.
• Annotate it with dimensions.
• Create the Block of the door.
• Name- D4, Select the Object, Pick Point, OK.

Result :-

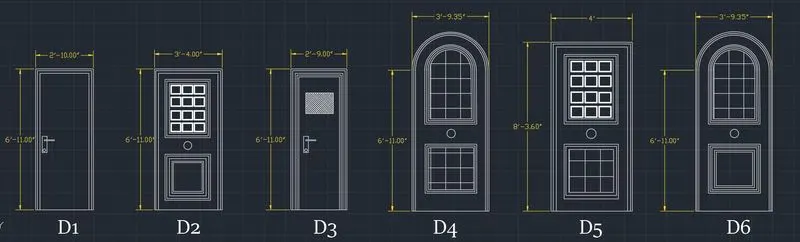

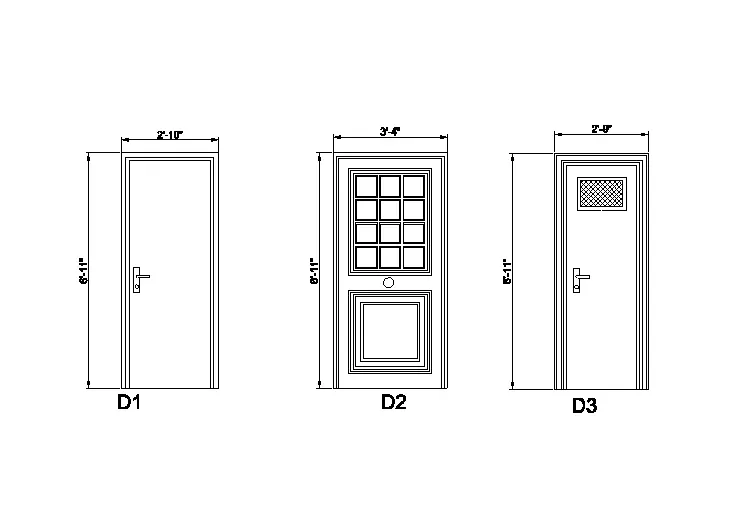

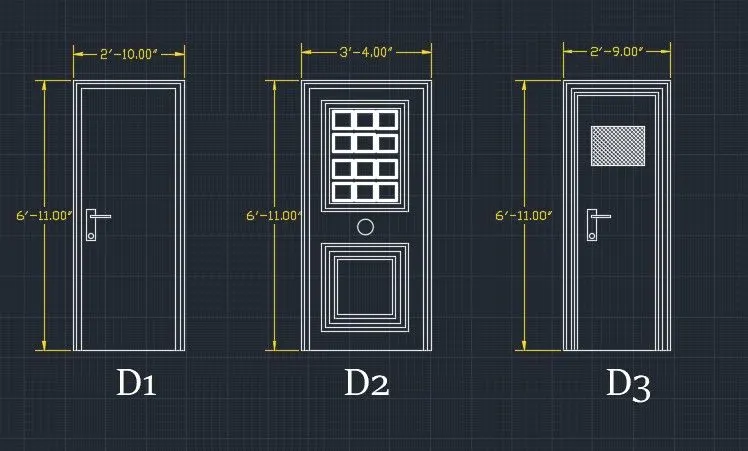

These are the Blocks of Doors.

5.)

Aim :-

• To create the bar bending schedule and insert it as a block.

Procedure :-

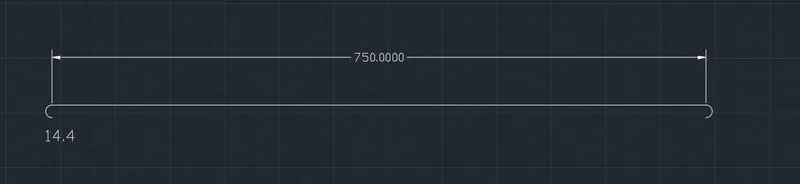

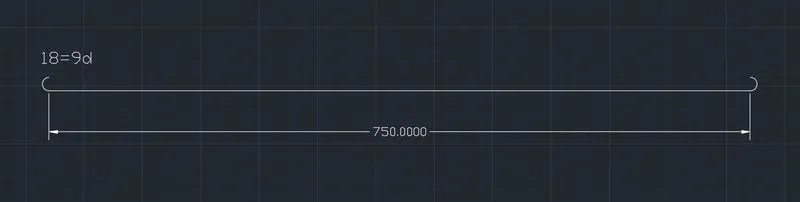

1. A(20 mm)

• Draw the line of 750 mm in length.
• Create the arc bend at 1 side and mirror it at another side.

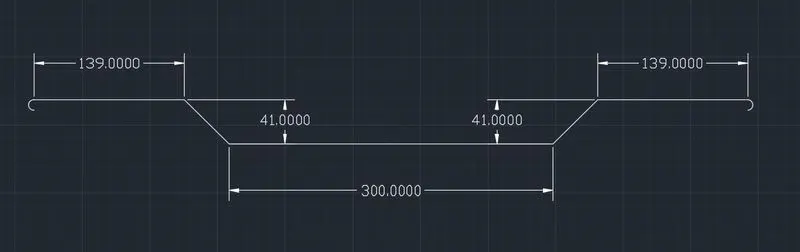

2. B(16 mm)

• Draw the straight line of 150 mm.
• Then draw the line at 45 degree and 41 mm in size.
• Then draw the line of 139 mm from 41mm line.
• Create the arc bend at 1 side.
• Mirror whole drawing at another side at 180 degree.

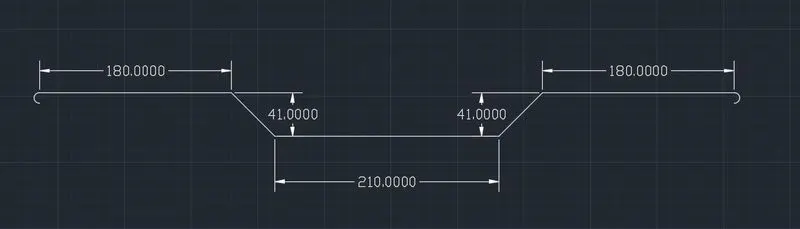

3. C(16 mm)

• Draw the straight line of 105 mm.
• Then draw the line at 45 degree and 41 mm in size.
• Then draw the line of 180 mm from 41mm line.
• Create the arc bend at 1 side.
• Mirror whole drawing at another side at 180 degree.

4. D(12 mm)

• Draw the line of 750 mm in length.
• Create the arc bend downward side at 1 side and mirror it at another side.

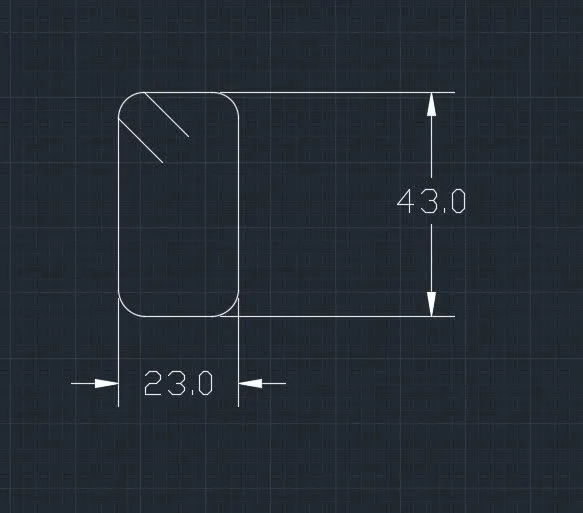

5. E(10 mm)

• Draw the rectangle of 23 mm X 43 mm.
• Fill the fillet of radius 5 mm.
• Draw 2 lines of 12 cm.

Result :-

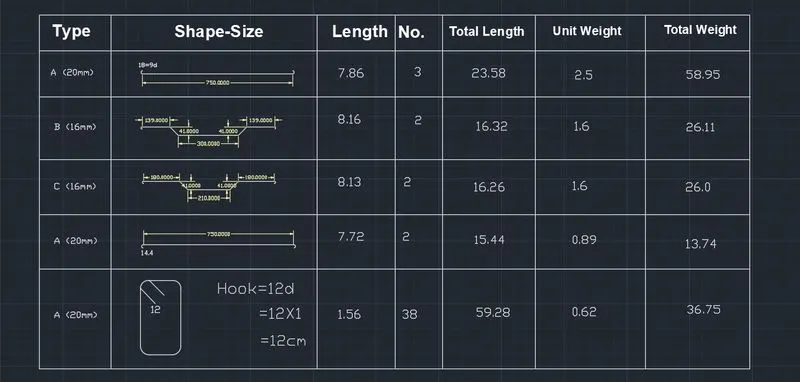

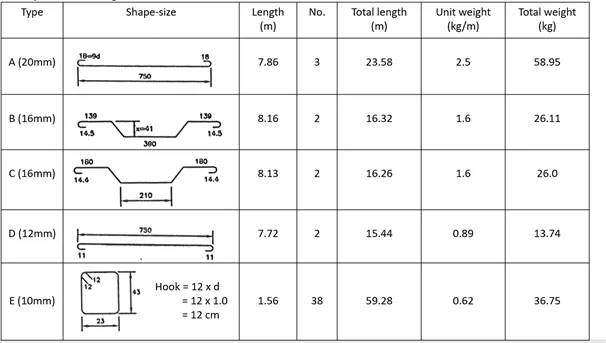

This pic. is showing the bar bending schedule.
